USER MANUAL RK-DVX-RX8S Smart-AVI

16-Port DVI-D Extender up to 275 feet over STP Cable

Front view of a black Smart-AM server rack with purple and blue labels, showing network ports (no readable text beyond branding)

Introduction

The RK-DVX200 is a 16-port video extender system (transmitter and receiver) designed to broadcast high-definition DVI-D signals up to 275 feet using inexpensive STP cabling. It is the perfect solution for extending DVI-D signals to a remote location up to 275 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location. It is fully compatible with MAC, PC and LINUX DVI standards.

One box, one power supply, and up to 16 displays extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply.

Features

• Supports up to 16 DVI-D single-link sources
• Supports High Resolution 1920x1200 60Hz WUXGA
• Supports Mac, PC, and Linux DVI
• Distance: 275 feet with three CAT6 STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Compatible with all operating systems
• Compatible with all major KVM switches
- Rack Mountable Solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
- Plug-and-play

Applications

• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

The RK-DVX200 transmitter is designed to work in conjunction with the RK-DVX200 receiver, but may also be used with the DVX-200 receiver and transmitter units. Up to 16 DVX200 receivers/transmitters may be used with the RK-DVX200, depending on the application.

Exterior view of a black Smart-IM device with a DGA port and Ethernet port (no visible text or symbols on the device body)

DVX200 Transmitter

What's in the Box?

PART NO. DESCRIPTION

RK-DVX-TX4S DVI RACK 4 ports Transmitter over STP CAT6

RK-DVX-TX8S DVI RACK 8 ports Transmitter over STP CAT6

RK-DVX-TX16S DVI RACK 16 ports Transmitter over STP CAT6

RK-DVX-RX4S DVI RACK 4 ports Receiver over STP CAT6

RK-DVX-RX8S DVI RACK 8 ports Receiver over STP CAT6

RK-DVX-RX16S DVI RACK 16 ports Receiver over STP CAT6

DVX-RX200 DVX Receiver. DVI Receiver over CAT6 STP

DVX-TX200 DVX Transmitter. DVI Transmitter over CAT6 STP

Technical Specifications*

VIDEO
Format DVI-D Single Line	e
Maximum Pixel Clock 165 MHz
Input Interface (TX)	(16) DVI-D 29-pin female
Output Interface (RX) (16)	DVI-D 29-pin female
Resolution	Up to 1920 x 1200 @60Hz
DDC	5 volts p-p(TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.

OTHER
Power	Internal 110-240 VAC
Dimensions	17 in W x 3.5 in H x 3.25 in D
Weight	10 lb
Operating Temp.	0-55 °C (32-131°F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%

Installation Diagram One - Rack to Endpoint

COMPUTERS RK-DVX200 TRANSMITTER Up to 275 ft over STP DVX200 RECEIVER 16 DVI-D DISPLAYS

1. Power off all devices.
2. Connect up to 16 DVI-D sources (computers) to each of the 16 DVI-D ports on the rear of the RK-DVX200 transmitter.

3. Connect the RK-DVX200 transmitter to the rear of each of the DVX200 receivers with one STP (Sheilded Twisted Pair) cable per receiver.

4. Connect up to 16 DVI displays to the DVI-D ports on the front of the DVX200 receivers.

Exterior view of a black Smart-Link electronic device with GVA port and network ports (no visible text or symbols)

DVX200 Receiver

1. Connect the power to the RK-DVX200 transmitter and the DVX200 receivers.

2. Power on the computers and displays.

Installation Diagram Two - Endpoint to Rack

COMPUTERS DVX200 TRANSMITTER Up to 275 ft over STP RK-DVX200 RECEIVER

1. Power off all devices.

2. Connect up to 16 DVI-D sources (computers) to the DVI-D ports of up to 16 DVX200 transmitters.

3. Connect each of the DVX200 transmitters to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per transmitter.

4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver.

Exterior view of a black Smart Min network device with I/O port and external ports (no visible text or symbols on body)

DVX200 Transmitter

1. Connect the power to the RK-DVX200 receiver and the DVX200 transmitters.

2. Power on the computers and displays.

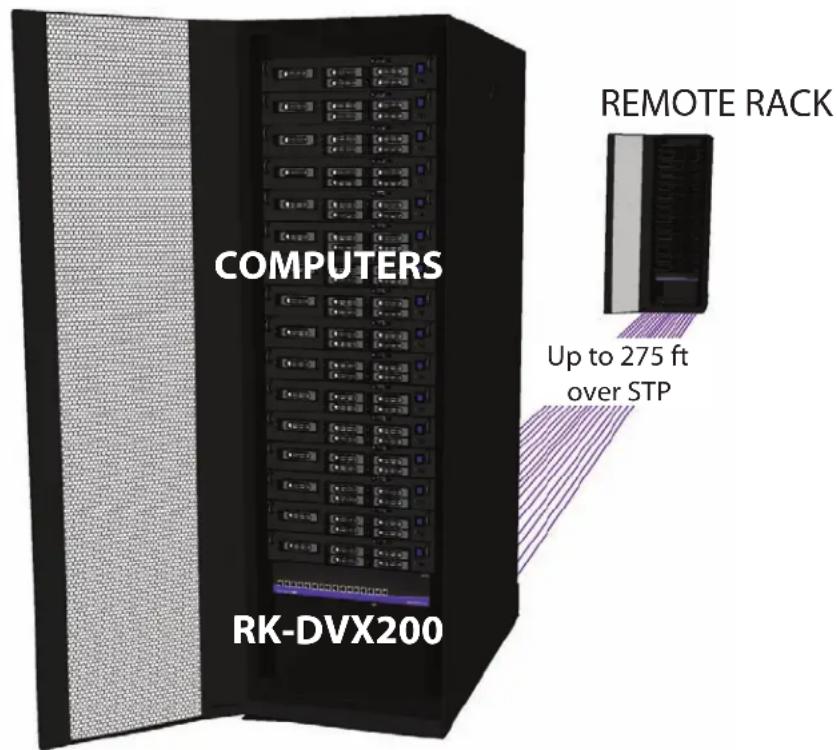

Installation Diagram Three - Rack to Rack

COMPUTERS RK-DVX200 REMOTE RACK Up to 275 ft over STP

1. Power off all devices.
2. Connect DVI-D sources (computers) to the DVI-D ports of the RK-DVX200 transmitter.
3. Connect the RK-DVX200 transmitter to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per channel (up to 16).
4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver.
5. Connect the power to the RK-DVX200 transmitter and the RK-DVX200 receiver.
6. Power on the computers and displays.

Front panel of a Smart-AM rack DVI Extender with multiple ports and indicator lights (no readable text beyond labels)

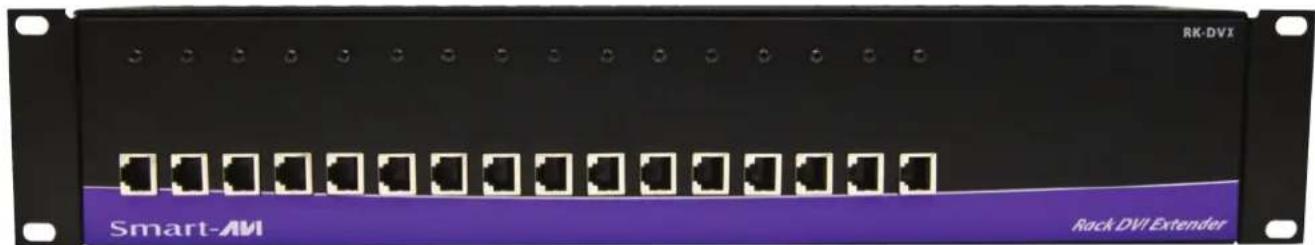

RK-DVX200-TX Front

RK-DVX Transmitter Unit POWER 100-240V DVB-Input SMARTAM.com made in USA

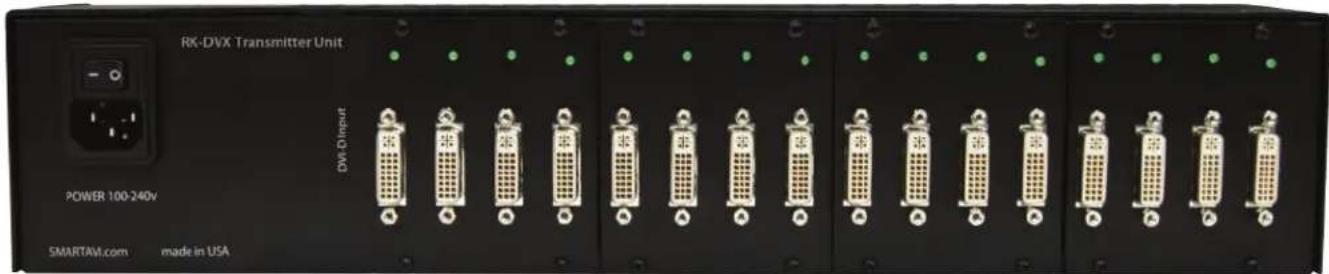

RK-DVX200-TX Rear

Exterior view of a black Smart-M device with I/O port and DTA-788 (no visible text or symbols beyond branding)

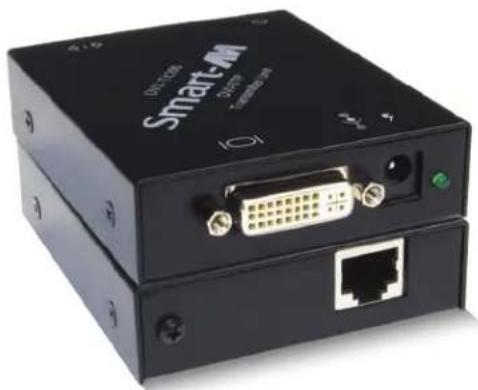

DVX200 Transmitter

STP Cable Configuration

The following is the wiring standard for terminating UTP/STP cable using RJ-45 connector:

Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Supported Resolutions

Resolution	Refresh Rate
640 x 480	85 Hz
800 x 600	85 Hz
1024 x 768	85 Hz
1152 x 870	75 Hz
1280 x 768	75 Hz
1280 x 960	60 Hz
1280 x 1024	60 Hz
1600 x 1200	60 Hz

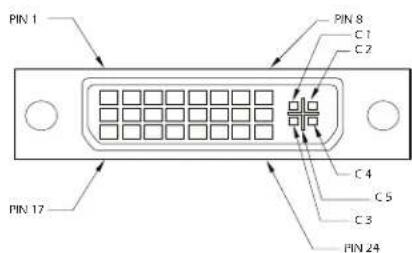

DVI-D Configuration

PIN 1 PIN 8 C 1 C 2 C 4 C 5 C 3 PIN 17 PIN 24

Pin #	Signal	Pin #	ahgiS
1	T.M.D.S Data 2-	16	Hot Plug Detect
2	T.M.D.S Data 2+	17	T.M.D.S Data 0-
3	T.M.D.S Data 2/4 Shield	18	T.M.D.S Data 0+
4	T.M.D.S Data 4-	19	T.M.D.S Data 0/5 Shield
5	T.M.D.S Data 4+	20	T.M.D.S Data 5-
6	DDC Clock	21	T.M.D.S Data 5+
7	DDC Data	22	T.M.D.S Clock Shield
8	Analog Vert. Sync	23	T.M.D.S Clock+
9	T.M.D.S Data 1-	24	T.M.D.S Clock -
10	T.M.D.S Data 1+
11	T.M.D.S Data 1/3 Shield	C1	Analog Red
12	T.M.D.S Data 3-	C2	eerogen
13	T.M.D.S Data 3+	C3	Analog Blue
14	5VDC 1.6A	C4	Analog Horz Sync
15	GND	C5	Analog Ground
