Product Type	Digital Bathroom Scale
Model	PHLSCBT4PN
Brand	Pyle
Technology	BIA (Bioelectrical Impedance Analysis) for body composition
Connectivity	Bluetooth 4.0, automatic pairing with Pyle Health app
Weight Capacity	4.4 lbs – 330.7 lbs (2 kg – 150 kg)
Weight Division	0.22 lbs (0.1 kg)
Measurements	Weight, Body Fat %, Hydration %, Muscle %, Bone %, BMI
User Memory	10 user profiles (P0-P9)
Units	kg, lb, st (switchable via button under scale)
Display	LCD screen with numeric and segment indicators
Platform Material	Tempered glass
Power Supply	4 x 1.5V AAA batteries (included)
Auto Features	Auto power-on (step on), auto zero, auto off
Overload Indication	"Errr" on display
Low Battery Indication	Display indicator
Safety Warning	Not for use with pacemakers; avoid impact, water, extreme temperatures
Maintenance	Clean with alcohol on cloth; glass cleaner for shine
Intended Use	Home use only, not professional
Included Accessories	4 x AAA batteries, quick start guide

Frequently Asked Questions - PHLSCBT4PN Pyle

How do I connect the scale to my phone?

No manual pairing is needed. Simply download the Pyle Health app, turn on Bluetooth on your iOS device (iPhone 4S or later, New iPad, iPad Mini), open the app, and step on the scale. The scale will automatically pair and sync data.

What measurements does the scale provide?

The scale measures body weight, body fat percentage, body hydration (water) percentage, muscle mass percentage, bone mass percentage, and calculates BMI (Body Mass Index).

How do I set up my personal profile?

Press the SET key for a few seconds. Use ▲ or ▼ to select a user number (P0-P9). Then set gender (♂/♀), age (10-80), and height (100-240 cm). Confirm each with SET. The data is saved automatically for future use.

Why does the scale show only weight and no body composition?

You must first cycle through the user numbers (P0-P9) until you reach your saved profile. Only then will body fat, hydration, etc., be displayed. Ensure you are barefoot and standing still on the electrodes.

What does 'Err2' on the display mean?

Err2 indicates a fat percentage measurement error. This may happen if you are not barefoot or if the electrodes are not making good contact. Repeat the measurement with clean, bare feet.

Can the scale be used by multiple people?

Yes, the scale stores up to 10 user profiles (P0-P9). Each user can set their own data and select their user number to get personal body composition readings.

How do I change the weight unit from kg to lbs?

Look underneath the scale for a small plastic button. Press it to switch between kg, lb, and st (stone). Alternatively, you can press the back key on the scale after it shows 0.0 to cycle units.

Is the scale safe for people with pacemakers?

No. People with pacemakers should NOT use this scale because it uses a low-level electrical current for BIA analysis, which may interfere with pacemaker operation.

How do I clean the scale?

Use a soft cloth dampened with alcohol to clean the electrodes. For the glass, apply a glass cleaner to a cloth first. Never submerge the scale in water or use abrasive cleaners.

What batteries does the scale use?

The scale requires 4 x 1.5V AAA batteries (alkaline recommended). They are included in the package. Replace them when the low battery indicator appears.

USER MANUAL PHLSCBT4PN Pyle

Bluetooth 4.0 Digital Weight and Personal Health Scale

Thank you for choosing this Bluetooth 4.0 Electronic Body Fat and Hydration Scale. To ensure proper operation and to maintain the lifespan and the utmost accuracy of the scale, please read this manual carefully before use.

Read this Instruction Manual carefully and keep it for future reference.

Key features

This unit automatically pairs with the Pyle Health app. There is no need to pair with your Bluetooth device.
- Bluetooth 4.0 compatible
This product adopts advanced BIA (Bioelectrical Impedance Analysis) technology to measure body fat, hydration, muscle and bone percentage by sending a safe low-tension electric current through the body and the difference of electrical conductive property of body fat from other tissues is analyzed and processed by the CPU to get the body component percentage, then the results are displayed on the LCD screen to offer you reference.
It also displays BMI parameter, and other reference data.
- High precision strain gauge sensor system ensures more accurate weighing results.
- Tempered glass platform of high quality and modern design makes the scale safe and fashionable.
◆ Memory function stores up to 10 persons' information, offering you more convenience in daily use.
◆ Capacity:4.4 lbs – 330.7 lbs
Division: 0.22 lbs
◆ Auto zero & Auto off
◆ Low battery and over load indication
◆ Freely switch between three different units: kg/lb/st
◆ Powered by 4X1.5V AAA batteries (Included)

- To change units from Kg. to lbs. please look underneath the scale and you will find a plastic button that changes units

◆ About Buttons

SET key: Power on, menu select and confirm

▲Key: Up
▼Key: Down

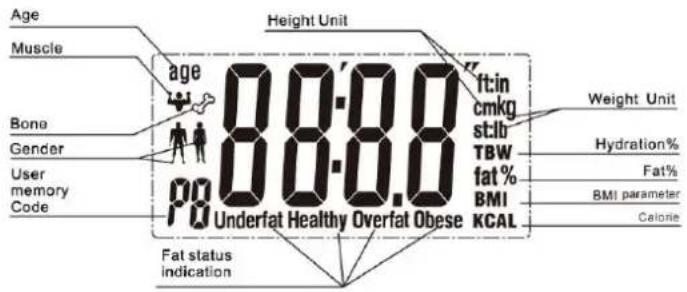

LCD Display

Preparations before use

- Find the two lithium cell in the packet and the battery holder at the back of the scale, open the cover, install the battery into the holder and cover it back.

Pure electrical circuit lines without any symbols

- Place the scale on hard and flat surface. Clean floor is best.

Setup Procedures

Installation

Prior to first use, Download and install "Pyle Health" application to your iOS device.

(Bluetooth 4.0 capabilities, e.g. iPhone 4S, iPhone 5, NewiPad and iPadMini)

QUICK START GUIDE

Bluetooth connection:

1. You do not need to search and pair for this scale prior to using it. It will automatically pair with the Pyle Health app.
2. iOS device (Turn Bluetooth "On" under the "Settings" menu on the iOS device)
3. Open "Pyle Health" application, and then press the Weight icon on the Measure screen.
4. When the measurement is complete, the weight, body fat, hydration, muscle and bone percentage will display on the scale & save on the iOS application screen.

After, check the measurement history on the History screen or chart screen in the iOS application.

For Weight only

- Step on the scale gently and it will activate itself. When the screen shows "0.0kg" after the full display, you can press the scale back key to switch within different units(kg/lb/st)

- Step on the scale gently, position your feet evenly near the center and keep your body still and erect until the scale stabilizes your weight. The scale will automatically turn off when it is not in use for an extended period of time.

For weight, body fat, hydration, muscle and bone percentage:

Press the "SET" key for a few seconds to set your personal data. Press "▲" or "▼" key to select a number from P0 to P9 as your personal code. When the code number flashes on the screen and you reach your target number, please press "SET" to confirm.

- Press “▲” or “▼” to choose “♂” Male or “♀” Female, when the gender symbol flashes on the screen and then press “SET” to confirm.

- Press “▲” or “▼” to reach your target age (10-80), when "age" and the number flash on the screen and then press "SET" to confirm.

- Press “▲” or “▼” to reach your target height (100-240cm) when the number and "cm" flash on the screen and then press “SET” to confirm.

- You must cycle through the user numbers P0 P1 P2 until you get to your user number and only then will it display readings other than weight.

Step on the scale gently and keep your bare feet in touch with the electrodes. Stand still and erect to get your weight measured and your body fat, hydration, muscle and bone percentage will be displayed respectively on the screen within seconds. These results will be repeated for two times and the scale will be automatically turn off if not in use.

- The personal data will be stored once you set it. Just confirm your code when you use the scale again and your other information will be shown too. There is no need to program them again.

Body Fat Ranges for Standard Adults

Age	Female
	Body fat percentage
	Underfat	Healthy	Overfat	Obese
12-20	<18%	18-28%	28-33%	>33%
21-42	<20%	20-30%	30-35%	>35%
43-65	<21%	21-31%	31-36%	>36%
66-100	<22%	22-32%	32-37%	>37%

Age	Male
	Body fat percentage
	Underfat	Healthy	Overfat	Obese
12-20	<15%	15-21%	21-26%	>26%
21-42	<17%	17-23%	23-28%	>28%
43-65	<18%	18-24%	24-29%	>29%
66-100	<19%	19-25%	25-30%	>30%

2.5 Body hydration rate normal/ parameter

The comparison sheet of hydration measured and hydration standard level

Age	Male	Female	Corresponding denotation
<=30	66.0-60.5%	66.0-59.9%	Optimal Hydration	Weight scope of hydration: 37.8-66.0%Hydration Increment: 0.1%
	60.4-57.1%	59.8-56.4%	Slight Dehydration
	57.0-53.6%	56.3-53.0%	Moderate Dehydration
	53.5-50.2%	52.9-48.6%	Dehydration
	50.1-37.8%	48.5-37.8%	Severe Dehydration
>30	66.0-59.1%	66.0-55.0%	Optimal Hydration
	59.0-55.7%	54.9-51.6%	Slight Dehydration
	55.6-52.3%	51.5-48.1%	Moderate Dehydration
	52.2-48.8%	48.0-44.7%	Dehydration
	48.7-37.8%	44.6-37.8%	Severe Dehydration

Because of differences in geographic areas and locations, the body fat percentage standards and percentage standards can vary. This sheet is for

reference only.

Please remember your personal P number. You do not need to reprogram the personal P number the next time you use scale. You can use the personal key you have already stored. You must cycle through the user numbers P0 P1 P2 until you get to your user number and only then will it display readings other than weight.

Caution

1. People with pacemakers should NOT use this product.
2. People with metal implants will be unable to obtain accurate readings.
3. To ensure accuracy, we suggest using the scale at the same time every night (19:00-21:00).
4. The "Errr" on scale display indicates overload. "Err2" display indicates fat percentage measurement error.
5. If body fat percentage is less than 5%, indicator displays "FATL" If more than 50% indicator displays "FATH" If impedance measuring makes an error, indicate Err2 display "Err2".
6. The "ERR" display on iOS application screen indicates the measurement error.

INSTALLING THE BATTERIES

• Use 4 x AAA batteries.
• When changing the batteries, please open the battery cover on the back. Put 4 x AAA batteries in the battery case (Ensure proper polarity), then close the battery cover tight.

Note

1. The scale should be placed on a flat, clean surface before use.
2. Do not place scale on wet, severely hot, or extremely cold surfaces.
3. Do not jump or stomp on scale. Do not attempt to disassemble the scale.
4. Do not wear shoes when standing on the scale to avoid wearing out the glass and electrodes.
5. Never submerge the unit in water. Use alcohol to clean the electrodes and glass cleaner to keep them shiny, applied to a cloth first; avoid soaps.
6. For home use only. Not for professional use. Body fat percentage and hydration percentage is reference only. You should consult a doctor when you undertake any diet or exercise program.
7. Check the battery if the scale malfunctions. If necessary, install a new battery. For other problems, please contact your local dealer or contact Pyle for repair
