KPC-DE100NUV17B - Security Camera KT&C - Free user manual and instructions

Product Type	Security Camera (Dome)
Brand	KT&C
Model	KPC-DE100NUV17B
Image Sensor	1/3" 960H SONY EXview HAD CCD II
Horizontal Resolution	700 TV Lines
Minimum Illumination (Color)	0.05 Lux / F1.2
Minimum Illumination (B/W)	0.02 Lux / F1.2
Day & Night	Auto (with IR cut filter)
Electronic Shutter Speed	1/60 sec (NTSC), 1/50 sec (PAL)
S/N Ratio	More than 50dB (AGC Off)
Video Output	1.0 Vp-p Composite (75Ω)
OSD Menu	Built-in with Joystick (Multi-language)
Privacy Masking	4 Zones
Motion Detection	4 Zones
Backlight Compensation	Off / BLC / HLC
White Balance	ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR	Yes (Level adjustable)
ATR (Digital WDR)	Yes (Level adjustable)
Power Supply	DC 12V / AC 24V Dual Voltage
Power Consumption (Standard, DC12V)	Max. 120mA
Power Consumption (Standard, Dual)	DC12V Max 150mA / AC24V Max 2.3W
IR LED (LED type)	850nm, 30 LEDs, Range up to 30m
Operating Temperature	-10°C ~ +50°C
Dimensions (Dia. x H)	136.4mm x 95.3mm
Weight	Approx. 343g
Mount Type	3-Axis Gimbal

Frequently Asked Questions - KPC-DE100NUV17B KT&C

How do I power the KPC-DE100NUV17B camera?

The camera supports dual voltage: DC 12V or AC 24V. Use a regulated Class 2 power supply. For DC operation, connect a 12V DC supply (1A recommended) to the power input. For AC operation, connect 24V AC. Refer to the connection diagram in the manual.

What is the maximum resolution of this camera?

The camera provides 700 TV Lines horizontal resolution using a 1/3" 960H SONY EXview HAD CCD II sensor, delivering clear and detailed images.

How can I adjust camera settings?

Use the built-in OSD menu controlled by the joystick on the camera. Navigate through settings like shutter, AGC, white balance, BLC, privacy zones, motion detection, and more. Changes must be saved before exiting.

Can this camera be used outdoors?

The camera is designed for indoor use unless installed in a weatherproof housing. The operating temperature is -10°C to +50°C, and it should not be exposed to rain or moisture.

How do I connect the video output?

Connect the BNC female video output to a monitor or DVR using a 75Ω coaxial cable. The test cable provided allows temporary connection for setup.

What is the IR range of this camera?

The LED type version includes 30 IR LEDs (850nm) providing up to 30 meters of night vision. The IR automatically activates when ambient light falls below 1 Lux.

How do I install the camera?

Use the included template to mark screw holes, then mount the camera using the provided screws. The 3-axis gimbal allows pan, tilt, and rotation adjustment. Connect video and power cables, then seal the cable ends to protect from humidity.

How to reset the camera to factory defaults?

In the OSD menu, navigate to CAMERA RESET and select it. This restores all settings to factory defaults. Be sure to save before exiting.

What type of power supply is recommended?

A regulated DC 12V 1A power supply is recommended for stable operation and best picture quality. Using an unregulated supply may damage the camera and void warranty.

How do I clean the camera?

Clean only with a dry cloth. Do not use liquids or harsh chemicals. Avoid touching the dome cover or sensor directly. Refer to the manual for detailed care instructions.

USER MANUAL KPC-DE100NUV17B KT&C

Thank you for choosing our high quality camera.

Before attempting to connect or operate, please read and follow these instructions.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Use Class 2 Power Supply Only

1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTIONS
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. OVERVIEW AND FUNCTION
6. INSTALLATION

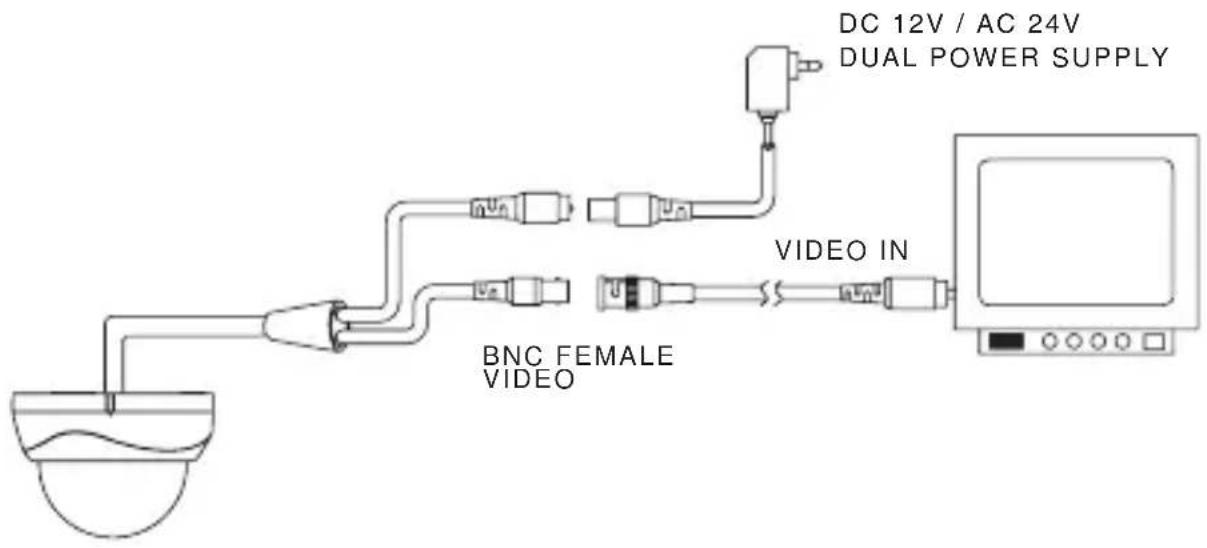

7. CONNECTION

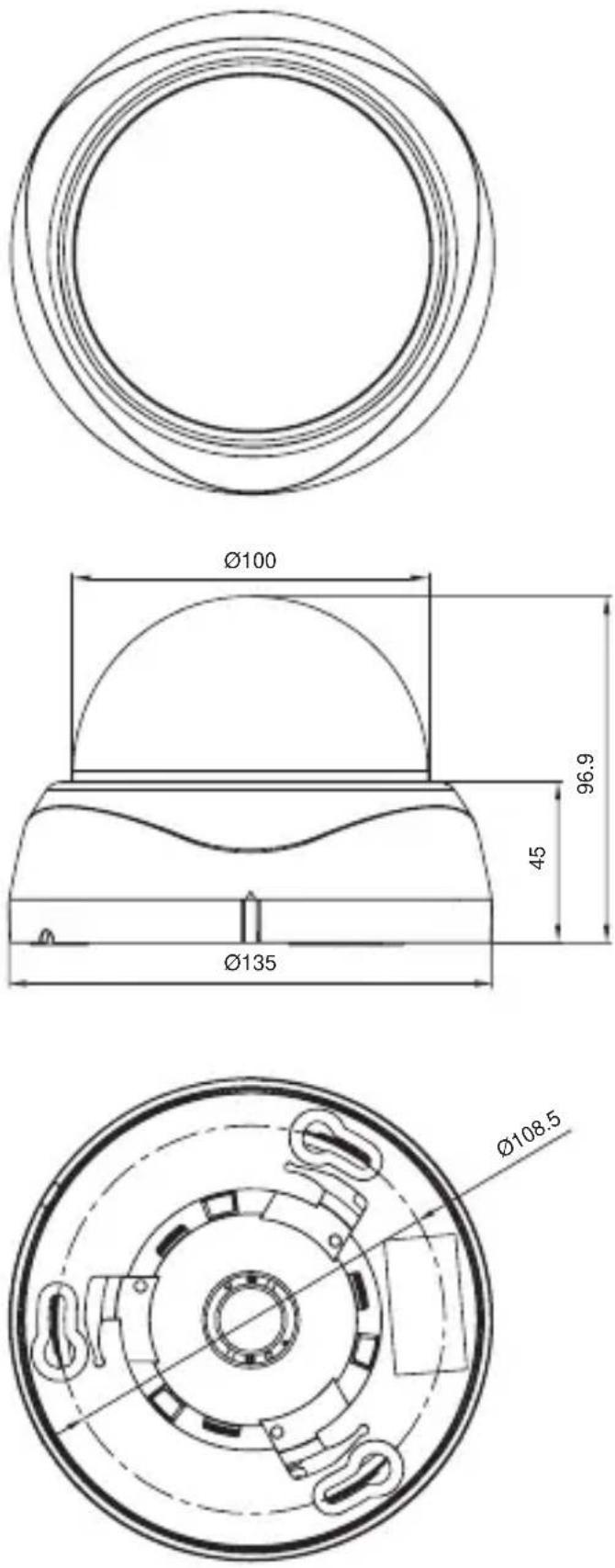

8. DIMENSIONS
9. SPECIFICATION
10. OSD MENU STRUCTURE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / tv technician for help.

Caution

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

1. A regulated DC12V 1A power supply is recommended for use with this camera for the best picture and the most stable operation.
   An unregulated power supply can cause damage to the camera.
   When unregulated power supply is applied, product warranty will be out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality 75 video impedance level. If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal components. Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reflective light, which may cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

6. Do not expose the camera to rain or other types of liquid.

7. The apparatus must be connected to a mains socket-outlet with a protective earthing connection.

WEEE (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. FEATURES

• 1/3"960H SONY EXview HAD CCD II
• High Resolution of 700TV Lines
- OSD Function
- Multi Language

(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)

• 2DNR
- Privacy Zone
- Motion Detect
• DC12V / AC24V Dual Voltage
- ATR(Adaptive Tone-curve Reproduction / Digital WDR)

The function provides gradation compensation to improve the contrast of subjects both low-luminance areas and high luminance areas exist in the same picture

• 3-Axis Gimbal

Pan Rotation Tilt Rotation Horizontal Rotation

• Service Video connector

The Service Video Connector also provides the installer with an easy way of configuring the camera.

4. EQUIPMENT AND ACCESSORIES

1 DOME CAMERA
2 VIDEO OUTPUT TEST CABLE
3 OPERATION MANUAL
4 SCREW - 3ea
5 TEMPLATE

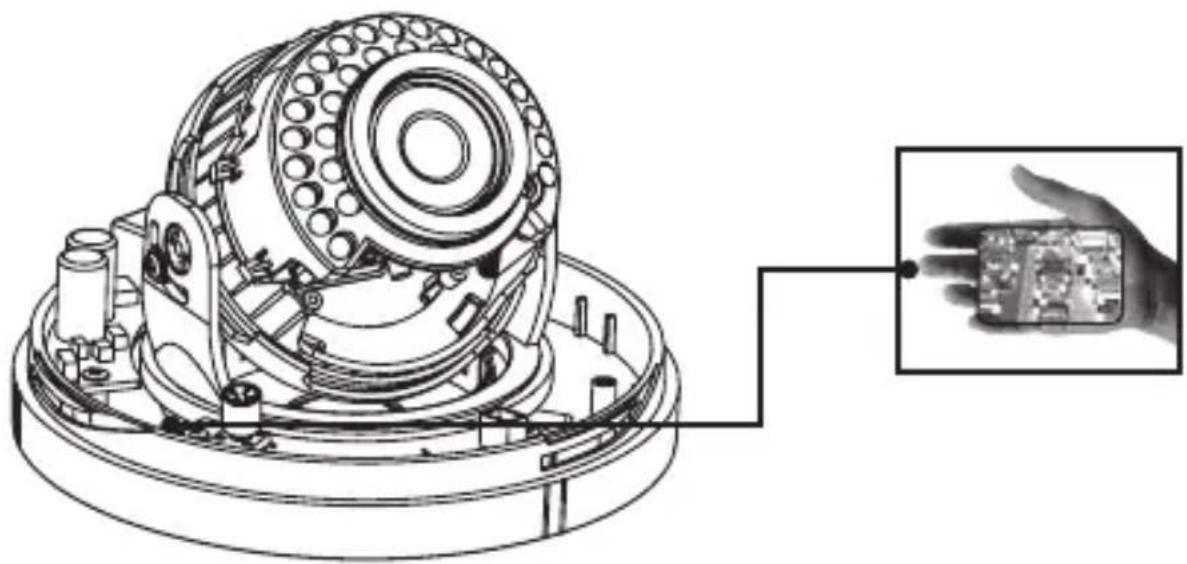

5. OVERVIEW AND FUNCTION

• Name (LED Type)


• Name (Standard)


• CONTROL FUNCTION (OSD JOYSTICK)

NO PART NAME

1 Mount Guide

2 Housing Bottom

3 Holder Panning

4 Holder Tlit

5 Holder Rotate

6 Sunshield Cover

7 Led Cover

8 Housing Top

9 Dome Cover

• DUAL(DC 12V/AC24V)

• DC 12V


When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.

Unit : mm

1. SPECIFICATION

Signal Format NTSC PAL
Image Device 1/3"960H SONY EXview HAD CCD II
Scanning System 2:1 Interlace
H.Resolution 700TV Lines
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
S/N Ratio More than 50dB(AGC Off)
Gamma r=0.45
Min. Illumination		COLOR: 0.05Lux/F1.2, BW: 0.02 Lux/F1.2
Sync System		Internal
Video Output		1.0 Vp-p Composite(75Ω)
OSD		Built in (Inner Key / Joystick)
BLC		OFF / BLC / HLC
White Balance		ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR		OFF / ON (Level adjustable)
ATR		OFF / ON (Level adjustable)
Function		MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Privacy Masking		4 Zones
Motion Detection		4 Zones
Day & Night		AUTO
Language		ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN/PORTUGUESE / SPANISH / CHINESE
Power Consumption	DC12V	DC 12V, (±10%) Max.120mA
	Dual	DC 12V, (±10%) Max.150mA / AC 24V, (±10%) Max. 2.3W
Operating Temperature		-10°C ~ +50°C
Storage Temperature		-20°C ~ +60°C
Operating Humidity		Less than 80%
Options		Dual Power
Weight		Approx. 343g
Dimension(mm)		136.4(Φ) x 95.3(mm)

LED TYPE

Power Consumption	DC12V	DC 12V, (±10%) Max. 320mA
	Dual	DC 12V, (±10%) Max 390mA / AC 24V, (±10%) Max. 4.8W
Min. Illumination		0 Lux (IR LED ON)
IR LED		850nm, 30ea
IR Beam Range		Up to 30M
IR LED Operation		On : 1 Lux, Off : 3 Lux

Specifications and designs are subject to change for improving the functionality of this product without notice.

1. OSD MENU STRUCTURE

MAIN MENU	1st Sub MENU	2nd Sub MENU	3rd Sub MENU	4th Sub MENU
LENS	MANUAL
	AUTO	TYPE DC
		MODE AUTO,OPEN,C	OSE
		SPEED (000 ~ 255)
		RETURN
SHUTTER / AGC	AUTO	HIGH LUMINANCE	MODE SHUT,AUTO IRIS, SHUT+AUTO	IRIS
			BRIGHTNESS (000 ~ 255)
		LOW LUMINANCE	MODE AGC,OFF
			BRIGHTNESS x0.25,x0.50,x0.75,x	1.00
		RETURN
	MANUAL	MODE SHUT+AGC
		SHUTTER	1/50(PAL),1/100(NTSC)1/60(NTSC),1/120(PAL)1/250,1/500,1/10001/2000,1/4000,1/10000
		AGC 6,12,18,24,30,36,	42,44.8
		RETURN
WHITE BAL	ATW	SPEED (000 ~ 255)
		DELAY CNT (000 ~ 255)
		ATW FRAME x0.50,x1	00,x1.50,x2.00
		ENVIRONMENT INDO	DR,OUTDOOR
		RETURN
	PUSH
	USER1	B-GAIN	(000 ~ 255)
		R-GAIN	(000 ~ 255)
		RETURN
	USER2	B-GAIN	(000 ~ 255)
		R-GAIN	(000 ~ 255)
		RETURN
	ANTI CR
	MANUAL	LEVEL 24 ~ 103
		RETURN
	PUSH LOCK
BACK LIGHT	OFF,BLC,HLC
PIC ADJUST	MIRROR	OFF,ON
	BRIGHTNESS	(000 ~ 255)
	CONTRAST	(000 ~ 255)
	SHARPNESS	(000 ~ 255)
	HUE	(000 ~ 255)
	GAIN	(000 ~ 255)
	RETURN
ATR	ON	LUMINANCE	LOW,MID,HIGH
		CONTRAST	LOW,MIDLOW,MID,MIDHIGH,HIGH
		RETURN
	OFF

*SHUT+IRIS: Both the Shutter and the Mechanical Iris are automatically adjusted according to brightness.

* Auto Iris(Default): The Shutter stays at the manually selected value and only the Mechanical Iris adjusts to brightness.

1. OSD MENU STRUCTURE

MAIN MENU	1st Sub MENU	2nd Sub MENU	3rd Sub MENU	4th Sub MENU
MOTION DET	ON	DETECT SENSE	(000 ~ 127)
		BLOCK DISP	OFF,ON,ENABLE (CONTROLLER)
		MONITOR AREA	ON,OFF
		AREA SEL	1/4, 2/4, 3/4, 4/4
			TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
			RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
		RETURN
	OFF
NEXT
EXIT
SAVE ALL
PRIVACY	ON	AREA SEL	1/4, 2/4, 3/4, 4/4
			TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
			RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
		COLOR	(1 ~ 8)
		TRANSP	0.00, 0.50, 0.75, 1.00
		MOSAIC	OFF,ON
		RETURN
	OFF
NR	NR MODE OFF,Y,C,Y/C
	C LEVEL (000 ~ 015)
	Y LEVEL (000 ~ 015)
	RETURN
CAMERA ID	ON EDIT MODE
		RETURN
	OFF
LANGUAGE ENGLISH, 日本語, DEUTSCH, FRANCAIS, Русский. PORTUGUÊS, ESPAÑOL, 中文
CAMERA RESET
BACK
EXIT
SAVE ALL

*Important Note :
- Any changes made to the camera settings must be saved prior to exiting the OSD menu. Else all changes will be discarded.
- By changing the lens option in the OSD from MANUAL to AUTO will automatically change the SHUTTER/AGC setting from AUTO IRIS to SHUT+AUTO IRIS.(Default:AUTO IRIS)
