Product Type	Indoor Fixed Dome Network Camera
Model	4X-FD7132 (VIVOTEK FD7132)
Image Sensor	1/4" CMOS sensor, VGA resolution
Lens	Vari-focal f=3.3~12 mm, F1.4~2.9, auto-iris
Angle of View	Horizontal: 17.9° ~ 63.6°, Vertical: 13.5° ~ 46.5°
Minimum Illumination	0 Lux (with IR illuminators)
Video Compression	MJPEG & MPEG-4, dual stream
Maximum Frame Rate	640x480 up to 30 fps (60 Hz) / 25 fps (50 Hz)
Audio	Built-in microphone, external mic input, two-way audio (SIP)
Audio Compression	GSM-AMR (4.75~12.2 kbps), AAC (16~128 kbps)
Networking	10/100 Mbps Ethernet, RJ-45; Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, HTTPS
IR Illuminators	Up to 15 meters
PIR Sensor	Yes, for human detection
Motion Detection	Triple-window video motion detection
Day/Night Function	Removable IR-cut filter, automatic or manual
Power Supply	12V DC or 802.3af PoE; Max consumption 11W
Dimensions	143 mm (D) × 106 mm (H)
Weight	613 g (net)
Operating Temperature	0° ~ 50°C (32° ~ 122°F)
Humidity	20% ~ 80% RH
Certifications	CE, FCC, VCCI, C-Tick, LVD
Security	Multi-level user access, IP filtering, HTTPS encryption
Installation	3-axis mechanism for ceiling or wall mount
Included Accessories	Power adapter, software CD, alignment sticker, warranty card, quick guide, screwdriver, screws and I/O connector
Maintenance	Clean dome cover with soft dry cloth; avoid solvents

Frequently Asked Questions - 4X-FD7132 4XEM

How do I reset the camera to factory defaults?

Press and hold the reset button (indented on the device) with a paper clip until the status LED rapidly blinks (about 30 seconds). All settings will be restored to factory defaults. Upon success, the LED blinks green and red.

How can I access the camera over the Internet?

You can set up the camera behind a router and configure port forwarding, use a static IP, or PPPoE. Ensure the camera has a valid network configuration and that HTTP/RTSP ports are forwarded on the router. Alternatively, use DDNS (e.g., Safe100.net) to map a dynamic IP to a hostname.

What video compression formats does the camera support?

The camera supports MPEG-4 and MJPEG compression. It can stream dual streams simultaneously (e.g., one MPEG-4 for live viewing and one MJPEG for mobile).

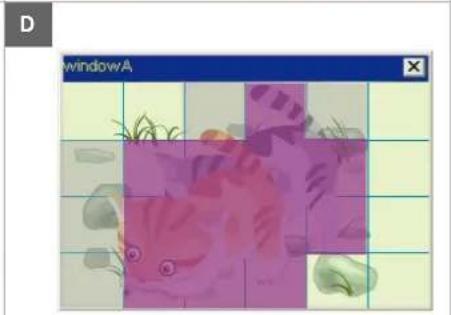

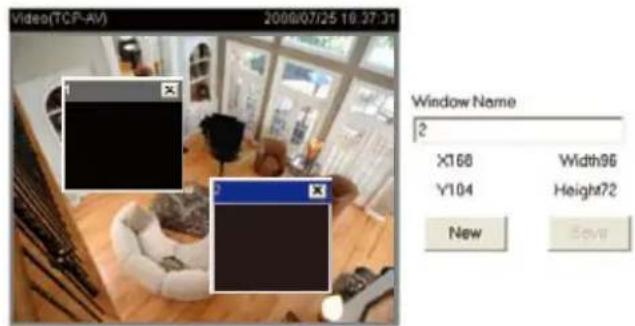

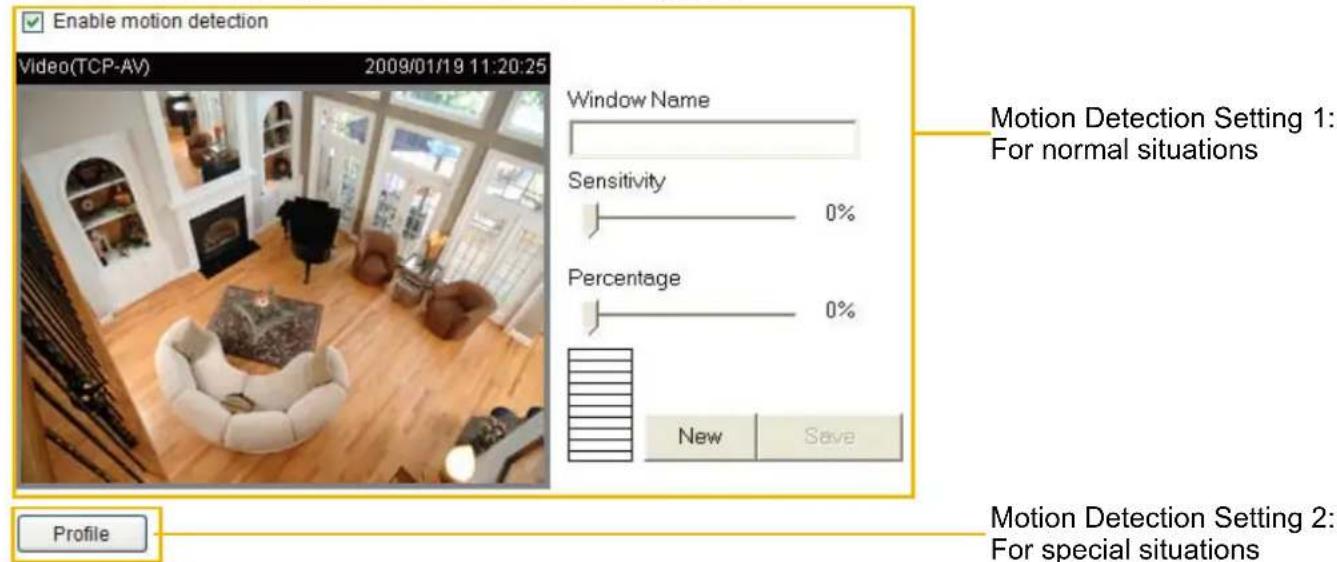

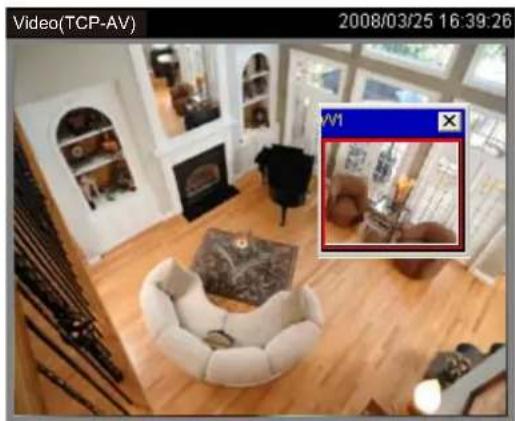

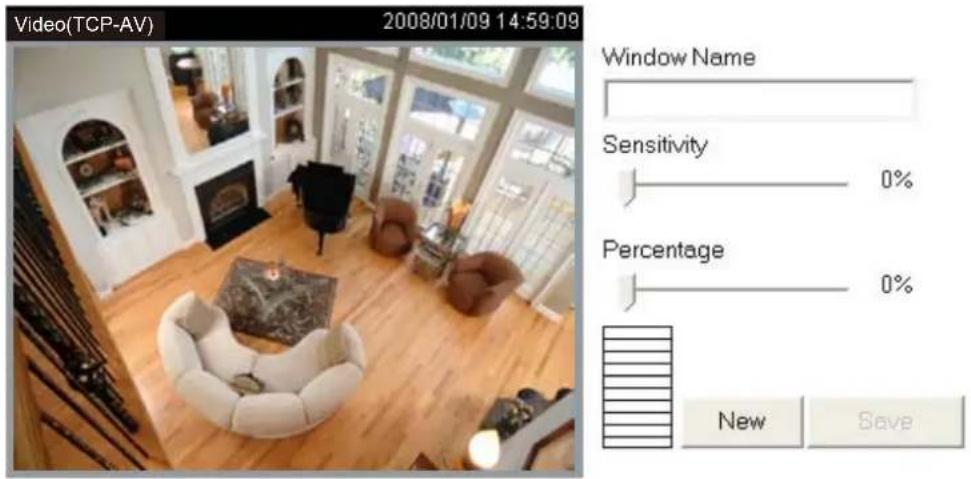

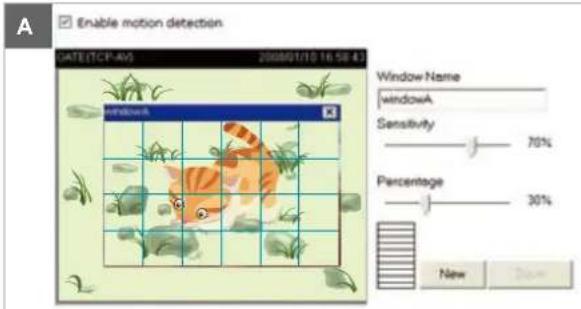

How do I set up motion detection?

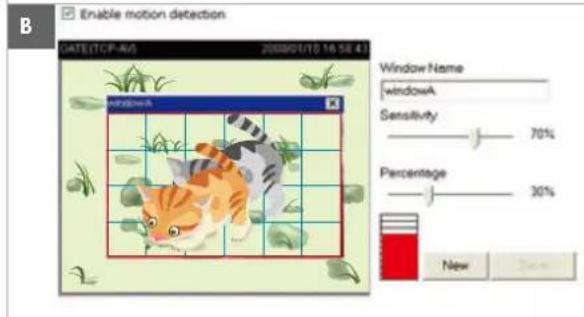

Go to Configuration > Motion Detection. Click 'New' to add a window, name it, and set sensitivity and percentage thresholds. Enable motion detection. You can then use motion detection as a trigger for events (e.g., send snapshots via email).

Can I view the camera on my mobile phone?

Yes, the camera supports 3GPP-compatible mobile devices. Set the video mode to MPEG-4, frame size to 176x144, frame rate to 5 fps, and audio to GSM-AMR. Use an RTSP player (e.g., RealPlayer) and enter the URL: rtsp://:/. Make sure RTSP authentication is disabled.

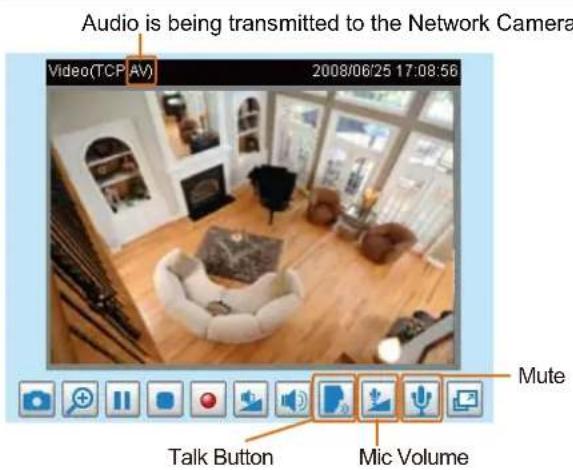

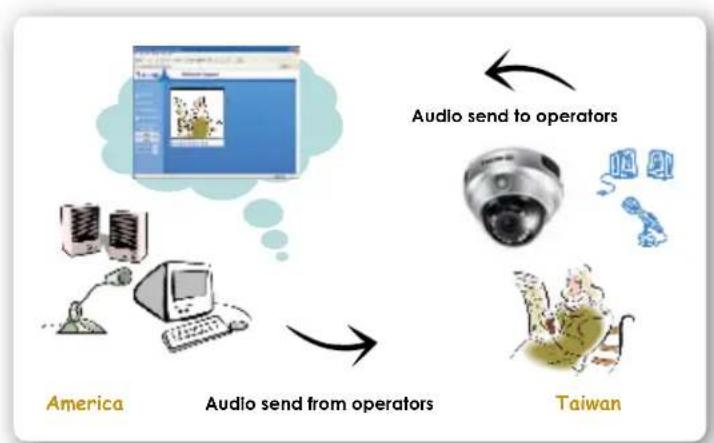

How do I enable two-way audio?

Two-way audio is supported via SIP protocol. Ensure the video mode is set to MPEG-4 and the media option includes audio. On the main page, click the 'Talk' button to speak through the camera's external speaker. Audio must be enabled in Client Settings.

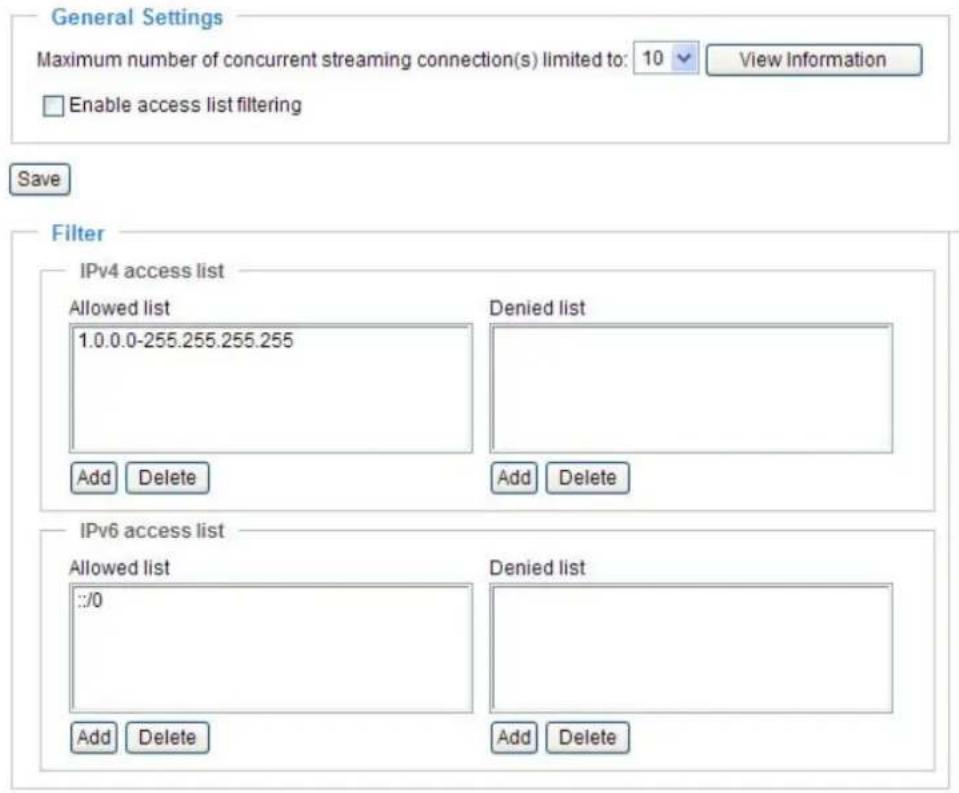

What is the maximum number of concurrent viewers?

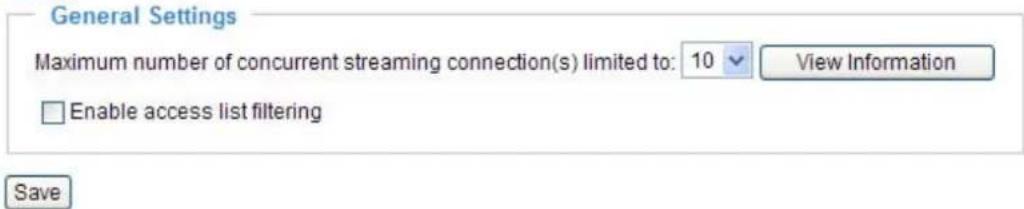

The camera supports up to 10 simultaneous streaming connections (for both streams combined). You can limit this number in the Access List settings.

How do I install the camera on a ceiling or wall?

Use the 3-axis mechanism. Remove the dome cover, mount the base to the ceiling or wall using the provided screws and alignment sticker. Adjust pan, tilt, and roll for desired viewing angle. Connect Ethernet and power, then use the Installation Wizard 2 to assign an IP address.

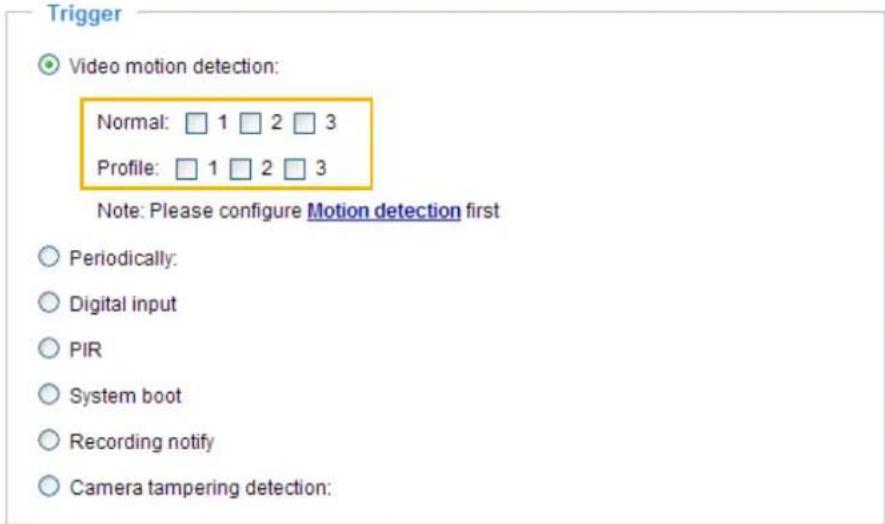

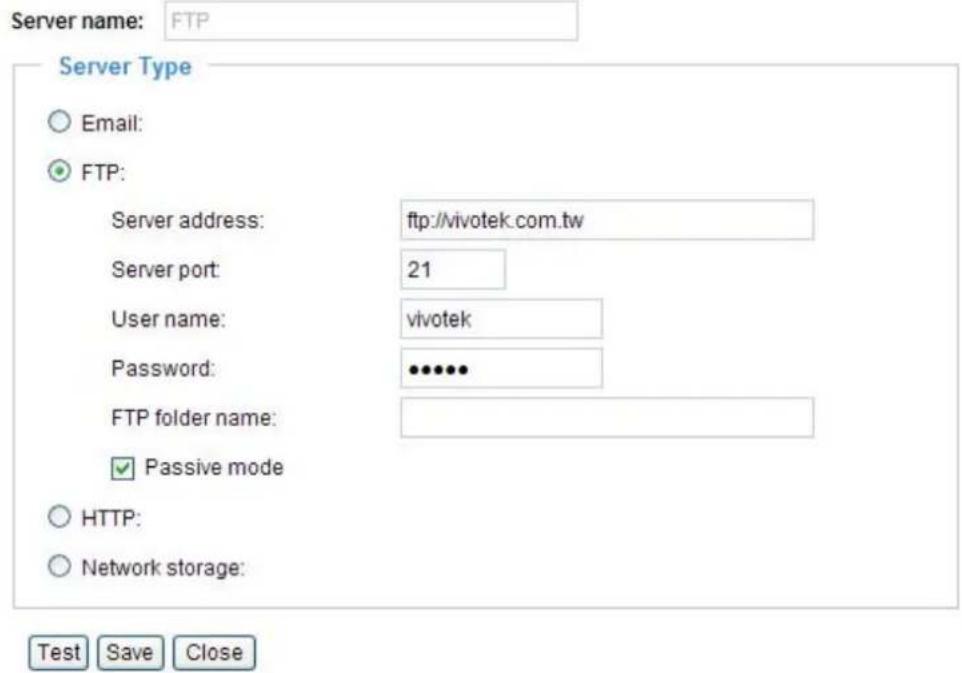

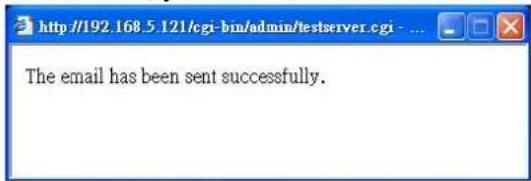

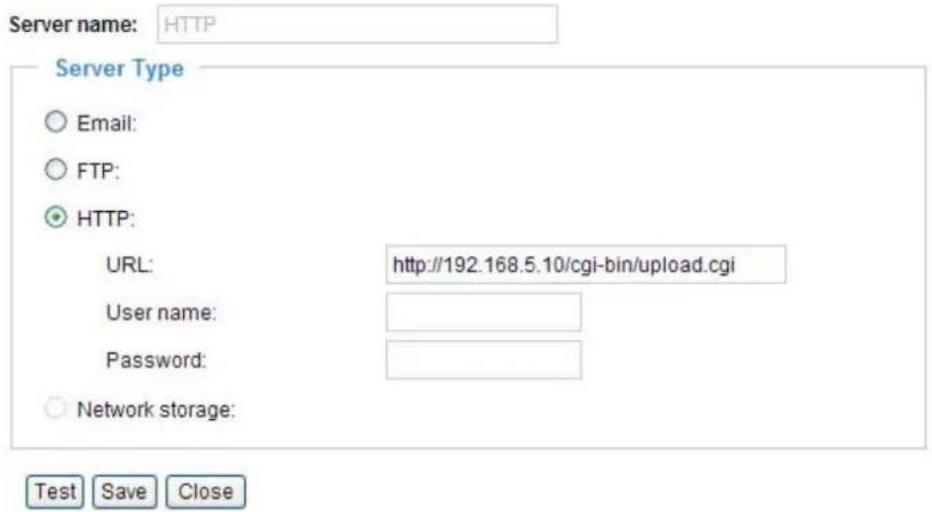

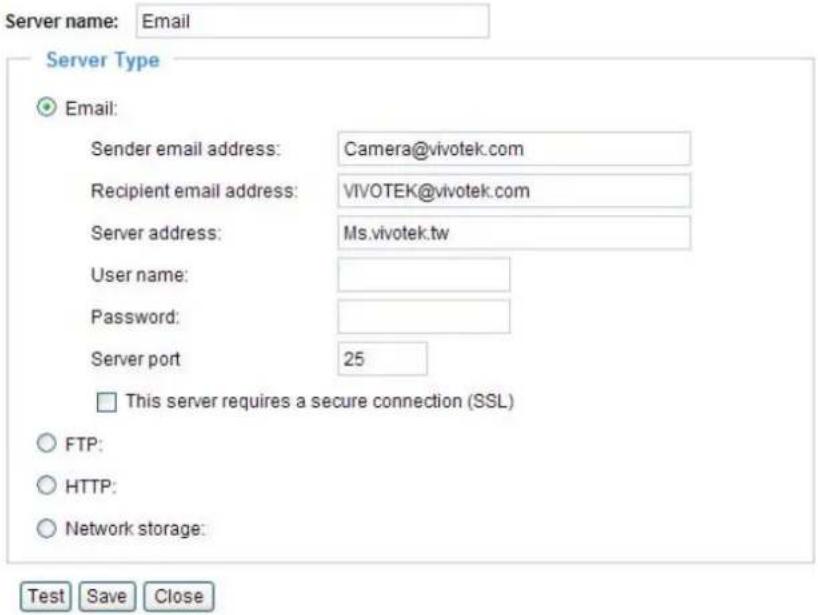

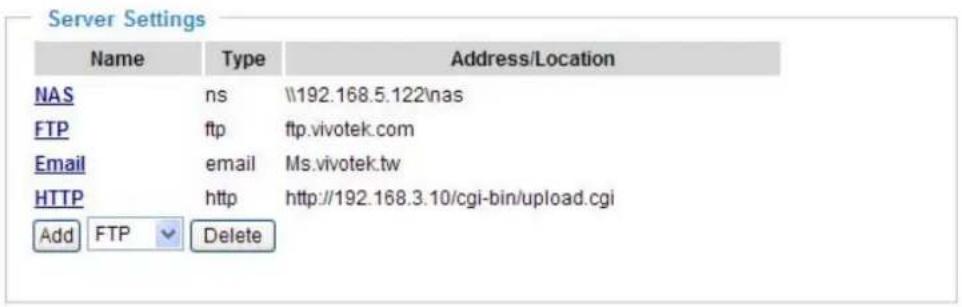

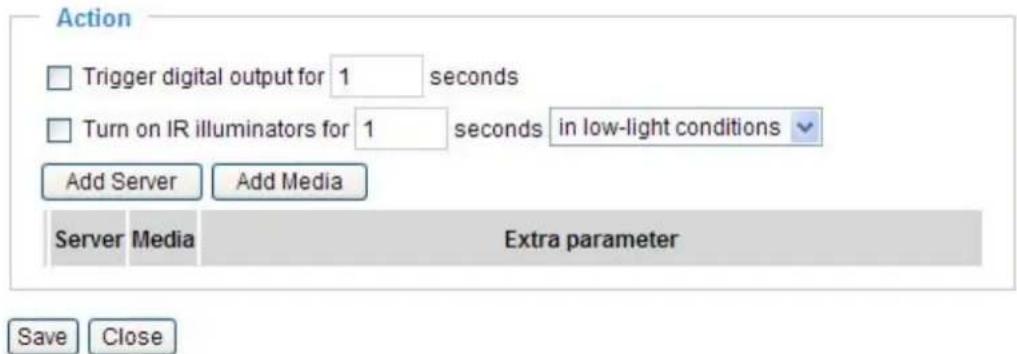

Does the camera support recording to an FTP server or email?

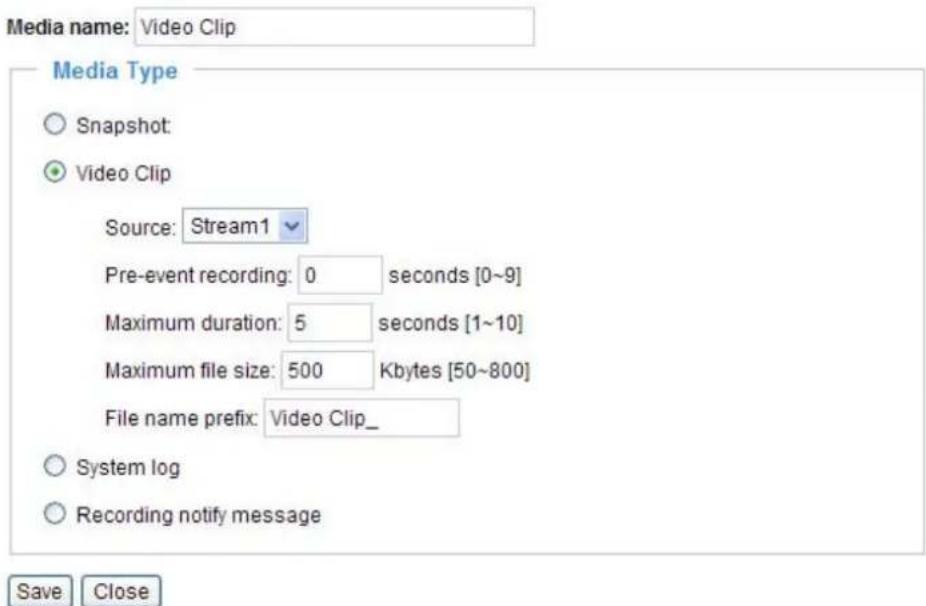

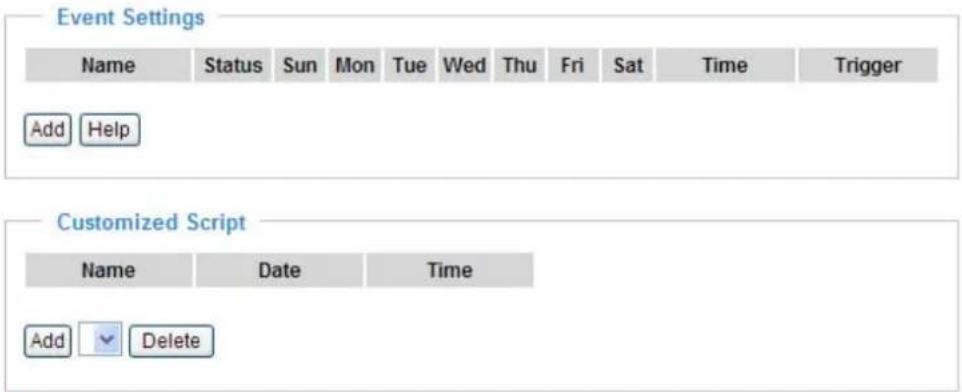

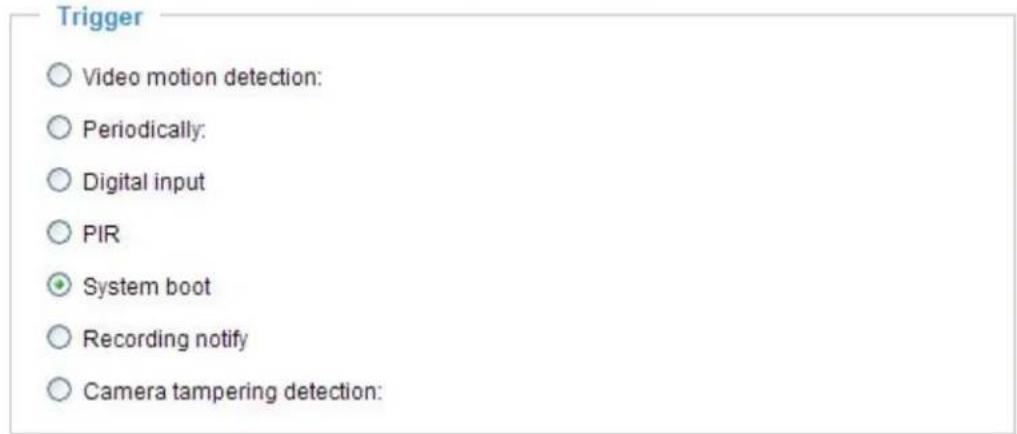

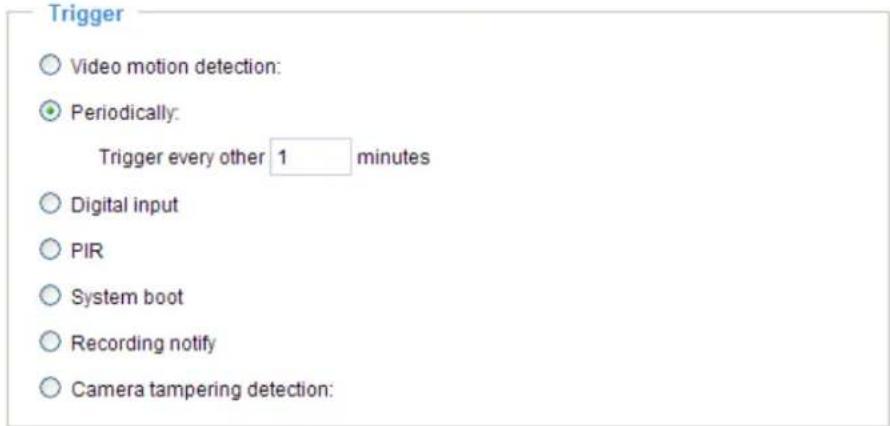

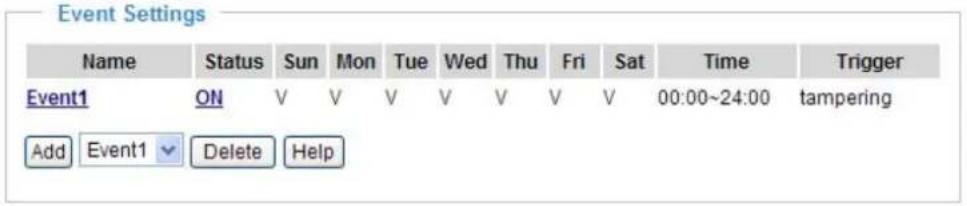

Yes. In the Event Settings, you can configure triggers (e.g., motion detection) to send snapshots or video clips to an FTP server, email, HTTP server, or network storage. Configure the server settings (address, credentials) and media settings (format, pre/post event images).

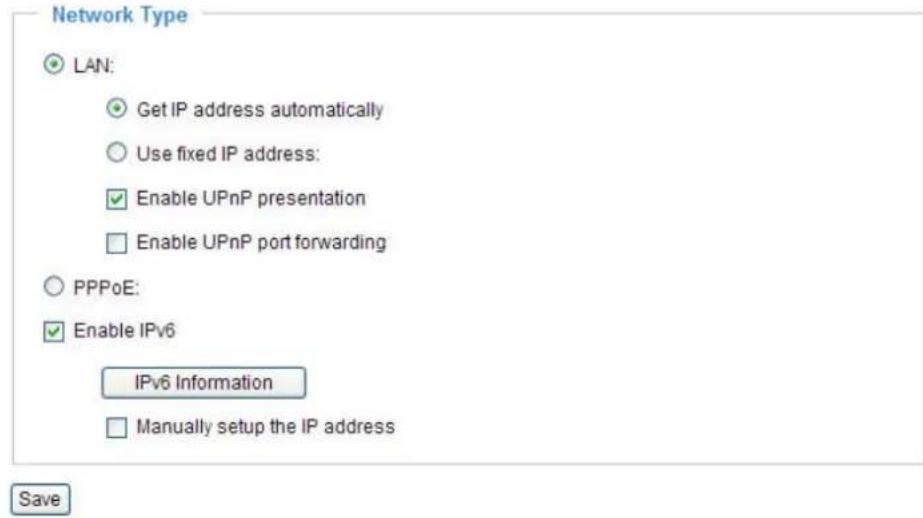

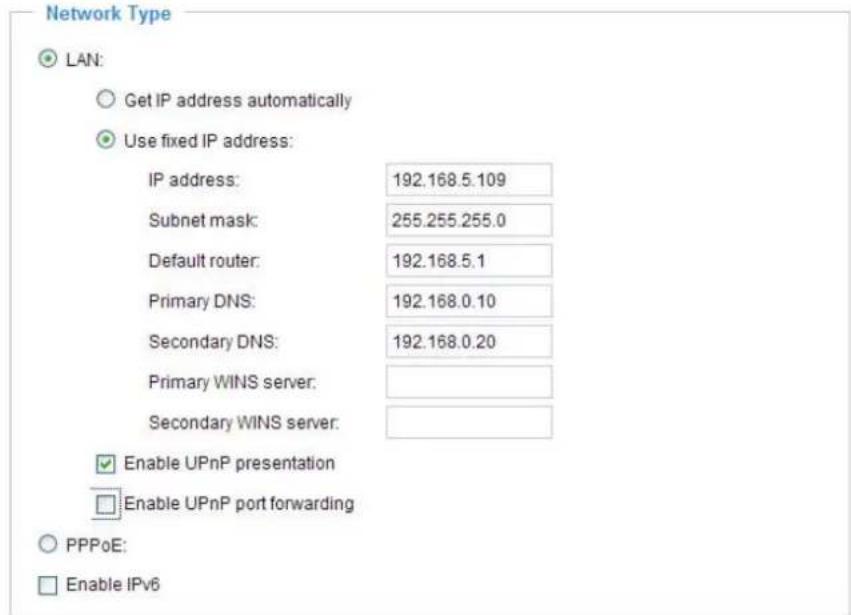

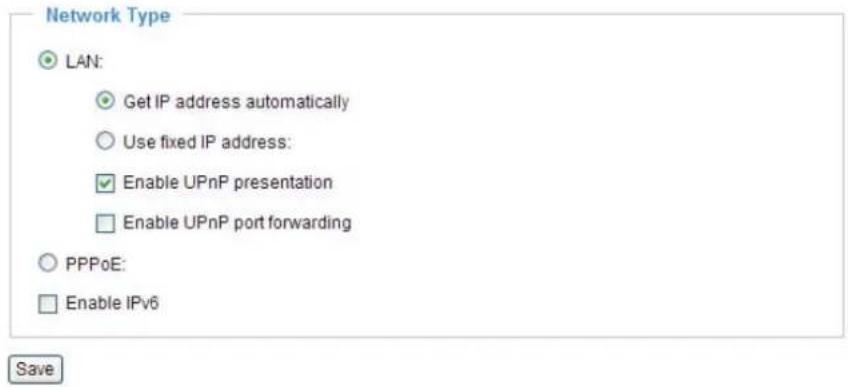

How can I change the camera's IP address?

Go to Configuration > Network > Network Type. Choose either 'Get IP address automatically' (DHCP) or 'Use fixed IP address' and enter the static IP, subnet mask, default router, and DNS. Click Save. If the camera is on the same LAN, you can also use the Installation Wizard 2 to discover and configure it.

USER MANUAL 4X-FD7132 4XEM

NETWORK CAMERA User's Manual

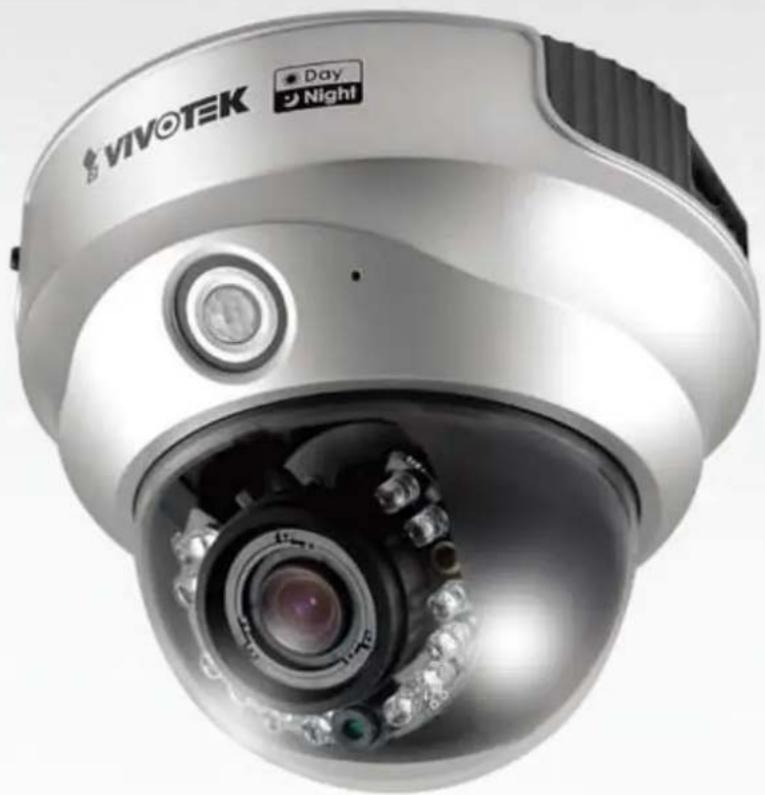

Close-up of a Vivotek security camera with dual-lens and camera lens (no visible text or symbols on the device itself)

Table of Contents

Overview....3

Read Before Use....3

Package Contents ....3

Physical Description 4

Installation 6

Hardware Installation....6

Network Deployment....9

Software Installation....12

Accessing the Network Camera 13

Using Web Browsers....13

Using RTSP Players....15

Using 3GPP-compatible Mobile Devices....16

Using VIVOTEK Recording Software....17

Main Page 18

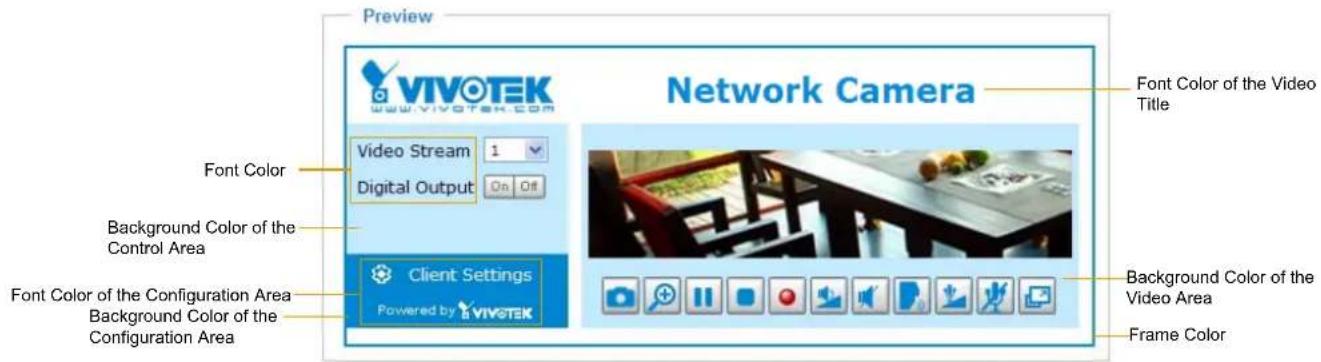

Client Settings 22

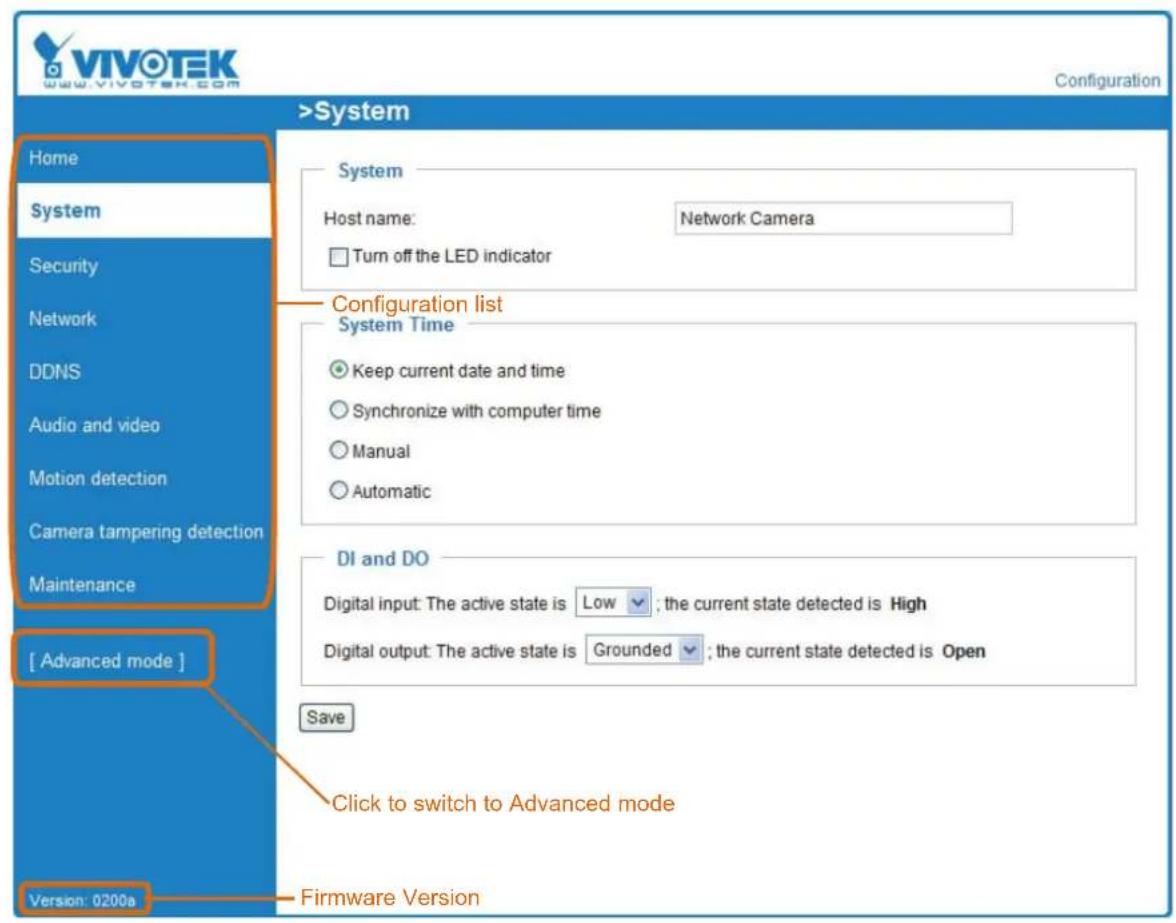

Configuration 24

System 25

Security 27

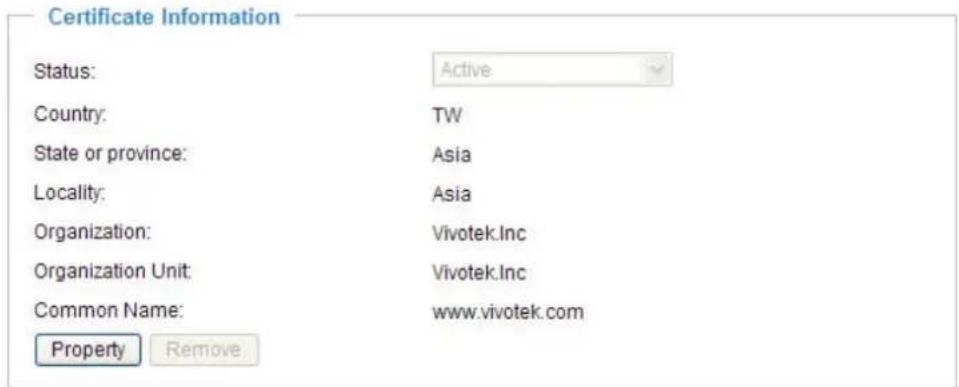

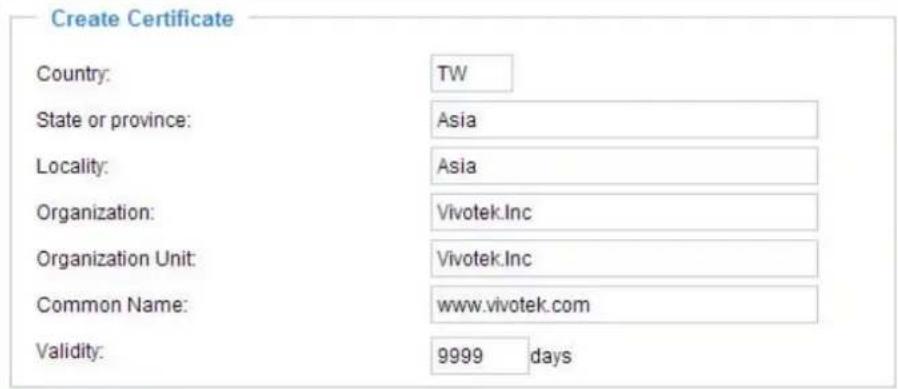

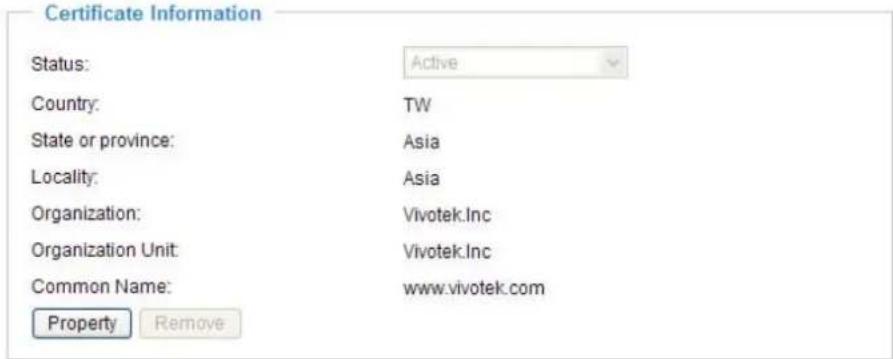

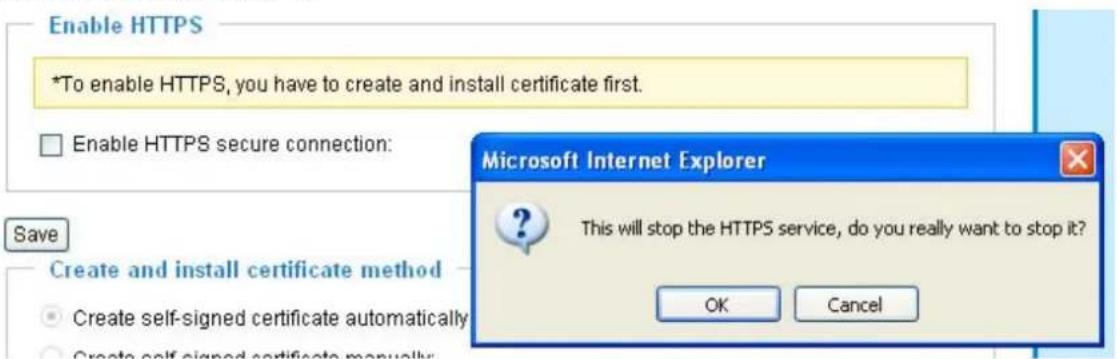

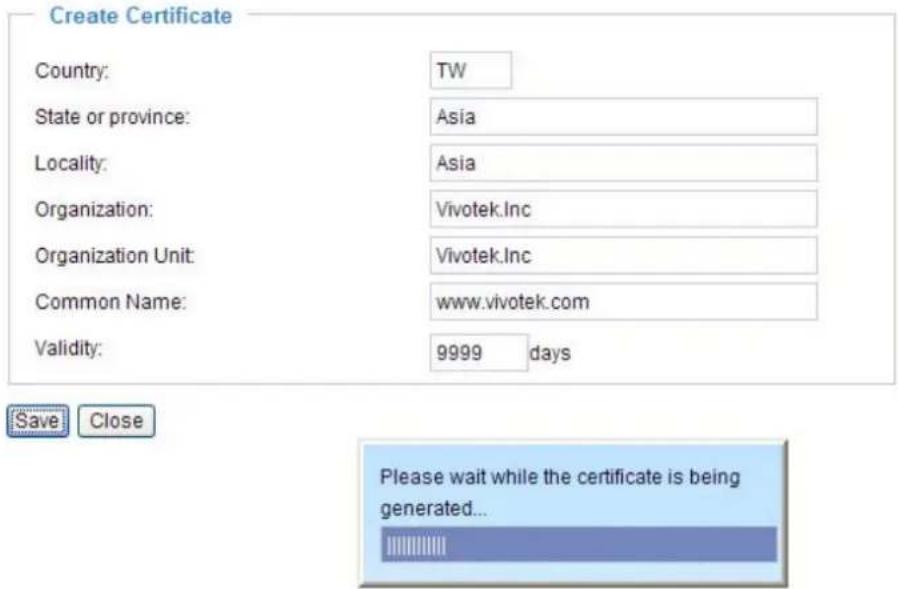

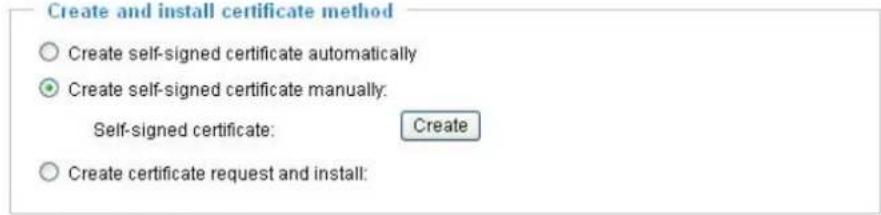

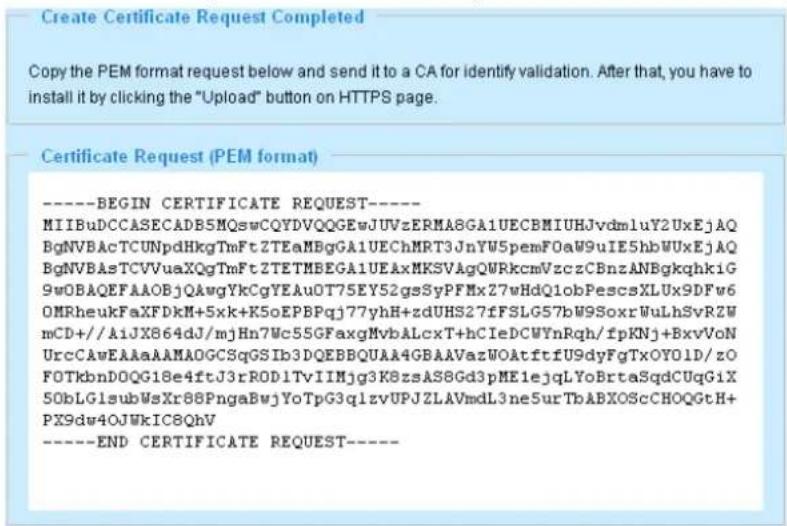

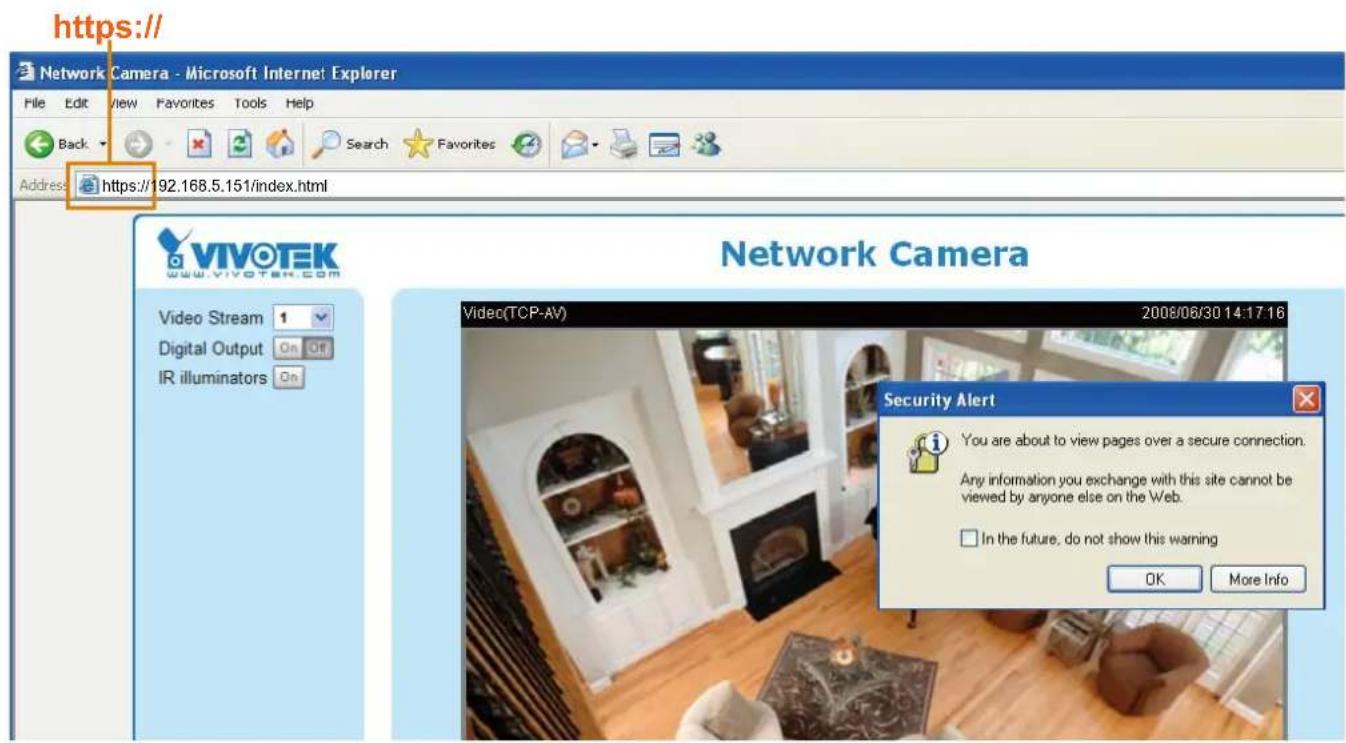

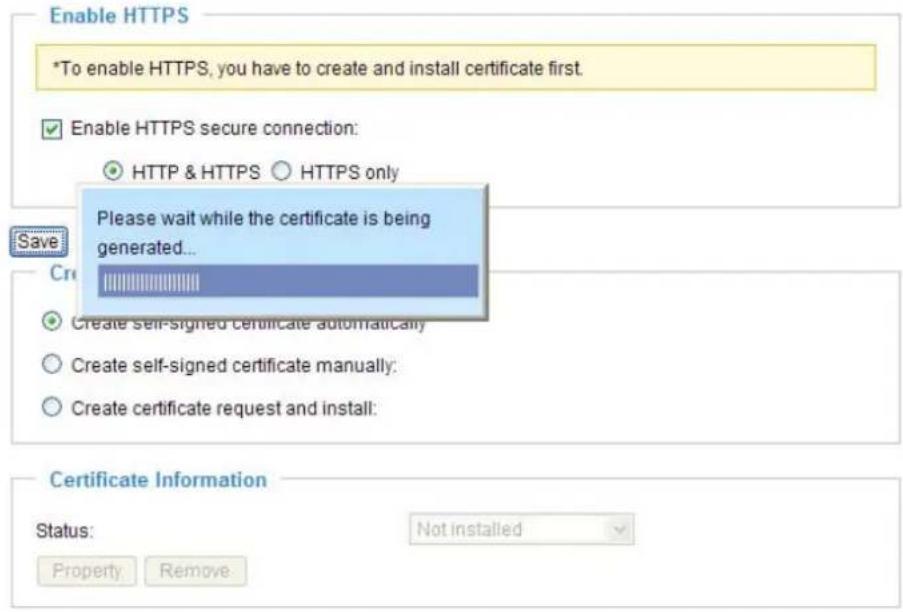

HTTPS....28

Network 33

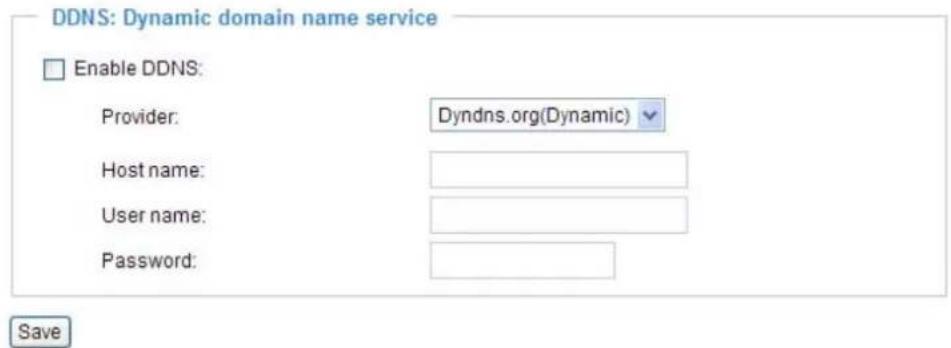

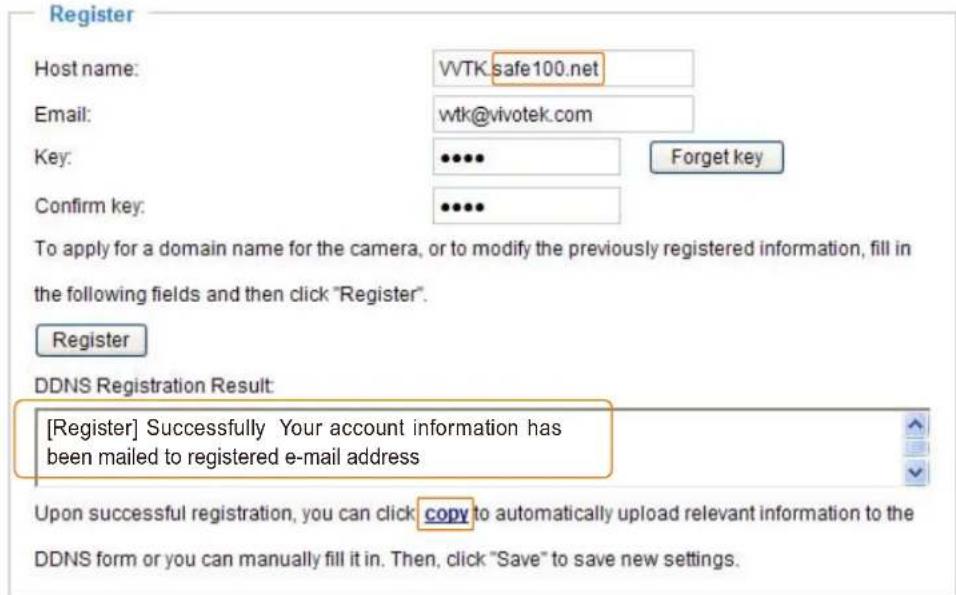

DDNS 44

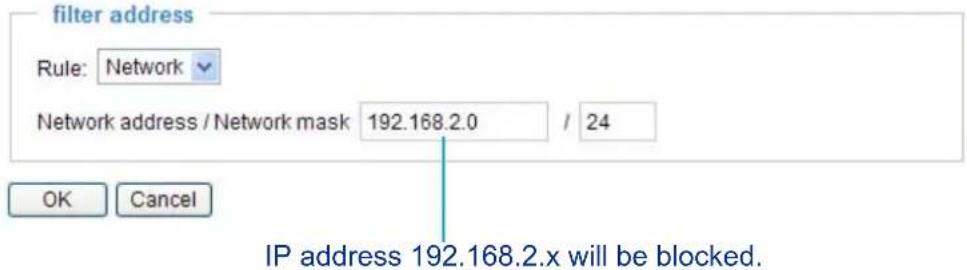

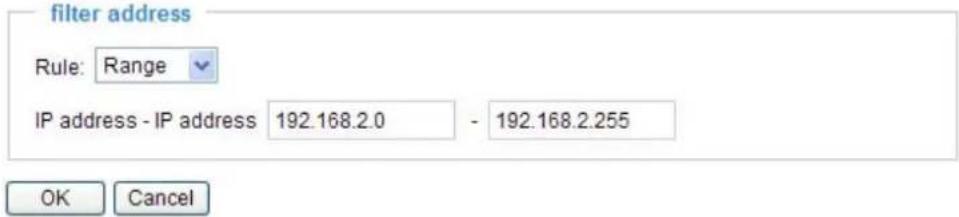

Access List 46

Audio and Video....49

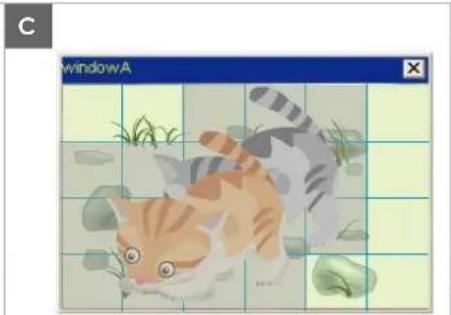

Motion Detection 56

Application....63

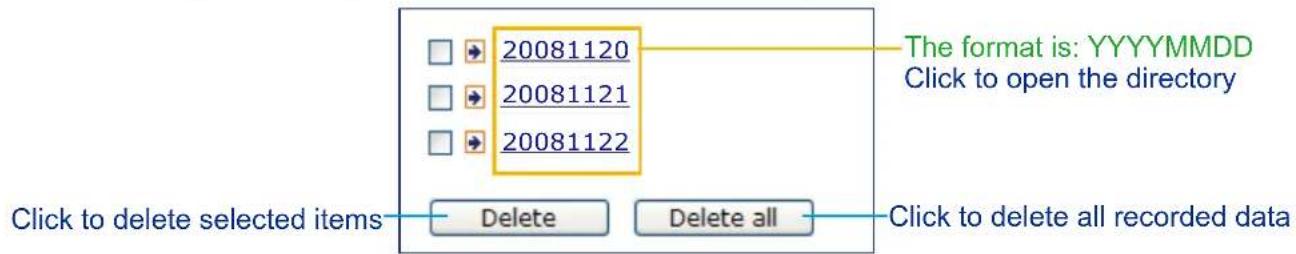

Recording 76

System Log 79

View Parameters....80

Maintenance....81

Appendix 85

URL Commands for the Network Camera....85

Technical Specifications 124

Technology License Notice....125

Electromagnetic Compatibility (EMC)....126

Overview

VIVOTEK FD7132 is a 3-axis fixed dome network camera with true day and night function for indoor 24-hour continuous surveillance. Coupled with a removable IR-cut filter and IR illuminators up to 15 M (50ft), the high-sensitive FD7132 provides superior quality images in both day and night conditions. The sophisticated 3-axis mechanism design offers very flexible, easy hardware installation for either ceiling or wall mount. You may pan, tilt, or roll your camera and still have a wide range field of view by a 3.3\~12 mm vari-focal, auto-iris board lens. Additionally, the built-in PIR (Passive Infrared) sensor can effectively help you detect any motion objects by their thermal to prevent occurrences of false alarms. By offering many advanced functions including simultaneous dual streams, 3GPP mobile surveillance, 802.3af compliant PoE, two-way audio by SIP protocol, and HTTPS encryption, this full-featured FD7132 allows you to easily build up a cost-effective IP surveillance system for indoor day and night applications such as offices, banks, retail stores and much more.

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the Package Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ FD7132
■ Power Adapter
■ Software CD
■ Alignment Sticker
■ Warranty Card
■ Quick Installation Guide
■ Screwdriver
■ Screws and I/O Connector

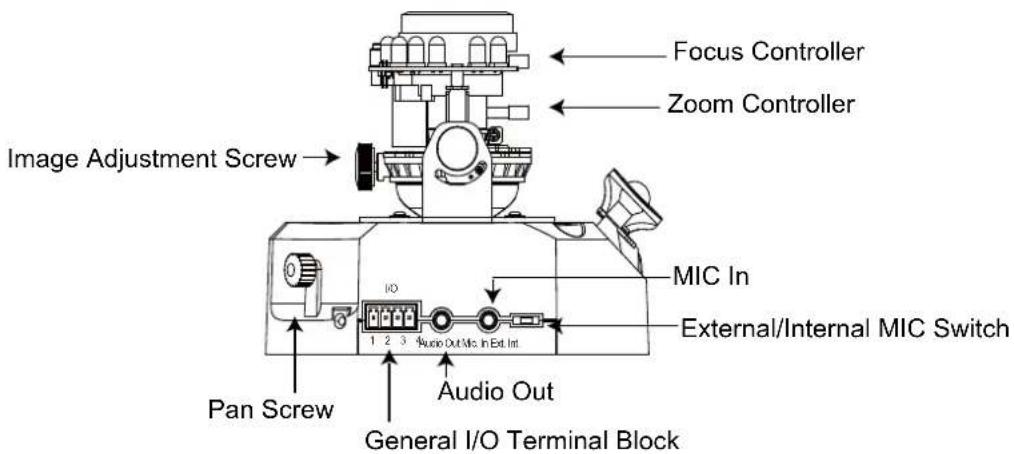

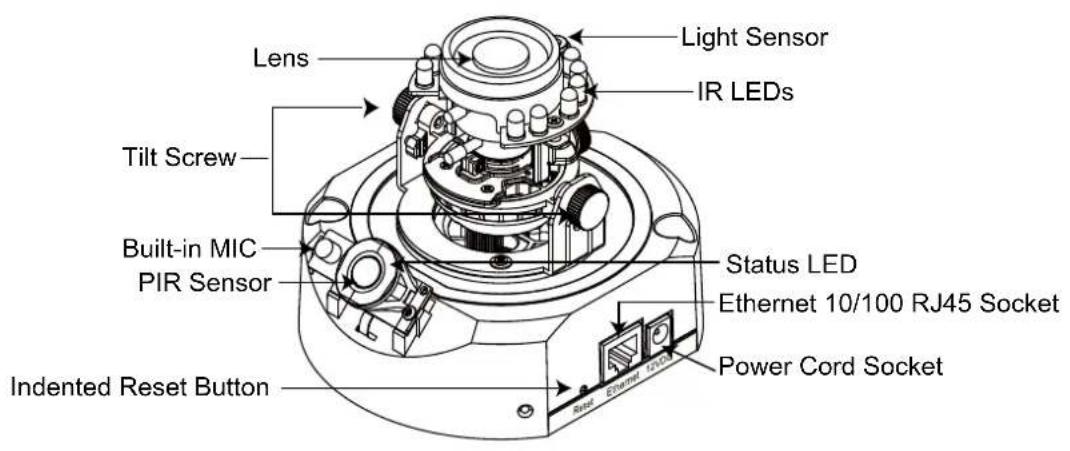

Physical Description

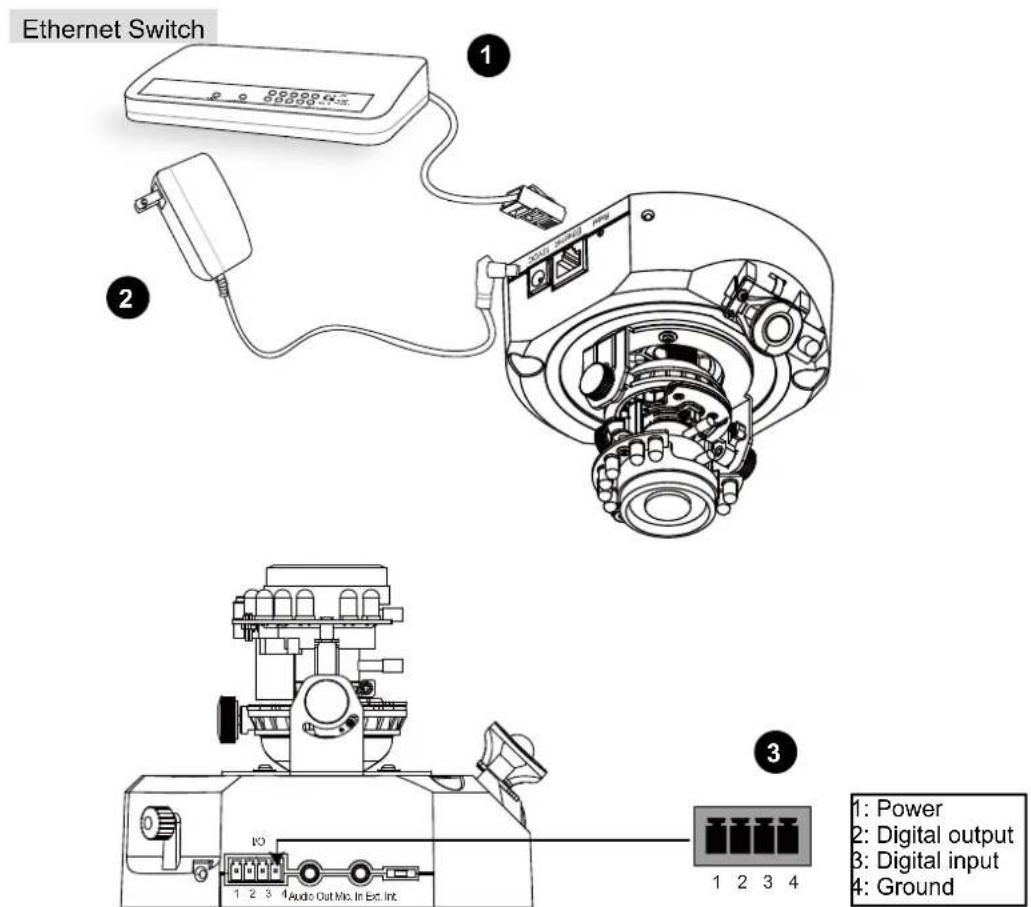

General I/O Terminal Block

This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin definitions are described below.

1 2 3 4

1: Power
2: Digital output
3: Digital input
4: Ground

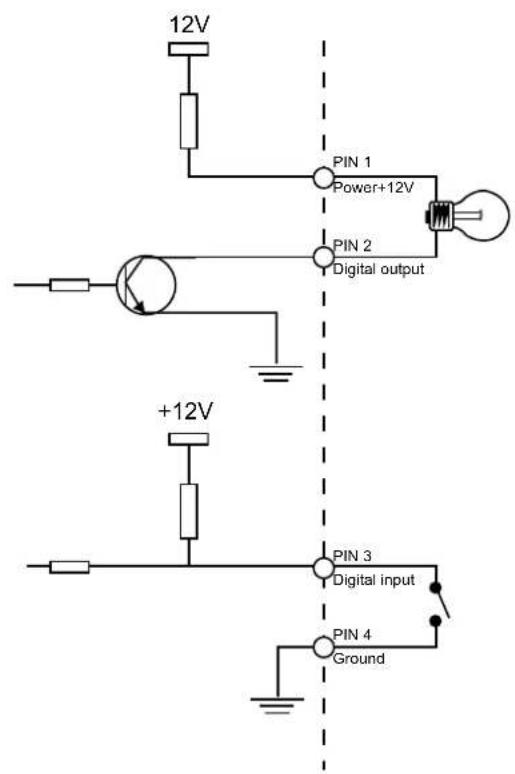

DI/DO Diagram

Refer to the following illustration for the connection method.

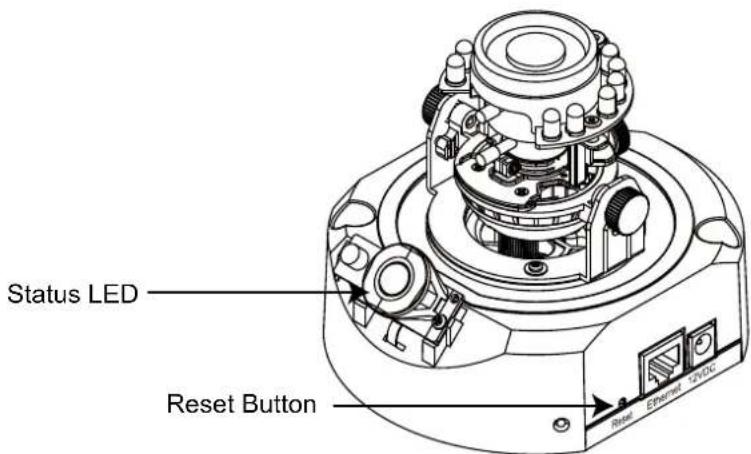

Status LED

The LED indicates the status of the Network Camera.

Description Status LED
Blinking green and orange (twice) Power on or reset
Non light During booting procedure
Steady orange till IP address is confirmed Detecting and setting network
Blinking orange and red continuously After network is setup (system up)
Rapidly blink orange till firmware is upgraded During the upgrade firmware process

Hardware Reset

The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press and release the indented reset button with a paper clip or thin object. Wait for the Network Camera to reboot.

Restore: Press and hold the reset button until the status LED rapidly blinks. It takes about 30 seconds. Note that all settings will be restored to factory default. Upon successful restore, the status LED will blink green and red during normal operation.

Installation

Hardware Installation

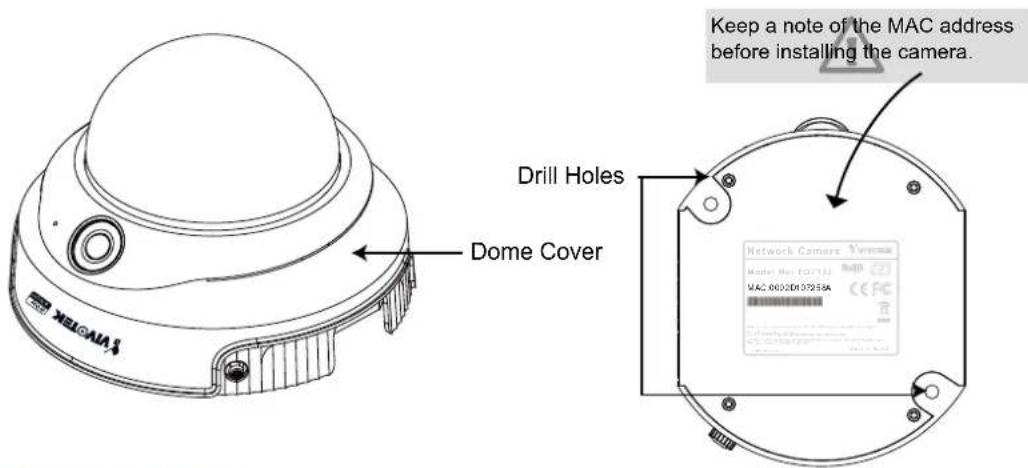

1. Use the supplied screwdriver to detach the dome cover from the camera base. Then, follow the steps below to install the camera; either to a ceiling or to a wall.

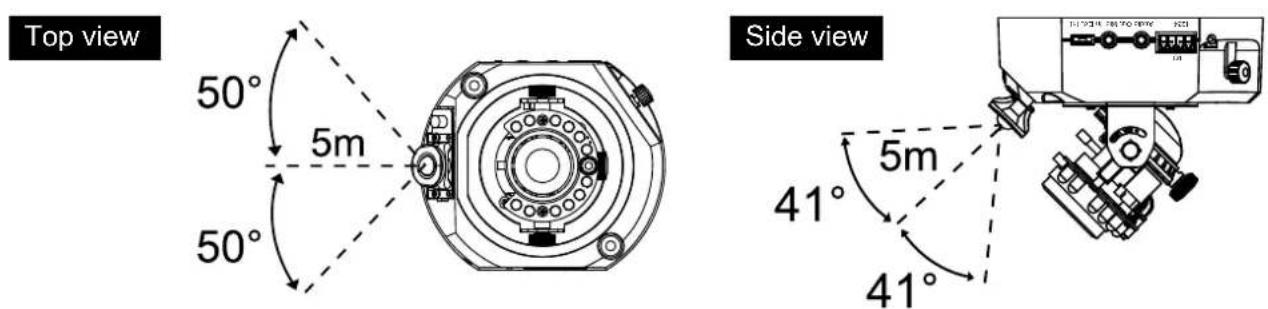

Installation Tips

Before installing the camera, look for a spot that best suits your needs. The built-in PIR sensor is designed to be triggered when a person enters its detection range. Therefore, it is crucial to install the camera at a place with the PIR sensor facing the desired direction. (The sensitivity of PIR sensor depends on object size and temperature differences between the object and the background environment.)

Technical line drawing of mechanical assembly with screws and bolts, no text or symbols present

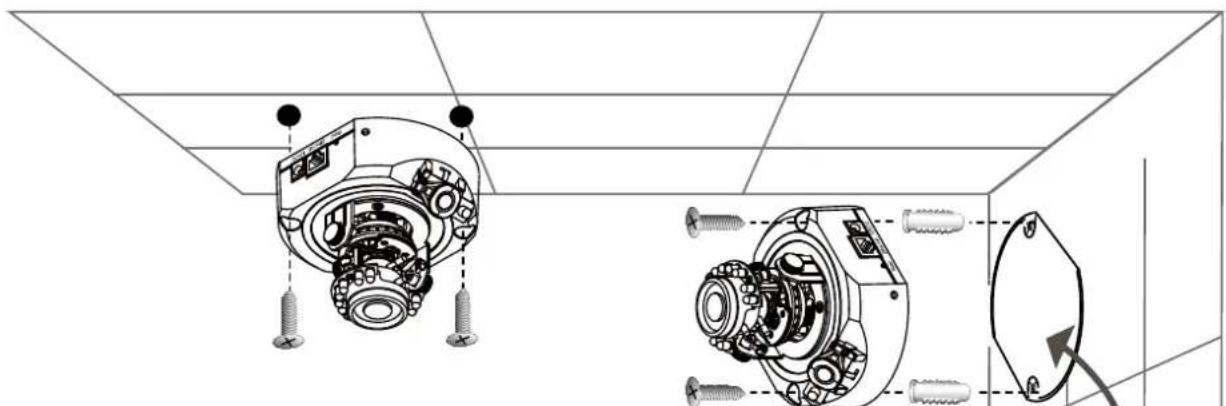

When mounting to a ceiling

Through the two holes on each side of the camera base, insert the supplied two screws to corresponding holes and secure them with a screwdriver.

When mounting to a wall

■ Attach the alignment sticker to the wall.
■ Through the two circles on the sticker, drill two pilot holes into the wall.
■ Hammer the supplied plastic anchors into the holes.
■ Align the two holes on each side of the camera base with the two plastic anchors on the wall, insert the supplied screws to corresponding holes and secure them with a screwdriver.

1. Feed power to the Network Camera and connect it to the Internet. For more information, please refer to Network Deployment on page 9 for details.

2. Install the "Installation Wizard 2" to assign IP address to the Network Camera. For more information, please refer to Software Installation on page 12 for details.

3. Access to the Network Camera from the Internet. For more information, please refer to Accessing the Network Camera on page 13 for details.

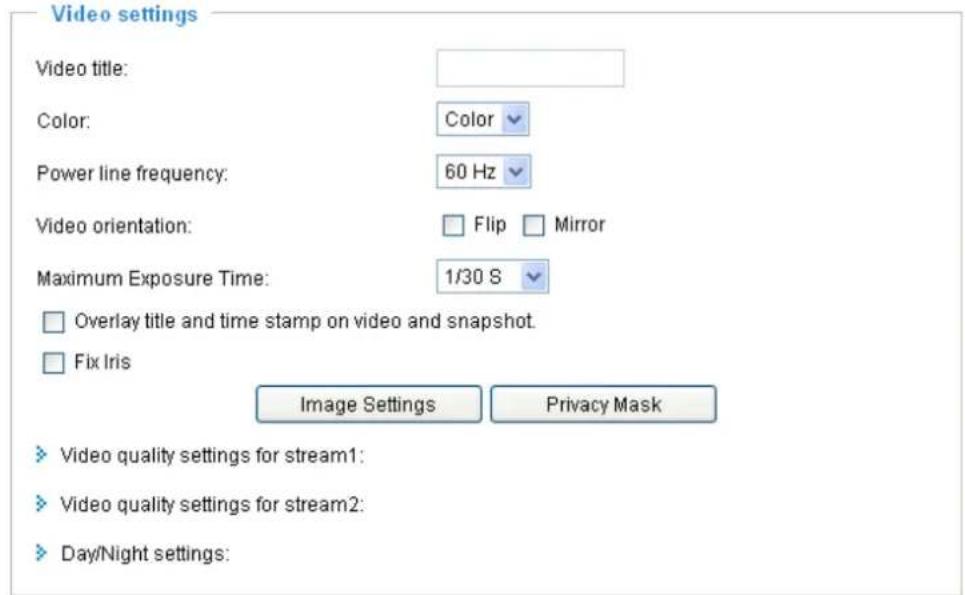

4. It is suggested to select Fix Iris in the Audio and Video page (Choose Configuration > Advanced Mode > Audio and video) to set up the iris at the maximum value; then follow the instusions on the next page to adjust the zoom factor and focus range. Upon completion, uncheck this item to enable auto iris.

5. Based on the live image retrieved from the camera, adjust the camera lens as following steps.

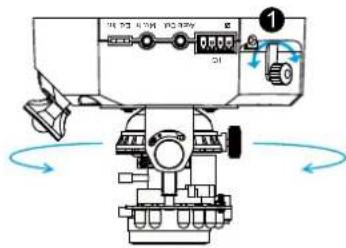

To adjust the viewing angle

■ Loosen the pan screw, then turn the lens module left and right. Upon completion, tighten the pan screw.
■ Loosen the tilt screws on both side of the camera, then turn the lens module up and down. Upon completion, tighten the tilt screws.
■ Loosen the image adjustment screw, then turn the lens to adjust the image orientation. Upon completion, tighten the image adjustment screw.

Rotate the screw Turn the lens

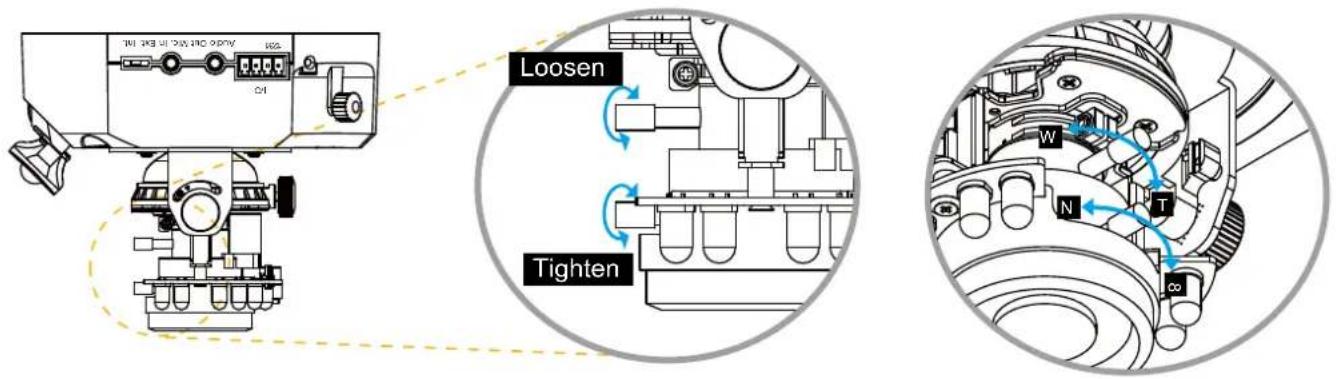

To adjust the zoom factor and focus range

■ Loosen the zoom controller, then adjust zoom factor by moving the controller left and right. Upon completion, tighten the zoom controller.
■ Loosen the focus controller, then adjust focus range by moving the controller left and right. Upon completion, tighten the focus controller.

DO NOT over tighten the controllers. Doing so can damage the structure of camera lens.

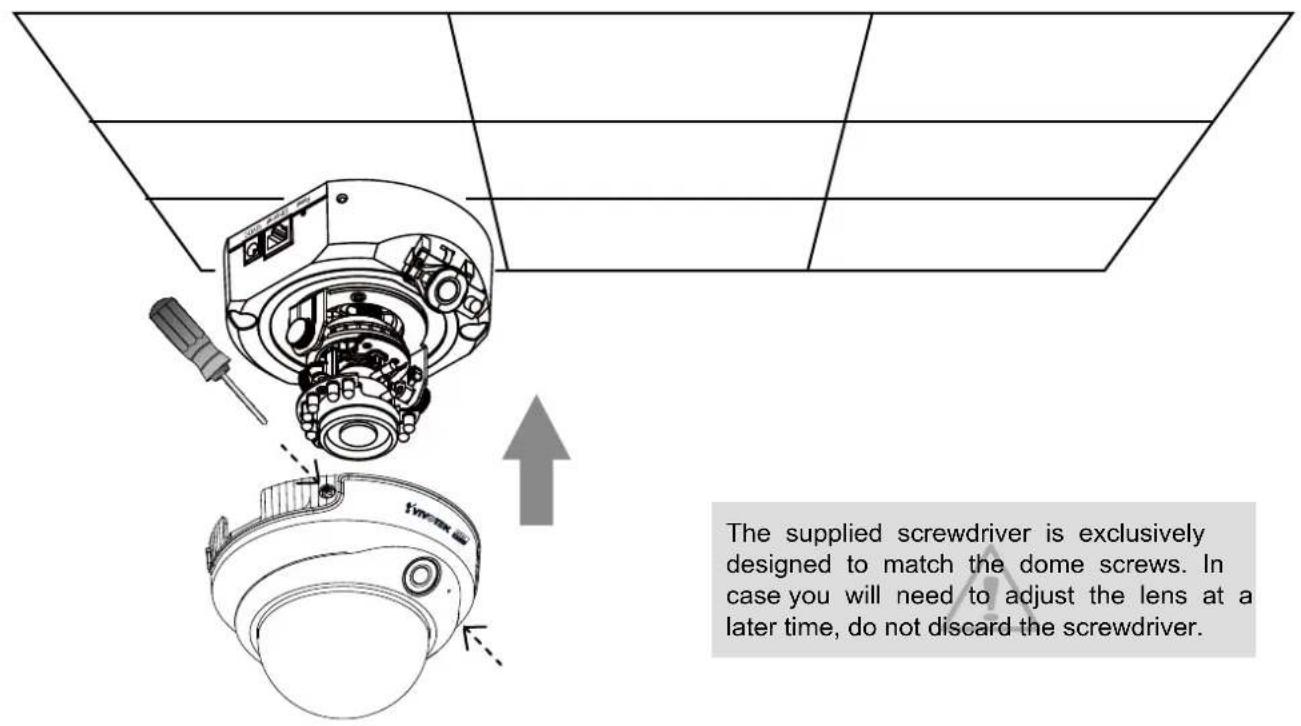

1. Attach the dome cover to camera. Secure the two dome screws with a screwdriver. Finally, make sure all parts of the camera are securely installed.

The supplied screwdriver is exclusively designed to match the dome screws. In case you will need to adjust the lens at a later time, do not discard the screwdriver.

Network Deployment

Setting up the Network Camera over the Internet

This section explains how to configure the Network Camera to an Internet connection.

1. If you have external devices such as sensors and alarms, make the connection from the general I/O terminal block.
2. Connect the camera to a switch via Ethernet cable.
3. Connect the supplied power cable from the Network Camera to a power outlet.

There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

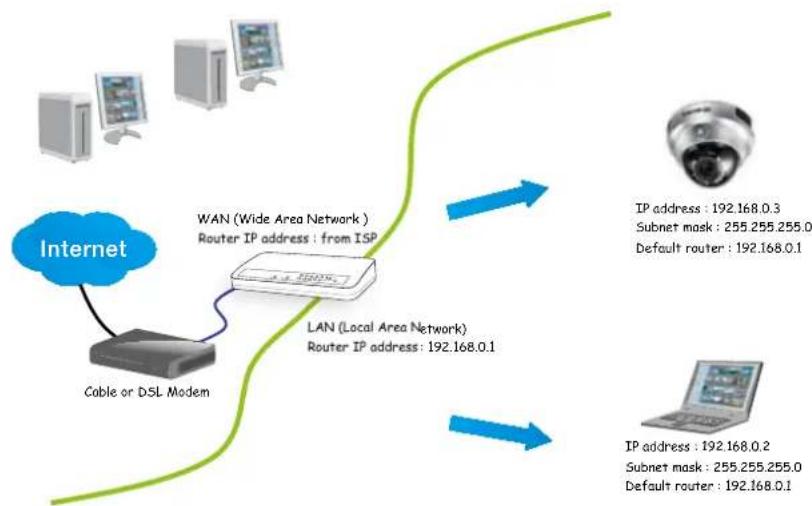

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software installation on page 12 for details.

1. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router.

■ HTTP port
■ RTSP port
■ RTP port for audio
■ RTCP port for audio
■ RTP port for video
■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router's user's manual.

1. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the Internet. Please refer to Network Type on page 33 for details.

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 33 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 34 for details.

Set up the Network Camera through Power over Ethernet (PoE)

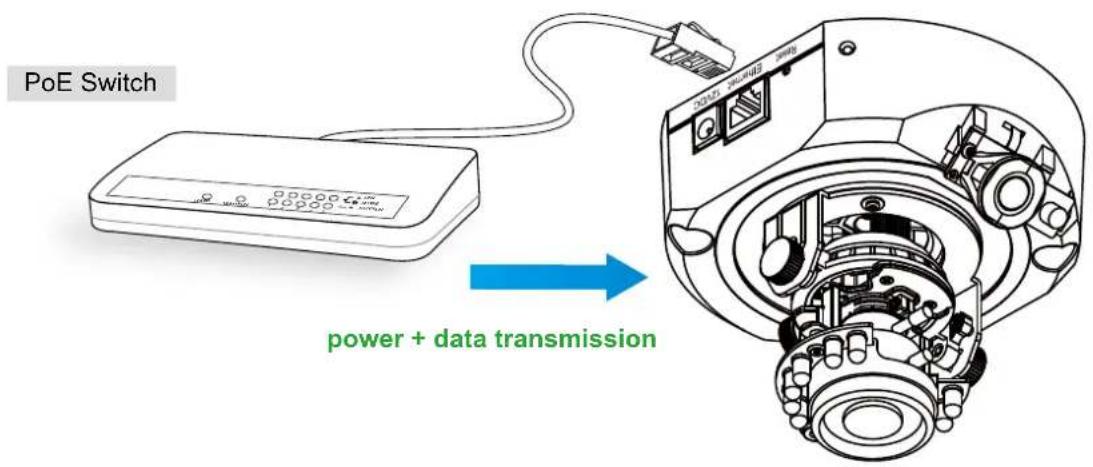

When using a PoE-enabled switch

The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet cable. If your switch/router supports PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router.

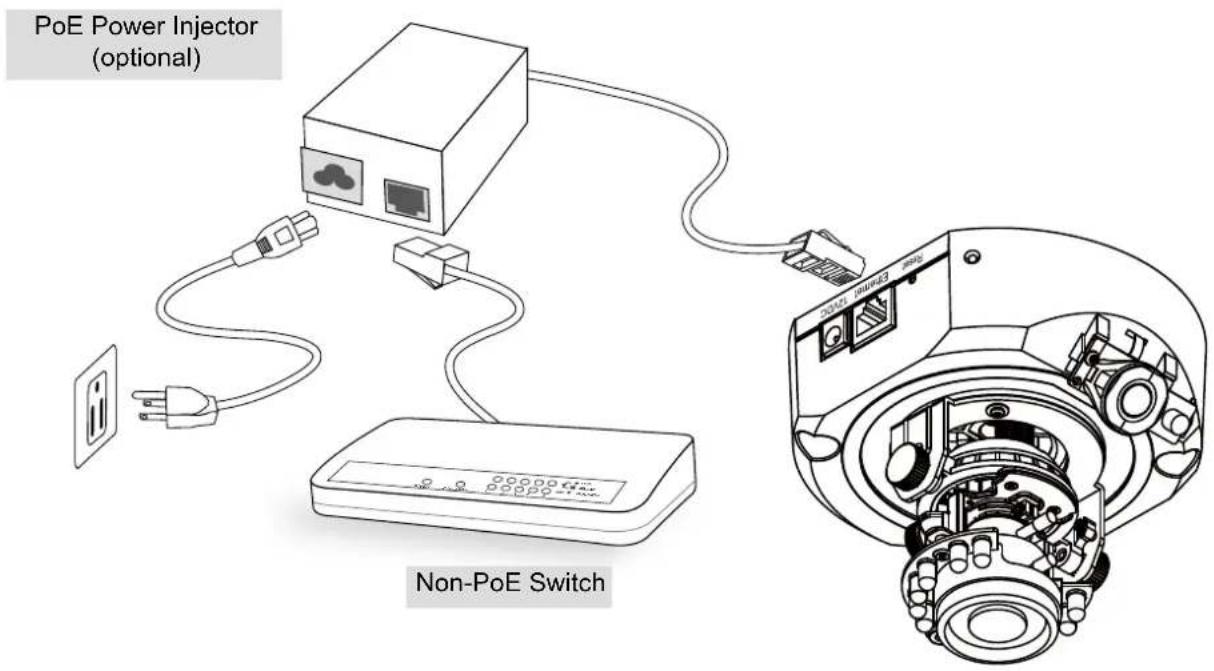

When using a non-PoE switch

If your switch/router does not support PoE, use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch/router.

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install the IW2 under the Software Utility directory from the software CD. Double click the IW2 shortcut on your desktop to launch the program.

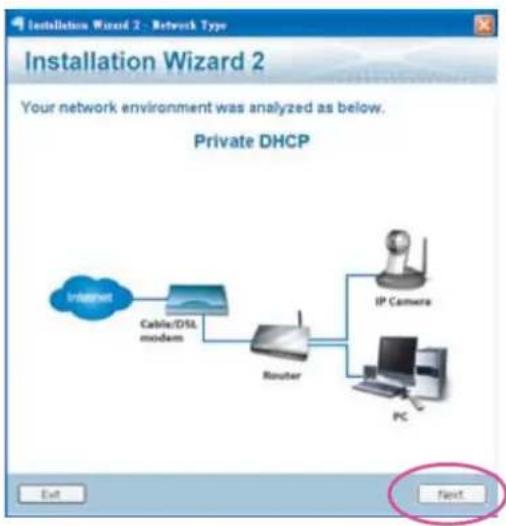

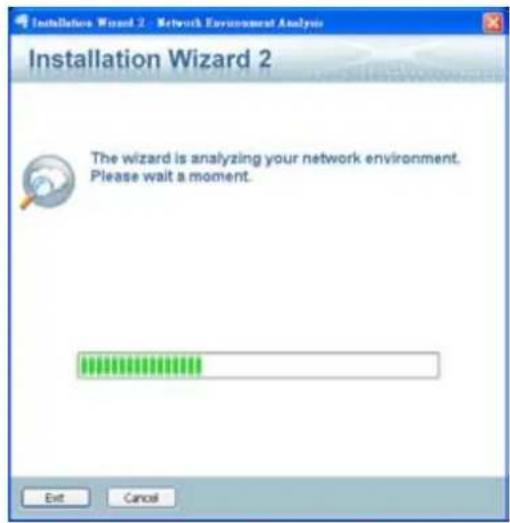

1. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.


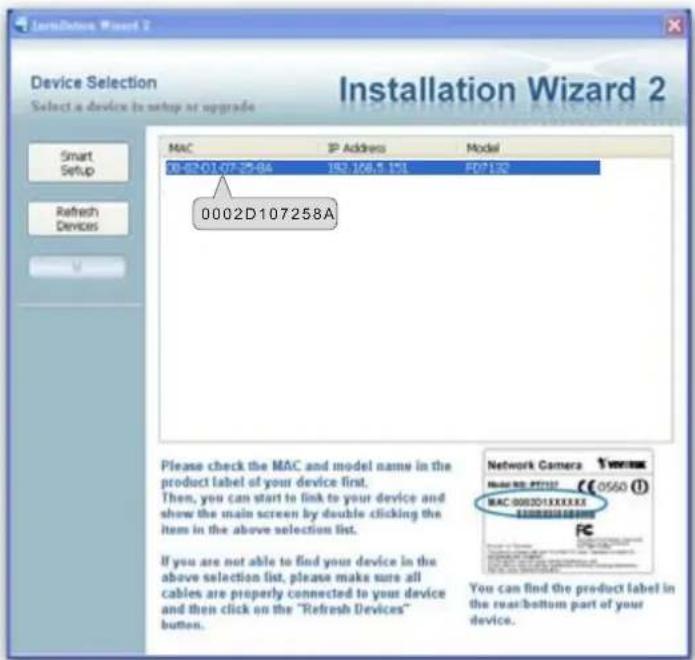

1. The program will search all VIVOTEK devices on the same LAN.
2. After searching, the main installer window will pop up. Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer.

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.

If your network environment is not a LAN, follow these steps to access the Network Camera:

1. Launch your web browser (ex. Microsoft® Internet Explorer, Mozilla Firefox, or Netscape).

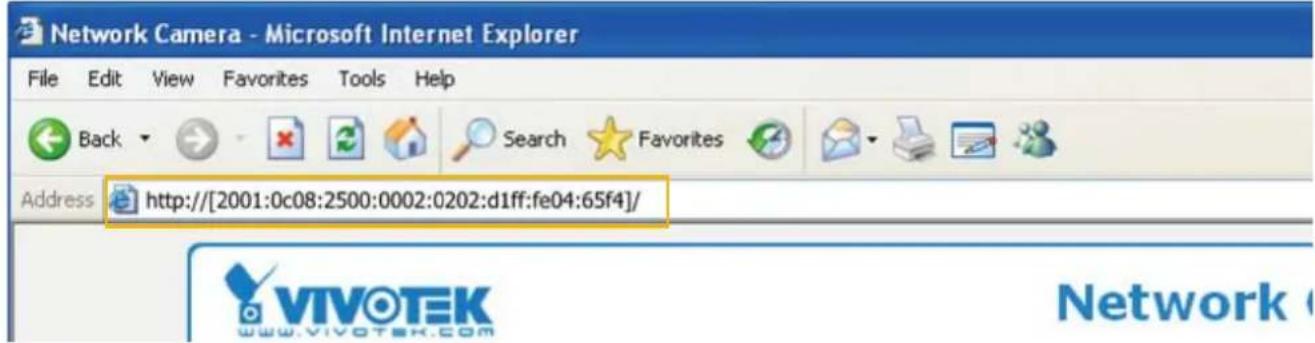

2. Enter the IP address of the Network Camera in the address field. Press Enter.

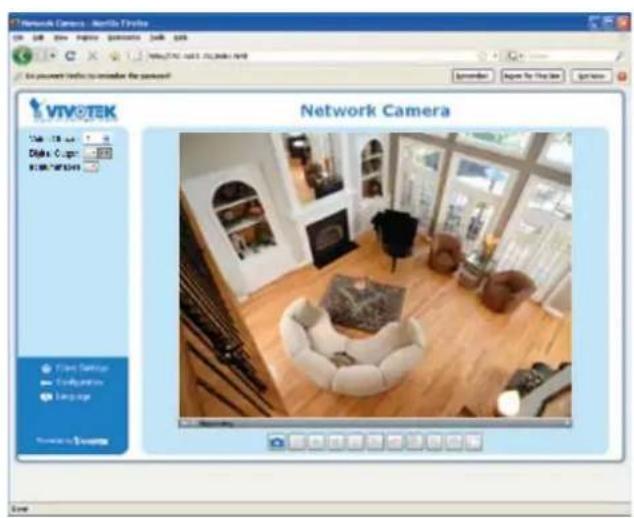

3. The live video will be displayed in your web browser.

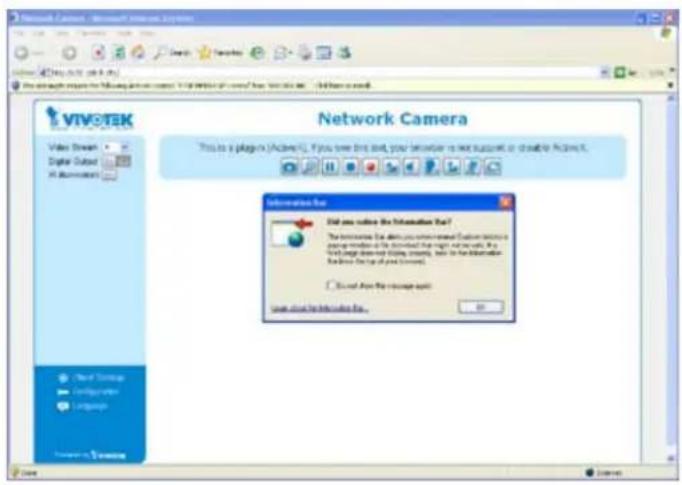

4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.

NOTE

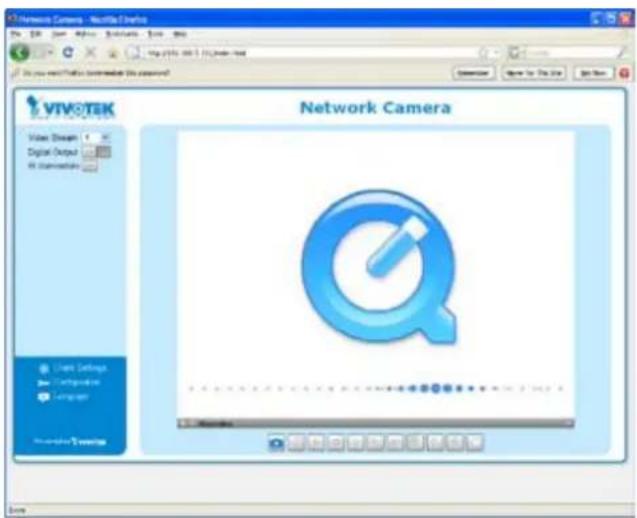

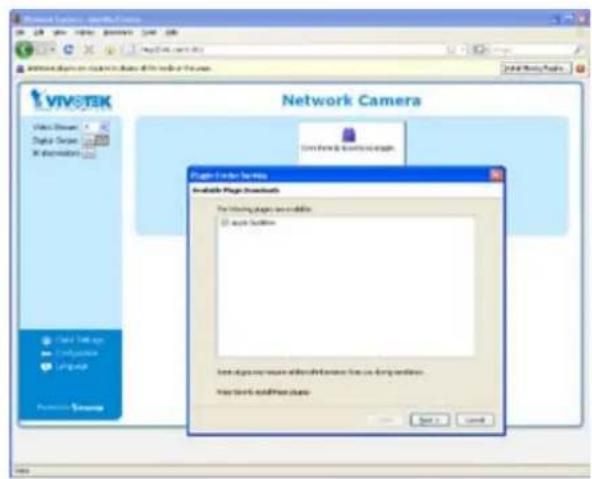

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live video. If you donn't have Quick Time on your computer, please download it first, then launch the web browser.

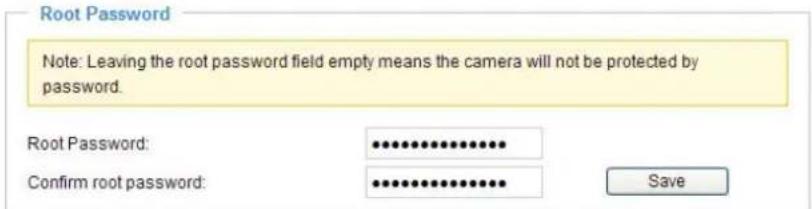

▶ By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 27.

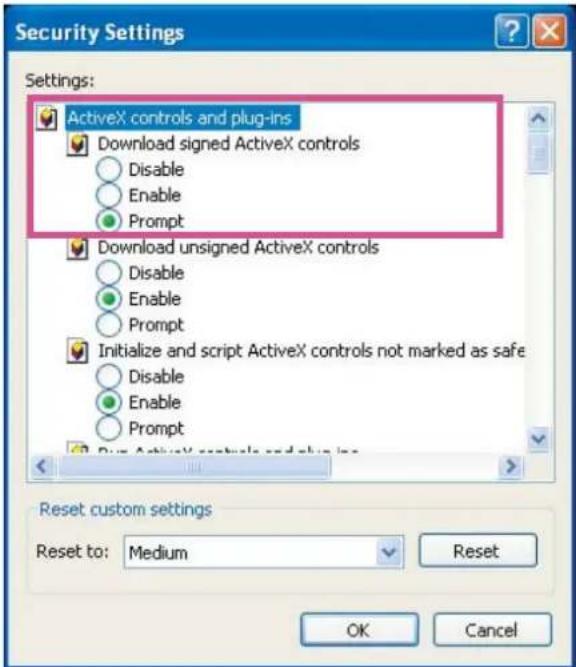

If you see a dialog box indicating that your security settings prohibit running ActiveX® Controls, please enable your ActiveX® Controls for your browser.

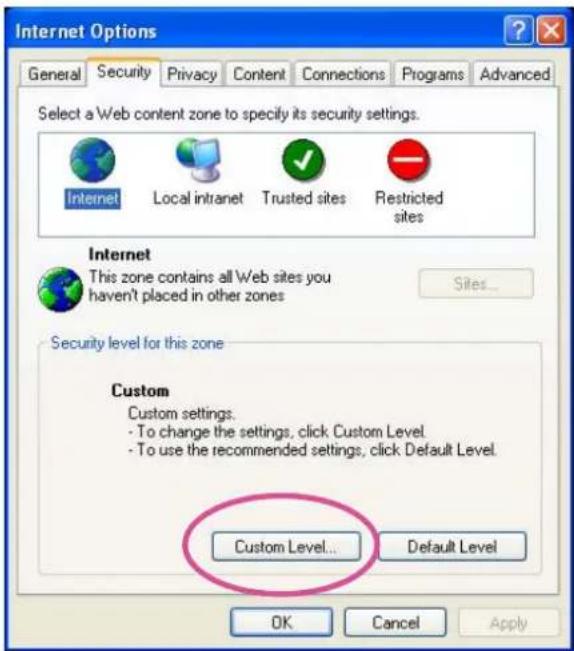

1. Choose Tools > Internet Options > Security > Custom Level.

1. Look for Download signed ActiveX® controls; select Enable or Prompt. Click OK.

1. Refresh your web browser, then install the Active X ^® control. Follow the instructions to complete installation.

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

Real Player

1. Launch the RTSP player.

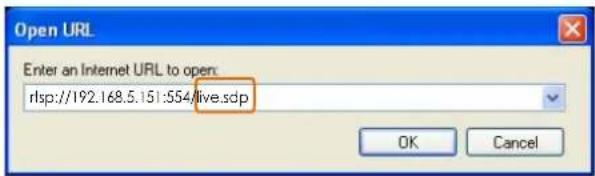

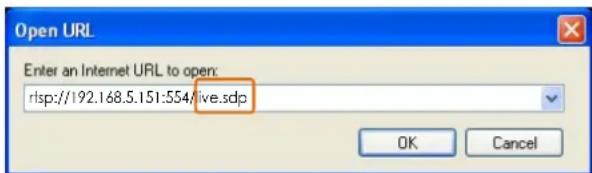

2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://:/

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 42.

For example:

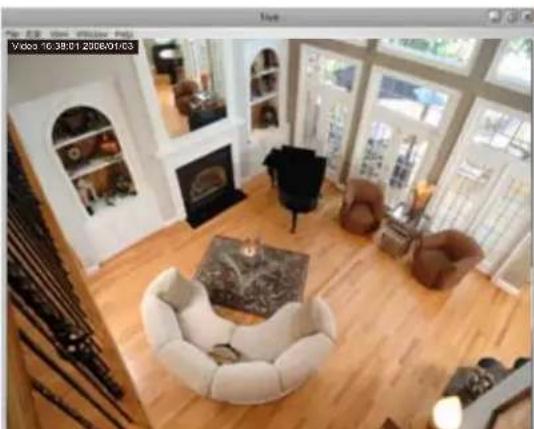

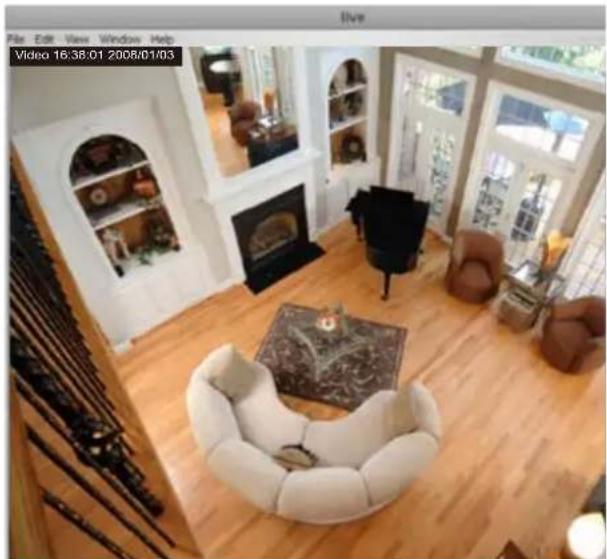

1. The live video will be displayed in your player.

For more information on how to configure RTSP access name, please refer to RTSP Streaming on page 42 for details.

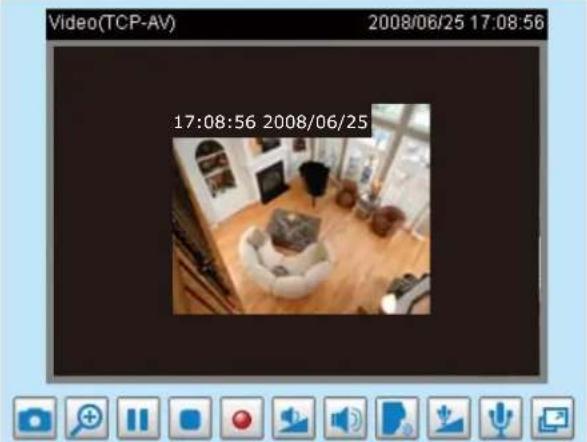

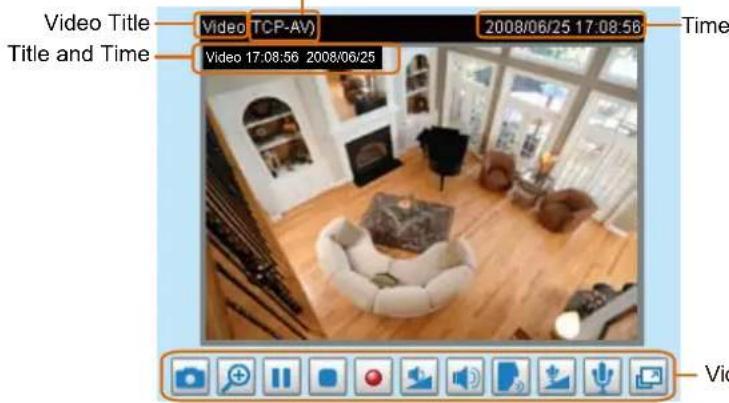

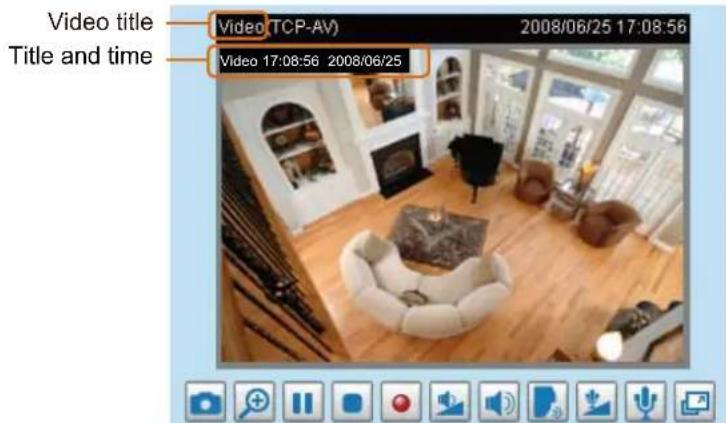

Interior view of a modern living room with white furniture, wooden flooring, and built-in bookshelves (no visible text or symbols)

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 9.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable. For more information, please refer to RTSP Streaming on page 42.

2. As the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video and audio streaming parameters as listed below. For more information, please refer to Audio and Video on page 49.

Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps

1. As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 42.

2. Launch the players on 3GPP-compatible mobile devices (ex. Real Player).

3. Type the following URL commands in the player. The address format is rtsp://:/.

For example:

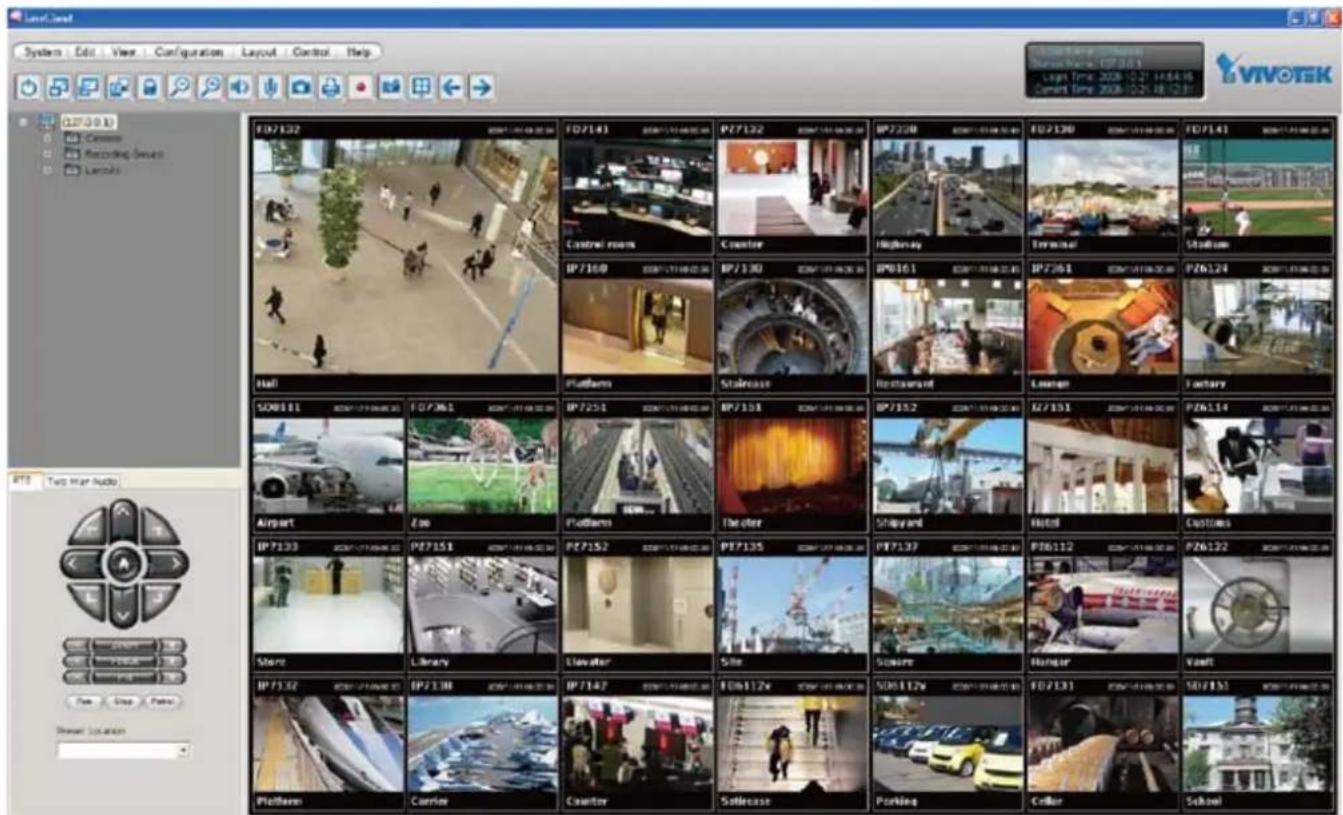

Using VIVOTEK Recording Software

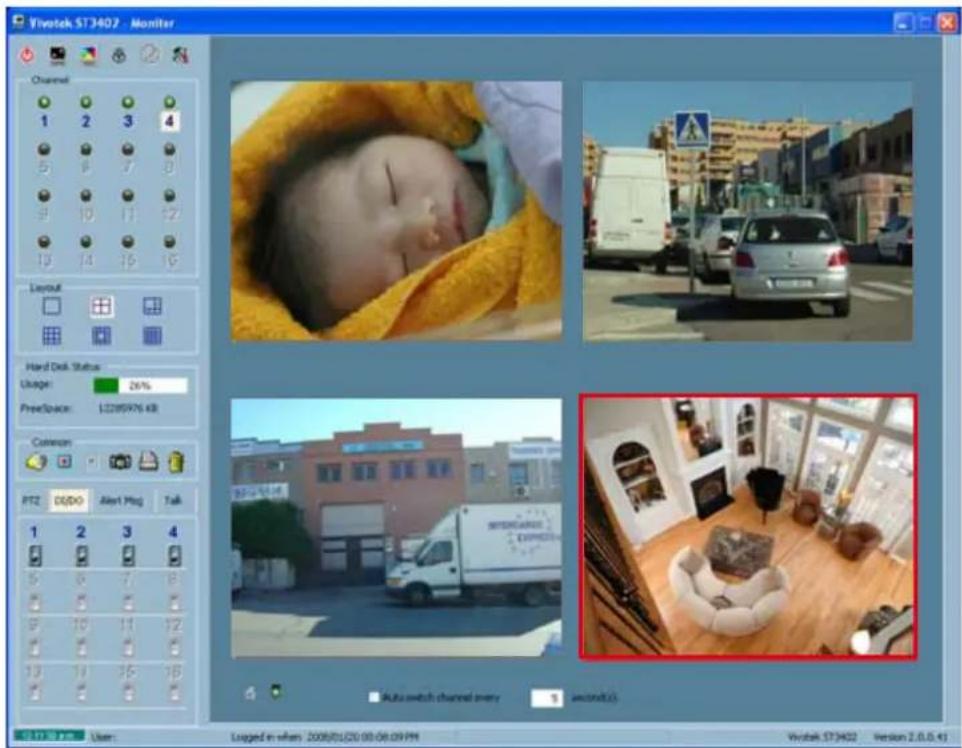

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user's manual of the software or download it from http://www.vivotek.com.

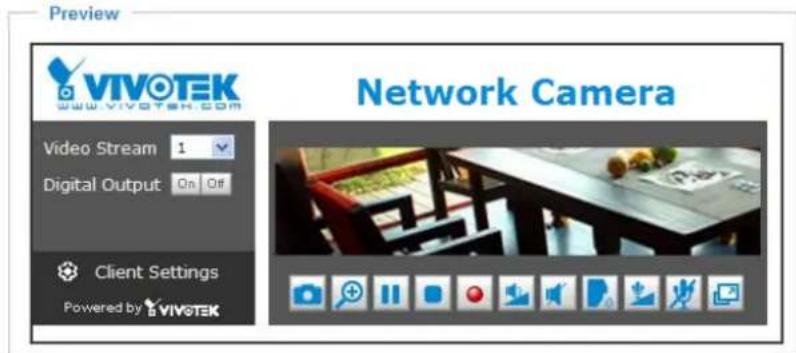

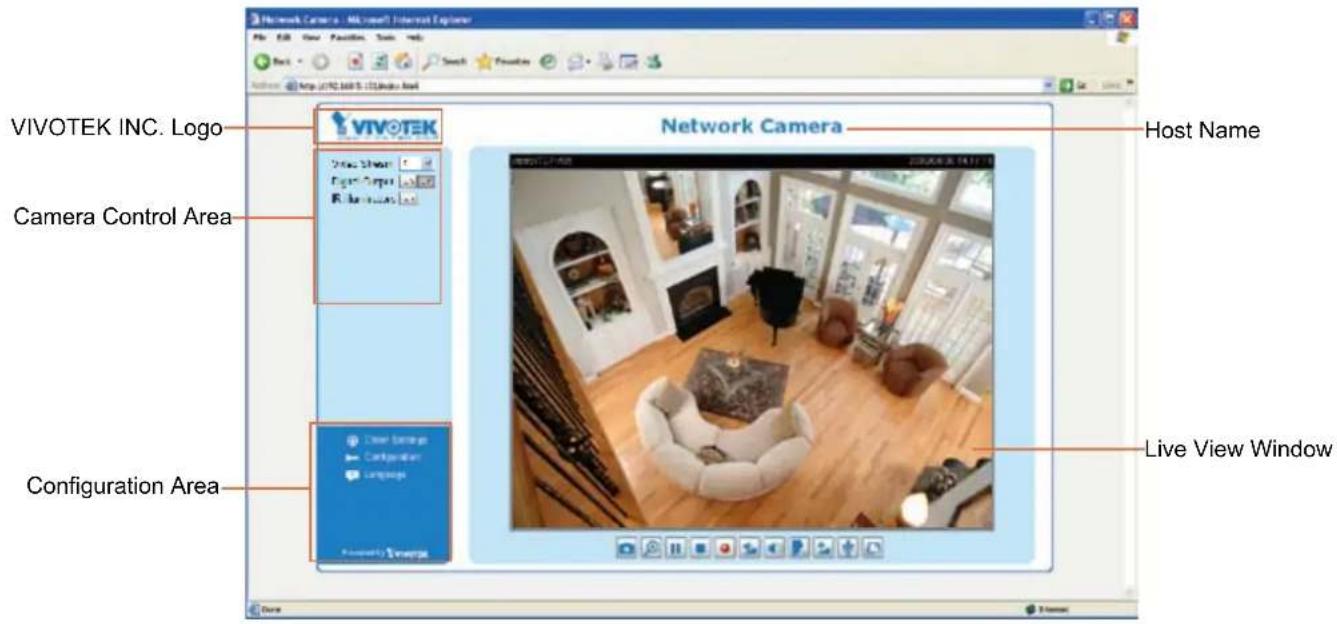

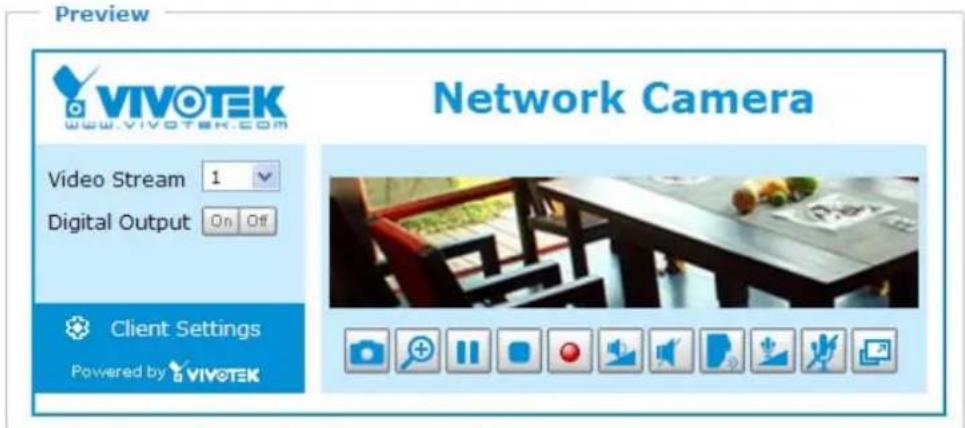

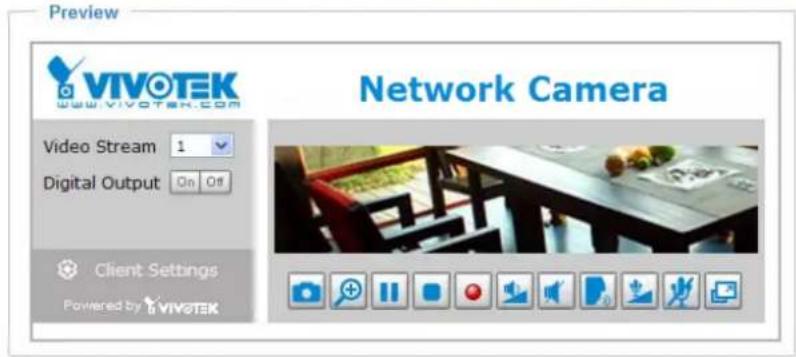

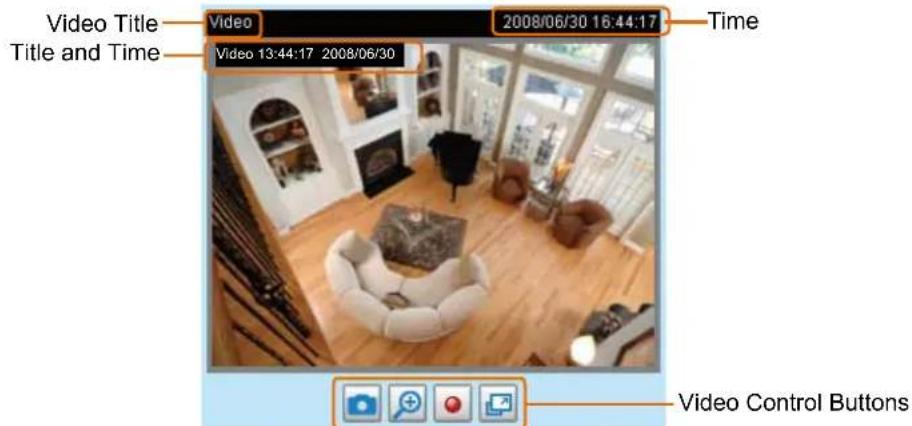

Main Page

This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window.

VIVOTEK INC. Logo

Click this logo to visit VIVOTEK website.

Host Name

The host name can be customized to fit your needs. For more information, please refer to System on page 25.

Camera Control Area

Video Stream: This Network Cmera supports MJPEG or MPEG-4 dual streams simultaneously. You can select either one for live viewing.

Digital Output: Click to turn on or off the digital output device.

IR illuminators: Click to turn on the IR LEDs for 20 seconds.

Configuration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 22.

Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to Configuration on page 24.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

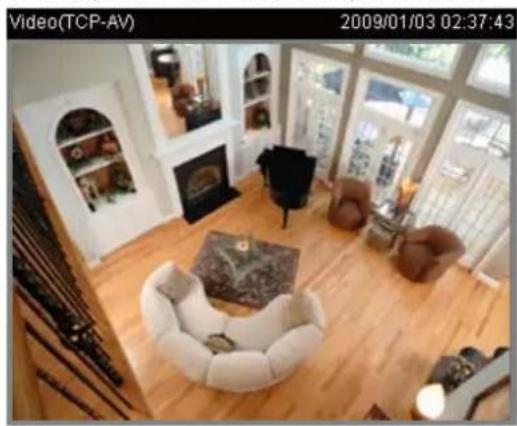

Live Video Window

■ The following window is displayed when the video mode is set to MPEG-4:

MPEG-4 Protocol and Media Options

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 49.

MPEG-4 Protocol and Media Options: The transmission protocol and media options for MPEG-4 video streaming. For further configuration, please refer to Client Settings on page 22.

Time: Display the current time. For further configuration, please refer to Video Settings on page 49.

Title and Time: Video title and time can be stamped on the streaming video. For further configuration, please refer to Video Settings on page 49.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation screen indicates which part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Interior view of a modern living room with wooden flooring, wall-mounted furniture, and large windows (no visible text or symbols)

Pause: Pause the transmission of streaming media. The button becomes the Resume button after clicking the Pause button.

Stop: Stop the transmission of streaming media. Click the Resume button to continue transmission.

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 23 for details.

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the local computer.
Mute: Turn off the volume at local computer. The button becomes the Audio On button after clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from the external speaker connected to the Network Camera. Click this button again to end talking transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the microphone volume at local computer.
Mute: Turn off the Mic volume at local computer. The button becomes the Mic On button after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press "Esc" key to switch back to normal mode.

■ The following window is displayed when the video mode is set to MJPEG:

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 49.

Time: Display the current time. For more information, please refer to Video Settings on page 49.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Video Settings on page 49.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation been indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To ve to a different area you want to magnify, drag the navigation screen.

Interior view of a modern living room with wooden flooring, framed pictures, and large windows (no visible text or symbols)

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
ss the □ Stop MP4 recording button to end recording. When you exit the web browser, video
ording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving
ions on page 23 for details.

Full Screen: Click this button to switch to full screen mode. Press "Esc" key to switch back to normal mode.

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings.

MPEG-4 Media Options

MPEG-4 Media Options

Video and Audio
○ Video Only
○ Audio Only

Select to stream video or audio data or both. This is enabled only when the video mode is set to MPEG-4.

MPEG-4 Protocol Options

MPEG-4 Protocol Options

○ UDP Unicast
○ UDP Multicast
TCP
HTTP

Depending on your network environment, there are four transmission modes of MPEG-4 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time. For more information, see RTSP Streaming on page 34.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through.

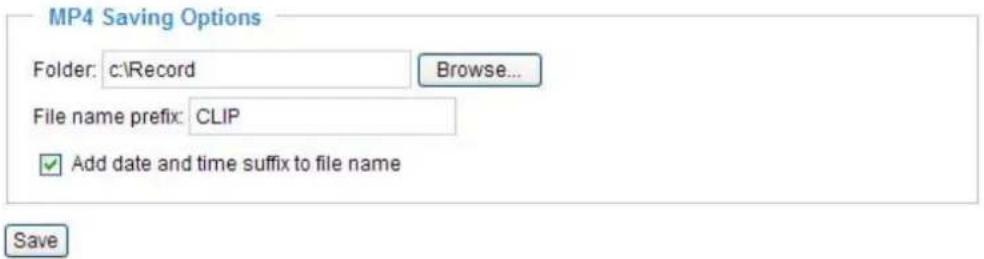

MP4 Saving Options

Users can record the live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name.

Folder: Specify a storage destination for the recorded video files.

File name prefix: Enter the text that will be put in front of the video file name.

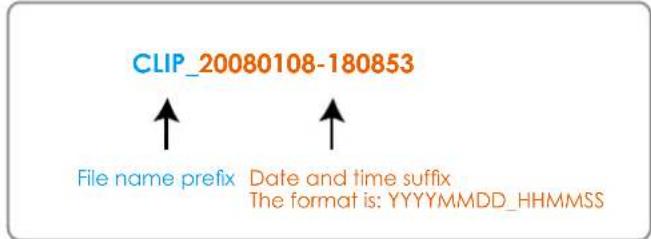

Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.

Configuration

Click Configuration on the main page will enter the camera setting pages. Note that only Administrators can access the configuration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users. Some advanced functions (ex. HTTPS/ Access list/ Homepage layout/ Application/ Recording/ System log/ View parameters...) are not displayed in Basic Mode.

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first subitem will be displayed; when you click on the second sub-item, the detailed information for the second sub-item will be displayed and that of the first sub-item will be hidde

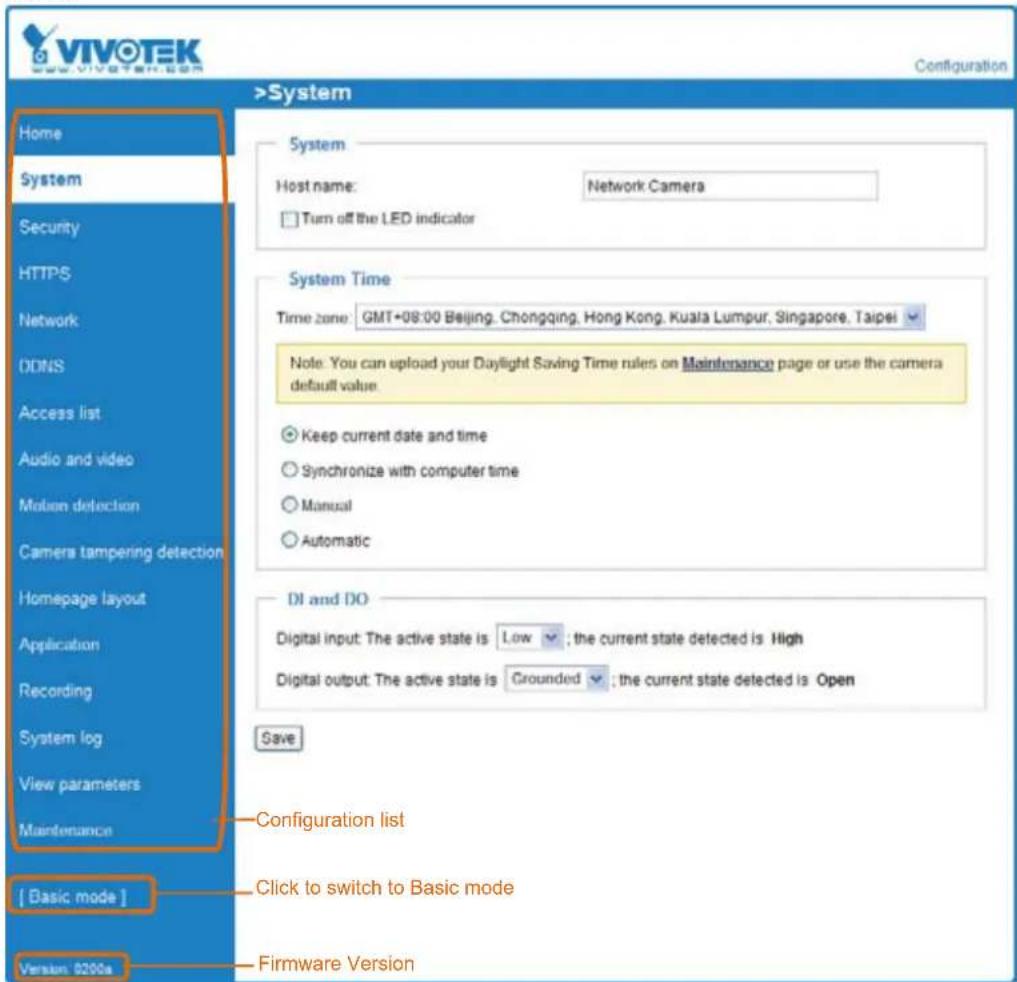

The following is the interface of the Basic Mode and the Advanced Mode:

Basic mode

Advanced Mode

Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode. If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch over.

System

This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following three columns: System, System Time and DI and DO. When completed with the settings on this page, click Save at the bottom of the page to enable the settings.

System

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.

Turn off the LED indicators: If you don't want to let others know that the network camera is working, you can select this option to turn off the LED indicators.

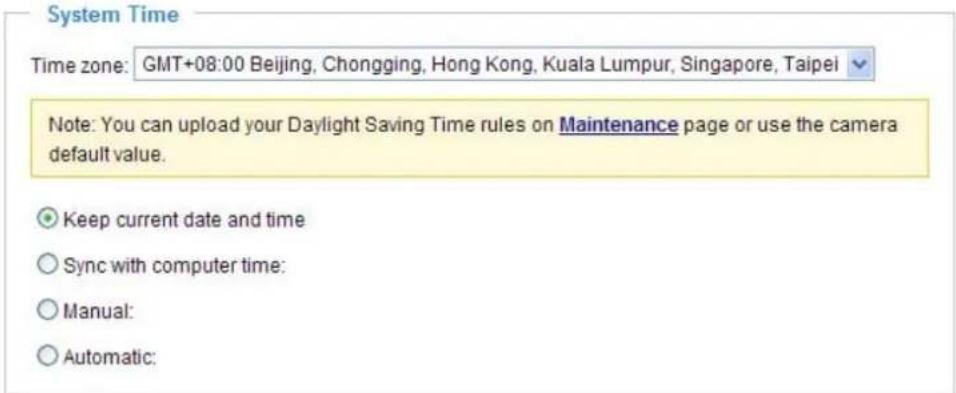

System Time

Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off.

Sync with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

Manual: The administrator can enter the date and time manually. Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server.

NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers.

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis.

Time zone Advanced Mode: Select the appropriate time zone from the list. If you want to upload Daylight Savings Time rules on the Maintenance page, please refer to Upload / Export Daylight Saving Time Configuration File on page 82 for details.

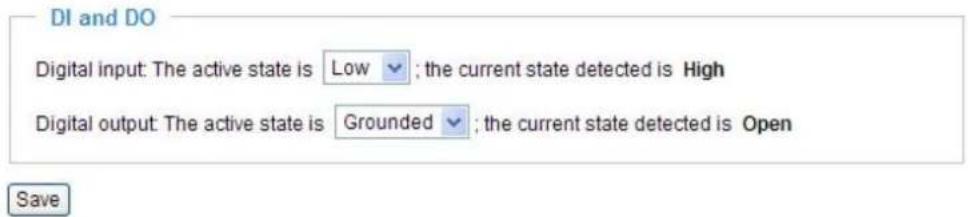

DI and DO

Digital input: Select High or Low to define normal status of the digital input. The Network Camera will report the current status.

Digital output: Select Grounded or Open to define normal status of the digital output. The Network Camera will show whether the trigger is activated or not.

Security

This section explains how to enable password protection and create multiple accounts.

Root Password

The administrator account name is "root", which is permanent and can not be deleted. If you want to add more accounts in Manage User column, please apply a password for the "root" account first.

1. Type the password identically in both text boxes, and click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user's name and password in their respective fields to access the Network Camera.

Manage Privilege

Advanced Mode

Digital Output & IR illuminators: You can modify the manage privilege of operators or viewers. Check or uncheck the item, then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page. (Please refer to Main Page on page 18.)

Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password.

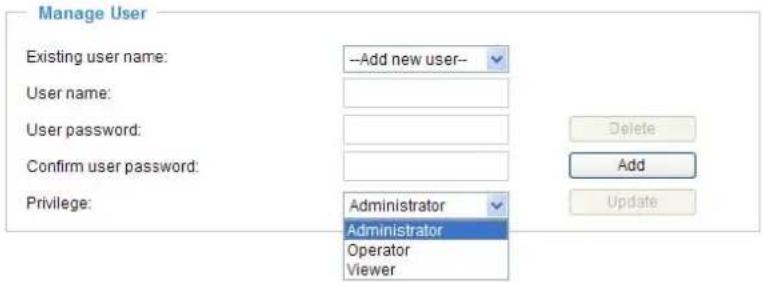

Manage User

Administrators can add up to 20 user accounts.

1. Input the new user's name and password.
2. Select the privilege level for the new user account. Click Add to enable the settings.

Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can access the Configuration page. Though operators cannot access the Configurationpage, they can use the URL Commands to get and set the value of parameters. For more information, please refer to URL Commands of the Network Camera on page 85. Viewers access only the main page for live viewing.

Here you also can change a user's access rights or delete user accounts.

1. Select an existing account to modify.
2. Make necessary changes, then click Update or Delete to enable the settings.

HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level.

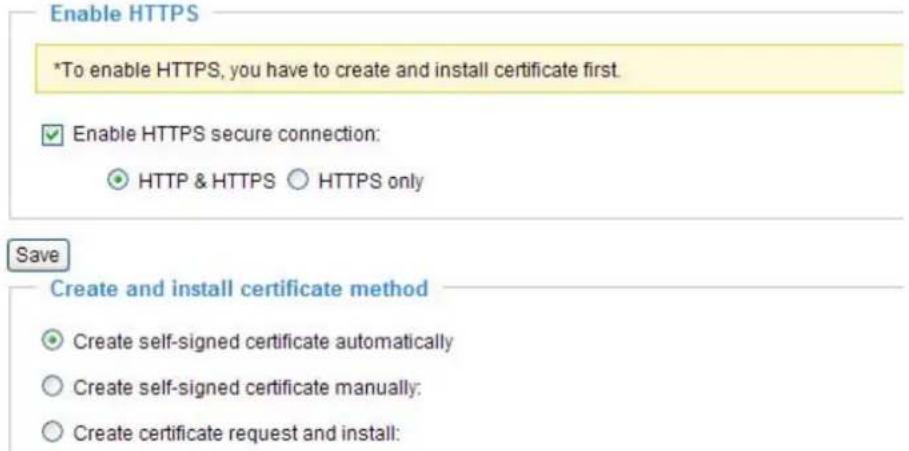

Enable HTTPS

Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS" or "HTTPS only". Note that you have to create and install certificate first in the second column before clicking the Save button.

Create and Install Certificate Method

Before using HTTPS for communication with the Network Camera, a Certificate must be created first. There are three ways to create and install a certificate:

Create self-signed certificate automatically

1. Select this option.
2. In the first column, check Enable HTTPS secure connection, , then select a connection option: "HTTP & HTTPS" or "HTTPS only".
3. Click Save to generate a certificate.

1. The Certificate Information will automatically de displayed in the third column as shown below. You can click Property to view detailed information about the certificate.

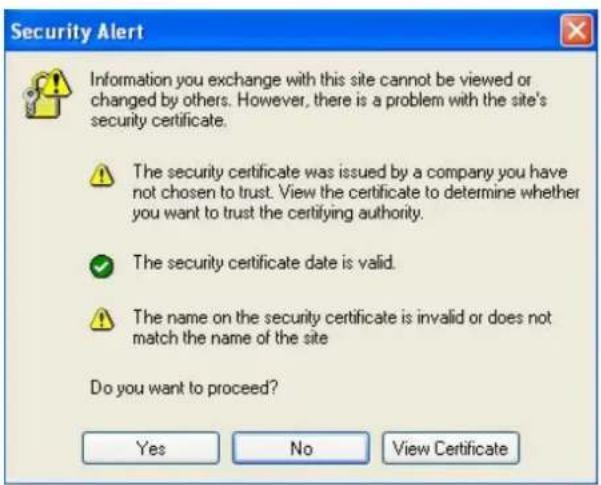

1. Click Home to return to the main page. Change the address from "http://" to "https://" in the Address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

Create self-signed certificate manually

1. Select this option.
2. Click Create to open a Create Certificate page, , then click Save to generate the certificate.

1. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.

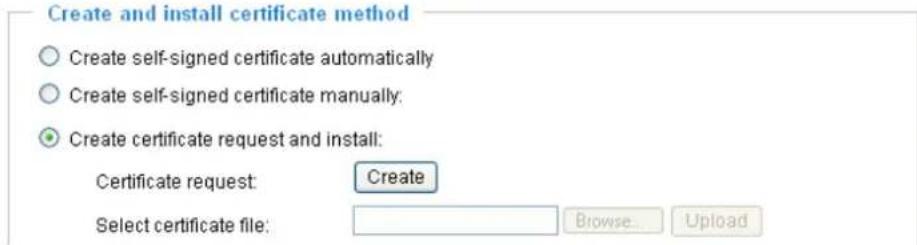

Create certificate and install : Select this option if you want to create a certificate from a certificate authority.

1. Select this option.
2. Click Create to open a Create Certificate page, , then click Save to generate the certificate.

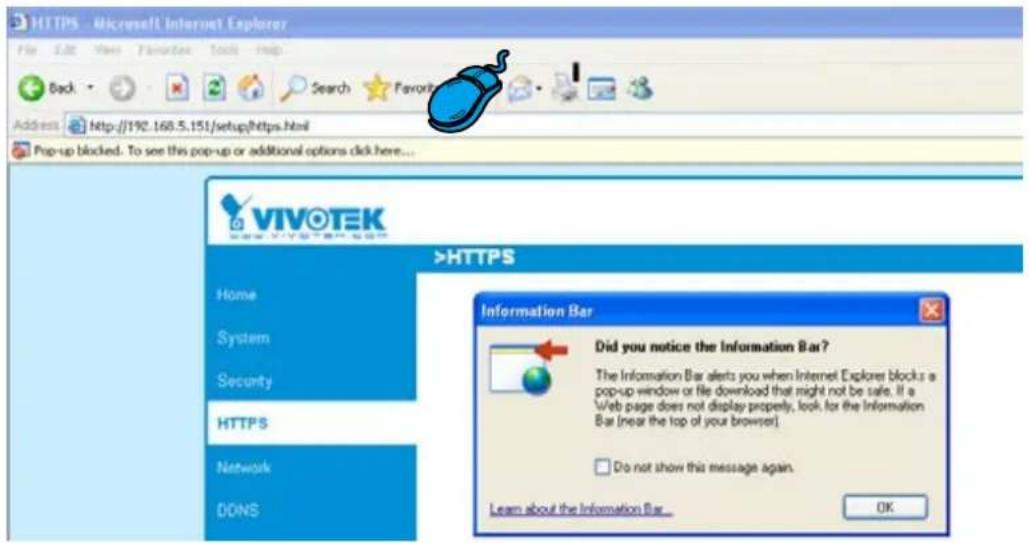

1. If you see the following Information Bar, click OK and click on the Information bar on the top of the page to allow pop-ups.

1. The Pop-up window shows an example of a certificate request.

1. Look for a trusted certificate authority that issues digital certificates. Enroll the Network Camera. Wait for the certificate authority to issue a SSL certificate; click Browse... to search for the issued certificate, then click Upload in the second column.

NOTE

▶ How to cancel HTTPS settings?

1. Uncheck Enable HTTPS secure connection in the first column, then click Save, then a warning dialog will pop up.
2. Click OK to disable HTTPS.

1. The webpage will redirect to a non-HTTPS page automatically.

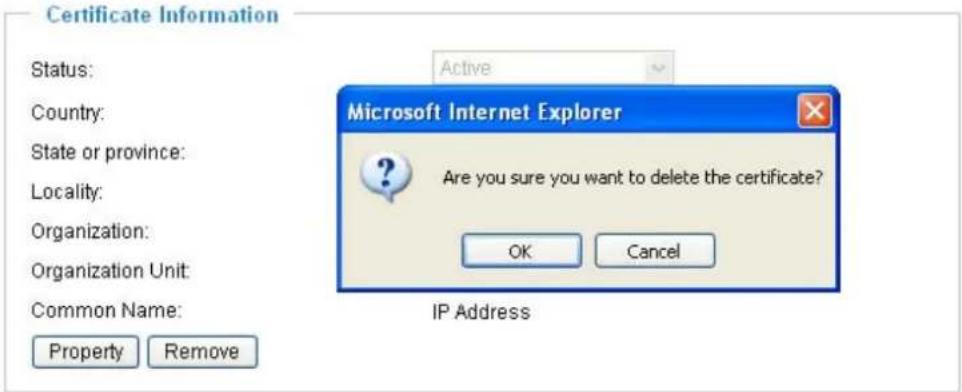

▶ If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate.

Network

This section explains how to configure wired network connection for the Network Camera.

Network Type

LAN

Select this option when the Network Camera is deployed in a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Remember to click Save when you complete the Network Settings.

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.

Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera.

1. You can make use of VIVOTEK installation wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software installation on page 12 for details.
2. Enter the static IP, Subnet mask, Default router, Primary DNS provided by your ISP.

Enable UPnP presentation: Select this option to enable UPnP ^TM presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently, UPnP ^TM is supported by Windows XP or later. Note that to utilize this feature, please make sure the UPnP ^TM component is installed on your computer.

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP ^TM and it is activated.

PPPoE (Point-to-point over Ethernet)

Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.

Follow the steps below to acquire your Network Camera's public IP address.

1. Set up the Network Camera on the LAN.

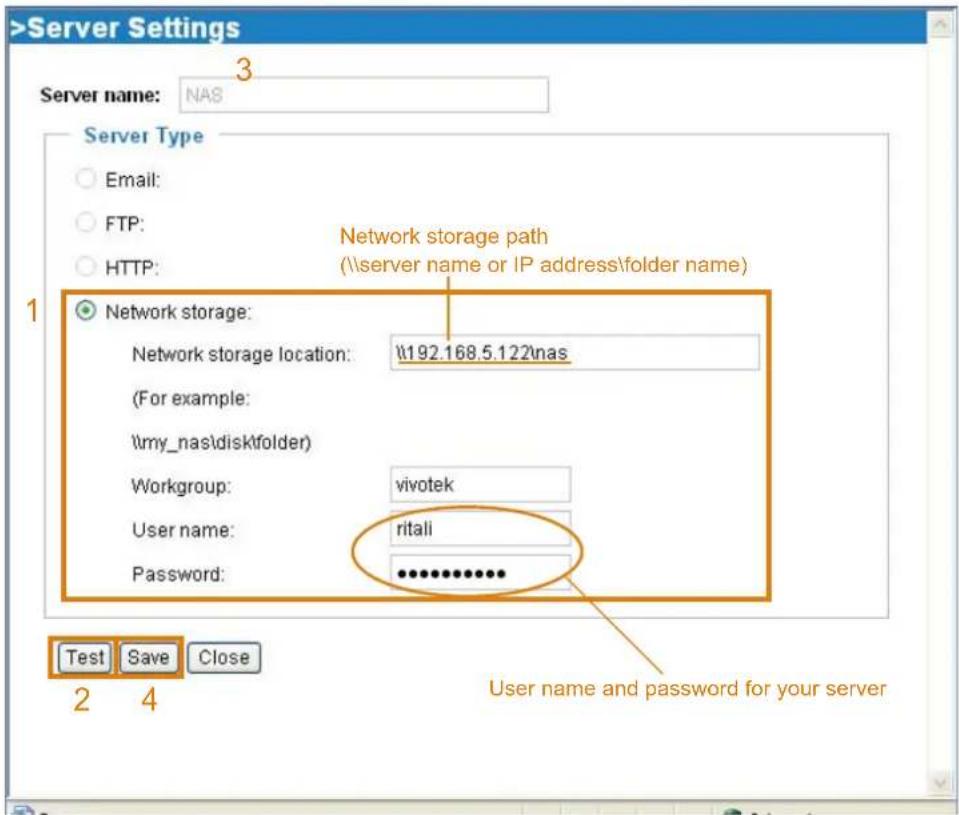

2. Go to Home > Configuration > Application > Server Settings (please refer to Server Settings on page 69) to add a new server -- email or FTP server.

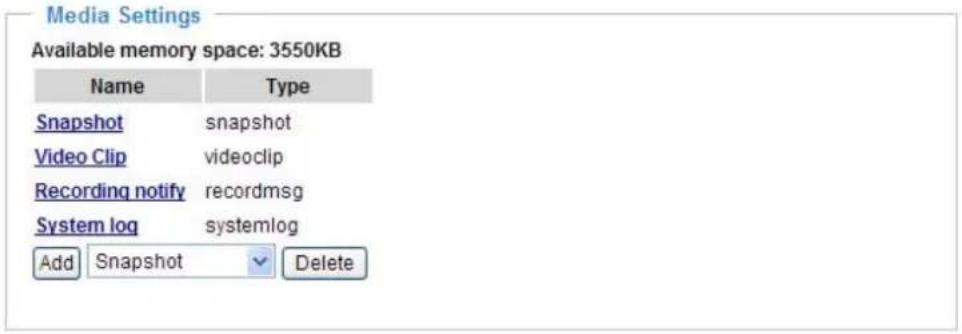

3. Go to Configuration > Application > Media Settings (please refer to Media Settings on page 72). Select System log so that you will receive the system log in TXT file format which contains the Network Camera's public IP address in your email or on the FTP server.
4. Go to Configuration > Network > Network Type. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the settings.

1. The Network Camera will reboot.
2. Disconnect the power to the Network Camera; remove it from the LAN environment.

NOTE

▶ If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera.
▶ If UPnPTM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.

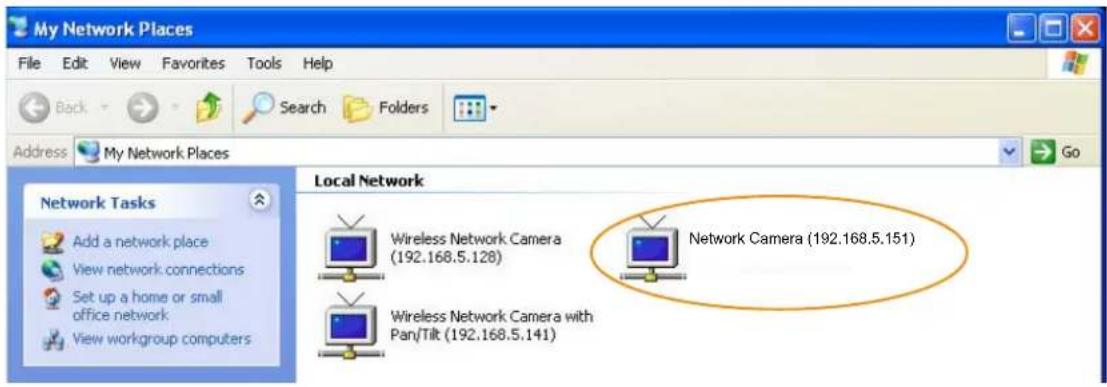

▶ Steps to enable UPnP ^TM user interface on your computer:

Note that you must log on to the computer as a system administrator to install the UPnP ^TM components.

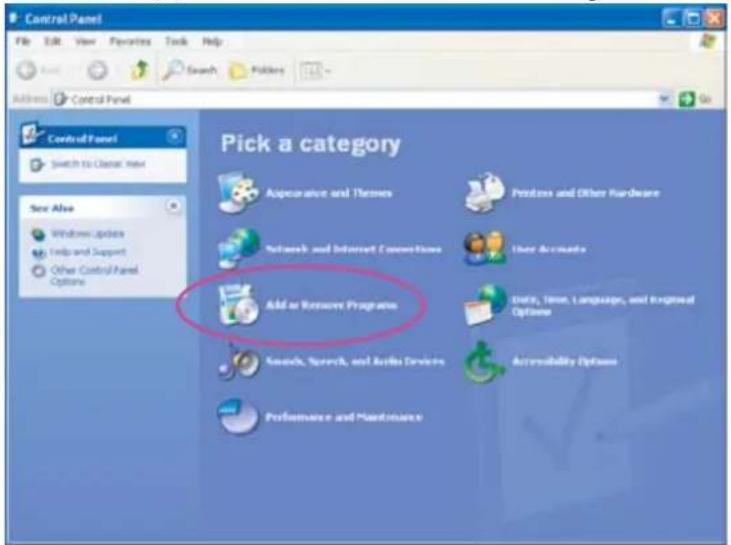

1. Go to Start, click Control Panel, , then click Add or Remove Programs.

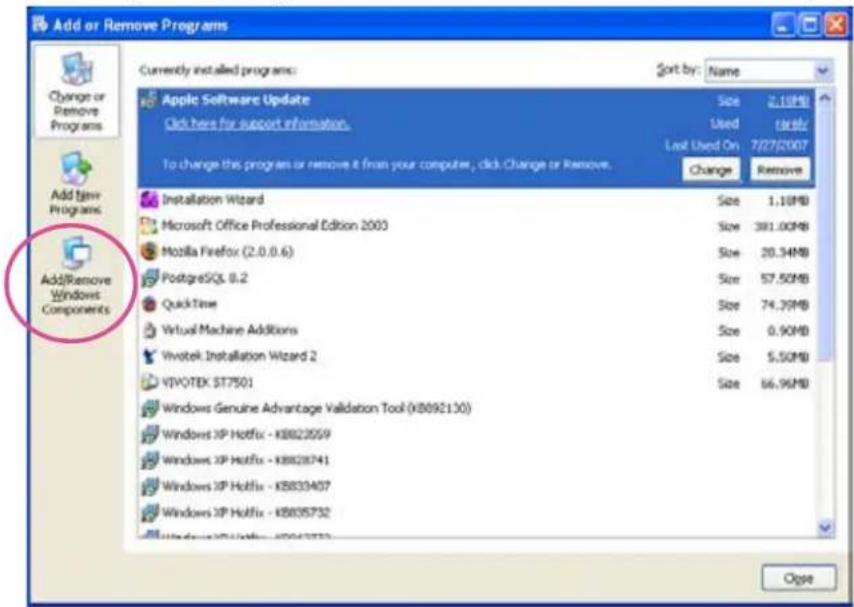

1. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.

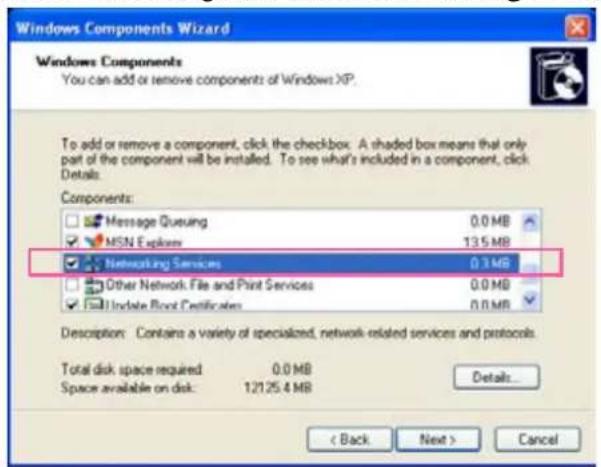

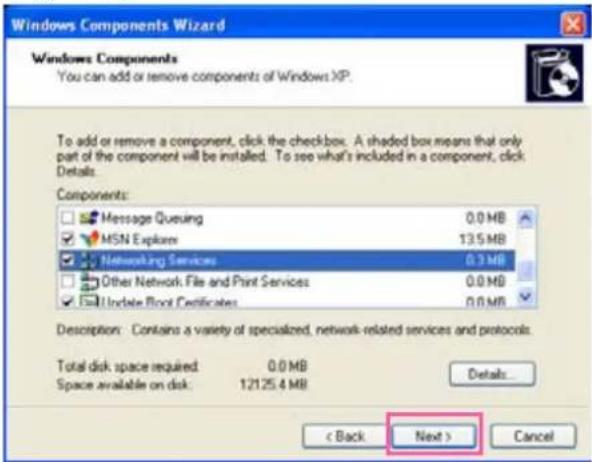

1. In the Windows Components Wizard dialog box, select Networking Services and click Details.

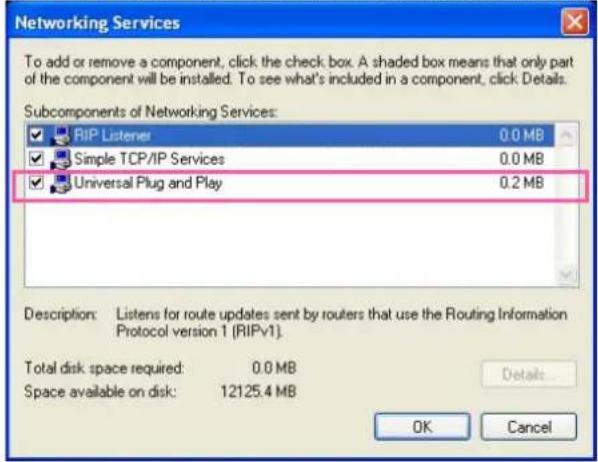

1. In the Networking Services dialog box, select Universal Plug and Play and click OK.

1. Click Next in the following window.

1. Click Finish. UPnP ^TM is enabled.

▶ How does UPnP ^TM work?
UPnPTM networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
▶ Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network Camera's public address in order to access the Network Camera from the Internet. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

▶ If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the Network Camera to factory default; please refer to Restore on page 81 for details. After the Network Camera is reset to factory default, it is accessible on the LAN.

Enable IPv6

Select this option and click Save to enable IPv6 settings.

Please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.

IPv6 Information: Click this button to obtain the IPv6 information as shown below.

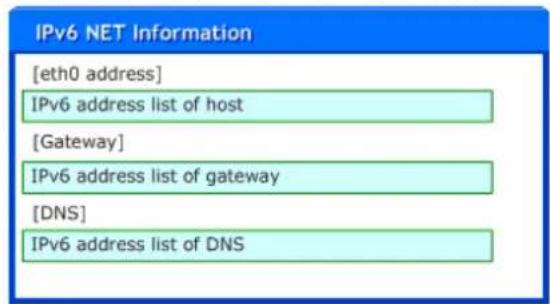

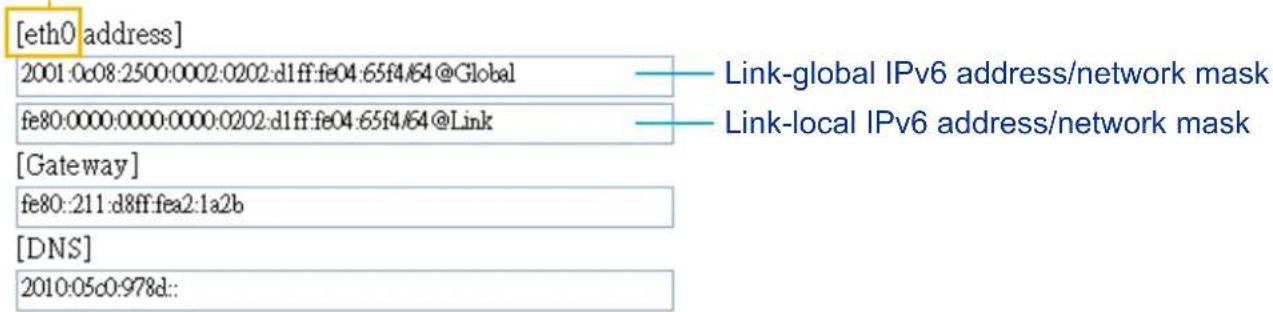

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6 address will be displayed as follows:

Refers to Ethernet

Please follow the steps below to link to IPv6 address:

1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.

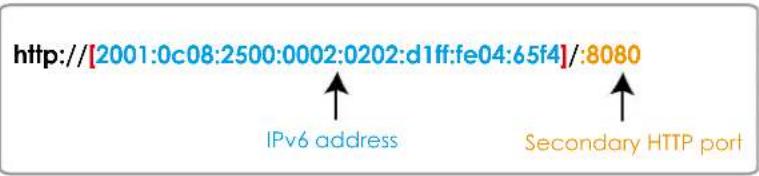

3. The format should be:

1. Press Enter on the keyboard or click Refresh button to refresh the webpage. For example:

NOTE

▶ If you have the Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please refer to HTTP on page 39 for detailed information.)

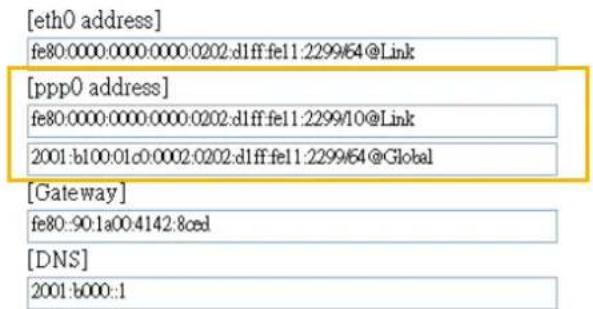

▶ If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6 information column as shown below.

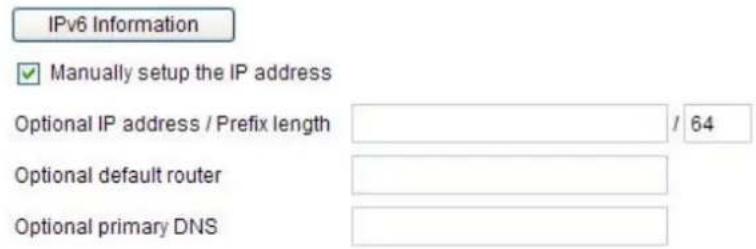

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and router advertisements-enabled routers. If you check this item, the following blanks will be displayed for you to enter the corresponding information: ☑ Enable IPv6

Enable IPv6

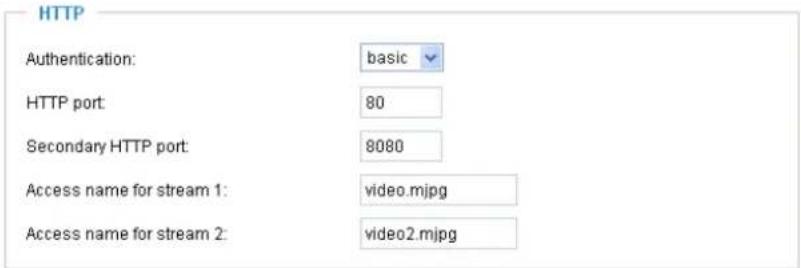

HTTP Advanced Mode

To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 27 for details.

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.

If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are incorrectly assigned, the following warning messages will be displayed:

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

In LAN

http://192.168.4.160 or http://192.168.4.160:8080

Access name for stream 1 / Access name for stream 2: The access name is used to differentiate the streaming source.

When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape.

URL command -- http://:/ For example, when the Access name for stream 2 is set to video2.mjpg:

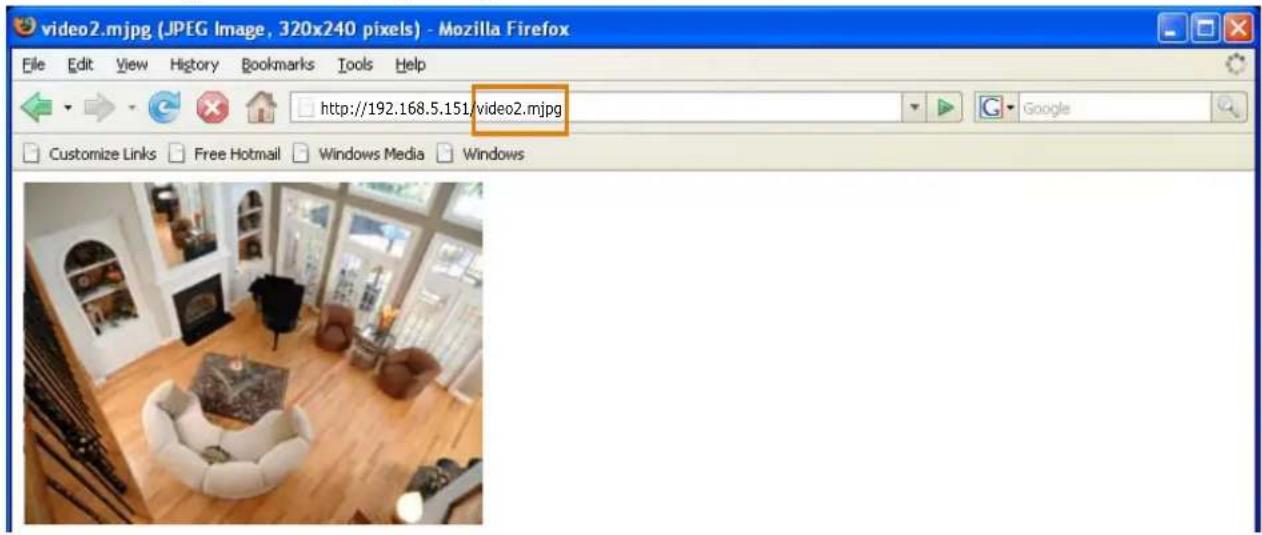

1. Launch Mozilla Firefox or Netscape.
2. Type the URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.

NOTE

▶ Microsoft ^® Internet Explorer does not support server push technology; therefore, using http://:/ will fail to access the Network Camera.

HTTPS

By default, the HTTPS port is set to 443. It also can be assigned with another port number between 1025 and 65535.

Two Way Audio

By default, the two way audio port is set to 5060. Also, it can be assigned with another port number between 1025 and 65535.

The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously. By using the Network Camera's built-in or external microphone and an external speaker, you can communicate with people around the Network Camera.

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio function, make sure the video mode is set to "MPEG-4" on the Audio and Video Settings page and the media option is set to "Video and Audio" on the Client Settings page. Please refer to Client Settings on page 22 and Audio and Video Settings on page 49.

Click 📄 to enable audio transmission to the Network Camera; click 📋 to adjust the volume of microphone; click ↓ to turn off the audio. To stop talking, click again.

FTP

The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

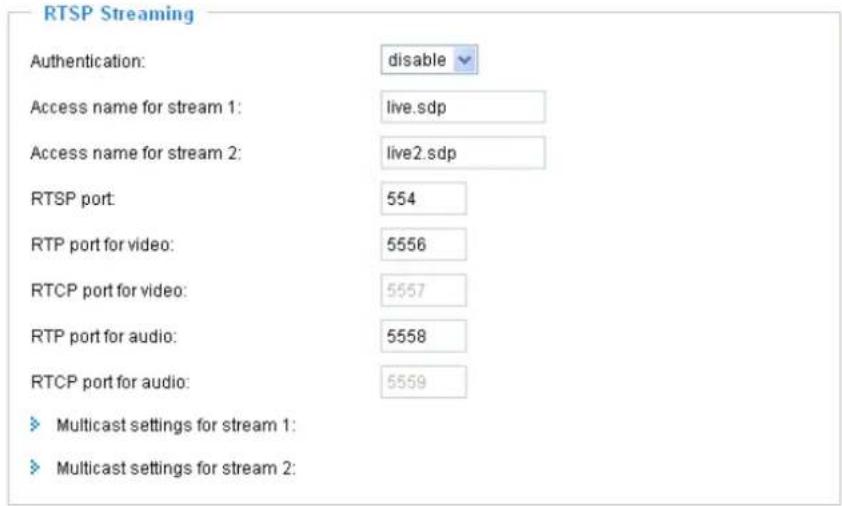

RTSP Streaming

To utilize the RTSP streaming authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 27 for details.

Save

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest.

If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.

The availability of the RTSP streaming for the three authentication modes is listed in the following table:

	Quick Time player Real Player
Disable O O
Basic O O
Digest O X

Access name for stream 1 / Access name for stream 2: This Network camera supports dual streams simultaneously. The access name is used to differentiate the streaming source.

If you want to use an RTSP player to access the Network Camera, you have to set the video mode to MPEG-4 and use the following RTSP URL command to request transmission of the streaming data.

rtsp://:/

For example, when the access name for stream 1 is set to live.sdp:

1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the URL command in the text box. For example:
4. The live video will be displayed in your player as shown below.

Interior view of a modern living room with wooden flooring, armchairs, and large windows (no visible text or symbols)

RTSP port /RTP port for video, audio/ RTCP port for video, audio

The RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.

■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by monitoring Internet traffic volume. By default, the RTCP port for video is set to 5557 and the RTCP port for audio is set to 5559.

The five ports can be changed to values between 1025 and 65535. The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always odd. When the RTP port changes, the RTCP port will change accordingly.

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

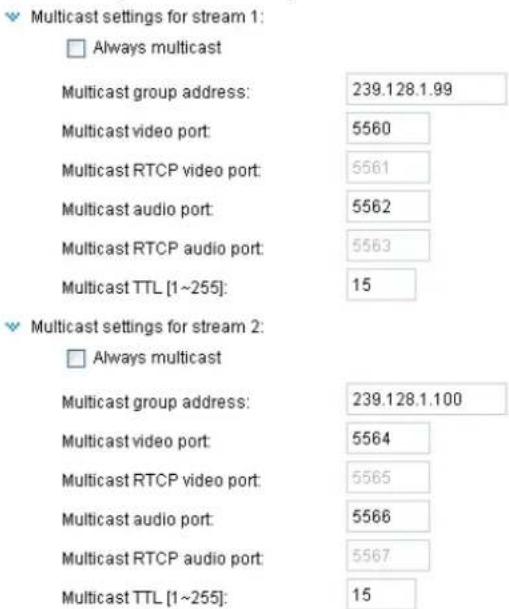

Multicast settings for stream 1 / Multicast settings for stream 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 or stream 2.

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Therefore, multicast can effectively save Internet bandwidth.

The five ports can be changed between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus it is always be odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.

If the multicast RTP video ports are incorrectly assigned, the following warning message will be

displayed:

Multicast TTL [1\~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded.

DDNS

This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

DDNS: Dynamic Domain Name Service

Enable DDNS: Select this option to enable the DDNS setting.

Provider: Select a DDNS provider from the Provider drop-down list.

VIVOTEK offers Safe100.net, a free dynamic domain name service to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK's network camera from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.

Note that before utilizing this function, please apply a dynamic domain account first.

■ Safe100.net

1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the terms of the Service Agreement.
2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register. After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column.

1. Click Copy and all the registered information will automatically be uploaded to the corresponding fields in the DDNS column at the top of the page as seen in the picture.

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

Email:

Key:

Safe100.net

WTK.safe100.net

[e-mail]

...

[*.safe100.net]

Save

Register

Host name:

Email:

Key:

Confirm key:

WTK.safe100.net

[e-mail]

...

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register".

Register

DDNS Registration Result:

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Select Enable DDNS, then click Save to enable the settings.

■ CustomSafe100

VIVOTEK offers documents to establish CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, fill in the Host name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding fields in the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.

Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your account information will be sent to your email address.

Refer to the following links to apply a dynamic domain account when selecting other DDNS providers:

■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
■ TZO.com: visit http://www.tzo.com/
■ DHS.org: visit http://www.dhs.org/
■ dyn-interfree.it: visit http://dyn-interfree.it/

Access List Advanced Mode

This section explains how to control access permission by verifying the client PC's IP address.

General Settings

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1\~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player).

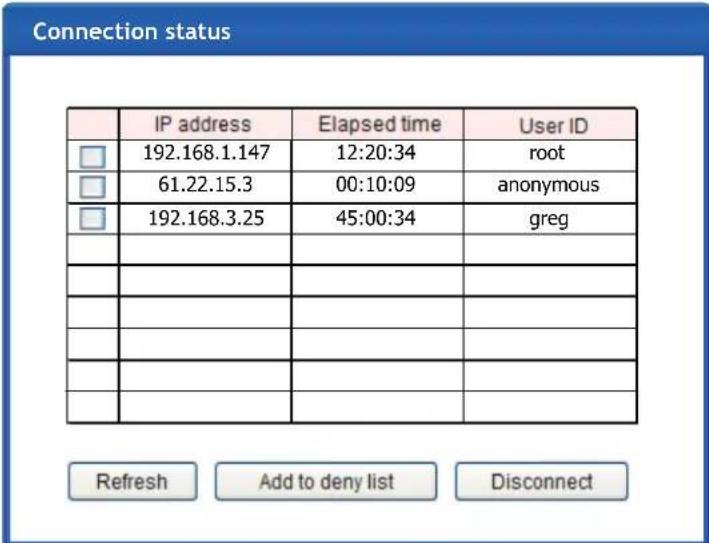

View Information: Click this button to display the connection status window showing a list of the current connections. For example:

■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video. The user name will be displayed in the User ID column. If the administrator allows clients to link to the webpage without a user name and password, the User ID column will be empty.

There are some situations which allows clients to get access to the live video without user name and password:

1. The administrator does not set up a root password. For more information about how to set up a root password and manage user accounts, please refer to Security on page 27.
2. The administrator has set up a root password, but set RTSP Authentication to "disable". For more information about RTSP Authentication, please refer to RTSP Streaming on page 42.
3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to Security on page 27.

■ Refresh: Click this button will refresh all current connections.
■ Add to deny list: You can check some items on the connection status list, , then click this button to add them to the denied list. Please note that those checked connections will only be disconnected temporarily, but will automatically try to re-link again (IE Explore or Quick Time Player). If you want to enable the denied list, please check Enable access list filtering and click Save in the first column.
■ Disconnect: If you want to break off some current connections, please check them and click this button. Please note that those checked connections will only be disconnected temporarily, but will automatically try to re-link again (IE Explore or Quick Time Player).

Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function.

Filter

There are two lists for permission control: Allowed list and Denied list. Only those clients whose IP addresses are on the Allowed list and not on the Denied list can access the Network Camera. Please note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 settings, please refer to page 37 for detailed information.

■ Add a rule to Allowed/Denied list: Click Add to add a rule to Allowed/Denied list.

There are three types of rules:

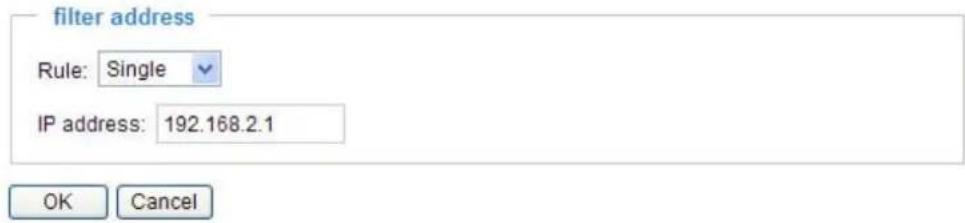

Single: This rule allows the user to add an IP address to the Allowed/Denied list.

For example:

Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.

For example:

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List. This rule is only applied to IPv4.

For example:

■ Delete Allowed/Denied list:

In the Delete Allowed List or Delete Denied List column, make a selection and click Delete.

NOTE

For example, when the range of IP addresses in the allowed list is set from 1.1.1.0 to 192.255.255.255 and the range in the denied list is set from 1.1.1.0 to 170.255.255.255, only users' IP located between 171.0.0.0 and 192.255.255.255 can access the Network Camera.

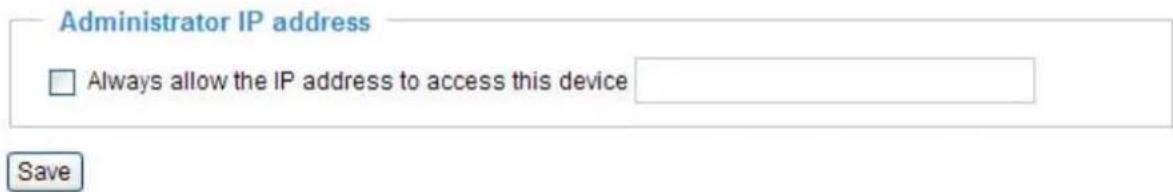

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator's IP address in this field to make sure the Administrator can always connect to the device.

Audio and Video

This section explains how to configure the audio and video settings of the Network Camera. It is composed of the following two columns: Video Settings and Audio Settings.

Video Settings

Video title: Enter a name that will be displayed on the title bar of the live video.

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.

Video orientation: Flip--vertically reflect the display of the live video; Mirror--horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (ex. on the ceiling) to correct the image orientation.

Maximum Exposure Time: 1/30 S, 1/15 S, and 1/5 S.

Overlay title and time stamp on video: Select this option to place the video title and time on video streams.

Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be stamped on the video streams.

Fix iris Advanced Mode: If it is the first time to install the Network Camera, it is suggested to select this item to set up the iris at the maximum value; then adjust the zoom factor and focus range. Upon completion, uncheck this item to enable auto iris.

Image Settings Advanced Mode

Click Image settings to open the Image Settings page. In this page, you can tune White balance, Brightness, Saturation, Contrast, and Sharpness for video compensation.

Interior view of a modern living room with wooden flooring, armchairs, and large windows (no visible text or symbols)

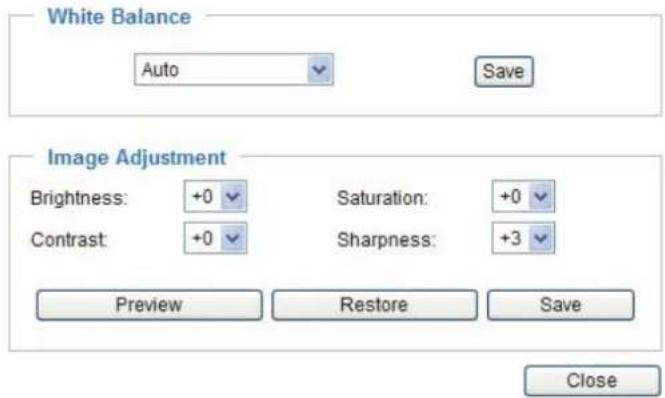

White balance: Adjust the value for best color temperature.

■ Auto

The Network Camera automatically adjusts the color temperature of light in response to different light sources. The white balance setting defaults to Auto and works well in most situations.

- Keep current value

Follow the steps below to manually set the white balance to compensate for the ambient lighting conditions.

1. Set the White balance to Auto and click Save.
2. Place a sheet of white paper in front of the lens, then allow the Network Camera to adjust the color temperature automatically.
3. Select Keep Current Value to confirm the setting while the white balance is being measured.
4. Click Save to enable the settings.

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5. The default value is set to 0.
■ Saturation: Adjust the image saturation level, which ranges from -5 to +5. The default value is set to 0.
■ Contrast: Adjust the image contrast level, which ranges from -5 to +5. The default value is set to 0.
■ Sharpness: Adjust the image sharpness level, which ranges from -3 to +3. The default value is set to +3.

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings and click Close to exit the page.

Privacy mask Advanced Mode

Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns.

□ Enable privacy mask

Enable privacy mask

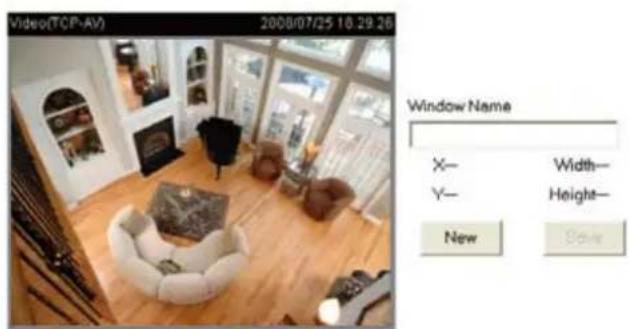

■ To set the privacy mask windows, follow the steps below:

1. Click New to add a new window.
2. Use the mouse to size and drag-drop the window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Select Enable privacy mask to enable this function.

NOTE

▶ Up to 5 privacy mask windows can be set up on the same screen.
▶ If you want to delete the privacy mask window, please click the 'x' on the upper right-hand corner of the window.

Video quality settings for stream 1 / stream 2 Advanced Mode

The Network Camera offers two choices of video compression standards for real-time viewing, so you can choose MPEG-4 or MJPEG for dual streams.

Click the items to display the detailed configuration settings. You can set up two separate streams for the Network Camera for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers.

If MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are four parameters provided in MPEG-4 mode which allow you to adjust the video performance:

Video quality settings for stream 1:

MPEG-4:

Frame size:

Maximum frame rate:

640x480

Customize

30 fps [1\~30]

1/4 S

Intra frame period:

Video quality:

○ Constant bit rate:

Customize

512 Kbps [1\~4000]

Fixed quality:

Customize

7 [1\~31]

JPEG:

Video quality settings for stream 2:

MPEG-4:

JPEG:

Frame size:

Maximum frame rate:

176x144

Customize

30 fps [1\~30]

Video quality:

Customize

50 [10\~200]

■ Frame size

Select the video size. Note that a larger frame size takes up more bandwidth. The frame sizes are selectable in the following resolutions: 176 x 144, 320 x 240, and 640 x 480.

■ Maximum frame rate

This limits the maximal refresh frame rate per second. Set the frame rate higher for a smoother video quality.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select Customize and manually enter a value.

■ Intra frame period

Determine how often to plant an I frame. The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.

■ Video quality

A complex scene generally produces larger file size, meaning that higher bandwidth will be needed for data transmission. Therefore, if Constant bit rate is selected, the bandwidth utilization is fixed at a selected level, resulting in mutable video quality performances. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, and 4Mbps. You can also select Customize and manually enter a value.

On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video qualities are selectable at the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client. There are three parameters provided in MJPEG mode to control the video performance:

■ Frame size

Select the video size. Note that a larger frame size takes up more bandwidth. The frame sizes are selectable in the following resolutions: 176 x 144, 320 x 240, and 640 x 480.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at the following rates: 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps.

■ Video quality

The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

NOTE

▶ Video quality and fixed quality refers to the compression rate, so a lower will produce higher quality.

Day/Night settings

Day/Night settings:

□ Switch to B/W in night mode

IR cut filter:

Auto mode

Light sensor sensitivity:

Normal

□ Disable IR LED

Switch to B/W in night mode

Select this to enable the Network Camera to automatically switch to B/W during night mode.

IR cut filter

With a removable IR-cut filter and built-in IR illuminators, up to 15m, this Network Camera can automatically remove the filter and turn on the IR illuminators to let IR light into the sensor during low light conditions.

■ Auto

The Network Camera automatically removes the filter by judging the level of ambient light.

■ Day mode

In day mode, the Network Camera switches on the IR cut filter at all times to block infrared light from reaching the sensor so that the colors will not be distorted.

■ Night mode

In night mode, the Network Camera switches off the IR cut filter at all times for the sensor to accept infrared light, thus helping to improve low light sensitivity.

■ Schedule mode

The Network Camera switches between day mode and night mode based on specified schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

Light sensor sensitivity

Select Low, Normal, or High sensitivity for the light sensor.

Disable IR LED

If you don't want to use IR illuminators, you can select this option to turn off.

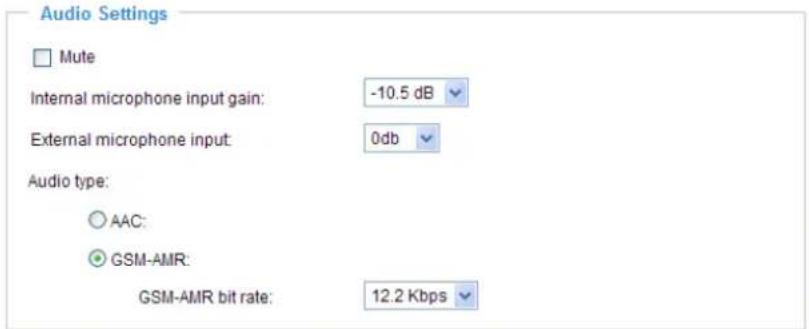

Audio settings

Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page. In that case, the following message is displayed:

Internal microphone input gain: Select the gain of the internal audio input according to ambient conditions. Adjust the gain from +12 db (most sensitive) \~ -34.5 db (least sensitive).

External microphone input: Select the gain of the external audio input according to ambient conditions. Adjust the gain from +20 db (most sensitive) or 0 db (least sensitive).

Audio type: Select audio codec AAC or GSM-AMR and the bit rate Advanced Mode

■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps.

■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are selectable from: 4.75Kbps, 5.15Kbps, 5.90Kbps, 6.7Kbps, 7.4Kbps, 7.95Kbps, 10.2Kbps, and 12.2Kbps.

When completed with the settings on this page, click Save to enable the settings.

NOTE

The Network Camera offers two inputs to capture audio - internal microphone or external microphone. The internal/external microphone switch is located on the side of the Network Camera.

Motion Detection

This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured.

Follow the steps below to enable motion detection:

1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.

■ To move and resize the window, drag and drop your mouse on the window.
■ To delete window, click X on the top right corner of the window.

1. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slider bar.
2. Click Save to enable the settings.
3. Select Enable motion detection to enable this function.

For example:

Enable motion detection

Interior view of a modern living room with wooden flooring, featuring a sofa, fireplace, and wall-mounted furniture (no visible text or symbols)

Profile

The Percentage Indicator will rise or fall depending on the variation between sequential images. When motions are detected by the Network Camera and are judged to exceed the defined threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can be captured instantly and configured to be sent to a remote server (Email, FTP) by utilizing this feature as a trigger source. For more information on how to set an event, please refer to Application on page 63.

A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold.

If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well.

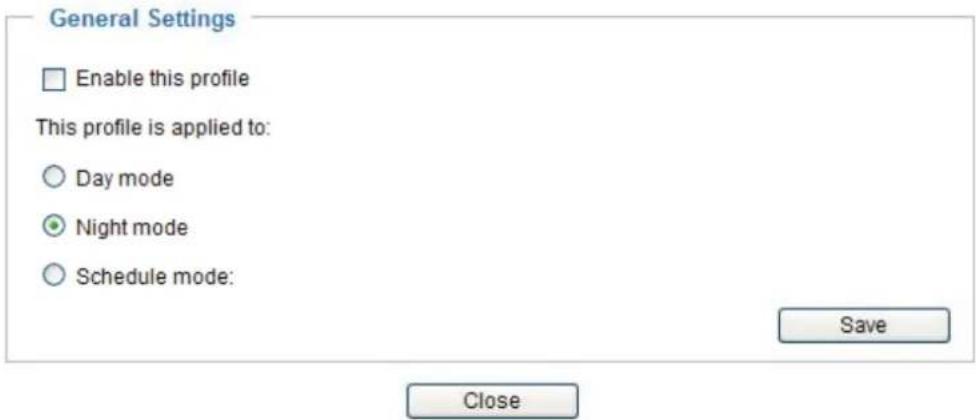

Please follow the steps beolw to set up a profile:

1. Create a new motion detection window.
2. Check Enable this profile.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.

This motion detection window will also be displayed on the Event Settings page. You can go to Application > Event Settings > Trigger to choose it as a trigger source. Please refer to page 65 for detailed information.

NOTE

▶ How does motion detection work?

Illustration of a cat with striped stripes and green grass on a grid background (no text or symbols)

Illustration of a fish in a purple square frame with green grass and rocks, displayed within a window titled 'windowA' (no text or symbols on the fish or background)

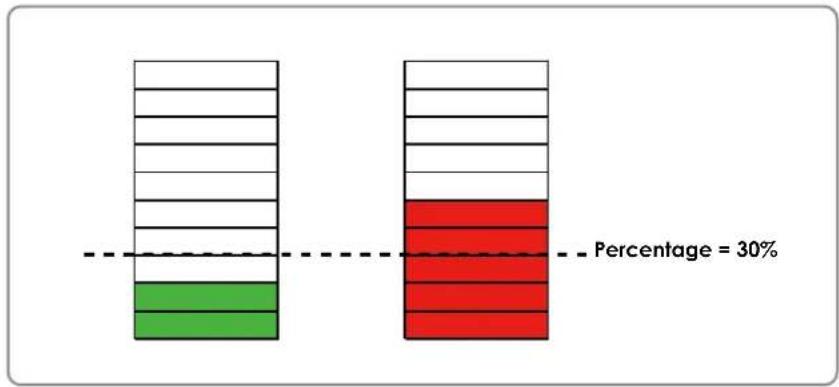

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red.

For applications that require a high level of security management, it is suggested to use higher sensitivity settings and smaller percentage values.

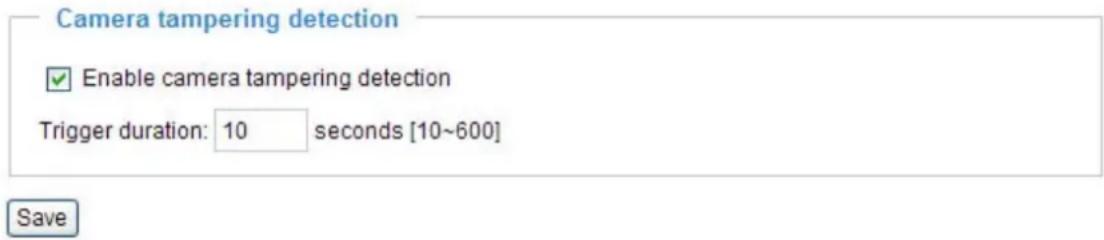

Camera Tampering Detection

This section explains how to set up camera temper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint.

Please follow the steps below to set up the camera tamper detection function:

1. Check Enable camera tampering detection.
2. Enter the tamper trigger duration. (10 sec. \~ 10 min.) The tamper alarm will be triggered only when the tampering factor (the difference between current frame and pre-saved background) exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Application page > Event Settings / Server Settings (how to send alarm message) / Media Settings (send what type of alarm message). Please refer to page 65 for detailed information.

Homepage Layout Advanced Mode

This section explains how to set up your own customized homepage layout.

Preview

This column shows the settings of your homage layout. You can manually select the background and font colors in Theme Options (the third column on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings:

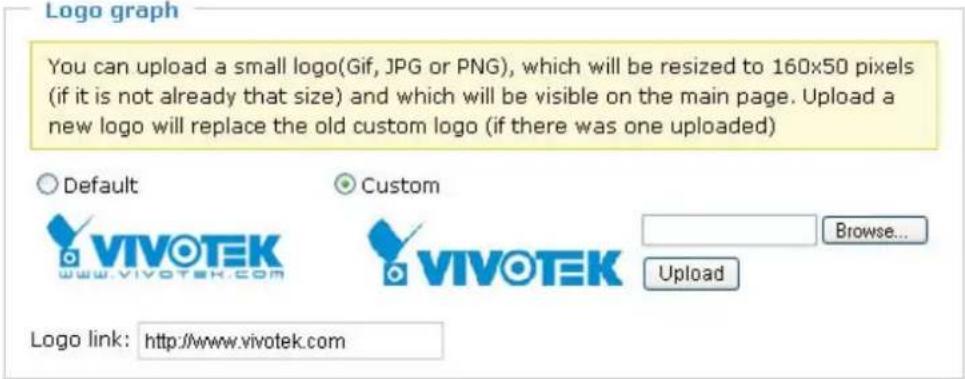

Logo

Here you can change the logo at the top of your homepage.

Follow the steps below to upload a new logo:

1. Click Custom and the Browse field will appear.
2. Select a logo from your files.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.

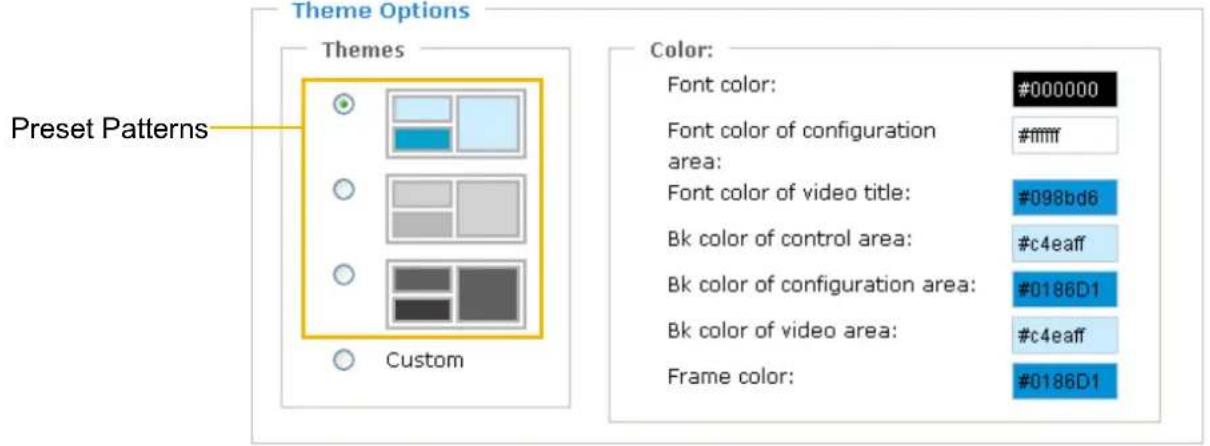

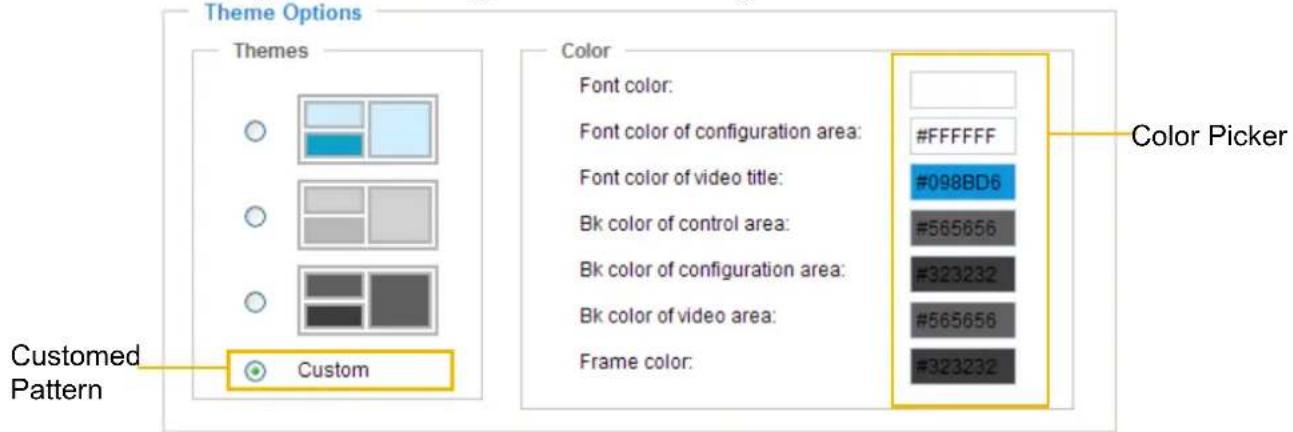

Theme Options

Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.

Save

■ Follow the steps below to set up the customed homepage:

1. Click Custom on the left column.
2. Click the field where you want to change the color on the right column.

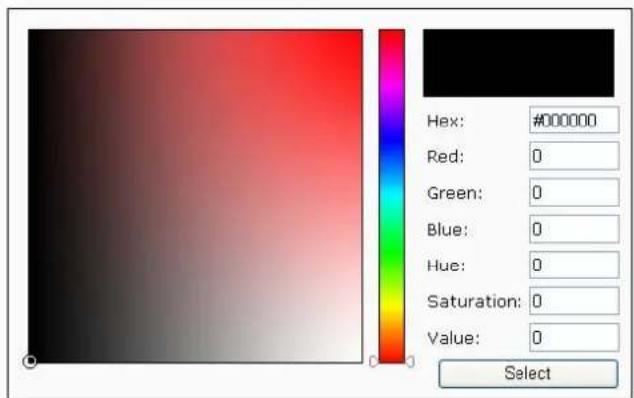

1. The palette window will pop up as shown below.

1. Drag the slider bar and click on the left square to select a desired color.
2. The selected color will be displayed in the corresponding fields and in the Preview column.
3. Click Save to enable the settings.

Application Advanced Mode

This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications.

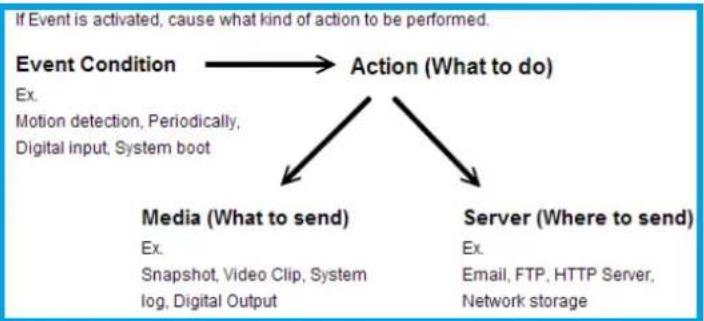

In the illustration on the right, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is triggered, you can specify what type of action that will be performed. You can configure the Network Camera to send snapshots or videos to your email address or FTP site.


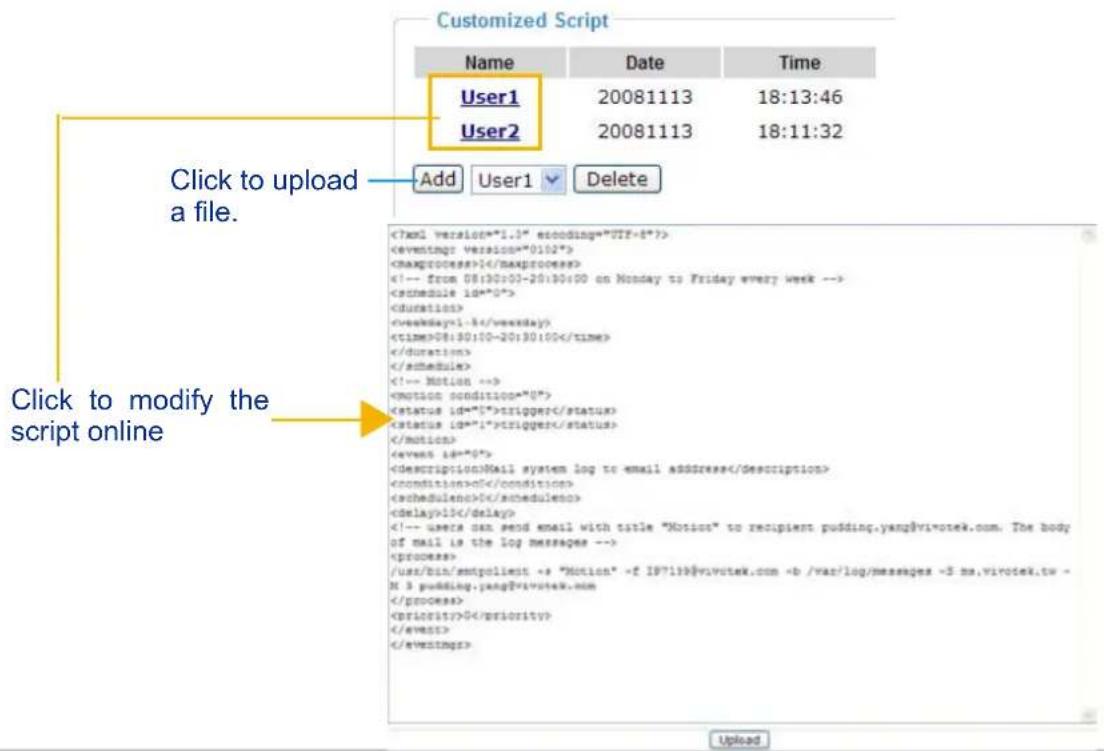

Customized Script

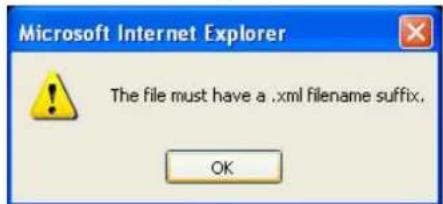

This function allows you to upload a sample script (.xml file) to the webpage, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will pop up. If you need more information, please ask for VIVOTEK technical support.

Event Settings

In the Event Settings column, click Add to open the Event Settings page. On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event. A total of 3 event settings can be configured.

Note: This can only applied to motion detection and digital input

Event name: Enter a name for the event setting.

Enable this event: Select this option to enable this event setting.

Priority: Select the relative importance of this event (High, Normal, or Low). Events with higher priority setting will be executed first.

Detect next event after □ seconds: Enter the duration in seconds to pause motion detection after a motion is detected.

An event is an action initiated by a user-defined trigger source; it is the causal arrangement of the following three elements: Trigger, Event Schedule, and Action.

Trigger

This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices.

There are several choices of trigger sources as shown below. Select the item to display the detailed configuration options.

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source. To enable this function, you need to configure a Motion Detection Window first. For more information, please refer to Motion detection on page 56 for details.

■ Periodically

This option allows the Network Camera to trigger periodically for every other defined minute. Up to 999 minutes are allowed.

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc.

PIR

This option allows the Network Camera to trigger when the built-in PIR (Passive Infrared) sensor detects any motion objects by their thermal to prevent occurrences of false alarms.

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected.

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to rewrite older data. If you want receive Recording notify message, please refer to page 74 for detailed information.

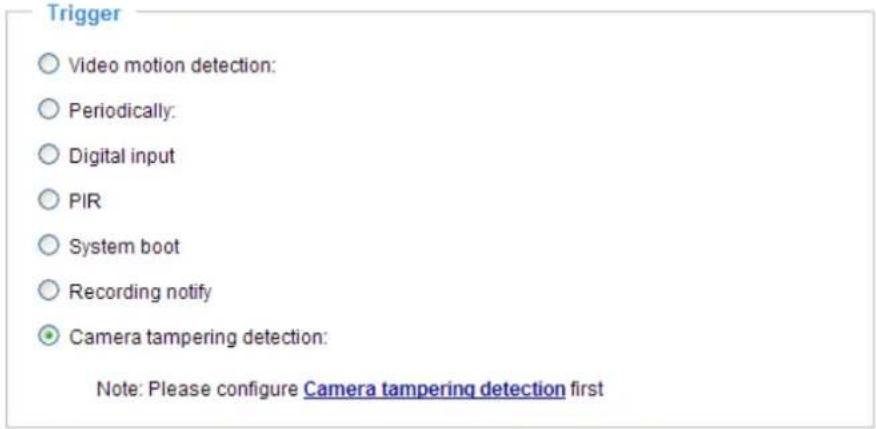

■ Camera tampering detection

This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 59 for detailed information.

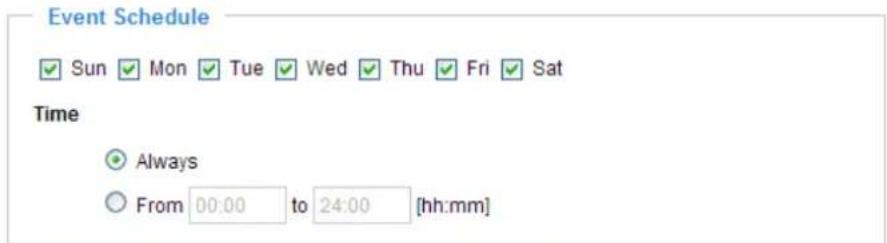

Event Schedule

Specify the period for the event.

■ Select the days of the week.

■ Select the recording schedule in 24-hr time format.

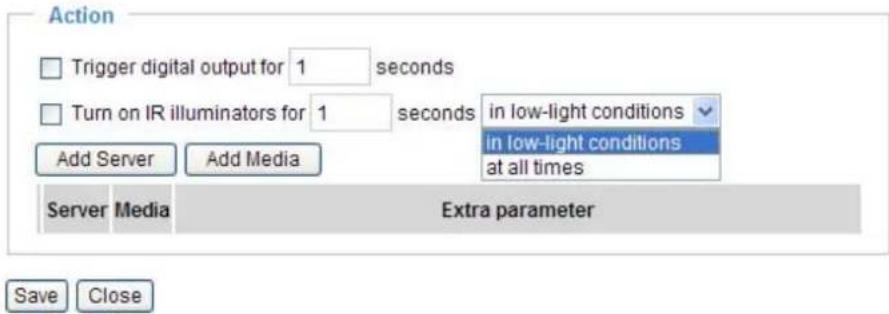

Action

Define the actions to be performed by the Network Camera when a trigger is activated.

■ Trigger digital output for □ seconds

Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.

■ Turn on IR Illuminators for □ seconds

Select this to turn on IR Illuminators when a trigger is activated every time or only in low light conditions. Specify the length of trigger interval in the text box.

To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated.

■ Add Server / Add Media

Click Add Server to configure Server Settings. For more information, please refer to Server Settings on page 69.

Click Add Media to configure Media Settings. For more information, please refer to Media Settings on page 72.

Here is an example of Event Settings page:

Event name: Event

□ Enable this event

Priority: Normal Detect next event after 10 second(s).

Note: This can only applied to motion detection and digital input

Trigger

○ Video motion detection:

Periodically:

Digital input

○ PIR

System boot

○ Recording notify

Camera tampering detection:

Note: Please configure Camera tampering detection first

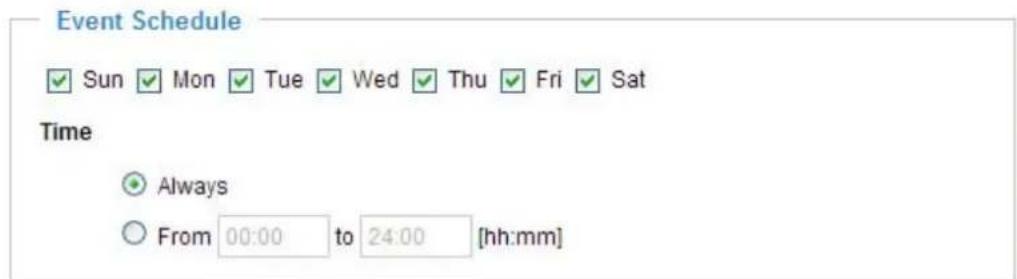

Event Schedule

Sun Mon Tue Wed Thu Fri Sat

Time

Always

From 00:00 to 24:00 [hh:mm]

Action

☐ Trigger digital output for 1 seconds

Turn on IR illuminators for 1 seconds in low-light conditions

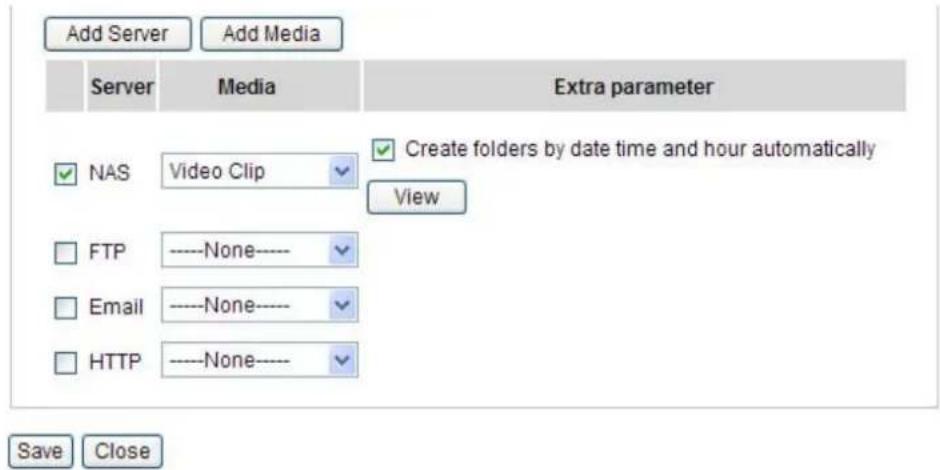

Add Server Add Media

Server

Media

Extra parameter

NAS

Video Clip

√ Create folders by date time and hour automatically

View

FTP

---None---

Email

---None---

□ HTTP

---None---

Save Close

When completed, click Save to enable the settings and click Close to exit Event Settings page. The new event settings / server settings / media settings will appear in the event drop-down list on the Application page.

Here is an example of the Application page with an event setting:

When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail.

If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove the event setting.

To remove a server setting from the list, select a server name from the drop-down list and click Delete. Note that only when the server setting is not being applied to an event setting can it be deleted.

To remove a media setting from the list, select a media name from the drop-down list and click Delete. Note that only when the media setting is not being applied to an event setting can it be deleted.

Server Settings

Click Add Server on Event Settings page to open the Server Setting page. On this page, you can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.

Server name: Enter a name for the server setting.

Server Type

There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options. You can configure either one or all of them.

Email: Select to send the media files via email when a trigger is activated.

■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure connection (SSL).

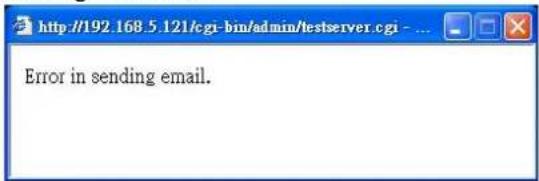

To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result.

Click Save to enable the settings, then click Close to exit the page.

FTP: Select to send the media files to an FTP server when a trigger is activated.

■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port

By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.

■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ Remote folder name

Enter the folder where the media file will be placed. If the folder name does not exist, the Network Camera will create one on the FTP server.

■ Passive mode

Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall.

To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.

Click Save to enable the settings, then click Close to exit the page.

HTTP: Select to send the media files to an HTTP server when a trigger is activated.

■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.

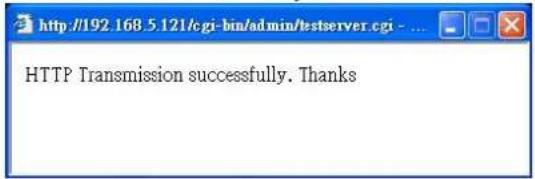

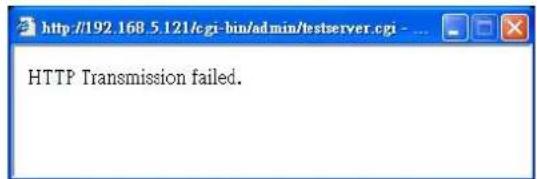

To verify if the HTTP settings are correctly configured, click Test. The result will be shown in a pop-up window as below. If successful, you will receive a test.txt file on the HTTP server.

Click Save to enable the settings, then click Close to exit the page.

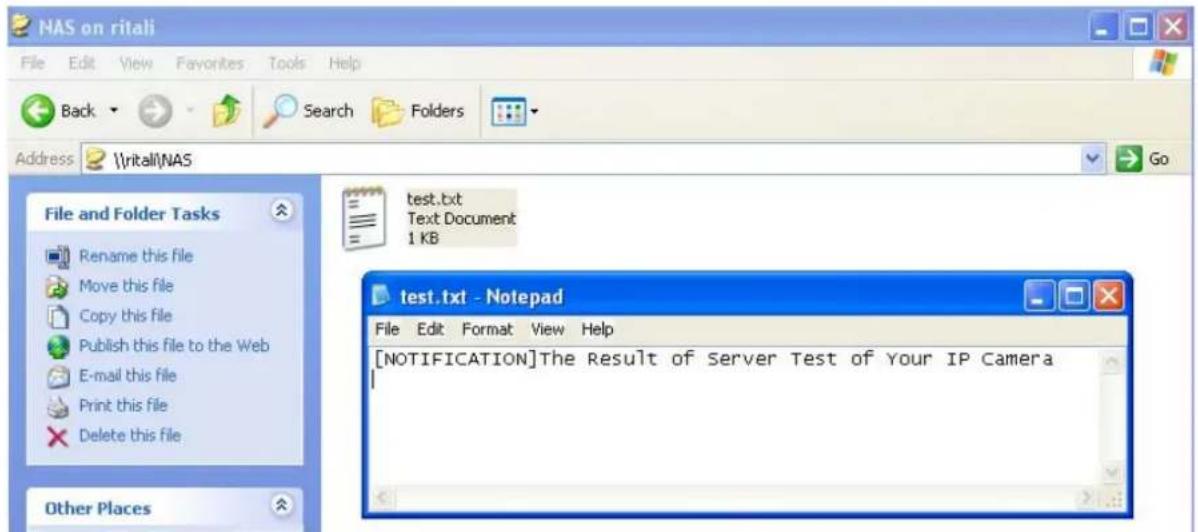

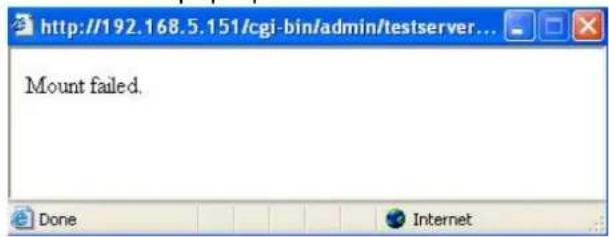

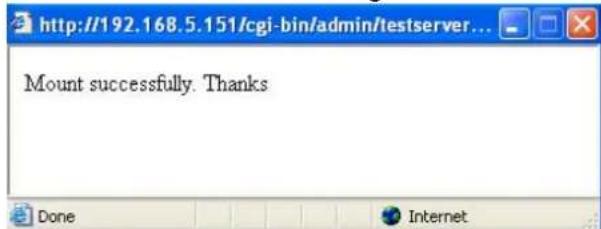

Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to Network Storage Setting on page 76 for details.

Click Save to enable the settings, then click Close to exit the page.

When completed, the new server settings will automatically be displayed on the Event Settings page. For example:

Media Settings

Click Add Media on the Event Settings page to open the Media Settings page. On this page, you can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured.

Media name: Enter a name for the media setting.

Media Type

There are three choices of media types available: Snapshot, Video Clip, and System log. Select the item to display the detailed configuration options. You can configure either one or all of them.

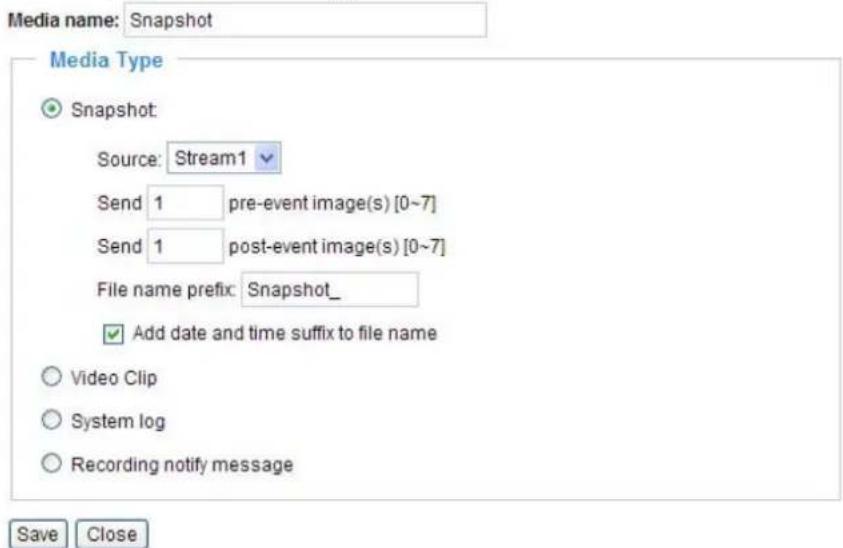

Snapshot: Select to send snapshots when a trigger is activated.

■ Source: Select to take snapshots from stream 1 or stream 2.
■ Send □ pre-event images

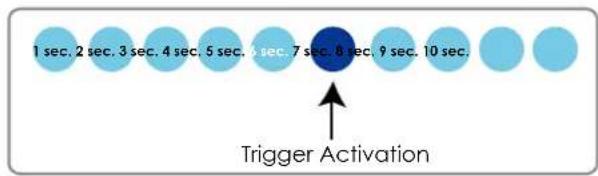

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send □ post-event images

Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can be generated.

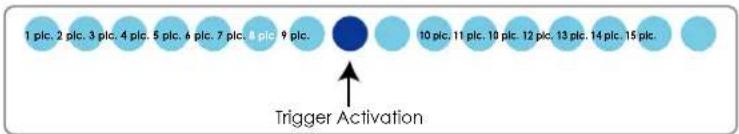

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15 images are generated after a trigger is activated.

■ File name prefix

Enter the text that will be appended to the front of the file name.

■ Add date and time suffix to the file name

Select this option to add a date/time suffix to the file name.

For example:

Click Save to enable the settings, then click Close to exit the page.

Video clip: Select to send video clips when a trigger is activated.

■ Source: Select to record video clips from stream 1 or stream 2.
■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
■ Maximum duration

Specify the maximum recording duration in seconds. Up to 10 seconds can be set.

For example, if pre-event recording is set to five seconds and the maximum duration is set to ten seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.

■ Maximum file size

Specify the maximum file size allowed.

■ File name prefix

Enter the text that will appended to the front of the file name.

For example:

Click Save to enable the settings, then click Close to exit the page.

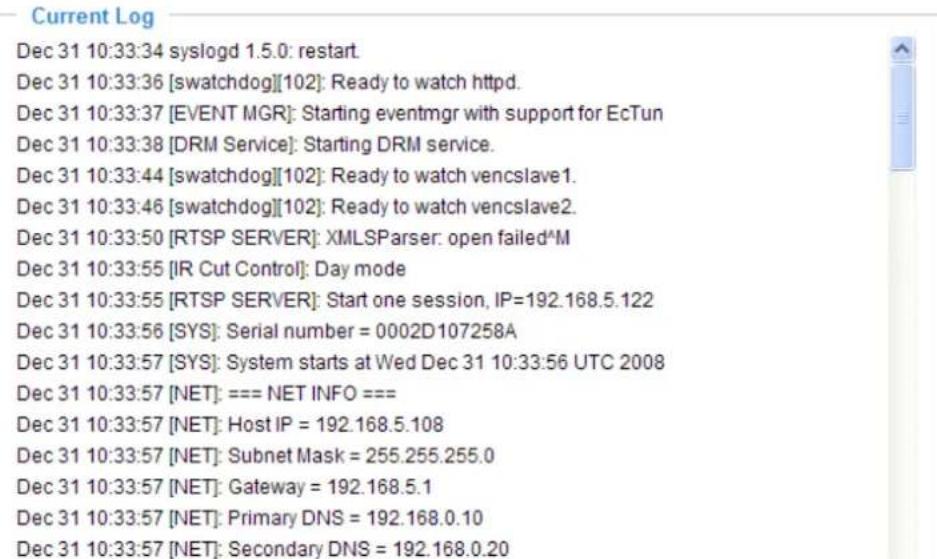

System log: Select to send a system log when a trigger is activated.

Click Save to enable the settings, then click Close to exit the page.

Recording notify message: Select to send a recording notification message when a trigger is activated. The following is an example of a recording notification message (.txt file), which shows a list of deleted previously-recorded data due to cycle recording.

When completed, click Save to enable the settings and click Close to exit this page. The new media settings will appear on the Event Settings page.

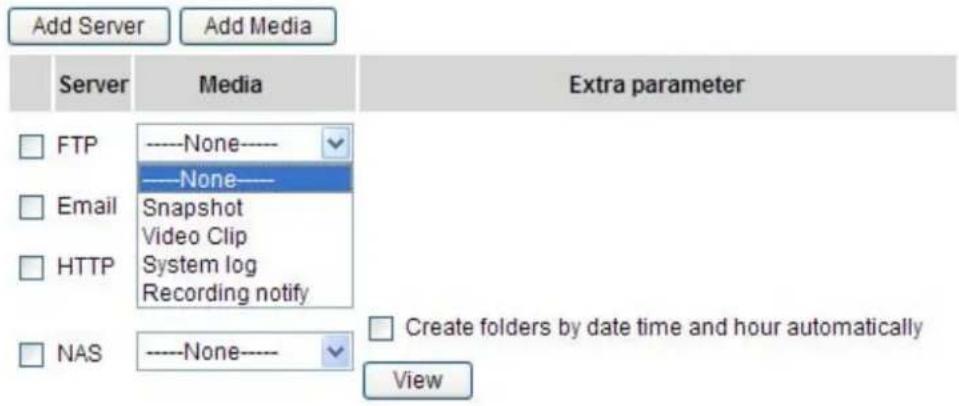

You can continue to select a server and media type for the event. Please go back to page 66 for detailed information.

■ Create folders by date, time, and hour automatically: If you check this item, the system will generate folders automatically by date.

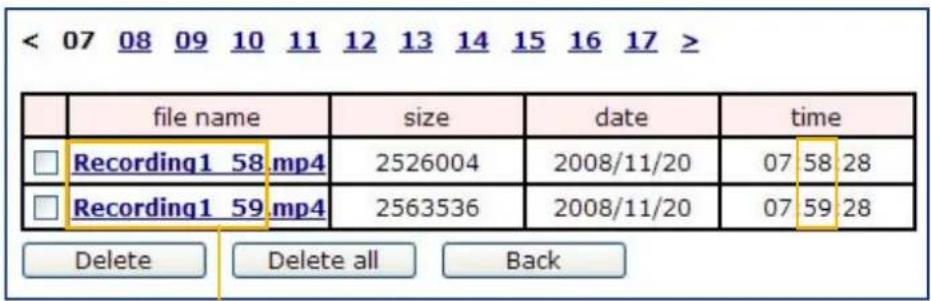

■ View: Click this button to open a file list window. This function is only for Network Storage. The following is an example of a file destination with video clips:

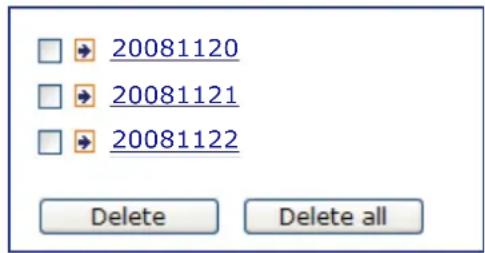

Click 20081120 to open the directory:

The format is: HH (24r)

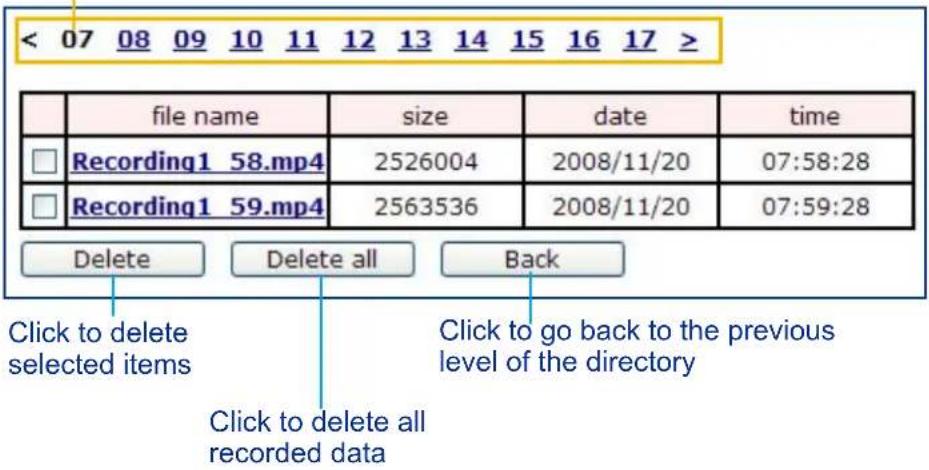

Click to open the file list for that hour

The format is: File name prefix + Minute (mm)

You can set up the file name prefix on Media Settings page.

Please refer to page 72 for detailed information.

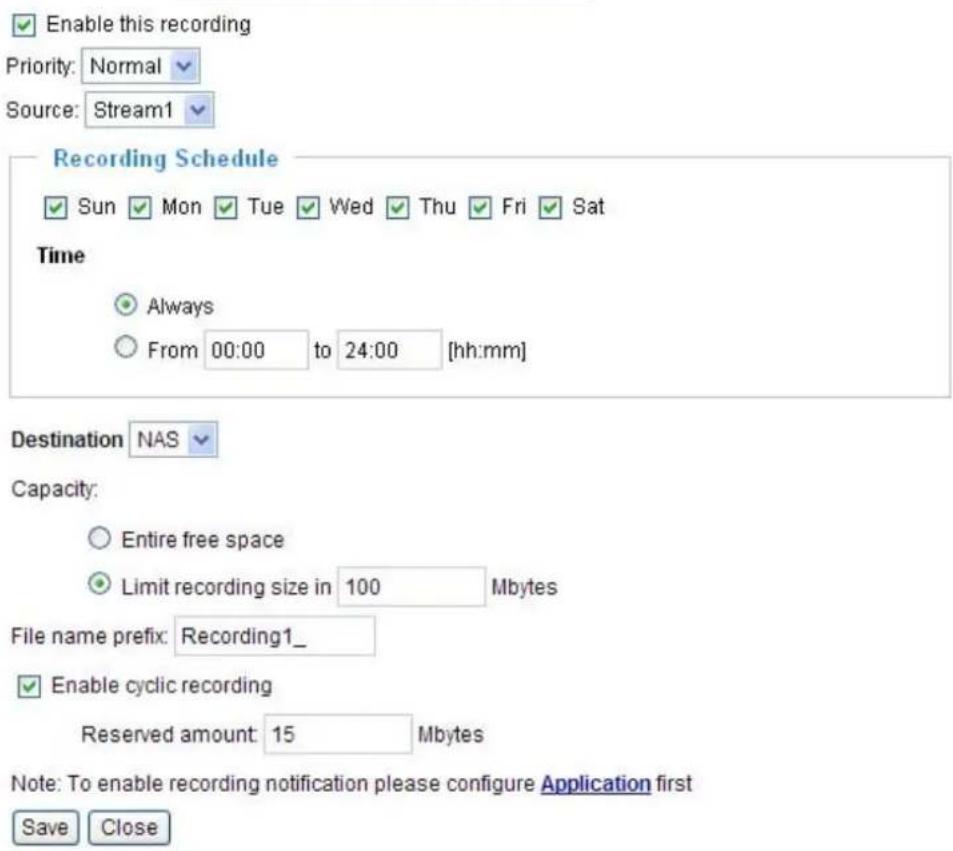

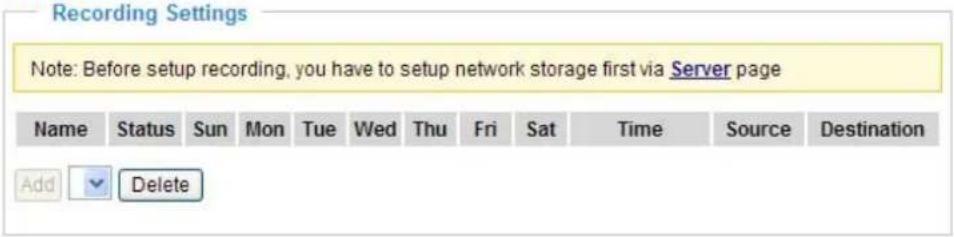

Recording

Advanced Mode

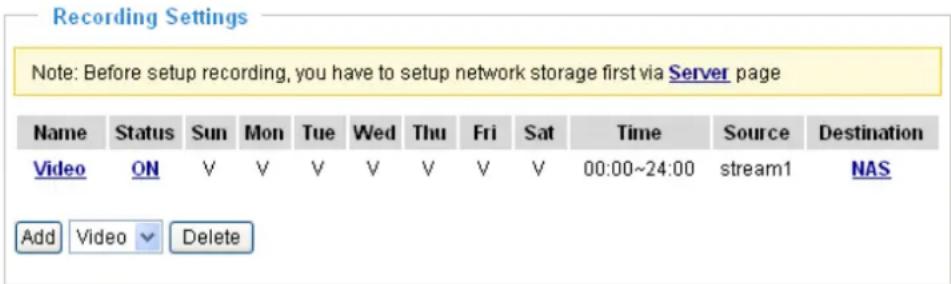

This section explains how to configure the recording settings for the Network Camera.

Recording Settings

NOTE

▶ Before setting up this page, please set up the Network Storage on the Server Settings page first.

Network Storage Setting

Click Server to open the Server Settings page and follow the steps below to set up:

1. Fill in the information for your server.

For example:

1. Click Test to check the setting. The result will be shown in the pop-up window.

If successful, you will receive a test.txt file on the network storage server.

1. Enter a server name.
2. Click Save to complete the settings and click Close to exit the page.

Recording Settings

Click Add to open the recording setting page. In this page, you can define the recording source, recording schedule and recording capacity. A total of 2 recording settings can be configured.

Recording name: Enter a name for the recording setting.

Enable this recording: Select this option to enable video recording.

Priority: Select the relative importance of this recording setting (High, Normal, and Low).

Source: Select the recording source (stream 1 or stream 2).

Recording Schedule: Specify the recording duration.

■ Select the days of the week.
■ Select the recording start and end times in 24-hr time format.

Destination: You can select the SD card or network storage that was set up for the recorded video files.

Capacity: You can choose either the entire free space available or limit the recording size. The recording size limit must be larger than the reserved amount for cyclic recording.

File name prefix: Enter the text that will be appended to the front of the file name.

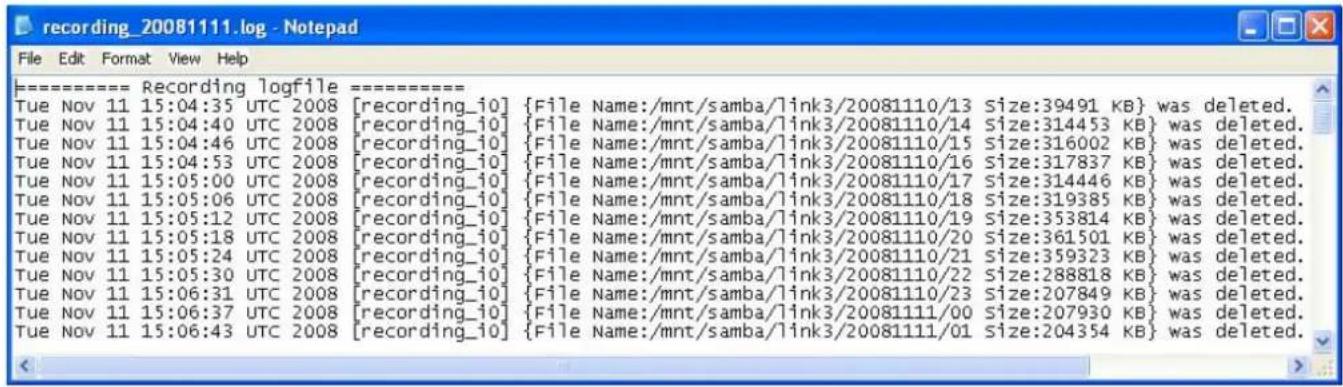

Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest file will be overwritten by the latest one. The reserved amount is reserved for cyclic recording to prevent malfunction. This value must be larger than 15 MBytes.

If you want to enable recording notification, please click Application to set up. Please refer to Trigger > Recording notify on page 66 for detailed information.

When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page. When the system begins recording, it will send the recorded files to the Network Storage. The new recording name will appear in the drop-down list on the recording page as shown below.

To remove a recording setting from the list, select a recording name from the drop-down list and click Delete.

■ Click Video (Name): Opens the Recording Settings page to modify.
■ Click ON (Status): The Status will become OFF and stop recording.
- Click NAS (Destination): Opens the file list of recordings as shown below. For more information about folder naming rules, please refer to page 74 for details.

System Log Advanced Mode

This section explains how to configure the Network Camera to send the system log to the remote server as backup.

Remote Log

Save

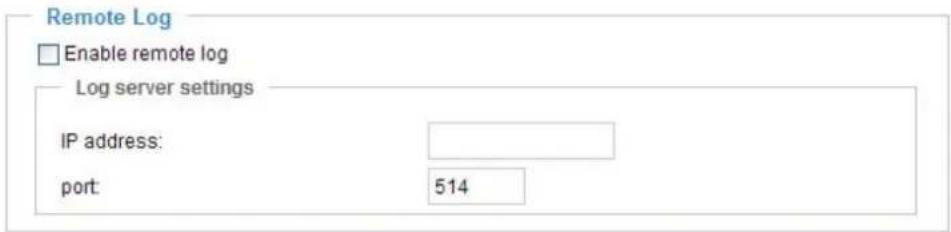

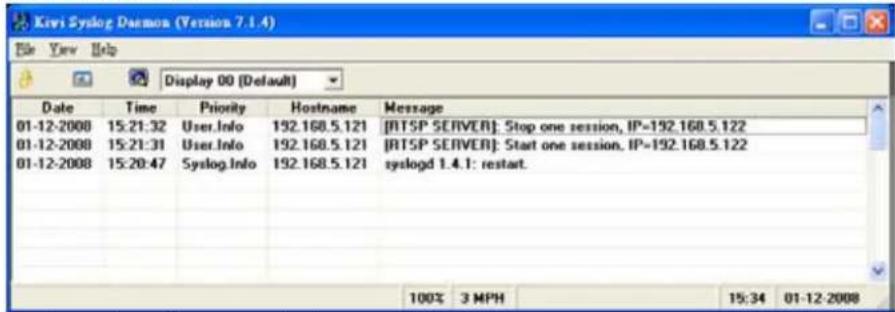

You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit http://www.kiwisyslog.com/kiwi-syslog-daemon-overview/.

Follow the steps below to set up the remote log:

1. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, select Enable remote log and click Save to enable the setting.

Current Log

This column displays the system log in chronological order. The system log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

View Parameters Advanced Mode

The View Parameters page lists the entire system's parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page.

Parameter List
system_hostname='Network Camera'
system_ledoff='0'
system_lowlight='1'
system_date='2009/01/19'
system_time='15:16:03'
system_datetime='011911192009.45'
system_ntp Her
system_timezoneindex='320'
system_daylight_enable='0'
system_daylight_dstactualmode='1'
system_daylight_auto_begintime='NONE'
system_daylight_auto_endtime='NONE'
system_daylight_timezones='-360,-320,-280,-240,-241,-200,-201,-1'
system_updateinterval='0'
system_info_modelname='FD7132'
system_info_extendedmodelname='FD7132'
system_info_serialnumber='0002D107258A'
system_info_firmwareversion='FD7132-VVTK-0200a'
system_info_language_count='9'
system_info_language_i0='English'
system_info_language_i1='Deutsch'
system_info_language_i2='Español'
system_info_language_i3='Français'
system_info_language_i4='Italiano'
system_info_language_i5='日本語'
system_info_language_i6='Português'
system_info_language_i7='简体中文'
system_info_language_i8='繁體中文'
system_info_language_i9 Her
system_info_language_i10 Her
system_info_language_i11 Her
system_info_language_i12 Her
system_info_language_i13 Her
system_info_language_i14 Her
system_info_language_i15 Her
system_info_language_i16 Her

Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc.

Reboot

Reboot

Reboot the device

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the address field to resume the connection.

Restore

Restore

Restore all settings to factory default except settings in

Network Type

Daylight Saving Time

□ Custom language

Restore

This feature allows you to restore the Network Camera to factory default settings.

Network Type: Select this option to retain the Network Type settings (please refer to Network Type on page 33).

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to System on page 25)

Custom Language: Select this option to retain the Custom Language settings.

If none of the options is selected, all settings will be restored to factory default.

The following message is displayed during the restoring process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

Export / Upload Files Advanced Mode

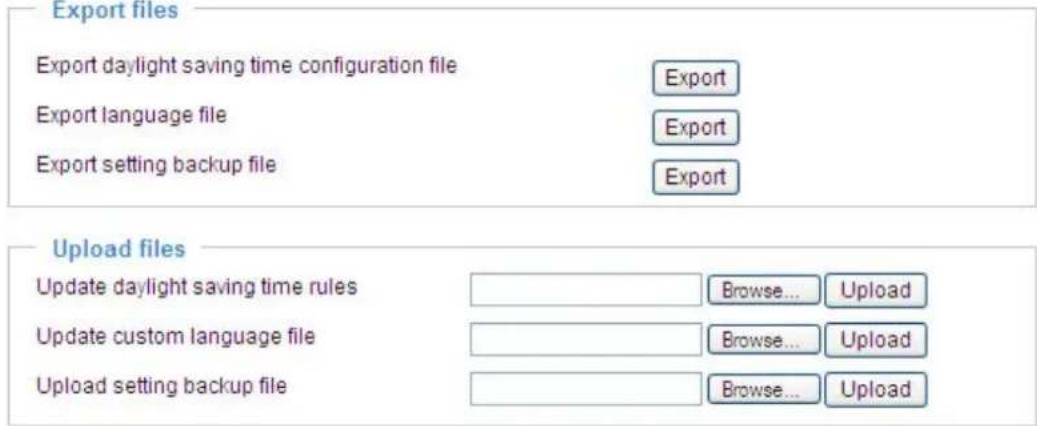

This feature allows you to Export / Upload daylight saving time rules, custom language files, and setting backup files. Export files

Export daylight saving time configuration file: Click to set the start and end time of DST.

Follow the steps below to export:

1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera.
2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing. File Download

1. Open the file with Microsoft ^® Notepad and locate your time zone; set the start and end time of DST. When completed, save the file.

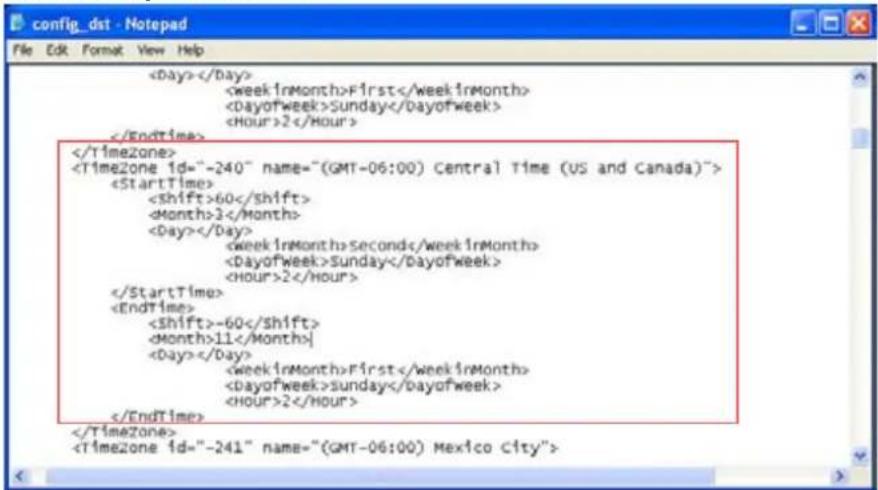

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November.

Upload daylight saving time rule: Click Browse... and specify the XML file to upload.

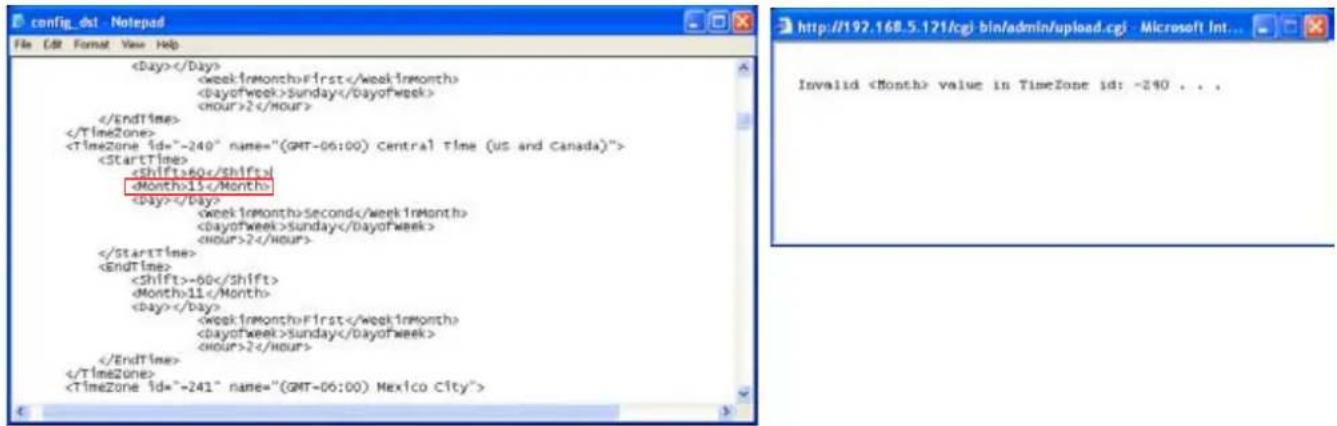

If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.

The following message is displayed when attempting to upload an incorrect file format.

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

Upload custom language file: Click Browse... and specify your own custom language file to upload.

Export setting backup file: Click to export all parameters for the device and user-defined scripts.

Upload setting backup file: Click Browse... to upload a setting backup file. Please note that the model and firmware version of the device should be the same as the setting backup file. If you have set up a fixed IP or other special settings for your device, it is not suggested to upload a settings backup file.

Upgrade Firmware

This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the firmware:

1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.

2. Click Browse... and specify the firmware file.

3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade completes.

If the upgrade is successful, you will see "Reboot system now!! This connection will close". After that, re-access the Network Camera.

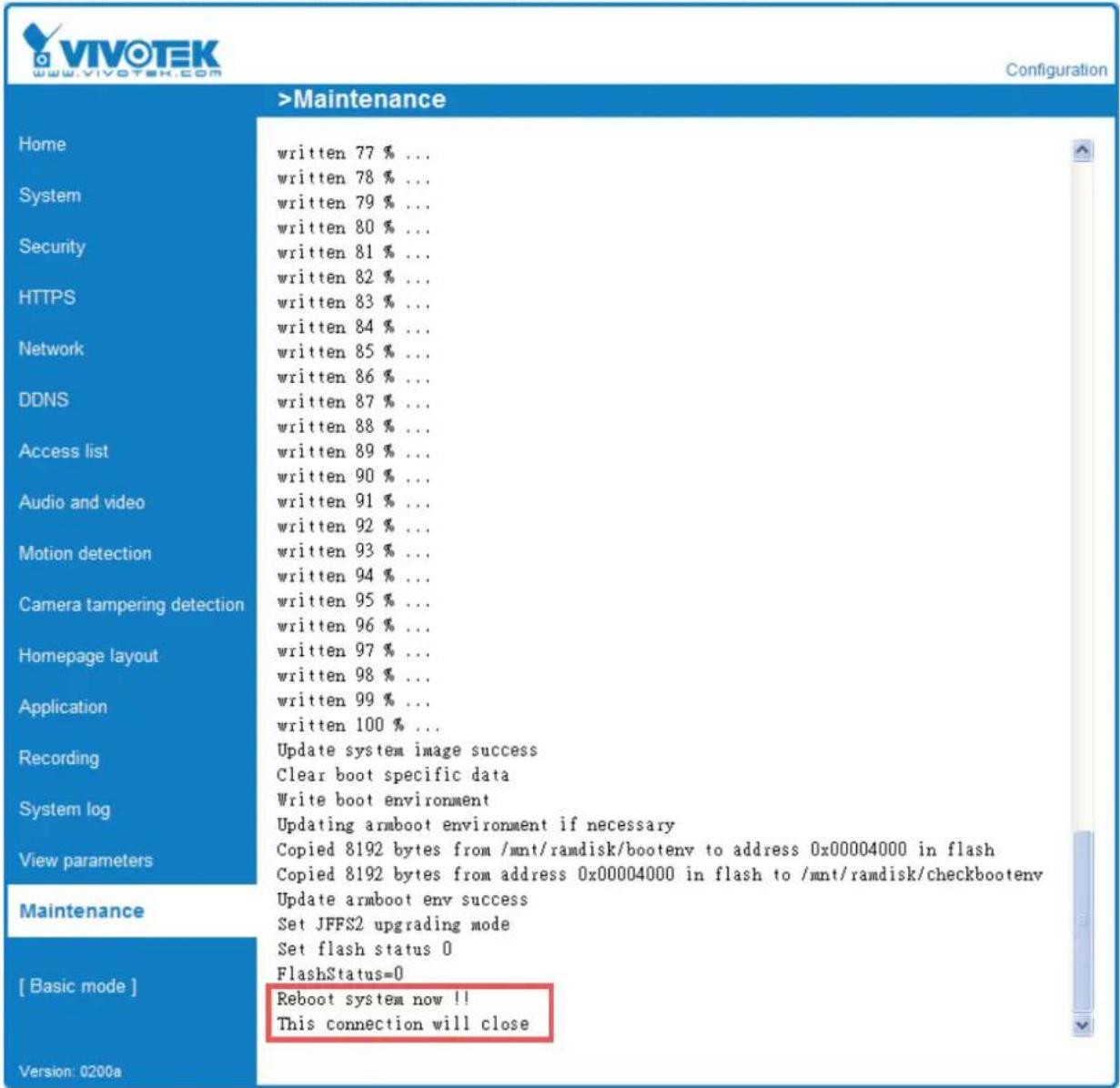

The following message is displayed when the upgrade has succeeded.

The following message is displayed when you have selected an incorrect firmware file.

Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. It will takes about 1 - 5 minutes. Wrong PKG file format Unpack fail

Appendix

URL Commands for the Network Camera

Overview

For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set internal parameter values. The image and CGI-requests are handled by the built-in Web server.

Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets should also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, that is replaced with the string myserver in the URL syntax example further down in the page.

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced syntax as shown below. For example, name of the server is written as and is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

Syntax:

http:///cgi-bin/viewer/video.jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.

Return:

HTTP/1.0 \r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example.

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video.jpg

General CGI URL syntax and parameters

CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, the internal parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in function related directories under the cgi-bin directory. The file extension of the CGI is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>[?<parameter>=<value>[&<parameter>=<value>...]]

Example: Setting digital output #1 to active

http://mywebserver/cgi-bin/dido/setdo.cgi?dol=1

Security level

SECURITY LEVEL	SUB-DIRECTORY DESCRIPTION
0 anonymous	Unprotected.
1 [view] anonymous, viewer, dido, camctrl		1. Can view, listen, talk to camera2. Can control dido, ptz of camera
4 [operator] anonymous, viewer, dido, camctrl, operator		Operator's access right can modify most of camera's parameters except some privilege and network options
6 [admin] anonymous, viewer, dido, camctrl, operator, admin		Administrator's access right can fully control the camera's operation.
7 N/A	Internal parameters. Unable to be changed by any external interface.

Get server parameter values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]

[&<parameter>...]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>][&<parameter>...]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>][&<parameter>...]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>][&<parameter>...]

where the should be [_] or [.] If you do not specify the any parameters, all the parameters on the server will be returned. If you specify only , the parameters of related group will be returned.

When query parameter values, the current parameter value are returned. Successful control request returns parameter pairs as follows.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter> = <value> \r\n
[<parameter pair>]

is the actual length of content.

Example: request IP address and it's response

Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

Set server parameter values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page>]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page>]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page>]

PARAMETER VALUE DESCRIPTION
	value to assigned	Assignto the parameter
update	set to	1 to actually update all fields (no need to use update parameter in each group)
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.(note: The return page can be a general HTML file (.htm, .html) or a Vivotek server script executable (.vspx) file. It can not be a CGI command. It can not have any extra parameters. This parameter must be put at end of parameter list)

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n

Context-Length: <length>\r\n\r\n<parameter pair>

where <parameter pair> is
<parameter> = <value> \r\n
[<parameter pair>]

Only the parameters that you set and readable will be returned.

Example: Set the IP address of server to 192.168.0.123

Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

Available parameters on the server

Valid values:

VALID VALUES DESCRIPTION
string[] Text string	shorter than 'n' characters. The characters '', <,>,& are invalid.
password[] The same as string but display '*' instead
integer Any number between (-231-1) and (231-1)
positive integer Any number between 0 and (232-1)
~Any number between 'm' and 'n'
domain name[] A	string limited to contain a domain name shorter than 'n' characters (eg. www.ibm.com)
email address [] A	string limited to contain a email address shorter than 'n' characters (eg. [e-mail])
ip address	A string limited to contain an ip address (eg. 192.168.1.1)
mac address	A string limited to contain mac address without hyphen or colon connected
boolean	A boolean value 1 or 0 represents [Yes or No], [True or False],
	[Enable or Disable].
,,,,...	Enumeration. Only given values are valid.
blank A blank string
everything inside <>	As description

NOTE: The camera should prevent to restart when parameter changed.

Group: system

NAME VALUE SECURITY		(get/set)	DESCRIPTION
hostname string[40] 1/6 host name of server
ledoff6/6 turn on(0) or turn off(1) all led indicators
lowlight6/6 (0) Turn on white light LED in all condition(1) Only turn on white light LED in low light condition
date, keep, auto	6/6 Current date of system. Set to 'keep' keeping date unchanged. Set to 'auto' to use NTP to synchronize date.
time, keep, auto	6/6 Current time of system. Set to 'keep' keeping time unchanged. Set to 'auto' to use NTP to synchronize time.
datetime	6/6 Another current time format of system.
ntp,,,	6/6 NTP server *do not use "skip to invoke default server" for default
timezoneindex	-489 ~ 529	6/6 Indicate	timezone and area -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii -360: GMT-09:00 Alaska -320: GMT-08:00 Las Vegas, San_Francisco, Vancouver-280: GMT-07:00 Mountain Time, Denver-281: GMT-07:00 Arizona-240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan-200: GMT-05:00 Eastern Time, New York, Toronto-201: GMT-05:00 Bogota, Lima, Quito, Indiana-160: GMT-04:00 Atlantic Time, Canada, Caracas, La Paz, Santiago-140: GMT-03:30 Newfoundland-120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland-80: GMT-02:00 Mid-Atlantic-40: GMT-01:00 Azores, Cape_Verde_IS.0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris41: GMT 01:00 Warsaw, Budapest, Bern80: GMT 02:00 Athens, Helsinki, Istanbul, Riga81: GMT 02:00 Cairo82: GMT 02:00 Lebanon, Minsk83: GMT 02:00 Israel120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St. Petersburg, Nairobi121: GMT 03:00 Iraq140: GMT 03:30 Tehran160: GMT 04:00 Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan180: GMT 04:30 Kabul200: GMT 05:00 Ekaterinburg,Islamabad, Karachi, Tashkent220: GMT 05:30 Calcutta, Chennai,Mumbai, New Delhi230: GMT 05:45 Kathmandu240: GMT 06:00 Almaty, Novosibirsk,Astana, Dhaka, Sri Jayawardenepura260: GMT 06:30 Rangoon280: GMT 07:00 Bangkok, Hanoi,Jakarta, Krasnoyarsk320: GMT 08:00 Beijing, Chongqing,Hong Kong, Kuala Lumpur,Singapore, Taipei360: GMT 09:00 Osaka, Sapporo,Tokyo, Seoul, Yakutsk380: GMT 09:30 Adelaide, Darwin400: GMT 10:00 Brisbane, Canberra,Melbourne, Sydney, Guam,Vladivostok440: GMT 11:00 Magadan, SolomonIs., New Caledonia480: GMT 12:00 Auckland, Wellington,Fiji, Kamchatka, Marshall Is.520: GMT 13:00 Nuku'Alofa
daylight_enable		6/6 enable automatic daylight saving to time zone
daylight_dstactualmode		6/7 check if current time is under daylight saving time.
daylight_auto_begintime	string[19] 6/7 display the current daylight saving begin time.
daylight_auto_endtime	string[19] 6/7 display the current daylight saving end time.
daylight_timezones	strings 6/7 list of time zone which has daylight saving time
updateinterval	0,3600,86400,604800,2592000	6/6 0 to disable automatic time adjustment, otherwise, it means the seconds between NTP automatic update interval.
restore 0,		7/6 Restore the system parameters to default value afterseconds.
	integer>
reset 0,		7/6 Restart	the server afterseconds ifis non-negative.
restoreexceptnet	Any value>7/6	Restore the	system parameters to default value except (ipaddress, subnet, router, dns1, dns2, pppoe). This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to default value except a union of combined results.
restoreexceptdst	Any value>7/6	Restore the	system parameters to default value except all daylight saving time settings. This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to default value except a union of combined results.
restoreexceptlang	Any Value>7/6	Restore the	system parameters to default value except custom language file user uploaded. This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to default value except a union of combined results.

SubGroup of system: info

NAME VALUE SECURITY		(get/set)	DESCRIPTION
modelname string[40]	0/7 model	name of server
extendedmodelname	string[40] 0/7 equal to "modelname"
serialnumber	address>	0/7 12 characters mac address without hyphen connected
firmwareversion	string[40]	0/7 The version of firmware, including
			model, company, and version number in the format
language_count	0/7	Default number	of webpage language available on the server
language_i<0~(count-1)>	string[16]	0/7 Available	default language lists
customlanguage_maxcount		0/7 Maximum	number of custom language supported on the server
customlanguage_count		0/7 Number	of custom language which has been uploaded to the server
customlanguage_i<0~(maxcount-1)>	string 0/7	Custom language	age name

Group: status

NAME VALUE SECURITY		(get/set)	DESCRIPTION
di_i<0~(ndi-1)>	1/7 0 =>	Inactive, normal	Active, triggered
do_i<0~ndi-1)>	1/7 0 =>	Inactive, normal	Active, triggered
onlinenum_rtsp integer	6/7 current RTSP connection numbers
onlinenum_httppush	integer	6/7 current	HTTP push server connection numbers
eth_i0		1/99	Get network information from mii-tool

Group: di_i<0\~(ndi-1)>

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
normalstate	high, low	1/1 indicate	whether open circuit or closed circuit represents inactive status

Group: do_i<0\~(ndo-1)>

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
normalstate	open, grounded	1/1	indicate whether open circuit or closed circuit represents inactive status

Group: security

NAME VALUE SECURITY		(get/set)	DESCRIPTION
privilege_do view, operator, admin		6/6 Indicate	which privilege and above can control digital output
user_i0_name string[64] 6/7 User's name of root
user_i<1~20>_name string[64] 6/7 User's name
user_i0_pass password[64] 6/6 root's password
user_i<1~20>_pass password[64] 7/6 User's password
user_i0_privilege	viewer, operator, admin	6/7 root's	privilege
user_i<1~20>_privilege	viewer, operator, admin	6/6 User's	privilege.

Group: network

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
type	lan, pppoe	6/6 Network connection type
preprocess	0~15	6/6 Stop related process before set port value
resetip		6/6	1 => get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot0 => use preset ipaddress, subnet, rounter, dns1, and dns2
ipaddress		6/6 IP address of server
subnet		6/6 subnet mask
router		6/6 default gateway
dns1		6/6 primary DNS server
dns2		6/6 secondary DNS server
wins1		6/6 primary WINS server
wins2		6/6 secondary WINS server

Subgroup of network: ipv6

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6 Enable	IPv6
addonipaddress		6/6	IPv6 IP address

addonprefixlen 0~	128 6/6 IPv6 prefix length
addonrouter	6/6 IPv6 router address
addondns	6/6 IPv6 DNS address
allowoptional	6/6 Allow Manually setting

Subgroup of network: sip

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
port 554, 10	25~65535 6/6 SIP port

Subgroup of network: ftp

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
port 21, 102	5~65535 6/6 local ftp	server port

Subgroup of network: http

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
port	80, 1025~ 65535	6/6	HTTP port
alternateport	1025~65535	6/6	Alternative HTTP port
authmode	basic,digest	1/6	HTTP authentication mode
s0_accessname	string[32]	1/6	Http server push access name for stream 1
s1_accessname	string[32]	1/6	Http server push access name for stream 2

Subgroup of network: https

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
port	443, 1025~ 65535	6/6	HTTPS port

Subgroup of network: rtsp

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
port	554, 1025 ~ 65535	1/6	RTSP port
authmode	disable,basic,digest	1/6	RTSP authentication mode
s0_accessname	string[32] 1/6 RTSP	access name	for stream1
s1_accessname	string[32] 1/6 RTSP	access name	for stream2
s0_audiotrack	6/6 The current audio track for stream1. -1 => audio mute
s1_audiotrack	6/6 The current audio track for stream2. -1 => audio mute

Subgroup of rtsp_s<0\~(n-1)>: multicast, n is stream count

NAME VALUE SECURITY		(get/set)	DESCRIPTION
alwaysmulticast	4/4	Enable always multicast
ipaddress 4/4 Multicast IP address
videoport	1025 ~ 65535	4/4 Multicast video port
audiport	1025 ~ 65535	4/4	Multicast audio port
ttl	1 ~ 255	4/4 Multicast time to live value

Subgroup of network: rtp

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
videoport	1025~ 65535	6/6	video channel port for RTP
audiport	1025~ 65535	6/6	audio channel port for RTP

Subgroup of network: pppoe

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
user	string[128]	6/6 PPPoE	account user name
pass password[64] 6/6 PPPoE account password

Group: ipfilter

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable	6/6 Enable access list filtering
admin_enable	6/6 Enable administrator IP address
admin_ip	String[44]	6/6 Administrator IP address
maxconnection	1~10	6/6 Maximum number of concurrent
			streaming connection(s)
allow_i<0~9>_start	1.0.0.0 ~255.255.255.255	6/6 Allowed	starting IPv4 address for connection
allow_i<0~9>_end	1.0.0.0 ~255.255.255.255	6/6 Allowed	ending IPv4 address for connection
deny_i<0~9>_start	1.0.0.0 ~255.255.255.255	6/6 Denied	starting IPv4 address for connection
deny_i<0~9>_end	1.0.0.0 ~255.255.255.255	6/6 Denied	ending IPv4 address for connection
ipv6_allow_i<0~9>	String[44] 6/6 Allowed	IPv6 address for connection
ipv6_deny_i<0~9>	String[44] 6/6 Denied	IPv6 address for connection

Group: videoin

NAME VALUE SECURITY		(get/set)	DESCRIPTION
cmosfreq 50, 60 4/4	CMOS frequency
whitebalance auto,	manual	4/4 auto, manual	auto white balance manual
atwbvalue 0 ~ 65535	4/4 The auto white balance value.
autoiris <boolean>	4/4 Enable auto Iris

Group: videoin_c<0\~(n-1)> for n channel products, m is stream number

NAME VALUE SECURITY		(get/set)	DESCRIPTION
color 0, 1 4/4	0 =>monochrome		1 =>color
flip	4/4 flip the image
mirror	4/4 mirror the image
ptzstatus	1/7		An 32-bits integer, each bit can be set separately as follows:Bit 0 => Support camera control function 0(not support), 1(support)Bit 1 => Build-in or external camera. 0(external), 1(build-in)Bit 2 => Support pan
			operation. 0(not support),1(support)Bit 3 => Support tilt operation. 0(not support),1(support)Bit 4 => Support zoom operation. 0(not support),1(support)Bit 5 => Support focus operation. 0(not support),1(support)
text string[16] 1/4 enclosed caption
imprinttimestamp <boolean> 4/4 Overlay time stamp on video
maxexposure 1~120 4/4	Maximum exposure time
s<0~(m-1)>_codectype mpeg4,mjpeg	4/4 video codec type
s<0~(m-1)>_resolution 17	6x144,320x240,640x480	4/4 Video resolution in pixel
s<0~(m-1)>_mpeg4_intraperiod	250, 500,1000, 2000,3000, 4000	4/4 The period of intra frame in milliseconds
s<0~(m-1)>_mpeg4_rate controlmode	cbr, vbr	4/4 cbr, constant bitratevbr, fix quality
s<0~(m-1)>_mpeg4_qua nt	1~5	4/4 quality of video when choosingvbr in "ratecontrolmode".1 is worst quality and 5 is the best quality.
s<0~(m-1)>_mpeg4_qval ue	1~31	7/4 Quality parameter of mpeg4 encoder.1 is best quality and 31 is the worst quality.
s<0~(m-1)>_mpeg4_bit rate	1000~4000000	4/4	Set bit rate in bps when choose cbr in "ratecontrolmode"
s<0~(m-1)>_mpeg4_maxframe	1, 2, 3, 5,10, 15, 20,25,30 (only for NTSC or60Hz CMOS)	4/4 set max	maximum frame rate in fps(for MPEG-4)
s<0~(m-1)>_mjpeg_qua nt	1 ~ 5 4/4 quality of jpeg	video.1 is worst quality and 5 is the best quality.
s<0~(m-1)>_mjpeg_qval ue	10~200 7/4	The specific	quality parameterof jpeg encoder.10 is best quality and 200 is theworst quality.
s<0~(m-1)>_mjpeg_max frame	1~25,26~30 (only for NTSC or 60Hz CMOS)	4/4 set max	maximum frame rate in fps(for JPEG)
s<0~(m-1)>_forcei 1 7/6	Force I frame

Group: audioin_c<0\~(n-1)> for n channel products

NAME VALUE SECURITY		(get/set)	DESCRIPTION
source micin,	linein	4/4 micin => use external microphone input linein => use line input
mute 0, 1 1/4 Enable audio mute
gain	0~31	4/4 Gain of input
boostmic	0, 1 4/4	Enable microphone boost
s<0~(m-1)>_codec type	aac4, gamr	4/4 set audio codec type for input
s<0~(m-1)>_aac4 _bitrate	16000, 32000, 48000, 64000, 96000, 128000	4/4 set AAC4 bitrate in bps
s<0~(m-1)>_gamr _bitrate	4750, 5150, 5900, 6700, 7400, 7950, 10200, 12200	4/4 set AMR bitrate in bps

Group: image_c<0\~(n-1)> for n channel products

NAME VALUE SECURITY		(get/set)	DESCRIPTION
brightness -5 ~ 5	4/4 Adjust brightness of image according to mode settings.
saturation -5 ~ 5	4/4 Adjust saturation of image according to mode settings.
contrast -5 ~ 5	4/4 Adjust contrast of image according to mode settings.
sharpness -3 ~ 3	4/4 Adjust sharpness of image according to mode settings.

Group: imagepreview_c<0\~(n-1)> for n channel products

NAME VALUE SECURITY		(get/set)	DESCRIPTION
brightness -5 ~ 5 4/4	Preview of adjusting brightness of image according to mode settings.
saturation -5 ~ 5 4/4	Preview of adjusting saturation of image according to mode settings.
contrast -5 ~ 5 4/4	Preview of adjusting contrast of image according to mode settings.
sharpness -3 ~ 3 4/4	Preview of adjusting sharpness of image according to mode settings.
videoin_whitebalance	auto, manual	4/4 Preview of adjusting white balance of image according to mode settings
videoin_restoreatwb	0, 1~	4/4	Restore of adjusting white balance of image according to mode settings

Group: motion_c<0\~(n-1)> for m profile and n channel product

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		4/4	enable motion detection
win_i<0~2>_enable		4/4	enable motion window 1~3
win_i<0~2>_name	string[14]	4/4	name of motion window 1~3
win_i<0~2>_left	0 ~ 320	4/4	Left coordinate of window position.
win_i<0~2>_top	0 ~ 240	4/4	Top coordinate of window position.
win_i<0~2>_width	0 ~ 320	4/4	Width of motion detection window.
win_i<0~2>_height 0 ~	240 4/4 Height	of motion detection	window.
win_i<0~2>_objsize 0 ~	100 4/4 Percent	of motion detection	window.
win_i<0~2>_sensitivity 0 ~	100 4/4 Sensitivity of motion		detection window.
profile_i<0~(m-1)>_enable		Enable profile	1 ~ (m-1)
profile_i<0~(m-1)>_policy	day,night,schedule	4/4 The mode	which the profile is applied to.
profile_i<0~(m-1)>_begintime	hh:mm 4/4 Begin time of schedule		mode
profile_i<0~(m-1)>_endtime	hh:mm 4/4 End time of schedule		mode
profile_i<0~(m-1)>_win_i<0~2>_enable		enable motion window
profile_i<0~(m-1)>_win_i<0~2>_name	string[14] 4/4	name of motion window
profile_i<0~(m-1)>_win_i<0~2>_left	0 ~ 320 4/4 Left coordinate of window position.
profile_i<0~(m-1)>_win_i<0~2>_top	0 ~ 240 4/4 Top coordinate of window position.
profile_i<0~(m-1)>_win_i<0~2>_width	0 ~ 320 4/4 Width of motion window.
profile_i<0~(m-1)>_win_i<0~2>_height	0 ~ 240 4/4 Height of motion window.
profile_i<0~(m-1)>_win_i<0~2>_objsize	0 ~ 100 4/4 Percent of motion detection window.
profile_i<0~(m-1)>_win_i<0~2>_sensitivity	0 ~ 100 4/4 Sensitivity of motion detection window.

Group: tampering_c<0\~(n-1)> for n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		4/4	Enable or disable tampering detection.
threshold	0 ~ 255	4/4	Threshold of tampering detection

duration 10 ~ 600

4/4 If tampering value exceeds the 'threshold' for more than 'duration' then tampering detection is triggered.

Group: privacymask_c<0\~(n-1)> for n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable4/4 Enable the privacy mask
win_i<0~4>_enable4/4 Enable the privacy mask window
win_i<0~4>_name string[14] 4/4 The name of privacy mask window
win_i<0~4>_left 0 ~ 320/352 4/4 Left coordinate of window position.
win_i<0~4>_top	0 ~ 240/288	4/4	Top coordinate of window position.
win_i<0~4>_width	0 ~ 320/352	4/4	Width of privacy mask window
win_i<0~4>_height	0 ~ 240/288	4/4 Height of privacy mask window

Group: ddns

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6 Enable	or disable the dynamic dns.
provider	Safe100, DyndnsDynamic, DyndnsCustom, TZO, DHS, DynInterfree, PeanutHull, CustomSafe100	6/6 Safe100	=> safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) TZO => tzo.com DHS => dhs.org DynInterfree =>dyn-interfree.it PeanutHull => peanut hull CustomSafe100 => Custom server using safe100 method
	__hostname	string[128]	6/6 Your dynamic hostname.
	__usernameemail	string[64]	6/6 Your user or email to login ddns service provider
	__passwordkey	string[64]	6/6 Your password or key to login ddns service provider

icysername

string[128] 6/6 The server name for safe100. (This field only exists for provider is customsafe100)

Group: upnppresentation

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable	6/6 Enable or	disable the UPNPPresentation service.

Group: upnpportforwarding

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable	6/6 Enable	or disable the UPNP port forwarding service.
upnpnatstatus 0~3	6/7 The status of UpnP		port forwarding, used internally.0 is OK, 1 is FAIL, 2 is no IGD router, 3 is no need to do port forwarding

Group: syslog

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enableremotelog	6/6	enable remote log
serverip		6/6	Log server IP address
serverport	514, 1025~65535	6/6 Server	port used for log
level	0~7	6/6 The levels to distinguish the importance of information.0: LOG_EMERG1: LOG_ALERT2: LOG_CRIT3: LOG_ERR4: LOG_WARNING5: LOG_NOTICE6: LOG_INFO7: LOG_DEBUG

Group: capability

NAME

VALUE SECURITY

DESCRIPTION

		(get/set)
api_httpversion 0100a 0/7 The HTTP API			version.
bootuptime	0/7 The server bootup		time
nir 0,		0/7 number of IR interface
npir 0,		0/7 number of PIR
ndi 0,		0/7 number of digital input
ndo 0,		0/7 number of digital output
naudioin 0,		0/7 number of audio input
naudioout 0,		0/7 number of audio output
nvideoin	0/7 number of video		input
nmediastream	0/7 number of media		stream per channel
nvideosetting		0/7	number of video settings per channel
naudiosetting		0/7 number of audio settings per channel
nuart	0,	0/7 number of UART interface
nmotionprofile		0/7 number of motion profiles
ptzenabled		0/7	An 32-bits integer, each bit can be set separately as follows:Bit 0 => Support camera control function0(not support),1(support)Bit 1 => Build-in or external camera.0(external),1(build-in)Bit 2 => Supportpan operation. 0(not support), 1(support)Bit 3 => Support tiltoperation. 0(not support), 1(support)Bit 4 => Supportzoom operation.0(not support),1(support)Bit 5 => Supportfocus operation.0(not support),1(support)
evctrlchannel0/7	Indicate whether to		support the httptunnel forevent/controltransfer
protocol_https0/7	Indicate whether to		support http over SSL
protocol_rtsp0/7	indicate whether to		support rtsp
protocol_sip0/7	indicate whether to		support sip
protocol_maxconnection0/7The maximumallowedsimultaneousconnections			allowedsimultaneousconnections
protocol_maxgenconnection0/7The maximumgeneral streamingconnections			The maximumgeneral streamingconnections
protocol_maxmegaconnection0/7The maximummega-pixelstreamingconnections			The maximummega-pixelstreamingconnections

protocol_rtp_multicast_scalable		0/7 indicate whether to support scalable multicast
protocol_rtp_multicast_backchannel		0/7 indicate whether to support backchannel multicast
protocol_rtp_tcp	0/7 indicate whether to	support rtp over tcp
protocol_rtp_http	0/7 indicate whether to	support rtp over http
protocol_spush_mjpeg	0/7 indicate whether to	support server push motion jpeg
protocol_snmp	0/7 indicate whether to	support snmp
protocol_ipv6	0/7 indicate whether to	support IPv6
videoin_type 0, 1, 2 0/7 0 =>	Interlaced CCD
videoin_resolution	0/7 available resolution list	Progressive CCD2 => CMOS
videoin_maxframerate	of available maximum frame rate separates by comma>	maximum frame list
videoin_codec	0/7 available codec list	codec list
videout_codec	available codec types separators by comma)	codec list
audio_aec	0/7 indicate whether to support acoustic echo cancellation

audio_extmic0/7	indicate whether to		support external microphone input
audio_linein0/7	indicate whether to		support external line input
audio_lineout0/7	indicate whether to		support line output
audio_headphoneout0/7 indicate whether to			support headphone output
audioin_codec0/7 available codec types separators by comma)		0/7 available codec list
audioout_codec0/7 indicate whether to		0/7 available codec list
uart_httptunnel0/7 Indicate whether to			support the http tunnel for uart transfer
transmission_mode Tx,	Rx, Both	0/7 Indicate what kind of transmission mode the machine used. TX: server, Rx: receiver box, Both: DVR?.
network_wire0/7 Indicate whether to			support the Ethernet
network_wireless0/7 Indicate whether to			support the wireless
wireless_802dot11b0/7 Indicate whether to			support the wireless 802.11b+
wireless_802dot11g0/7 Indicate whether to			support the wireless 802.11g
wireless_encrypt_wep <boolean> 0/7 Indicate wh		ether to	support the wireless WEP
wireless_encrypt_wpa <boolean> 0/7 Indicate wh		ether to	support the wireless WPA
wireless_encrypt_wpa2 <boolean> 0/7 Indicate wh		whether to	support the wireless WPA2

Group: event_customtaskfile_i<0\~2>

PARAMETER VALUE	SECURITY (get/set)	DESCRIPTION
name string[41]	6/6 The custom scripts	identification of this entry
date string[17]	6/6 Date of custom scripts

Group: event_i<0\~2>

PARAMETER VALUE	SECURITY	(get/set)	DESCRIPTION
name string[40] 6/6 The identific	cation of this entry
enable 0, 1 6/6 To	enable or dis	able this event.
priority	0, 1, 2	6/6 Indicate the priority of this event."0" indicates low priority."1" indicates normal priority."2" indicates high priority.
delay	1~999	6/6 Delay seconds before detect next event.
trigger	boot,di,motion,seq,pir,recnotify,audioswitch,tampering	6/6 Indicate the trigger condition."boot" indicates system boot."di" indicates digital input."motion" indicates video motion detection."seq" indicates periodic condition."pir" indicates PIR detection."recnotify" indicates recording notify."audioswitch" indicates audio switch."tampering" indicates tampering detection.
di6/6 Indicate which di detected.This field is required when trigger condition is "di".One bit represents one digital input. The LSB indicates DI 0.
mdwin6/6 Indicate which motion detection windows detected.This field is required when trigger condition is "motion"One bit represents one window.The LSB indicates the 1^st window.For example, to detect the 1^st and 3^rd windows, set mdwin as 5.
mdwin06/6 Indicate which motion detection windows of profile 1 is detected.
inter 1~999 6/6 Interval of period snapshot in minute.This field is used when trigger condition is "seq".
weekday6/6 Indicate which weekday is scheduled.One bit represents one weekday.The bit0 (LSB) indicates Saturday.The bit1 indicates Friday.The bit2 indicates Thursday.The bit3 indicates Wednesday.The bit4 indicates Tuesday.The bit5 indicates Monday.The bit6 indicates Sunday.For example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm 6/6 Begin time of weekly schedule.
endtime hh:mm 6/6 End time of weekly schedule.(00:00 ~ 24:00 means always.)
lowlightcondition 0, 1 6/6 0 => Do action at all times1 => Do action in low-light conditions
action_do_i<0~(nd o-1)>_enable 0, 1 6/6 To enable or disable trigger digital output.
action_do_i<0~(nd o-1)>_duration 1~999 6/6 The duration of digital output is triggered in seconds.
action_cf_enable 0. 1 6/6 To enable put media on CF.

action_cf_folder string	[128] 6/6	The path to store media.
action_cf_media NULL, 0~4 6/6	The index of attached media.
action_cf_datefolder		6/6 Enable this to create folders by date time and hour automatically.
action_server_i<0~4>_enable	0, 1 6/6 To enable or disable this server action.The default value is 0.
action_server_i<0~4>_media	NULL, 0~4 6/6 The index of attached media.
action_server_i<0~4>_datefolder		6/s6 Enable this to create folders by date time and hour automatically.

Group: server_i<0\~4>

PARAMETER VALUE	SECURITY	(get/set)	DESCRIPTION
name	string[40]	6/6 The id	entification of this entry
type	email,ftp,http,ns	6/6 Indicate	the server type."email" is email server."ftp" is ftp server."http" is http server."ns" is network storage.
http_url	string[128]	6/6 The url	of http server to upload.
http_username	string[64]	6/6	The username to login in the server.
http_passwd	string[64]	6/6	The password of the user.
ftp_address	string[128]	6/6 The ftp	server address
ftp_username	string[64]	6/6	The username to login in the server.
ftp_passwd	string[64]	6/6	The password of the user.
ftp_port	0~65535	6/6	The port to connect the server.
ftp_location	string[128]	6/6 The loc	cation to upload or store the media.
ftp_passive	0, 1 6/6 To	enable or d	disable the passive mode.0 is to disable the passive mode.1 is to enable the passive mode.
email_address	string[128]	6/6 The em	mail server address
email_sslmode 0, 1	6/6 Enable	support SSL
email_port	0~65535	6/6	The port to connect the server.
email_username	string[64]	6/6	The username to login in the server.
email_passwd	string[64]	6/6	The password of the user.
email_senderemail string[128] 6/6 The email address of sender.
email_recipientemail string[128] 6/6 The email address of recipient.
ns_location string[128] 6/6 The location to upload or store the media.
ns_username string[64] 6/6 The username to login in the server.
ns_passwd string[64] 6/6 The password of the user.
ns_workgroup string[64] 6/6 The workgroup for network storage.

Group: media_i<0\~4>

PARAMETER VALUE	SECURITY	(get/set)	DESCRIPTION
name string[40] 6/6	The identification of this entry
type	snapshot, systemlog, videoclip, recordmsg	6/6	The media type to send to the server or store by the server.
snapshot_source		6/6 Indicate	the source of media stream.0 means the first stream.1 means the second stream and etc.
snapshot_prefix	string[16]	6/6 Indicate	the prefix of the filename.
snapshot_datesuffix 0	1	6/6 To add date and time suffix to filename or not.1 means to add date and time suffix.0 means not to add it.
snapshot_preevent	0 ~ 7	6/6	It indicates the number of pre-event images.
snapshot_postevent 0	~ 7	6/6 The number of post-event images.
videoclip_source		6/6 Indicate	the source of media stream.0 means the first stream.1 means the second stream and etc.
videoclip_prefix	string[16]	6/6	Indicate the prefix of the filename.
videoclip_preevent	0 ~ 9	6/6	It indicates the time of pre-event recording in seconds.
videoclip_maxduration	1 ~ 10	6/6	The time of maximum duration of one video clip in seconds.
videoclip_maxsize	50 ~ 1500	6/6	The maximum size of one video clip file in Kbytes.

Group: recording_i<0\~1>

PARAMETER VALUE	SECURITY	(get/set)	DESCRIPTION
name string[40] 6/6	The identification of this entry
enable 0, 1 6/6 To	enable or disable this recoding.
priority 0, 1, 2 6/6	Indicate the priority of this recoding."0" indicates low priority."1" indicates normal priority."2" indicates high priority.
source6/6 Indicate the source of media stream.0 means the first stream.1 means the second stream and etc.
limitsize 0,1	6/6 0: Entire free space mechanism1: Limit recording size mechanism
cyclic	0,1	6/6 0: Disable cyclic recording1: Enable cyclic recording
notify	0,1	6/6 0: Disable recording notification1: Enable recording notification
notifyserver	0~31	6/6 Indicate which notification server is scheduled.One bit represents one application server (server_i0~i4).The bit0 (LSB) indicates server_i0.The bit1 indicates server_i1.The bit2 indicates server_i2.The bit3 indicates server_i3.The bit4 indicates server_i4.For example, enable server_i0, server_i2 and server_i4 to be notification server.The notifyserver value is 21.
weekday	6/6 Indicate which we	weekday is scheduled.One bit represents one weekday.The bit0 (LSB) indicates Saturday.The bit1 indicates Friday.The bit2 indicates Thursday.The bit3 indicates Wednesday.The bit4 indicates Tuesday.The bit5 indicates Monday.The bit6 indicates Sunday.For example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm 6/6 Begin time of weekly schedule.
endtime hh:mm 6/6 End time of weekly schedule.(00:00~24:00 means always.)
prefix string[16] 6/6 Indicate the prefix of the filename.
cyclesize 20~ 6/6 The maximum size for cycle recording inKbytes when choose limit recording size.
reserveamount 15~ 6/6 The reserved amount in Mbytes whenchoose cyclic recording mechanism.
dest cf,0~4	6/6 The de	destination to store the recording data."cf" means CF card."0~4" means the index of network storage.
cffolder string[128]	6/6 folder name.

Group: https (product dependent)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
connect	1025 ~ 65535	7/7	Specify the stunnel connect port
enable		6/6	To enable or disable this secure http
policy		6/6	If the value is 1, it will force http connection redirect to https connection
method	auto, manual, install	6/6	auto => Create self-signed certificate automatically manual => Create self-signed certificate manuallyinstall => Create certificate request and install
status -2 ~ 1 6/6	Specify the https status.		-2=>invalid public key-1=>waiting for certificated0=>not installed1=>active
countryname string[2] 6/6 country name in certificate information
stateorprovincename	string[128] 6/6 state or province name in incertificate information
localityname string[128] 6/6 the locality name in certificate information
organizationname	string[64] 6/6 organization naem in certificate information
unit string[32] 6/6 organizational unit name in certificate information
commonname string[64] 6/6 common name in certificate information
validdays 0 ~ 9999	6/6 certification valid period

Group: layout

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
logo_default		1/6 0 =>	Custom logo1 => Default logo
logo_link	string[40]	1/6	Hyperlink of the logo
theme_option	1~4	1/6 1~3:	One of the default themes4: Custom definition
theme_color_font	string[7]	1/6 Font color
theme_color_configfont	string[7]	1/6 Font color of configuration area
theme_color_titlefont	string[7]	1/6 Font color of video title
theme_color_controlbackground	string[7]	1/6 Background color of control area
theme_color_configbackground	string[7]	1/6 Background color of configuration area
theme_color_videobackground	string[7]	1/6	Background color of video area
theme_color_case string[7] 1/6 Frame color

Group: ircutcontrol

NAME VALUE SECURITY		(get/set)	DESCRIPTION
mode auto,	day,night,schedule	6/6 Indicate	which mode IR cut control uses"auto" means detecting day/night automatically."day" means day mode."night" means night mode."schedule" means switching day/night by schedule.
daymodebegintime	<hh:mm> 6/6	Begin time of day mode
daymodeendtime	<hh:mm> 6/6	End time of day mode
disableirled	6/6 Disable IR illuminator
bwmode		6/6 Switch to B/W in night mode
sensitivity	high,normal,low	6/6 The sensitivity to detect it is night mode

Drive the digital output

Note: This request requires the privilege of viewer.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>][&do3=<state>][&do4=<state>][&return=<return page>]

Where state is 0, 1. "0" means inactive or normal state while "1" means active or triggered state.

PARAMETER	VALUE	DESCRIPTION
do	0, 1	0 – inactive, normal state
		1 – active, triggered stateRedirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
return

Example: Drive the digital output 1 to triggered state and redirect to an empty page

http://myserver/cgi-bin/dido/setdo.cgi?do1=1

Query status of the digital input

Note: This request requires the privilege of viewer.

Method: GET/POST

Syntax:

http:///cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]

If no parameter is specified, all the status of digital input will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital input 1

Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n

Content-Length: 7\r\n
\r\n
di1=1\r\n

Query status of the digital output

Note: This request requires the privilege of viewer.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]

If no parameter is specified, all the status of digital output will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital output 1

Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1

Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
do1=1\r\n

Capture single snapshot

Note: This request require normal user privilege

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]
[&quality=<value>]

If the user requests the size larger than all stream setting on the server, this request will failed!

PARAMETER	VALUE DEFAULT DESCRIPTION
channel	0~(n-1) 0 the channel number of video source
resolution		0 The resolution of image
quality	1~5 3 The quality of image

Server will return the most up-to-date snapshot of selected channel and stream in JPEG format. The size and quality of image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>

Account management

Note: This request requires administrator privilege

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>][&privilege=<value>][...][&return=<return_page>]

PARAMETER	VALUE DESCRIPTION
method	add	Add an account to server. When using this method, "username" field is necessary. It will use default value of other fields if not specified.
	delete Remove	an account from server. When using this method, "username" field is necessary, and others are ignored.
	edit Modify the	account password and privilege. When using this method, "username" field is necessary, and other fields are optional. If not specified, it will keep original settings.
username		The name of user to add, delete or edit
userpass		The password of new user to add or that of old user to modify. The default value is an empty string.
privilege		The privilege of user to add or to modify.
	viewer	viewer's privilege
	operator	operator's privilege
	admin	administrator's privilege
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

System logs

Note: This request require administrator privilege

Method: GET/POST

Syntax:

http:///cgi-bin/admin/syslog.cgi

Server will return the up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: \r\n

\r\n
<system log information>\r\n

Upgrade firmware

Note: This request requires administrator privilege

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=<file name>[&return=<return page>]\r\n\r\n<multipart encoded form data>

Server will accept the upload file named to be upgraded the firmware and return with if indicated.

IP filtering

Note: This request requires administrator access privilege

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/ipfilter.cgi? method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>][&return=<return_page>]

PARAMETER VALUE DESCRIPTION
Method	addallow Add a set	of allow IP address range to server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from index position.
	adddeny Add a set	of deny IP address range to server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from index position.
	deleteallow Remove	a set of allow IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address. If index is specified, it will try to remove the address from given index position. [start, end] parameters have higher priority then the [index] parameter.
	deletedeny Remove	a set of deny IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address. If index is specified, it will try to remove the address from given index position. [start, end] parameters have higher priority then the [index] parameter.
start	The start IP address to add or to delete.
end	The end IP address to add or to delete.
index	The start position to add or to delete.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

Event/Control HTTP tunnel channel

Note: This request requires admin privilege

Method: GET and POST

Syntax:

http:///cgi-bin/admin/ctrlevent.cgi

GET /cgi-bin/admin/ctrlevent.cgi

x-sessioncookie: string[22]

accept: application/x-vvtk-tunnelled

pragma: no-cache

cache-control: no-cache

POST /cgi-bin/admin/ ctrlevent.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in the GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through some proxy server.

This channel will help to do real-time event notification and control. The event and control format are described in another document.

Get SDP of Streamings

Note: This request requires viewer access privilege

Method: GET/POST

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

"network_accessname_<0\~(m-1)>” is the accessname for stream "1" to stream "m". Please refer to the "subgroup of network: rtsp" for setting the accessname of SDP. You can get the SDP by HTTP GET method.

Open the network streamings

Note: This request requires viewer access privilege

Syntax:

For http push server (mjpeg):

http://<servername>/<network_http_s<0~m-1>_accessname>

For rtsp (mp4), user needs to input the url below for a rtsp compatible player.

|rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

For detailed streaming protocol, please refer to "control signaling" and "data format" documents.

Technical Specifications

Specifications

System

· CPU: VVTK-1000 SoC
- Flash: 8MB
· RAM: 64MB
- Embedded OS: Linux 2.4

Lens

• Board lens, vari-focal, f=3.3 mm\~12 mm, F1.4\~2.9, auto-iris, focus range: 50 cm to infinity
• Removable IR-cut filter for day & night function

Angle of view

· 17.9° \~ 63.6° (horizontal)
· 13.5° \~ 46.5° (vertical)

Shutter Time

- 1/5 sec. to 1/15000 sec.

Image Sensor

- MICRON 1/4" CMOS sensor in VGA resolution

Minimum Illumination

• 0 Lux with IR Illuminators

Video

• Compression: MJPEG & MPEG-4
• Streaming: Simultaneous dual-stream

MPEG-4 streaming over UDP, TCP, or HTTP

MPEG-4 multicast streaming

MJPEG streaming over HTTP

• Supports 3GPP mobile surveillance
- Frame rates: 640x480 up to 30fps (60Hz)/25fps (50Hz)

Image settings

• Adjustable image size, quality, and bit rate
• Time stamp and text caption overlay
• Flip & mirror
• Configurable brightness, contrast, saturation, sharpness, and white balance
  · AGC, AWB, AES
  • Automatic or manual day/night mode
  • Supports privacy masks

Audio

• Compression: GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
• Interface: Built-in microphone

External microphone input

Audio output

• Supports two-way audio by SIP protocol
• Supports audio mute

Networking

· 10/100 Mbps Ethernet, RJ-45

- Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, and HTTPS

Alarm and Event Management

· Triple-window video motion detection
- One D/I and one D/O for external sensor and alarm
• Passive infrared sensor (PIR) for human detection
- IR illuminators up to 15 meters
- Event notification using HTTP, SMTP, or FTP

Security

• Multi-level user access with password protection
• IP address filtering
• HTTPS Encrypted Data Transmission

Users

- Camera live viewing for up to 10 clients

Dimension

- 143 mm (D) × 106 mm (H)

Weight

- Net: 613 g

LED Indicator

• System power and status indicator
• System activity and network link indicator

Power

· 12V DC
- Consumption: Max 11 W
· 802.3af compliant Power over Ethernet

Approvals

- CE, FCC, VCCI, C-Tick, LVD

Operating Environments

· Temperature: 0° \~ 50° C (32° \~ 122° F)
· Humidity: 20 % \~ 80 % RH

Viewing System Requirements

• OS: Microsoft Windows 2000/XP/Vista
• Browser: Internet Explorer 6.x or above
  · Cell phone: 3GPP player
  • Real Player:10.5 or above
• Quick Time: 6.5 or above

Installation, Management, and Maintenance

• 3-axis mechanism for flexible ceiling and wall mount installation
  • Installation Wizard 2
  • 16-CH recording software
  • Supports firmware upgrade

Applications

- SDK available for application development and system integration

Technology License Notice

MPEG-4 AAC Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

MPEG-4 Visual Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. PLEASE REFER TO HTTP://WWW.MPEGLA.COM.

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS' PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR'S WEBSITE AT HTTP://WWW.VOICEAGE.COM.

Electromagnetic Compatibility (EMC)

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired operation.

USA - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partial installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cables must be used in order to comply with emission limits.

Europe C€ -- This digital equipment fulfills the requirement for radiated emission according to limit B of EN55022/1998, and the requirement for immunity according to EN50082-1/1992.

Liability

VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
