USER MANUAL GuestGate MK II IC Intracom
GUESTGATE™ MK II Wireless 300N Hotspot Gateway USER MANUAL
MODEL 524827
INTELLINET
NETWORK SOLUTIONS
INT-524827-UM-0710-01
SAFETY AND REGULATORY NOTICES
This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to
CE take whatever measures may be required to correct the interference. This digital equipment fulfills the requirements for radiated emission according to limit B of EN55022/1998, and the requirements for immunity according to EN55024/1998 residential, commercial and light industry.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999, on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces Directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.
Waste Electrical & Electronic Equipment
Disposal of Electric and Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. In countries outside of the EU: If you wish to discard this product, contact your local authorities and ask for the correct manner of disposal.
TABLE OF CONTENTS
SAFETY AND REGULATORY NOTICES 2
TABLE OF CONTENTS 3
INTRODUCTION....4
Function Description 4
Installation Examples 6
GuestGate Function Basics 8
INSTALLATION 9
Recommended Setup 9
Advanced Setup.... 14
CONFIGURATION OPTIONS.... 19
Status Screen.... 19
Guest Configuration Screen.... 20
Host Configuration Screen 24
Welcome Screen Configuration 28
Time / Scheduler Configuration 30
Device Settings Configuration.... 32
Firmware Upgrade Process 35
Exit Screen 36
QUESTIONS & ANSWERS 37
APPENDIX 41
WARRANTY INFORMATION......42
INTRODUCTION
Congratulations on your purchase of the INTELLINET NETWORK SOLUTIONS GuestGate™ MK II Hotspot Gateway. GuestGate connects guests to your network, allowing them to access only the Internet (Web, Email, Chat and other applications). GuestGate protects your existing network from unauthorized access and, if required, even shields the guest computers among themselves. Furthermore, GuestGate features enhanced IP PnP (Plug and Play) technology: It automatically adjusts to the guest computer's TCP/IP settings, eliminating time-consuming client IP reconfigurations. The Mark II edition features 300 Mbps Wireless N support, RADIUS authentication and enhanced logging features. GuestGate seamlessly integrates into your existing network and in many applications a configuration of GuestGate is not necessary. GuestGate provides the core functionality right out of the box.
Function Description
Internet access for Guests
GuestGate is primarily designed to provide configuration-free Internet access for your guests. GuestGate uses the existing Internet connection of your network to provide Web and email access for computers connected in a conference room, a hotel or a public place with wireless network connectivity. GuestGate does not stop here, however. It addresses security-related concerns of the network administrator by shielding the existing network from access attempts from the connected guests. In short, this means that guests can access the Internet, but your own network — i.e., your network file server, email or application server — is off limits.
Password-Protected Internet access for Guests
The network administrator can make it mandatory for your guests to enter a password before Internet access is granted. This is an important function in case you offer Internet access as a paid service or in situations where an open, unprotected wireless access point is connected to GuestGate and you wish to keep unauthorized users from using your bandwidth.

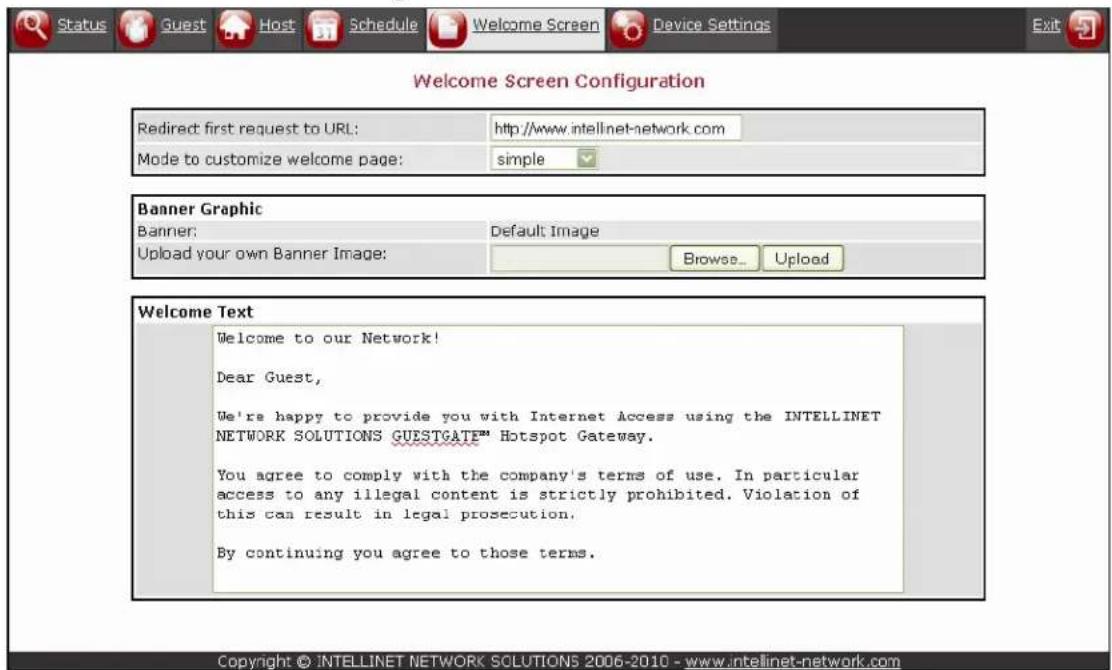

Configurable Welcome Screen for your Guests
You can set up your own welcome screen in seconds. Change the wording and formatting, upload your own banner image or change the entire HTML code. The welcome screen is displayed when a guest connects to the Internet for the first time. The welcome screen can be utilized to make the guest agree to your terms and conditions, and can be completely deactivated if required.
IP PnP
In many situations it is necessary for the network administrator to change the TCP/IP settings of guest computers because the existing settings are not compatible or your network has advanced requirements. GuestGate eliminates this step completely. GuestGate automatically adjusts to the guest computer's TCP/IP settings, providing a true zero guest configuration.
Bandwidth Control
GuestGate controls how much of your Internet connection speed is dedicated to the guest network. Upload and download bandwidth can be configured individually.
Layer 3 Client Isolation Function
In a public location with a public Wireless Access Point there are often concerns about security. GuestGate not only protects the Host Network from unauthorized access by your guests, it takes security one step further. When the “use separate random network for each client” option is activated, no guest computer can access any other guest computer. In this mode GuestGate randomly assigns each guest computer its own network. This option is activated by default.

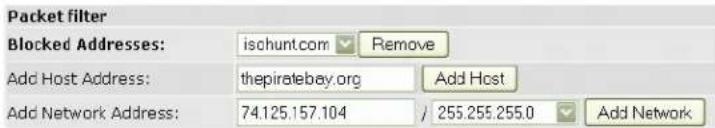

Packet Filter
Block access to certain Web sites or entire IP ranges.
300 Mbps Wireless N Support
GuestGate MK II has integrated Wireless LAN support for connection speeds up to 300 Mbps. It supports the latest Wireless N technology as well as legacy Wireless G and Wireless B connections.
4 Port 10/100 Auto Sensing LAN Switch
GuestGate provides four 10/100 Mbps LAN switch ports for the connection of PCs, notebooks, or other switches or wireless access points.
Web-Based Administrator Interface
The configuration is fully Web-browser based. For security reasons, the Web administrator menu is only accessible from the host network.
Firmware Updates via Web Browser
Quickly and conveniently upgrade firmware of GuestGate with the Web browser of your choice.
Installation Examples

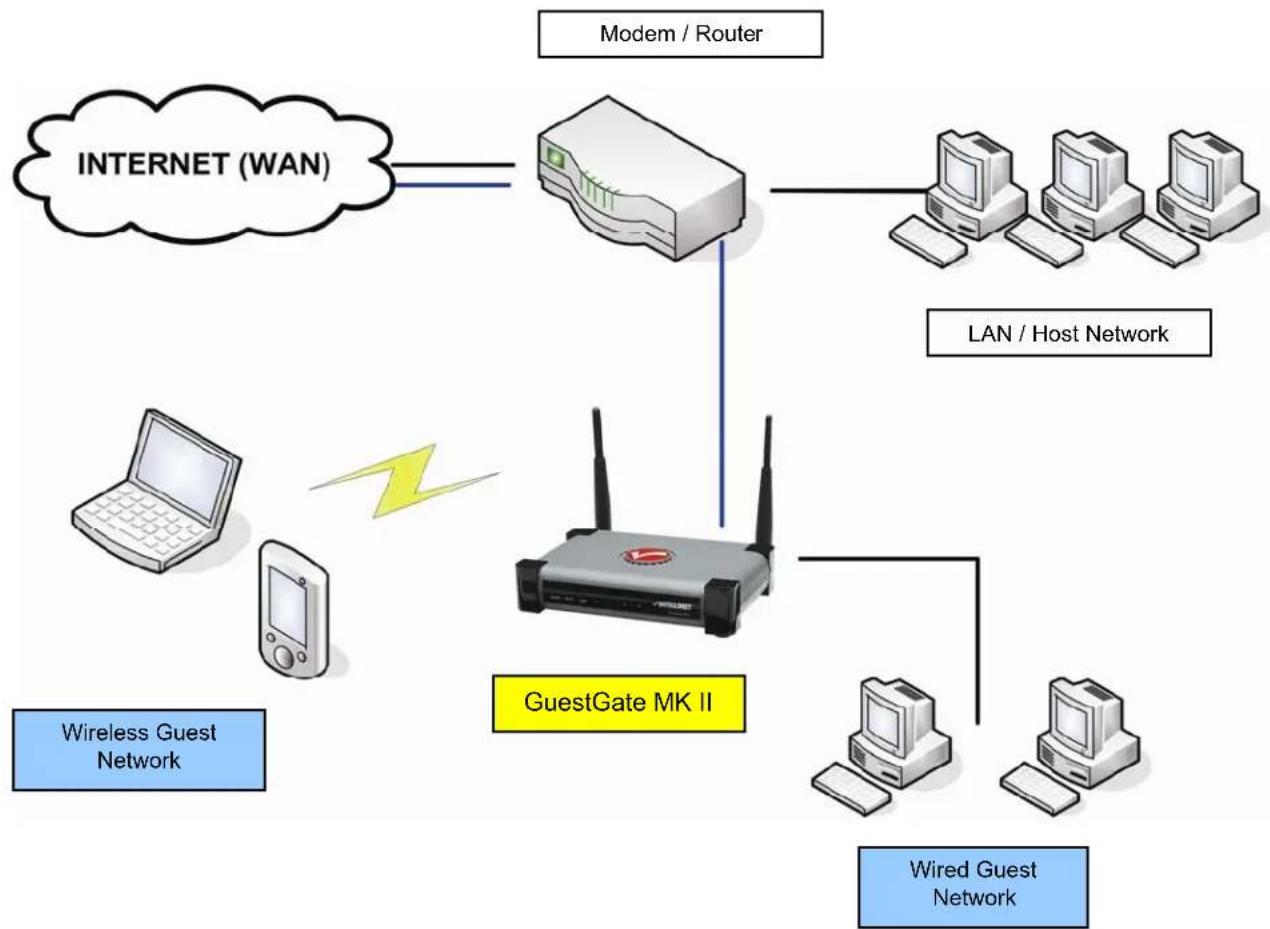

GuestGate in a SOHO Network Environment
This is a typical setup in which the Internet connection is established through an NAT router with an integrated firewall.
GuestGate in an SMB Environment

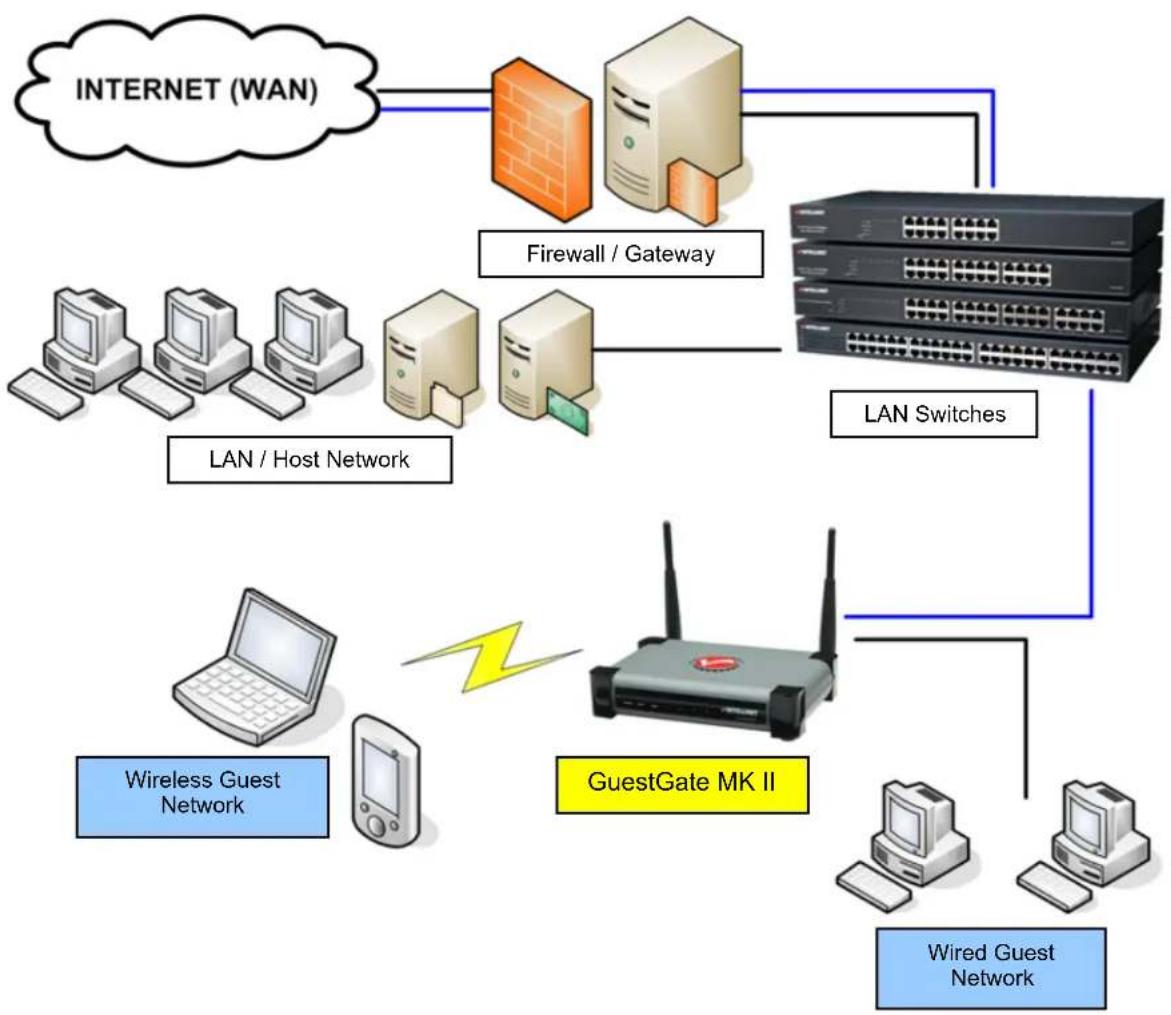

In larger networks GuestGate connects to any available switch port behind the Firewall/Gateway/Router.
GuestGate Function Basics
Ports
GuestGate features a total of five 10/100 RJ45 ports. One port is for the connection of GuestGate to the host network (Host Port), four ports are available for guest connections (guest ports). The guest ports can be connected to hubs, switches, wireless access points, PCs or notebooks.
Host Port
By default GuestGate obtains an IP address from a DHCP server already present in the network. GuestGate analyzes the network and obtains all information necessary for Internet access. The DHCP Server Log reveals the HOST IP address of GuestGate.
In the event that no DHCP Server is present, GuestGate reverts to its default IP address 192.168.2.1. In this case a manual configuration of the HOST IP settings is necessary.
Guest ports
GuestGate assigns IP addresses to the connected guest computers. IP PnP technology ensures that no configuration on the guest computer is necessary. The default IP address range is 172.16.xxx. Changing the guest IP settings is possible via the Web administration interface.
Guest ports with Layer 3 Client Isolation enabled
If the Layer 3 Client Isolation is enabled, GuestGate assigns a different IP Network (Subnet) to each connected guest computer. Since this assignment is random, it makes it virtually impossible for a hacker to guess the other guest computer's IP settings to try to gain access. This option is enabled by default. It can be disabled in the guest configuration screen of the administrator Web interface. The option is “separate network for each client (automatic).”

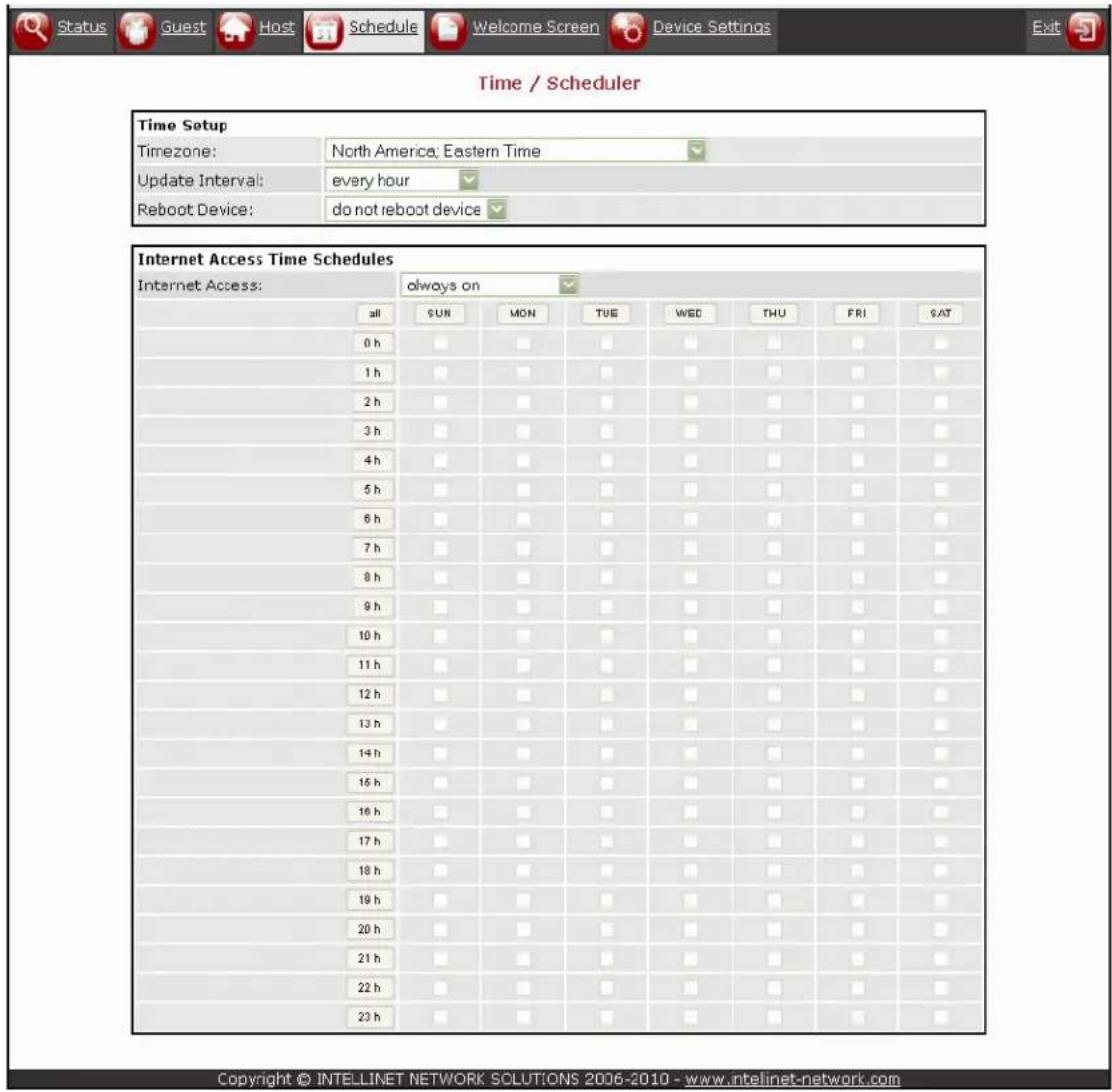

Time / Scheduler
You can configure the time period in which GuestGate allows Internet access. Possible values are “always on” or based on a schedule (week day and time).
Accessing the Administrator Web Interface
The configuration of GuestGate is entirely Web-based. Any standard Web browser is supported. For security reasons, GuestGate can only be configured from the host port. GuestGate rejects all connection attempts which originate from the guest side.
Internet Access for Guests and Welcome Page
When a guest computer tries to access the Internet for the first time, a welcome page is shown in the Web browser. This welcome page can be configured and altered in the Administrator Web Interface. Guests have to accept the terms and conditions in order to access the Internet. If the Guest Password option is enabled, a password must be provided by the guest to gain Internet access.
This authorization procedure is only required once. GuestGate memorizes all authorized guest computers until GuestGate is restarted.
After a restart of GuestGate, guests again will be shown the welcome page. If a guest computer is disconnected from GuestGate for more than 10 minutes, the welcome page is shown again.
INSTALLATION
Recommended Setup
This setup method assumes that a DHCP Server such as a router is present in your network.
1. Connection to the Host Network
Connect standard RJ45 network cable to GuestGate's Host Port and to a RJ45 port on your existing network (Ethernet switch port, router switch port, etc.).
Turn on GuestGate and verify that the network connection is active (Host LED must be lit on GuestGate).
NOTE: The startup process takes up to 60 seconds (if no DHCP Server is present it may take as long as 300 seconds).
2. Connection of Guests
Using standard RJ45 Network Cable you can connect PCs, notebooks, Ethernet switches, hubs or wireless access points to the guest ports of GuestGate. Each port has its own status LED. Verify that the network connection is active on each port you connect. Alternatively you can connect to GuestGate wirelessly by connecting to the Wireless network with the name of "GuestGate."
Start a PC or notebook which is connected to one of the guest ports. Launch a Web browser and open an Internet Web site such as http://www.intellinet-network.com.
You will then see GuestGate's welcome page.


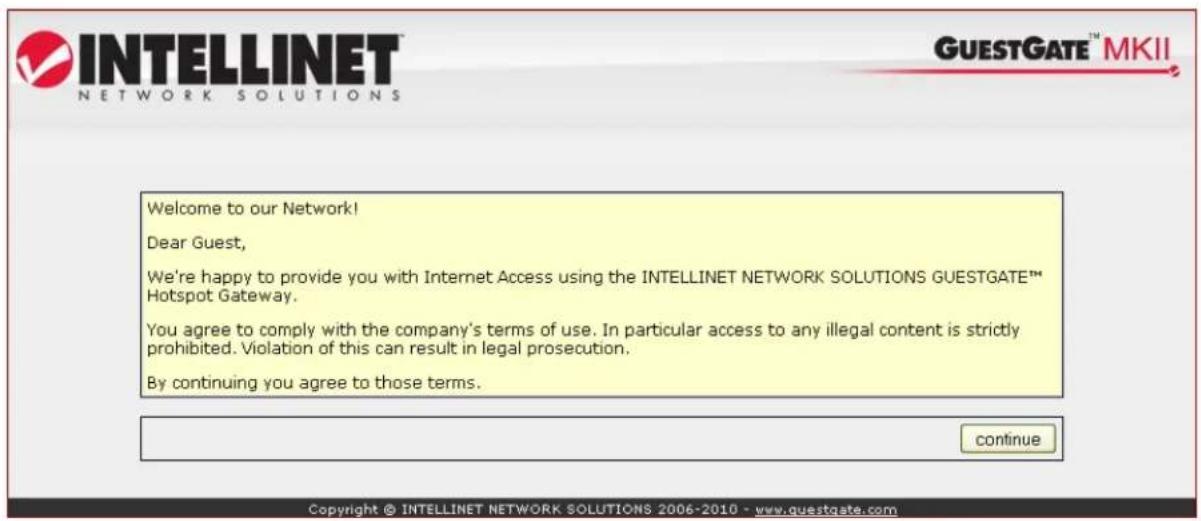

INTELLINET NETWORK SOLUTIONS GUESTGATE™ MKII Welcome to our Network! Dear Guest, We're happy to provide you with Internet Access using the INTELLINET NETWORK SOLUTIONS GUESTGATE™ Hotspot Gateway. You agree to comply with the company's terms of use. In particular access to any illegal content is strictly prohibited. Violation of this can result in legal prosecution. By continuing you agree to those terms. continue Copyright © INTELLINET NETWORK SOLUTIONS 2006-2010 - www.guestgate.comClick "continue" and you will then be forwarded to the Web page you originally entered in the Web browser's address bar.
Note:
In order to get Internet access you must first open a Web browser and open a Web page. Other applications such as chat programs (ICQ, MSN Messenger, Skype, etc.) will not be able to connect to the Internet unless the welcome page has been confirmed in the Web browser.
4. Accessing the Administrator Web Interface from the Host Network
A. Connect to the router (DHCP server) in your network and open the DHCP client log of the router. Connect GuestGate's host port to one of the router's LAN ports and power on GuestGate. Wait about 30 seconds, and then refresh the DHCP client log in the router. The last entry (the newest) belongs to GuestGate.
Below is an example of a DHCP log file:
| IP Address | MAC Address | Time Expired(s) |
| 192.168.0.100 | 00:50:fc:be:48:58 | 169576 |
| 192.168.0.101 | 00:0f:a3:1d:a3:da | 114749 |
B. Launch your Web browser and open the IP address shown in the DHCP client log. You will then see the Administrator Web Interface.
The default password is 1234.


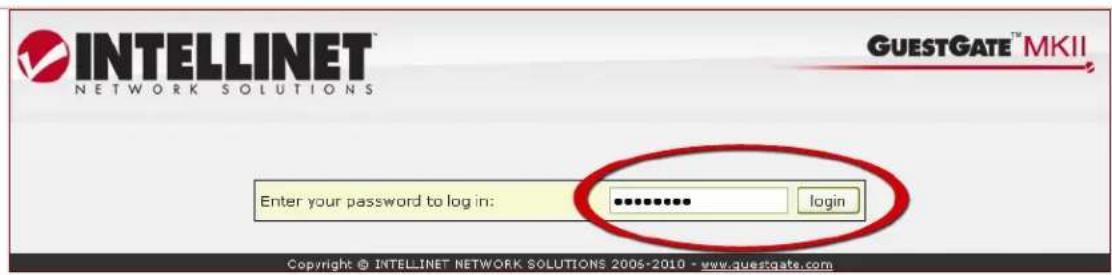

INTELLINET NETWORK SOLUTIONS GUESTGATE™ MKII Enter your password to log in: ************ login Copyright © INTELLINET NETWORK SOLUTIONS 2005-2010 - www.guestgate.comNote:
If this procedure does not work, you can configure your PC with a static IP address of 192.168.2.xxx, disconnect GuestGate from the router and connect your computer directly to the host port. Power on GuestGate and wait about 1 minute until the Power LED stops blinking, then open GuestGate's default IP address of 192.168.2.1 with the Web browser. Refer to the chapter "Advanced Setup" for more information.

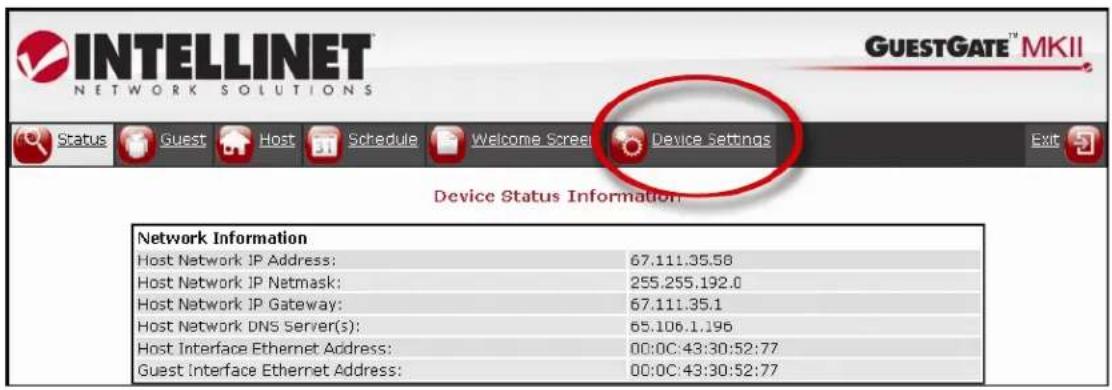

5. Changing Administrator Password

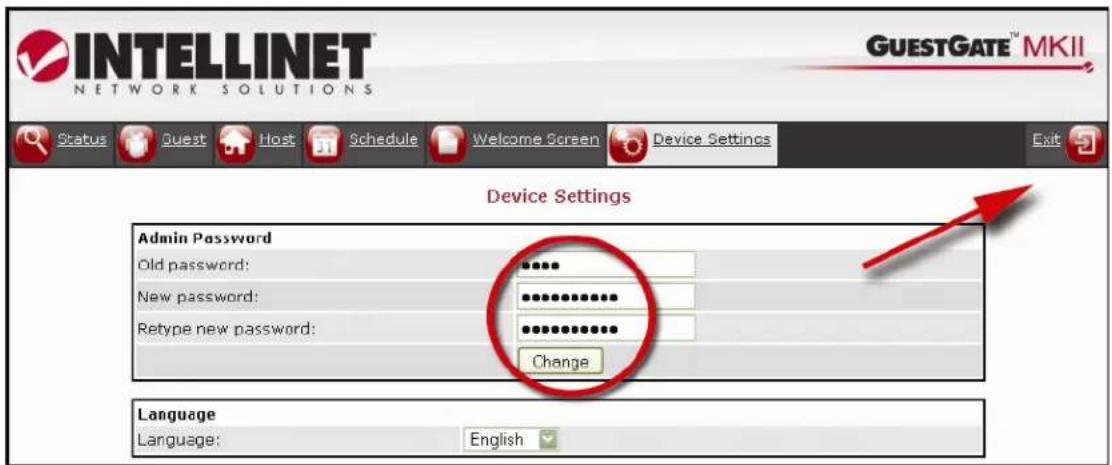

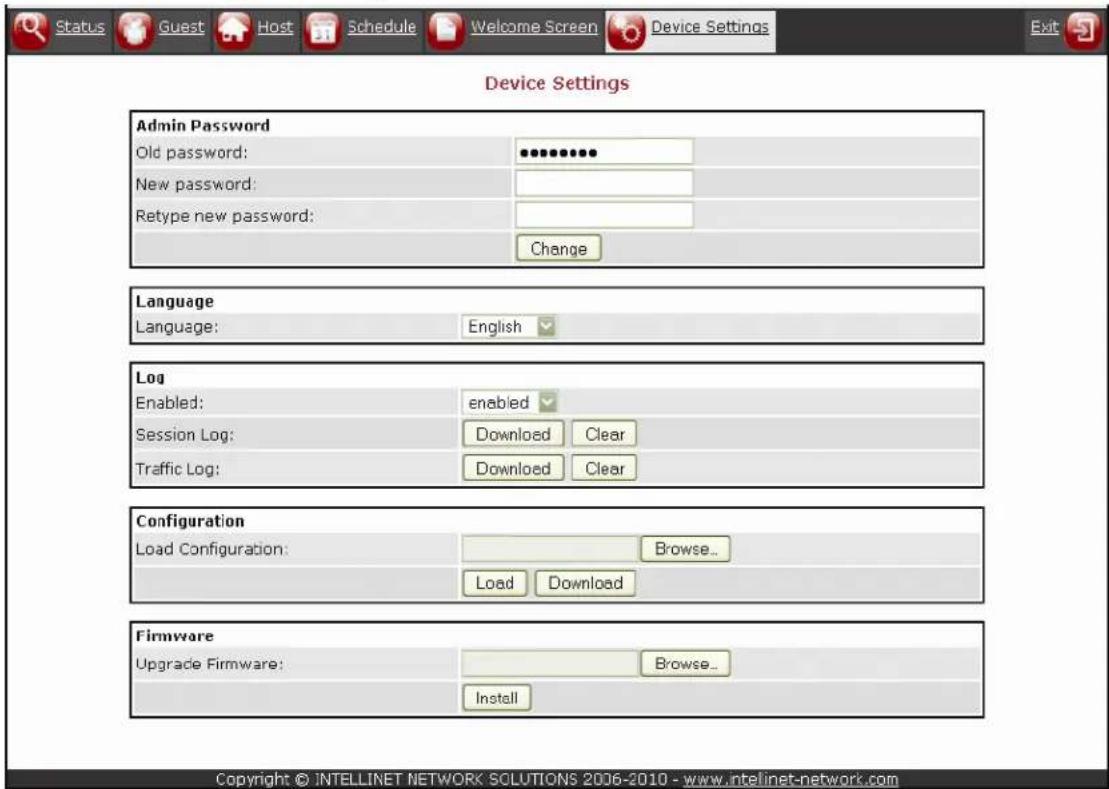

For security reasons it is recommended to change the administrator password of GuestGate. Follow the steps below to change the password.
Enter a new password (up to 20 characters long).
Retype the new password.
Click "Change."

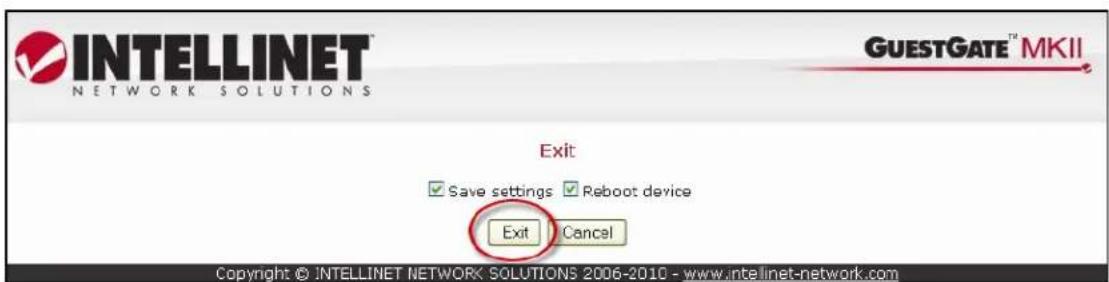

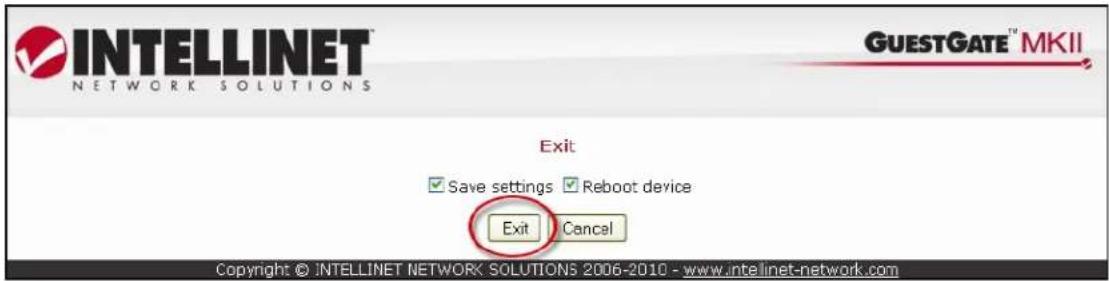

Click on "Exit."


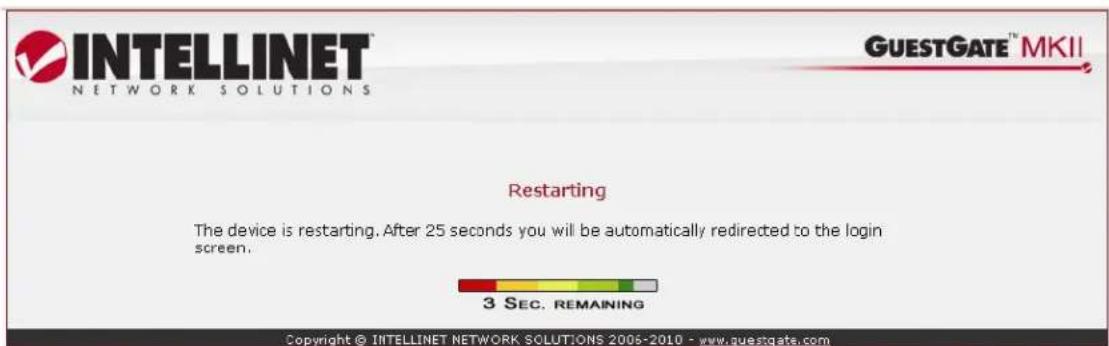

INTELLINET NETWORK SOLUTIONS GUESTGATE™ MKII Restarting The device is restarting. After 25 seconds you will be automatically redirected to the login screen. 3 SEC. REMAINING Copyright © INTELLINET NETWORK SOLUTIONS 2008-2010 - www.guestgate.comThe reboot takes about 25 seconds, after which you will be redirected to GuestGate's login page when the reboot is completed.
NOTE:
The interface is designed to let you make changes on all configuration screens without saving each change individually. Once you are done programming GuestGate, you need to click "Exit" and reboot the device.
The changes will only take effect after GuestGate has been rebooted. Closing the Web browser without saving the configuration changes will result in a loss of the changed configuration.
If you have successfully performed the above steps, you can skip the next section.
Advanced Setup
The standard installation of GuestGate is based on the assumption that a DHCP Server is present in your network. If this is not the case, you can still configure GuestGate manually. To do this you need to turn GuestGate on while it is disconnected from the network. If no DHCP Server can be found after 3 minutes, GuestGate will fall back to its default IP address of 192.168.2.1.
Advanced setup requires:
- A network adapter correctly installed in your computer;
- User rights that allow manual configuration of TCP/IP-related settings on your PC; and
- GuestGate connected with an RJ45 cable to the network adapter in your PC.
1. Changing the IP address of your PC (example: Windows XP)
Click on "Start" -> "Settings" -> "Control Panel."

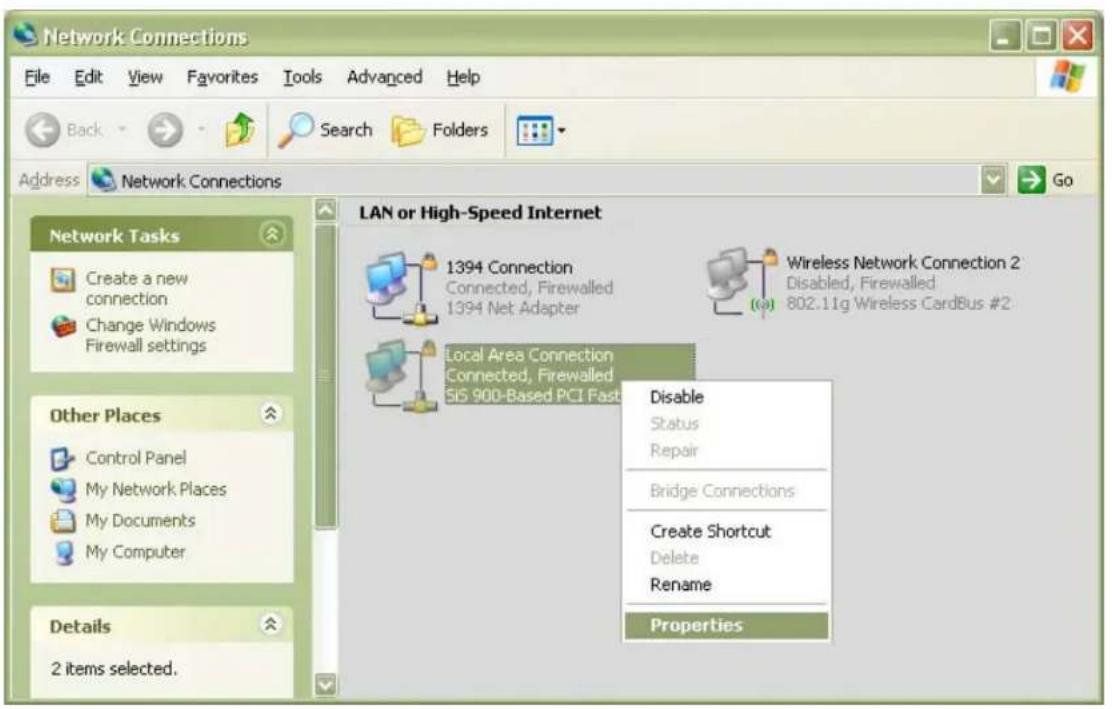

When the "Internet Protocol (TCP/IP) Properties" window opens, you need to make the changes as shown below.


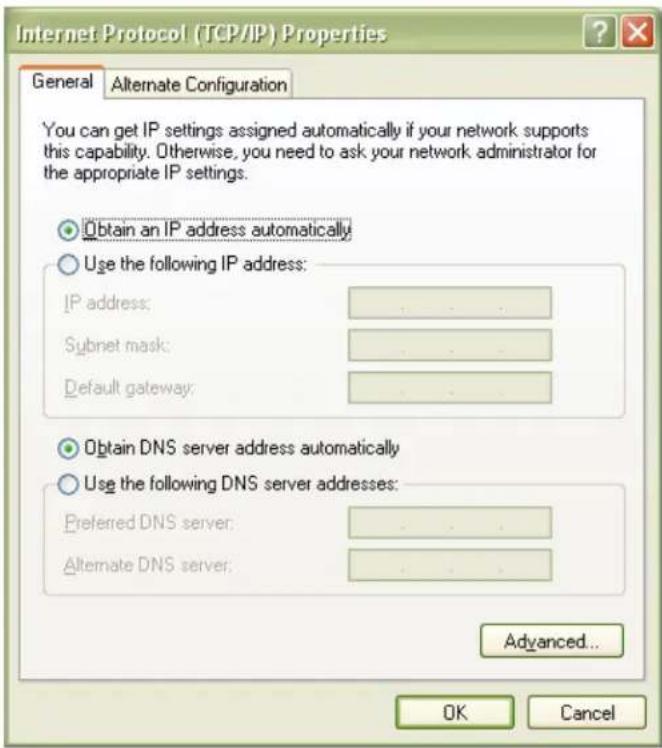

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: ...... Subnet mask: ...... Default gateway: ...... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: ...... Alternate DNS server: ...... Advanced... OK Cancel
Close the previous Windows by clicking "OK" as well.
The TCP/IP settings of your system are now compatible to GuestGate.
2. Connecting to GuestGate via a Web Browser
Start your Web browser and open the address http://192.168.2.1.

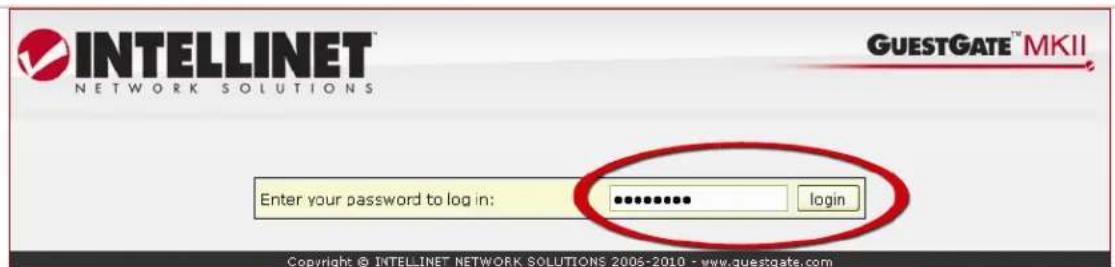

The Administrator Web Interface Login Screen then appears.
NOTE:
It is recommended that you change the administrator password as described in the previous section.
3. Host Configuration


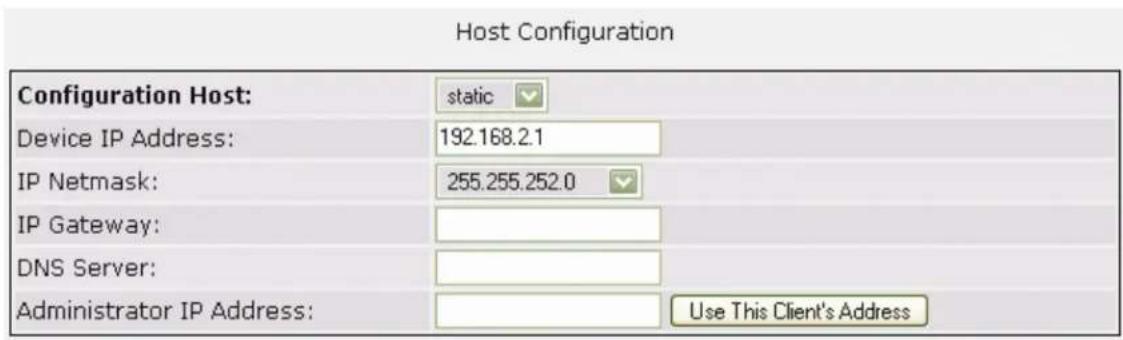

Host Configuration Configuration Host: static Device IP Address: 192.168.2.1 IP Netmask: 255.255.252.0 IP Gateway: DNS Server: Administrator IP Address: Use This Client's AddressConfiguration Host:
With the Configuration Host window displayed, specify the device IP address, IP netmask, IP gateway (Internet connection gateway, router) and DNS server.
Device IP address:
A free IP address in your network. This is the IP address you assign to GuestGate.
IP Netmask:
Enter the same netmask (or subnet mask) you use in your network.
IP Gateway:
The IP address of your Internet gateway (such as a router).
DNS Server:
Domain name service as required by your ISP. You can add multiple DNS servers by separating the different entries with a space.
Administrator IP address:
When specified, only this IP address is allowed to connect to the administrator interface of GuestGate. The function "Use this client's IP address" automatically populates the field with the IP address of the computer currently used to connect to the administrator menu.
When you are done click "Exit" (upper right corner).
CONFIGURATION OPTIONS
Status Screen


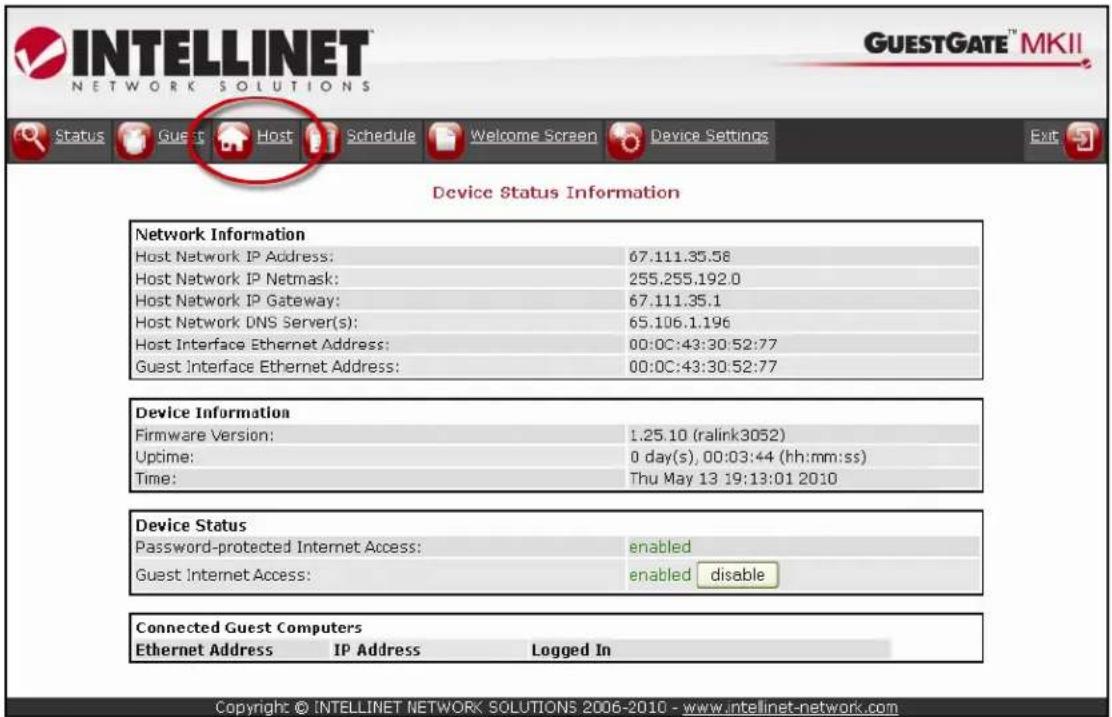

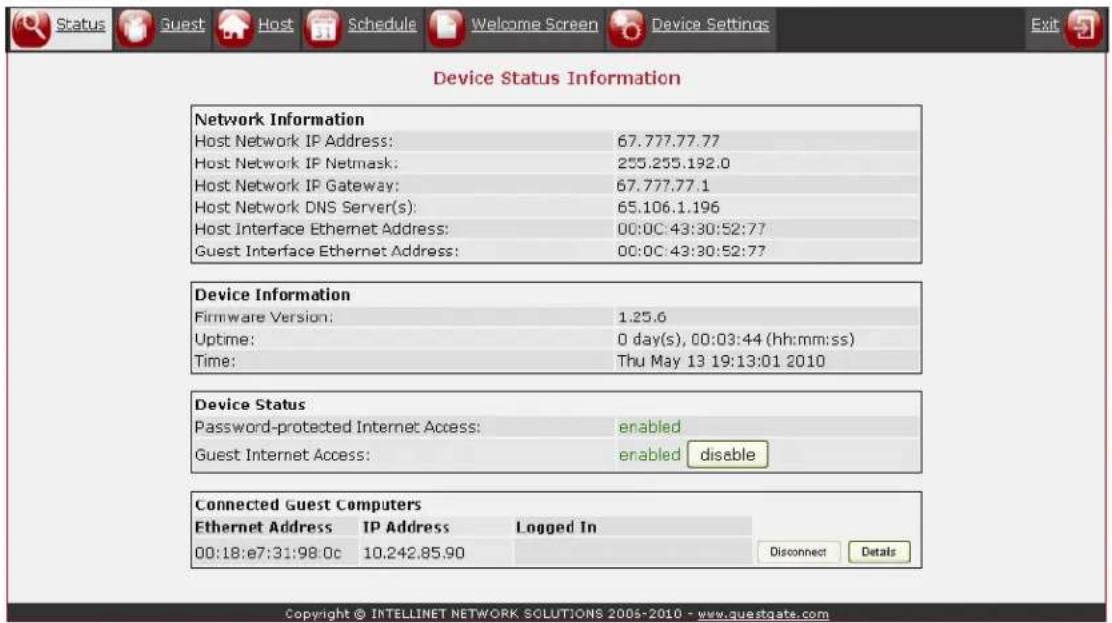

Status Guest Host Schedule Welcome Screen Device Settings Exit Device Status Information Network Information Host Network IP Address: 67.777.77.77 Host Network IP Netmask: 255.235.192.0 Host Network IP Gateway: 67.777.77.1 Host Network DNS Server(s): 65.106.1.196 Host Interface Ethernet Address: 00:0C:43:30:52:77 Guest Interface Ethernet Address: 00:0C:43:30:52:77 Device Information Firmware Version: 1.25.6 Uptime: 0 day(s), 00:03:44 (hh:mm:ss) Time: Thu May 13 19:13:01 2010 Device Status Password-protected Internet Access: enabled Guest Internet Access: enabled disable Connected Guest Computers Ethernet Address IP Address Logged In 00:18:e7:31:98.0c 10.242.85.90 Disconnect Details Copyright © INTELLINET NETWORK SOLUTIONS 2006-2010 - www.questgate.com-
Network Information: Basic information about the host network interface.
-
Device Information: Display of the current firmware version, the system's uptime and the system time.
3. Device Status
Displays the status of the password-protected Internet access (“disabled” = no password required) and the status of the Internet access (“enabled” = access to the Internet is active).

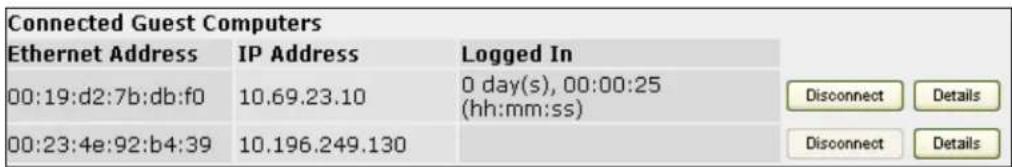

4. Connected Guest computers
GuestGate shows all of the connected guest computers, including the MAC address, the assigned IP address and the connection time. Click on "Details" to view individual statistics for each connected PC, including the bandwidth consumed (Mbytes). Click on "Disconnect" to terminate the connection of the selected computer. If no information is shown for "Logged In," it means that the user is attached to GuestGate, but has not gotten past the welcome page.
1. Configuration Guest
Option "separate network for each client (automatic)"
If this option is activated, GuestGate randomly assigns different networks to each connected guest computer. This option should be activated if you want to prevent guest computers from seeing and accessing each other (Layer 3 Client Isolation = on). It is activated by default.
Option "same network for all clients (automatic)"
GuestGate automatically assigns IP addresses to the guest computers. All guest computers operate in the same network (Layer 3 Client Isolation = off).
Option "same network for all clients (enter manually)"
If this option is enabled, you can manually define the network for the connected guest computers (Layer 3 Client Isolation = off).
2. Access Control: Wireless LAN
Wireless LAN
Allows activating or deactivating the WLAN function of GuestGate.
SSID
Define the name of the Wireless network, e.g., "free wifi," "guest wireless," "hotelwifi," etc.
Operational Mode
Here you can select which wireless modes are supported by GuestGate. The standard mode is 802.11 B/GN. It supports legacy Wireless B and Wireless G connections as well as the new Wireless N standard at 300 Mbps.
For best compatibility, we recommend using the default B/G/N mode.
Channel Number
Set GuestGate to a channel between 1 and 11. To achieve the maximum performance from the Wireless network, you should set the channel as far away as you can from existing wireless networks in your vicinity. For example, if there is a nearby wireless network running at channel 4, you should not set GuestGate to channel 4, 5 or 6, but instead to channel 7 or higher.
3. Access Control: General Settings
Control bandwidth usage and trusted Ethernet addresses.
Control the maximum download speed available for the connected guest computers. Available options are from 32 kbps (kilobits per second) up to 2048 kbps (= 2 Megabits per second). Default = unlimited.
Bandwidth Upload Limit
Bandwidth control for the upload speed (sending files to the Internet), with options the same as above.
Trusted Ethernet Addresses
If you wish to permanently authenticate a guest computer, you can add its MAC address to GuestGate's configuration. GuestGate will not show the welcome page to any computer that has been entered here.


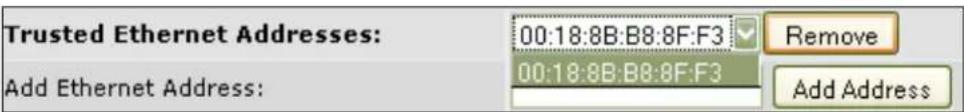

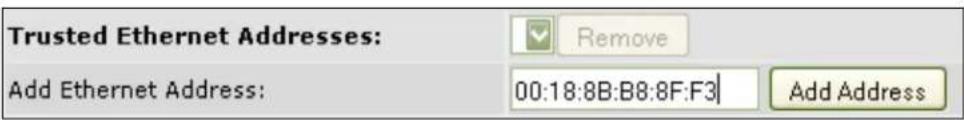

Trusted Ethernet Addresses: Remove Add Ethernet Address: 00:18:8B:B8:8F:F3 Add AddressEnter the MAC address of the computer as shown above. The syntax is xx:xx:xx:xx:xx:xx. Click "Add Address" to save the MAC address. Repeat these steps for additional MAC addresses. In order to delete a MAC address from the configuration, select the entry from the drop-down list and click on "Remove."
Example Output:
The format is: xx:xx:xx:xx:xx:xx (not xx-xx-xx-xx-xx-xx).
4. Access Control: Welcome Screen
Welcome Screen
Enable or disable the welcome page for guests. (Default = enabled.) If this parameter is set to “disabled,” all guest users can access the Internet freely. No welcome page is displayed, even if a guest password is defined below.
Global Guest Password
If you require your guests to enter a password to access the Internet, you can define it here. If left empty, no password is required (default = no password). This is the global password that can be used by any guest; it is not an individual user password. The password option is only effective if the welcome screen option is set to “enabled” (see above).
Radius Server
In case you have a RADIUS authentication server in your network and you want to utilize it to authenticate your guest users, you need to enter the server's IP address here.
Radius Server
Type in the optional password for the RADIUS server here.
Radius Realm
Enter the optional realm delimiter (e.g., "@" or "\") here.
5. Access Control: Welcome Passwords
Set up individual user passwords that are only valid for a certain time period and can be used by a defined number of computers simultaneously. The example below shows a password “test” that is valid from “05/28/2010, 12 am” until “06/02/2010, 12 am.” The password can be used by five users simultaneously. Up to nine users can use the same password. The amount of user passwords is limited by available memory in GuestGate, but should ideally not exceed 50.
Option "dhcp"
GuestGate automatically receives the IP address, netmask, gateway and DNS server information from the DHCP server in your network, typically a router.
Option "static"
In larger networks, a manual configuration of the IP settings may be necessary. Select "static" and enter the IP address, netmask, gateway IP address and DNS server IP addresses manually. Multiple DNS Servers can be entered by separating them with a space, i.e., 111.222.333.444 999.888.777.666.
Administrator IP address
Restrict access to GuestGate's administration menu to the IP address you enter in this field. This can be any local or public IP address.
2. Packet filter
Blocked Addresses
If you wish to block certain IP addresses, domain names or an entire network, you can enter this here. "Add Host Address" is used to enter domain names such as guestgate.com or intellinet-network.com.
Enter the domain name and click "Add Host." Repeat the steps to block additional domains. "Add Network Address" is used to enter an IP address. To specify the range you can select the appropriate network mask from the drop-down list. If you wish to delete a blocked address, select it from the drop-down list and click "Remove."
This option lets you specify which outgoing TCP/IP ports you wish to block. Enter the port number and click "Add Port." GuestGate blocks both TCP and UDP protocols. A list of common service ports can be found in the APPENDIX at the end of the document. If you wish to remove a port, simply select the desired port from the dropdown list and click on "Remove."
Note: You can only add and remove single ports. Port ranges are not supported.
Permitted Addresses
By default, GuestGate blocks access to all PCs in the Host network. This function lets you define exceptions.
Add Host Address: Enter a single IP address; e.g., the IP address of your Intranet Web server and click on "Add Host." Repeat this step if you wish to enter more IP addresses.


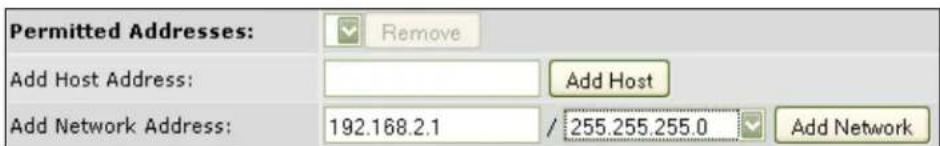

Add Network Address: Enter an IP address and a subnet mask to define a range of IP addresses permitted to your guests. For example, if you wish to allow access to the entire host network, you can do that quickly by using this function.
Walled Garden Addresses

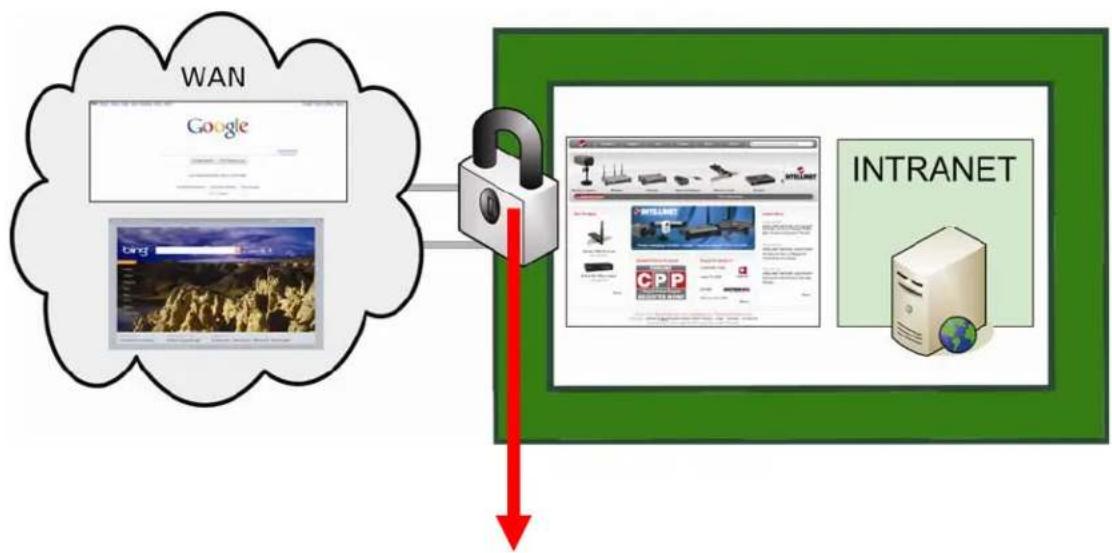

You can grant an unauthenticated user limited access to Web sites, both external and internal, using the Walled Garden function. You can define external and internal addresses to which every user, logged in or not, has access. This area is called the Walled Garden.
As soon as the user tries to connect to a Web page that is outside the walled garden, GuestGate requires authentication, as shown below.
Internet
Authorization required for access
Walled Garden
Access without authentication
INTELLINET
NETWORK SOLUTIONS
GUESTGATE™ MKII
Welcome to our Network!
Dear Guest
We're happy to provide you with Internet Access using the INTELLINET NETWORK SOLUTIONS GUESTGATE™ Hotspot Gateway.
You agree to comply with the company's terms of use. In particular access to any illegal content is strictly prohibited. Violation of this can result in legal prosecution.
By continuing you agree to those terms.
Password:
continue
Copyright © INTELLINET NETWORK SOLUTIONS 2006-2010 - www.questgate.com
Using Walled Garden in combination with a custom welcome screen (see next section), you can allow guests access to Web sites of your choosing without providing a password. The welcome page could look like this:


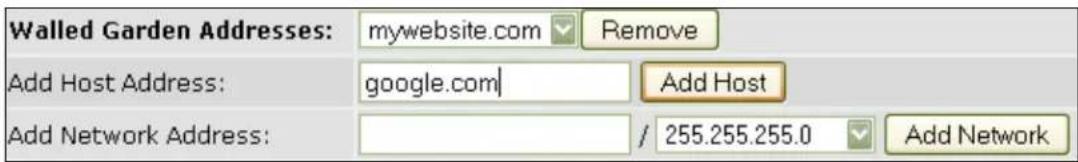

Walled Garden Addresses: mywebsite.com Remove Add Host Address: google.com | Add Host Add Network Address: / 255.255.255.0 Add NetworkAdd Host Address: Enter any Web site URL you wish to include in the Walled Garden. Click "Add Host" to add the URL to the setup.
Add Network Address: In addition to URLs, you can also add IP addresses to the Walled Garden setup. Specify the IP address and the subnet mask and click on "Add Network" to add the IP address range to the setup.
In order to remove a Walled Garden address, select the URL from the drop-down list and click "Remove."
Welcome Screen Configuration
When a guest connects to GuestGate for the first time, GuestGate can redirect the guest to a Web page you want them to see, e.g., a page displaying special offers or advertising.
2. Mode to customize welcome page:
There are two values to choose from: "simple" and "advanced." In simple mode you can change the welcome text and replace the default banner graphic. In advanced mode, you have access to the entire HTML source code of the welcome page. Once you enable the advanced mode, an additional text box appears on the bottom of the page (see below: "Welcome HTML Code").
3. Banner Graphic
You can replace the default banner image with your own image such as the logo of your company. Click on "Browse" to select the file you wish to upload. Click on "Upload" to replace the default banner image. After the upload, the text "Default Image" changes into "Custom Image."
Note:
The banner image file type must be JPG, GIF or PNG. The banner image size must not exceed 60 kB. The banner image dimension is not limited, but the width should ideally not exceed 1024 pixels. The banner image only displays on the guest welcome screen. It does not replace the banner in the administrator Web interface.
4. Welcome Text
You can overwrite the default text with your own custom text. GuestGate supports HTML tags to format your text. Below is a small selection:
<strong>bold text</strong>
<font color = red>red text</font>
<font color = #00ff00">green text</font>
<u>underlined text</u>
<u><strong><font color = red>red bold underlined text</font></strong></u>
Other HTML commands such as

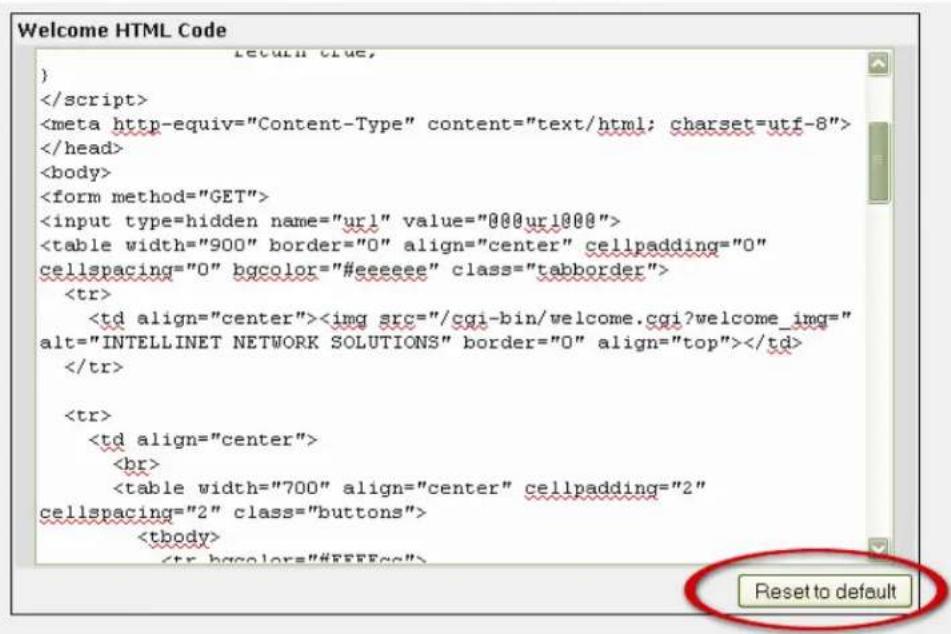

5. Welcome HTML CodeWhen you enable the advanced mode, a new text box will appear. This function is designed for advanced users with knowledge about HTML programming. We don't recommend using this function unless you know what you are doing.
text_imageWelcome HTML Code |
