USER MANUAL P4263F Premier Mounts

INSTALLATION INSTRUCTIONS

Technical line drawing of a dual-tiered server rack unit (no text or symbols)

Universal Low Profile Flat Mount for 42" to 63" Flat Panels

Model: P4263F

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada

Phone: [phone]

Fax: [phone]

Other Locations

Phone: [phone]

Fax: [phone]

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: [phone]

Fax: [phone]

Contents

Weight Limit....2

Warning Statements....2

Installation Tools....3

Parts List....3

Mounting Hardware....4

Features....5

Installing the Wall Plate....6

Introduction. 6

Determining the Mounting Surface....6

Wood Stud Installation....6

Concrete Installation....8

Steel Stud Installation....9

Installing the Mounting Bracket....11

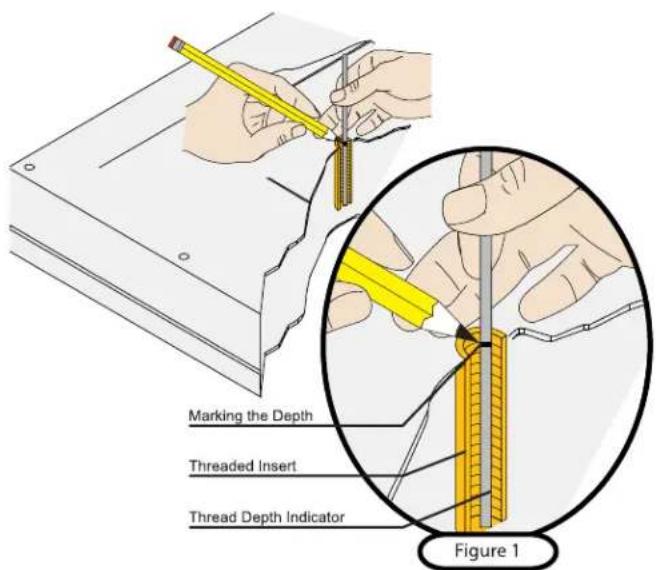

Selecting the Mounting Hardware....11

Universal Washer Installation....12

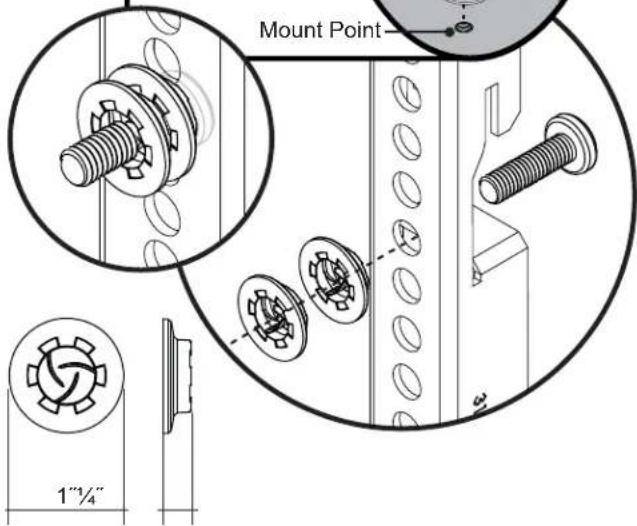

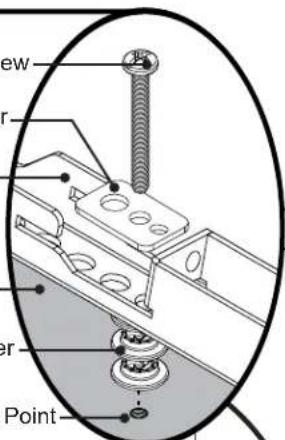

Universal Spacer Installation....12

Locking and Leveling Screw Installation....13

Lock-It™ Security Barrel Installation (Optional)....14

Attaching the Mounting Bracket to the Flat Panel....14

Attaching the Flat Panel to the Wall Plate....15

Mounting Bracket Adjustments....15

Leveling Screw Adjustment....15

Locking Screw Adjustment....15

Utilizing the Security Barrel....16

Technical Specifications. 16

Warranty. 17

Disclaimer....17

Weight Limit

Maximum Flat Panel Weight: 175 lbs.

THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE FLAT PANEL. IF NOT, THE WALL STRUCTURE MUST BE REINFORCED.

Warning Statements

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED IN THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

At least two qualified people should perform the assembly procedure. Personal injury and/or property damage can result from dropping or mishandling the fl at panel.

If mounting to wall studs or ceiling studs, make sure that the mounting screws are anchored into the center of the wall studs or ceiling studs. Use of an edge-to-edge stud fi nder is recommended.

It is recommended that a maximum of 58'' plaster board be used when mounting to wooden studs.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in wall. Cutting or drilling into an electrical line may cause serious personal injury.

Make sure there are no water or natural gas lines inside the wall where the mount is to be located. Cutting or drilling into a water or gas line may cause severe property damage or personal injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact.

Contact Premier Mounts with any questions:

[phone]

[e-mail]

Installation Tools

The following tools may be required, dependent upon your particular installation. These tools are not provided by Premier Mounts, but you can purchase them at your local hardware store.

Electronic Stud Finder	14 " Drill Bit for Wood Stud	7/16 " Drill Bit for Steel Stud*	516 " Concrete Drill Bit**		Hand Held Drill
Pencil	Level		Tape Measure		Hammer**
Protective Eyewear	Socket Wrench		12 " Socket	M10 Socket*	Phillips Tip Screwdriver

* Optional tools for steel stud installations. ** Optional tools for concrete installations.

Parts List

Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts [phone].

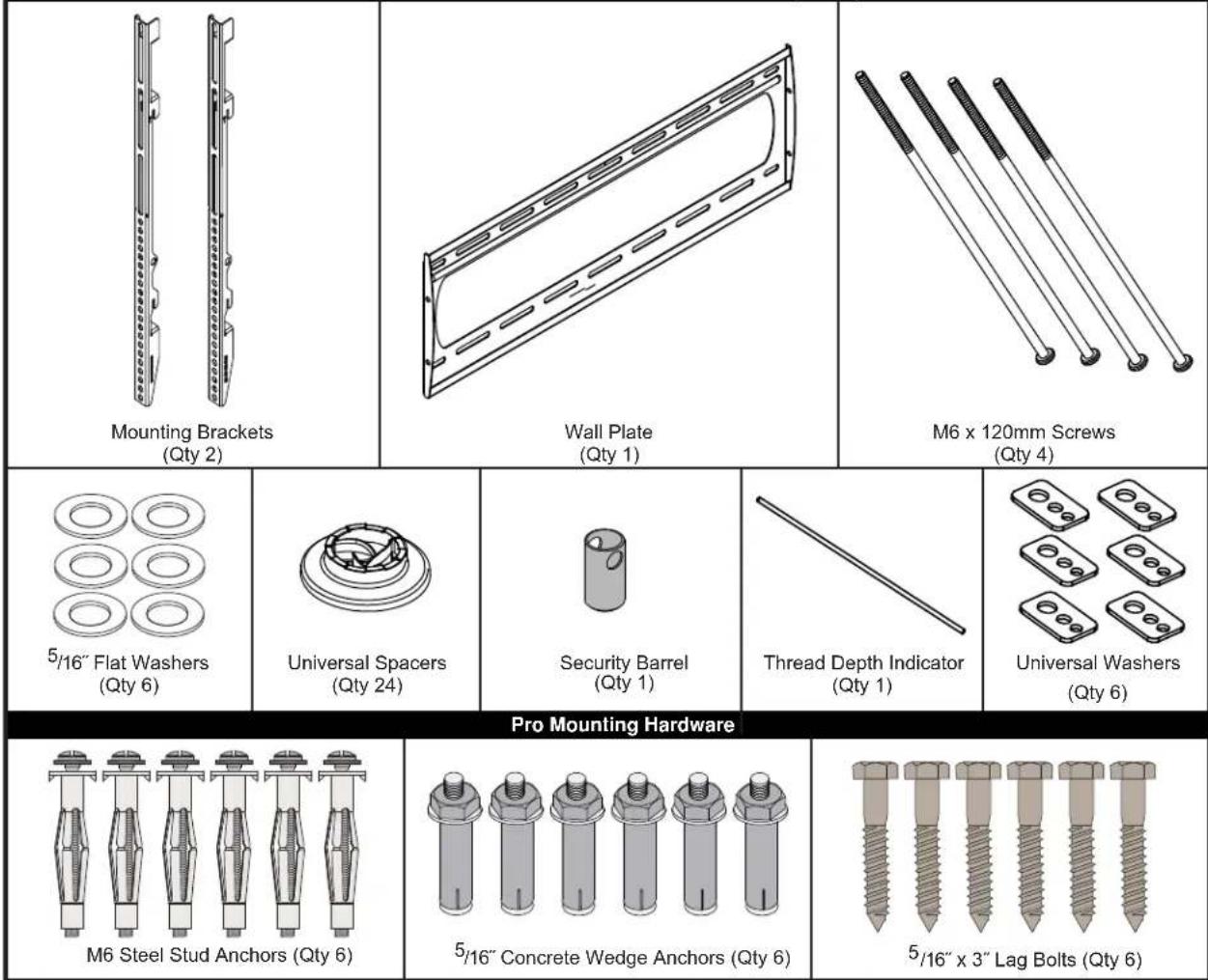

P4263F Universal Low Prof le Flat Mount Assembly Components

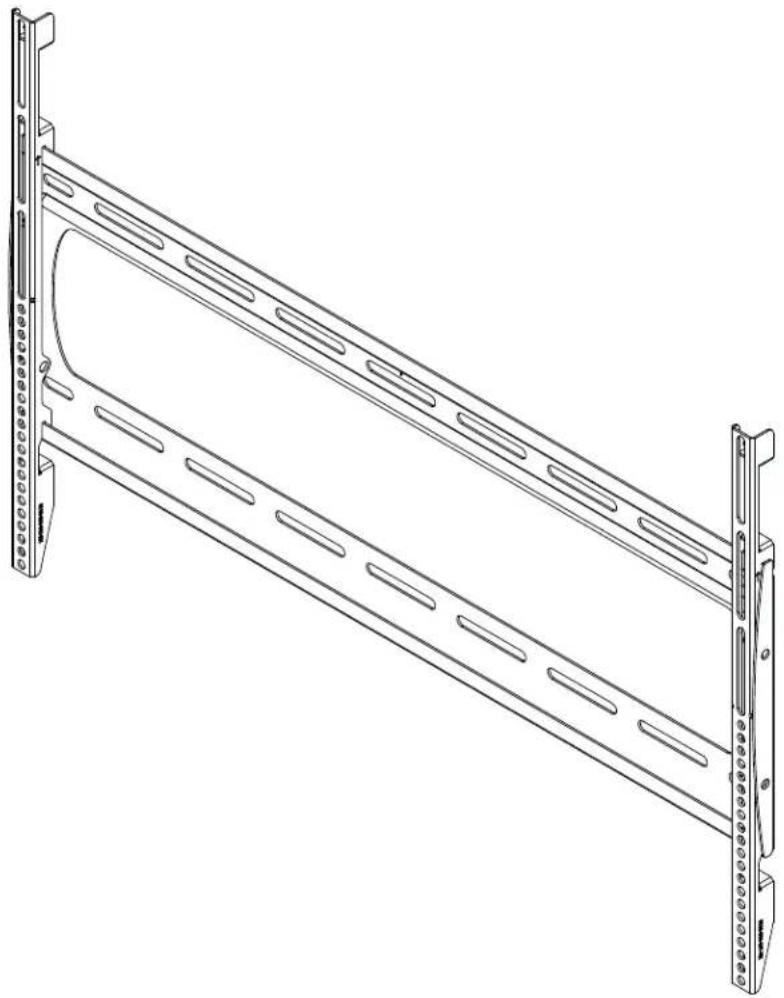

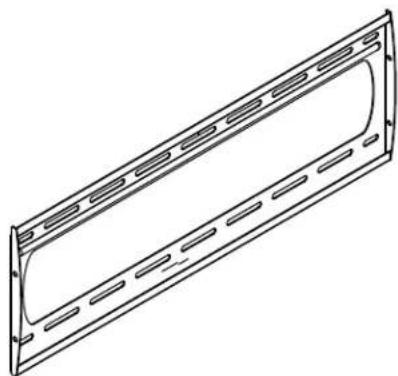

Mounting Brackets (Qty 2) Wall Plate (Qty 1) M6 x 120mm Screws (Qty 4) 5/16" Flat Washers (Qty 6) Universal Spacers (Qty 24) Security Barrel (Qty 1) Thread Depth Indicator (Qty 1) Universal Washers (Qty 6) Pro Mounting Hardware M6 Steel Stud Anchors (Qty 6) 5/16" Concrete Wedge Anchors (Qty 6) 5/16" x 3" Lag Bolts (Qty 6)

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a rectangular metal frame with internal slots and dashed cutouts (no text or symbols)

Five identical black-and-white rod-like objects arranged diagonally, each with a textured cap (no text or symbols visible)

Six identical mechanical assembly diagrams showing bolted and threaded components (no text or symbols)

Six identical metallic bolts with hexagonal end caps, arranged in a row (no text or symbols visible)

Six identical screwdrivers arranged in a row (no text or symbols visible)

Parts List (cont'd)

Mounting Hardware
M4 x 16mm Screw (Qty 6)		M8 x 16mm Screw (Qty 6)
M4 x 25mm Screw (Qty 6)		M8 x 25mm Screw (Qty 6)
M4 x 30mm Screw (Qty 6)		M8 x 30mm Screw (Qty 6)
M5 x 16mm Screw (Qty 6)		M8 x 45mm Screw (Qty 6)
M5 x 25mm Screw (Qty 6)		M8 x 70mm Screw (Qty 4)
M5 x 30mm Screw (Qty 6)
M6 x 16mm Screw (Qty 6)
M6 x 25mm Screw (Qty 6)
M6 x 30mm Screw (Qty 6)
M6 x 45mm Screw (Qty 6)

Features

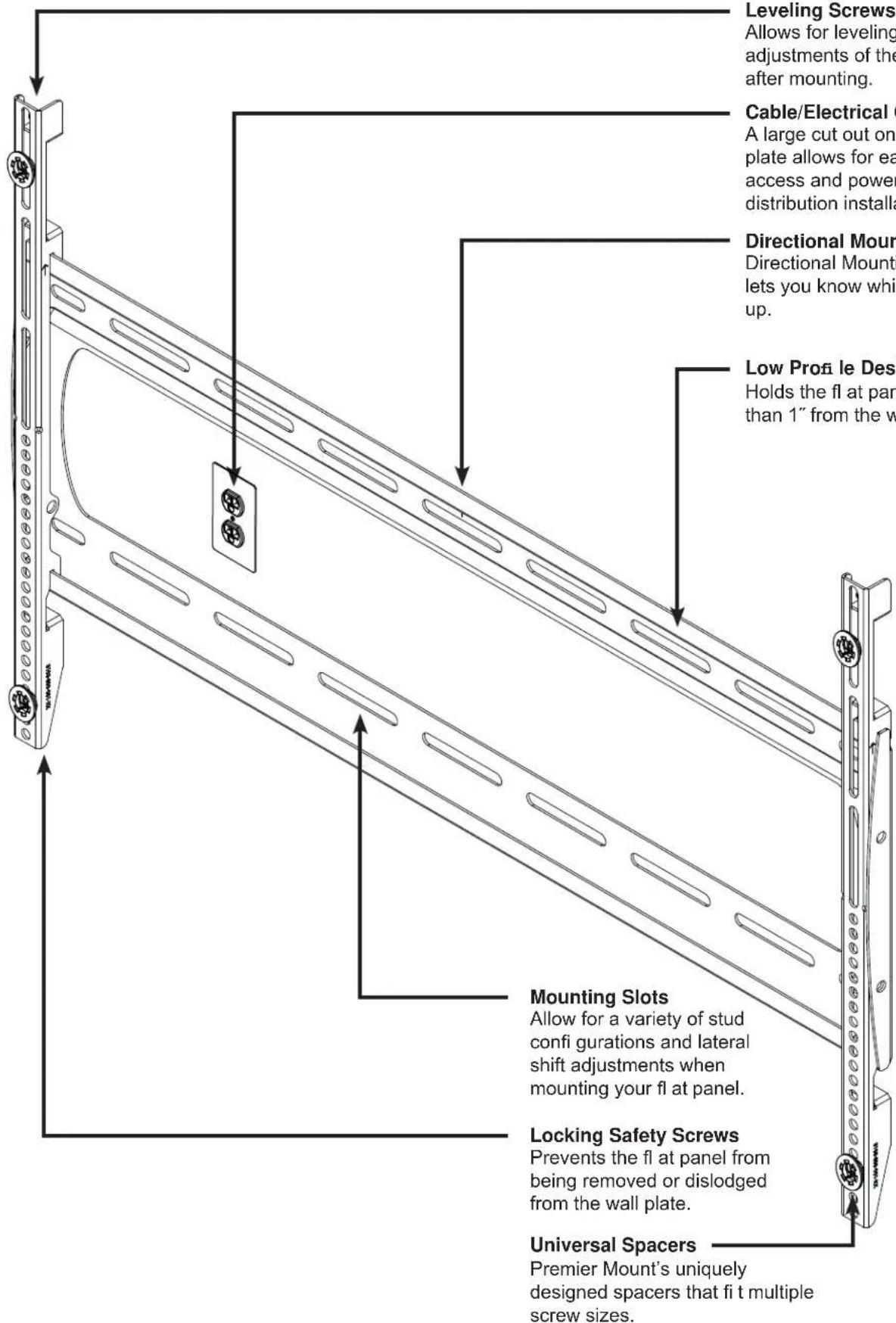

Leveling Screws Allows for leveling adjustments of the after mounting. Cable/Electrical 0 A large cut out on plate allows for each access and power distribution installa Directional Mount Directional Mounti lets you know which up. Low Profi le Desi Holds the fl at pan than 1" from the w Mounting Slots Allow for a variety of stud confi gurations and lateral shift adjustments when mounting your fl at panel. Locking Safety Screws Prevents the fl at panel from being removed or dislodged from the wall plate. Universal Spacers Premier Mount's uniquely designed spacers that fi t multiple screw sizes.

Installing the Wall Plate

Introduction

ectional Mounting Arrow

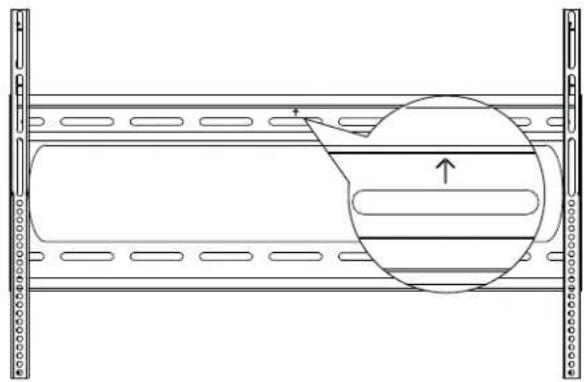

The Directional Mounting Arrow stamped into the top of the P4263F wall mount indicates which edge is the top.

Mounting Safety

Two people are recommended to for the installation of this mount.

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Determining the Mounting Surface

If you will be installing your P4263F mount to wood studs, proceed to the "Wood Stud Installation" section.

If you will be installing your P4263F mount to a concrete wall, proceed to the "Concrete Installation" section.

If you will be installing your P4263F mount to a steel frame, proceed to the "Steel Stud Installation" section.

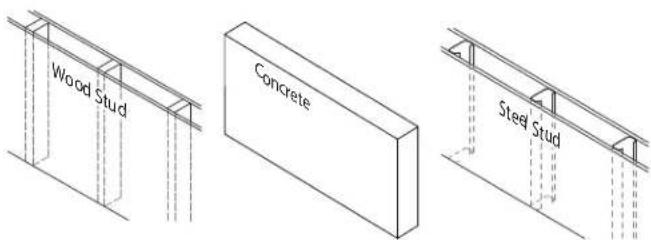

Wood Stud Concrete Steel Stud

Wood Stud Installation

Step 1

You must secure the wall plate to two (2) wall studs with a minimum of four (4) lag bolts (2 lag bolts for each stud found).

① Use a stud fi nder to determine the exact center of wall studs in the vicinity of the wall plate.
② Use a pencil to mark the exact center of each of the wall studs.

Diagram showing a hand holding a tool near a wall with a magnified view of the object, labeled with 'x' and directional arrows.

Step 2

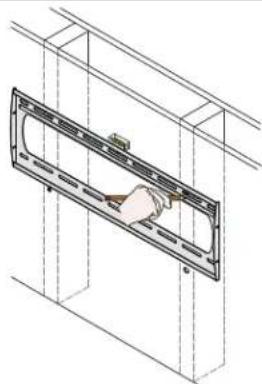

Two people are recommended for this step; one person to level the wall plate and another person to mark the wall stud location.

1 Place the wall plate against the wall in the desired viewing location.
② Adjust the wall plate to align the mount slots in the wall plate with the center of the wall studs.
③ Level the wall plate.
④ Use a pencil to mark the upper right mounting location along the center of the wall stud.

Isometric line drawing of a hand holding a rectangular frame inside a structural framework (no text or symbols)

Installing the Wall Plate (cont'd)

Step 3

Drill a "pilot hole" in the center of the upper right mark using a 14 " drill bit and power drill.

Only use a 1/4" drill bit when drilling the pilot holes.

Isometric line drawing of a mechanical assembly with a yellow tool inserted into a metal frame (no text or symbols)

Step 4

① Place the wall plate against the wall and align it with the pilot hole.

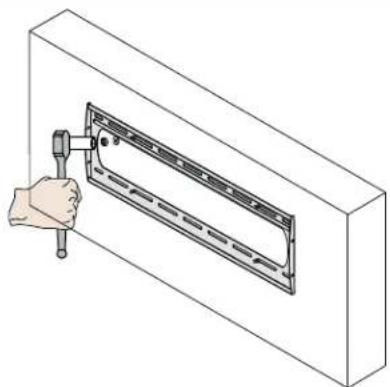

② Insert one (1) 5 / 16'' x 3" lag bolt and one (1) 5 / 16'' washer into the upper right mounting hole and tighten using a socket wrench and 1 / 2'' socket.

Do not overtighten the lag bolt.

Illustration of a hand using a tool to install a metal frame structure (no text or symbols visible)

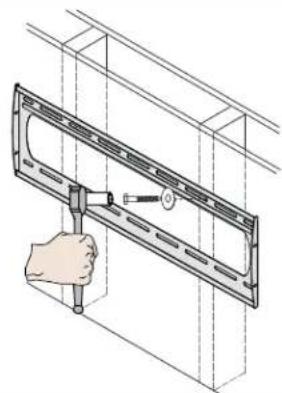

Step 5

① Level the wall plate.
② Use a pencil to mark the remaining three (3) mounting locations along the center of each wall stud.

Isometric illustration of two hands installing or adjusting a metal panel inside a structural frame (no text or symbols)

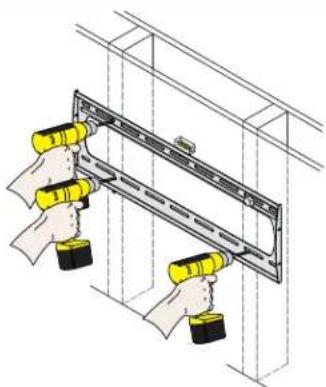

Step 6

Two people are recommended for this step; one person to level the wall plate and another person to drill the pilot holes.

Drill a "pilot hole" in the center of each of the marks with a power drill and a 14 " drill bit.

Only use 14 " drill bit when drilling the pilot holes.

Illustration of two hands using yellow and black power tools to install a metal frame inside a structural grid (no text or symbols)

Installing the Wall Plate (cont'd)

Step 7

① Insert one (1) 516 " x 3" lag bolt and one (1) 516 " washer into each pilot hole.
② Tighten all lag bolts using a socket wrench and 12 " socket.

Do not overtighten the lag bolts when attaching the mount to the wall. Improper installation may result in personal injury or property damage.

Proceed to the "Installing the Mounting Bracket" section.

Technical line drawing of a hand using a tool to install a metal frame (no text or symbols present)

Concrete Installation

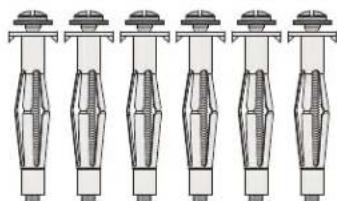

The supplied 516 " concrete wedge anchors must be used for concrete installation.

You will need a 516 " concrete drill bit, which is available at your closest hardware store.

Six identical cylindrical mechanical fasteners with hexagonal end caps, arranged in a row (no text or symbols visible)

Concrete Wedge Anchors

Example of 516 " Concrete Drill Bit (Not Included)

Step 1

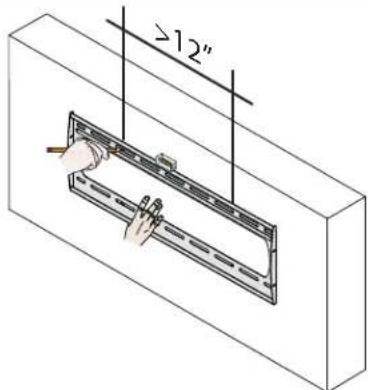

Two people are recommended for this step; one person to level the wall plate and another person to mark the mounting locations.

1 Place the wall plate against the wall in the desired viewing location.
② Level the wall plate.
③ Use a pencil and mark 2 upper and 2 lower mounting locations where you will be drilling holes for the concrete wedge anchors. Each horizontal location cannot be closer than 12" apart.
4 Set the wall plate to one side in a safe location.

>12"

Step 2

Use a power drill and 516 concrete drill bit to drill a hole at each of the marks.

Illustration of a hand using a power tool to clean or store floor tiles (no text or symbols)

Installing the Wall Plate (cont'd)

Step 3

① Insert a concrete wedge anchor into each hole.

If necessary, lightly tap each concrete wedge anchor into place with a hammer.

② Remove the nuts and washers from all four (4) concrete wedge anchors.

Illustration of a hand using a hammer to mark holes on a rectangular block (no text or symbols)

Step 4

Place the wall plate against the wall over the threaded shafts of the concrete wedge anchors.
② Replace the washers which you removed from the concrete wedge anchors with the ^5/16 washers shown in the parts list on Page 3.
3 Attach the nuts and ^5/16 washers to each of the concrete wedge anchors and tighten using a socket wrench and an M10 socket.

Do not overtighten the wedge anchor nuts.

Proceed to the "Installing the Mounting Bracket" section.

Isometric line drawing of a hand using a hammer to install a rectangular metal bracket (no text or symbols)

Steel Stud Installation

The supplied M6 steel stud anchors must be used to install your Premier Mounts' mount to steel studs. Do not use lag bolts or wood screws.

Six identical mechanical components arranged in a row, each with a central shaft and top cap (no text or symbols visible)

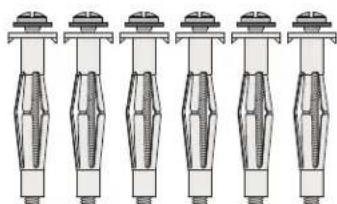

Steel Stud Anchor Screw Steel Stud Anchor Sleeve

Step 1

① Identify the general location on the wall where you will be mounting your fl at panel.
② Use a stud fi nder to determine the exact center of each steel stud in the vicinity of the mounting location.
③ Use a pencil and mark the exact center of each steel stud.

Diagram showing two hands performing maintenance or installation on a structural beam, with no visible text or symbols.

Installing the Wall Plate (cont'd)

Step 2

1 Place the wall plate against the wall in the desired viewing location.
② Adjust the wall plate to match the locations of the steel studs.
③ Level the wall plate.
4 Use a pencil and mark 2 upper and 2 lower locations where you will be drilling holes for the steel stud anchors.
⑤ Set the wall plate to one side in a safe location.

Technical line drawing of a mechanical assembly with a hand holding a component, no text or symbols present

Step 3

① Use a power drill and 716 " drill bit to drill a hole at each of the marks.
② Insert a steel stud anchor into each hole.

If necessary, lightly tap each steel stud anchor into place with a hammer.

Illustration of a hand using a power tool to install or install a wall-mounted panel (no text or symbols present)

Step 4

Use a Phillips screwdriver to tighten each steel stud anchor screw until the legs have completely compressed against the back of the steel stud.

The steel stud anchor screw will feel tight when you first begin to turn it until the legs begin to compress. The steel stud anchor screw will then turn easier for several turns. The steel stud anchor screw will again feel tight when the legs have completely compressed against the back of the drywall. Stop turning the steel stud anchor screw at that point.

Do not overtighten the steel stud anchor screw.

Remove the steel stud anchor screws and set them aside.

Steel stud anchors may come with small paper washers. You may leave them on the screw or discard them. These small paper washers do not replace standard 516 washers.

Technical diagram illustrating mechanical assembly steps with arrows indicating direction of movement or rotation around a central component.

Installing the Wall Plate (cont'd)

Step 5

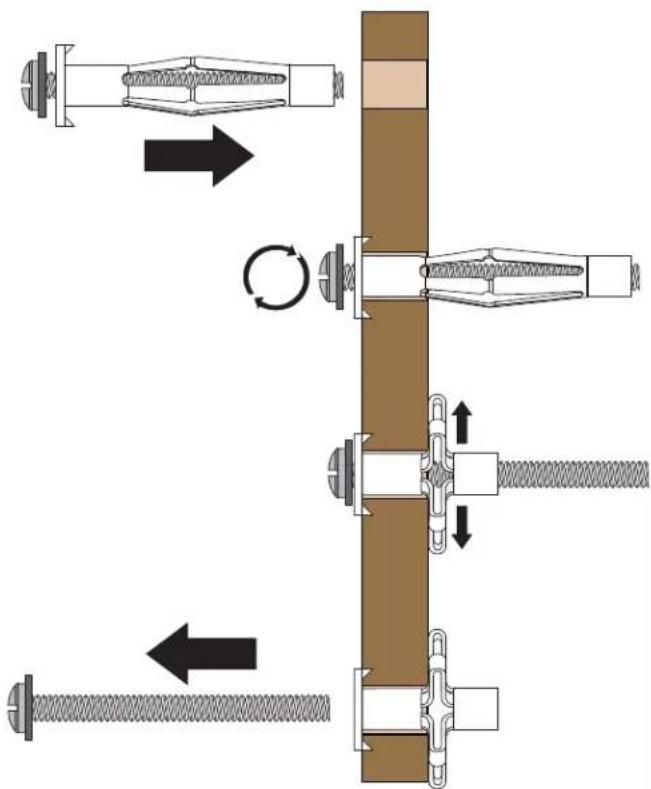

① Align the wall plate over the steel stud anchor sleeves.
② Insert a steel stud anchor screw and a 516 " washer into each steel stud anchor sleeve.
③ Use a Phillips screwdriver and tighten each steel stud anchor screw until it is just snug.

Do not overtighten the steel stud anchor screws.

Do not use a power drill to tighten the steel stud anchor screws.

Proceed to the "Installing the Mounting Bracket" section.

Technical diagram of a structural frame with dimension lines and mounting points (no text or symbols)

Installing the Mounting Bracket

Selecting the Mounting Hardware

① Insert the Thread Depth Indicator into the thread inserts found on the bottom or top of the fl at panel.
② Use a pencil to mark the depth of the thread insert on the Thread Depth Indicator, as shown in Figure 1.
3 Insert the Thread Depth Indicator into the remaining thread inserts to compare and verify their depth.
④ Locate the correct diameter screw for the thread insert.

If the screw you selected is longer than the mark on the Thread Depth Indicator, as shown in Figure 2 and Figure 3, do not use this screw. The screw length must not bypass the mark.

⑤ Test each size of the screws provided.

The correct screws should thread easily into the mount point and not pull out when tension is applied.

Proceed to the "Universal Washer Installation" section.

Marking the Depth Threaded Insert Thread Depth Indicator Figure 1

Figure 2 Screw Small Straw or Toothpick Depth Mark

Figure 3 Screw Small Straw or Toothpick Depth Mark

Installing the Mounting Bracket (cont'd)

Universal Washer Installation

Premier Mounts' Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole sizes required by fl at panels.

Do not place excessive pressure on the back of the flat panel, as this may damage your flat panel.

The Universal Washer must be installed between the head of the mounting screw and the mounting bracket as shown.

Does your fl at panel have:

● Recessed mount points?
Uneven mount points?
A curved back?
● Any obstruction near the mount point?

If Yes, you must install Universal Spacers. Remove the mounting brackets, Universal Washers, and mounting screws from the back of the fl at panel. Proceed to the "Universal Spacer Installation" section.

If No, skip to the "Leveling and Locking Screw Installation" section.

Universal Spacer Installation

Premier Mounts' Universal Spacers allow you to attach the mounting bracket to fl at panels which have recessed or uneven mount points. Each Universal Spacer adds 14 " to the distance between the mounting bracket and your fl at panel.

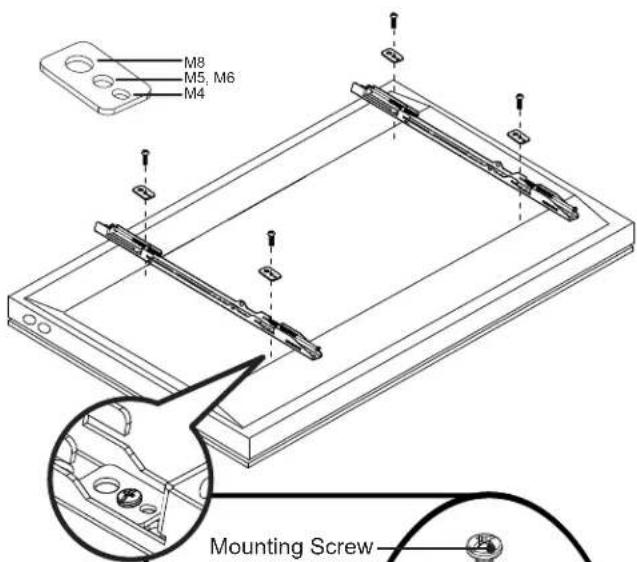

The Universal Spacers must be stacked and oriented as shown.

The Universal Spacers must only be installed between the mounting bracket and your fl at panel.

The Universal Spacers will fit M4, M5, M6 and M8 screw sizes.

Proceed to the "Locking and Leveling Screw Installation" section.

M8 M5, M6 M4 Mounting Screw

Universal Washer-

Mounting Bracket

Flat Panel

Universal Spacer

ew r er Point

Mount Point 1"¼"

Installing the Mounting Bracket (cont'd)

Locking and Leveling Screw Installation

Leveling Screw Installation

You must install the leveling screws before you attach the mounting bracket to the back of the flat panel. The leveling screws consists of two (2) M6 x 120mm screws.

Thread one (1) leveling screw into the top mounting hole on each of the mounting brackets. Make sure the leveling screw is securely threaded into the mounting tab before proceeding.

Do not thread the leveling screw any further once it is even with the mounting tab. Threading the leveling screw any further will prevent you from safely attaching the fl at panel to the wall plate.

Locking Screw Installation

You must install the locking screws before you attach the mounting bracket to the back of the flat panel. The locking screws consists of two (2) M6 x 120mm screws.

Thread one (1) locking screw into the bottom mounting hole on each of the mounting brackets. Make sure the locking screw is securely threaded into the mounting tab before proceeding.

Do not thread the locking screw any further once it is even with the mounting tab. Threading the locking screw any further will prevent you from safely attaching the fl at panel to the wall plate.

Proceed to the "Attaching the Mounting Bracket to the Flat Panel" section.

Technical line drawing of a mechanical component with springs and connectors (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Leveling Screw Correctly Threaded

Pure mechanical component diagram without any text, numbers, or symbols

Leveling Screw Threaded Too Far

Pure technical diagram of a vertical structure with internal components, no text or symbols present

Locking Screw Correctly Threaded

Simple line drawing of a test tube with a clamp and liquid inside an oval frame (no text or symbols)

Locking Screw Threaded Too Far

Lock-It™ Security Barrel Installation (Optional)

Optional security configurations include:

PCB-CSL1 (sold separately)

- Padlock (Combination or Keyed; commercially available)

Please read the following directions to install the security barrel:

① Remove the locking screw from the mounting bracket.

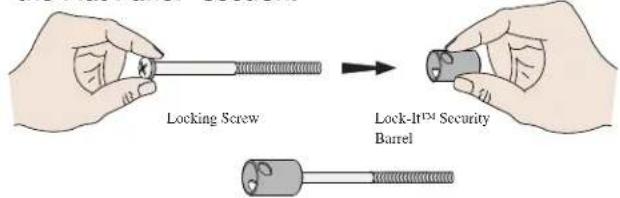

② Place the locking screw into and through the security barrel (see illustration below).
③ Re-insert the locking screw and security barrel into the mounting bracket.
4 Tighten the locking screw and security barrel until seated in the mounting tab.

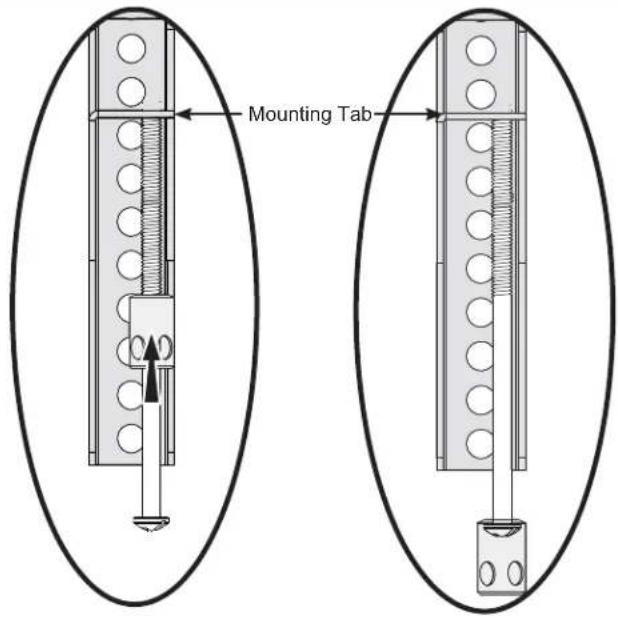

Do not thread the locking screw any further once it is even with the mounting tab (see illustration to the right). Threading the locking screw any further will prevent you from safely attaching the fl at panel to the wall plate.

Do not overtighten the locking screw.

Proceed to the "Attaching the Mounting Bracket to the Flat Panel" section.

Locking Screw Lock-It™ Security Barrel

Mounting Tab

Attaching the Mounting Bracket to the Flat Panel

This section presumes that you have read and understood these sections:

• Selecting the Proper Mounting Hardware
  ● Universal Washer Installation
  ● Universal Spacer Installation

1 Place your flat panel screen-side down on a soft, flat surface.
② Identify the number and location of the thread inserts on the back of your fl at panel.
③ Aligning the holes on each mounting bracket with the thread inserts on the back of your fl at panel.
④ Secure each mounting bracket to your fl at panel by inserting a minimum of two (2) screws per bracket.

Do not overtighten the mounting hardware.

Proceed to the "Attaching the Flat Panel to the Wall Plate" section.

Technical line drawing of a mechanical assembly with mounting brackets and alignment pins (no text or symbols)

Attaching the Flat Panel to the Wall Plate

This section requires two people.

Do not release your flat panel until you are certain that top and bottom hooks of both mounting brackets are securely seated on the upper and lower mounting rails of the wall panel.

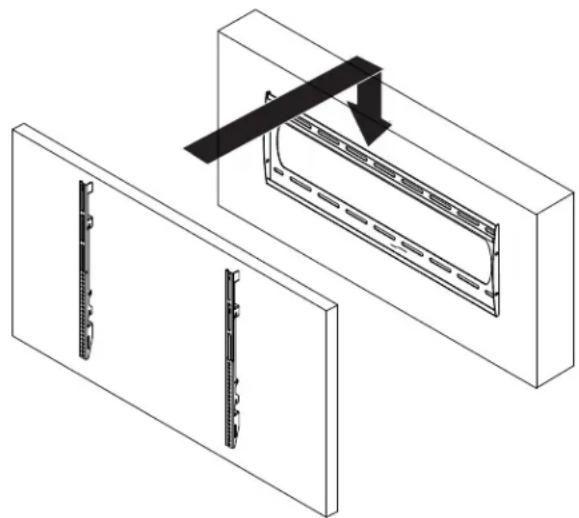

① Raise the flat panel past the top and bottom mounting rails on the wall panel.
② Slide the fl at panel down slowly, keeping it close to the wall.
③ Engage the top and bottom mounting brackets to the rails of the wall plate.

Proceed to the "Mounting Bracket Adjustments" section.

Pure mechanical assembly diagram showing a vertical panel connected to a bracket with a separate curved component (no text or symbols)

Isometric line drawing of a wall-mounted panel assembly with a clamping mechanism (no text or symbols)

Mounting Bracket Adjustments

Leveling Screw Adjustment

If your fl at panel is tilted too far to one side, the leveling screws will allow you compensate for this tilt by simply adjusting the screws with a screwdriver.

① Loosen both locking screws.
② Adjust the tilt of your fl at panel.
③ Tighten both locking screws.

Caution!

It is possible to dislodge your fl at panel while you level your fl at panel. Use extreme caution until you tighten the locking screws.

Locking Screw Adjustment

After you have finished leveling your flat panel, be sure to tighten the two (2) M6 x 120mm locking screws.

Do not overtighten the locking screws.

M6 x 120mm Leveling Screw (1 per Bracket) M6 x 120mm Locking Screw (1 per Bracket)

Utilizing the Security Barrel

Your P4263F Mount includes one (1) Security Barrel which can provide additional theft deterrence for your fl at panel.

PCB-CSL1 Security Cable -

① Thread the cable through the hole on the security barrel.
② Attach the PCB-CSL1 locking mechanism and secure it using the supplied key.

Padlock -

1 Place the locking hook through the hole of the security barrel.
② Snap lock and locking hook together.

PCB-CSL1 Padlock (Combination or Keyed)

Technical Specifications

All measurements are in inches [millimeters].

33.25 [845] 24.00 [610] 18.00 [457] 16.00 [406] 20.83 [529] 7.82 [199] 5.61 [143] 21.38 [543] 5.00 [127] 11.34 [288] φ .33 [8] 31.09 [790] 32.09 [815] 1.00 [25] φ .35 [9] .95 [24]

Warranty

PREMIER MOUNTS LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem, the purchaser's name, address, and telephone number. General inquiries can be addressed to Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

Premier Mounts

Attn: Warranty Claim

3130 East Miraloma Ave.

Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Disclaimer

Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the information contained herein. Premier Mounts assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

©Premier Mounts 2010
