USER MANUAL H-CMMD4042 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents 2

Important safeguards....6

Installation/ connection....7

Din front-mount (method 1)....7

Din rear-mount (method 2) 8

Electrical connection....9

Unit controls....12

Monitor 12

Front panel 13

Remote control 16

LCD display 19

Monitor operations 20

Open/close TFT monitor....20

TFT monitor auto open....20

Monitor tilt angle adjustment 20

Aspect ratio 20

Image setting 21

Parking cable function 21

Monitor movement mechanism....21

Touch screen operations 23

General operations....25

Reset the unit....25

Power on/off....25

Volume control 25

Mute function 25

Setting the audio system 25

Mode selecting 26

Display operations 26

Digital tuner operations ......27

Mode selecting 27

Band selection 28

Manual/ automatic tuning ....28

Programming tuner stations 28

AMS (Auto Memory Store) function....29

Preset scan....29

Local radio station seeking (LOC) 29

AF (Alternative Frequencies) function 29

TA (Traffic Alarm) function 30

PTY (Program Type) function....30

Region function 31

RDS clock 31

Disc operations....32

Glossary 32

Discs for playback 33

Loading a disc 34

Playing/ pausing ....34

Stop 34

Playing the previous/ next track 34

Direct entering the number....35

Scanning forward and backward 35

Slow playback 35

Repeat playback....36

Repeat A-B function(for DVD/CD/VCD discs)....36

Random playback (for DVD/CD/VCD/MP3 discs) 36

Intro playback (for CDDA/VCD discs)....36

GOTO function(for DVD/VCD discs)....36

Direct chapter/ track selection (for CD/VCD discs)....37

Audio track and channel selection (for CD/VCD/DVD discs) 38

Disc menu (for DVD only) 38

PBC (Playback Control) function (for VCD only)....38

On-screen display (OSD) 39

Changing size (for DVD/VCD discs)....40

Changing the subtitle language (for DVD only) 40

Changing angle (for DVD only)....40

MP3/WMA files playback 40

Alter between 2 Ch and 6 Ch....41

MP3 overview 41

TV tuner operations....43

Switch to TV tuner mode 43

Auto tuning....43

Manual tuning....43

Auto preset memory 43

Scan tuning 44

Select the TV station....44

Display TV station 44

AUX IN mode 44

System setup menu 46

General setup....47

Audio sound processing configuration 48

RDS setup....49

Screen CAL....49

DVD setup menu....46

Language 51

Video 51

Audio 52

ProLogic II 53

SPK configuration ....55

Rating 56

Handling and cleaning discs 57

Cleaning 57

Troubleshooting guide....58

Specification....59

Important safeguards

• Using the device at temperature below -10°C may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE!
• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
  • DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
  • DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

Installation/ connection

This unit can be installed in any dashboard having an opening as shown on the picture. The dashboard should be 4.5 - 5.5mm thick in order to be able to support the unit.

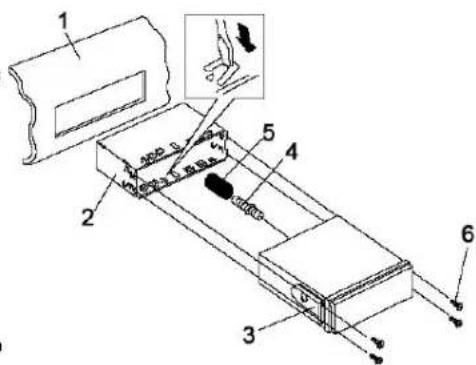

Din front-mount (method 1)

1. Insert mounting bracket (2) into the dashboard (1), select the appropriate tabs and bend them out with a screwdriver.

2. Use 2 pieces of M5 cone shaped screws (7) to fix two assemble bars (3) on both sides of the unit.

3. Secure the rear of the unit. Fix mounting bolt (4) on the rear panel of the unit.

4. Put the rubber cushion (5) on the bolt.

5. Insert the unit into the mounting bracket (2). Use 4 pieces of M2 screw to lock the assemble bars (3) and the mounting bracket (2) in position.

6. Attach the trim ring around the front panel with 2 indentions on one side facing upwards. Indentions face upward

Technical diagram of a mechanical device with numbered components and an inset showing a close-up view of a hand interacting with the component.

Indentions face upward

Technical diagram of a mechanical assembly with labeled components 7 and 8

Note: according to the depth of the opening, use different length of assemble bar accordingly. If the opening is too shallow the monitor may be extended out 10 mm from the dashboard.

Removing the unit

1. Push trim ring upward and pull out the upper part. Push it downward and pull out the lower part.
2. Unscrew 4 pieces M2 screws.
3. Remove the rubber sheath.
4. Use a screwdriver to bend straight the bended mounting tab and tip out the unit from the mounting bracket.
5. Pull out the unit from the mounting bracket with both hands.

Din rear-mount (method 2)

Installation using the screw holes at both sides of the unit (if they are there).

1. Insert the unit into the dashboard (4).
2. Select a position where the screw holes of the main unit (1) are fitted for holes in mounting frame (2).
3. Tighten the screws (3) on each side.
4. Attach the trim ring around the front panel with 2 indentions on one side facing upwards.

1 1 1 1 1

Indentions face upward

M5 X 5 1 3 4 3

2

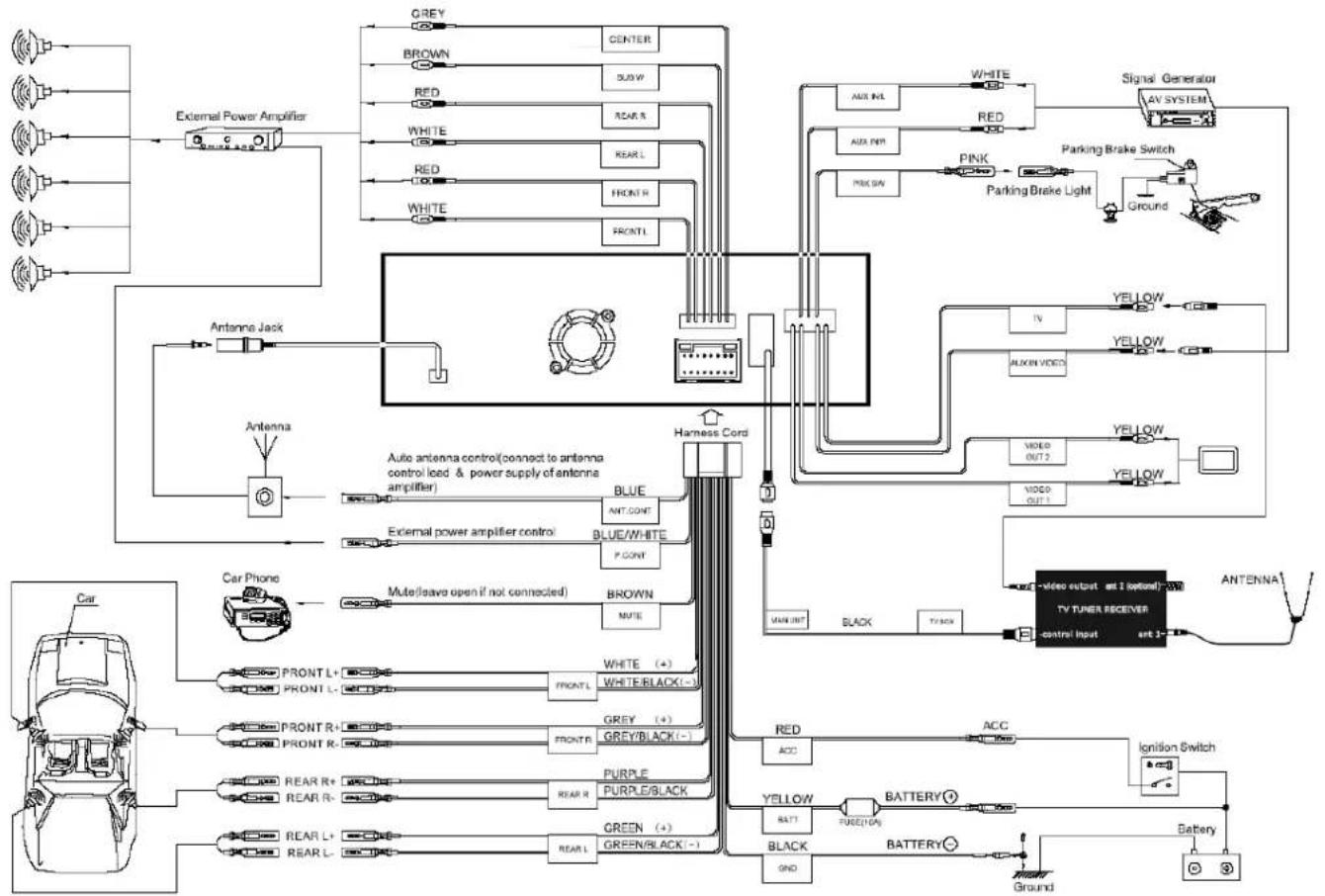

Electrical connection
        direction TB
        A["Car"] --> B["Antenna"]
        B --> C["Antenna Jack"]
        C --> D["External Power Amplifier"]
        D --> E["Brown"]
        E --> F["GREEN"]
        F --> G["PURPLE"]
        G --> H["Black"]
        H --> I["BATTERY"]
        I --> J["Ionition Switch"]
        J --> K["Battery"]
    end

    subgraph Control_Supply
        direction TB
        L["Car Phone"] --> M["Antenna"]
        M --> N["External Power Amplifier control"]
        N --> O["Brown"]
        O --> P["PURPLE"]
        P --> Q["Black"]
        Q --> R["BATTERY"]
        R --> S["Ionition Switch"]
        S --> T["Battery"]
    end

    subgraph Audio_Supply
        direction TB
        U["Auto antenna control"] --> V["Blue ANT.GONT"]
        V --> W["Blue/WHITE P.GONT"]
        W --> X["Mute(leave open if not connected)"]
        X --> Y["Brown MUTE"]
        Y --> Z["White (+) WHITE/BLACK(-)"]
        Z --> AA["RED ACC"]
        AA --> AB["BATT FUEET(GA)"]
        AB --> AC["BATTERY"]
        AC --> AD["Battery"]
    end

    subgraph Audio_Tuning_Supply
        direction TB
        AE["Video OUT 2"] --> AF["Video Brake Light"]
        AF --> AG["PINK SIN"]
        AG --> AH["AUX INL"]
        AH --> AI["WHITE"]
        AI --> AJ["PINK SIN"]
        AJ --> AK["AUX PER"]
        AK --> AL["PINK SIN"]
        AL --> AM["AUX PER"]
        AM --> AN["PINK SIN"]
        AN --> AO["PINK SIN"]
        AO --> AP["AUX PER"]
        AP --> AQ["PINK SIN"]
        AQ --> AR["AUX PER"]
        AR --> AS["PINK SIN"]
        AS --> AT["PINK SIN"]
        AT --> AU["AUX PER"]
        AU --> AV["PINK SIN"]
        AV --> AW["AUX PER"]
        AW --> AX["PINK SIN"]
        AX --> AY["AUX PER"]
        AY --> AZ["PINK SIN"]
        AZ --> BA["AUX PER"]
        BA --> BB["PINK SIN"]
        BB --> BC["AUX PER"]
        BC --> BD["PINK SIN"]
        BD --> BE["AUX PER"]
        BE --> BF["PINK SIN"]
        BF --> BG["AUX PER"]
        BG --> BH["PINK SIN"]
        BH --> BI["AUX PER"]
        BI --> BJ["PINK SIN"]
        BJ --> BK["AUX PER"]
        BK --> BL["PINK SIN"]
        BL --> BM["AUX PER"]
        BM --> BN["PINK SIN"]
        BN --> BO["AUX PER"]
        BO --> BP["PINK SIN"]
        BP --> BQ["AUX PER"]
        BQ --> BR["PINK SIN"]
        BR --> BS["AUX PER"]
        BS --> BT["PINK SIN"]
        BT --> BU["AUX PER"]
        BU --> BV["PINK SIN"]
        BV --> BW["AUX PER"]
        BW --> BX["PINK SIN"]
        BX --> BY["AUX PER"]
        BY --> BZ["PINK SIN"]
    end

    subgraph Control_Tuning_Supply
        direction TB
        AC["Video output at 1 optional"] --> AD["TV TUNER RECEIVER control input at 2"]

    end

    %% Note: The diagram shows connections between car, sensors, and sensors for audio systems.

Note: For your driving safety, please link your parking wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play video disc.

Caution: For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit.

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.

Diagram showing three stages of a mechanical or electrical component assembly, with arrows indicating motion direction (no text or symbols present)

Location	Function
	Connector A Connector B
1 Rear	Right(+)---Purple
2 Rear	Right(-)---Purple/Black Stripe
3 Front	Right(+)---Grey
4	Battery 12V (+)/yellow	Front Right(-)---Grey/Black Stripe
5	Auto Antenna/blue	Front Left(+)---White
6		Front Left((-)---White/Black Stripe
7	ACC+/red	Rear Left(+)---Green
8	Ground/black	Rear Left(-)---Green/Black Stripe

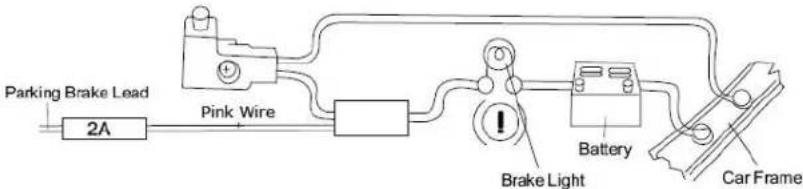

Parking brake cable connections

Parking Brake Lead 2A Pink Wire Brake Light Battery Car Frame

Note: for safety purpose professional installation for the following connections is recommended.

Parking Brake Switch

Parking Brake Switch

For cars with hand brake For cars with foot brake

Unit controls

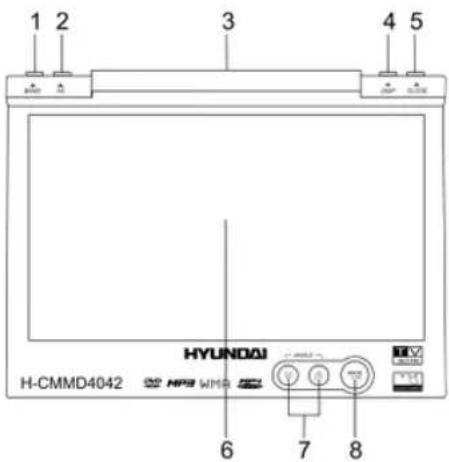

Monitor

1. BAND button

Press it repeatedly to select your desired radio band during TUNER (RADIO) mode.

1. AS button

In TUNER (RADIO) mode press it to start automatic station search.

1. LCD display

2. DISP button

Use this button to show the playback info or TV channel number on the display.

1. OPEN/CLOSE button

Press this button to slide the monitor up or down.

1. TFT display

2. ANGLE ▲/▼ buttons

Press them to increase/decrease 1 step of tilt angle.

Press and hold it for 2 seconds continuously to increase/decrease the tilt angle.

1. WIDE/PIC button

Press it to adjust display aspect.

Press it and hold for 2 seconds to enter setting mode. To select the settings press the ▲/▼ button shortly and

1 2 3 4 5 HYUNDAI H-CMMD4042 HPB WMR 6 7 8

repeatedly. To adjust the setting press the ◀/▶ buttons. Press it and hold for 2 seconds to exit the mode.

Front panel

1 2 MP3 H-CMM0402 MP3 HVUN091 MP3 DVD WMR 13 14 15 16 17 18 10 11 12 19 20 21 22 23 24 25

9. Disc slot

1. VOL knob/AUDIO / LO/DX button

Rotate VOL knob to adjust the volume.

Press it (the AUDIO button) to enter audio setting mode. Press the ◀/▶ repeatedly to select the audio setting. Press the ▲/▼ buttons to adjust it. Press it and hold for 2 seconds to exit the audio setting mode. In TUNER (RADIO) mode press it (LO/DX button) and hold for 2 seconds to select the LOCAL or DISTANT mode for radio station searching.

1. POWER/MUTE button

Press the button to turn the power on, press and hold for 2 seconds to turn the power off. When the power is on press it to cut down the volume output, press it again to resume volume.

1. PRESET STATION [1-6] buttons

2. AUDIO button

In DVD mode press it to select the channel. In VCD mode press it to change the channel.

1. SUBTITLE button

In DVD mode press it to select subtitle language.

1. SCN button

In DVD mode press it to start/stop scan playback.

1. RPT button

In DVD mode press it to start/stop repeat playback.

1. RDM button

In DVD mode press it to start/stop random playback.

Press and hold for 2 seconds the RDM button on the panel to alter between 2 Channel mode and 6 Channel mode.

1. STOP button

In DVD mode press it to stop the playback.

1. IR sensor

2. SRC button

Press this button to select the mode: TUNER (RADIO or TV), DVD, DVDC, AUX IN, CAMERA.

1. PLAY/PAUSE / ENTER / SCAN button

In the menu press the ENTER button to confirm adjustment.

In DVD mode press the PLAY/PAUSE button to start playback. Press again to go into pause mode.

In TUNER (TV) mode press the SCAN button and hold it for 2 seconds to start automatic TV channels searching and storing.

In TUNER (RADIO) mode press the SCAN button to start scan playing of the radio stations. Press and hold it for 2 seconds to preset the radio stations automatically.

1. RESET button

Press the RESET button to restore the unit to the original factory settings.

1. Monitor

2. EJECT button

Press this button to eject the disc.

1. Cursor buttons ◀/▶/▲/▼ buttons

In the menu use the cursor buttons ◀/▶/▲/▼ to move through it.

In DVD mode press the ▲ button to fast backward/ fast forward.

In DVD mode press the ▼ button to slow backward/ slow forward.

In disc playback mode press the ◀/▶ buttons to go to previous/ next chapter or track.

In TUNER (TV) mode use the ◀/▶ buttons to start the TV channel searching backward or forward.

In TUNER (TV) mode use the ▲/▼ buttons to go to previous/ next channel.

In TUNER (RADIO) mode press the ◀/▶ shortly to go to next/ previous stations saved. Press and hold for

2 seconds to start automatic station searching forward/ backward.

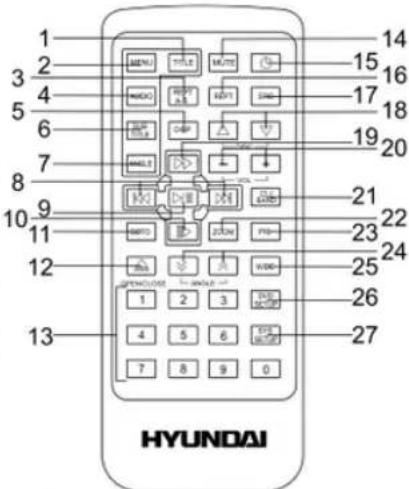

Remote control

1. TITLE button – press it to open the disc title list.
2. MENU button - press it to open the disc menu.
3. REPT A-B button - use it to start repeat of the A-B fragment.
4. AUDIO button - in DVD mode press it to change the audio language. In VCD mode press it to change the channel.
5. DISP button - use this button to show the playback info or TV channel number and time on the display.
6. SUBTITLE button - in DVD mode press it to change the subtitle language.
7. ANGLE button - in DVD mode press it to change the angle of scene. In CD playback mode press it to see the picture with different angles.
8. 📄/ 🔗 buttons - in DVD mode press them to go to previous/ next chapter or track. In TUNER (RADIO) mode press the 📄/ 🔗 shortly to start automatic station searching backward/ forward.

1 2 3 4 5 6 7 8 9 10 11 12 13 MENU TITLE MUTE 14 15 16 17 18 19 20 21 21 22 23 23 24 25 25 26 26 27 HYUNDAI

In menu use the buttons 🎨/ 🎨 to move through the menu in left or right direction.
9. PLAY/PAUSE / ENTER / SCAN button - in the menu press the ENTER button to confirm adjustment. In DVD mode press the PLAY/PAUSE button to start playback. Press again to go into pause mode. In TUNER (RADIO) mode press it to start scan playing of the radio stations.
10. ▶ button - in menu use the ▶ button to move through the menu down.

In DVD mode press this button to slow the playback. Press again to slow rewind playback.

1. GOTO button - press this button to set the player play disc starting at certain time.

2. OPEN/CLOSE button - press this button to slide the monitor up or down.

3. Numeric buttons

4. MUTE button - press it to cut down the volume output, press it again to resume volume.

5. POWER button - press the button to turn the power on, press again to turn the power off.

6. REPT button - in DVD mode press it repeatedly to repeat chapter/title/disc playback.

7. SRC button - press this button to select the mode: TUNER (RADIO or TV), DVD, DVDC, AUX IN, CAMERA.

8. Control buttons for CD changer ▲/▼ (do not work for this model)

9. ➤ button - in menu use the ➤ button to move through the menu up. In DVD mode press this button to fast forward.

10. VOL +/- buttons - press them to adjust the volume.

11. STOP/ BAND button - in DVD mode press it to stop the playback. In TUNER (RADIO) mode press it repeatedly to select your desired radio band.

12. ZOOM button - press this button to zoom the image in.

13. PIC button - press it to open the monitor setup menu.

14. ANGLE ▲/▼ buttons - press them to increase/decrease 1 step of tilt angle.

15. WIDE button - press it to adjust display aspect.

16. DVD SETUP button - press it to open the DVD setup menu

17. SYS SETUP button - press it to open the system setup menu

Changing the battery

1. Press the catch and at the same time pull out the battery tray (pic. 1).

2. Insert the 1 x lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control (pic.2).

+3V (OR 2025)

Pic. 1 Pic. 2

Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

Do not recharge, short, disassemble or heat the battery or dispose it in a fire.

Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

LCD display

1. Disc indicator.

2. Disc playback indicators: SCN (scan), RPT (repeat), RDM (random), ALL (all chapters playback).

3. LOUD indicator.

4. Main display.

5. CH (displays the channel), DISC, RADIO (radio station number) indicator.

6. ST (stereo), LOC (local) indicator.

Radio display indicators

1. RDS function indicators: REG (regional), PTY (program type), TA (traffic alarm), TP, AF (alternative frequencies), INFO.
2. Radio band indicator.
3. Current frequency indicator.
4. Current radio channel.
5. ST (stereo) indicator.
6. LOC (local) indicator.

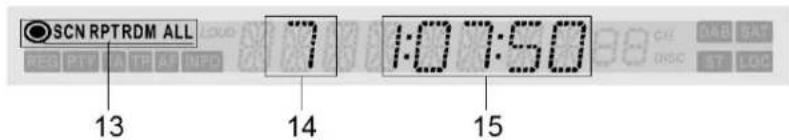

Playback indicators

1. Disc playback indicators: SCN (scan), RPT (repeat), RDM (random), ALL (all chapters playback).
2. Current playing chapter.
3. Current playback time.

SCN RPTRDM ALL LOUD 1 2 3 4 5 6 DAB SAT ST LOC

ICN RPTROM ALL LO RES PTM TA NC AT INFO FM1 87:50 CH DAB SA ST LOC 7 8 9 10 11 12

SCN RPTRDM ALL REG PTV 13 7 14 1:07:50 15 CHF ONC ST LQP EAT ST LOP

Monitor operations

Open/close TFT monitor

1. Press the OPEN/CLOSE button to open the monitor to the last viewing position.

2. Press the OPEN/CLOSE button to load the monitor to the unit.

TFT monitor auto open

1. Enter the GENERAL SETUP menu (please refer to SYSTEM SETUP menu chapter of this manual).

2. In TFT AUTO OPEN setting set the monitor working mode when the unit is on and off;

3. On (when the unit is off the monitor draws down into the unit automatically, when it's on the monitor unfurls automatically);

4. Off (when the unit is off the monitor draws down into the unit automatically, when it's on the monitor unfurls by pressing the OPEN/CLOSE button on the panel);
5. Manual (when the unit is off or on the monitor draws down or unfurls only by pressing the OPEN/CLOSE button on the panel).

Monitor tilt angle adjustment

You can get different vision effects watching from different angles of monitor.

• To adjust the monitor angle step by step press the ANGLE ▲/▼ buttons on the monitor or on the RC.

• To adjust it continuously press and hold the ANGLE ▲/▼ buttons on the monitor.

Aspect ratio

- Enter the VIDEO menu (please refer to DVD SETUP MENU chapter of this manual). In TV SHAPE setting set the monitor aspect ratio: 16:9 (wide screen), 4:3 (normal view).

- OR press the WIDE/PIC button on the monitor or the WIDE button on the RC repeatedly to select the aspect ratio: CINEMA => NORMAL => STANDBY.

Image setting

1. Press the PIC button on the RC or press and hold for 2 seconds the WIDE/PIC button on the monitor to enter the picture quality setting menu.
2. Press the ▶/▶ button on the RC or the ▲/▼ button on the panel to select the setting: COLOR, CONTRAST, BRIGHT.
3. Press the ⚪/▶ button on the RC or the ◀/▶ button on the panel to adjust the setting.
4. Press the PIC button on the RC or the WIDE/PIC button on the monitor to save changes.

Parking cable function

If the PRK SW cable is connected to hand brake switch, the video view to the TFT monitor will be switched between Normal display and Caution display. Parking cable function is ceases if Parking is OFF. Please refer to PARKING.

When Parking is ON the monitor will show the special screen to prevent the driver watching other content during driving. The passengers at the rear can watch normally.

Monitor movement mechanism

When any path blocking or obstruction for the movement of the monitor occurs, the following protection executes to prevent any damage to the loader or the monitor. After the protection executed normal operating resumed after the following action of the monitor performed by pressing the OPEN/CLOSE button or repowering the

Obstruction / Blocking Situation	Self protection of this unit	After OPEN key is pressed	Disconnect & reconnect the power
Monitor loading out horizontally	Auto loading back in to the mechanism	Fully extended horizontally	Auto loading back in to the mechanism
Monitor loading in horizontally	Stop at the obstruction point	Fully extended horizontally	Loading back in to the unit
Monitor loading out vertically	Stop at the obstruction point	Swiveling back to the unit	Swiveling back to the unit
Monitor loading in vertically	Stop at the obstruction point	Swiveling back to the unit	Swiveling back to the unit

unit. If it doesn't help please reset the unit.

Touch screen operations

In any mode touch the left corner of the top area of the TFT display to open the main menu.

Now you can select the playing source (Radio, DVD/CD, Aux in, TV (if the TV tuner is connected)) by touching the proper button on the display.

To enter the unit setup menu touch the SETUP button on the screen.

Touch operations under DVD mode

In DVD playback mode use the following areas of the display to use the desired function:

A – to open the main menu;

B - to display the playback information (as the DISP button);

C - undefined;

D - to start playback of the previous file;

E - to start playback of the next file;

F – to show on the display the buttons: MENU, PLAY/PAUSE, STOP.

<<, >>, <<, >>.

A B C D E F

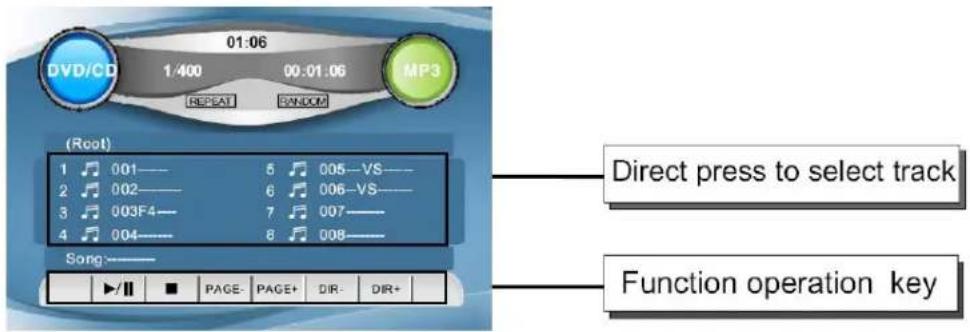

Touch operations under DVD mode during playing the PM3/WMA files

01:06 DVD/CD 1/400 00:01:06 MP3 (Root) 1 001——— 5 005—VS——— 2 002——— 6 006—VS——— 3 003F4——— 7 007——— 4 004——— 8 008——— Song——— ▶/II ■ PAGE- PAGE+ DIR- DIR+ Direct press to select track Function operation key

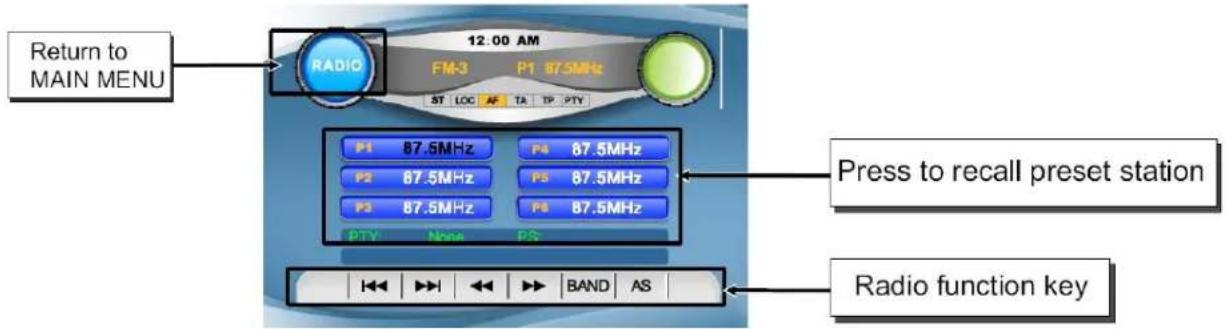

Touch operations under Tuner (Radio) mode

Return to MAIN MENU 12.00 AM FM-3 P1 87.5MHz ST LOC TA TP PTY P1 87.5MHz P4 87.5MHz P2 87.5MHz P5 87.5MHz P3 87.5MHz P6 87.5MHz PTY None PS Press to recall preset station Radio function key

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press the RESET button on the front panel to restore the unit to the original factory settings.

Power on/off

Press POWER/MUTE button on the front panel or the POWER button on the RC to turn the unit on. Press and hold the POWER/MUTE button for 2 seconds or press the POWER button on the RC to turn the unit power off.

Note: After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status that you set.

Volume control

Rotate the VOL knob on the panel clockwise or press the VOL + on the RC to increase the volume level.

Rotate the VOL knob on the panel anticlockwise or press the VOL - on the RC to decrease the volume level.

Mute function

When the unit power is on press the POWER/MUTE button on the panel or the MUTE button on the RC to mute volume control. Press it again or press the VOL +/- button to resume the volume.

Setting the audio system

Audio control allows you to easily adjust the audio system to meet the in-car acoustic characteristics that vary depending on the type of car and its measurement.

1. Press the AUDIO button (VOL knob) on the front panel. The Audio menu will appear on the display.

2. Press the ◀/▶ buttons on the front panel or press the ⌘/▶ buttons on the RC to select the desired audio setting: EQ => BASS => TREBLE => FADER => BALANCE => LOUD.

3. Press the ▲/▼ buttons to adjust the setting.
4. To exit the menu press and hold the volume knob.
   Note: If turning off the ACC power all the settings will become as they were set on the plant as current.
   If you don't adjust VOL knob within 3 seconds after selecting the desired setting, the unit will automatically return to the current mode being displayed.

Mode selecting

Press the SRC button repeatedly to select the source: TUNER (RADIO or TV) => DVD => DVDC => AUX IN => CAMERA.

Display operations

In DVD mode press the DISP button to show the current playback information on the display: Source, EQ, Loud. In TUNER (TV) mode press the DISP button to show the current playback information on the display: Source, Channel, Time.

Digital tuner operations

Note: RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. To activate this function enter the RDS SETUP menu (please refer to SYSTEM SETUP menu chapter of this manual).

Mode selecting

Press the SRC button repeatedly to select the TUNER (RADIO) mode. If the monitor is opened the display will show the interface.

OR on the monitor touch the left corner of the top area of the TFT display to open the main menu. Touch the Radio button to open the Radio interface. The display will show the following:

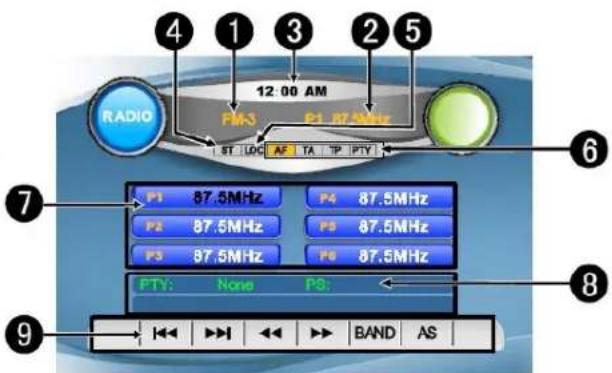

1. Band
2. Current radio frequency
3. Clock
4. Indicator for receiving the stereo broadcast
5. Indicator for strong signal receipt of local radio station

6. RDS functions indicators (AF - alternative frequency indicator; TA - traffic announcement indicator; TP - traffic program indicator; PTY - program type function indicator)

7. Preset radio stations (press them to recall preset station)

8. RDS status display (PTY - program type; PS - program service)

9. Radio function keys

4 1 3 2 5 12:00 AM RADIO PM-3 P1 AT 5MHz ST LOC AF TA TP PTY 6 7 P1 87.5MHz P4 87.5MHz P2 87.5MHz P5 87.5MHz P3 87.5MHz P6 87.5MHz PTY: None PS: 8 9 BAND AS

To return to main menu touch the RADIO button in the top left corner of the display.

Band selection

Press BAND button on the front panel or the STOP/BAND on the RC once or more to select: FM1, FM2, FM3, FM (OIRT), AM1, AM2, AM3.

Manual/ automatic tuning

• Manual tuning: Press the ▶/ ▶ buttons on the RC or the ▲/ ▼ buttons on the panel repeatedly to select a station upward or downward step by step. Press and hold for 2 seconds the 1-6 preset buttons to store the station found.
• Automatic tuning: Press the ⚡/▶ buttons on the RC or the ◀/▶ buttons on the panel and hold for 2 seconds, the automatic search will start. It will play when finds the station with strong signal. Press it again or any tuner function key to stop searching. Press and hold for 2 seconds the 1-6 preset buttons to store the station found.

Programming tuner stations

You can store up to a total of 42 radio stations in the memory (24 FM, 18 MW), manually or automatically.

• To store a station

• Select a band (if needed)
• Select a station by ◀/▶ buttons
• Hold a Preset button (1-6) that you want store the station for at least 2 seconds.

• To recall a station:

• Select a band (if needed)
• Press a Preset button (1-6) briefly to recall the stored station

AMS (Auto Memory Store) function

Select the band. Press AS button on the panel or the PLAY/PAUSE / ENTER / SCAN button on the RC to enter auto search and store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band.

The search will stop when it makes the hole loop. To stop auto store, press AS button again.

Preset scan

Press the PLAY/PAUSE / ENTER / SCAN button shortly to scan all preset stations in current band and stay on each memory stations for about 10 seconds. To stop it press any tuner function key.

Local radio station seeking (LOC)

When the LOCAL function is on only the stations with strong radio signal can be played.

1. Press the LO/DX button on the panel (volume knob) and hold for 2 seconds to turn the LOCAL function on.

2. Press it and hold for 2 seconds again to turn it off.

AF (Alternative Frequencies) function

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength. PS (Program Service name): the name of station will be displayed instead of frequency.

Press the BAND button on the panel and hold for 2 seconds to turn ON or turn OFF the AF function. If RDS service is not available in your area, turn off the AF mode.

Default setting is ON.

TA (Traffic Alarm) function

In TUNER (RADIO) mode press the ▼ button on the panel and hold for 2 seconds to turn ON or turn OFF the TA function.

In TA mode press the ⬆/▶ buttons on the RC or the ◀/▶ on the panel to start the traffic announcement program searching until the program is received.

After the traffic announcement is over, it will return to the previous mode and volume level. When TA is turned on, SEEK, SCAN, AS function can only be received or saved when traffic program identification (TP) code is received.

PTY (Program Type) function

Selecting the PTY

1. In TUNER (RADIO) mode press the ▲ button on the panel and hold for 2 seconds to turn ON or turn OFF the PTY function.

2. In PTY mode press the ▶/ ▶ buttons on the RC or the ▲/ ▼ on the panel to select the desired program type: None, News, Speech, Music, Document, Fock M, Oldies, Nation M, Country, Jazz, Leisure, Travel, Phone in, Religion, Social, Children, Finance, Weather, Other M, Classics, Light M, Easy M, Rock M, Pop M, Varied, Science, Culture, Drama, Educate, Sport, Info, Affairs, News.

3. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. During 1 loop, if desired PTY is not found, NONE is flashed, then return to previous normal radio and PTY word disappears. After searching if no buttons are pressed during 3 seconds the PTY function turns off.

Saving the PTY

When the PTY function is on and the unit receives the current program type press the 1\~6 button to store it into the channel selected. The default preset channels: P1 – DNEWS, P2 – DSPEECH, P3 – DSPORT, P4 – DPOP M, P5 – CLASSIC, P6 – DMUSIC.

Quick PTY searching

When the PTY function is on press the preset button 1\~6 to choose the desired program type.

If the tuner receives the alarm code, ALARM is displayed and the tuner switches to receive the emergency announcement.

Region function

To activate this function enter the RDS SETUP menu (please refer to SYSTEM SETUP menu chapter of this manual).

When the AF function is on and REGION is set ON, auto tuning for these stations within the region is assigned. When the AF function is on and REGION is set OFF, auto tuning for these stations without any region is boundary.

RDS clock

Some stations broadcast the time and date within the encoded RDS signal. The time is automatically adjusted according to the RDS' one when CT is set to ON.

Disc operations

Glossary

PBC (Playback Control)

Playback Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Discs for playback

• This unit can play disc types: CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW.
• Compatible with formats: DVD-video/SVCD/VCD/HDCD/MP3/MP4/WMA/Picture-CD/JPEG.
• The following file types are supported:

Audio files: MP3 (*.mp3)

WMA (*.wma)

Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID)

MPEG 2(*.vob)

MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters
• Max. Track number is 448
• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably)
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

Loading a disc

1. Turn the power on.
2. Insert the disc with the printed side facing upward into the slot. The unit will switch to DVD mode automatically.
3. Press the EJECT button on the panel to eject the disc.

Playing/pausing

To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. After the disc is on playback will start automatically.

Press the PLAY/PAUSE button on the panel or on RC to start/pause the playback. In pause mode press it again to resume the playback.

Stop

1. During playback press the STOP button on the panel or STOP/BAND button on the RC. Playback will be stopped. If the PLAY/ PAUSE button is pressed, playback will start from the position at which it was stopped. If the disc is removed, the resume function is cancelled.
2. Press the STOP button again to finally stop the playback. If the PLAY/PAUSE button is pressed, playback will start from the very beginning.

Playing the previous/ next track

1. During playback press the ⏻ button on the RC or the ◀ button on the panel to start playback of the current track from the beginning. Press again to start playback of the previous track.
2. Press the ▶ button on the RC or the ▶ button on the panel to start playing of the next track.
3. Press the digital buttons (1-9, 0) to enter the desired track number.

Direct entering the number

To enter the 2- or 3-digit number of the track or chapter press the desired buttons with digits on the RC. For example, to enter number 135 press 1 3 5 .

Scanning forward and backward

1. Press the ▶ button on the RC or ▲ button on the panel to select the speed of fast playing in forward direction: X2 => X4 => X8 => X20. Press the PLAY/PAUSE / ENTER / SCAN button to return to normal playback.

Note: During the disc playback when Fast Playback gets to the beginning of the playing another track, it resumes normal playback.

1. To select the speed of fast playing in backward/ forward direction use the touch screen / buttons. The speed will change the following way: X2 => X4 => X8 => X20. Press the PLAY/PAUSE / ENTER / SCAN button to return to normal playback.

Slow playback

1. During DVD/VCD playback press the ▶ button on the RC or the ▼ button on the panel repeatedly to start slow forward playback. The speed will change the following way: 1/2 => 1/4 => 1/6 => 1/7 (forward), 1/2 => 1/4 => 1/6 => 1/7 (backward).

2. Press the PLAY/PAUSE / ENTER / SCAN button to return to normal playback.

Note: During the disc playback when Slow Playback gets to the beginning of the playing another track, it resumes normal playback.

Repeat playback

Press the RPT button on the panel or REPT button on the RC once or more to repeat the playback:

For VCD/CD: REPEAT SINGLE => REPEAT OFF

For DVD: REPEAT TITLE => REPEAT CHAPTER => REPEAT OFF

For MP3: REPEAT SINGLE => REPEAT FOLDER => REPEAT OFF

RPT icon will appear on the display.

Repeat A-B function (for DVD/CD/VCD discs)

1. During playback, press REPT A-B button on the RC at the starting point of section you want to repeat (A).
2. Press REPT A-B button again at the ending point of the section you want to repeat (B). Section A-B repeating starts.
3. Press REPT A-B button again to cancel the A-B repeat function.

Random playback (for DVD/CD/VCD/MP3 discs)

During disc playback, press the RDM button on the panel to start random playback of the disc. Press again to cancel.

Intro playback (for CDDA/VCD discs)

You can play the beginning of every track for 10 seconds in sequence. Press the SCN button on the panel to start intro play of whole disc. Press again to cancel.

GOTO function(for DVD/VCD discs)

You can go to the desired track/ chapter or time point directly.

1. During the disc playback press the GOTO button on the RC to enter the Search menu. For VCD discs press the GOTO button repeatedly to select the Track or Disc search.

For DVD
For MPEG4/VCD

Search		Track search			Disc search
Time	--:--	Time	--:--	OR	Time	--:--
Title/Chapter	--/---	Track	--/---		Track	--/---

1. Use ▲/▼ cursor buttons on the panel or ▶/▶ button on the RC to select the type of search: Time search or Title/Chapter / Track search.

2. For Time search: press the numeric buttons to enter the time you want to start playback from (hh:mm:ss). For example: to enter time 18:20:00, press 1 => 8 => 2 => 0 => 0 => 0. Press PLAY/PAUSE / ENTER / SCAN to start playback.

For Title/Chapter search: press the numeric buttons and the cursor button ▶ to enter the desired number of title and chapter. For example, to enter the number of title/chapter 20-/8--, press 2 => 0 => ▶ => 8. Press PLAY/PAUSE / ENTER / SCAN to start playback.

For Track search: press the numeric buttons to enter the track number. For example, to enter the number of track 13, press 1 => 3. Press PLAY/PAUSE / ENTER / SCAN to start playback.

Direct chapter/ track selection (for CD/VCD discs)

During the CD/VCD playback enter the digits directly to go to the desired chapter/track. For example to enter the 15 track press 1, then 5.

Audio track and channel selection (for CD/VCD/DVD discs)

For DVD playback: press the AUDIO button to change the audio language. OR enter the AUDIO menu (please refer to DVD SETUP menu chapter of this manual).

For CD/VCD playback: press the AUDIO button repeatedly to alter the select the channel:

Left channel => Right channel => Stereo.

Disc menu (for DVD only)

Disc menu

1. Press the MENU button on the RC to enter the disc menu.
2. Press the ▶/▶/▶/▶ buttons on the RC or the ◀/▶/▲/▼ cursor buttons on the panel to select the desired item.
3. Press the PLAY/PAUSE / ENTER / SCAN button to start playback.

Title menu

1. Press the TITLE button on the RC to enter the Title menu.
2. Press the ▶/▶ buttons on the RC or the ▲/▼ buttons on the panel to select the desired item.
3. Press the PLAY/PAUSE / ENTER / SCAN button to start playback.

PBC (Playback Control) function (for VCD only)

If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.
1. Press MENU button on the RC to activate PBC menu on screen.
2. If the menu consists a list of titles, you can select a desired one using the digit buttons or the ◀/▶ buttons on the panel or the ▶/▶ on the RC.
3. The VCD starts playing the selected title automatically or press PLAY/PAUSE button to confirm the selected track for playback.

1. Press STOP button to return to menu.
2. Press MENU again to exit menu.

On-screen display (OSD)

1. During playback press the DISP button on the RC to show the short playback information on display: DVD disc:

DVD T:5/8 C:2/16 00:41:28 2/6 Eng

T-Title (current/total)

C - Chapter (current/total)

00:41:28 - Current playback time of the current title

2/6 Eng – the disc has 6 subtitle languages, the current one is the ^nd - English.

The playback status will be shown as following:

Source : DVD Dolby Digital ByPass

Source: - the current source

Dolby digital - current playback audio encoding system

ByPass - no ProLogic is being used.

VCD disc:

VCD2.0 Title:6/18 00:02:18

VCD2/0 - disc type

Title: - current track number/ total tracks

00:02:18 - elapsed playing time.

The playback status will be shown as following:

Source : DVD EQ:USER LOUD:OFF

Source: - the current source

EQ: user - current equalizer setting

Loud: - the loudness status.

1. Press the DISP button on the front panel repeatedly to show the following information on the display: Playback time => Clock => Disc format => Playback time.

Changing size (for DVD/VCD discs)

During playback press ZOOM button on the RC. The picture will be enlarged accordingly: X1 => X2 => X3 => X4 => Normal.

Changing the subtitle language (for DVD only)

Subtitle language is in disc initiation setting during playback. Press SUB-TITLE button on the RC or the SUBT button on the front panel repeatedly to switch among disc-supported languages.

Changing angle (for DVD only)

If DVD discs support multi-angle playback, press ANGLE button on the RC repeatedly to playback images in different camera angles. If discs doesn't support multi-angle playback, this function will not work.

MP3/WMA files playback

Insert the music disc into the disc slot. The display will show the files list. To go to another chapter use the DIR +/- buttons on the touch screen, to select another page with files press the PAGE +/- buttons on the touch screen. To go to previous/ next file/ track touch the <</» buttons, to fast backward/ forward touch the «/» buttons.

Press the AUDIO button on the panel or the RC to select the audio language or the channel. Press the REPEAT or RANDOM buttons to select the mode of the playback.

Alter between 2 Ch and 6 Ch

Press and hold for 2 seconds the RDM button on the panel to alter between 2 Channel mode and 6 Channel mode. According to the channel selected and the speaker setup audio output varies according to the table:

Description	Frontspeakers	Rearspeakers	Centerspeaker	Subwoofer
2-channel mode	●	●
Play the 2-channel audio in 6-channel mode without Dolby Pro-Logic function.	●
Play the 2-channel audio in 6-channel mode with Dolby Pro-Logic function.	●	●	●	●
Play the 6-channel audio in the 6-channel mode.	●	●	●	●

Note: the information of the above table is valid only when the setup values of the speakers are low.

2-channel audio is for MP3, CD discs. 6-channel audio is for DVD discs.

Please refer to the PRO LOGIC II menu (DVD SETUP menu chapter of this manual).

MP3 overview

Notes on MP3:

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on DVD-R/-RW, DVD+R/+RW, CD-ROM, CD-R/-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".

• If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
• In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.
  • The unit may not play tracks in the order of Track numbers.
  • The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • DO NOT store more than 448 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

TV tuner operations

Switch to TV tuner mode

1. Connect the TV set to the unit.
2. Press the SRC button repeatedly to select the TUNER (TV) mode. OR in the SYSTEM SETUP menu select the TV item.

Auto tuning

1. Press the ◀ button on the panel or the ⚪/⌘ button on the RC to start auto search of available TV station in backward/ forward direction. When the first available station is found searching will be stopped and the station found will be played. Press the button again to continue searching.
2. Press the STOP/BAND / 🎯/▶ buttons to on the RC or ◀/▶ buttons on the panel to stop search.

Manual tuning

Press and hold for 2 seconds the ◀/▶ button on the panel repeatedly to search the TV stations step by step.

Auto preset memory

1. Press and hold for 2 seconds the PLAY/PAUSE / ENTER / SCAN button on the panel to start auto tuning, the search range is the current TV frequency range. The stations found will be stored into the memory automatically.
2. Press the PLAY/PAUSE / ENTER / SCAN button on the panel or the STOP/BUTTON on the RC to stop auto searching.

Scan tuning

1. You can scan each stored channel for 10 seconds in sequence. Press the ENTER button on the panel to start scanning.
2. Press the PLAY/PAUSE / ENTER / SCAN button on the panel or the STOP/BUTTON on the RC to stop auto scanning.

Select the TV station

1. Press the number buttons on the RC to recall the desired TV station. To enter the 2-digit number of station
2. To change the station use the ▶/▶ button on the RC or ▲/▼ buttons on the panel to change the channels step by step in forward/backward direction.

Display TV station

To display current TV station number press the DISP button on the RC.

AUX IN mode

This mode is for using the unit as an AV signal amplifier or connecting the rear-view camera.

Connect the peripheral device (DVD player, video-camera, rear-view camera etc) to the unit via RCA output and AUX in. The unit will be switched into the AUX mode and will show the picture from the device connected.

You can use the VOL knob, functional buttons, set the video and audio parameters from the unit.

To enter the AUX in mode press the SRC button repeatedly.

OR in the main menu select the AUX IN item.

System setup menu

MENU MENU BACK RADIO ECHO AUX

In any mode touch the left top corner of the screen to open the main MENU. Use the cursor buttons or press the SETUP button on the screen to open the SETUP menu.

MENU SETUP BACK OK Cancel End SETUP

In SETUP menu press the ◀/▶ buttons on the panel or ⌘/▶ buttons on the RC or touch the desired button on the screen to select the SYS SETUP (or DVD SETUP menu). Press PLAY/PAUSE / ENTER / SCAN to open it.

OR press the SYS.SETUP button on the RC to open the SYS. SETUP menu window.

SYS SETUP SQL TCP TCP CONFIG TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP TCP

In SYSTEM SETUP menu press the ▲/▼/◄/► buttons on the panel or ►/◄/◄/► buttons on the RC or touch the desired button on the screen to select the desired menu: GENERAL SETUP, RDS SETUP, ASP CONFIG, SCREEN CAL. Press PLAY/PAUSE / ENTER / SCAN to enter the menu selected.

General setup

GENERAL SETUP BACK Radio Europe Clock Mode 240 Parking On GOLD Menu English Clock 01:08:4

1. Enter the GENERAL SETUP menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the desired setting: Radio, Clock mode, Parking, OSD menu, Clock, Video format, TFT auto open.
3. Press the ◀/▶ buttons on the panel or ⏻/▶ buttons on the RC to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Radio: select the radio system: USA, S. America 1, Arabia, China, S. America 2, Europe, Korea.

Clock mode: select the time format: 12 hours, 24 hours.

Parking: select the parking image mode: On (image is displayed when the car has been parked only), Off (image is displayed all the time).

OSD menu: select the menu language: English, Русский.

Clock: set the clock.

Method 1: Touch the hour or minute. Touch the +/- buttons on the screen to adjust the clock.

Method 2: Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC to select hour or minute. Press the

◀/▶ buttons on the panel or ⚪/▶️ buttons on the RC to adjust it.

Video format: adjust the monitor color system according to the video system of the TV attached: Auto (the color signal output is switched automatically according to the Recording system of the current disc), NTSC, PAL, SECAM.

TFT auto open: set the monitor working mode when the unit is on and off. On (when the unit is off the monitor draws down into the unit automatically, when it's on the monitor unfurls automatically). Off (when the unit is off the monitor draws down into the unit automatically, when it's on the monitor unfurls by pressing the OPEN/CLOSE button on the panel), Manual (when the unit is off or on the monitor draws down or unfurls only by pressing the OPEN/CLOSE button on the panel).

Audio sound processing configuration

ASP CONFIG Basic Center Flag 50Hz Tractor Center Flag 100Hz SUB Filter 80Hz SUB Phase 100 Basic CI-Factor 2.0 Hz

1. Enter the ASP CONFIG menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the desired setting: Bass center freq, Treble center freq, SUB filter, SUB phase, Bass Q-factor.
3. Press the ◀/▶ buttons on the panel or ⚪/▶ buttons on the RC touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Bass center frequency: select the Bass center frequency according to the audio source disc: 60 Hz, 80 Hz, 100 Hz, 130 Hz, 150 Hz, 200 Hz.

Treble center frequency: select the Treble center frequency according to the audio source disc: 10 KHz, 12.5 KHz, 15 KHz, 17 KHz.

Sub filter: set a cut-off frequency of the subwoofer's LPF (low pass filter) and that of the "Small" speakers' HPF (high pass filter). Crossover frequency setting has no effect if the subwoofer is set OFF and any other speaker set is "Large".

Select a crossover frequency: 80 Hz, 120 Hz, 160 Hz.

Sub phase: if trying to boost the bass output of subwoofer the bass gets more murky. This may indicate that the subwoofer's output and bass content you hear from other speakers cancel each other out. To remove this problem change the setting of subwoofer: 0D (subwoofer output in phase), 180D (subwoofer output off phase).

Bass Q-factor: when the Bass center is selected and adjusting the Q-factor alters the sharpness of the Bass output, the larger the Q-factor, the sharper the bass. Select the Bass Q-factor: 1.0, 1.25, 1.5, 2.0.

RDS setup

RDS SETUP RS On CT Off Programs Off

1. Enter the RDS SETUP menu.
2. Use the ▲/▼ buttons on the panel or ▶/l▶ buttons on the RC or t touch the desired item on the screen to select the desired setting: RDS, CT, Region.
3. Press the ◀/▶ buttons on the panel or ⚫/▶️ buttons on the RC or touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

RDS: set the RDS function: ON, OFF.

CT: set the clock adjusting method: ON (clock is adjusted by RDS automatically). OFF (Clock cannot be adjusted by RDS).

Region: set the Region function: ON (automatically switch to RDS station with same PI), OFF (automatically switch to the station with strong signal).

Screen CAL

Use the CAL screen when the touch screen is not sensitive or valid. Calibrate it following the clew displayed on the screen after entering the SCREEN CAL mode.

DVD setup menu

MENU MENU BACK RADIO C# ENDCD AUX IN

In any mode touch the left top corner of the screen to display the main MENU. Use the cursor buttons or touch the SETUP button on the screen to open the SETUP menu.

MENU SETUP BACK OK Cancel Take SETUP

In SETUP menu press the ◀/▶ buttons on the panel or ⚪/▶ buttons on the RC or touch the desired item on the screen to select the DVD SETUP (or SYS SETUP menu). Press PLAY/PAUSE / ENTER / SCAN to open it.

OR press the DVD SETUP button on the RC to open the DVD SETUP menu window.

DVD SETUP LANG VIDEO AUDIO PROLOGIC CONFIG RATING

In DVD SETUP menu press the ▲/▼/◄/► buttons on the panel or ►/►/◄/► buttons on the RC or touch the desired item on the screen to select the desired menu: LANG, VIDEO, AUDIO, PROLOGIC II, SPK CONFIG, RATING. Press PLAY/PAUSE / ENTER / SCAN to enter the menu selected.

Language

LANGUAGE Subtitle Audio DVD-Mano English 1 English 2

1. Enter the LANG menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the desired setting: Subtitle, Audio, DVD menu.
3. Press the ◀/▶ buttons on the panel or ⚫/▶️ buttons on the RC or touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Subtitle: set the subtitle mode: English (the subtitle is always in English), Auto (the subtitle is displayed in the language appointed by the DVD disc automatically), Off (No subtitle is displayed). During playback press the SUBTITLE button on the RC to change the subtitle.

Audio: select the audio language.

During playback press the AUDIO button on the RC to change the audio language.

DVD menu: select the DVD menu language. When the language is selected if you press the MENU/TITLE button the menu will be in this language.

Video

VIDEO BACK TV Stage 100 Angle Mark Qin View Mode W FOT

1. Enter the VIDEO menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the desired setting: TV shape, Angle mark, View mode.

3. Press the ◀/▶ buttons on the panel or ⚫/▶ buttons on the RC or touch the desired button on the screen to enter the list of values.

4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.

5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

TV shape: select the width/height of the image: 16:9 (wide screen), 4:3 (normal view).

This function is not available for some discs.

Angle mark: set the angle indicator mode (when the DVD has multi-angle content): On (view indicator), Off (don't view indicator).

Press the ANGLE button on the RC to change the angle.

View mode: select the viewing mode: Fill (fill the screen with the picture), Original (original mode), H fit (fit horizontally), W fit (weight fit), Fit to scrn (fit to screen), Pann & scan (Pan and scan mode).

Audio

AUDIO Pilot Noise Off:$$ CNC Off:$$ Carrier Delay Begin:$$ Rear Delay Begin:$$ Down Sampling Off:$

1. Enter the AUDIO menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the settings: Pink noise, DRC, Center delay, Rear delay, Down sampling.
3. Press the ◀/▶ buttons on the panel or ⚪/▶ buttons on the RC or touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Pink noise: use the built in pink noise to adjust each channel output volume or verify if audio output quality is normal by adjusting the output volume during listening. Select among: Off (don't use pink noise). Left (left channel pink noise), Center (center channel pink noise), Right (right channel pink noise), Left surr (left surround channel pink noise), Subwoofer (subwoofer pink noise).

DRC: set the DRC (dynamic range control) for better playback for low volume playback: On (use bass to play the more dynamical audio), Off (normal playback).

Center delay: the time difference between center and front speakers. The time delay makes audio signal more accurate. Select the time delay: 0 ms (same time output with front speakers), 1 ms (1 millisecond delay), ..., 5 ms.

Rear delay: the time difference between rear and front speakers. The time delay makes surround effect more better. Select the time delay: 0 ms (same time output with front speakers), 3 ms (3 milliseconds delay), ..., 15 ms,

Note: REAR CTRL may be adjusted only when center speaker is set as small or large.

Down sampling: depending on the mode the signal output will be normal or 48kHz . Select the mode: On (all the signals will be 48kHz ), Off (all the signals will be normal).

ProLogic II

Pro Logic II is a dramatically improved matrix surround system based on the original Dolby Pro Logic system. In the case of Pro Logic, there were four channels: front left, center and front right, plus a mono surround channel that was usually split between two rear speakers. Compared to DPL, DPL II offers two full-range stereo surround channels, more sophisticated steering logic, high channel separation and an exceptionally stable sound field. DPL II uses a simple servo circuits used to derive the five channels. And, unlike the synthetic Jazz club, Hall and Stadium modes found on many AV receivers, DPL II introduces no phony delay-induced echoes, reverb, or tonal coloration.

PRO LOGIC Surburst Mode SURF Head Paracing Off # Dimensional Ctrl 3 # Center Match Ctrl 3

1. Enter the PRO LOGIC II menu.

2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the settings: Surround mode, Panorama, Dimension ctrl, Center width ctrl.

3. Press the ◀/▶ buttons on the panel or ⚪/▶️ buttons on the RC or touch the desired button on the screen to enter the list of values.

4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.

5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Surround mode: select the surround sound effect: Off (playback as the original audio output), Surround I (using the DPL as the decoding method), Surr matrix (from mono output to surround effect), Surr movie (enhance movie surround effects), Surr music (surround music effects).

Panorama: extend the audio from the front to the rear to achieve a better audio surrounding effect. Panorama is available for adjustment only when PL II music mode is activated. Select the mode: On, Off.

Dimension control: adjusting the distribution the front and rear audio output to achieve a better balanced audio surrounding effect. Dimension control is available for adjustment only when PL II music mode is activated. Select the audio output shift between front and rear: 1, 2, 3, 4, 5, 6.

Center width ctrl: the audio output from center may come directly from center speaker, or from left and right speakers - an illusion effect, or from all three speakers by adjusting the center width. Adjusting the central width provides a better balance of audio surround effect. Center width control is available for adjustment only when PLII Music mode is activated. Select the audio output shift between front and center: 1, 2, 3, 4, 5, 6.

SPK configuration

1. Enter the SPK CONFIG menu.
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the settings: Multi-CH, Stereo, Sub, Center.
3. Press the ◀/▶ buttons on the panel or ⚫/▶️ buttons on the RC or touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Multi-Ch: set up the front speakers: Large (suitable for speakers with good bass output), Small (for speakers with bad bass output).

Stereo: set up the rear speakers: Large (suitable for speakers with good bass output), Small (for speakers with bad bass output), None (rear speaker is not employed).

Subwoofer: set up the subwoofer: Large (subwoofer is employed), None (subwoofer is not employed).

Center: set up the center speaker: Large (suitable for speaker with good bass output). Small (for speaker with bad bass output), None (center speaker is not employed).

Rating

This unit has the built in parental lock feature to prevent authorized person to view restricted disc content.

MENU RATING OK Password Rating 8 Adult Load Factory Reset

1. Enter the RATING menu
2. Use the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired item on the screen to select the setting: Password, Rating, Load factory.
3. Press the ◀/▶ buttons on the panel or ⚪/▶️ buttons on the RC or touch the desired button on the screen to enter the list of values.
4. Press the ▲/▼ buttons on the panel or ▶/▶ buttons on the RC or touch the desired button on the screen to select the desired value.
5. Press PLAY/PAUSE / ENTER / SCAN button to confirm.

Password: first set the rating (in RATING setting). Then select the Password setting, press the numeric buttons to set the 4-digit password to protect the parental lock from being changed. Press the PLAY/PAUSE / ENTER / SCAN button to confirm.

When the password is set enter the correct password into the field to release parental lock.

the parental control is locked.

the parental control is unlocked.

To change the password first enter the correct password to unlock the parental control, then enter the new one. Press the PLAY/PAUSE / ENTER / SCAN to confirm.

Rating: when the parental control is unlocked set the rating: 1. Kid safe (with the most limit when playing), 2. G, 3. PG, 4. PG-13, 5. PG-R, 6. R, 7. NC-17, 8. Adult (with the least limit when playing).

When the rating is set go to PASSWORD setting and insert the password to lock the parental control.

Load factory: select RESET to restore the factory default. But Password and Rating will remain unchanged.

Handling and cleaning discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
  • Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
  • DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner -benzene, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom	Cause Solution
No power.	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded. Presence of disc inside the player. Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.		Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound. Volume is in minimum.		Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the RESET button.Reinstall the front panel.
Sound skips. The disc is extremely dirty or defective.		Clean the compact disc/try to play a new one.
The radio does not work.The radio station automatic selection does not work.	The antenna cable is not connected.The signals are too weak.	Insert the antenna cable firmly.Select a station manually.

Specification

General
Power supply:	12 V DC
Current consumption:	max. 10 A
Maximum power output:	50 W x 4 channels
Compatible formats:	DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG/ CD-R/-RW/DVD±R/±RW playback
Dimensions (L x W x H) / weight:	200 x 190 x 55 mm / 2.2 kg
Working temperature range:	- 10^ C - + 60^ C
ESP function:	40 sec. For Audio CD, 120 sec. For MP3
TFT display
Screen diagonal:	7 inch
Resolution:	480x234 dpi
Aspect ratio:	16:9
Contrast ratio:	300:1
Brightness:	350 cd/m2
View angle:	V: 110^ ,H: 130^
FM Stereo Radio
Frequency range:	65.0 – 74.0 / 87.5 – 108.0 MHz
Usable sensitivity:	6 uV
Preset memory stations:	24

AM section
Frequency range: 522 kHz - 1620 kHz
Preset memory stations: 12
Audio specification
Maximum output: 2 Vrms (+/- 3 dB)
Frequency response: 20 Hz - 20 KHz
S/N ratio(A-vtd): 70 dB
Line out
Output: CD max 2000 mV
TV
Color system PAL/SECAM/NTSC
Sensitivity 65 dB

Specifications are subject to change without notice. Mass and dimension are approximate.

Technical diagram of a mechanical assembly with numbered components and labeled parts

Pure electrical circuit lines without any symbols

1 2 3 4 5 6 7 8 9 10 11 12 13 MENU TITLE MUTE HOC HDF UNI HOLD HOLD HOLD HOLD HOLD HOLD HOLD HOLD HOLD HOLD HYUNDAI 14 15 16 17 18 19 20 21 21 22 23 23 24 25 25 26 26 27

4 1 3 2 5 12:00 AM AUDIO 7 87.5MHz 97.5MHz 97.5MHz 97.5MHz 97.5MHz 97.5MHz PRT High PTS BAND AS

Выбор диапазона

Source: DVD Dolby Digital ByPass

VCD2.0 Title:6/18 00:02:18

VCD2/0 – тип диска
METHO PROLOGIC 9 PRED Perease Surround Sunt music Pentecrane Black v Perease 3 v Lamps 3 v
