USER MANUAL HCC35CX Hifonics
Congratulations on your choice of a Hifonics speaker. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at Hifonics.com
CAUTION
Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.
Speaker Dimensions
| HCC35CX | N/A 1.53 | 29mm 2.12" | 54mm 2.75"70mm | 3.11"78mm | 3.42"82mm | |
| HCC4CX | N/A 1.85 | 47mm 2.44" | 62mm 2.99"76mm | 3.48"88mm | 4.01"102mm | |
| HCC46CX | N/A 1.73 | 44mm 2.28" | 58mm 2.99"76mm | 3.46"5.59"88x142mm | 3.95"6.02"98x153mm | |
| HCC525CX | 6.26"159mm | 2.2156mm | 2.6367mm | 3.38"88mm 4.52" | 15mm 5.11" | 30mm |
| HCC5768CX | N/A 2.28 | 56mm 2.67" | 98mm 3.36"66mm | 5"x7.12"127x181mm | 5.47"x7.51"130x191mm | |
| HCC65CX5 | 7.13"161mm | 1.98"48mm | 2.5966mm | 3.39"86mm 5.51" | 140mm 6.49" | 665mm |
| HCC65CX | 7.13"161mm | 2.2156mm | 2.570mm | 3.39"86mm 5.55" | 41mm 6.57" | 67mm |
| HCC65C | 7.13"161mm | 2.2156mm | 2.4863mm | 3.38"86mm 5.55" | 41mm 6.57" | 67mm |
| HCC69CX | 7.98"10.39"190x264mm | 3.11"79mm | 3.54"90mm | 4.33"110mm | 5.94"6.66"151x223mm | 6.45"9.21"165x234mm |
Before you start
It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.
Factory Speaker Removal
A Access and remove factory door speakers Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.
Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.
Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.
A Factory location behind door panel
Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.
Once you are sure the speaker fills and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.
C Custom location
Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.
D Rear factory locations
Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.
Factory location
behind door panel
Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.
Custom location
If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.
Tweeter mounting
There are two primary ways the tweeter can be mounted. Surface and Flush mounting. The flush mount configuration is shown here
Crossover wiring
The crossover is necessary for the proper operation of the component speaker system. Secure the crossover to a surface that is free of interference from window mechanisms and excessive moisture.
Visit Hifonics.com
The information contained within this document is intended to offer some basic guidelines for a few of the most common installations. More complex audio systems should be installed by a competent professional. Additional installation information available at www.maxxsonics.com
WARRANTY
Maxxosnics, LLC, warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxosnics, LLC will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxosnics. LLC retailer from which it was purchased directly on the company's trading floor returned, costs associated with cover, re-installation and freight are not the responsibility. Maxxosnics, LLC, his warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.
Hifonics products are designed and engineered in the USA by
MAXXSONICS
HF HCC Scolurus 069 01 - inv 1
HIFONICS
Quick Start
Installation Guide


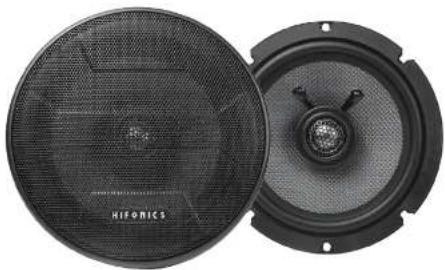

Two black KIFONICS speakers with mesh cover, shown from front and side (no text or symbols on the speaker itself)HCC35CX HCC5768CX
HCC4CX HCC65CXS
HCC46CX HCC65C
HCC525CX HCC65CX
HCC69CX
Congratulations on your choice of a Hifonics amplifier. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information, on system setting, speaker and, subwoofer configuration and full specifications by model visit the website, http://hifonics.com/manuals.html
