Product Type	Smart Neck Massager
Brand	SereneLife
Model	SLNKMSG90
Dimensions (L x W x H)	6.85" x 5.71" x 1.16" (approx. 17.4 x 14.5 x 2.9 cm)
Power Supply	100-240V AC 50/60Hz 0.2A, adapter output 6V DC 800mA
Battery (Main Unit)	3.7V Li-Ion, 1450mAh, rechargeable
Remote Control Battery	1 x CR2032 (included)
Massage Modes	6 selectable modes (Auto, Vibration & Heat, Heat & Impulse, Heat, Vibration, Electrical Impulse)
Vibration Modes	6 modes (Auto, Vibration, Knead, Beating, Press, Rolling)
Electric Impulse Modes	6 modes, 16 intensity levels
Heat Therapy	Far infrared, 2 levels (High/Low/Off)
Timer Settings	5-30 minutes, adjustable in 5-minute increments
Display	LCD screen on remote control
Wireless Control	Infrared remote control
Construction	Flexible wrap-around neck collar, 3D intelligent fitting
Magnetic Therapy	Embedded health magnets for acupoint stimulation
Cleaning & Maintenance	Wipe with damp cloth; do not submerge in water
Storage	Dry, well-ventilated area away from direct sunlight and heat
Safety Warnings	Do not use with pacemaker; consult doctor if pregnant or have cardiovascular issues; not for children or those sensitive to heat/skin
Included Accessories	Neck massager, remote control, power adapter with cable, user manual
Warranty	Refer to manufacturer (PyleUSA.com/ContactUs)

Frequently Asked Questions - SLNKMSG90 SereneLife

How do I turn on the neck massager?

Set the operation switch to 'ON', moisten the neck pad with a damp towel, place the device on your neck, and press the power button on the remote. The LCD will light up and enter automatic mode.

How do I charge the massager?

Plug the adapter into the unit and a power outlet. Alternatively, switch the 'ON/CHARGE' button to 'CHARGE'. The green indicator flashes during charging and stays solid when fully charged (about 3-4 hours).

How do I select different massage modes?

Use the '∧' and '∨' buttons to navigate to the mode icon (☐), then press '<' or '>' to cycle through 6 modes: Auto, Vibration & Heat, Heat & Impulse, Heat, Vibration, and Electrical Impulse.

How to adjust the heat level?

Navigate to the heat icon (8) using '∧'/'∨', then press '<' or '>' to toggle between High (H), Low (L), or Off (0).

Can I adjust the intensity of the vibration or electrical impulse?

Yes. Select the intensity icon (☐) via '∧'/'∨', then press '<' or '>' to adjust. Vibration has 31 levels, electric impulse has 16 levels.

How to set the timer?

Navigate to the timer icon (☐) using '∧'/'∨', then press '<' or '>' to set from 5 to 30 minutes in 5-minute intervals.

How do I clean the neck massager?

Use a soft, barely damp towel to wipe the device. Do not submerge it in water or use water directly on the instrument.

Why is my remote not working?

Ensure the remote's infrared window is aligned with the main unit's receiver. Replace the remote battery (CR2032) if needed. Also check that the main unit is charged and turned on.

Who should avoid using this massager?

People with pacemakers, pregnant women, individuals with cardiovascular conditions, those with sensitive skin or heat sensitivity, and children should consult a doctor or avoid use.

What is the recommended usage frequency?

It is recommended to use twice per day: 15 minutes with vibration and electrical impulse, then 15 minutes with heat. Do not exceed 30 minutes per session.

USER MANUAL SLNKMSG90 SereneLife

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

SereneLife

by PYLE

White smartwatch with control panel and LCD screen, no visible text or symbols on device body

* ★ ★ ★ ★ ★ +

*○▼☆**☆☆▲▲**□

with Heat & Vibration Therapy

>> Product Introduction

This neck massage system has evolved from Chinese Meridian beliefs. Designed with the neck curve, the device adopts the benefits of low frequency electric therapy, magnetic therapy, far infrared therapy and vibration massage therapy to convert the high proficient energy fields to enter the deep issue fields of the body. It is important to maintain a correct position supplying a scientific platform to receive the maximum benefits from this therapy. This massage will stimulate the blood circulation and relax the regional muscles, eliminating inflammation, swelling, pains and fatigue, numbness, and headaches.

>>Product Specifications

• Beautifully designed that incorporates the latest 3D intelligent fitting technology to easily adjust the electrodes according to your neck curve for more comfortable use.
• Far infrared heating forms a high proficient compound energy field.
• Use 2 levels of temperature settings for Far infrared heating
• For the computerized program you can choose 6 therapy modes, 2 automatic and 4 manual modes according to personal need and preference.

• As for electronic impulse, use 6 kinds of compound therapy modes.

• Use the 6 different vibration massage modes according to personal need and preference.

• Embedded health magnets will stimulate accupoints within the body, and thus balance the Yin & Yang of the body to improve micro-circulation.
• Easily operates with remote and backlit LCD screen.

45

www.PyleUSA.com www.PyleUSA.com

>> Operation Methods

Operation for Charging

• Adaptor for charging
  Plug the adaptor into the unit and into the power supply
• Rechargeable supply (applicable for rechargeable type), When not using the adaptor, it could be operated with the embedded rechargeable batteries.

TO OPERATE

1. Set the operation switch to "ON" position.
2. Please use a wet towel to make the neck piece and iron barely moist. Wipe neck clean from perspiration.
   Then adhere the instrument to the neck.
3. Press the "⏻" button to begin operation. Note the buzz and light indicates starting-up. The LCD on the remote displays status as it enters into automatic mode. (High heat, Multi function vibration, first vibration massage, timer on for 15 minutes) Simply press this "⏻" button again to end use. When the remote and the massager are synchronized, one buzz will be heard.

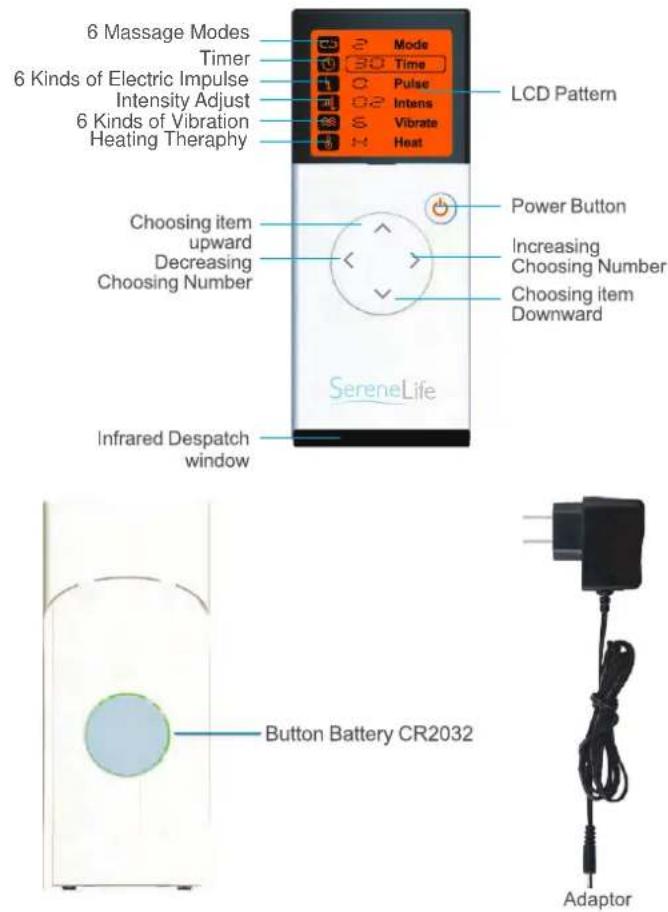

4. Using the following Buttons:

"∧" button for choosing modes upward, and "∨" button for choosing modes downward.

5. Using the following buttons:

<"button for decrease">"button for increase

1. Conversion of modes.

Through "∧" & "∨" button to choose "☐", then press "<" or "> " to choose from six different modes noted as follows: 1-AUTO MODE which includes all of the following: vibration & heating, heating & electric impulse, heating, vibration, electric impulse auto circulate. 2-vibration & heating, 3-heating & electrical impulse, 4-heating, 5-vibration, 6-electrical impulse.

1. Instensity Operate

Through "∧" & "∨" button to choose the "☐", then press or to convert the intensity of the electrical impulses (16 levels) or the vibration intensity (31 levels).

1. Conversion of Heating Mode

Through "^" & "∨" button to choose the "8", then press < or > to adjust heat to either high (H), low (L), or none (0).

1. Electric Impulse Modes

Through "^" & "∨" button to choose the " ", then press < or > to select from 6 impulse modes.

1. Vibration Modes

Through "∧" & "∨" button to choose the "☐", then press < or > to select from 6 vibration modes including auto vibration massage mode, vibration only, knead, beating, press & rolling.

1. Operation of Timer

Through "^" & "∨" button to choose the "☐", then press < or > to adjust the timer from 5 to 30 minutes with 5 minute intervals.

1. Rechargeable Battery

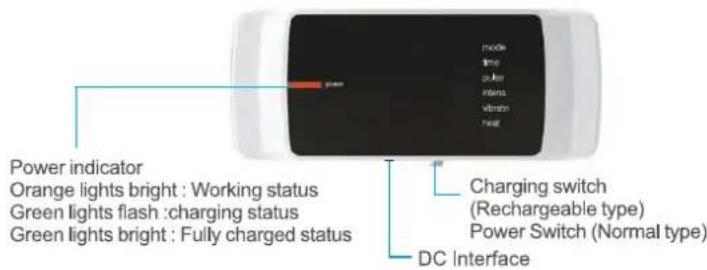

Please charge it when the power is low. Just switch the "ON/CHARGE" button to "CHARGE", and the indicator will be in green and flashing, when it stops flashing and keep in green, it means power has been fully recharged. It takes about 3-4 hours to make it be fully charged.

1. It is recommended to use this neck massager twice per day for 15 minutes of vibration and electrical impulse massaging and 15 minutes with heat.

WARNINGS

1. Cannot be used with a PACEMAKER.

2. Do not use near microwave oven or other infrared emitting instruments.

3. Pregnant women and cardiovascular patients should consult a doctor before use.

4. Do not use when sleeping or showering.

5. Not for use by children or those who cannot communicate.

6. Not for use by those who have either a skin sensitive or heat sensitive condition.

7. Do not adjust modes of operation while in use. Turn it off and then restart.

8. An increased intensity of pressure or power or heat does not result in a more beneficial therapeutic effect.

9. Do not dismantle the instrument in any way, and do not submerge in water or use water directly on instrument to clean.

Cleaning & Maintaining

1. Use a soft barely damp towel to clean.
2. Store in a dry, well ventilated place.
3. Do not store in direct sunlight, or in an extremely hot humid place.

8

www.PyleUSA.com www.PyleUSA.com

PLEASE NOTE

1. At initial start-up, keep the infrared light emission window on the controller and the infrared light receiving window on the main unit directly opposite of each other, as shown by illustration above. This position is necessary for remote controller to operate. Each valid operation of the remote will 'beep' when starting.
2. Please charge it when the power is low. Just switch the "ON/CHARGE" button to "CHARGE", and the indicator will be in green and flashing, when it stops flashing and keep in green, it means power has been fully recharged. It takes about 3-4 hours to make it be fully charged.
3. If the remote controller does not work when the main unit is charged and units are aligned at the proper position, please replace battery CR2032 in the remote.

9

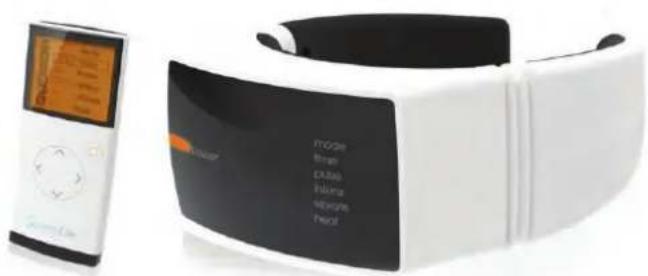

SLNKMSG90

Smart Neck Massager

with Heat & Vibration Therapy

Features:

• Digital Neck Massager System
• Matt & Fashionable Wrap-Around Style
- Compact & Portable Design, Perfect for Travel
• Soothing Acupuncture-Type Pressure Massage Therapy
- Relieve Stress, Excess Tension Improve Blood Circulation
• (6) Selectable Preset Massage Modes with Timer Settings
• Simple & Hassle-Free Operation
• Built-in Rechargeable Battery
- Remote LCD Digital Display for Wireless Control
- Flexible Neck Collar Ensures A Comfortable Fit
• Vibration, Impulse & Heat Intensity Adjustment
• Universal Size for All Ages

What's in the Box:

• Neck Massager
• Remote Control
  • Power Cable with adapter
• User Manual

Technical Specs:

• Intensity Level Selectable:
  Vibration Modes (3), Electric Modes (16)
• Adjustable Time Settings: 5-30 Minutes
  • Massage Impulse Width: 20-400 us
  • Electric Pulse Freq.: 1-1000Hz
  • Rechargeable Battery: 3.7V Li-iOn, 1450mAh
• Remote Control Battery:
  (1) x 'CR-2032' Button Cell, Included
  • Power Supply: 100-240V AC 50/60Hz 0.2A convert to 6V DC 800mA
• Sold as: 1

- Unit Dimensions (L x W x H): 6.85" x 5.71" x 1.16" - inches
