Sublime Plus - Food processor Becken - Free user manual and instructions

Product Type	Food Processor
Brand	Becken
Model	Sublime Plus
Dimensions (L x W x H)	30 x 25 x 25 cm
Weight	4.2 kg
Power	800 W
Bowl Capacity	2.0 L
Main Functions	Chopping, Slicing, Shredding, Kneading, Mixing, Blending
Speed Settings	2 speeds + pulse
Material	Plastic body, Stainless steel blades
Safety Features	Safety lock lid, Non-slip feet, Overload protection
Cleaning	Detachable parts dishwasher safe (top rack)
Spare Parts	Replacement blades, bowls, and pushers available
Repairability	Moderate; user-replaceable blade assembly
Certifications	CE, RoHS

Frequently Asked Questions - Sublime Plus Becken

What can the Becken Sublime Plus food processor do?

It can chop, slice, shred, knead dough, mix batters, and blend soft ingredients. It comes with multiple discs and a stainless steel blade.

Is the bowl dishwasher safe?

Yes, the bowl, lid, and most accessories are dishwasher safe on the top rack. The blade should be hand washed for longevity.

What is the capacity of the bowl?

The main bowl has a 2.0 liter capacity, perfect for small to medium batches.

How do I clean the food processor?

Disassemble all parts, rinse immediately after use, and wash in warm soapy water or dishwasher. Dry thoroughly before reassembly.

Can I crush ice with this machine?

No, the Sublime Plus is not designed for ice crushing. Use it only for soft fruits, vegetables, and dough.

Does it have a safety lock?

Yes, the motor only operates when the bowl and lid are properly locked into place.

What accessories are included?

It includes a stainless steel chopping blade, slicing disc, shredding disc, kneading hook, and a pusher.

Is the blade sharp? Can I replace it?

The blade is very sharp. It is replaceable; contact Becken customer service or check your manual for part numbers.

What is the warranty period?

The Becken Sublime Plus comes with a 2-year limited warranty covering manufacturing defects.

Why does my food processor stop during use?

It may be due to overload protection. Let it cool for a few minutes, reduce the load, and restart.

USER MANUAL Sublime Plus Becken

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided. The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

Index

1. Safety Instructions 04

1.1. Power Energy 05
1.2. Power Cord and Other Cables 05
1.3. Humidity and Water 05
1.4. Cleaning 05
1.5. General Precautions 06

1. Utilization and Functioning 06

2.1.Product Description 06
2.2. Operating Instructions 07
2.3. Mixing Guide 07

1. Aftermarket 08

2. Environment Conservation 08

1. Safety Instructions

	ATTENTION
	Risk of Electric ShockDo Not Open
Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

THIS APPLIANCE CAN BE USED BY CHILDREN FROM 8 YEARS OLD AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE

IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

- These instructions are also available on www.suporteworten.pt

1.1. Power Energy

Make sure the voltage of the electric network is compatible with the one of the appliance. If it does not match, consult the vendor or Customer Support Service.

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use to twine the appliance. Keep the cord far from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

In case of damage of the power cord, do not use your appliance. Take it to technical assistance for its replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not let your appliance to catch water under any circumstance, as it may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example for washing).

1.4. Cleaning

• Unplug the appliance from the power supply.
• Clean the exterior of the appliance using a damp cloth.
• Clean the Beaters or Dough Hooks under running water or in the dishwasher. Rinse and dry.

BECKEN®

- We recommend cleaning the accessories immediately to remove any food residues from the accessories after use. This will make cleaning easier and prevents bacterial growth.

1.5. General Precautions

- Always switch off and unplug the appliance from the power supply BEFORE cleaning and also when the appliance is not in use.

• Always unplug the appliance from the power supply after use and before cleaning.

- If it is a detachable power cord, always connect the power cord to the appliance BEFORE plugging it into the electrical outlet. To disconnect the appliance, switch off the power on the electrical outlet before removing the power plug.

- Wait until the beaters (dough hooks) have completely stopped before turning the mixer head unit upwards.

- Do not immerse the motor unit in water or other liquids or place it under running water.

- Never attempt to disassemble the appliance yourself. - If the power lead, cord or plug is damaged, do not use the appliance.

- If the power cord is damaged, have it replaced by the manufacturer or service agent in order to avoid a hazard.

• Always place appliance on a flat sturdy surface when using.

- Do not use the appliance for any purposes other than its intended use. This appliance is intended for household use only.

- Do not use the appliance in the outdoors or in a damp area.

- Do not place the appliance on or near a hot gas or electric burner, or near easily flammable materials.

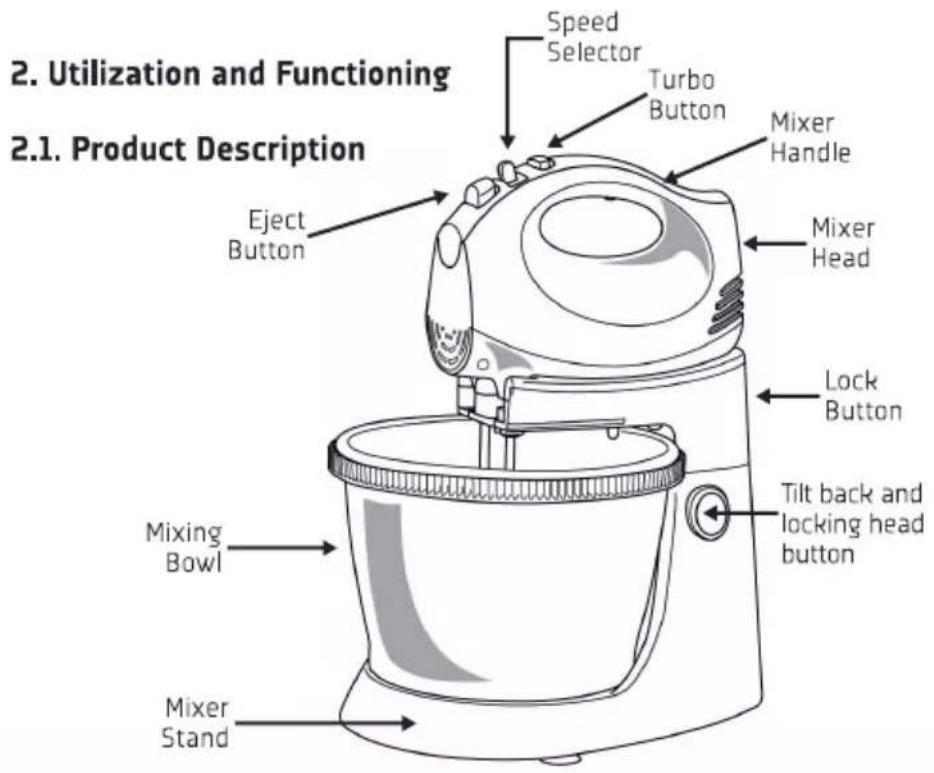

2. Utilization and Functioning 2.1. Product Description Speed Selector Turbo Button Mixer Handle Eject Button Mixer Head Lock Button Tilt back and locking head button Mixing Bowl Mixer Stand

Dough Hooks Beaters

2.2. Operating Instructions

1. Press the tilt button to turn the mixer head unit upwards.
2. Insert the beaters (dough hooks). Hold the handle of the mixer head with one hand and place the beater (dough hook) with the other. Insert it into the slot, press and twist until beater (dough hook) clicks into position.
3. Place the mixing bowl onto the base. Then press the tilt button to lever down the mixer head unit and press lock button to lock the mixer head unit's position.
4. Switch on the appliance beginning from the lowest speed "1".
5. Increase the speed as desired until "5". Maximum operating time must be less than 3 minutes.
6. For additional power, press the "turbo" button for maximum speed. The Max. Turbo operating time must be less than 1 minute.
7. After use, reset the speed control to position "0" and switch off.
8. To disconnect the beaters (dough hooks) from the mixer, press the eject button and remove the beaters (dough hooks).
9. Always unplug from the power supply when you have finished and before cleaning.

2.3. Mixing Guide

SPEED	DESCRIPTION
1	This is a good starting speed for bulk and dry foods such as flour, butter and potatoes.
2	Best speed for liquid ingredients.
3	For mixing cakes and quick breads.
4	For creaming butter and sugar, beating uncooked candy, desserts, etc.
5	For beating eggs, cooked icings, whipping potatoes, whipping cream, etc.
TURBO	Same speed as Speed "5".
Max volume: mix 1225g flour & 882g water

BECKEN®

3. Aftermarket

Becken has designed this appliance in order to guarantee the maximum reliability. However, if a problem occurs, by following the procedures suggested in this section you may be able to determine its cause.

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

All users must be familiarized with this section. Knowing what could go wrong can help you avoid the occurrence of problems.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of components, repairing must be made on the specialized locations of technical assistance, as appropriate tools are needed.

4. Environment Conservation

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local legislation concerning recycling of all materials.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Caro(a) cliente,

Symbol of a trash bin crossed with no visible text or numbers, representing environmental restriction or waste management (no text present)

Imported, produced and distributed by: Importado, producido y distribuido por: Importado, produzido e distribuído por:

Worten Equipamentos p/ Lar S.A.
