322508 - Cables for Computers and Peripherals MANHATTAN - Free user manual and instructions

Product Type	Mini DisplayPort to VGA Adapter
Brand	Manhattan
Model	322508
Connector A	Mini DisplayPort 20-pin male
Connector B	VGA 15-pin female
Adapter Type	Active (with integrated DAC)
Supported Resolution	Up to 1080p (1920x1080)
Cable Length	17 cm (6.7 in)
Shielding	Mylar and aluminum
Contact Plating	Nickel-plated
Jacket Material	Molded PVC
Strain Relief	Yes, molded boot
Withstanding Voltage	300 VDC
Insulation Resistance	5 MOhm
Conductive Resistance	10 Ohm
Standards	DisplayPort 1.2
Certifications	UL
Compatibility	Mac computers, devices with mini-DisplayPort
Power Source	Bus-powered (no external power required)
Weight	Approx. 30 g
Operating Temperature	0–50°C (32–122°F)
Warranty	Lifetime
Package Contents	1 adapter
Maintenance	Clean with a dry, lint-free cloth
Safety	Protect from static discharge; do not expose to liquids
Spare Parts / Repairability	No user-serviceable parts; non-repairable

Frequently Asked Questions - 322508 MANHATTAN

What is the Manhattan 322508 adapter used for?

It connects a mini-DisplayPort source (e.g., MacBook) to a VGA display or projector.

Is this adapter active or passive?

It is an active adapter with an integrated DAC, required for converting digital mini-DisplayPort to analog VGA.

What resolutions does it support?

It supports resolutions up to 1080p (1920x1080).

Does the adapter require external power?

No, it is bus-powered directly from the mini-DisplayPort connection.

Is it compatible with Mac computers?

Yes, it is designed for Mac systems with mini-DisplayPort, like MacBook Air and MacBook Pro models (pre-2016).

Does it support audio transmission?

No, VGA does not carry audio. This adapter only transmits video.

What cable length is included?

The adapter cable is 17 cm (6.7 in) long.

Is the adapter shielded?

Yes, it has Mylar and aluminum shielding to reduce electromagnetic interference.

What is the warranty?

It comes with a lifetime warranty from Manhattan.

Can I connect a mini-DisplayPort to a VGA cable in reverse?

No, the adapter is directional: mini-DisplayPort male input to VGA female output. It cannot convert VGA to mini-DisplayPort.

USER MANUAL 322508 MANHATTAN

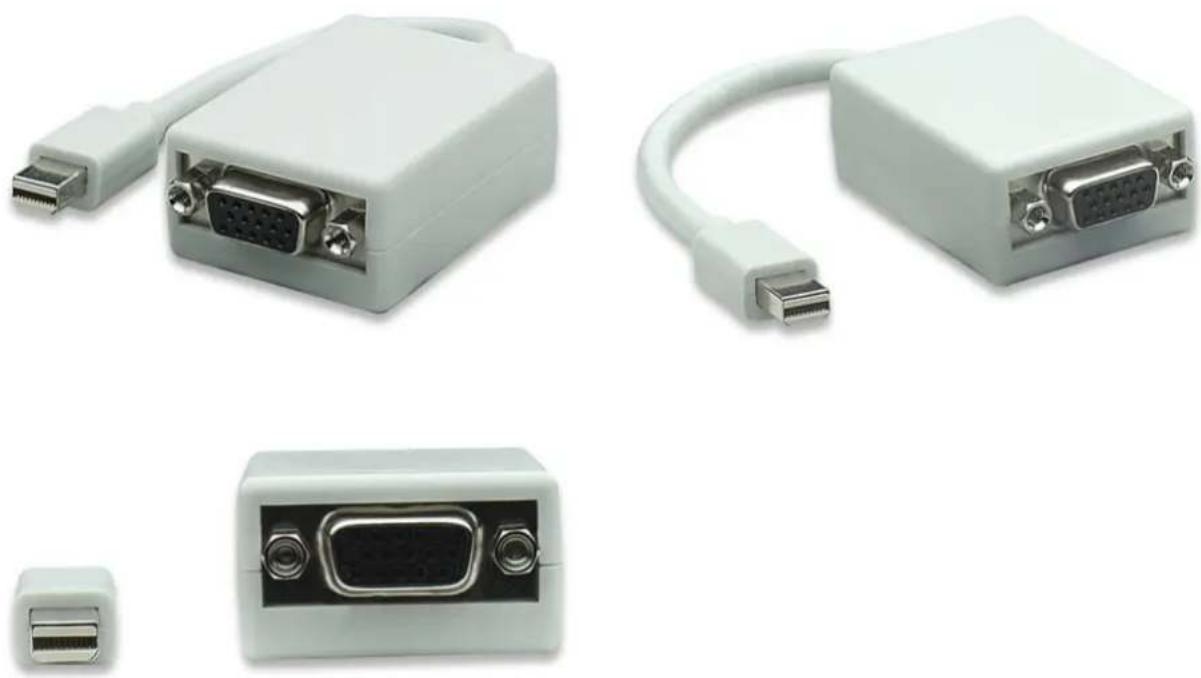

White USB drive adapter with VGA port and connector (no text or symbols visible)

Mini DisplayPort to VGA Adapter

Mini DisplayPort Male to VGA Female, Active

Part No.: 322508

Easily connects a mini-DisplayPort source with VGA cable.

Manhattan Mini DisplayPort to VGA Adapters help establish a fast and convenient connection between a media source equipped with a mini-DisplayPort and a VGA display cable. Ideal for presentations, retail displays and other uses, this single-cable solution keeps installations and workplaces neat and organized without an external power supply or complicated configuration. Nickel-plated contacts and full shielding help Manhattan Mini DisplayPort Adapters provide clear and stable video transmissions in home and office multimedia applications. Durable white PVC jackets and molded boots with strain relief complement Macintosh systems and help ensure connections remain uninterrupted and steady.

Features:

• Connects a mini-DisplayPort source with a VGA display cable
  • Supports 1080p resolution
• Delivers a single, high-quality signal to VGA display – ideal for Mac computers
• Integrated DAC for analog VGA signal output
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime Warranty

Specifications:

Standards and Certifications

• UL
- DisplayPort 1.2

Connectors

• Mini DisplayPort 20-pin male
  • VGA 15-pin female
• Nickel plated
• Molded PVC boot
  • Active

Cable

• 32-AWG connectors
• Shielding: Mylar and aluminum
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MOhm
• Conductive resistance: 10 Ohm
• Thermal plastic casing

Dimensions

• Length: 17 cm (6.7 in.)

Package Contents

- Mini DisplayPort to VGA Adapter
