Product Type	Power Supply Unit
Brand	Behringer
Model	PSU11-JP
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	2 A
Connector Type	Barrel connector (5.5 mm OD / 2.1 mm ID, center positive)
Dimensions (approx.)	100 x 50 x 30 mm
Weight (approx.)	200 g
Protection Features	Overcurrent, short circuit, overvoltage
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity Range	20% to 80% (non-condensing)
Cable Length	1.5 m
LED Indicator	Power on (green)
Compliance	CE, RoHS
Cleaning Instructions	Disconnect from mains; wipe with dry cloth.
Safety Warnings	Use only with compatible devices; avoid water exposure.
Spare Parts Availability	Contact Behringer support for replacement.
Repairability	Not user-serviceable; do not open.

Frequently Asked Questions - PSU11-JP BEHRINGER

What is the output voltage of the Behringer PSU11-JP?

The Behringer PSU11-JP provides a 12 V DC output.

What is the maximum current output?

The maximum output current is 2 A.

Can I use this power supply with a non-Behringer device?

Only if the device requires 12 V DC and 2 A or less with the correct polarity (center positive). Check your device specifications first.

What type of connector does the PSU11-JP use?

It uses a standard 5.5 mm outer diameter and 2.1 mm inner diameter barrel connector with center positive polarity.

Is the power supply suitable for international use?

Yes, it accepts input voltages from 100-240 V AC, making it compatible worldwide.

Does the PSU11-JP have any protection features?

Yes, it includes overcurrent, short circuit, and overvoltage protection.

How do I clean the power supply?

Unplug it from the mains and wipe the exterior with a dry cloth. Do not use liquids.

Can I repair the power supply myself if it fails?

No, it is not user-serviceable. Opening it may cause electric shock. Contact Behringer support.

What devices is the PSU11-JP compatible with?

It is designed for Behringer DJ equipment that requires 12 V DC power at up to 2 A, such as mixers or controllers.

How long is the cable on the PSU11-JP?

The cable length is approximately 1.5 meters.

USER MANUAL PSU11-JP BEHRINGER

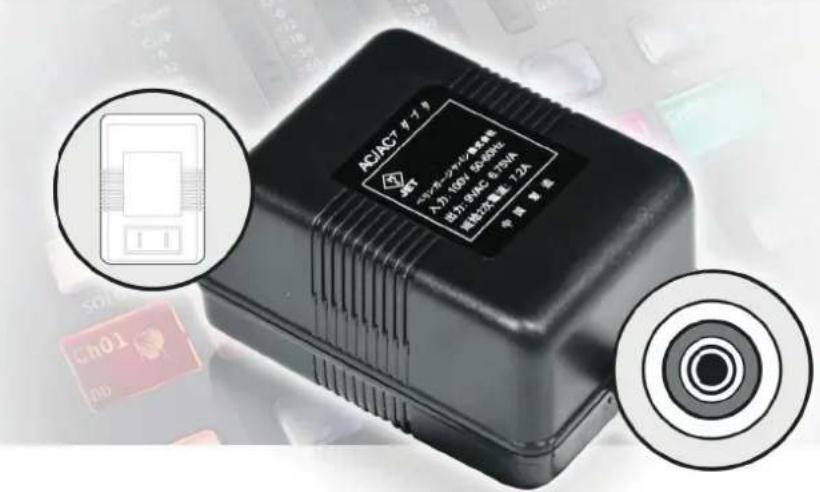

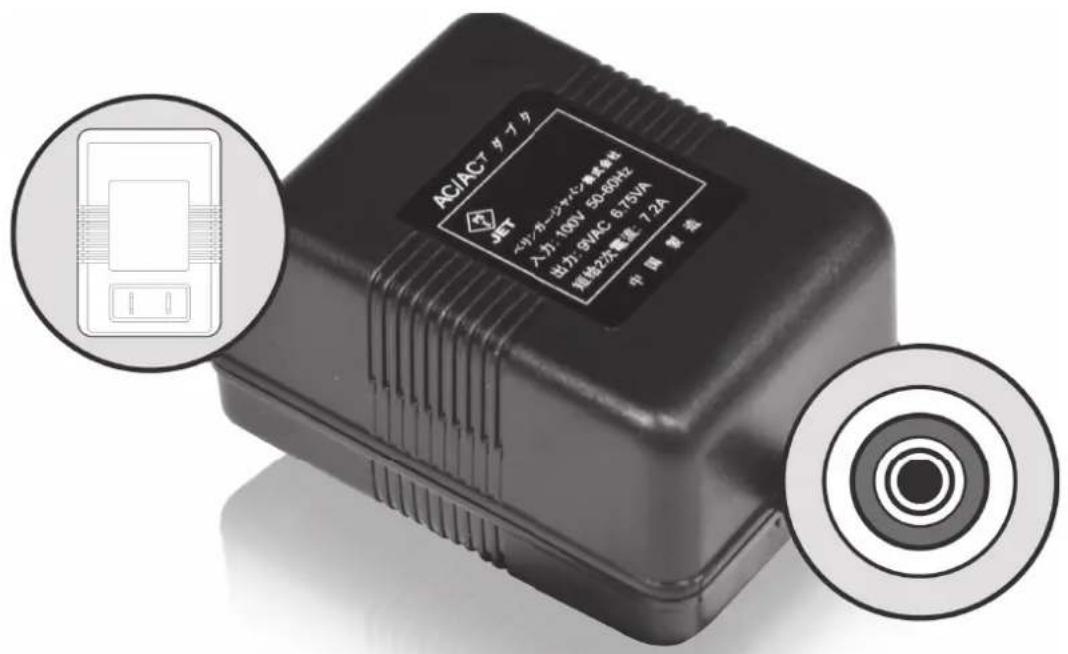

100 V JP Replacement Power Supply for NOX101

Replacement Power Supply for NOX101
3-Year Warranty Program*
Conceived and designed by BEHRINGER Germany

ACIAC7 7.7.7 300V 100V 500GHz 341.9/AC 6.7kVA 磁性功率 72A 中国 电

The PSU11-JP power supply is identical to the one that came with the NOX101, and is required for proper operation in your part of the world. We offer a wide range of region-specific Replacement Power Supplies designed specifically for your BEHRINGER device.

Front view of a black NOX 1032 audio amplifier with control knobs and a warning symbol (no readable text or labels beyond branding)

3 Year Warranty

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our own MUSIC Group factory using state-of-the-art automation, enhanced production workflows and quality assurance labs with the most sophisticated test equipment available in the world. As a result, we have one of the lowest product failure rates in the industry, and we confidently back it up with a generous 3-Year Warranty program.

PSU11-JP

100 V JP Replacement

Power Supply for NOX101

For service, support or more information contact the BEHRINGER location nearestyou:

Europe

MUSIC Group Services UK

Tel:[phone]

Email: [e-mail]

USA/Canada

MUSIC Group Services NV Inc.

Tel: [phone]

Email: [e-mail]

Japan

MUSIC Group Services JP K.K

Tel: [phone]

Email: [e-mail]

MUSIC Group accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, applications and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA and DDA are trademarks or registered trademarks of 1 MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 All rights reserved.
