USER MANUAL 99-7378B Metra

INSTALLATION INSTRUCTIONS FOR PART 99-73788

Kia Sportage LX 2017-up (with 5" screen) 99-73788

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted scratch resistant matte black

Interior view of a car dashboard with a mounted screen showing the logo (no visible text or symbols)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (2) #8 x 3/8" Phillips screws

A

B

C

WIRING & ANTENNA CONNECTIONS (sold separately)

Wire harness: • 70-7304

Antenna adapter: • 40-KI11

Table of Contents

Dash Disassembly 2

Kit Preparation....3

Kit Assembly 3

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

D

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

99-73788

Dash Disassembly

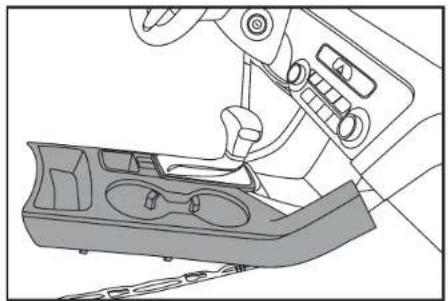

1. Unclip and slide the top of the center console (including the cup holders) back slightly. (Figure A)
2. Open the passenger door, and then unclip and remove the dashboard trim panel. Remove (1) Phillips screw exposed. (Figure B)
3. Unclip and remove the entire panel that is above the glove box, and below the radio. (Figure C)

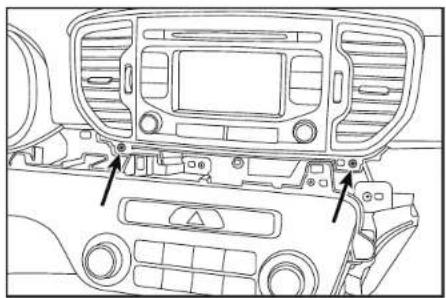

4. Remove (2) Phillips screws from the radio/vent panel, and then unclip and remove. (Figure D)
5. Remove (4) Phillips screws securing the radio, and then unplug and remove.
   Continue to Kit Preparation

Technical line drawing of a car interior showing hand placement and dashboard controls (no text or symbols)

(Figure A) (Figure C)

Line drawing of a car frontrest frame with dashboard and seat (no text or symbols)

Diagram of a car's side panel showing a door and seat, with an arrow pointing to the door (no text or symbols present)

(Figure B) (Figure D)

Line drawing of a car dashboard and air vent system (no text or symbols)

99-73788

Kit Preparation Kit Assembly

From the factory radio/vent panel:

1. Remove (4) screws securing the inner radio trim panel to the panel, and then unclip and remove. (Figure A)
2. Attach the 99-7378B radio trim panel to the factory radio/vent panel, and then secure using the factory hardware. (Figure A)

Continue to Kit Assembly

REAR VIEW OF FACTORY RADIO/VENT PANEL

(Figure A)

ISO DIN radio provision with pocket

1. Attach the pocket to the radio brackets using the (2) supplied #8 x 3/8" Phillips screws. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.

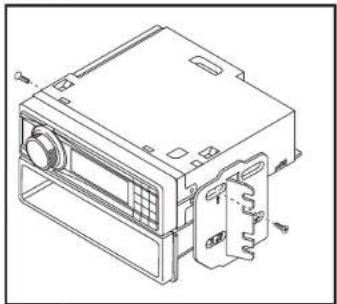

3. Attach the radio brackets to the radio using the screws supplied with the radio. (Figure B)
4. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
5. Secure the completed assembly into the dash using the factory hardware, and then reassemble the dash in reverse order of disassembly.

Technical line drawing of a mechanical housing or bracket assembly (no text or symbols)

(Figure A)

Technical line drawing of a device housing with control panel and internal components (no text or symbols)

(Figure B)

INSTALLATION INSTRUCTIONS FOR PART 99-73788

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
