RX 6019 - Mobile Phone Ranex - Free user manual and instructions

Product Type	DECT Cordless Phone
Brand	Ranex
Model	RX 6019
Color	Black (typical)
Display Type	Monochrome LCD
Display Size	1.8 inches (estimated)
Keypad	Alphanumeric with dedicated keys: Redial/OK, Clear/Mute, Phonebook/Flash, Scroll/Menu/Volume, RWD, Play, Stop, Function (*), INT
Answering Machine	Yes, with OGM recording (2 presets)
Caller ID	Yes (CLIP compatible)
Phonebook Capacity	Up to 50 entries (typical)
Speakerphone	Yes, handsfree
Intercom	Yes, between handsets (INT key)
Volume Control	Adjustable via Scroll/Menu/Volume key
Ringer Volume	Adjustable (multiple levels)
Power Supply	Base: AC adapter (input 100-240V, output 6V DC); Handset: rechargeable batteries
Battery Type	2x AAA NiMH rechargeable
Battery Capacity	550 mAh (typical)
Standby Time	Up to 100 hours
Talk Time	Up to 10 hours
Range (Indoor)	Up to 50 meters
Range (Outdoor)	Up to 300 meters
Weight (Handset)	Approx. 130 g (with batteries)
Dimensions (Handset)	160 x 50 x 25 mm (estimated)
Mounting Type	Tabletop or wall-mountable base
Additional Features	Redial, Mute, Flash, RWD/Play/Stop for answering machine
Maintenance	Clean with dry cloth; avoid liquids; replace batteries when needed
Safety	Use only supplied adapter; keep away from moisture; do not disassemble

Frequently Asked Questions - RX 6019 Ranex

How do I set the date and time on my Ranex RX 6019?

Press the MENU key, scroll to 'Settings' using the Scroll keys, then select 'Date/Time'. Use the numeric keypad to enter the current date and time. Confirm with OK.

How do I record a custom outgoing message (OGM) on the answering machine?

Press the MENU key, navigate to 'Answering Machine', then 'OGM'. Select 'Record' and speak after the beep. Press STOP to end recording. You can choose between OGM1 (allow message) and OGM2 (no message).

How can I use the intercom function between handsets?

Press the INT key on the handset. The base will ring the other registered handsets. To speak, press the INT key again or wait for the other party to answer.

How do I adjust the ringer volume?

While the phone is idle, press the Scroll keys (up/down) to adjust the ringer volume. You will hear a sample ring. Confirm with OK or wait a few seconds.

How do I delete all messages on the answering machine?

Press the MENU key, go to 'Answering Machine', then 'Delete All'. Confirm by pressing OK. This cannot be undone.

How do I register an additional handset to the base?

On the base, press and hold the PAGE button (if available) for 5 seconds until the base beeps. On the new handset, press MENU, select 'Register', and follow the prompts. Enter the base PIN (default 0000).

How can I change the language of the display?

Press MENU, scroll to 'Settings', then 'Language'. Select your desired language from the list using Scroll keys and confirm with OK.

How do I reset the phone to factory defaults?

Press MENU, go to 'Settings', then 'Reset'. Confirm with OK. All settings will be restored to default, but phonebook entries may be deleted.

How do I charge the handset?

Place the handset on the base or charger cradle with the contacts aligned. The battery icon will animate while charging. A full charge takes about 15 hours for new batteries.

What is the battery life of the Ranex RX 6019?

The standby time is up to 100 hours and talk time is up to 10 hours on a full charge. Battery performance degrades over time; replace the AAA NiMH batteries if needed.

USER MANUAL RX 6019 Ranex

for excellent performance!

DECT-telefoon

RX 6019

Gebruiksaanwijzing

Mode d'emploi

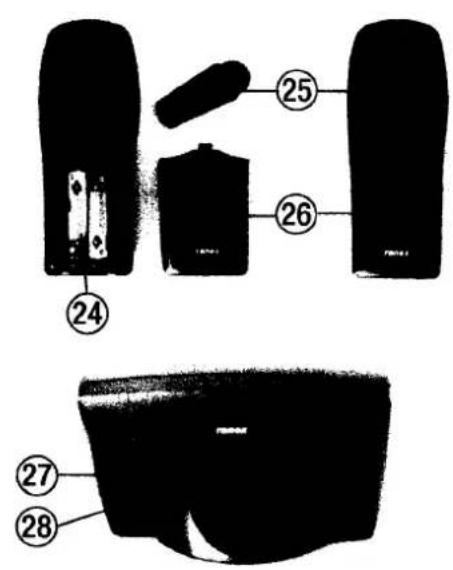

Inhoud 1-2

Bedieningselementen

1 Hoornluidspreker

2 Display

3 REDIAL/OK/AAN-UIT-toets

4 CLEAR/MUTE-toets

5 PHONEBOOK/FLASH-toets

6 SCROLL/MENU/VOLUME

7 RWD-toets

8 PLAY-toets

9 STOP-toets

10 Functietoets *

11 INT-toets

Kiesmethode (toon of puls) selecteren

"Hello, your call cannot be taken at the moment. Please leave a message after the tone".

OGM2:

"Hello, your call cannot be taken at the moment. You cannot leave a message, so please call again later".
