PILOT Trend - Uncategorized WAGNER - Free user manual and instructions

Product Type	Handheld Paint Sprayer
Brand	Wagner
Model	PILOT Trend
Power Source	Corded Electric, 120V/60Hz or 230V/50Hz, 400W
Paint Flow Control	Adjustable material flow
Spray Pattern	Horizontal, vertical, and circular adjustment
Maximum Paint Viscosity	Up to 100 DIN-sec (thick paints require thinning)
Container Capacity	600 ml (approx. 20 oz)
Hose Length	2 m (approx. 6.5 ft) air hose
Weight	1.5 kg (3.3 lbs)
Dimensions (L x W x H)	30 x 20 x 15 cm (11.8 x 7.9 x 5.9 in)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Cleaning Method	Rinse with water or solvent after each use
Maintenance	Regularly clean nozzle and air cap; lubricate moving parts
Safety Features	Trigger lock-off, ventilation required, do not point at people
Spare Parts Available	Nozzles, needles, filters, and hose kits
Included Accessories	Spray gun, container, cleaning brush, viscosity cup, instruction manual
General Information	Designed for DIY and semi-professional painting; suitable for wood, metal, and masonry

Frequently Asked Questions - PILOT Trend WAGNER

What type of paint can I use with the Wagner PILOT Trend?

You can use water-based paints, solvent-based paints, primers, varnishes, and lacquers. Always thin the paint to the recommended viscosity (up to 100 DIN-sec) for optimal performance.

How do I clean the paint sprayer after use?

Disconnect the sprayer from power. Empty the container and fill with water (for water-based paints) or appropriate solvent (for solvent-based paints). Spray the liquid through the gun until clear. Then remove the nozzle and clean it with a brush. Allow parts to dry before reassembling.

Why is my sprayer spitting or producing uneven pattern?

Possible causes: clogged nozzle, low material level, air bubbles, or incorrect viscosity. Clean the nozzle thoroughly, ensure the paint is properly thinned and strained, and check for loose connections.

Can I spray thick paints like latex without thinning?

No, thick paints like latex must be thinned to a viscosity of about 80-100 DIN-sec. Use a viscosity cup to measure. Excessive thickness can clog the gun and cause poor finish.

Is the Wagner PILOT Trend suitable for outdoor use?

Yes, it can be used outdoors, but ensure ventilation and avoid spraying in windy conditions to prevent overspray. It is also important to protect the sprayer from rain and moisture.

What safety precautions should I take?

Always wear protective goggles, gloves, and a respirator mask. Do not spray near open flames or electrical outlets. Keep children and pets away from the work area. Use in a well-ventilated space.

How do I adjust the spray pattern?

Turn the spray pattern adjustment knob on the gun. Rotate it to select horizontal (flat), vertical, or circular patterns. Adjust the material flow using the flow control for the desired thickness.

What spare parts are available for the PILOT Trend?

Common spare parts include nozzle sets, needles, filters, hoses, and container lids. These can be ordered from Wagner or authorized dealers.

Can I use the sprayer for painting furniture?

Yes, the PILOT Trend is ideal for furniture, doors, walls, and fences. For best results, practice on a piece of cardboard first to adjust settings.

How do I store the sprayer when not in use?

After thorough cleaning, allow all parts to dry completely. Store in a cool, dry place away from dust. Keep the nozzle and air cap protected to prevent damage.

USER MANUAL PILOT Trend WAGNER

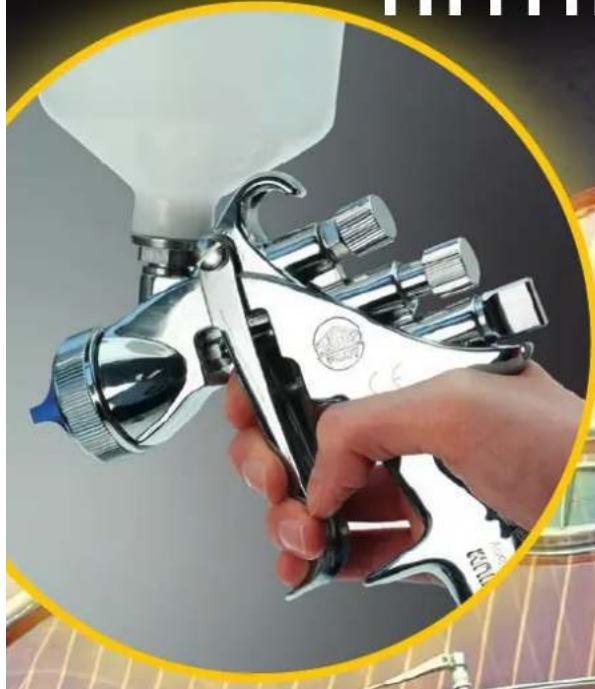

firmly in your grasp.

Hand holding a spray gun with a white funnel, set against a tiled wall background (no visible text or symbols)

Hand-held spray guns

Excellent surfaces.

Simple and ergonomic handling.

Versatile application.

The economic solution for optimal surfaces

Top results with WAGNER hand-held spray guns

• Range of nozzle air head systems
• Performs all jobs reliably and precisely
- Variety of coating options for maximum flexibility

Yellow plastic object with a curved handle, displayed against a black circular background (no text or symbols visible)

Stacked white rectangular objects inside a yellow circular border (no text or symbols visible)

Close-up of metallic kitchen utensils arranged in a circular frame (no text or symbols visible)

WAGNER offers devices, equipment and systems for all areas of industrial surface coating. Our innovative products and solutions stand out in terms of their quality, efficiency and productivity.

WAGNER hand-held spray guns can be used for almost any spray medium. Not just paints and varnishes, but also oils, release agents and much more besides. Choose between three high-performance solutions to suit your individual requirements, based on conventional, medium-pressure or innovative HVLPPlus technology. A wide choice of nozzles allows ideal adaptation to each medium and efficient reduction of material consumption while protecting the environment at the same time.

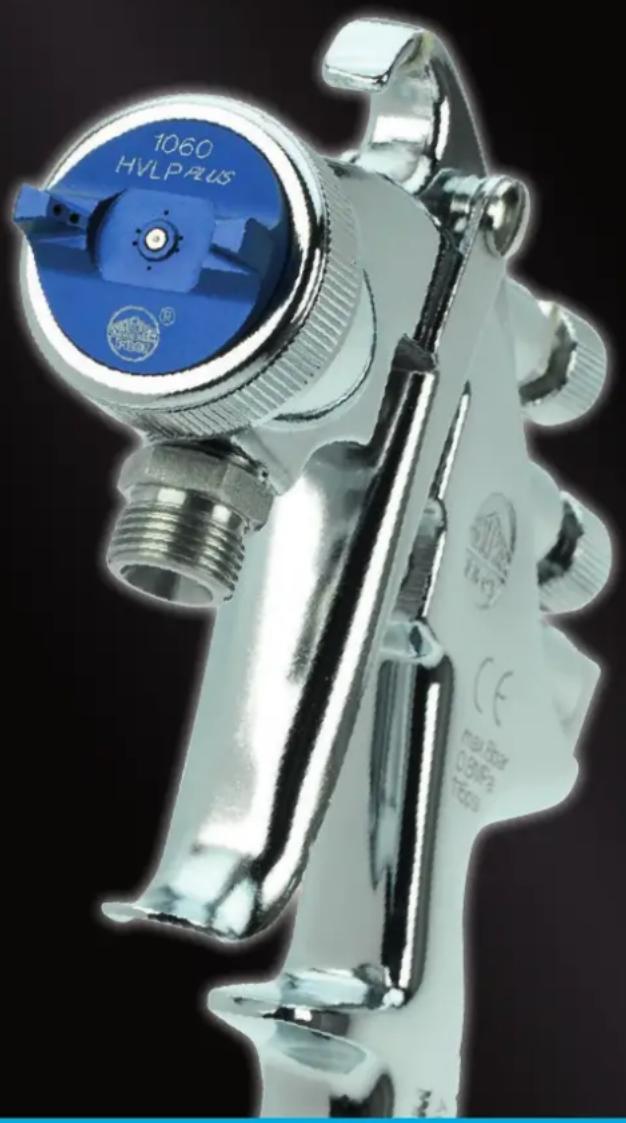

High-tech quality with the HVLPPlus atomization system*.

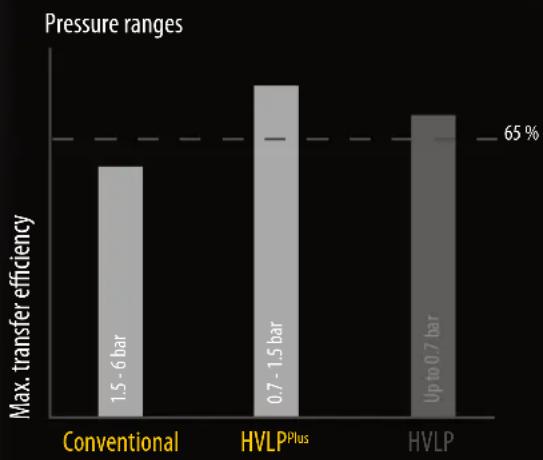

The innovative HVLPPlus nozzle air head system guarantees substantial material savings plus an outstanding surface finish. Tests by the Fraunhofer IPA according to EN standard 13966-1 with an HS-2K top coat resulted in transfer efficiencies of up to 88%. This puts the transfer efficiency far above the 65% required for HVLP applications – that way the PILOT Premium pays for itself in next to no time.

Close-up of a metallic spray gun with blue circular head and threaded handle (no visible text or symbols)

Exceptional performance

PILOT Premium: For an extra-fine finish.

Available with conventional atomization or HVLPPlus.

Ultra-fine atomization

For top-quality surfaces.

Exchangeable nozzles

For a wide range of materials.

Solvent-resistant sealing elements

For use with aggressive coating substances.

All material-contacting parts are made of stainless steel.

Range of application

• High-quality finishing
• Car finishing
• Furniture industry
• Plastics industry

Close-up of a precision spray gun with blue adjustment knobs and a gold handle, against a dark background (no text or symbols visible on the weapon itself)

PTFE needle packing

Easy to adjust

and replace from the outside.

Ergonomically designed handle

Simple and reliable handling.

For right and left-handed users.

Robust aluminium body

Low weight: 490 g.

Close-up of a spray gun with a white spray can and blue visor, enclosed in a yellow circular border (no text or symbols visible)

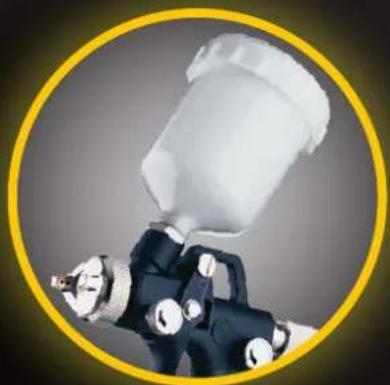

Also available in gravity flow cup version

Excellent results

PILOT trend: For top-quality surface finishes.

Available with conventional atomization or in medium-pressure version.

Exchangeable nozzles

For a wide range of materials.

Close-up of a Waltker Pilot spray gun with metallic handle and nozzle (no visible text or symbols beyond product branding)

PTFE needle packing

Easily adjustable from the outside.

Ergonomically designed handle

Simple and reliable handling. For right and left-handed users.

Robust aluminium body

Low weight: 450 g..

Range of application

• Primer application
• Standard finishing

Close-up of a spray gun with a white spray can emitting mist, enclosed in a yellow circular frame (no text or symbols visible)

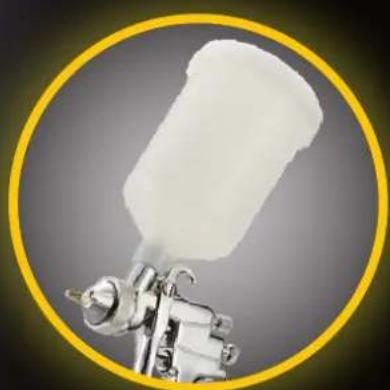

Also available in gravity flow cup version

The easy way to quality results

PILOT Mini: For spray-painting of small parts.

Available in medium-pressure version.

Exchangeable nozzles

For a wide range of materials.

WATHER Dialo, and water-based spray gun and material side and water-based with ease.

Extra-light housing

290g plastic body.

Small, handy size

for fatigue-free operation.

Ergonomic handle

Simple and reliable handling.

All material-contacting parts are made from stainless steel. Screwthread inlets are made from stainless steel on the material side and brass on the air side. That way water-based materials can be processed with ease.

Range of application

• Spray-painting of small parts
• Repair jobs
- Decorating

Close-up of a spray gun with a white spray can and blue handle, enclosed in a yellow circular frame (no text or symbols visible)

Also available in gravity flow cup version

More than just a handy extra

Competent feeding solutions from WAGNER make your hand-held spray guns complete. WAGNER double-diaphragm pumps ensure a perfectly coordinated coating performance with your hand-held spray gun.

Mechanical component with curved black cable and metallic housing, enclosed in a yellow circular frame (no text or symbols visible)

ZIP52 finishing

• Simple operation
• Fully equipped with regulators and fine flow controller

Illustration of a mechanical device with three legs and a cylindrical arm, enclosed in a yellow circular frame (no text or symbols)

ZIP Eco Perfect Flow

• Economy version
• Equipped with regulators and anti-pulsation tank

Exterior view of a stainless steel industrial reactor with pressure gauge and control knobs (no visible text or symbols)

Material pressure tank

• Wide range of material pressure tanks
• Ideal for shear-sensitive materials

And much more...

Your WAGNER hand-held spray gun system comes complete with all the necessary components for immediate use. Needless to say, we also offer fully customized systems to suit your requirements.

Illustration of a handheld device connected to wires, enclosed in a yellow circle (no text or symbols)

Spray pack

Consisting of

ZIP 52 finishing
7.5m hose pack
• Premium HVLP ^Plus gun

Close-up of metallic mechanical components with a yellow circular background (no text or symbols visible)

Nozzle inserts

Consisting of

• Air cap
- Material nozzle
- Needle

Collection of cleaning and repair tools including a kettle, plastic components, and threaded metal parts (no text or symbols visible)

Repair kits

Containing complete set of gun wearing parts.

Coiled black cable with a yellow circular border, no visible text or symbols

Hose pack

Specially designed for

hand-held guns, consisting of material

and air hose plus connections.
