W111 - Wristwatch Lorus - Free user manual and instructions

Brand	Lorus
Model	W111
Product Type	Digital Watch
Display Type	Digital LCD (ViViDiGi)
Time/Calendar Display	Hour, minutes, seconds, month, date, day of week; automatic calendar (adjusts for odd/even months, except February leap year)
12/24-Hour Format	Switchable
Stopwatch	Measures up to 30 hours with 1/1000 second readout; split time measurement available
Countdown Timer	Up to 99 hours 59 minutes, set in minutes
3-Channel Alarm	Three independent alarms; can be set at different times
Hourly Time Signal	Can be enabled/disabled
Dual Time	Display time from another time zone
Illuminating Light	Button-activated backlight for dark viewing
LumiBrite	Optional light-absorbing material for glow in dark (if watch is LumiBrite model)
Battery Type	Lithium CR2025
Battery Life	Approximately 5 years
Water Resistance	Refer to watch dial/back; if no indication, not water resistant
Care Instructions	Clean regularly; avoid magnetism, shocks, extreme temperatures
Safe Battery Handling	Do not recharge or dispose in fire; keep away from children
Allergic Reaction	Clean case and band; if rash occurs, stop use and consult doctor
Magnetism Resistance	Not affected by household appliances
Shock Resistance	Normal sports activities; avoid hard impacts
Temperature	Pre-adjusted for normal temperature accuracy
Service	Professional repair recommended; refer to warranty

Frequently Asked Questions - W111 Lorus

How do I set the time and calendar?

Press button A to show the time/calendar display. Press button B to enter the setting mode (seconds flash). Use button C to cycle through seconds, minutes, hour, 12/24-hour format, date, and month. Press button D to adjust the flashing digit. To set seconds, press button D in sync with a time signal to reset to 00. Press button B to finish.

How do I use the stopwatch?

Press button A to select the stopwatch display. Press button C to start/stop and button D to reset. For split time measurement, press button D during measurement to record a split, and press again to release. The stopwatch continues counting in the background even if you switch displays.

How do I set the alarm?

Press button A to show the alarm display. Use button C to select channel 1, 2, 3, or hourly time signal. Press button B to enter setting mode, then use button C to choose between hour and minute. Adjust with button D. Press button B again to confirm. In the alarm display, press button D to enable/disable the selected alarm.

How do I use the countdown timer?

Press button A to show the timer display. Press button B to enter setting mode (hours flash). Use button C to switch between hours and minutes, then press button D to adjust. Press button B to return. To start/stop, press button C. When time is up, a warning beep sounds for 10 seconds; press any button to stop it.

How do I set the dual time?

Press button A to show the dual time display. Press button B to enter setting mode. Then follow the same steps as setting the main time/calendar: use button C to select digits and button D to adjust. Press button B to finish.

How long does the battery last and what type does it use?

The watch uses a lithium CR2025 battery with an expected life of about 5 years. Actual life may be shorter if the alarm, light, or timer are used frequently. Replace the battery at a watch repair shop.

Is the watch water resistant?

Water resistance depends on the specific watch model. Check the dial or case back for an indication. If there is no indication, the watch is not water resistant and should only be used for everyday wear without exposure to water.

What is LumiBrite?

LumiBrite is a light-absorbing and storing material on compatible Lorus watches. It glows in the dark after being exposed to light. A full charge (e.g., 10 minutes under 500 lux or 2 minutes of direct sunlight) allows it to glow for hours. The brightness gradually fades over time.

How does the illuminating light work?

Press button D while in the time/calendar or dual time display to activate the backlight, which illuminates the display for easy reading in the dark.

What care and precautions should I follow?

Clean the watch regularly to avoid staining and rashes. Avoid exposing the watch to strong magnetism, hard shocks, or extreme temperatures. For water resistance, do not operate buttons when wet, and rinse with fresh water after saltwater exposure. Remove the battery if the watch is not used for a long time.

USER MANUAL W111 Lorus

CAL. W110 (RBQ SERIES)

CAL. W111 (RB8 SERIES)

■ CHARACTERISTICS

1. Time/calendar display: Hour, minutes, seconds, month, date and day of the week. • Automatic calendar: Calendar adjusts automatically for odd and even months except February of leap years.
   • Time indication: Changeover between 12- and 24-hour indications is possible.
2. Stopwatch: Measures up to 30 hours with 1/1,000 second readout. Split time measurement is available.
3. Countdown timer: Up to 99 hours and 59 minutes can be set in minutes.
4. 3-channel alarm: The alarm can be set to ring at three different times a day.
5. Hourly time signal: Can be set to ring every hour on the hour.
6. Dual time: Time of a different time zone can be set and displayed.
7. Illuminating light: The light illuminates the display in the dark.

■ BUTTONS AND DISPLAYS

The selection of the display can be made in the following order with each press of button "A".

■ HOW TO SET THE TIME/CALENDAR

1. Press button "A" to show the time/calendar display.
2. Press button "B" to show the time/calendar setting display. The second digits start flashing.
3. Selection of the digits to be adjusted (flashing) is made in the following order by pressing button "C".

$$ \text { Seconds } \rightarrow \text { Minutes } \rightarrow \text { Hour } $$

$$ \uparrow \quad \downarrow $$

$$ \begin{array}{c c c} 1 2 - / 2 4 \text {-hour} & \leftarrow & \text { Date } \quad \leftarrow \text { Month } \ \text { indication } & \end{array} $$

1. Press button "D" to set the flashing digits. One digit is advanced with each press of button "D". Digits except seconds and 12/24-hour indication move quickly by keeping button "D" pressed.
2. After all the adjustments are completed, press button "B" to return to the time/calendar display.

Seconds setting

When the seconds digits are flashing, press button "D" in accordance with a time signal. The seconds are reset to "00" and start immediately. When the seconds count any number from "30" to "59" and button "D" is pressed, one minute is added and the seconds are immediately reset to "00".

Notes:

1. When setting the hour digits in the 12-hour indication, check that AM/PM is properly set. Only "P" (PM) mark is displayed and there is no indication for the AM setting. In the 24-hour indication, "24" (24-hour indication) mark is displayed.
2. If the watch is left untouched in the time/calendar setting display with the digits flashing, it will automatically return to the time/calendar display in 2 minutes.

■ HOW TO USE THE STOPWATCH

• The stopwatch can measure up to 30 hours in 1/1,000 seconds.
Even if the stopwatch display is changed to another while the measurement is in progress, it continues counting properly. After the stopwatch is used, however, be sure to reset it as the battery energy is consumed enormously to shorten the battery life.

1/1,000 seconds

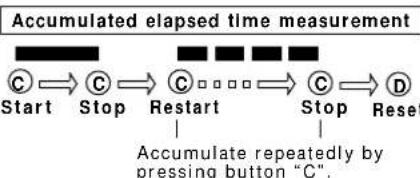

Stopwatch Operation

Press button "A" to show the stopwatch display.

■ HOW TO SET THE 3-CHANNEL ALARM

- The alarm can be set to ring at three different times a day. Set the three alarm channels one by one to desired alarm times.

1. Press button "A" to show the alarm display.
2. Selection of the alarm channel to be set is made in the following order by pressing button "C".

* The alarm cannot be set in the hourly time signal display.

$$ \begin{array}{c c c}\text {Channel 1}&\rightarrow&\text {Channel 2}\\uparrow&&\downarrow\\text {Hourly time}&\leftarrow&\text {Channel 3}\\text {signal display}&&\end{array} $$

1. Press button "B" to show the alarm setting display. The hour digits (and "A"/ "P" mark if the time is set in the 12-hour indication) start flashing.
2. Press button "C" to select the digits to be adjusted (flashing).

$$ \rightarrow \text { MinutesHour } $$

1. Press button "D" to set the digits. One digit is advanced with each press of the button. The digits move quickly by keeping the button pressed.
2. After all the adjustments are completed, press button "B" to return to the alarm display.

* To set more than one alarm channel, follow the procedure above starting from the step "2".

Notes:

1. When the time function is displayed in the 24-hour indication, the alarm is also displayed in the 24-hour indication.
2. When setting the hour digits in the 12-hour indication, check that "A" (AM)/"P" (PM) mark is correctly set. In the 24-hour indication, "24" (24-hour indication) mark is displayed.
3. By pressing button "D" to set the digits in the alarm setting display, the alarm mark is displayed and the alarm is automatically engaged.
4. If the watch is left untouched in the alarm setting display with the digits flashing, it will automatically return to the alarm display in 2 minutes.

Engagement/disengagement of the alarm and hourly time signal

1. In the alarm display, selection of the alarm channel or hourly time signal to be engaged or disengaged is made in the following order by pressing button "C".

Channel 1 Channel 2

$$ \begin{array}{c} \uparrow \ \text {Hourly time} \ \text {signal display} \end{array} \leftarrow \quad \begin{array}{c} \downarrow \ \text {Channel 3} \end{array} $$

1. [Alarm and hourly time signal engagement/disengagement]

With each press of button "D", the alarm of the selected channel or hourly time signal is engaged and disengaged alternately.

The alarm and hourly time signal can be engaged and disengaged independently of each other.

Indication of the alarm channel	Alarm/hourly time signal engaged	Alarm/hourly time signal disengaged
1
2
3
(Hourly time signal)

• The alarm rings at the designated time for 20 seconds and stops. To stop it manually, press button "A", "B", "C" or "D".
• The alarm can be tested by keeping button "D" pressed in the alarm display.

■HOW TO SET THE DUAL TIME

Time of a different time zone can be set and displayed together with the time you have set in "HOW TO SET THE TIME/CALENDAR".

1. Press button "A" to show the dual time display.
2. Press button "B" to show the dual time setting display.
3. To set the digits, refer to "HOW TO SET THE TIME/CALENDAR".

■ HOW TO USE THE COUNTDOWN TIMER

• The timer can be set up to 99 hours and 59 minutes in minutes.
• The remaining time is displayed in 1/10 seconds.

Timer setting

1. Press button "A" to show the timer display.
2. Press button "B" to show the timer setting display. The hour digits start flashing.
3. Selection of the digits to be adjusted (flashing) is made in the following order by pressing button "C".

1. Press button "D" to set the digits. One digit is advanced with each press of the button. The digits move quickly by keeping the button pressed.
2. After all the adjustments are completed, press button "B" to return to the timer display.

Note: If the watch is left untouched in the timer setting display with the digits flashing, it will automatically return to the timer display in 2 minutes.

Timer operation

Press the button in the following order.

* When the set time is up, a warning sound beeps for 10 seconds. To stop it manually, press button "A", "B", "C" or "D".

■ LUMIBRITE WATCH

(dial, hands, buttons, case, bezel, strap, etc.)

☆ If your watch is a LORUS LUMIBRITE watch, it has following features.

LORUS LUMIBRITE watches absorb and store light energy from natural and artificial light sources and emit light in the dark. They are made of environmentally friendly material, and therefore, are harmless to human beings and the environment.

• With a full charge, LORUS LUMIBRITE watches glow in the dark hours longer than conventional luminous watches of this type. If exposed to a light of more than 500 lux (i.e., the brightness of a typical office) for approximately 10 minutes, or direct sunlight for 2 minutes, they will glow for hours.
• Since LORUS LUMIBRITE watches emit the light they store, the brightness will decrease gradually over time. The length of time they will glow may also differ slightly depending on such factors as the brightness of and distance from the light source used to charge the watch.

■ILLUMINATING LIGHT

When button "D" is pressed in the time/calendar or dual time display, the light illuminates the display for easy viewing in the dark.

■ ViViDiGi

ViViDiGi is a new type of liquid crystal panel that makes possible various colors and high contrast.

• Excellent light reflection and transmission make the display bright and clear.
- Various color options are available.
- Either the whole panel or the displayed data only can be illuminated.
* Features vary in different models.

ViViDiGi

■ BATTERY CHANGE

The miniature lithium battery PANASONIC CR2025, which powers your watch should last approximately 5 years. However, because it is inserted at the factory, the actual life of the battery once in your possession may be less than the specified period. Be sure to replace the battery to prevent any possible malfunction as soon as it runs down. To replace the battery, we recommend taking the watch to a local watch repair shop.

Note: If the alarm is used for more than 3 seconds a day, the illuminating light for more than 4 seconds a day and/or the timer warning sound for more than 10 seconds a week, the battery life may be less than the specified period.

■ CARE OF YOUR LORUS WATCH

• BATTERY

CAUTION

Do not expose the old battery to fire or recharge it. Keep it at a place beyond the reach of children. If a child swallows it, consult a doctor immediately.

• WATER RESISTANT

Indication on the dial/ case back\Condition of use	Accidental contact with water, such as splashes and rain	Swimming and taking a shower	Skin diving	Scuba diving
No Indication	NO NO	NO NO
WATER RESISTANT	YES NO	NO NO
WATER RESISTANT (50 M/ 5 BAR)*	YES YES	NO NO
WATER RESISTANT ( 100 M/ \\10 BAR or \ above )	YES	YES YES	NO

* If your watch is 200 M/20 BAR, 100 M/10 BAR or 50 M/5 BAR water resistant, it is so indicated on the dial/case back.
- Do not operate the buttons when the watch is wet.
- If the watch is exposed to salt water, rinse it in fresh water and then wipe it thoroughly dry.

Caution:

Leather straps are not water resistant except so indicated, even if the watch head is water resistant.

• ALLERGIC REACTION

Because the case and band touch the skin directly, it is important to clean them regularly. If not, shirt sleeves may be stained and those with delicate skin may develop a rash. Please wear the watch with some play to avoid any possible allergic reaction. If you develop a rash on your wrist, stop wearing and consult a physician.

• MAGNETISM

Your watch will not be affected by magnetism generated by household electric appliances.

• SHOCKS AND VIBRATIONS

Your watch may be worn for normal sports activities, but be careful not to drop it or hit it on hard surfaces.

• TEMPERATURE

Your watch is preadjusted so that constant accuracy may be insured at normal temperature.

■ SERVICE

When your LORUS watch requires repair or servicing, please see the enclosed WARRANTY/GUARANTEE.
