USER MANUAL KADA512WRSA Kogan

Black audio streaming setup with a speaker tower and a rectangular sound block (no text or symbols visible)

DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER

(5.1.2 CHANNEL, 200W)

KADA512WRSA

Safety & Warnings 3

Components 6

Overview 7

Installation 10

Operation 12

Connectivity 17

Specifications 22

Troubleshooting 23

Notes 25

SAFETY & WARNINGS

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel

Warning Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance

- Read and follow all safety and operating instructions before using the product. Retain this user guide for future reference.

- Adhere to all warnings provided with the product and in the operating instructions.

- Follow all usage and operational instructions.

- Do not use this product near water or moisture.

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install according to the manufacturer's instructions.

- Keep away from heat sources such as radiators, stoves, and amplifiers.

- Do not bypass the safety features of polarized or grounding-type plugs.

- Protect the power cord from being walked on or pinched.

- Only use attachments and accessories specified by Kogan.com.

- Unplug the product during lightning storms or when unused for long periods.

• Refer all servicing to qualified personnel.

- Do not expose the product to dripping or splashing; do not place objects filled with liquids, such as vases, on the product.

- Maintain a minimum distance of 5cm around the product for sufficient ventilation.

- Do not place naked flame sources, such as lit candles, on the product.

Caution

• Use of this product in any other way other than those specified in this user guide may result in hazardous radiation exposure or unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
• Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
• The power plug is used as a means of disconnecting the product from power and must remain readily accessible.

Warning:

• The battery shall not be exposed to excessive heat such as direct sunlight, fire, or the sources of heat.
• Before operating, check the voltage to ensure it matches your local power supply.
• Do not place the unit close to strong magnetic fields or on an amplifier or receiver.
• If any object or liquid falls into the system, unplug and contact help.Kogan.com for support.
• Use a clean, dry or slightly damp cloth for cleaning.
• Pull directly on the plug, never on the cord, when removing the power plug from the wall outlet.

Battery Precautions

- Be sure to insert the batteries with correct positive (+) and negative (−) polarities.

- Use batteries of the same type. Never use different types of batteries together.

- Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.

- Do not drop the remote control.

- Do not allow anything to impact the remote control.

- Do not spill water or any liquid on the remote control.

- Do not place the remote control in direct sunlight or near sources of excessive heat.

- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury and/or property damage and/or fire.

- Do not use any batteries other than those specified.

- Do not mix new batteries with old ones.

- Never recharge a battery unless it is confirmed to be a rechargeable type.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kogan.com is under license. Other trademarks and trade names are those of their respective owners.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby Atmos

Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

Manufactured under license from Dolby Laboratories. Confidential unpublished works.

Copyright © 2012-2024 Dolby Laboratories. All rights reserved.

COMPONENTS

Empty rectangular frame with black border and white interior, no text or symbols visible

Soundbar

Wireless Subwoofer

Two pairs of bundled electrical cables with terminal connectors (no text or symbols visible)

Power Cord (x2)

Line drawing of a coiled cable with connectors and a connector terminal (no text or symbols)

HDMI Cable

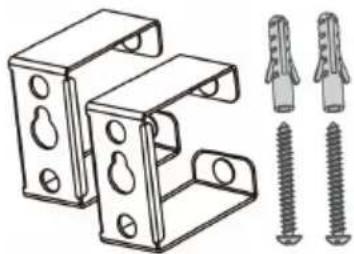

Technical illustration of two metal bracket components with screw fasteners (no text or symbols)

Wall Bracket Kit

Remote Control

AAA Batteries (x2)

POLY ATROS SOYNOBAR WITH HAIRCLESS SLAWN O'OFER Rogon

User Guide

Note: Images, illustrations and drawings shown on this User Guide are for reference only, actual product may vary in appearance.

OVERVIEW

Sound bar

3 4 5 - + □ AUX 1 2

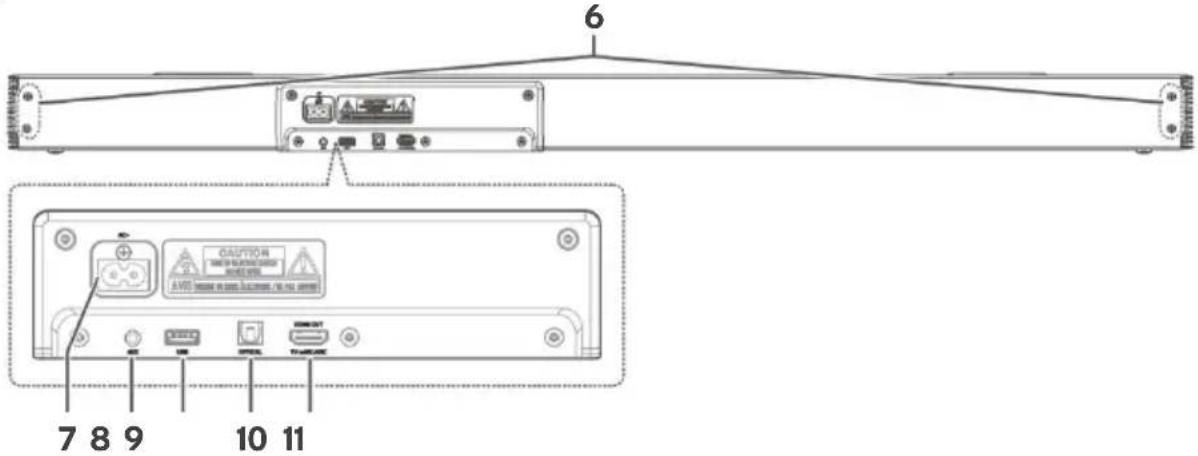

Back

6 7 8 9 10 11

1 Remote Control Sensor

2 Display: Shows the status.

3 Power button: Switch the sound bar between ON and Standby mode

4 Source button

5 +/- (VOL) buttons: Increase/decrease the volume level.

6 Wall bracket screws

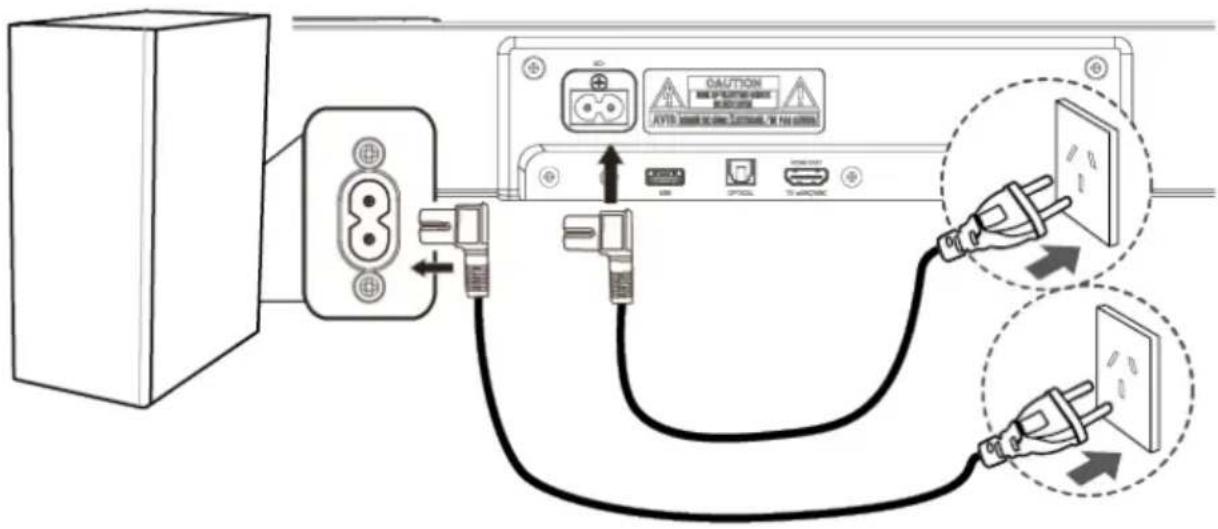

7 Power input port

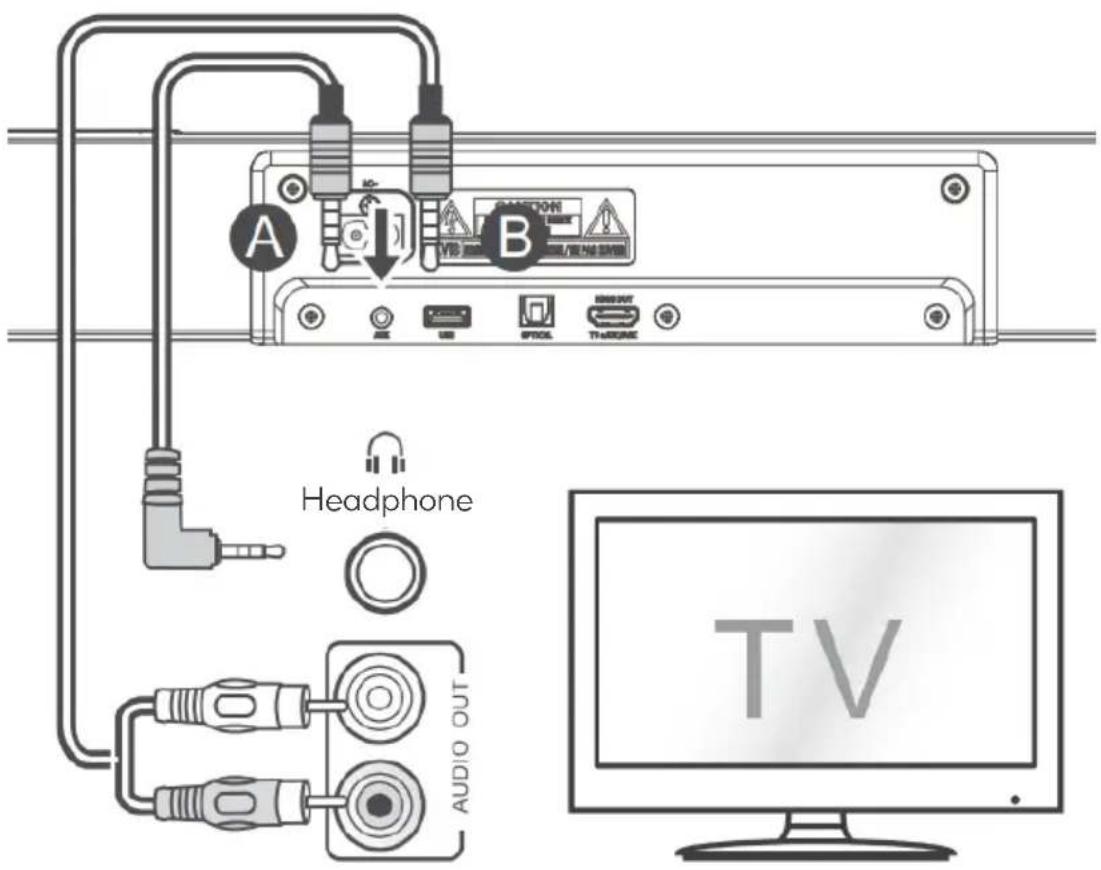

8 AUX port: Connect to an external audio device.

9 USB port: Insert the USB device to play music.

10 OPTICAL port: Connects the sound bar to an OPTICAL OUT port on an external device.

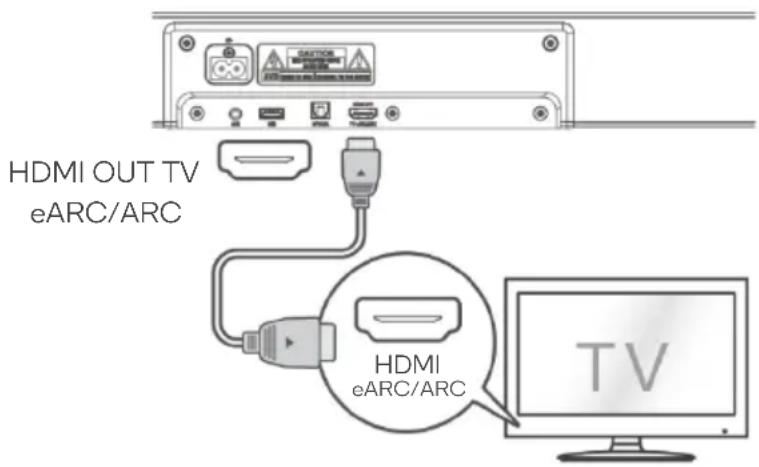

11 HDMI OUT (TV eARC/ARC) port: Supports the eARC/ARC HDMI feature, which allows the sound bar to play audio that originates on the connected TV.

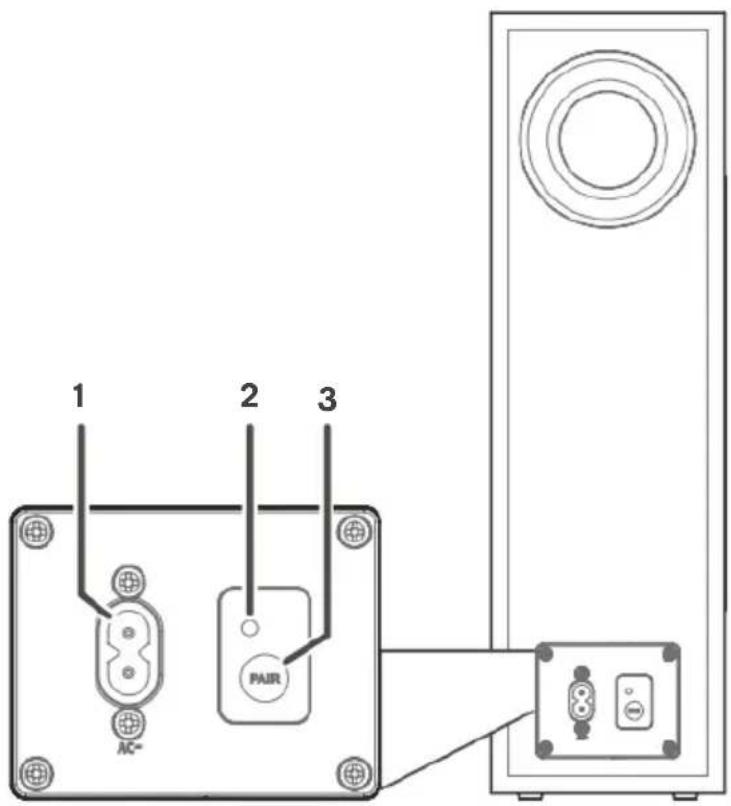

Subwoofer

1 2 3 AC- PAIR

1 Power input port

2 Pairing Indicator: Light stops blinking once the subwoofer is paired with the sound bar.

3 Pair Button: Press activates the pairing function between the sound bar and subwoofer.

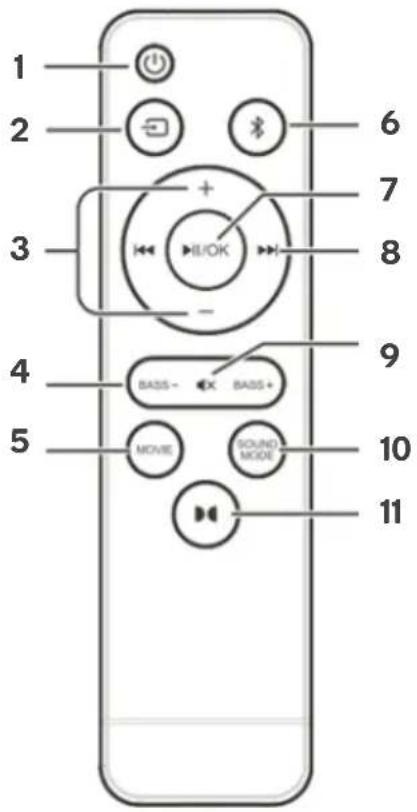

1 2 3 4 5 6 7 8 9 10 11 BASS- BASS+ MOVIE SOUND MODE

1		Power button: Switch the sound bar between ON and Standby mode
2		Source button
3		+/- (VOL) buttons: Increase/decrease the volume level.
4		Adjust bass level.
5		Optimizes sound for movie playback, enhancing audio effects for a more immersive experience.
6		Select the Bluetooth mode.
7		Play/pause/resume playback in Bluetooth/USB mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
8		Skip to previous/next track in Bluetooth/USB mode.
9	[2XZD]	Mute or resume the sound.
10		Select a preset sound effect.
11	[7DS4]	Turned Dolby Atmos ON/OFF

INSTALLATION

Option A: Tabletop placement

• If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen.
• If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.

Option B: Wall Mounting

If you intend to install this product yourself, you must check for electrical wiring and plumbing that may be buried inside the wall. It is the installer's responsibility to verify that the wall will safely support the total load of the soundbar and wall brackets.

Notes:

• If you aren't confident with the installation, consult a licenced trade professional.
  • Additional tools (not included) are required for the installation.
• Do not overtighten screws.

- Use an electronic stud finder to check the wall type before drilling and mounting.

Simple line drawing of a room layout with a monitor, bookshelf, and door (no text or symbols)

Simple line drawing of a room with a monitor, shelf, and book (no text or symbols)

WARNING: To prevent injury, the soundbar must be securely attached to the floor/wall in accordance with this user guide. Suggested wall mounting height: ≤ 1.5 meters.

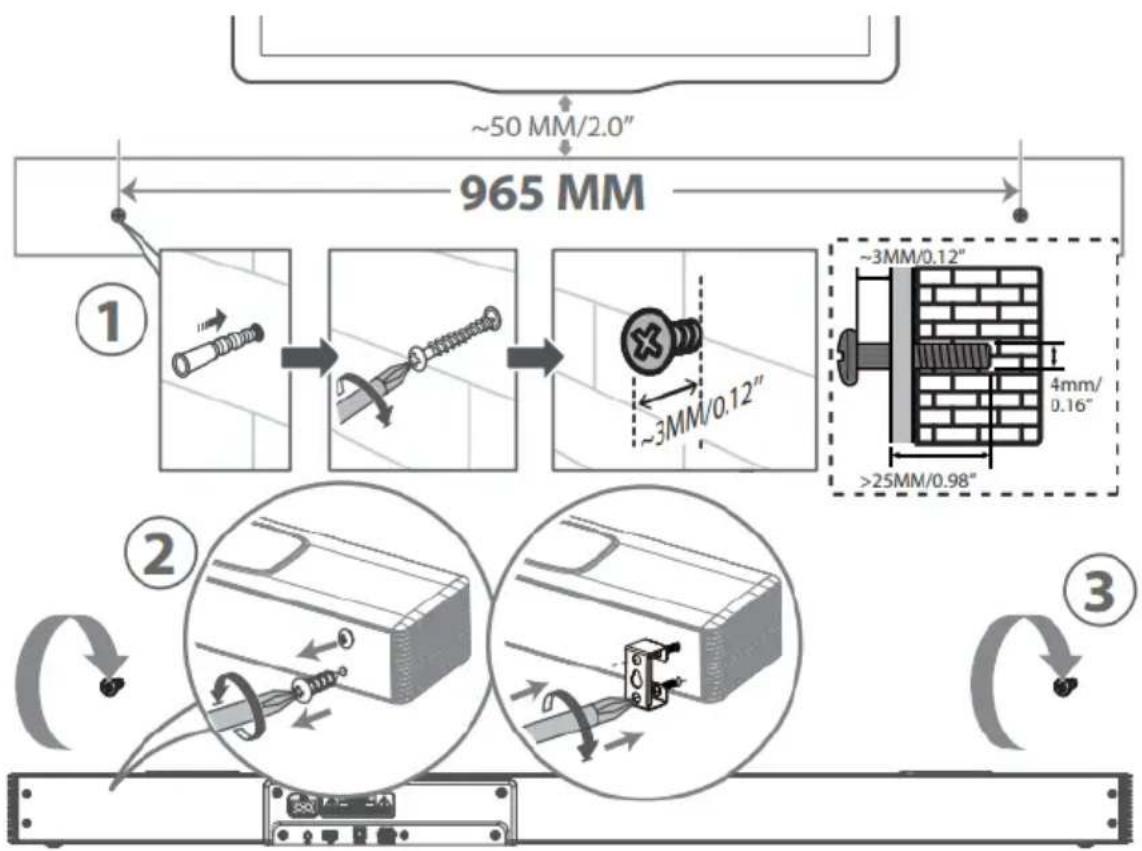

1. Drill 2 parallel holes ( 5.5-6 mm each, according to your wall type) in the wall. The distance between the holes should be 965 mm.
2. Insert wall anchors into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and a screwdriver (not included). Ensure they are securely installed.
3. Remove the screws at the back of the soundbar. Install the wall mounting screws into the back of the soundbar.
4. Lift the soundbar onto the wall mount brackets and slot it into place.

~50 MM/2.0" 965 MM ① ~3MM/0.12" ~3MM/0.12" 4mm/ 0.16" >25MM/0.98" ② ③

OPERATION

Remote Control

The provided remote control allows the soundbar to be operated from a distance.

- Even if the remote control is operated within the effective range of 6m, remote control operation may be impossible if there are any obstacles between the soundbar and the remote control.

- If the remote control is operated near other products that generate infrared rays or if other remote control devices using infrared rays are used near the soundbar, it may operate incorrectly. Conversely, the other products may also operate incorrectly.

Replacing the Remote Control Batteries

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert x2 AAA size batteries (included). Make sure the polarity symbols (+ and -) on the batteries match those in the battery compartment.
3. Close the battery compartment cover.

1 2 3

Standby/ON:

- When you first connect the soundbar to the electrical outlet, the soundbar will be in standby mode.

- Press the power button on the soundbar or on the remote control to switch the soundbar ON.

- Press the power button again to switch the soundbar back to standby mode.

- Disconnect the power cord from the electrical outlet if you want to switch the soundbar OFF completely.

Automatic Power off Function

• The soundbar automatically turns to standby mode after about 15 minutes if the TV or the external soundbar is disconnected, switched off, or the volume is too close to mute.
• To switch the soundbar off completely, remove the mains plug from the electrical outlet.

Note: Turn the soundbar off completely to save energy when not in use.

Modes

Press the source button repeatedly on the soundbar or on the remote control to select the AUX, Bluetooth, OPTICAL, HDMI OUT (TV eARC/ARC), and USB mode. The selected mode will show on the display.

Adjust the Bass Level

Press the BASS +/- buttons on the remote control to adjust bass level.

While playing, press the SOUND MODE button on the remote control to select desired preset equalisers.

• Movie: recommended for viewing movies
• Music: recommended for listening to music
- News: recommended ford listening to News

Adjust the Volume

• Press the +/- (VOL) buttons on the sound bar or on the remote control to adjust the volume.
• If you wish to turn the sound off, press the ⏻ (MUTE) button on the remote control. Press the ⏻ (MUTE) button again or press the +/- (VOL) buttons on the sound bar or on the remote control to resume normal listening.

Turn Dolby Atmos ON/OFF

Press the ATMOS button on the remote control to turn Dolby Atmos ON. Press the ATMOS button again to turn Dolby Atmos OFF.

AUX / OPTICAL/HDMI Operation

1. Ensure that the soundbar is connected to the TV or audio device.
2. Press the source button repeatedly on the soundbar or on the remote control to select the AUX, OPTICAL, or HDMI OUT (TV eARC/ARC) mode. The selected mode will show on the display.
3. Operate your audio device directly for playback features.
4. Press the +/- (VOL) buttons to adjust the volume to your desired level.

Tip:

The soundbar may not be able to decode all digital audio formats from the input source. In this case, the soundbar will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g., TV, game console, DVD player, etc.) is set to PCM. Refer to the user manual of the input source device for its audio setting details when using HDMI or OPTICAL input.

When selecting a different audio format, the soundbar will display the appropriate information.

USB Operation

By connecting a USB mass storage device (e.g., USB flash drive) to this soundbar, you can enjoy the device's stored music through the soundbar.

1. Press the source button repeatedly on the soundbar or on the remote control to select the USB mode.
2. Insert the USB mass storage device into the USB port on the soundbar.
3. Use the remote control to navigate through your music files.

o Press the play/pause button to start or pause the playback.
o Press the skip buttons to move to the next or previous track.

1. Adjust the volume using the +/- (VOL) buttons on the soundbar or on the remote control.

CAUTION USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB

Notes:

• The soundbar supports USB music in MP3 format only.
• The unit can support USB devices with up to 32GB of memory.
• The unit may not be compatible with all USB devices, this is not an indication of a problem with the unit.

Bluetooth Operation

First-Time Pairing:

1. Press the Source button on the soundbar or the Bluetooth button on the remote control to select Bluetooth mode. The display will show "NO BT".
2. Activate your Bluetooth device and select the search mode. "Kogan 512" will appear on your Bluetooth device list.
3. Select "Kogan 512" to start connection. Wait until the voice prompt from the soundbar and the display shows "BT" indicating Bluetooth pairing was successful.

Pairing a New Device After First-Time Pairing

1. In Bluetooth mode, press and hold the play/pause button to disconnect from the currently connected Bluetooth devices and enter Bluetooth pairing mode.
2. Follow steps 2-3 to pair your Bluetooth device.

To Disconnect the Bluetooth Function

1. Switch to another function on the soundbar.
2. Disable the Bluetooth function from your Bluetooth device.
3. Press and hold the play/pause button on the remote control.

Listening to Music from a Bluetooth Device

If your Bluetooth device supports A2DP, play music via your device.

If your Bluetooth device supports AVRCP, use the supplied remote control to control playback.

• To increase/decrease the volume, press the +/- (VOL) buttons.
• To pause/resume playback, press the play/pause button.
• To skip to a track, press the skip buttons.

Notes:

• The operational range between the unit and the device is approximately 8m.
• Before connecting a Bluetooth device to the unit, ensure you know the device's capabilities.
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
• Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.

CONNECTIVITY

Dolby Atmos

• Dolby Atmos gives you Immersive listening experience by delivering sound in three-dimensional space and all the richness, clarity and power of Dolby sound.
• For more information, please visit dolby.com/technologies/Dolby Atmos

Using Dolby Atmos

Dolby Atmos is available only in HDMI mode. For the details of the connection, please refer to "HDMI Connection".

1. To use Dolby Atmos® in HDMI mode, your TV must support Dolby Atmos.
2. Ensure that "No Encoding" is selected for bitstream in the audio output of the connected external device (e.g., Blu-ray DVD player, TV, etc.).
3. When entering Dolby Atmos / Dolby Digital / PCM format, the soundbar will display DOLBY ATMOS / DOLBY AUDIO / PCM AUDIO.

HDMI eARC/ARC

• The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the soundbar.
• Connect the HDMI cable (included) from the soundbar HDMI OUT (TV eARC/ARC) port to the HDMI ARC port on your ARC-compliant TV. Then use the remote control to select HDMI (TV eARC/ARC).

HDMI OUT TV eARC/ARC HDMI eARC/ARC TV

Tips:

• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about the ARC function, refer to the owner's manual.
• ARC only works with devices that are HDMI ARC capable as well as with an HDMI 1.4 cable (and higher).

Optical Input

Use an optical cable (not included) to connect the TV's optical out port and the optical port on the soundbar.

TV Optical

AUX Input

- Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV's or external audio device headphone socket to the AUX socket on the soundbar.

- Use an RCA to 3.5mm audio cable (not included) to connect the TV's audio output sockets to the AUX socket on the soundbar.

A B Headphone AUDIO OUT TV

WARNING: Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the soundbar.

Before connecting the AC power cord, ensure you have completed all other connections.

• Soundbar: Connect the power cord to the power input port of the soundbar and then into an electrical outlet.
• Subwoofer: Connect the mains cable to the power input port of the subwoofer and then into an electrical outlet.

Diagram showing connections between a device and electrical outlets with labeled components and safety warnings

Pairing the Subwoofer

Automatic pairing:

The subwoofer and soundbar will automatically pair when both units are plugged into an electrical outlet and turned on. No cable is required for connecting the two units together.

The pairing status can be determined by the indicator on the subwoofer.

Indicator Status
Flashing rapidly Subwoofer in pairing mode
Solid Connected / Pairing successful
Flashing slowly Connection / Pairing Failed

Notes:

• Do not press the PAIR button on the rear of the subwoofer, unless manually pairing.
• If the automatic pairing fails, pair the subwoofer sound bar manually.

Manual pairing:

1. Ensure that all cables are securely connected, then switch on the Sound Bar.
2. Press and hold the PAIR button on the rear of the subwoofer for a few seconds. The subwoofer will enter pairing mode, and the Pair Indicator will blink rapidly.
3. Press and hold the SOURCE button on the Sound Bar or the remote control for a few seconds. The display will show 'SETUP PAIR'.
4. Once the wireless connection is successful, the Pair Indicator will remain lit.
5. If the Pair Indicator continues to blink, the wireless connection has failed. Unplug the subwoofer's cable, wait 4 minutes, then reconnect the main cable.
6. Repeat steps 1-4.

Notes:

• If the wireless connection fails again, check for conflicts or strong interference (e.g., from other electronic devices) around your location. Remove these conflicts or interferences and repeat the pairing process.
• The subwoofer should be within 6m of the soundbar in an open area.
• If the soundbar is not connected with the subwoofer and it is in On mode, the POWER Indicator will flash. Follow steps 1-4 above to pair the subwoofer to the soundbar.

SPECIFICATIONS

Sound bar
Power supply	AC 100-240V~ 50/60Hz
Power consumption	45W < 0.5 W (Standby)
USB 5V=500mA
Dimensions (W x H x D)	1000 x 65 x 95mm
Net weight 3.31kg
Audio input sensitivity 500mV
Frequency Response	140Hz - 20KHz
Subwoofer
Power supply	AC 100-240V~ 50/60Hz
Power consumption	20W < 0.5 W (Standby)
Dimensions (W x H x D)	120 x 403 x 300mm
Net weight 4.24kg
Frequency Response	40Hz - 140KHz
Wireless Specification
Bluetooth version/profiles V5.3 (A2DP, AVRCP)
Bluetooth frequency range 2400 MHz ~ 2483.5 MHz
Bluetooth Max. transmitting power ≤ 5dBm
Modulation Type GFSK, π/4 DQPSK
Amplifier (RMS Output power)
Total 200W
Sound bar 20W x 7
Subwoofer 60W
Remote Control
Distance/Angle	19.7 feet (6m) / 30°
Battery type	AAA (1.5V x 2)

Note: Design and specifications are subject to change without notice.

TROUBLESHOOTING

If you encounter problems when using this soundbar, check the following points before requesting service. For further support, contact help.Kogan.com. Avoid attempting to repair the system yourself to prevent any potential issues.

Problem Solution
Product wont power on	·Ensure that the power cords of the both products are properly connected.·Ensure that there is power at the electrical outlet.·Press the power button to turn the sound bar on.
Remote control does not work	·Before you press any playback control button, first select the correct source.·Reduce the distance between the remote control and the sound bar.·Insert the battery with its polarities (+/-) aligned as indicated.·Replace the batteries.·Aim the remote control directly at the sensor on the front of the sound bar.
The sound bar is not discoverable on my Bluetooth device for Bluetooth pairing	·Ensure that Bluetooth is enabled on your Bluetooth device.·Ensure you have paired the sound bar with your Bluetooth device.·The sound bar has a Bluetooth function that can receive a signal within 8 metres. Keep a distance within 8 metres between the sound bar and your Bluetooth device.
The product suddenly powered off.	When the unit's external input signal level is too low, the sound bar will turn off automatically after 15 minutes. Increase the volume level of your external device.
No sound	Make sure that the sound bar is not muted. Press MUTE or +/- (VOL) button to resume normal listening.Press the power button on the sound bar or on the remote control to switch the sound bar to standby mode. Then press the power button again to switch the sound bar on.Unplug both the sound bar and the subwoofer from the electrical outlet, then plug them again. Switch on the sound bar.Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby Digital mode while using digital (e.g. HDMI, OPTICAL) connection.The subwoofer is out of range, move the subwoofer closer to the sound bar. Ensure the subwoofer is within 5m of the sound bar (the closer the better).The sound bar has lost connection with the subwoofer. Repair the units by following the steps on the section “Paring the Subwoofer”.The sound bar may not be able to decode all digital audio formats from the input source.

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
