Product Type	Portable Gas Stove/Grill
Model	CS102
Fuel Type	Propane (LPG)
Connection Pressure	0.1 MPa
Gas Consumption	420 g/h
Dimensions (Open)	500 x 360 x 360 mm
Dimensions (Closed)	470 x 330 x 90 mm
Weight	4.1 kg
Ignition	Piezo ignition (built-in)
Safety Features	Overheat protection, gas leak detection (soap test), flame failure safety
Usage	Outdoor use only; not for enclosed spaces like tents or caravans
Cleaning	Allow to cool, clean with mild detergent, avoid abrasive cleaners
Maintenance	Check gas hose regularly for cracks; replace if damaged
Warranty	1 year
Certification	GMK10647
Included Accessories	Gas hose, regulator, wind shields

Frequently Asked Questions - CS102 DOMETIC

Can I use the Dometic CS102 indoors?

No, the CS102 is designed for outdoor use only. Using it indoors can lead to carbon monoxide poisoning and suffocation.

What type of gas cylinder should I use?

Use a Propane (LPG) refillable container certified to AS 2469 with a 3/8" LH BSP fitting.

How do I ignite the burner?

Turn the gas on and press the piezo igniter. If it doesn't light after 3 attempts, wait 10 seconds, then try again or use a long match.

What should I do if I smell gas?

Immediately close the cylinder valve, move the device to a well-ventilated area away from ignition sources, and check for leaks with soapy water. Never use a flame to detect leaks.

Can I modify the appliance?

No, do not modify the appliance. Unauthorized modifications can cause hazards and void the warranty.

How do I clean the CS102?

Let it cool completely, then clean with a mild detergent and a soft cloth. Avoid abrasive cleaners that could damage surfaces.

What is the recommended distance from flammable materials?

Keep at least 300 mm from side/rear, 800 mm overhead, and 8 m from flammable liquids.

How do I replace the gas cylinder?

Ensure the grill is off and cool. Close the cylinder valve completely, unscrew the regulator, and replace with a new cylinder. Check for leaks after connecting.

What pots and pans can I use?

Use pots with an even base and diameter no larger than the burner grids (approx. 205 mm). Ensure the base covers the flame to prevent fire hazards.

What is the warranty period?

The CS102 comes with a 1-year warranty. Keep the purchase receipt and contact your retailer or Dometic dealer for service.

USER MANUAL CS102 DOMETIC

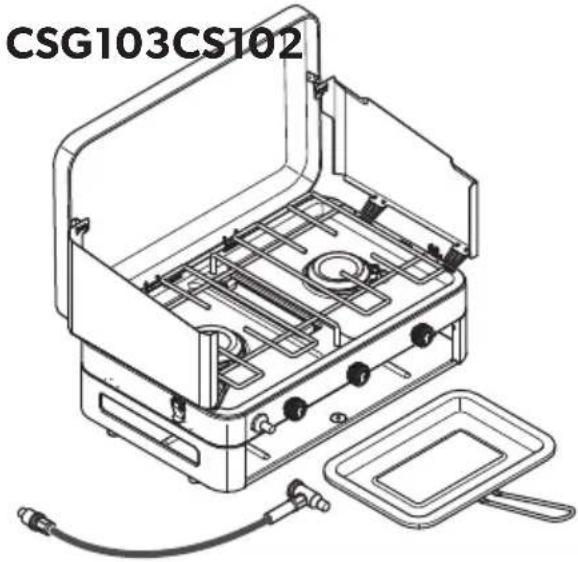

Line drawing of a portable stove or gas stove unit with internal circuitry and mounting feet (no text or symbols)

Line drawing of a portable stove with open lid and internal grating (no text or symbols)

CS102, CSG103

Gas stove

Installation and Operating Manual

© 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

NOTICE

Simple line drawing of a cooking pot with a checkmark inside, on a gas stove (no text or symbols)

Simple line drawing of a pot on a stove with a crossed X mark symbol (no text or labels)

1

Technical line drawing of a portable stove or gas stove unit with internal grid and connectors (no text or symbols)

Line drawing of a portable stove with internal grating and a tray (no text or symbols)

2

Isometric line drawing of a rectangular box with a vertical opening and a door, no text or symbols present.

Isometric line drawing of a geometric structure with triangular panels and supports (no text or symbols)

Isometric line drawing of a 3D rectangular prism with internal triangular structure and dashed lines indicating hidden edges (no text or symbols)

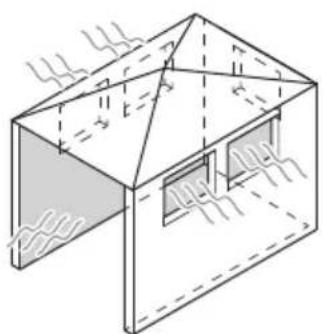

Isometric line drawing of a two-story building with roof and windows, showing structural details (no text or symbols)

Isometric line drawing of a 3D rectangular structure with internal panels and dashed lines indicating hidden edges (no text or symbols)

3
CS102

4
CSG103

8

Simple line drawing of an eye with a checkmark above it, no text or symbols present

Simple line drawing of a cooking pot with a crossed-out black X symbol (no text or labels)

1.

CS102

Pure electrical circuit lines without any symbols

CSG103

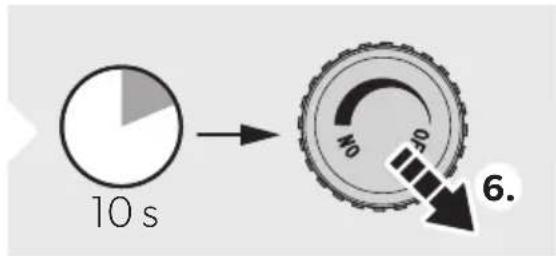

10 s

6.

1.

9
CSG103

Diagram of a gasifier with a pipe and valve, showing internal components and a directional arrow (no text or symbols)

Isometric line drawing of a portable stove or gas stove with internal circuitry and a base device, no text or symbols present.
    note right of A: 5.
    note bottom of B: 1x - 3x

10

11
CSG103

12

13

Important. Read this instructions for use carefully.

Familiarise yourself with the appliance before connecting it to its gas container. Keep this instructions for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it.

Contents

1 Explanation of symbols ..... 11
2 General safety instructions....11
3 Intended use....14
4 Scope of delivery .....14
5 Before initial use .....14
6 Using the device .....15
7 Cleaning and maintaining the device .....17
8 Troubleshooting....17
9 Warranty ....18
10 Disposal....18
11 Technical data....19

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect connection voltage
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

• This appliance shall only be used with a Propane (LPG) refillable container certified to AS 2469 that has a 3/8" LH BSP fitting.
• It may be hazardous to attempt to fit other types of gas containers.
  • DO NOT MODIFY THIS APPLIANCE.
• ONLY USE IN WELL-VENTILATED AREAS.
  • CARBON MONOXIDE HAZARD

USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE DEATH. DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS, MOBILE HOMES OR SIMILAR LOCATION.

- Use outdoors only.

2.2 Safety precautions when handling liquid gas

WARNING!

• After use always disconnect the gas cylinder.
- Store gas cylinders away from heating or cooking devices and other light or heat sources in a well-ventilated area out of the reach of children.
- Never store liquid gas cylinders in unventilated areas or below ground level (funnel-shaped holes in the ground).
- Never store liquid gas cylinders in buildings such as garages.
- Any indoor storage must comply with AS/NZS 1596.
- Do not store gas cylinders on their side.
- Keep liquid gas cylinders away from direct sunlight. The temperature should not exceed 50 °C.

2.3 Operating the device safely

WARNING!

- Beware of suffocation.

While burning liquid gas, the device also consumes oxygen. When used indoors, there is a risk of suffocation due to insufficient oxygen.

Only use the device outdoors. Under no circumstances use it indoors. Never use the device in a garage, porch or tent.

- If there is a leak on your device (smell of gas):

• Immediately attempt to turn off the cylinder valve.
• Remove the device to a well-ventilated location away from any ignition source.
• Check for leaks using soapy water.
• Do not try to detect leaks using a flame.
• If the odor continues, keep away from the device and immediately call your gas supplier or your fire department.

- Do not use this device if it is leaking, damaged or does not operate properly.

- Check that seals between the device and the gas cylinder are in place and in good condition before connecting the gas cylinder.

- Do not use the device if it has damaged or worn seals.

- Only use the hose assembly as supplied with this device for connection to the cylinder – DO NOT USE ADAPTERS.

- Avoid twisting or kinking the flexible hose.

- This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

- Children must be supervised to ensure that they do not play with the device.

- Cleaning shall not be conducted by children without supervision.

- Only operate the device when you or another person can attend to it.

- Wear appropriate clothing when using the device. Do not wear loose-fitting clothing which could easily catch fire.

- Do not move the device during operation.

- Leave the device to cool down properly before you touch it with bare hands.

- Replace porous or damaged hoses immediately.

- This appliance must only be serviced by an authorized person.

- Never change the nozzles, injector or burners.

- Use the device for cooking only. Never use it for other purposes.

- Avoid using the device near combustible materials.

- Keep the area around the device free from fat, alcoholic substances, plastic and flammable materials (e.g. curtains, cloths or kitchen materials).

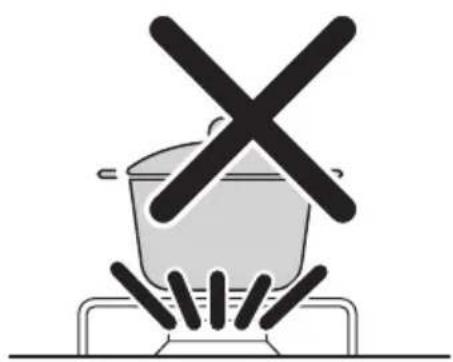

- Only use pots and pans with an even base and a diameter not larger than the grids on the hob (approx. 205 mm). The pots and pans should be large enough to cover the flame. If the flame is not covered, items of clothing could catch fire.

Pots and pans of the correct size also improve the efficiency of the hob.

- Ensure that pots and pans are stable when cooking.

- Never allow pot or pan handles to protrude over the edge of the hob Turn the handles inwards, making sure that they are not positioned over other burners. This reduces the risk of spillage, the ignition of flammable materials and serious scalding.

- Avoid boil over and spillage. Pots which boil over can cause smoke and fires.

• Proceed with caution when heating oil or fat, as they can ignite under excessive heat.
• Only use dry pot holders to avoid steam build-up. Do not use towels or cloths as these can catch fire.
• Do not use the device as a space heater.

3 Intended use

The Dometic gas stoves CS102 and CSG103 are intended for portable outdoor use only. For use in enclosed spaces, requirements shown in fig. 2, page 3 must be met. In cases where there are 3 walls, 30 % of the total wall area must be open and unrestricted.

With CSG103, you can cook and grill at the same time.

The device may only be used when the lid is open.

Let the device cool down completely before putting it in a tent or awning.

4 S c o p e o f d

See fig. 1, page 3.

5 Before initial use

The permitted gas pressure can be found on the ratings label of the device.

▶Always use the supplied gas hose and regulator. If this becomes damaged please contact the manufacturer's support (see back page) to organise a replacement.
▶ Before starting the product for the first time ensure all transit protection such as the plastic on the wind shields has been removed.

6 Using the device

Placing the device

When selecting the location for cooking, observe the following instructions:

• Set up the device outside in a well-ventilated place. Do not place it in a dip to prevent any gases from accumulating there.
• The ground must be firm, level and stable.
• Keep the device protected from the wind.
• Never place the device near flammable materials, even when cooling down. Keep a distance of at least 300 mm to the side and rear and at least 800 mm overhead.
• Never place the device near flammable liquids. Keep a distance of at least 8 m.
• Observe the safety instructions, see chapter "Safety precautions when handling liquid gas" on page 12.

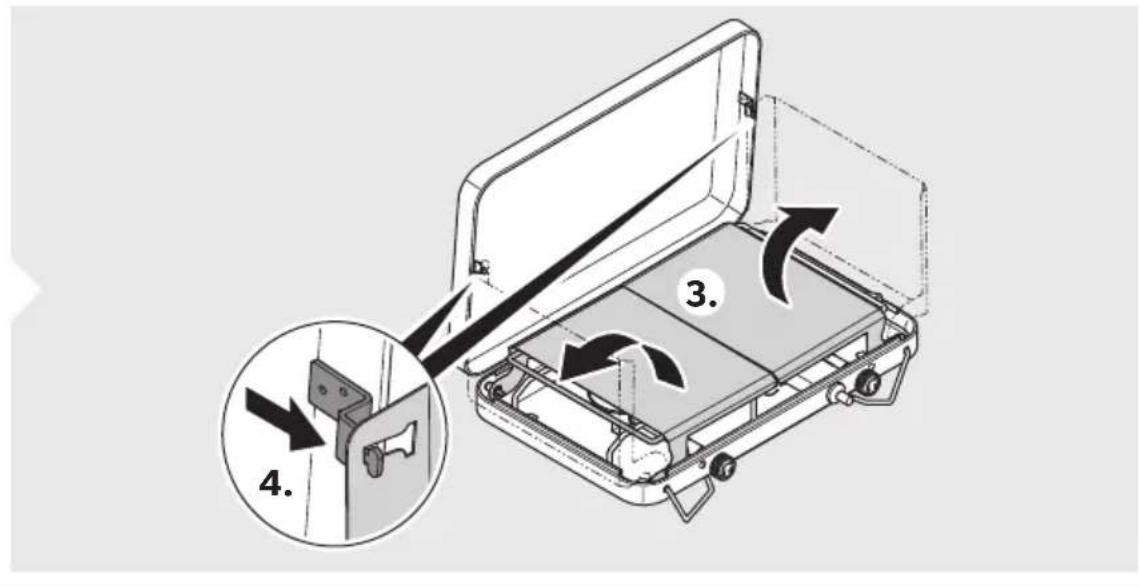

▶Set up the device:

- C S 1 0 2 : f i g . 3, page 4. - C S G 1 0 3 : f i g . 4, page 4.

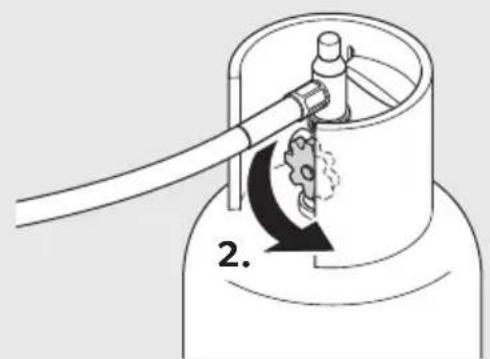

Connecting the device to the gas cylinder

▶Proceed as follows:

- CS102: fig. 5, page 5 and fig. 7, page 6. - CSG103: fig. 6, page 6 and fig. 7, page 6.

▶ After connecting the device to the gas supply, check the gas pipe for leakage using a foaming agent, e. g. with soap. Never use a naked flame to test for gas leaks.

Igniting the device

WARNING! Beware of injury

• Only use the device when you or another person can attend to it.
• Ignite the burners as soon as you have turned on the gas supply. Otherwise gas can accumulate in the burner area and could cause an explosion.
• The complete ignition process must be visible from above and must not be hidden by pots placed on top of the hob.

NOTE

• While it is operating, you will be able to hear a slight noise caused by the gas flowing out. This is completely normal.
• Smoke can occur when using it for the first time. This is caused by deposits of machine oil burning and stops after approx. 10 minutes.

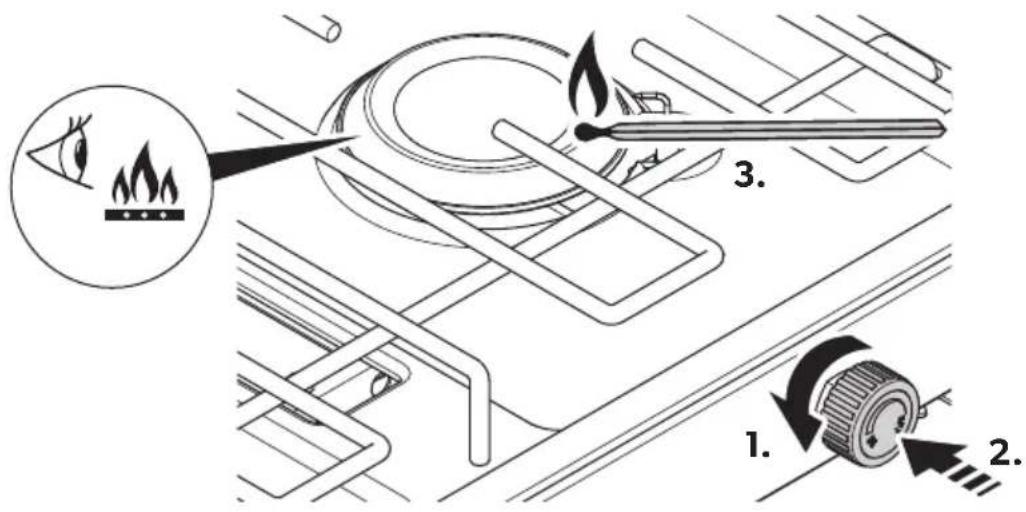

▶Proceed as follows:

• Igniting the burners: fig. 8, page 7.
• Igniting the grill burner (CSG103 only): fig. 9, page 8.

▶If the burner does not ignite after 3 attempts, turn off the gas and wait 10 seconds for the gas to clear.
▶Try again with the piezo igniter or light the device manually using a long match or long neck lighter (fig. 10, page 8). Do not use a cigarette lighter.
▶ After lighting, check that the burner has properly ignited. The flames must be burning along the whole length of the burner.

Using the pan

▶ Proceed as follows (CSG103 only): fig. 11, page 9.

Turning off the device

▶ Proceed as follows: fig. 12, page 9.

Packing up the device

CAUTION! Beware of burns

The device is very hot when you use it. Leave the portable grill to cool down before you clean, dismantle or transport it.

▶Disconnect the device from the gas supply.
▶ Clean the device (fig. 13, page 9).
▶ Stow away the pan and rack (CSG 103 only) and close the lid.

Replacing the gas cylinder

WARNING! Beware of injury

Change the gas cylinder in a well-ventilated location. Ensure that there are no open flames in the vicinity. Only replace the gas cylinder when the portable grill is switched off.

NOTE

To check whether the gas cylinder is empty gently rock it while upright from side to side. If you can hear or feel liquid this indicates the bottle still contains LPG.

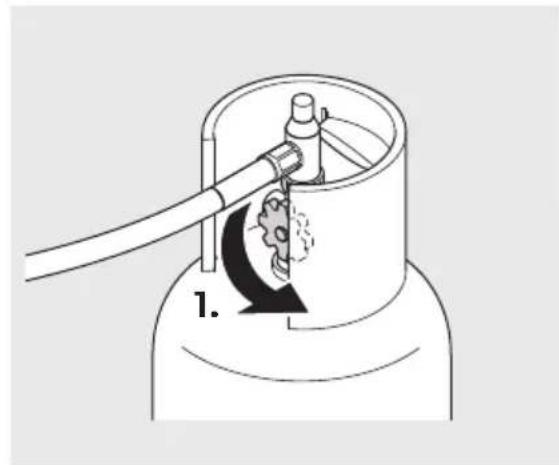

▶Completely close the valve on the gas cylinder.
▶Unscrew the regulator from the cylinder.
▶Check the condition of the gas hose. Replace the hose line if the material is brittle or porous.
▶Tightly screw the regulator by hand onto the new cylinder.

7 Cleaning and maintaining the device

▶ Proceed as follows: fig. 13, page 9.

▶Have a suitable authorized and qualified person perform a thorough examination of the device at least every 5 years.

8 Troubleshooting

Due to unforeseen circumstances the appliance may not operate as designed.

Indications of this are burner flash-backs, large soft yellow flames, flames rising extensively away from the burner and the appliance not igniting or remaining alight.

In these cases, check your gas supply to ensure there is sufficient gas, no leaks and the valves are opened sufficiently for use. If this is the case and the problem/s still persist, you will need to contact a suitably qualified authorized person to service your appliance.

Repairs to the gas supply parts on the device may only be carried out by a qualified technician.

▶Shut off the gas supply immediately if a fault occurs.
▶ Check again that the device has been assembled correctly and the parts are undamaged, especially the gas hose.
▶Replace the damaged parts.
▶Only use the device again once all the faults have been rectified.

9 W a r r a n t y

If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 1 year(s).

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

New Zealand only

This warranty policy is subject to the conditions and guarantees which are mandatory as implied by the Consumer Guarantees Act 1993(NZ).

10 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

11 Technical data

	Dometic CS102 Dometic CSG103
Connection pressure: 0.1 MPa
Gas consumption: 420 g/h 495 g/h
Gas category: Propane
Dimensions:OpenClosed	500 x 360 x 360 mm470 x 330 x 90 mm	515 x 360 x 430 mm490 x 315 x 170 mm
Weight: 4.1 kg 5.6 kg
Certification:		GMK10647

dometic.com

YOUR LOCAL DEALER

dometic.com/dealer

YOUR LOCAL SUPPORT

dometic.com/contact

dometic.com/sales-offices
