USER MANUAL EDC-FP90L Ruggard

Electronic Dry Cabinet

with Fingerprint Lock (90 L)

USER MANUAL

Black Ruggard oven with glass doors and control buttons (no visible text or symbols on the cabinet body)

THANK YOU FOR CHOOSING RUGGARD

The Ruggard Electronic Dry Cabinet protects your lenses, photographic and optical equipment, mobile electronics, and other valuable accessories from excessive moisture. Using the cabinet's fast-acting TE Cooling Wafer, you can regulate the interior's relative humidity to help prevent fungus and corrosion from damaging your gear. A convenient fingerprint lock allows easy and safe access to your gear inside. The cabinet offers silent operation, and the unit is dripless, so there's no need for a water tray.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Do not place any corrosive or flammable materials inside the cabinet.
• Keep this product away from direct sunlight, high temperatures, and windy environments.
• When storing food, medicine, or chemicals, make sure they are stored in a separate and sealed container.
• Keep this product away from children.
• This product is for indoor use only.
• All images are for illustrative purposes only.

OVERVIEW

Important! Make sure to retrieve the power adapter, feet ( ×4 ), and keys from the bottom of the box.

22 RH° 25 °F 1234567 SET

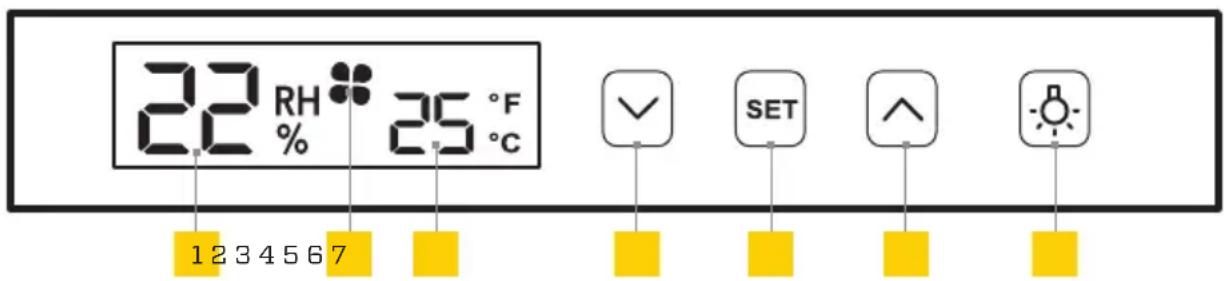

Control Panel

The illuminated digital display provides quick setting adjustments and offers an energy-saving auto-dimming function.

1. Relative humidity
2. Adjusting to new RH target
3. Temperature
4. Decrease RH value
5. Adjust RH/confirm setting
6. Increase RH value
7. Light and display on / light off

1 2 3 4 5 6 7 8 9

10 22+° 11 12 13 14 15 16 17

Inside

1. Sliding shelf (×3)
2. Key lock
3. Contoured foam lining
4. Flat foam lining (×2)
5. Adjustable, sliding quick-mount rails ( ×6 )
6. LED lights
7. Handle
8. Battery compartment and cover
9. Config. button

Front

1. Control panel
2. Fingerprint sensor
3. Micro-USB port

Back

1. DC port
2. Moisture sync

Parts

1. Door keys (×2)
2. Config. key
3. DC to Micro-USB adapter

Also included

• Power adapter
• Feet (×4)

ATTACHING THE CABINET FEET

1. Turn the dry cabinet on its side.

2. Screw in the four cabinet feet.

3. Flip the dry cabinet right side up.

OPENING THE CABINET FOR THE FIRST TIME

You can initially access the inside of the dry cabinet by using the included keys or supplied USB and power adapter.

Using the keys: Use the included keys to unlock and open the door.

Locked Unlocked

Using the USB Adapter:

1. Insert the USB adapter into the fingerprint lock's USB port.

2. Connect the included power adapter to the USB adapter and a power source.

3. Place your finger on the fingerprint sensor for about one second, until the sensor turns green, and open the door.

INSTALLING THE BATTERIES

1. Remove the lock's battery compartment cover and install three AAA batteries (not included). Install the two outside batteries first and then the middle battery. Make sure to install the batteries with the correct orientation, following the guide on the inside of the battery compartment.

2. Replace the compartment cover until it clicks shut.

Simple line drawing of a vertical object with a small yellow mark on the side (no text or symbols)

THE FINGERPRINT LOCK

The fingerprint lock keeps your photo and video equipment safe with the touch of a finger. You can easily store up to 20 fingerprints, and the lock offers automatic and manual locking modes.

Pure electrical circuit lines without any symbols

Adding Fingerprints

1. Use the config. key to press and release the config. button. You'll hear a beep, and the fingerprint sensor will turn blue.

2. Place your finger onto the sensor until you hear a beep.

3. Repeat Step 2 five more times. The sensor will turn green when your fingerprint is accepted.

If your fingerprint is not accepted, the sensor will beep and turn red. Continue to repeat the steps until complete.

Note: Make sure the key lock is in the vertical position, so the cabinet door lock engages properly.

Locked Unlocked

Deleting Fingerprints

Deleting fingerprints will delete all fingerprints stored in the memory.

Use the config. key to press and hold the config. button for about four seconds, until you hear four beeps, and then release.

Auto and Manual Mode Selection

There are two modes for accessing the inside of the EDC-FP90L. In manual mode, your fingerprint unlocks and locks the dry cabinet. In automatic mode, your finger unlocks the cabinet, but the unit automatically locks in about four seconds. The EDC-FP90L's default setting is auto mode.

Warning! Switching modes will delete all stored fingerprints.

To change the mode, use the config. key to press and hold the config. button until you hear a series of four beeps and then two beeps.

Low Battery Warning

If the fingerprint lock has low battery power, it will beep six times. Replace all the AAA batteries immediately. If the batteries die, use the included USB adapter and power adapter with the lock's USB port, or use the included keys to manually unlock the door. See Opening the Cabinet for the First Time above.

Important: Keep the keys and USB adapter in a safe place so you can access the contents of the dry cabinet if the batteries fail.

SETTING AND CHECKING HUMIDITY

The relative humidity setting regulates the entire cabinet interior. You can set the relative humidity percentage from 60% to 25% ^* , and it adjusts within 1 to 3 hours. The inside humidity can be decreased, but you cannot increase the humidity more than the surrounding environment. Keep the door closed to ensure optimal humidity levels.

Important: Dry off any items to remove excess moisture before placing them inside the dry cabinet.

1. Press the Sutton until the humidity display begins to flash.
2. Use the ( ) and ( ) buttons to set the desired relative humidity value. If you set the RH value lower than the current target, a icon will appear in the display.
3. Press the Shutton to confirm the settings.

You can verify the target humidity value by pressing and holding the SETton for approx. two seconds. The display will flash the target value and return to the actual humidity level reading.

*Relative humidity values programmed outside the 60% to 25% range will have no effect.

Note: Do not place the rear of the cabinet directly against a wall or other surface. This may reduce the operational efficiency. Keep the door closed to prevent the humidity increasing inside the cabinet.

SETTING FAHRENHEIT/CELSIUS

When turning on the unit for the first time, the temperature will be displayed in degrees Celsius.

This unit does not control temperature.

Press and hold the SButton for five seconds to switch between Celsius and Fahrenheit. Press the or arrow to confirm.

OPTIMAL RELATIVE HUMIDITY (RH) LEVELS

Relative Humidity (RH) Level Recommended Items
50%-60%	e documents, paper (fax, copy, print)
40%-50%	Camcorders, cameras, lenses, telescopes, microscopes, endoscopes, compact discs, film negatives, film transparencies/slides, microfilm, disk drives, audio and video tapes
35%-40%	tal powder products, electrical equipment, semiconductors, capacitors, printed circuit boards, IC, batteries and other electronic equipment, precision measuring tools, spectrometers, optics, lenses
25%-30%	Pharmaceutical raw materials, spices, powder coating, adhesives, seeds, pollen, dry flour

SPECIFICATIONS

Volume
Voltage
Power
Fingerprint lock power	tteries (×3) not included
Relative humidity	(±3%RH)
Outer dimensions (H × W × D)	6.8 × 16.7 × 14.6 in. (68 × 42.5 × 37 cm)
Inner dimensions (H × W × D)	4.8 × 15.7 × 13.4 in. (63 × 40 × 34 cm)
Weight
