Product Type	Fluorescent Light Fixture
Model	FRC-24 Ready Cool
Power Consumption	220 W (full) / 110 W (half)
Bulb Type	4-pin twin-tube daylight fluorescent (55 W each)
Number of Bulbs	4 (switchable to 2)
Input Voltage	110-240 VAC, 50/60 Hz
Amperage	1.1 A
Dimensions (with barn doors)	22.25 × 10.87 × 3.5 in. (56.51 × 27.61 × 8.89 cm)
Weight (with bulbs)	6.5 lb (2.95 kg)
Color Temperature	Daylight-balanced (approx. 5600 K)
Cooling System	Air-induction cooling
Light Control	Built-in barn doors with hammered silver reflective surface
Flicker-Free	Yes
Circuit Protection	Built-in fuse (includes 2 spare fuses)
Mounting	Flexible stand adapter (fits most light stands)
Power Switching	Two switches for full (4 bulbs) or half (2 bulbs) power
What’s Included	Fixtures, 4 bulbs, AC power cord, stand adapter, 2 spare fuses, padded carrying case, user manual
Warranty	1-year limited warranty
Safety Precautions	Keep away from water and flammable materials; do not disassemble; handle bulbs carefully (contain mercury)
Cleaning	Use a soft, dry cloth

Frequently Asked Questions - Ready Cool FRC-24 Impact

How do I install the bulbs in the FRC-24 fixture?

Disconnect the fixture from power. Remove the plastic retaining clip. Position the bulb with the printed side of the base facing up, align the pins with the holes in the base, carefully slide the bulb in until the clip locks. Replace the retaining clip. Repeat for each bulb.

How do I remove a bulb from the fixture?

Disconnect from power, remove the plastic retaining clip. Push the metal clip on the base to release the bulb, then carefully pull the bulb out. Replace the retaining clip.

What type of bulbs does the FRC-24 use?

It uses four 55W 4-pin twin-tube daylight fluorescent bulbs. They are included and are daylight-balanced (approx. 5600K).

Can I use only two bulbs instead of four?

Yes, the fixture has two switches that allow you to select between full power (4 bulbs, 220W) or half power (2 bulbs, 110W) for greater lighting versatility.

How do I change the fuse?

The fuse holder is located on the back of the unit. Turn it counterclockwise to remove the fuse. Replace it with a spare fuse (included) and turn clockwise to tighten. Ensure it is tight, otherwise the lights will not turn on.

Is the FRC-24 flicker-free?

Yes, the fixture is designed to be flicker-free, which is important for video and photography to avoid banding.

What are the safety precautions for handling fluorescent bulbs?

Fluorescent bulbs contain mercury. Handle with care to avoid breakage. If a bulb breaks, do not touch the mercury with bare hands. Dispose of broken bulbs properly according to local regulations.

What is the input voltage and power consumption?

The fixture operates on 110-240 VAC, 50/60 Hz, and draws 1.1 A. Maximum power consumption is 220W with all four bulbs.

How do I clean the fixture?

Disconnect the fixture from power and use a soft, dry cloth to clean the surface. Do not use water or solvents. Avoid touching the bulbs with bare fingers.

Does the FRC-24 come with a carrying case?

Yes, it includes a soft padded carrying case for transport and storage. The case helps protect the fixture and bulbs.

USER MANUAL Ready Cool FRC-24 Impact

Exterior view of a flat-screen optical setup with multiple white cylindrical components mounted on a black stand (no visible text or symbols)

FRC-24

Ready Cool

Fluorescent Light

INSTRUCTIONS

Precautions ⚠️

• Handle fluorescent bulbs with care. See Note below.
• Dispose of fluorescent bulbs properly.
• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and all flammable gases or liquids.
  • Make sure the unit is powered off when plugging it into a power source.
• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Impact will not be responsible for any damage.

• Handle the unit with care.

• Do not stare at the lights when they are powered on.
• Clean the unit with a soft, dry cloth.
• Keep this unit away from children.
• Use only parts provided by the manufacturer.
  • Make sure the item is intact and that there are no missing parts.
  • All photos are for illustrative purposes only.

Note: Fluorescent bulbs contain mercury. If a fluorescent bulb breaks, do not touch mercury with hands—exposure to mercury can lead to adverse health effects.

Introduction

Thank you for choosing Impact.

Thank you for choosing the Impact FRC-24 220 W Ready Cool Fluorescent Light. This lightweight daylight-balanced fluorescent lighting fixture is an inexpensive way to produce soft, professional lighting in the studio or on location.

Fluorescent bulbs deliver diffused, flattering light. Fluorescents are also cool to the touch, so they're ideal for photographing anything that's affected by heat, like food or people. The FRC-24 air-induction cooling system keeps everything really cool.

Your Ready Cool light has a flexible stand adapter that makes it possible to mount the fixture to most light stands and easily position the light. The built-in barn doors provide control over your lighting. The easy-access built-in fuse protects the unit from overloaded electrical circuits—it’s always a good idea to keep spare fuses on hand.

The included daylight-balanced bulbs will produce light with a color temperature similar to daylight. The hammered silver reflective surface on the barn doors maximizes light output. The FRC-24 fixture has two switches to select full or half power—you can choose between 220 W or 110 W for greater lighting versatility.

Features

• Cool-running daylight-balanced fluorescent lights
- Flicker-free lighting
- Lightweight fixture
• Built-in barn doors with hammered silver reflective surface
- Air-induction cooling
- 2-bulb/4-bulb switching
• Built-in fuse circuit protection
- Padded carrying case

Contents Include

• FRC-24 Ready Cool Fluorescent Light Fixture
• Four 55 W 4-pin twin-tube daylight fluorescent bulbs
• AC power cord
• Flexible light stand adapter
• 2 Spare fuses
• Soft padded carrying case
• User manual

Specifications

Input Voltage 110\~240 VAC 50/60 Hz

Amperage 1.1 amps

Bulb Switching 4 bulbs/2 bulbs

Bulb Type Standard 4-pin twin-tube daylight

Dimensions 22.25 × 10.87 × 3.5 in.

fluorescent

(56.51 × 27.61 × 8.89 cm)

Weight (including bulbs) 6.5 lb. (2.95 kg)

Setup

Mounting bulbs in the fixture

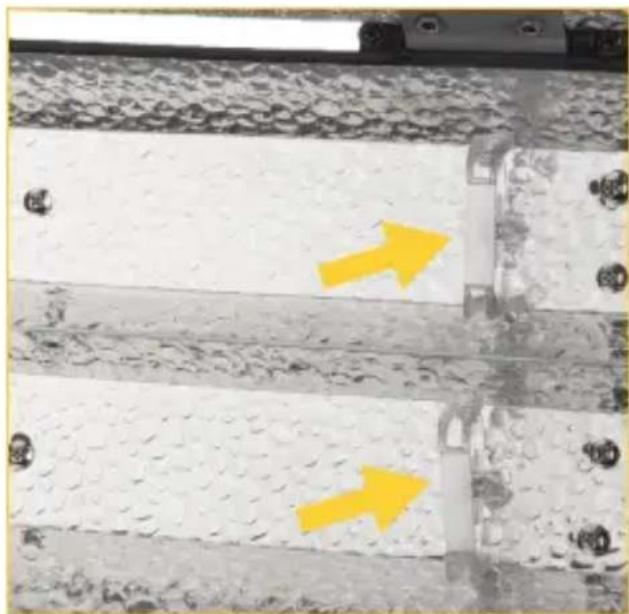

Close-up of a textured surface with yellow arrows pointing to specific features (no text or symbols visible)

1. Disconnect fixture from power source

2. Remove plastic retaining clip

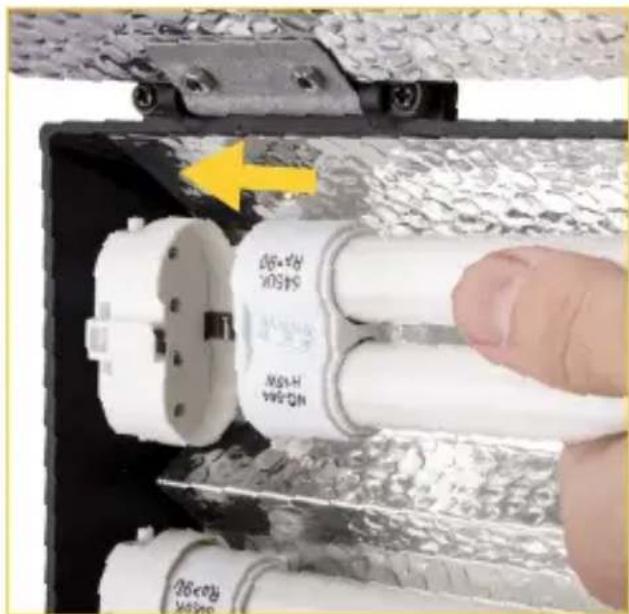

Close-up of a hand inserting a white plastic electrical plug into a black enclosure, with no visible text or symbols on the component itself.

1. Position bulb with printed side of base end facing up

2. Make sure pins on bulb align with holes in base

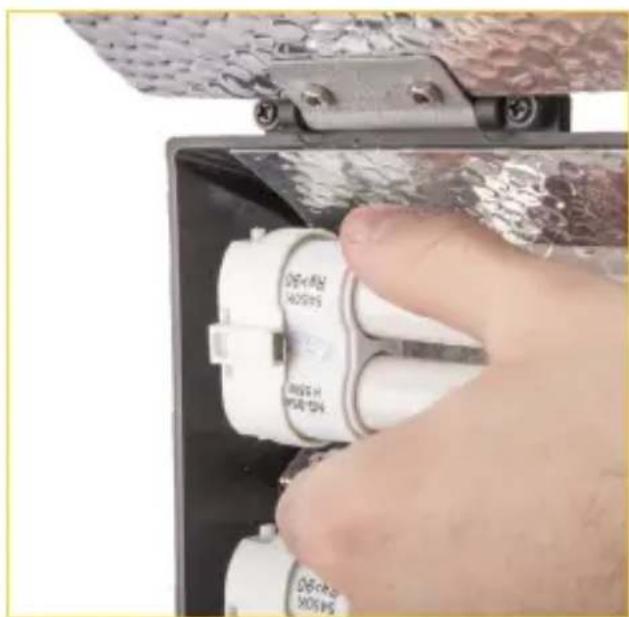

Close-up of a hand inserting a white electrical component into a black housing (no visible text or symbols)

1. Carefully slide bulb into base until the clip locks the bulb into place

2. Be sure bulb is securely locked into base

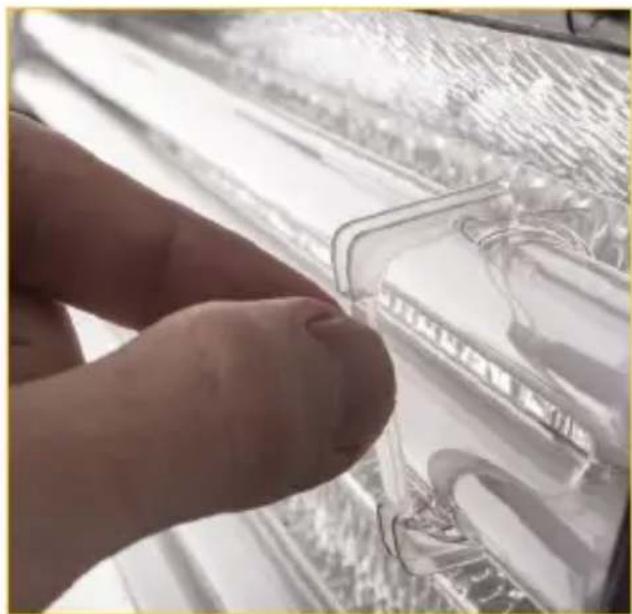

Close-up of a finger pointing at a transparent plastic panel with visible traces and components (no text or symbols)

1. Replace plastic retaining clip

2. Repeat procedure for each bulb

3. Before you turn the Ready Cool fixture on for the first time, be sure that the fuse holder on the back of the unit is turned clockwise until tight. If it's loose, the lights will not turn on.

Removing bulbs from the fixture

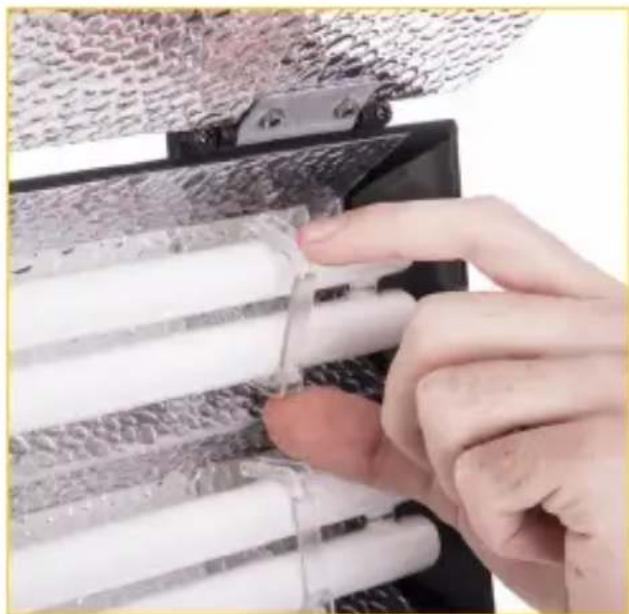

Close-up of a hand inserting a flexible plastic tube into a black electronic device (no visible text or symbols)

1. Disconnect fixture from power source

2. Remove plastic retaining clip

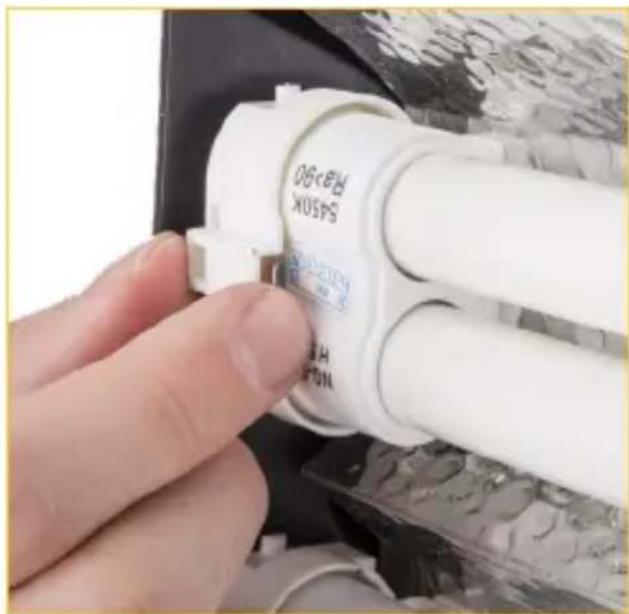

1. Push metal clip on base to release bulb

2. Carefully pull bulb out of base

3. Replace plastic retaining clip.

One-Year Limited Warranty

This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Impact is a registered trademark of the Gradus Group. © 2020 Gradus Group LLC. All Rights Reserved.
