ZWBMS-94 - Projector accessory Elite Screens - Free user manual and instructions

Product Type	Projector Mount
Brand	Elite Screens
Model	ZWBMS-94
Material	Steel
Color	Black
Weight Capacity	30 lbs (13.6 kg)
VESA Compatibility	Up to 400x400 mm
Tilt Adjustment	±15 degrees
Swivel Adjustment	±15 degrees
Rotation	360 degrees
Distance from Ceiling	Adjustable, 2-6 inches (50-150 mm)
Installation	Ceiling mount, hardware included
Dimensions (L x W x H)	300 x 200 x 100 mm (approx.)
Weight	1.5 kg (approx.)
Warranty	1 year
Compliance	UL Listed
Box Contents	Mount, hardware pack, manual

Frequently Asked Questions - ZWBMS-94 Elite Screens

What is the maximum weight capacity of the Elite Screens ZWBMS-94 mount?

The mount supports projectors up to 30 lbs (13.6 kg).

What VESA patterns are compatible with this mount?

It is compatible with VESA patterns up to 400x400 mm, covering most standard projectors.

Can the mount be used for both ceiling and wall installation?

The ZWBMS-94 is designed primarily for ceiling mounting. For wall installation, please check compatibility or use a dedicated wall mount.

What tools are needed for installation?

You will need a drill, screwdriver, wrench, and a stud finder (recommended). All mounting hardware is included.

Does the mount allow tilt and swivel adjustments?

Yes, it offers ±15 degrees tilt and ±15 degrees swivel for precise projector positioning.

How far from the ceiling does the projector hang?

The distance is adjustable, typically between 2 to 6 inches (50-150 mm) from the ceiling.

Is the mount easy to install?

Installation is straightforward with the included manual. It requires basic DIY skills and about 30 minutes.

What is the warranty period for this mount?

Elite Screens offers a 1-year limited warranty against defects in materials and workmanship.

Can I use this mount with a short-throw projector?

Yes, as long as the projector weight and VESA pattern are within the specified limits. Short-throw projectors are typically lightweight and compatible.

Is the mount made of durable materials?

Yes, it is constructed from heavy-duty steel with a black powder-coated finish for durability and corrosion resistance.

USER MANUAL ZWBMS-94 Elite Screens

ELITE SCREENS

WhiteBoard Projection Screen

Portable Mobile Stand

User's Guide

Parts List for Portable Mobile Stand

Please make sure all parts listed below are included before proceeding with the installation.

A. M6x40 Hex Screw (12pcs)

B. M6 Nut (6pcs)

C. M6 Washer (18pcs)

D. Wheel (4pcs)

E1. Top Left Bracket (1pc)

E2. Top Right Bracket (1pcs)

F. Bottom Foot Support Bar (2pcs)

G. Side Legs (2pcs)

H1. Left Bottom Foot (1pc)

H2. Right Bottom Foot (1pc)

I. Middle Support Bar (3pcs)

Installation Instructions

Elite Screens recommends two persons to assemble the Portable Mobile Stand and to attach the Whiteboard.

1. Insert the Wheels (D) to the Bottom Feet (H1 & H2) as shown in the figure below.

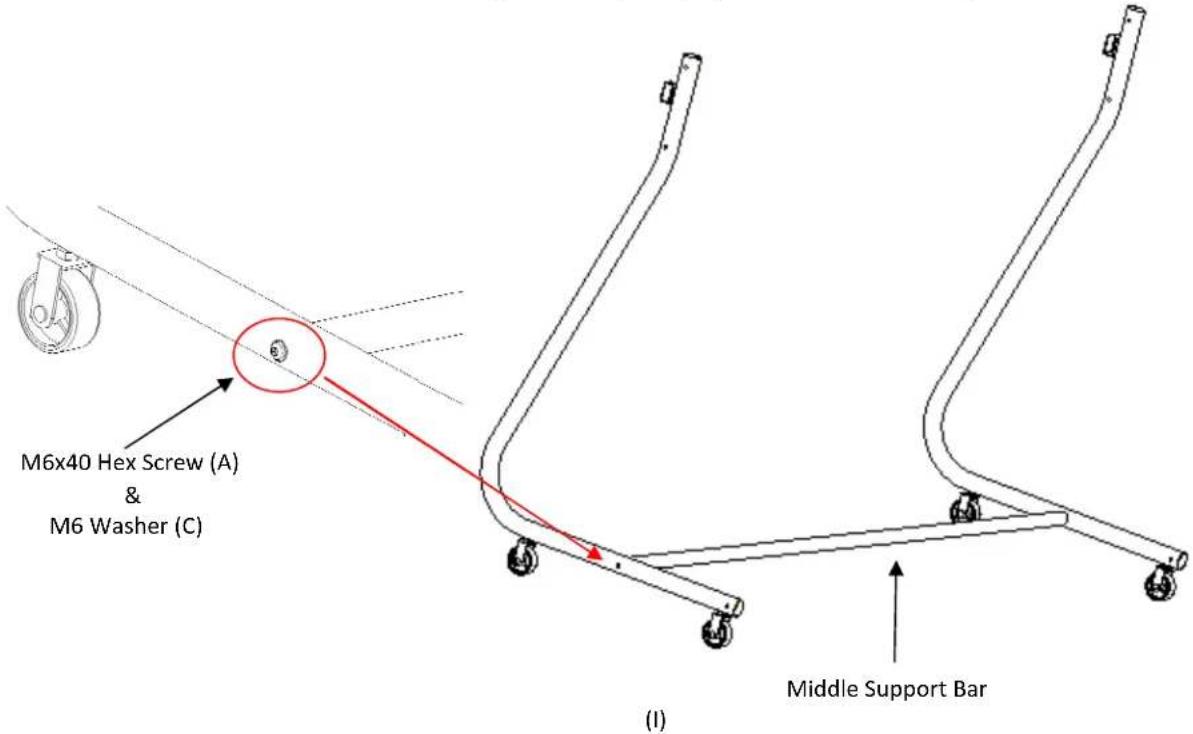

1. Attach one Middle Support Bar (I) to the Bottom Feet (H1 & H2) and secure with the M6x40 Hex Screws (A) & M6 Washers (C).

Note: The three Middle Support Bars (1. x 3pcs) are all the same length.

1. Attach the Bottom Foo t Support Bars (F) to the Bottom Feet (H1 & H2) and secure with the M6x40 Hex Screws (A), M6 Washers (C) and M6 Nuts (B).

1. Attach the Side Legs (G) to the Bottom Feet (H1 & H2). Attach one Middle Support Bar (I) to the Side Legs (I) and secure with M6x40 Hex Screws (A) & M6 Washers (C).

Note: You will be attaching the 2^nd Middle Support Bar (1. x 3pcs).

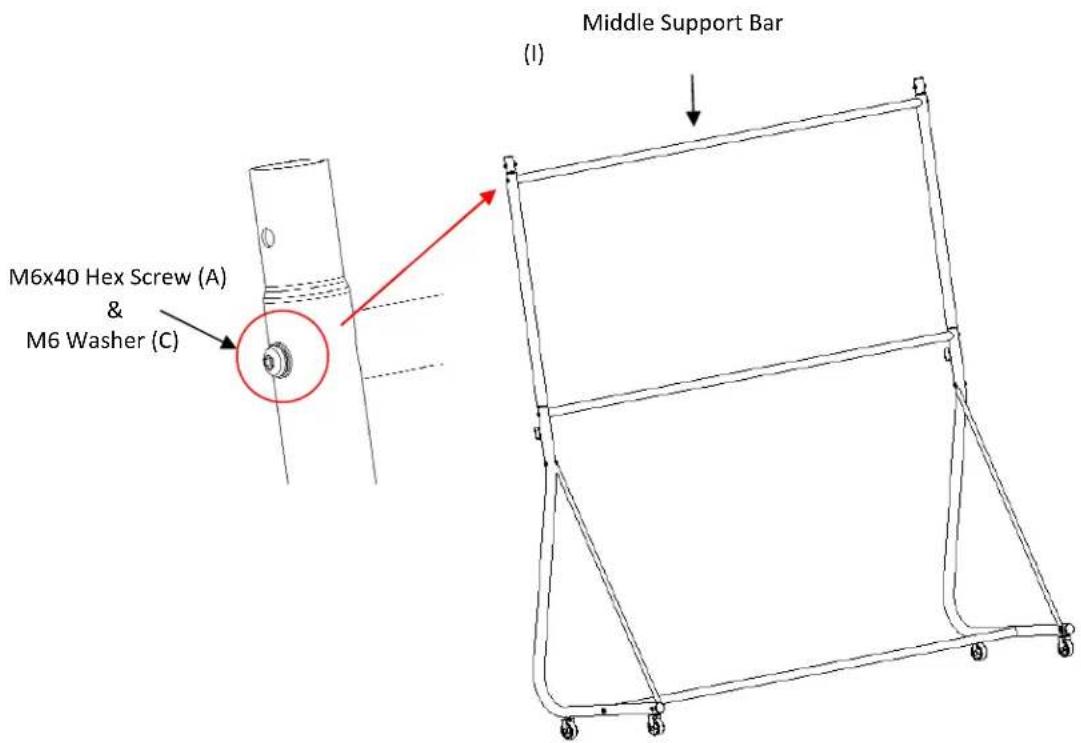

1. Attach the 3 ^rd Middle Support Bar (I) to the Side Legs (G) and secure with M6x40 Hex Screws (A) & M6 Washers (C).

Note: You will be attaching the 3^rd Middle Support Bar (I. x 3pcs).

1. Attach the Top Brackets (E1 & E2) to the Side Legs (G) and secure with the M6x40 Hex Screws (A), M6 Washers (C) and M6 Nuts (B).

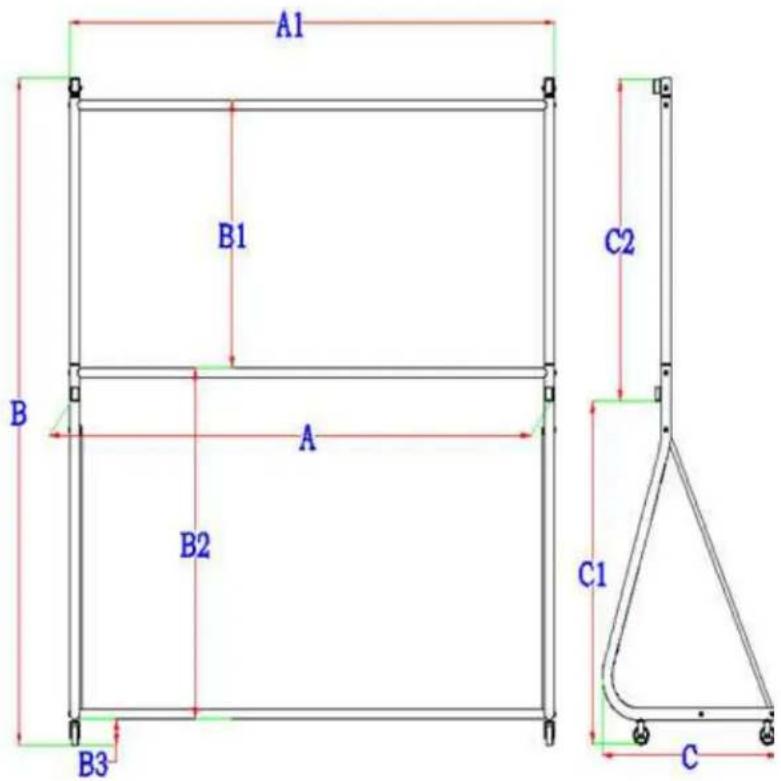

Portable Mobile Stand Dimension Table

Unit: mm
Model Number	Screen Diag. & Aspect Ratio	(A) (A1) (B) (B1) (B2) (B3) (C) (C1) (C2)
ZWBMS-58 58" (4:3) 1221 1225	1810 710	970 70	625 960	865
ZWBMS-77 77" (4:3) 1611 1615	1810 710	970 70	625 960	865
ZWBMS-87 87" (16:10) 1920 1924	1810	710 970	70 625	960 865
ZWBMS-94	94" (16:9)	2125	2129	1810	710	970	70	625	960	865
Unit: inch
Model Number	Screen Diag. & Aspect Ratio	(A) (A1) (B) (B1) (B2) (B3) (C) (C1) (C2)
ZWBMS-58	58" (4:3)	48.1	48.2	71.3	28	38.2	2.8	24.6	37.8	34.1
ZWBMS-77	77" (4:3)	63.4	63.6	71.3	28	38.2	2.8	24.6	37.8	34.1
ZWBMS-87	87" (16:10)	75.6	75.7	71.3	28	38.2	2.8	24.6	37.8	34.1
ZWBMS-94	94" (16:9)	83.7	83.8	71.3	28	38.2	2.8	24.6	37.8	34.1

Warranty Policy

• Two (2) Year parts and labor warranty from defects in workmanship from purchase date as follows (except for refurbished units as specified below).
• Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government, Educational, Military, & Religious) purchases of new product only.
  • Refurbished Units carry a 90-DAY parts and labor warranty.
  • Each party will be responsible for one way shipping during the warranty period.
• A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit or parts have been received. Once the product is received, Elite Screens will send out a replacement *unit to the customer by ground service (subject to inventory availability).
• Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned at your expense. The RMA Number must be included on the outside label of your shipping box. Our warehouse is not authorized to accept returns without an RMA number on the shipping label.
  • RMA Numbers are valid for 45 days from the date issued.
• Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer will be responsible for shipping and handling fees. If reported after 30 days of receipt, the customer will be responsible for cost of parts and shipping & handling fees.

*A New or refurbished replacement will be send out to the customer depending on the type of purchase (new or refurbished) and based on stock availability.

North America only U.S. and Canada

For Warranty and Service requests, please submit an RMA/Service Form at: www.elitescreens.com/warrantysupportform

Please visit this link for full Warranty information: www.elitescreens.com/warranty

For Customer Service and Technical questions, please contact Elite Screens at:

Telephone: [phone] [e-mail]

Fax: [phone] [e-mail]

REMEMBER TO REGISTER YOUR PRODUCT AT:

www.elitescreens.com
