MQ5B150GB - Blender SIEMENS - Free user manual and instructions

Product Type	Hand Blender (Immersion Blender)
Brand	Siemens
Model	MQ5B150GB
Voltage	220-240 V
Frequency	50/60 Hz
Power Consumption	Not specified (est. 400-600 W)
Blade Material	Stainless steel
Blender Foot Material	Plastic with metal shaft
Speed Control	Single speed (continuous ON button)
Functions	Mixing, blending, puréeing
Applications	Mayonnaise, sauces, drinks, baby food, soups, cooked fruits and vegetables
Incompatible Uses	Not suitable for mashed potatoes or processing very hot food above 80°C
Included Accessories	Base unit, blender foot
Optional Accessory	Universal cutter (order no. 640698 or 640686)
Cleaning - Motor Unit	Wipe with damp cloth; do not immerse in water or clean in dishwasher
Cleaning - Blender Foot	Dishwasher safe or brush under running water; dry upright
Safety Features	Automatic stop when released; do not use with wet hands; keep away from children under 8
Warranty	As per country conditions (typically 2 years)

Frequently Asked Questions - MQ5B150GB SIEMENS

Can I blend hot liquids with the Siemens MQ5B150GB?

Yes, but allow hot food to cool to at least 80°C before blending to avoid splashing and damage.

Is the blender foot dishwasher safe?

Yes, the blender foot can be cleaned in the dishwasher or with a brush under running water. Dry it upright.

Can the motor unit be immersed in water for cleaning?

No, never immerse the base unit in water or clean it in the dishwasher. Wipe with a damp cloth only.

What can I prepare with this hand blender?

It is ideal for mayonnaise, sauces, drinks, baby food, purées and blending cooked fruits and vegetables.

Can I make mashed potatoes with this blender?

No, the hand blender is not suitable for preparing mashed potatoes due to the risk of over-mixing.

How do I attach the blender foot?

Place the blender foot on the base unit and rotate anticlockwise until it locks into position.

What safety precautions should I follow?

Always disconnect the appliance when not in use. Never operate with wet hands, and keep the appliance out of reach of children under 8 years.

Can I use the blender without the blade guard?

The blender foot has built-in protection. Never touch the sharp blades directly; use a brush for cleaning.

What should I do if the power cord is damaged?

A damaged power cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Does the appliance come with a universal cutter?

The universal cutter is included only in some models. If not included, it can be ordered from customer service (order no. 640698 or 640686).

USER MANUAL MQ5B150GB SIEMENS

Operating instructions

تعليمات الاستخدام

SIEMENS

en English 3

ar عربي 8

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety	3
Overview	4
Operation	4
After using the appliance/cleaning	5
Disposal	5
Guarantee	5

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use.

The appliance is only suitable for cutting or mixing food. It must not be used for processing other objects or substances.

Please keep the Operating instructions in a safe place.

If passing on the appliance to a third party, always include the Operating instructions.

General safety instructions

Electric shock risk

This appliance shall not be used by children less than 8 years but can be used by older children with supervision. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

en

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Electric shock risk

Do not use the hand blender with damp hands and do not operate it at no load.

Do not immerse the appliance in liquid above the blender foot-base unit connection point.

Never immerse the base unit in liquids and do not clean in the dishwasher.

Caution when processing hot liquids. Liquids may splash during processing.

Never place blender foot on hot surfaces or use in very hot food. Leave hot food to cool down to at least 80 °C before processing with the blender!

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot.

Never clean the blades with bare hands. Use a brush.

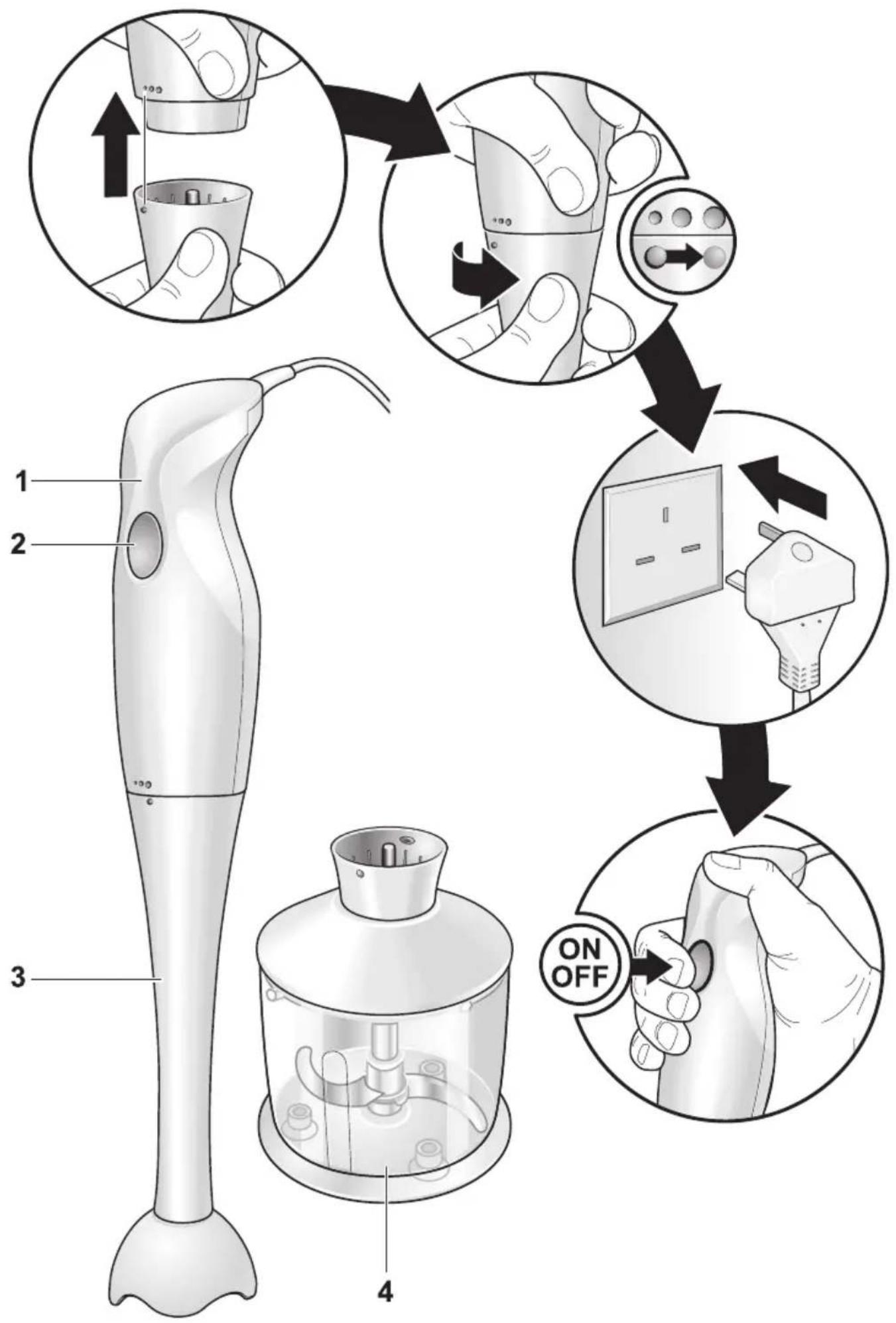

Overview

Please fold out the illustrated pages.

1 Base unit
2 ON button

The hand blender remains switched on as long as the ON button is pressed.

3 Blender foot

Attach the blender foot and lock into position.

some models

4 Universal cutter

(separate operating instructions) If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 640698 or 640686).

With the universal cutter use the appliance at full power to cut hard cheese (according to the recipe). You can find the recipe in the instructions for use of the universal cutter.

Operation

For blending mayonnaise, sauces, drinks, baby food and for cutting cooked fruit and vegetables.

For puréeing soups.

i The hand blender is not suitable for preparing mashed potatoes.
- Completely unwind the power cord.
- Place the blender foot (3) on the base unit (1) and rotate in an anti-clockwise direction.
- Insert the mains plug.
- Place food in a plastic jug.
- Firmly hold the hand blender and jug. To prevent the ingredients from splashing, do not press the ON button (2) until the blender foot has been immersed in the ingredients.
i Always switch off the hand blender before taking it out of the processed food.

After using the appliance/cleaning

Warning!

Never immerse the base unit in water and donot clean in the dishwasher.

Do not use a steam cleaner!

• Pull out the mains plug.
• Wipe the base unit with a damp cloth and then wipe dry.
• The blender jug can be cleaned in the dishwasher.
• Clean the blender foot in the dishwasher or with a brush under running water.
• Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out.

If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EG on Waste Electrical and Electronic Equipment – WEEE. The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
