USER MANUAL TMA812 Bogen

TMA812 Tilt Mount Adapter for NEAR A8 and A12 Loudspeakers

Installation Instruction Manual

Technical line drawing of a mechanical assembly with ventilation grilles and clamps (no text or symbols)

BOGEN®

COMMUNICATIONS, INC.

50 Spring Street, Ramsey, NJ 07446 USA

Tel. [phone] • Fax: [phone]

www.bogen.com

TMA812 - Tilt Mount Adapter Components

UP STATION P

STATIONARY MOUNTING BRACKET

Technical line drawing of two metal bracket components (no text or symbols)

(2) POLE ADAPTERS

Technical line drawing of a metal bracket with mounting holes and two side brackets (no text or symbols)

ADJUSTABLE MOUNTING BRACKET

Pure line drawing of three wavy, coiled structures without any text or symbols

(4) MOUNTING CHAIN HOOKS

(4) MOUNTING CHAIN HOOK WING NUTS

(4) #10 AXLE/ADJUST SCREWS

Line drawing of two interlinked chain links with no text or symbols

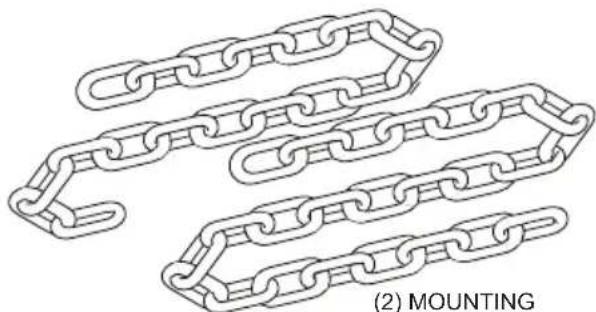

(2) MOUNTING CHAINS

NYLON TIE

ITEMS INCLUDED WITH A8/A12 LOUDSPEAKER

(2) SELF ADHESIVE RUBBER DISKS

A8/A12 SPEAKER HEX SOCKET SAFETY BOLT SPEAKER MOUNTING BRACKET

8 FT. SAFETY CABLE

Pure diagram of a coiled wire or filament without any text, numbers, or symbols

THREAD LOCKING COMPOUND

LOCK WASHER

SAFETY TETHER LINK

ADJUSTABLE WIRE CLAMP

1A

WALL MOUNTING:

Attaching Stationary Mounting Bracket to a Wall or other Flat Surface

A) Using proper anchors* (not supplied), attach STATIONARY MOUNTING BRACKET to wall or flat surface.
B) Skip ahead to Section 3 to continue with Speaker Adjustable Mounting Attachment Installation.

*NOTE: WHEN MOUNTING TO WALL OR FLAT SURFACE, BE SURE THE USER SELECTED ATTACHMENT AREA AND THE ANCHORS ARE TOGETHER ABLE TO SAFELY SUPPORT AT LEAST 300 LBS.

WALL OR FLAT SURFACE UP STATIONARY MOUNTING BRACKET (WALL MOUNTING ANCHORS / SCREWS & WASHERS NOT PROVIDED)

1B

POLE MOUNTING:

Attaching Pole Adapters to the Stationary Mounting Bracket

A) Attach the 2 POLE ADAPTERS to the STATIONARY MOUNTING BRACKET using 4 (#6) mounting screws as shown here to create the MOUNTING BRACKET ASSEMBLY. Apply THREAD LOCKING COMPOUND to these screws.

POLE ADAPTERS to the Y MOUNTING BRACKET mounting screws as shown the MOUNTING BRACKET Apply THREAD LOCKING to these screws. #6 MOUNTING SCREWS UP TOP POLE ADAPTERS BOTTOM STATIONARY MOUNTING BRACKET

2

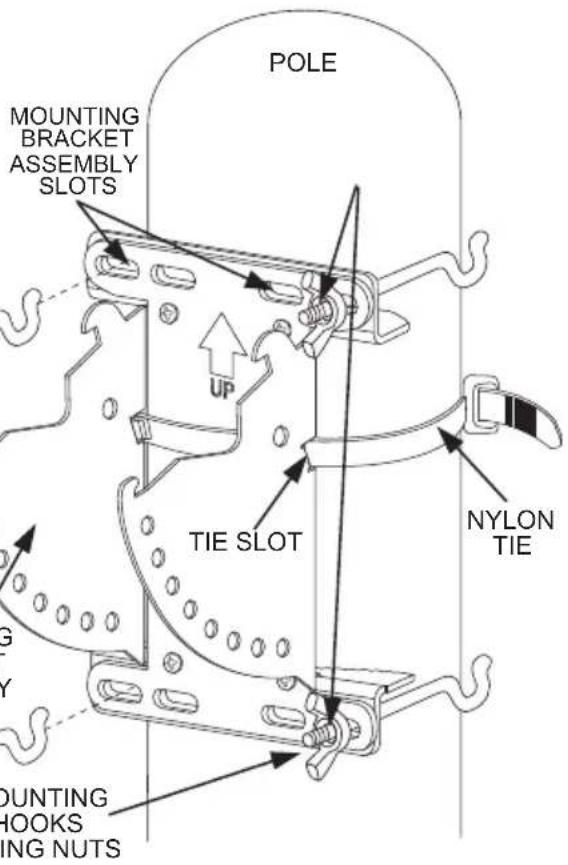

Attaching the Mounting Bracket Assembly to a Pole

A) Thread NYLON TIE thru Tie Slots and around pole to TEMPORARILY hold the Mounting Bracket Assembly in place on pole.
B) Apply a bead of THREAD LOCKING COMPOUND onto each Hook. Insert (4) MOUNTING CHAIN HOOKS and attached WING NUTS through the most appropriate top & bottom Bracket Assembly slots.

POLE MOUNTING BRACKET ASSEMBLY SLOTS UP TIE SLOT NYLON TIE DOUNTING HOOKS NUTS

THREAD LOCKING COMPOUND (On All Hook Threads)

MOUNTING HOOKS & WING NUTS

MOUNTING HOOKS & WING NUTS POLE TOP CHAIN MOUNTING BRACKET ASSEMBLY NYLON TIE BOTTOM CHAIN MOUNTING HOOKS & WING NUTS

C) With Hooks fully extended, attach one end of MOUNTING CHAIN to one of the Top Mounting Hooks. Pull the Chain tight to Pole and then attach shortest link to corresponding Top Hook. (To keep chain from being jammed by the hook, place link on outside of the Hook.) Spin Wing Nuts down evenly, enough to keep the Assembly in place.
D) Repeat process for Bottom Hooks and Chains.
E) Hand tighten all Wing Nuts evenly, ensuring Mounting Bracket Assembly is difficult to rotate on the Pole. Then "tap" the chain sharply to remove any slack and fully re-tighten all Wing Nuts.

IMPORTANT: HAND TIGHTEN ONLY. EXCESS TIGHTENING MAY CAUSE HOOK ENDS TO SPREAD.

3

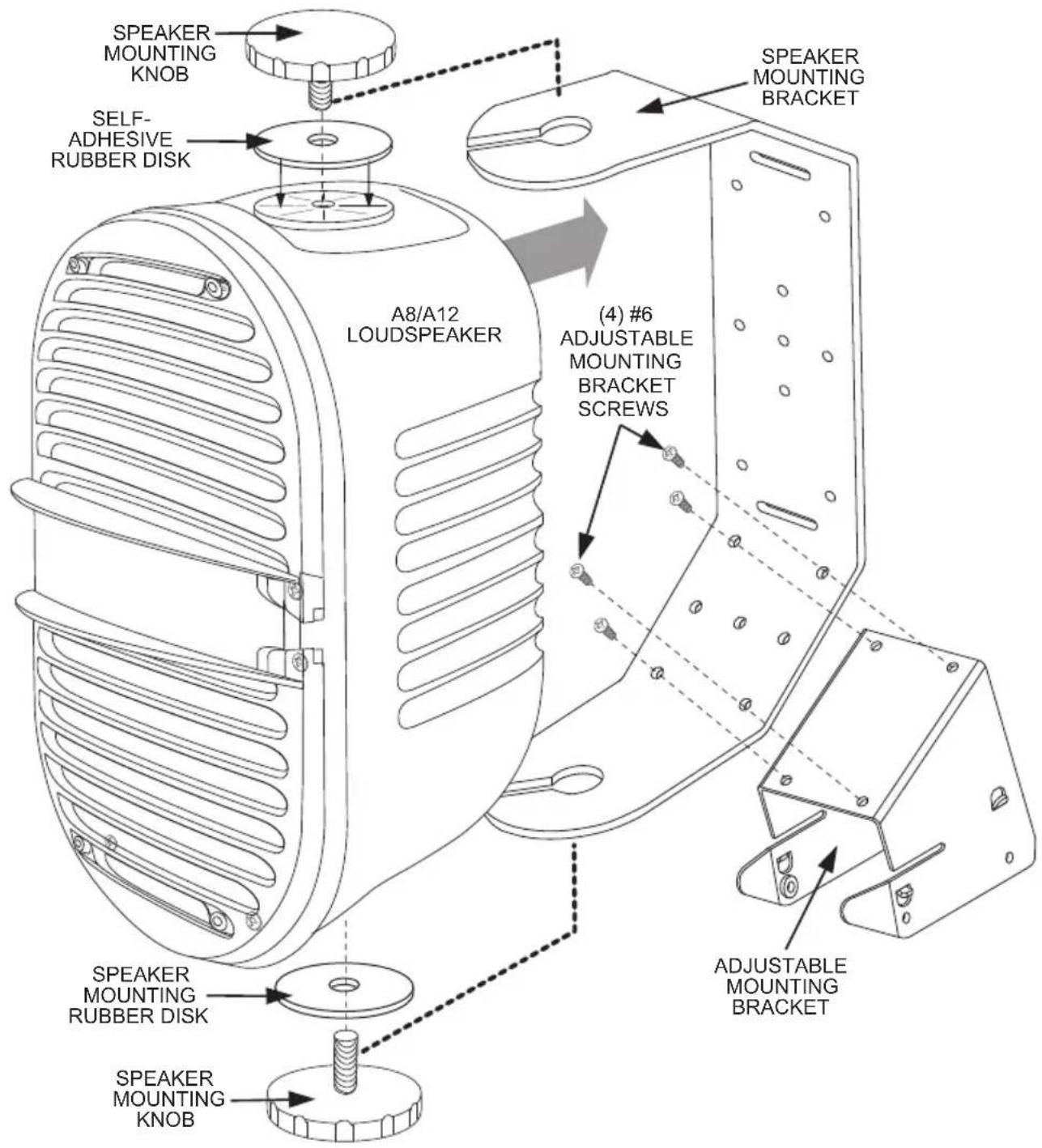

Attach A8/A12 Speaker and Speaker Mounting Bracket to the Adjustable Mounting Bracket

A) Attach ADJUSTABLE MOUNTING BRACKET to the A-Series SPEAKER MOUNTING BRACKET by using 4 (#6) Mounting Screws to create the SPEAKER MOUNTING ASSEMBLY. Apply THREAD LOCKING COMPOUND on each of the #6 screws.
B) Adhere the 2 Self-Adhesive Rubber Disks to the Speaker Cabinet as shown below. Partially screw into the speaker cabinet the 2 Speaker Mounting Knobs, then slide the A-Series Loudspeaker in through the slots of the Speaker Mounting Assembly and fully tighten the Mounting Knobs.

SPEAKER MOUNTING KNOB SELF-ADHESIVE RUBBER DISK A8/A12 LOUDSPEAKER SPEAKER MOUNTING BRACKET (4) #6 ADJUSTABLE MOUNTING BRACKET SCREWS ADJUSTABLE MOUNTING BRACKET SPEAKER MOUNTING RUBBER DISK SPEAKER MOUNTING KNOB

4

Attach Speaker Mounting Assembly to Stationary Mounting Bracket

A) Place Speaker Mounting Assembly on the Stationary Mounting Assembly by putting the FRONT TABS of Speaker Assembly into the two FRONT CATCH slots of the Mounting Assembly (see INSET 1).
B) With both Front Tabs hooked securely into both Front Catch slots, gently rotate Speaker Assembly back until both REAR TABS "snap" into both REAR CATCH slots (see INSET 2). When properly engaged, this will provide TEMPORARY support for the Speaker Assembly. DO NOT LEAVE SPEAKER IN THIS POSITION WITHOUT COMPLETING THE INSTALL PROCEDURES SHOWN WITHIN SECTION 5.

IMPORTANT: BE SURE THAT ALL TABS AND CATCH SLOTS ARE PROPERLY ENGAGED BEFORE LETTING GO OF THE SPEAKER ASSEMBLY. SERIOUS INJURY COULD RESULT WITH IMPROPER CONNECTIONS.

ADJUSTABLE MOUNTING BRACKET A8/A12 SPEAKER ASSEMBLY REAR TAB FRONT TAB FRONT CATCH STATIONARY MOUNTING ASSEMBLY REAR CATCH FRONT TAB FRONT CATCH REAR TAB REAR CATCH

INSET 1
INSET 2

5

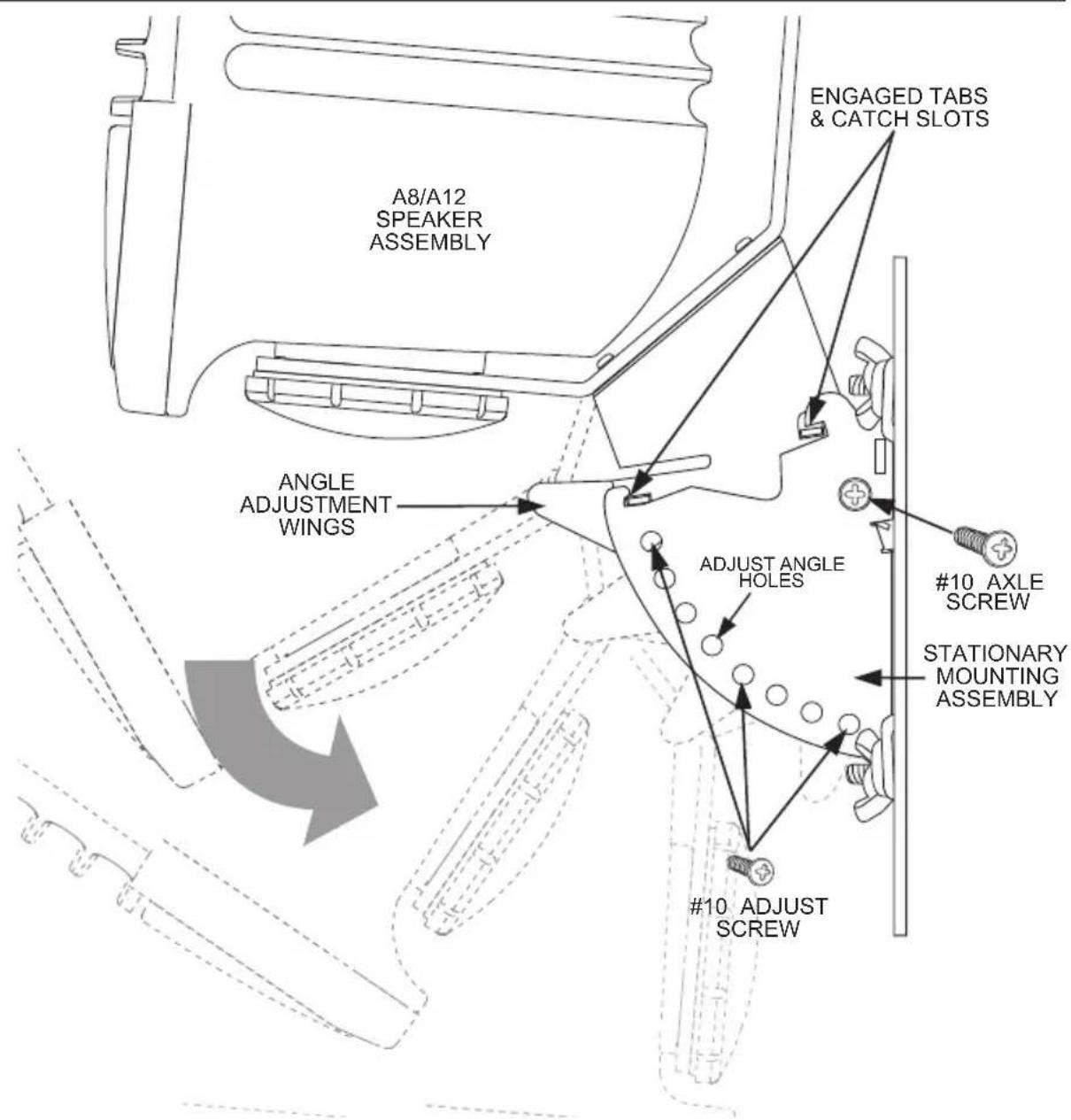

Speaker Assembly Angle Adjustment and Locking Procedure

A) Add a drop of THREAD LOCKING COMPOUND to the 2 (#10) AXLE SCREWS and loosely insert them in both sides of Stationary Mounting Bracket and into the Speaker Assembly Bracket. This will provide safe retention of Speaker Assembly.
B) Pinch inward both sides of the ANGLE ADJUSTMENT WINGS on the Mounting Bracket to rotate the Speaker Assembly to desired angle. Front Tabs on each side will then engage ADJUST ANGLE HOLES on the Mounting Assembly.
C) Once angle is selected, apply Thread Locking Compound and insert 2 (#10) ADJUST SCREWS into Adjustment Angle Holes directly below the Tab/Holes selected.
D) Finally, tighten all four Screws SECURELY.

IMPORTANT: ALL FOUR (2 AXLE & 2 ADJUST) SCREWS MUST BE IN PLACE AND FULLY TIGHTENED FOR ASSEMBLY TO BE SAFELY SECURED.

A8/A12 SPEAKER ASSEMBLY ENGAGED TABS & CATCH SLOTS ANGLE ADJUSTMENT WINGS ADJUST ANGLE Holes #10 AXLE SCREW STATIONARY MOUNTING ASSEMBLY #10 ADJUST SCREW

6

Speaker Safety Cable and Tether Link Attachment Installation

A) Find the SAFETY ATTACHMENT POINT located on the rear of the A8/A12 Speaker. Using the (1/4"- 20 x 1/2") HEX SOCKET SAFETY BOLT and the LOCK WASHER, secure the SAFETY TETHER LINK into the Safety Attachment Point, vertically, as shown.

SAFETY TETHER LINK SAFETY ATTACHMENT POINT SOCKET TETY BOLT (with Speaker) LOCK WASHER (Included with Mount)

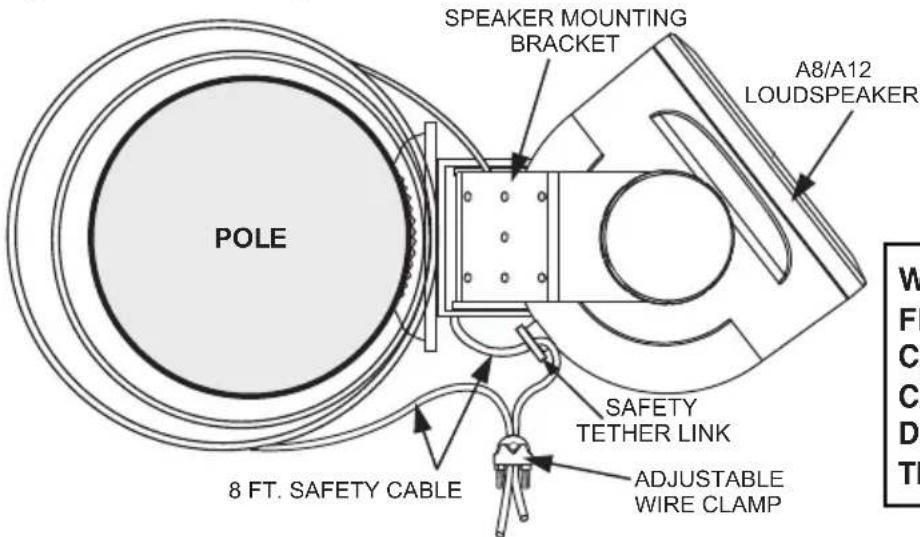

B) POLE MOUNT (TOP-DOWN VIEW)

SPEAKER MOUNTING BRACKET A8/A12 LOUDSPEAKER POLE SAFETY TETHER LINK ADJUSTABLE WIRE CLAMP 8 FT. SAFETY CABLE

WHEN INSTALLATION IS FINISHED, THE SAFETY CABLE SHOULD BE TAUT. CABLE SLACK SHOWN IN DRAWING IS FOR ILLUSTRATIVE PURPOSES ONLY.

Take the 8 FT. SAFETY CABLE and loop it tightly around the Pole/Post 2-3 times. Proceed to feed one end of the Safety Cable in through the Speaker Mounting Bracket, then into the open hole of the Safety Tether Link. Pull the Cable taut, leaving very little slack, and secure the two Cable ends using the ADJUSTABLE WIRE CLAMP.

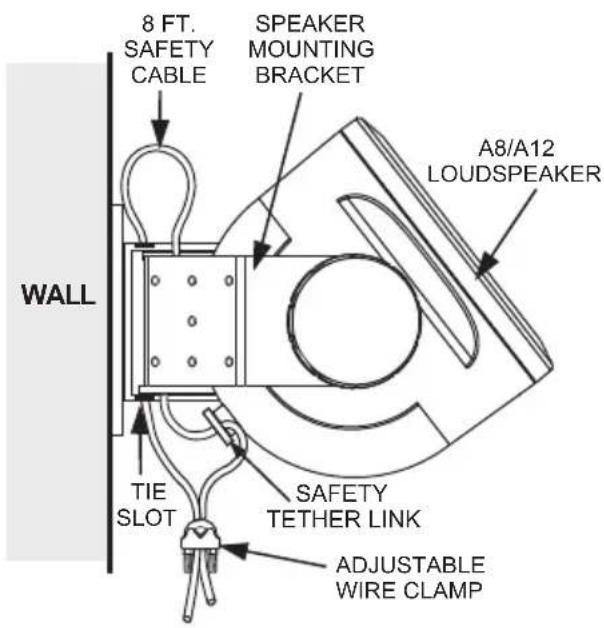

C) WALL MOUNT (TOP-DOWN VIEW)

Take the 8 FT. SAFETY CABLE and feed it through the Tie Slots (see figure A in Section 2 for Tie Slot location) of the mounted Stationary Mounting Bracket, then into the open hole of of the Safety Tether Link. Pull the Cable taut, leaving very little slack, and secure the Cable ends using the ADJUSTABLE WIRE CLAMP.

WHEN INSTALLATION IS FINISHED, THE SAFETY CABLE SHOULD BE TAUT. CABLE SLACK SHOWN IN DRAWING IS FOR ILLUSTRATIVE PURPOSES ONLY.

8 FT. SAFETY CABLE SPEAKER MOUNTING BRACKET A8/A12 LOUDSPEAKER WALL TIE SLOT SAFETY TETHER LINK ADJUSTABLE WIRE CLAMP
