Product Type	Dish Storage Drawer
Brand	Constructa
Model	CZ4S00160
Maximum Load	15 kg
Opening Mechanism	Push-to-open (press center)
Anti-Slip Base	Yes (anti-slip overlay)
Power Supply	Mains connection (230 V, 50 Hz typical)
Installation Requirement	Cabinet without back panel; gap min. 45 mm to wall
Front Material	Stainless steel or glass (depending on model)
Cleaning Method	Water and mild detergent; do not use abrasives or steam cleaners
Stainless Steel Care	Remove limescale, grease, cornflour, egg white immediately
Glass Front Care	Glass cleaner and soft cloth; no glass scraper
Intended Use	Storing dishes only; not for food or drink
Safety Note	Do not install behind a door; check for damage after unpacking
Moisture Protection	Moisture-resistant design (refer to manual)

Frequently Asked Questions - CZ4S00160 CONSTRUCTA

What is the purpose of the Constructa CZ4S00160 drawer?

The CZ4S00160 is designed for storing dishes. Do not use it for food or drinks as moisture can cause corrosion.

Can I store food or drinks in this drawer?

No, the drawer is exclusively for dishes. Storing food or drinks can lead to corrosion of the appliance.

How do I open and close the drawer?

Press the middle of the drawer to open or close it. When opening, it pops out slightly, then you can pull it toward you.

What is the maximum weight the drawer can hold?

The drawer can hold up to 15 kg maximum. Overloading may damage the mechanism.

How should I clean the drawer?

Clean the exterior with water and a little detergent, then dry with a soft cloth. Avoid caustic or abrasive cleaners. For stainless steel, remove marks immediately. For glass fronts, use glass cleaner and a soft cloth.

Can I use a steam cleaner or high-pressure cleaner?

No, do not use high-pressure cleaners or steam jets as they can damage the appliance.

Does the drawer require electrical connection?

Yes, the appliance must be connected to the mains (230 V typical). Follow the installation instructions for proper connection.

Is there an anti-slip feature in the drawer?

Yes, the base of the drawer is fitted with an anti-slip overlay to prevent dishes from sliding when opening or closing.

What should I do if the drawer is damaged when unpacking?

Check the appliance for damage after unpacking. If it has been damaged in transport, do not install it.

Can I install the drawer behind the door of a cabinet?

No, do not install the appliance behind a door. The fitted cabinet must not have a back panel behind the appliance, and there should be a gap of at least 45 mm between the wall and cabinet base.

USER MANUAL CZ4S00160 CONSTRUCTA

Important information

בַרְשָׁה

Please keep the instruction manual and assembly instructions to the new owner if you sell the appliance.

Note: Do not use the dawer for storing food or drink. The moisture. Use the appliance for storing dishes.

Before installation

תְקַרָה בִי

Check the appliance for damage after unpacking it. Do not install the appliance if it has been damaged in transport.

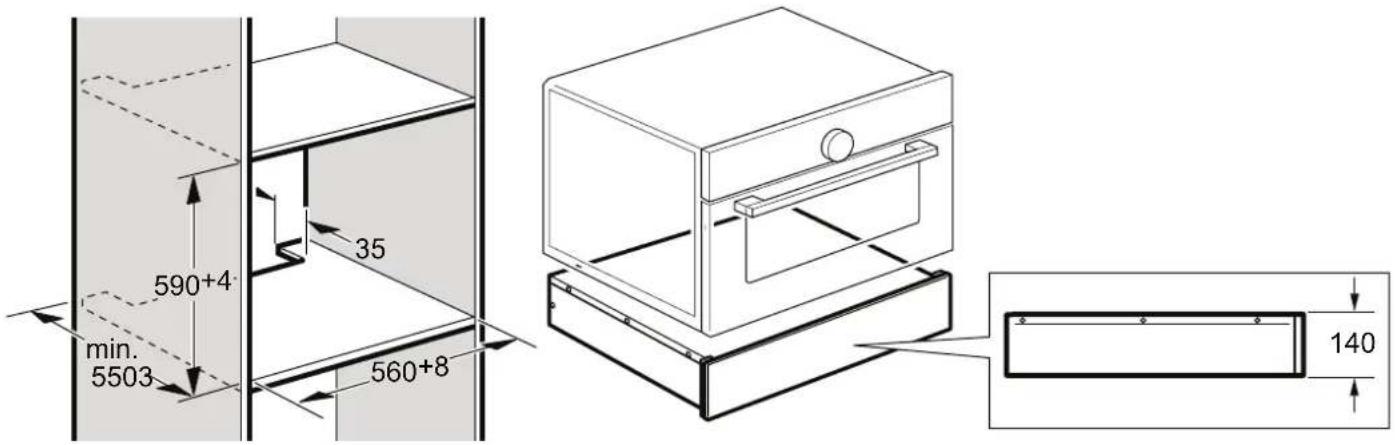

The fitted cabinet must not have a back panel behind the appliances. There should be a gap of at least 45 mm wall and the cabinet base as well as the rear panel of the cabinet situated above.

Do not install the appliance behind the door of a unit. Read the information in the installation instructions for the appliance installed above.

תַעְרָה בְּרָה

Installing the appliance

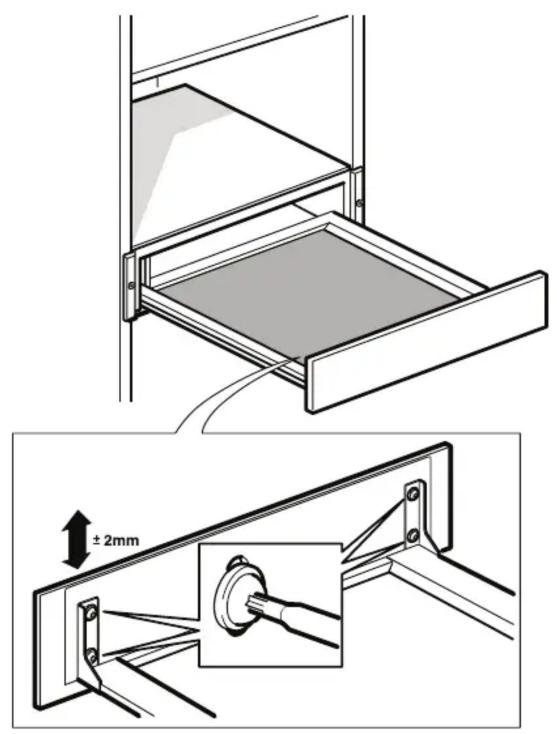

Connect the appliance to the mains. Then align the appliance flush with the units and screw it in place.

Operation

The base of the drawer has been fitted with an anti-slip overlay. This prevents the dishes from sliding when opening or closing the drawer.

Opening and closing

Press the middle of the drawer to open or close it. When opening the drawer pops out slightly. You can then pull it out towards you.

Note: The appliance may be loaded with a maximum of 15 kg.

Cleaning method

Do not use high-pressure cleaners or steam jets.

Appliance exterior

Wipe the appliance with water and a little detergent. Then dry it with a soft cloth. Caustic or abrasive cleaning products are not suitable. If a caustic or abrasive substance comes into the frontage wash it off immediately with water.

Stainless steel surfaces

Always remove any flecks of limescale grease cornflour and egg white immediately. Corrosion can form under such marks. Clean the appliance using water and a little detergent. Then dry the surface with a soft cloth.

Appliances with glass fronts

Clean the glass front with glass cleaner and a soft cloth. Do not use a glass scraper.
