GSR-MZ01 - Uncategorized VAIS Technology - Free user manual and instructions

Brand	VAIS Technology
Model	GSR-MZ01
Product Type	Universal SiriusXM Satellite Radio Interface
Compatibility	Universal (works with most factory radios with USB port)
Required SiriusXM Tuner	SiriusXM SXV300 (sold separately unless included in GSR-Tuner Kit)
Power Supply	12V DC via OBD II connector (preferred) or hardwire
Connectivity	Factory USB data port, OBD II power, Micro USB for firmware update, SiriusXM tuner port
Antenna Requirement	External SiriusXM antenna (included in GSR-Tuner Kit), must be mounted outside vehicle
Channel Control	Via factory radio controls (browse, presets, categories, track seek)
Preset Management	Add, tune, and delete presets via factory radio menu
Channel Browsing	By category, all channels, artists, or presets
System Information Display	SiriusXM Radio ID and firmware version
Firmware Update	Via Micro USB connector
Installation	Professional installation recommended; disconnect battery negative terminal and wait 90 seconds before wiring
Safety Warnings	Do not disassemble, do not block airbags, do not distract while driving
Environmental Protection	Avoid high moisture and dust; use only in dry locations
Wiring Caution	Do not splice into electrical cables or exceed current capacity
Troubleshooting	Loss of presets indicates accessory power instead of constant 12V; check power and USB connections if source not showing
Technical Support	Email: [e-mail] or contact dealer
Warranty	Available for download at vaistech.com; paper copy by mail upon request

Frequently Asked Questions - GSR-MZ01 VAIS Technology

How do I connect the GSR-MZ01 to my vehicle?

Connect the OBD II connector to the vehicle's OBD II port for power. Plug the GSR into the factory USB data port. Install the SiriusXM antenna on the roof (outside) and connect it to the SXV300 tuner. Mount the GSR and tuner behind the dash. Secure all connections.

Why doesn't SiriusXM appear as an audio source?

First, verify the power connection: check the OBD II connector or the LEDs on the GSR module. Then, ensure the USB connection between the GSR and the vehicle's USB port is secure. If still not appearing, check the tuner connection.

My presets disappear after turning off the car. What's wrong?

This indicates the GSR is connected to an accessory power source instead of constant 12V. The GSR requires constant battery power to retain presets. Ensure the yellow wires are connected to a constant battery power source, not accessory power.

How do I update the firmware?

Use a Micro USB cable to connect the GSR to a computer. The Micro USB port on the GSR is used for firmware updates. Download the latest firmware from VAIS Technology's website and follow the update instructions.

What SiriusXM tuner is required?

The GSR-MZ01 requires the SiriusXM SXV300 Vehicle Tuner. This tuner is included in the GSR-Tuner Kit but must be purchased separately if you only have the GSR-MZ01 module.

Can I install the antenna inside the car?

No, the antenna must be mounted outside the vehicle for best reception. Install it on the highest point of the vehicle with a clear view of the southern sky to avoid 'No Signal' messages.

How do I tune channels?

Use the factory radio controls. You can browse channels by category, select 'All Channels', or use 'Track Seek' to go to the previous or next channel. For presets, long press 'Track Seek' to tune the previous or next preset.

What does 'Check Tuner' message mean?

This message indicates a problem with the SiriusXM tuner connection. Verify that the tuner is properly connected to the GSR module. If the connection is secure, the tuner may need to be replaced.

Is professional installation required?

Professional installation is highly recommended because the wiring and installation require special technical skills. Incorrect installation can damage the product, vehicle, and void warranties. Always follow the manual's safety instructions.

How do I get warranty service?

Contact your dealer or VAIS Technology's Customer Service at [e-mail]. For a paper warranty copy, mail a request to VAIS Technology, Warranty Department, 8811 American Way, Unit 125, Englewood, CO 80112. The warranty is also available for download at vaistech.com.

USER MANUAL GSR-MZ01 VAIS Technology

(SXV300 SiriusXM Tuner required)

GSR-PK01-MAN

UNIVERSAL

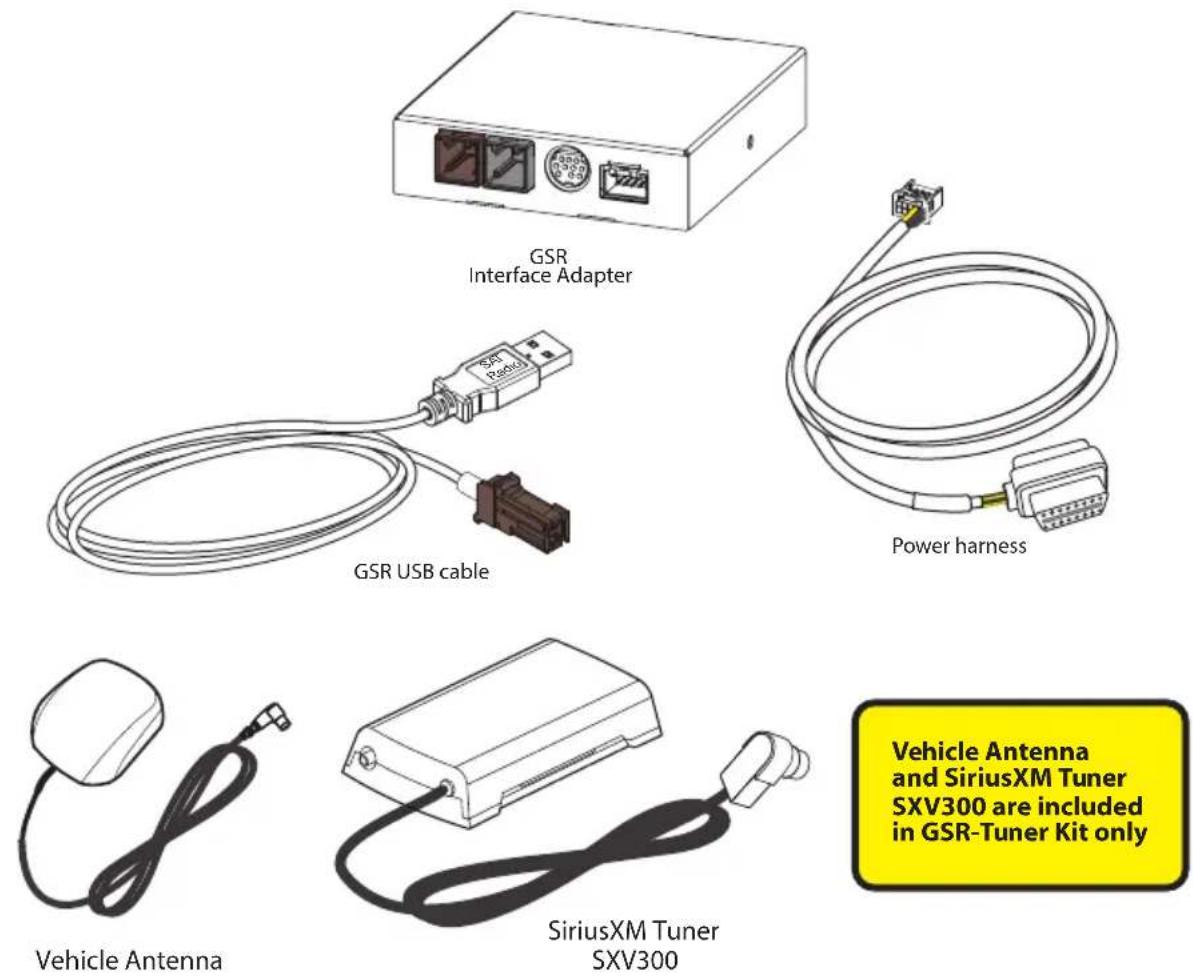

What's Included

Vehicle Antenna and SiriusXM Tuner SXV300 are included in GSR-Tuner Kit only

GSR Connectors and Ports

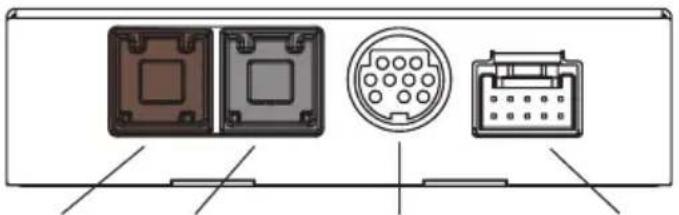

Diagram of four electronic component connectors (no text or symbols)

Brown USB interface connector
Not Used
Interface connector for SiriusXM SXV300 Tuner
Power connector

(Generation 2)

Pure electrical connector diagram without any text, numbers, or symbols

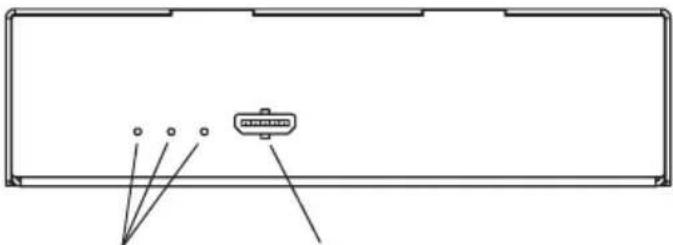

Micro USB connector (used for firmware update)

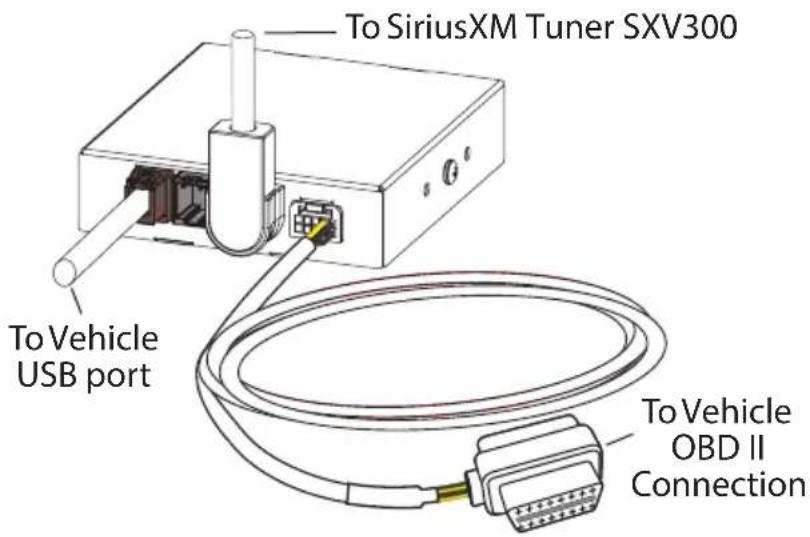

Connecting GSR

Interior view of a car showing a person's arm seated at the seat of the dashboard, with no visible text or symbols.

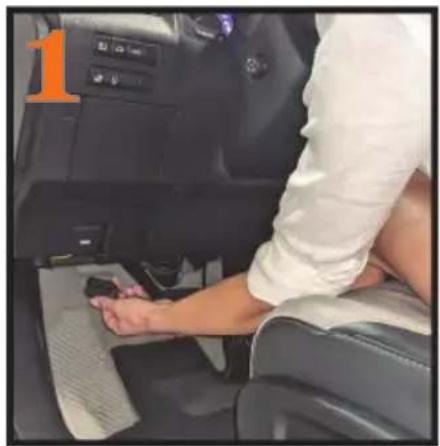

Connect OBD II Connector

Connect the ODB II connector to the OBD II connection in the vehicle for power

Close-up of a hand holding a USB cable inserted into a device panel (no visible text or symbols)

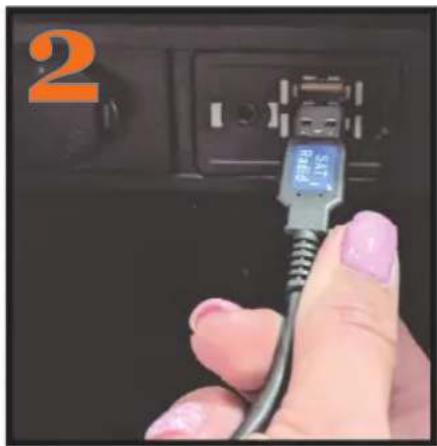

Connect GSR to Factory USB Port

Our adapter plugs into the factory USB data port to feed SiriusXM data into the factory radio

Close-up of a wall-mounted electrical outlet with a digital sensor and orange number 3 in the corner (no readable text or symbols)

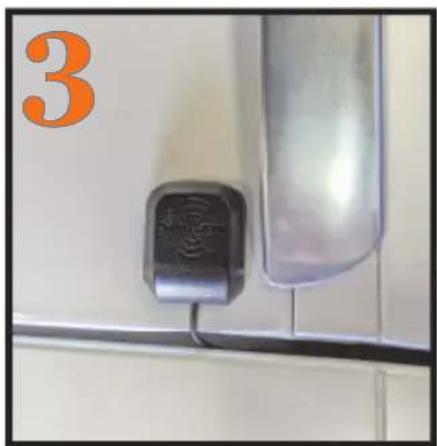

Install Antenna on the Roof

For the best Satellite Radio reception, install antenna on the highest point of the vehicle, and must be mounted outside the vehicle

Close-up of a black SiriusXM powertrain battery mounted on a vehicle chassis, with visible wiring and components (no readable text or symbols)

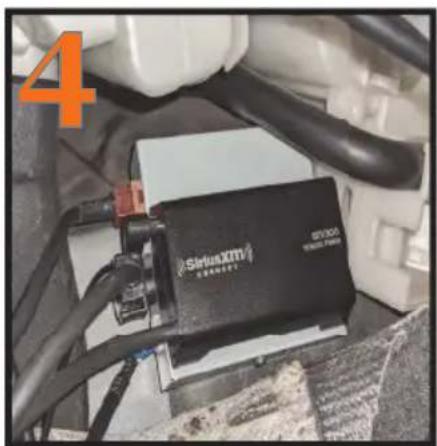

Mount Everything Behind the Panels

Mount the GSR and the SiriusXM Vehicle Tuner behind the dash and secure in place

Optional: Connecting GSR Power Without OBD II Connector

Always use the OBD II connection for power when possible. If you cannot use the ODB II connection, here is an optional method for connecting the GSR Power Harness.

Illustration of a pair of pliers connected to a connector (no text or symbols)

Cut off the OBD II Connector

ALL WIRES IN THE POWER HARNESS MUST BE CONNECTED

Yellow Wires CONSTANT BATTERY POWER +12V connect BOTH to constant battery power

DO NOT CONNECT TO ACCESSORY POWER

Black Wires

connect BOTH to car chassis ground

General Information

● Illustrations in this Owners Manual are for reference only. Your radio and the screens displayed will vary by car manufacturer and radio.

- Some functions of your radio may not be available while the vehicle is in motion. When present, steering wheel controls are always available.

● ● For questions about your SiriusXM subscription contact SiriusXM at 1-866-635-2349.

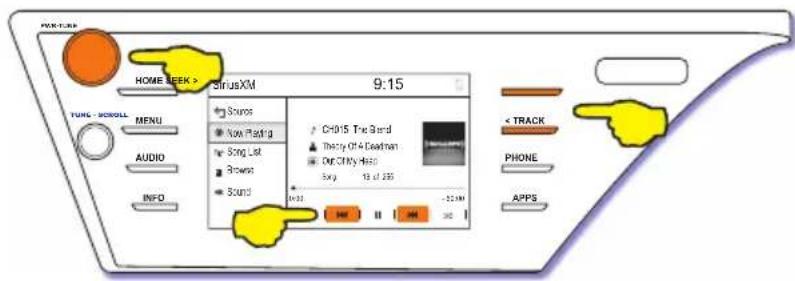

Select SiriusXM as the Audio Source

A

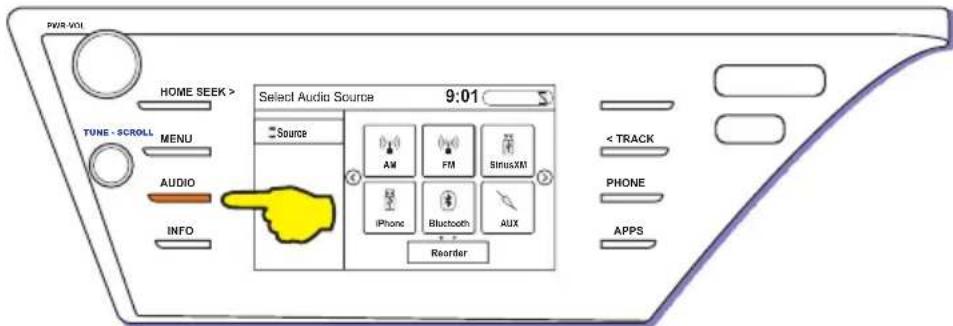

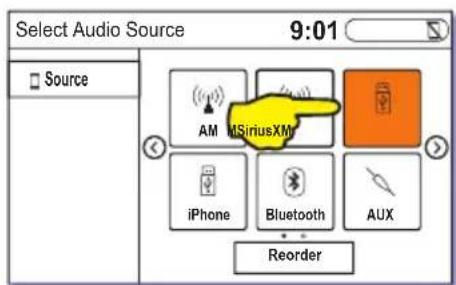

Select Audio or Media or Source:

B

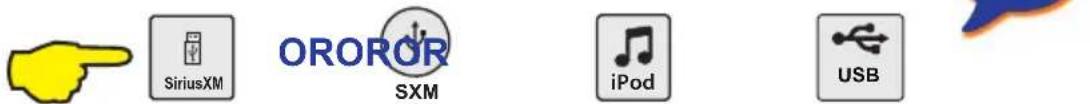

Select SiriusXM or SXM or iPod or USB:

Browse and Select SiriusXM Channels

To browse a list of the SiriusXM channels and select a channel to listen to, follow steps A through D.

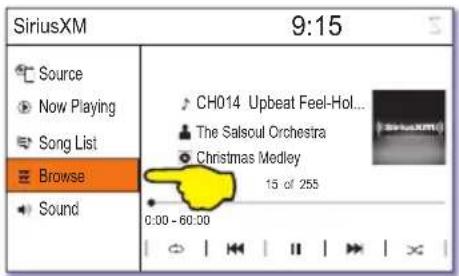

(Select Browse or List or Menu and then select Artists)

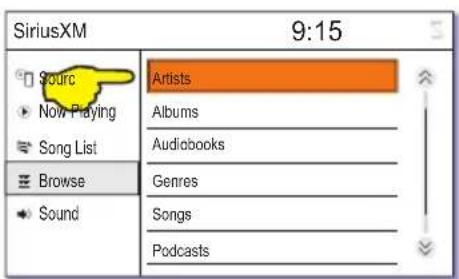

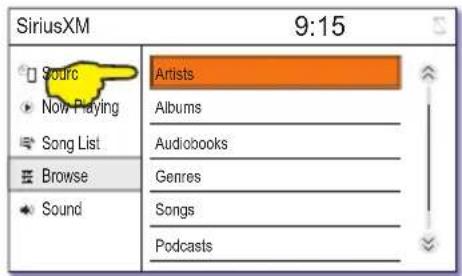

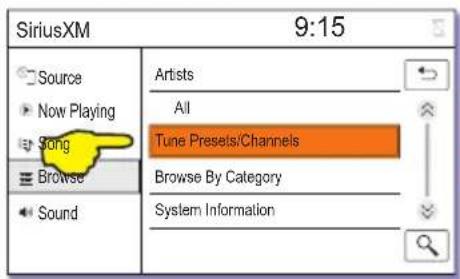

B Select Artists:

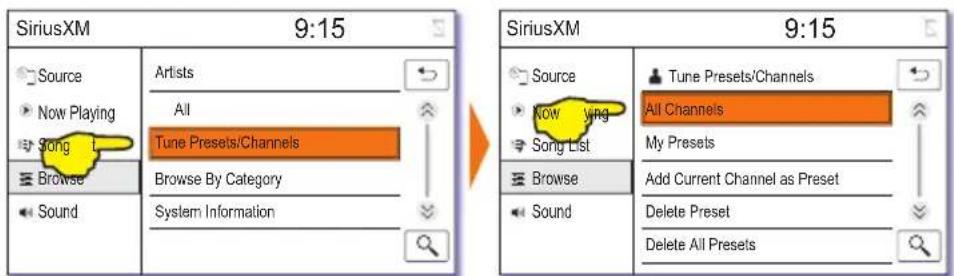

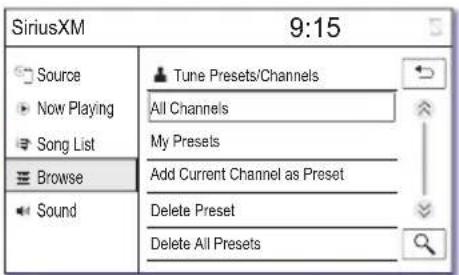

C Select Tune Presets/Channels, select All Channels, and select a channel:

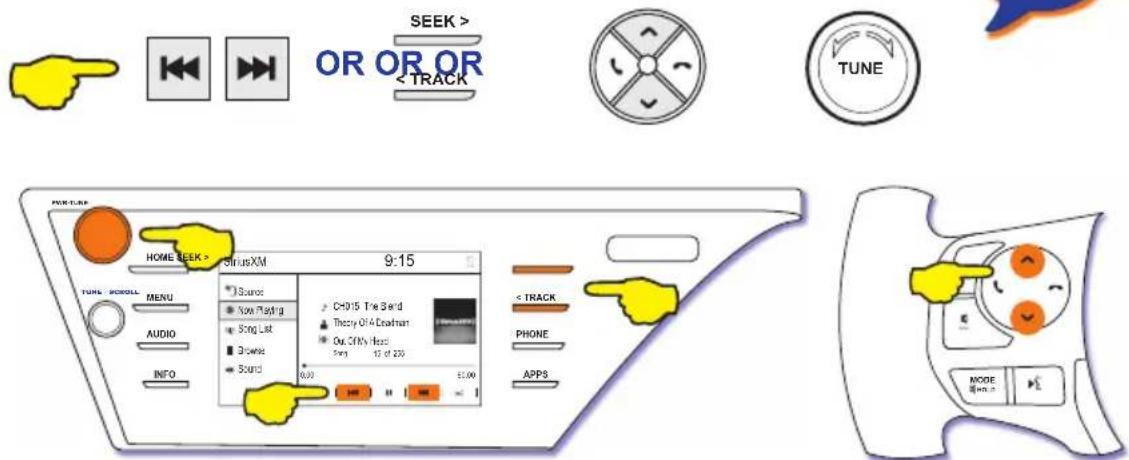

Use Track Seek or Tune to tune previous/next channel:

Presets

Add a Preset

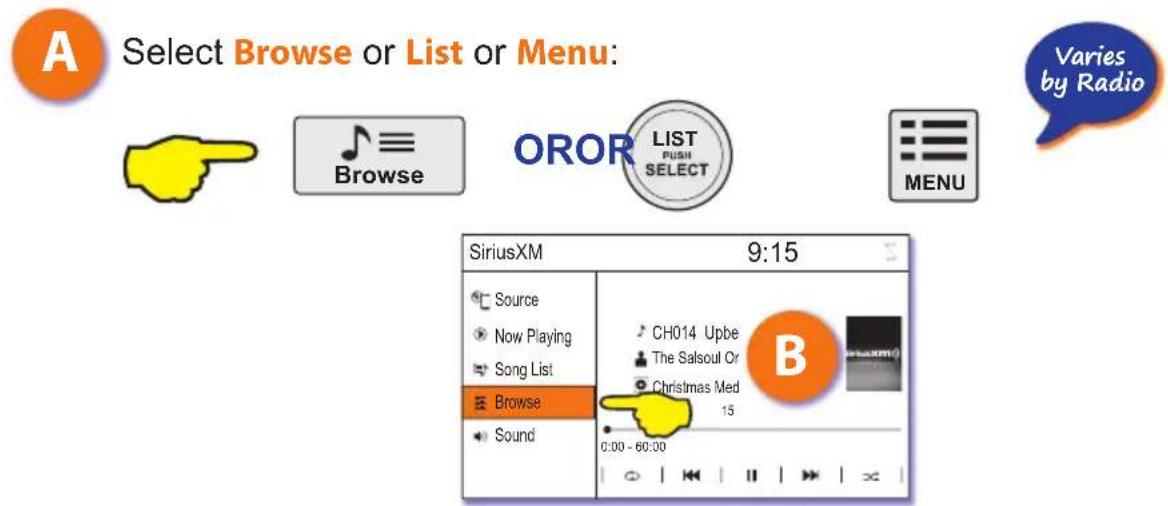

Select Browse or List or Menu:

OROR

Select Artists:

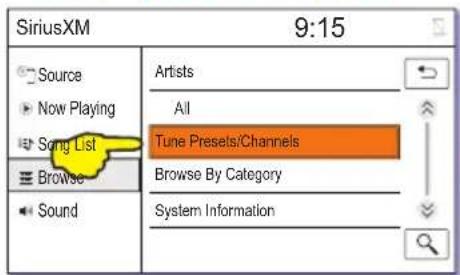

Select Tune Presets/Channels:

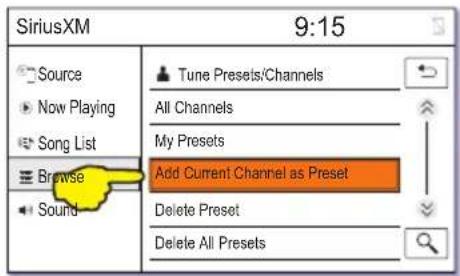

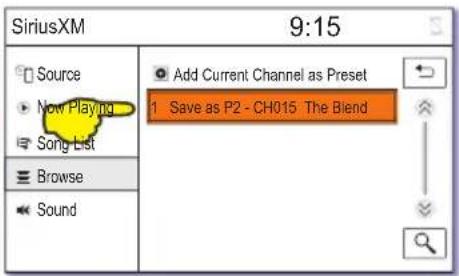

Select Add Current Channel as Preset, and select the channel:

Tune a Preset

To select a specific Preset:

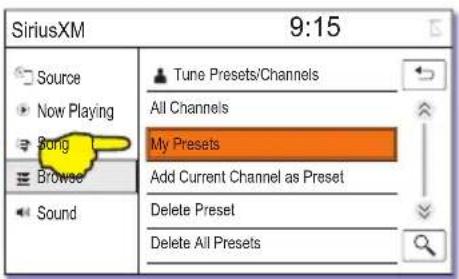

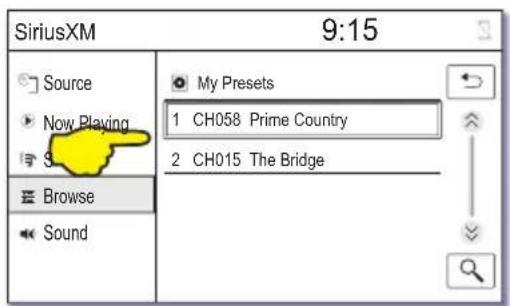

Select Tune Presets/Channels, and select My Presets:

Select a preset:

To quickly tune the previous or next Preset:

Long press Track Seek to tune previous/next preset:

Delete a Preset

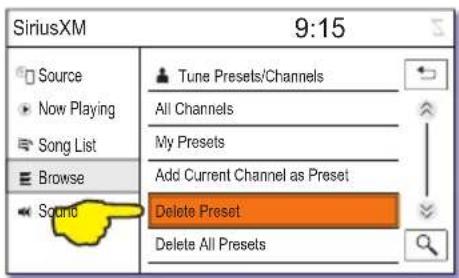

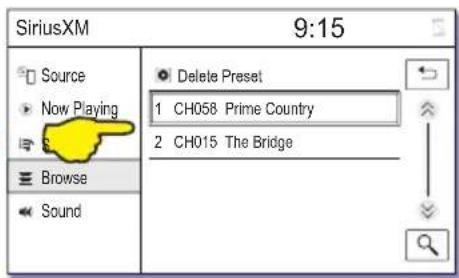

Select Delete Preset, and select the preset to be deleted:

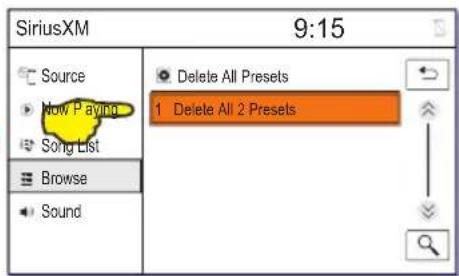

Delete All Presets

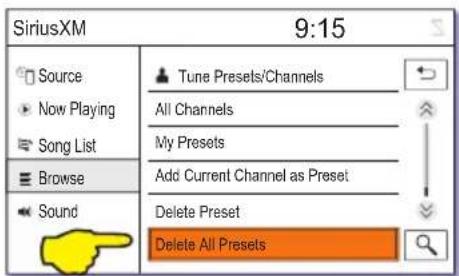

Select Delete All Presets, and select Delete All [x] Presets:

Browse SiriusXM Categories

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

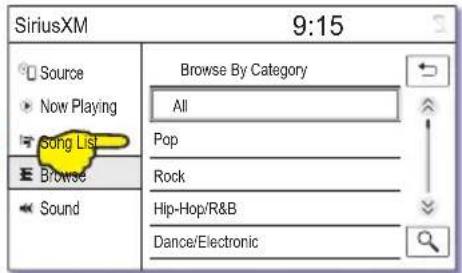

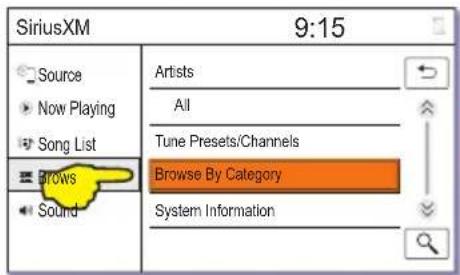

Select Browse By Category and select a category:

System Information

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

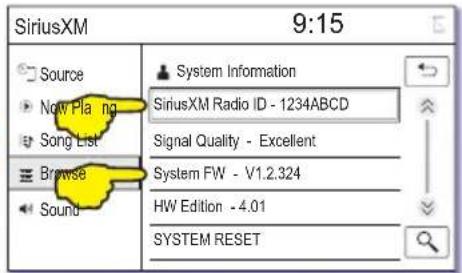

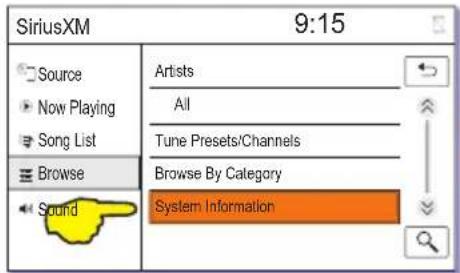

Select System Information to show the SiriusXM Radio ID and the System FW (Firmware):

Troubleshooting

Problem Solution
My presets are gone after I turn the car off	GSR requires constant 12V power connection. If the GSR doesn’t keep presets after the car is turned off, this means GSR was connected to Accessory power source
SiriusXM doesn’t appear as the source	Verify the power connection by checking the power harness connection or by verifying the lights at LEDs on the GSR moduleVerify the USB connection between the GSR and vehicle’s USB port
Check Antenna message	Verify the antenna connection to the tuner
No Signal message Make	sure the SiriusXM antenna has a clear view of the southern sky
Check Tuner message Ver	ify the tuner connection to the GSR module or replace the tuner

WARNING

DO NOT DISASSEMBLE OR ALTER

Doing so may result in an accident, fire or electric shock

Do not block the airbag

Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety devices such as the airbag.

Distraction warning

Do not let product or any added audio and/or video equipment distract you while you are driving.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a backup power source. If installation work is started less 90 seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings. When installation is complete, reset the clock and audio systems to their previous settings. Check power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory function. When installation is complete, it is necessary to readjust the features to their previous settings Never use a backup power supply (such as another battery) during installation work to avoid losing these memory settings.

CAUTION

DO NOT SPLICE INTO ELECTRICAL CABLES

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS

Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Moisture or dust may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS

The wiring and installation of this product requires special technical skills and experience.

USE ONLY SPECIFIED ACCESSORY PARTS

Use of other than specified parts may damage product internally.

FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS.

YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY

CHECK YOUR LOCAL LAWS

Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.

TROUBLESHOOTING

Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at [e-mail].

About SiriusXM Satellite Radio Operation

The unit may refuse to change the channel if your reception is going ON and OFF. Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily. Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.

Warranty is available for download: https://www.vaistech.com/download/15244/

To request a paper warranty copy please contact us:

VAIS Technology

Warranty Department

8811 American Way

Unit 125

Englewood, CO 80112

720-733-2348

[e-mail]
