USER MANUAL ROKK Edge Qi Scanstrut

Electrical information & installation instructions.

Issue 1 SC-CW-05E

Technical information.

Input voltage range	10-30V DC(12/24V system)
Input current max	1.5A
Output power	5W (5V, 1A)
Standby current draw	< 0.03W
Waterproof rating	IPX6 front and back
Certifications	Qi, CE, FCC, ROHS,UNECE R10 E24, RCM

Important.

(ENG) READ THESE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT.

Line drawing of a smartphone with a strap and accessories (no text or symbols)

×1

ROKK Wireless Edge

x3

No 6 x 1 1/4" (32mm)

self tapping screw

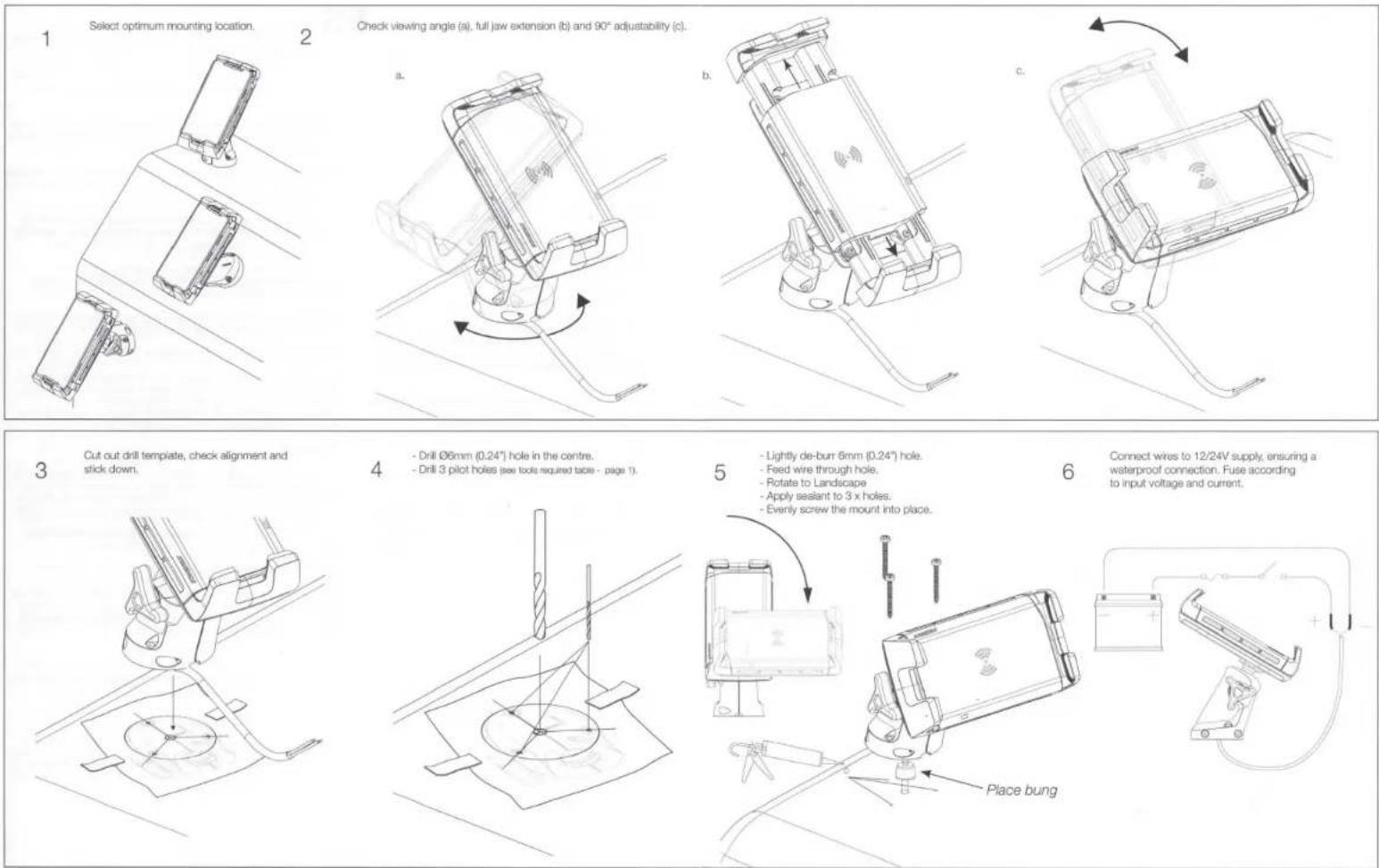

Tools required:

ø6mm (0.24') drill bit

Pozi screwdriver

Drill bit (for pilot holes)

Material	No. 6 Screw
Soft MaterialE.g plywood	2.5mm(3/32")
Hard MaterialE.g Fiberglassacrylic, hardwood	3mm(1/8")

Smart LED light guide:

Solid red

Product has power and ready to charge.

Solid green

Product charging.

Flashing red

1. Foreign object detection:

metallic object placed on top

that is not Qi compatible.

or

1. Thermal cutout:

internal temperature is too high/ low.

Wait for product to return to operating temperature.

Flashing green/red

Input current is too low.

This product is designed to securely mount phones under normal usage conditions. The end-user is entirely responsible for conditions in which their device is used. See WARRANTY section for further details.

Scanstrut recommends installation is carried out by a qualified electrician. No liability is accepted for damage and/or injury caused by incorrect installation.

WARNING:

This product is to be connected to a 12V DC or 24V DC battery power source only.

The power supply must be switched off before installation.

An appropriate fuse or circuit breaker must be used between the battery / power source and this product. Check for correct polarity of all wiring before switching the power on.

This product may contain high voltages. Do not tamper with the product.

This product is NOT approved for use in hazardous/flammable atmospheres. Do NOT install in a hazardous/flammable atmosphere e.g. engine room.

Before drilling any holes, ensure the area behind the mounting location is clear of wires, fuel and all other hazardous objects.

Ensure any holes cut will not significantly weaken the structure of the mounting surface.

If the product needs to be mounted outside, it must be mounted in a location safely above the waterline, where it is not at risk of being submerged.

IN EXTREME USAGE ENVIRONMENTS PERFORMANCE MAY VARY.

CAUTION:

The product is designed specifically for the charging of Qi compatible devices.

The cable must be retained and not interfere with mechanical systems.

This product contains no user serviceable components. Do NOT attempt to repair or alter the product in any way.

This product will charge through non-metallic phone cases up to \~3mm thick. Phone cases may alter overall charge performance.

When used in a very high/low ambient temperature/direct or prolonged sunlight the product may temporarily shut down, this is a safety feature of the electronics.

The IP rating is only valid if correctly installed as per these instructions and on a perfectly flat, non-porous, smooth surface.

When selecting a mounting location, avoid places exposed to heat-radiating appliances and poorly ventilated areas.

EMC INSTALLATION GUIDELINES:

Scanstrut products conform to Electromagnetic Compatibility (EMC) regulations, to ensure that electromagnetic interference between equipment is minimised.

Correct installation is required to ensure that electromagnetic interference is kept to a minimum.

WIRING:

When extending the cable from battery/power source to the product, ensure there is consistently a minimum of 10V being provided to the product. A wire gauge of 18AWG (0.82mm2) is recommended for any length of cable extension.

The schematic in step 6 is to illustrate how the product should be connected to a 12V DC or 24V DC battery/power supply.

ENVIRONMENTAL PROTECTION:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

IMPORTANT:

Scanstrut Ltd. accepts no responsibility for any injuries or other damages arising from the use of their products in any circumstances.

WARRANTY:

A 2 year, non-transferrable warranty covers this Scanstrut product only and not any devices that are mounted in it or on it. No warranty is given for users' devices and users expose their devices to hazards, known or unknown, at their own risk.

USER GUIDE:

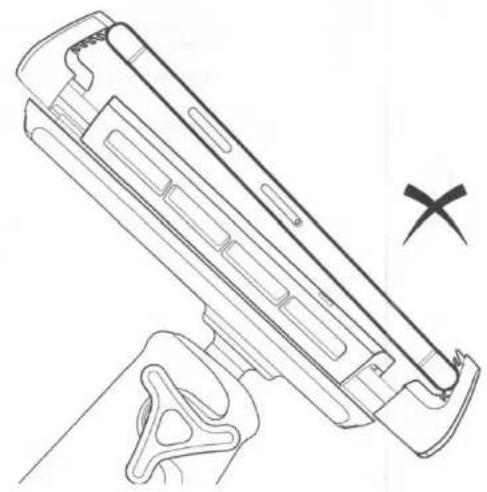

Place device centrally within the ROKK Wireless Edge jaws.

CARE: wash down carefully with fresh water.

Technical line drawing of a rectangular electronic device with mounting brackets and a top panel (no text or symbols)

Top-down line drawing of a device with a rectangular frame and a small cross mark, no text or symbols present.

Technical line drawing of a mobile phone casing with a warning symbol (no text or labels)

Technical line drawing of a mechanical component with a base and clamping mechanism (no text or symbols)

DRILLING TEMPLATE SCALE 1:1

3 x ø2.5mm (3/32") to ø3mm (1/8") ø6mm

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning vvice by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
