Product Type	Eurorack Active Multiple Module
Brand	Erica Synths
Model	Black Multi
Function	Active buffered 2x3 or 1x6 multiple for CV, clock, or audio signals
Max Input Level	-10V to +10V
Power Consumption	+25mA
Module Width	4HP
Module Depth	25mm
Inputs	2 inputs (DC coupled), second input normalled to first output
Outputs	6 outputs (2x3 or 1x6 configuration)
Offset Switches	Two switches, each adds or subtracts 1V from incoming CV (octave transposition)
Hidden Feature	User-defined initial bias on first channel (0-5V) via internal jumper and trimpot
Construction	High-quality components, overvoltage protection
Compliance	EU guidelines, RoHS conforming
Warranty	Standard Erica Synths warranty (see website)
Care Instructions	Keep dry, avoid temperatures above +50°C or below -20°C, transport in original packaging

Frequently Asked Questions - Black Multi Erica Synths

What is the Erica Synths Black Multi?

The Erica Synths Black Multi is a high-accuracy active buffered multiple module for Eurorack synthesizers. It can split one signal into six outputs or two signals into three outputs each, with optional voltage offset.

What are the power requirements?

It consumes +25mA from the +12V rail (typical Eurorack power). No -12V connection is needed.

What is the module width and depth?

The module is 4HP wide and 25mm deep.

How do I use the offset switches?

Each switch adds or subtracts 1V to the CV signal on its channel. This is useful for transposing VCOs by one octave when using 1V/oct tracking.

What is the hidden custom offset?

If you remove a jumper on the back of the module, you can set a user-defined initial bias (0-5V) on the first channel using a trimpot on the front panel. This voltage is added to the output when no input is patched to IN A.

Can I use the Black Multi with audio signals?

Yes, the inputs are DC coupled, so it works with CV, clock, and audio signals.

How many outputs do I get?

You can configure it as a 1x6 multiple (one input to six outputs) or as a 2x3 multiple (two separate inputs, each with three outputs). The second input is normalled to the first output if not used.

What is the maximum input voltage?

The module accepts signals from -10V to +10V.

How do I clean and maintain the module?

Keep the module dry and avoid temperatures above +50°C or below -20°C. Transport it in the original packaging. Do not expose to liquids.

Where can I find the warranty terms?

Warranty details are available at www.ericasynths.lv. For returns or repairs, ship the module in original packaging to Erica Synths, Andreostos Str. 43, Riga, Latvia, LV-1045.

USER MANUAL Black Multi Erica Synths

Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. When designing Black Series, we put design and usability superior. Big knobs are assigned to functions that make difference in sound. Erica Black series consist of range of modules that are needed to put together entire synth. Enjoy!

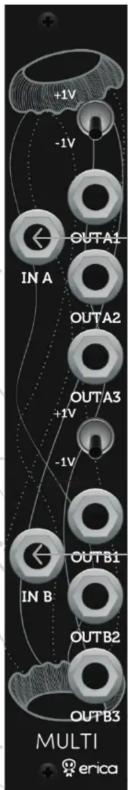

Erica Synths Black Stereo Delay Erica Synths Black Multi is highly accurate active buffered 2x1to3 or 1to6 multiple that will work for signal splitting in any circuit, including driving several VCOs in tune from one CV source. "Octave" or +-IV offset switches on both channels allow to add or subtract one volt form each channel thus transposing VCOs one octave up or down. Hidden feature - custom offset - allows to set user defined offset on the first channel.

SPECS:

Max input level	-10V - +10V
Power	consumption	+25mA,
Module	width	4HP
Module	depth	25mm

SWITCH

Switches add or subtract 1V from the incoming CV signal. When patching the outputs to a 1V/oct input of a VCO, you can transpose the VCO for an octave.

INPUTS

Apply signal, you wish to split here! Input is DC coupled, so you can use it for splitting CV, clock or audio signals. This module is actually 2x3 multiple, and second input is normaled to the first output, so if nothing is patched in the second input, you get one signal splitted to 6 outputs, OR if you plug a patchable in INPUT2, you automatically get 2x3 multiple. Each section has its bias switch. The top section of the module has hidden feature – optional initial bias, meaning, if nothing is patched in IN A, the module automatically adds user preset voltage (0...5V) to the output signal. In order to activate it, remove the jumper on the back of the module and use a small screwdriver to access the trimpot at the front panel and set the desired initial bias.

OUTPUTS

On outputs you get 6 or 2x3 identical independent signals – exact copies of input signals or biased ones depending on the setting of the transpose switches.

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths module below, 'cause only this will guarantee proper operation of the module and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module. Should this happen, the module should be disconnected from mains power immediately, dried, examined and cleaned by a qualified technician.

Do not expose the module to temperatures above +50°C or below -20°C. If you have transported module in extreme low temperatures, leave it in room temperature for an hour before plugging it in.

port the instrument carefully, never let it drop or fall Warranty does not apply to modules with visual poses.

module has to be shipped in the original packaging any module shipped to us for return, exchange and/or my repair has to be in its original packaging. All other tries will be rejected and returned to you. Make sure up the original packaging and technical documentation.

device complies to the EU guidelines and is manufac-RoHS conforming without use of lead, mercury, alum and chrome. Nevertheless, this device is special and disposal in household waste is not recommended.

User manual by Girts Ozolins@Erica Synths. Design by Ineta Briede@Black8.

Copying, distribution or any commercial use in any way is prohibited and needs the written permission by Erica Synths. Specifications are subject to change without notice. In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail [e-mail]

You will find Erica Synths terms of warranty at www.ericasynths.lv Items for return, exchange and/or warranty repair have to be sent to: Erica Synths

Andrejostas Str. 43

Riga

1.

LV-1045
