Air Flexor 3635 - Fan Lasko - Free user manual and instructions

Product Type	Air Flexor Fan
Model	3635
Brand	Lasko
Power Source	120 V AC, 60 Hz
Speed Settings	3 (Low, Medium, High)
Mounting Options	Freestanding or wall-mountable
Safety Features	Polarized plug with built-in fuse; overheat protection
Cord Length	Approximately 6 ft (1.8 m)
Weight	Approximately 5.5 lbs (2.5 kg)
Dimensions (H x W x D)	Approximately 14 x 12 x 10 inches (35.6 x 30.5 x 25.4 cm)
Materials	Plastic housing, metal grille
Use	Residential indoor use only
Warranty	1-year limited warranty (USA and Canada only)
Maintenance	Vacuum with brush attachment; wipe with soft cloth
Cleaning Agents	Avoid alcohol and solvents; use mild soap if needed

Frequently Asked Questions - Air Flexor 3635 Lasko

What should I do if my Lasko Air Flexor 3635 fan does not start?

First, ensure the power cord is plugged into a working electrical outlet. If it still doesn't start, check the fuse inside the polarized plug. If the fuse is blown, the plug may need replacement. For further assistance, contact Lasko Customer Service at 800-233-0268.

How do I clean the fan?

Always unplug the fan before cleaning. Use a vacuum with a brush attachment to remove dust and lint from the grille and interior. Wipe the body with a soft cloth. Never use alcohol, solvents, or harsh cleaners.

Can I mount this fan on the wall?

Yes, the Air Flexor 3635 is designed for wall mounting. Ensure the wall surface is structurally solid and use suitable anchors. Route the power cord between the rear body and yoke as shown in the manual (Figure 2).

What does the polarized plug with fuse do?

The polarized plug is a safety feature that reduces the risk of electric shock. It contains a fuse that acts as a safety device. If the fan stops working, the fuse may have blown. Do not remove or tamper with the plug; contact Lasko for assistance.

Is the fan safe to use in a bathroom or outdoors?

No, this fan is for indoor residential use only. Never use it in wet or damp locations like bathrooms, or outdoors. Do not place near windows where rain could enter.

Can I use an extension cord with this fan?

It is recommended to avoid extension cords as they may overheat. If necessary, use the shortest possible UL-listed cord and never operate more than one fan on a single extension cord.

How long is the warranty and what does it cover?

The fan has a 1-year limited warranty for the original purchaser. It covers defects in workmanship and materials. Proof of purchase is required. Lasko will repair or replace defective parts or the whole product at its option.

What does the speed control knob do?

The speed control knob allows you to select between three speeds: 1 (Low), 2 (Medium), and 3 (High). Turn the knob to your desired setting.

How do I adjust the direction of airflow?

Simply tilt the head of the fan up or down to direct the airflow where you want it.

Can I use this fan in a commercial or agricultural setting?

No, this fan is for residential use only. It is not suitable for commercial, industrial, or agricultural environments, as it does not meet NEC requirements for hazardous or agricultural locations.

USER MANUAL Air Flexor 3635 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

Innovators in Home Comfort

AIR FLEXOR™

MODEL 3635

This Fan is for residential use only.

It is not intended to be used in commercial, industrial or agricultural settings.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,

INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL

SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/ORPROPERTY DAMAGE!

KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

SAVE THESE INSTRUCTIONS

⚠ WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

Read all instructions before using this Fan.

1. Make certain the power source conforms to the electrical requirements of the Fan.
2. Make certain that the room is equipped with a working smoke detector.
3. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
4. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where small children can reach it.
5. Unplug power cord before installing, servicing, or moving the Fan.

DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE FAN. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG FAN BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN.

1. This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres where gasoline, paint or flammable liquids are used or stored.

2. DO NOT use Fan in or near a window. Rain may create an electrical hazard.

3. When wallmounting, completely assemble the fan according to the instructions before connecting to power supply.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. Match wide blade of plug to wide slot. Fully insert. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

This plug is a safety feature. It contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged. To reduce the risk of fire, electric shock and personal injury, DO NOT remove, replace, repair or tamper with the originally supplied plug. If the Fan does not function properly, it may be due to the safety device incorporated in this plug. Call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. Eastern. If the plug warning label is missing or damaged, call the toll free number for a replacement label.

1. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. If you must use an extension cord, minimize the risk of overheating by using the shortest cord possible and ensuring that it is UL listed. NEVER use a single extension cord to operate more than one Fan.
2. NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner.
3. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or damage the Fan. To reduce the risk of fire, DO NOT block or tamper with the Fan in any manner while it is in operation.
4. Always place the Fan on a stable, flat, level surface when operating, to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
5. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container. NEVER use Fan where flammable liquids are used or stored.
6. NEVER use Fan outdoors.
7. This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
8. This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

⚠ WARNING

Provided with an integral speed controller. Do not use with an external solid state speed control device.

SAVE THESE INSTRUCTIONS

1. Carefully remove the Fan from the carton
2. Carefully remove the full from the caro
3. Place the Pan on a firm and level surface. CAUTION: Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
4. Plug the cord set into a 120 volt outlet.

WARNING

Be sure that the plug fits tightly into outlet. then plugs fit loosely into receptacles, they may be partially or completely out of the receptacle with only the slight movement of the attached end. Receptacles in this condition may overheat if pose a serious fire hazard; if covered by a stain or drape, the fire hazard is even greater.

1. To adjust direction of air, simply tilt the head of the fan.

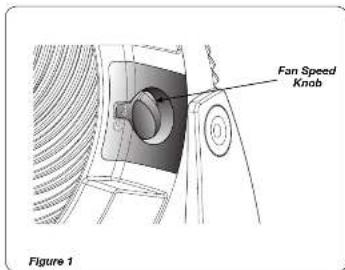

2. FAN SPEED: You may now adjust the fan speed to the desired level, (3) High, (2) Medium or (1) Low by turning the Fan Speed Knob on the Fan.
3. After turning the Fan off, unplug the unit from the electrical outlet.

WALLMOUNT

THIS FAN MUST BE MOUNTED ON A STRUCTurally SOLID FLAT SURFACE.

Suitable mounting anchors must be used to mount the fan to the wall.

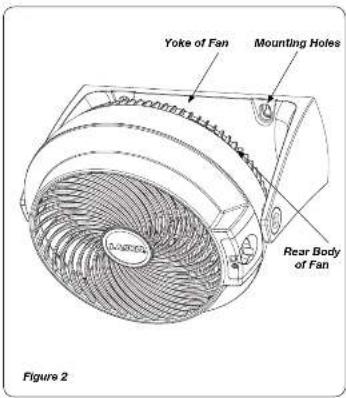

When mounting the Fan to the wall, the cord set MUST BE located in the space between the Rear Body of the Fan and the Yoke of the Fan. (Figure 2)

3635ES

MODEL 3635

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a probable cause and solution: 1. Be sure the power cord is plugged into a working electrical outlet.

If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.

MAINTENANCE

⚠ WARNING

To reduce the risk of electrical shock and fire please observe the following instructions:

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Fan in or near water.
• Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint
  and dirt from inside the Fan.
• Clean the body of the Fan with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.

STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.

LASKO PRODUCTS, INC. LIMITED WARRANTY

VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement. ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location) www.laskoproducts.com

Innovators in Home Comfort

AIR FLEXOR™

MODELO 3635
