Type	Wet/Dry Vacuum Cleaner with Blower
Model	WD-360 K2 US
Brand	Koblenz
Power Supply	120V~, 60Hz
Motor Head	Detachable motor head with side latches
Tank Material	High-density polyethylene (HDPE) drum
Tank Capacity	5 gallons (estimated)
Filter Type	Paper filter for fine dust; must be removed for wet pickups
Float Shut-Off	Yes, for wet pickups when tank is full
Blowing Function	Yes, uses hose on blowing port
Hose	Flexible hose with click-lock connection
Accessories	Varies by model; may include crevice tool, utility nozzle, etc.
Warranty	1 year domestic use, 90 days commercial use
Safety Features	Grounded plug, do not pick up flammable liquids, keep away from heat
Maintenance	Empty tank after use; clean paper filter regularly; wash drum with mild soap
Storage	Indoor storage recommended; empty and clean tank before storing
Patent Numbers	US D467,693S, D467,694S, D468,499S, D470,633S; other patents pending
Manufacturer	Thorne Electric, Co. (USA) / Koblenz Eléctrica, S.A. de C.V. (Mexico)
Customer Service	USA: 1(888)647-1433; Canada: [phone]; Mexico: (55)5864-0300
Weight	Approximately 12 lbs (estimated)
Dimensions (LxWxH)	Approximately 15x15x20 inches (estimated)

Frequently Asked Questions - WD-360 K2 US Koblenz

Can I use the Koblenz WD-360 K2 US to vacuum water?

Yes, this model is a wet/dry vacuum. For wet pickups, remove the paper filter and ensure the float mechanism is working. The float will automatically shut off suction when the tank is full.

How do I use the blowing function?

Locate the blowing port on the vacuum, insert the flexible end of the hose into the blowing port until it clicks, then turn the unit on. The vac will blow air out through the hose, ideal for clearing debris from garages or driveways.

What type of filter does the WD-360 K2 US use?

It uses a paper filter specifically designed for fine dust pickup. Always use the filter when vacuuming dry materials. For wet pickups, remove the paper filter to avoid damage.

How do I clean or replace the paper filter?

Unplug the vacuum before servicing. Remove the filter carefully, shake off dust, and inspect for holes or damage. If damaged, replace immediately. Creases in pleats are normal and do not affect performance.

Why does my vacuum suddenly lose suction?

Possible causes: the tank may be full (especially during wet pickup), the filter is clogged, or there is an obstruction in the hose. Empty the tank, clean the filter, and check the hose for blockages.

Can I vacuum up flammable liquids like gasoline?

No, never. This vacuum is not designed for flammable or combustible liquids and using it for such can cause fire or explosion. Only vacuum water and non-flammable liquids.

What is the warranty for the Koblenz WD-360 K2 US?

The warranty covers defects for one year for domestic use and 90 days for commercial use. It does not apply to damage from misuse, unauthorized repairs, or normal wear of brushes/accessories.

How do I empty the tank safely?

Always unplug the vacuum first. Release the side latches, lift the motor head off, and set it upside down on a clean surface. Dump the tank contents into a waste container. Avoid lifting a heavy tank to prevent back injury.

Can I store the vacuum outdoors?

No, store the vacuum indoors. Before storing, empty and clean the tank. Accessories can be stored on the tool caddy.

What should I do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer or an authorized service center to avoid electric shock. Do not use the vacuum until repaired.

USER MANUAL WD-360 K2 US Koblenz

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This product is warranted against malfunctions and defects in material and workmanship for a period of one year for domestic use and ninety days for commercial use.

THIS WARRANTY SHALL NOT APPLY to any products or parts there of which have been damaged by tampering, misuse or abuse or which have been altered or repaired by an unauthorized person or service center.

THIS WARRANTY SHALL NOT APPLY to brushes or accessories since their life depends upon the amount of use.

FOR REPAIR the inoperative machine must be delivered with shipping and delivery charges prepaid together with satisfactory evidence of the purchase date to an authorized service center or Thorne Electric Company at the address that appears below. Koblenz will either repair or replace, at its election, all defective machines during the warranty period.

The foregoing obligations are in lieu of all other obligations and liabilities including negligence and state Koblenz's entire and exclusive liability and purchaser's exclusive remedy. Koblenz will in no event be liable for any direct, indirect, special, incidental or consequential damages or losses whatsoever. Koblenz's liability under no circumstances will exceed the contract price for the goods or parts for which liability is claimed.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Thorne Electric, Co.	Koblenz Eléctrica, S.A. de C.V.	Canada Call:
610 Lanark Suite 205San Antonio, TX.78218-0363 U.S.A.Tel: [phone]	Av. Ciencia No. 28Cuautitlán IzcalliEdo. de México, C.P. 54730Tel: [phone](800) 976-3600	Tel: [phone]

U.S. Patent Numbers

US D 467,693S, US D467,694S,

US D 468,499S, US D470,633S.

Other patents pending

Koblenz®

Visit our website www.koblenz-electric.com

19-0643-7 ©

PRINTED IN MEXICO

FOR/PARA: WD-330 K2, WD-330 K2P US, WD-330 K2B US, WD-300 K2 US, WD-360 K2 US, WD-600 K2 US, WD-330 X K2, WD-360 X K2, WD-350 K2 M US, WD-351 K2 R US, WD-380 K2 B US, WD-353 K2 G US, WD-354 K2 G US, WD-340 K2M US, WD-341 K2R US, WD-370 K2B US, PV-5502 K2R US, PV-5402 K2R US

Congratulations!

You have just purchased a Koblenz® Vacuum Cleaner. Please read this manual carefully before operating the machine. Model and serial number may be found on the side of your vac. You should record both model and serial numbers and keep them in a safe place for future use. Keep this manual for further reference.

Felicidades!

IMPORTANT SAFETY INSTRUCTIONS

When using an electric vacuum cleaner, basic precautions should be followed:

Read all instructions before using this vacuum cleaner.

This vacuum cleaner is for domestic use only; it may be used for vacuuming wet or dry materials and as a blower.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING

To reduce risk of fire, electric shock or injury:

1. Do not use to pick up flammable or combustible liquids, such as gasoline or use in areas where such items may be present.
2. Use products only as described in this manual, use only manufacturer's recommended attachments.
3. Do not pick up anything that is burning or smoking; such as cigarettes, matches or hot ashes.
4. Do not leave vacuum plugged in. Unplug from outlet when not in use and before servicing.
5. Turn unit off before unplugging.
6. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
7. Do not use without filter in place.
8. Do not allow vacuum to be used as a toy, or to run unattended at any time. If used by children or near them, close supervision is necessary.
9. Do not store outdoors.
10. Do not use with a damaged cord or plug. If vacuum is not working as it should, or if it has been dropped, damaged, or submerged into water, return it to an authorized service center.
11. Do not pull or carry by cord, use cord as a handle, close a door on a cord or pull cord around sharp edges or corners, do not run vacuum over cord. Keep away from heated surfaces.
12. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
13. Do not unplug or vacuum with wet hands. Use extra care when cleaning stairs.
14. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
15. Never use vacuum cleaner as a pump.
16. If the line cord is damaged it must be replaced by the manufacturer or an authorized service center.
17. Connect to a properly grounded outlet only. See grounding instructions.

GARANTÍA

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

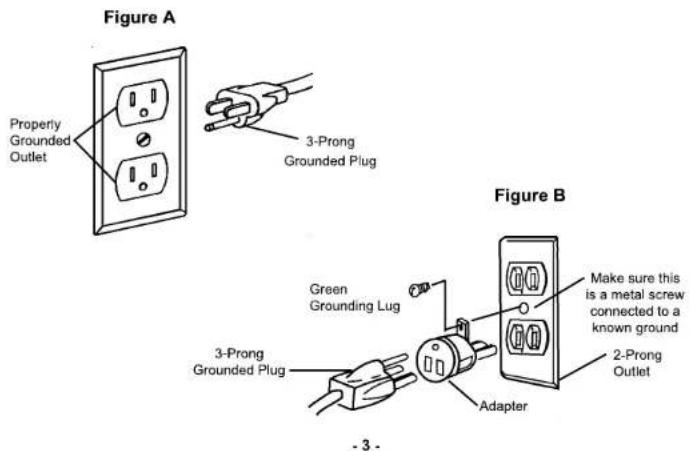

Grounded Outlet

This appliance is for use on a 120V\~ circuit, and has a grounded plug that looks like the plug illustrated in figure A. A temporary adapter may be used to connect this plug to a non-grounded outlet if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.

The green colored rigid ear, lug or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. (fig. B).

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

VAC ASSEMBLY

1. Line up the motor head with the tank. Pull the side latches out and lower the head into place, let go latches. Latches should snap into the tank tabs. (Fig. 1).
2. Insert the hose into the vacuuming or blowing port until it clicks.
3. To release the hose, turn it and gently pull it out.
4. Familiarize yourself with the control and features of your vacuum cleaner.

Line drawing of a mechanical component with no visible text or symbols

PRODUCT DESCRIPTION

-4-

Importante:

Simple line drawing of a dome-shaped structure with a circular element and a grid base (no text or symbols)

Line drawing of a mechanical component with two upward arrows indicating direction (no text or symbols)

Simple line drawing of a hand holding a container with granular material underneath (no text or symbols)

FILTER ASSEMBLY

Place the paper filter over the cage and attach it with rubber a band as shown in figure.

OPERATION

Filter use

1. This vacuum includes a paper filter for fine dust pick up.
2. The paper filter should always be removed for wet pick ups.
3. When vacuuming liquids the unit has a float that will rise to the top and shut off suction when the tank is full. This will increase the motor's rpm's. Turn off the vac and dump out liquids to continue using the unit.

Important

To avoid damage to the unit do not let motor run with a full tank.

Emptying the Tank

Simple line drawing of a spacecraft or spacecraft with a targeting net and a circular target (no text or symbols)

Warning:

To avoid injury from accidental starting, unplug power cord before emptying the tank.

1. Remove the hose
2. Pull the side latches outward, at the same time pull cover up.
3. Place cover upside down on a clean surface.
4. Dump tank contents into a waste container

Diagram of a mechanical component with upward and downward arrows indicating motion or force (no text or symbols)

Line drawing of a hand holding a textured object with a small object inserted (no text or symbols)

Warning:

To avoid back injury or falls, do not lift a vac heavy with liquid or debris. Scoop or drain enough contents out to make the vac light enough to lift comfortably.

Storage

Before storing your vac, the dust tank should be emptied and cleaned. Accessories may be stored on the tool caddy as described in the accessories storage section in this manual. The vac should be stored indoors.

Line drawing of two hands holding a cylindrical object with a circular inset (no text or symbols)

The accessories may vary depending on the model purchased.

BLOWING FEATURES

This Koblenz vacuum cleaner also function as an air blower. It has the capability to blow sawdust and other debris. It is excellent to use to blow dust and debris out of garages or off patios and driveways.

Warning:

To avoid injury to bystanders, keep them clear of blowing debris. The operation of any utility vac can result in foreign objects being blown into the eyes, which can result in severe eye damage. Always wear safety goggles.

To use your Koblenz vacuum as a blower:

1. Locate the blowing port of your vac.
2. Insert the flexible end of the hose into the blowing port, as it is indicated on the second step of page 4.
3. Turn vac "ON" and you are ready to use your vac as a blower.

FILTER MAINTENANCE

Warning

To avoid injury from accidental starting, unplug power cord before changing or cleaning the filter.

Cleaning

Your filter should be changed often to maintain peak vac performance.

NOTE: This filter is made of high quality materials designed to stop very small particles of dust. Handle the filter carefully when removing to clean or installing it. Creases in the filter pleats may occur from installation but creases will not affect the performance of the filter.

Always use the unit with the filter when vacuuming dry debris and dust.

Important

After cleaning the paper filter, check for holes. If any holes are found replace the filter immediately. Even small holes will permit dust to come out of the vac.

GENERAL MAINTENANCE

To keep your wet / dry vac looking its best, clean the outside with a cloth dampened with water and mild soap.

To clean the drum: 1. Dump out debris.
2. Wash drum thoroughly.
3. Wipe out with dry cloth.

WARNING:

To assure product SAFETY AND RELIABILITY, repairs and adjustments should be performed by a Koblenz Service Center, always using Koblenz replacement parts.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Vacuum does not startLow suction	Not firmly plugged in.Tank full .Filter is dirty.	Plug in firmly.Empty tank.Shake dust out of filterSee "Filter Maintenance Section".
	Obstruction in hose.	Connect the hose to the blowing port until hose is clear.
	Motor head not installed correctly.	Be sure that the cover seats properly on the tank.
