Essential P303UOR - Uncategorized CyberPower - Free user manual and instructions

Product Type	Extension Cord with USB Charging
Brand	CyberPower
Model	Essential P303UOR
Number of AC Outlets	3 (Standard Grounded)
Number of USB Ports	2 (Charging only, no data transfer)
Electrical Rating	125V / 13A / 1625W / 60Hz
USB Charging Output	5V / 2.4A shared
Surge Protection	350 Joules
Clamping Voltage	900V (L-N)
Usage Environment	Indoor, dry locations only
Warranty	Limited Lifetime Warranty with Connected Equipment Guarantee up to $50,000
Technical Support	Phone: [phone], Email: [e-mail], Mon-Fri 7am-6pm CST
Safety Features	Internal protection disconnects surge component at end of life; Maintains unprotected power otherwise
Compliance	FCC Part 15 Class B, RoHS
Not for Use With	Medical/life support equipment, aquarium equipment, laser printers, daisy chaining

Frequently Asked Questions - Essential P303UOR CyberPower

What is the CyberPower Essential P303UOR?

It is an extension cord with 3 grounded outlets and 2 USB charging ports, providing surge protection of 350 Joules.

How do I use the USB charging ports?

Simply plug your USB device into either port. The USB output is 5V/2.4A shared. Note: USB ports do not transfer data, only charge.

What are the electrical specifications?

The unit is rated for 125V/13A/1625W/60Hz. USB output is 5V/2.4A shared.

Does this device protect against power surges?

Yes, it provides 350 Joules of surge protection with a clamping voltage of 900V (L-N). An internal protection disconnects the surge component at end of life, but power remains on.

Can I use this extension cord outdoors?

No, it is designed for indoor, dry locations only. Do not expose to moisture.

What is the warranty coverage?

CyberPower offers a Limited Lifetime Warranty and a Connected Equipment Guarantee up to $50,000. Coverage applies to the original purchaser for as long as you own the product.

How do I file a warranty claim?

Call 1-877-297-6937, email [e-mail], or write to Cyber Power Systems within 10 days of the occurrence. Provide purchase receipt and damage description.

Can I plug this into another extension cord or power strip?

No. Do not daisy chain extension cords. Plug directly into a properly grounded wall outlet.

Is it safe to use with medical equipment or aquariums?

No. This device is not intended for medical/life support equipment or aquarium equipment.

How do I contact technical support?

You can call 1-877-297-6937 (Mon-Fri 7am-6pm CST) or email [e-mail] for installation, troubleshooting, or product questions.

USER MANUAL Essential P303UOR CyberPower

with 2 USB Pwith 2 USB Por

P303UMT/P303UDBL/P303UOR

USER MANUAL

CONGRATULATIONS ON YOUR PURCHASE

Thank you for selecting the CyberPower P303UMT/P303UDBL/P303UOR Extension Cord. This manual explains the features and operation of the P303UMT/P303UDBL/P303UOR. Please take a few moments to read this manual.

EXTENSION CORD INSTRUCTIONS

1. Plug the extension cord into a standard grounded wall receptacle by fully inserting the plug and ensure that there are no exposed conductors.
2. Make sure the electronic equipment is turned off before plugging into the extension cord outlets. Do not use extension cords to connect equipment to the extension cord.

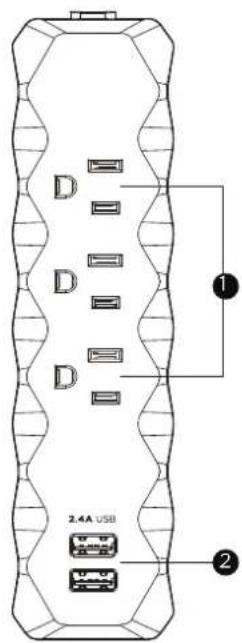

FEATURES

1. Standard Grounded Outlets (3)

2. USB Charging Ports* (2)
   Connect and charge up to two (2) USB devices. *USB outlets cannot be used as a USB hub. This device does not transfer data.

SPECIFICATIONS

• Model Number: P303UMT/P303UDBL/P303UOR
- Outlets: Standard Grounded Outlets (3)
• Surge Protection: 350 Joules
• Electrical Rating: 125V/13A/1625W/60Hz
• USB Charging Rating: 5V/2.4A shared
- Clamping Voltage: 900V (L-N)

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only in dry locations and only indoors. DO NOT plug into another relocatable power tap. DO NOT "daisy chain" extension cords. DO NOT use with any aquarium equipment. DO NOT use if properly grounded outlets are not available. DO NOT install this device if there is less than 10 meters (30 feet) or more of wire between the electrical outlet and electrical service panel. DO NOT use for medical or life support equipment. This device features an internal protection that will disconnect the surge protective component at the end of its useful life, but it will maintain unprotected power to the load. If this situation is undesirable for the application, follow the manufacturer's instructions for replacing the device. The conductors used to connect the SPD to the line or bus and to ground shall not be any longer than necessary and shall avoid unnecessary bends. DO NOT plug devices over 2.4A to each USB port.

TECHNICAL SUPPORT

Please contact our Tech Support Department with installation, troubleshooting, or general product questions.

• Phone: [phone]
- Email: [e-mail]
• Hours of Operation:
Monday - Friday 7:00am - 6:00pm CST

LIMITED LIFETIME WARRANTY AND CONNECTED EQUIPMENT GUARANTEE

Read the following terms and conditions carefully before using the CyberPower P306UMT/P306UBL/P306UOR (the "product"). By using the product, you consent to be bound by the terms and conditions of this limited lifetime warranty and connected equipment guarantee (together referred to as this "warranty"). IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS WARRANTY, YOU SHOULD RETURN THE PRODUCT FOR A FULL REFUND PRIOR TO USING IT.

Who is providing this warranty, and what does it cover?

Cyber Power Systems (USA), Inc. ("CyberPower") provides this limited lifetime warranty. It only covers the original purchaser and ends if you no longer own the product. This warranty covers defects in materials and workmanship in the product under normal use and conditions. It also covers equipment connected to the product and damaged because of the failure of the product. This warranty covers the product and connected equipment for as long as you own the product.

How do you open a connected equipment claim?

Call us at [phone], or write to us at:

Cyber Power Systems (USA), Inc.

4241 12th Avenue East, Suite 400

Shakopee, MN 55379.

or send us an email at [e-mail] within 10 days of the occurrence for instructions.

1. When you contact CyberPower, identify the product, the purchase date, and the item(s) of connected equipment. Have information on all applicable insurance or other resources of recovery/payment that are available to the initial customer, and request a claim number.
2. You must provide a dated purchase receipt (or other proof of the original purchase) for the CyberPower unit and connected equipment. You also need to provide a description of the damage to your connected equipment.
3. Pack and ship the product to CyberPower and the item(s) of connected equipment, a repair cost estimate for the damage to the connected equipment, and all claim forms that CyberPower provides to you. Show the claim number on the shipping label, or include it with the product. You must prepay all shipping costs. You are responsible for packaging and shipment, and you must pay the cost of the repair estimate.

What will CyberPower do to correct problems?

CyberPower will inspect and examine the product. If the product is defective in material or workmanship, CyberPower will replace it at CyberPower's expense, or CyberPower will refund the full purchase price you paid for the product (purchase receipt showing price paid is required). If the product failed to protect any equipment plugged into it, we will also send you forms for making your claim for the connected equipment. We will repair or replace the equipment that was damaged because of the failure of the product or pay you the fair market value (NOT REPLACEMENT COST), of the equipment at of the time of the damage. We will use Orion Blue Book, another third-party valuation guide, eBay, Craigslist, or other source to establish that amount. Our maximum liability is limited to \$50,000 for the P306UMT/P306UDBL/P306UOR.

Who pays for shipping?

We pay shipping when we send items to you; you pay when you send items to us.

What are some things this Warranty does not cover?

1. THIS WARRANTY DOES NOT COVER: ANY SOFTWARE THAT WAS DAMAGED, SOFTWARE THAT NEEDS TO BE REPLACED DUE TO THE FAILURE OF THE PRODUCT, OR ANY DATA THAT IS LOST AS A RESULT OF THE FAILURE THIS WARRANTY DOES NOT COVER THE RESTORATION OF DATA OR RECORDS, OR THE REINSTALLATION OF SOFTWARE.

2. This warranty does not cover: misuse, modification, operation or storage outside of the environmental limits of the product or the equipment connected to it. It does not cover damage while in transit or in storage; if there has been improper operation or maintenance, or use with items not designed or intended for use with the product, such as laser printers, appliances, aquariums, medical, or life support devices, etc.

What are the other limitations?

The sole and exclusive remedies of the initial customer are those provided by this warranty.

1. This warranty does not apply unless the product and the connected equipment were connected to properly wired and grounded outlets (including compliance with electrical and safety codes of the most current electrical code), without the use of any adapters or other connectors.
2. The product must have been plugged directly into the power source. The equipment connected to the product must be directly connected in the product, not "daisy chained" together in serial fashion with any extension cords, another product, or device similar to the product, surge suppressor, or power tap. Any such installation voids the warranty.
3. The product and connected equipment must have been used properly in a suitable environment, in conformance with any applicable license, instruction manual, or warnings.
4. The product must have been used at all times within the limitations on the product's maximum rated wattage.

Where can I get more information?

Contact us at:

Cyber Power Systems (USA), Inc.

4241 12th Avenue East, Suite 400

Shakopee, MN 55379;

Call us at [phone];

Send us an email message at [e-mail].

PRODUCT REGISTRATION

Prompt product registration assures coverage under the limited lifetime warranty, and also allows the opportunity of notifications for product enhancements, upgrades, and other announcements.

Registration is quick and easy. Go to the Product Registration Page at CyberPowerSystems.com/registration.

CONTACT INFORMATION

Cyber Power Systems (USA), Inc.

4241 12th Avenue East, Suite 400

Shakopee, MN 55379

Toll-free: 1-877-297-6937 | CyberPowerSystems.com

CONFORMANCE APPROVALS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Please join CyberPower in caring for the environment by recycling.

This device is manufactured using environmentally-safe procedures in compliance with the Restriction of Hazardous Substances (RoHS) directive.

© 2020 Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners.

CyberPowerSystems.com
