797.93 - Lighting Paulmann - Free user manual and instructions

Product Type	LED Lighting Device with Timer Function
Brand	Paulmann
Model	797.93
Dimensions (H x W x D)	15 cm x 12 cm x 12 cm
Weight	250 g
Power Supply	USB-C, 5V DC, 1A
Light Source	1W LED, warm white 3000K
Luminous Flux	80 lm
Lifespan	20,000 hours
Timer Function	3 settings: 2H, 4H, 8H; reset by cycling power
Operating Temperature	0°C to 40°C
Material	Plastic, aluminium
Color	White
Protection Class	IP20 (indoor use only)
Maintenance & Cleaning	Wipe with a soft, dry cloth. Do not use water or liquid cleaners.
Safety Features	Overheating protection, short-circuit protection
Spare Parts & Repairability	Replacement LED unit available from Paulmann; repairable by qualified personnel
Warranty	2 years
Country of Origin	Germany

Frequently Asked Questions - 797.93 Paulmann

How do I set the timer on the Paulmann 797.93?

The device has three timer modes: 2 hours, 4 hours, and 8 hours. Cycle through the modes by pressing the power button quickly (less than 1 second). To reset the timer, hold the button for more than 5 seconds until the light flashes.

What type of USB cable does the 797.93 use?

It uses a standard USB-C cable. A 5V/1A power adapter (not included) is recommended.

Can I use the light while it is charging?

Yes, the 797.93 can be used when connected to a power source. It does not have a built-in battery.

Is the LED bulb replaceable?

The LED is integrated but replaceable. Contact Paulmann support for a replacement unit. We do not recommend attempting replacement yourself unless qualified.

How do I clean the device?

Unplug the device and let it cool down. Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

What is the light color temperature?

The light emits a warm white at 3000K, providing a cozy ambiance.

Can I use the device outdoors?

No, the Paulmann 797.93 is rated for indoor use only (IP20). Keep away from moisture and extreme temperatures.

Does the device come with a warranty?

Yes, it comes with a 2-year warranty from the date of purchase. Keep your receipt for warranty claims.

Why is the light not turning on?

Check the USB connection and ensure the power adapter is working. Try a different cable. If the light still does not turn on, the LED may be faulty. Contact customer service.

How do I reset the timer to factory settings?

To reset, turn the device off and on while holding the power button for more than 5 seconds. The light will flash three times to confirm.

USER MANUAL 797.93 Paulmann

Safety Instructions
1, 2, 3, 4, 5, 6, 7, 8, 12, 15, 16, 17, 18, 19, 20, 24, 28, 33, 34

Info
www.paulmann.com
Paulmann Licht GmbH
Quezinger Feld 2
31832 Springe
Germany
www.paulmann.com
Art.-Nr: 797.89/90/91/92/93
/94/95/96/98/99
798.00/01/02/03
(+MA326) PAL 01/19

797.89_90_93_95_98_99 798.02

1x

1x
797.91_92_94_96 798.00_01_03

1x

1x

Incl.

A

79789/90/91/92/93/94/95/96/98/99 79800/01

Safety Instructions Nr.3,4,5,6,7,8

B

79802/03

C

Nr.3,4,5,6

D

E

Nr.3,4,5,6

F

Nr.3,4,5,6

G

Nr. 3, 4, 5, 6

H

I

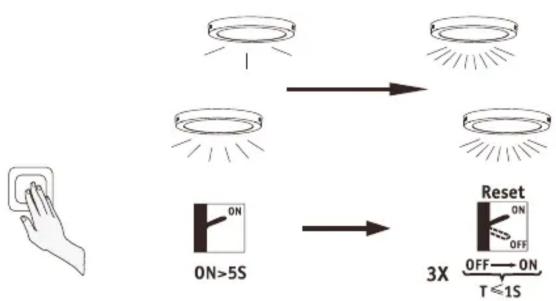

off>10s memory, last step
