| Product Type | Class D Mono Amplifier |
| Brand | Focal |
| Model | FPX 1.100 |
| Power Output (CEA 4 ohms) | 1 x 420 Watts RMS |
| Max Power (2 ohms) | 1 x 700 Watts RMS |
| Max Power (1 ohm) | 1 x 1000 Watts RMS |
| Bandwidth (-3dB) | 15 Hz - 250 Hz |
| THD | 0.08% |
| Signal-to-Noise Ratio (1W/A) | 76 dBA |
| Subsonic Filter | 10 Hz - 50 Hz (24 dB/oct) |
| Low-Pass Filter | 50 Hz - 250 Hz (24 dB/oct) |
| Bass Boost | 0 to 12 dB linear |
| Phase Control | 0 to 180 degrees linear |
| Stable Under | 1 Ohm |
| Protections | Short circuit, low impedance, reverse polarity, DC, voltage drop, overheat |
| Remote Control | Included |
| Standby Current | 1.75 A |
| Dimensions (L x W x H) | 297 x 132 x 53 mm (11.69 x 5.20 x 2.09 in) |
| Weight | 2.55 kg (5.62 lbs) |
| Chassis Material | High performance compact heat dissipation |
| Output Type | Dual Output |
| Amplifier Class | D |
Frequently Asked Questions - FPX 1.100 FOCAL
What is the power output of the Focal FPX 1.100 at 4 ohms?
The amplifier delivers 420 Watts RMS at 4 ohms (CEA standard).
Can the FPX 1.100 run at 1 ohm?
Yes, it is stable under 1 ohm and provides up to 1000 Watts RMS at 1 ohm.
What filters does the amplifier have?
It includes a subsonic filter (10-50 Hz, 24 dB/oct) and a low-pass filter (50-250 Hz, 24 dB/oct).
Does it have a bass boost feature?
Yes, a linear bass boost from 0 to 12 dB is adjustable.
What protections are built in?
It features protection against short circuit, low impedance, reverse polarity, DC offset, voltage drop, and overheating.
What are the dimensions and weight?
Dimensions are 297 x 132 x 53 mm (11.69 x 5.20 x 2.09 in) and weight is 2.55 kg (5.62 lbs).
Is a remote control included?
Yes, a remote control is included for convenient adjustments.
What is the recommended speaker impedance?
The amplifier is stable from 4 ohms down to 1 ohm, offering flexibility for various setups.
How should I clean the amplifier?
Disconnect power and wipe the chassis with a dry, soft cloth. Do not use solvents or water.
Is the Focal FPX 1.100 suitable for a subwoofer?
Yes, it is a mono amplifier designed for subwoofers with a dedicated low-pass filter and high power output.
User questions about FPX 1.100 FOCAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Amplifier in PDF format for free! Find your manual FPX 1.100 - FOCAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FPX 1.100 by FOCAL.

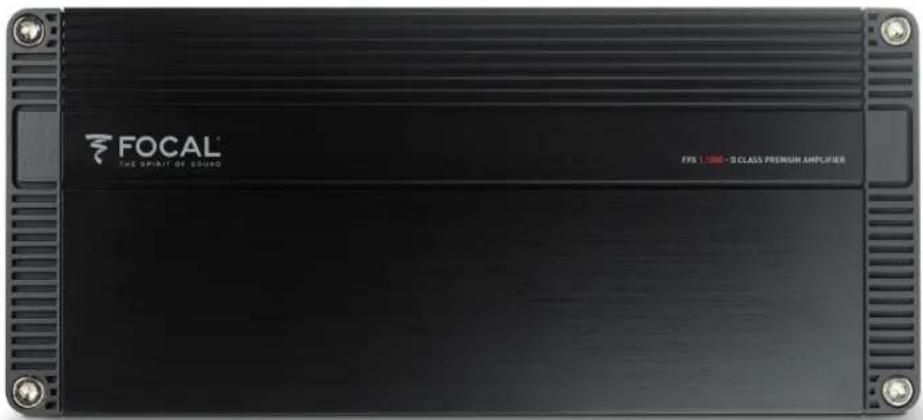

USER MANUAL FPX 1.100 FOCAL
Powerfull and compact
- D Class Mono amplifier – High power and current dynamic reserve
- Stable under 1 Ohm
• Audio Mos-Fets - Optimized efficiency
• High performance compact heat dissipation chassis - Included remote

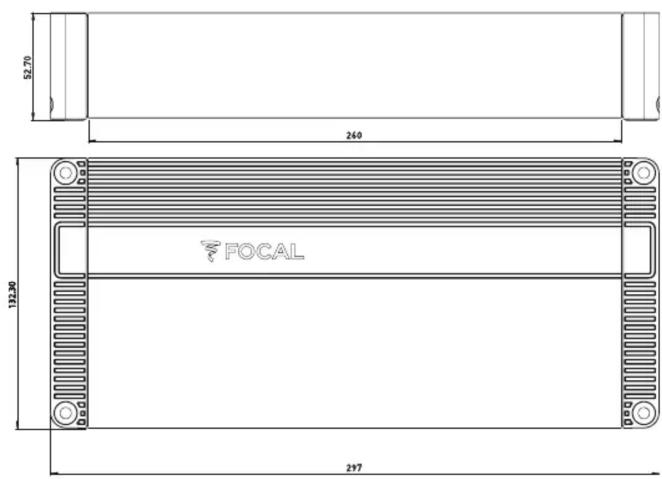

MECHANICAL DRAWING
SPECIFICATIONS
AUDIO SPECIFICATIONS
| CEA power (4 ohms) | 1x420 Watts RMS |
| Max. power (2 ohms) 1x700 Watts RMS |
| Max. power (1 ohm) 1x1000 Watts RMS |
| Bandwidth (-3dB) | 15Hz – 250Hz |
| THD 0,08 % |
| SNR (1W/A) > 76dBA |
GENERAL FEATURES
| Subsonic filter 10Hz-50Hz | (24dB/oct) |
| High-pass/low-pass filter Low-pass |
| 50Hz-250Hz(24dB/oct) |
| Bass boost 0 to 12dB linear |
| Phase 0 to 180° linear |
| Standby current (A) | 1.75 A |
| Remote control |
| Protections Short circuit/low impedance/reverse polarity/DC/voltage drop/overheat protection |
| Dimensions(LxWxH) | 11^11/16 × 5^13/84 × 2^3/32 (297×132×53mm) |
| Weight (kg) | 5.62lbs (2.55kg) |
