FR 1262 - Deep fryer COMELEC - Free user manual and instructions
Find the device manual for free FR 1262 COMELEC in PDF.
| Product Type | Deep Fryer |
| Model | FR 1262 |
| Brand | COMELEC |
| Power Supply | 220-240 V ~ 50 Hz |
| Power | 840 W |
| Oil Capacity | 1.2 L (oil) / 0.9 kg (solid fat) |
| Temperature Control | Adjustable thermostat (140°C to 190°C) |
| Heating Indicator | Red indicator light for heating; goes out when ready |
| Frying Basket | Removable basket with handle |
| Lid | Removable lid with inner cover |
| Safety Features | Hot surface warning; automatic shut-off? not specified, but manual advises unplugging |
| Cleaning | Wipe exterior with damp cloth; wash basket with hot water and detergent; do not immerse appliance |
| Dimensions (approx.) | Not specified; typical for 1.2L fryer: approx. 30 x 20 x 25 cm |
| Weight (approx.) | Not specified; typical for 1.2L fryer: approx. 2.5 kg |
| Cord Length | Not specified; typical: approx. 0.8 m |
| Material | Stainless steel body |
| Warranty | 2 years |
| Intended Use | Household; not for commercial use |
| Frozen Food Capability | Yes, without defrosting |
| Oil Change Frequency | After approximately 20 batches or when oil becomes brown |
Frequently Asked Questions - FR 1262 COMELEC
User questions about FR 1262 COMELEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Deep fryer in PDF format for free! Find your manual FR 1262 - COMELEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FR 1262 by COMELEC.
USER MANUAL FR 1262 COMELEC
Thank you for purchasing this COMELEC product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU read the instruction book carefully, as this will contribute to the best performance of this article.
P.G.E, S.L. guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16
December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127)
P.G.E, S.L is committed to repairs are completely free, labor and spare parts, including.
The Technical Assistance Service will resolve any repairs that may be required by this apparatus.
Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.
Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.
The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.
Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect)
During the following eighteen months, it must be the user who demonstrates. That the lack of conformity it was coming at the time of delivery.
MANUFACTURED CHINA FOR COMELEC
DECLARATION OF CONFORMITY
Manufacturer Name: PRAGMATICA GRUPO EUROPEO, S.L Adress: Tapisers 10 Poligono Industrial Els Mollons Post Code, 46970 City: Alaquas VALENCIA We declare under our responsibility that the product
Product Description: Deep fryer
Model: FR 1262
Brand. COMELEC It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines
The standards apply:
EN 55014-1:2008+A1+A2:
EN 55014-2: 1997+A1+A2
EN 61000-3-2:2008+A1:+A2: EN 61000-3-3:2013
Name:
Position
Date:
Signature:
Pablo Gonzalez
Administrador
10 Enero 2.019
INFORMATION ON RECYCLING.
Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEF), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theta optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately. Consumers should contact the local or retail authority formation about the correct disposal of your old device.
Pragmatica Grupo Europeo, S.L.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
......
DATE OF SALE
Seller's signature and stamp
IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.
To receive assistance under the conditions set forth in this certificate, please submit to the Technical
Service Authorized, this document next to the Purchase Invoice.
CARACTERISTICAS TÉCNICAS
Modelo : FR 1262
Voltaje: 220-240 V \~
Frecuencia : 50 Hz
Potencia 840W
Capacidad: 1,2 L.
Please carefully prepare the instruction manual, before using the product. Save the manual as a reference in the future:
IMPORTANT SAFEGUARDS
This appliance generates heat and steam during use. Proper precautions must be taken to prevent the risk of burns, fires or other damages to persons or property.
* READ ALL INSTRUCTIONS.
* Do not touch hot surfaces, use handles or knobs.
* To protect against electric shock do not immerse cord, plugs or main body in water or other liquid.
* Unplug from outlet when not in use and before cleaning.
* Allow to cool before putting on or taking off parts, and before cleaning the appliance.
* Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any
- We not operate any appliance with a damaged cord or plug of other appliances manufactured, or have to manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
* The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
^ Do not let com hang over edge of the table or counter, or touch the surface
^ Do not place on or near a hot gas or electric burner, or in a heated oven.
Do not please on or heat a hot gas of electric buffer, or in a heated oven. * To disconnect, turn any control to "OFF", then remove plus from wall out
To disconnect, turn any control to OFF, then remove plug from wall outlet.
* Do not use appliance for other than intended use.
* Before connecting the appliance, please check if the voltage indicated on the bottom of the appliance is in accordance with
the main voltage in your home.
* Please locate the appliance and plug assessable to the power socket.
* When using the appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance
to touch curtains, wall covering, clothing, dishtowels or other flammable materials during use.
^ Do not leave this appliance unattended during use.
* Extreme caution must be used when moving an appliance containing hot oil.
* Be sure handles are properly assemble to basket and locked in place
^ Do not heat without food inside. z Do not open the lid when frying
* This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.
* Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot
liquids
* Children should be supervised to ensure that they do not play with the appliance.
* The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
* If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
* This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
-farm houses
— by clients in hotels, motels and other residential type environments:
- by clients in hotels, motors and others - bed and breakfast type environments.
Symbol IEC 60417-5041 (2002-10) CAUTION, Hot Surface
Using your fryer
-
Introducing the oil or fat
-
Introducing the
- Open the top lid
- Lift the basket using the handle.
- Place approximately 1.0 liters of oil or 0.9kg of hard fat into the fryer body (the level must always be between the two marks on the oil container wall).
- If you use blocks of fat, cut them into pieces before placing them in the body.
- Set switch of the temperature controller to 140 ℃ (the red indicator light comes on). To melt the fat needs roughly 6 minutes.
- Never attempt to melt fat in the basket.
2. Cooking
- Plug in the fryer
- Set the temperature controller to the desired temperature depending on what you are going to cook, the indicator "HEAT"
comes on
- When the indicator "HEAT" goes out (after approx. 7-9 minutes) the fryer has reached the corresponding temperature. Remove
the top lid
- Attach the handle into basket.
- Put the food in the basket
- Lower the basket into the oil slowly: watching the oil level and foam in order to keep them from reaching the fringe of the oil
container confirming the oil level is appropriate. Detach the handle. Close the lid.
- When the food is cooked, turn anticlockwise the temperature controller to the position "OFF": the indicator "HEAT" goes out.
Open the lid, raise the basket and drain the oil.
- When cooking, the temperature controller will heat or stop heating according to the set temperature: the "HEAT" indicator
light will flicker
3. Cleaning
- Unplug the appliance when cleaning.
- Clean the outside of the fryer and the lid with a damp cloth.
- Never use abrasive pads or alcohol
- Detach the handle from the basket.
- Wash the basket with hot water or washing-up liquid. Rinse and dry carefully.
- Never immerse the appliance in water or wash it directly by water.
Practical advice
1. Oils and fats
* Always use oil and fats which can withstand high temperature. Do not mix different types of oil or fat.
* Change the oil or fat when it becomes brown after cooking.
- Preparing the food
* Whatever the recipe used, the food must be perfectly dry: this will avoid overflowing and make the oil or fat last longer.
* When preparing potato-based food (chips, crisps, etc.), cut them up and then wash them in cold water to remove the starch.
* Dry them carefully. This will stop them sticking together.
3. Cooking
* Do not overfill the basket. This will cause the oil temperature dropping and make the food greasy.
* Do not keep the oil at high temperature for long periods. This will make it lose its properties.
* Set the temperature controller to the lowest temperature while waiting between two batches.
* Do not leave the cooked food in the basket in the draining position too long. The vapors could cause the food to lose its crispness and go soft.
* Frozen food can be cooked in the basket without being defrosted.
4. After cooking
* Oil or fat can be left in the fryer with its basket and lid on. It will not lose its properties.
* Change the fat or oil regularly, after approximately 20 batches.
- Care and maintenance
1. Cleaning
* Clean the top lid, inner cover and fence lid with a damp cloth or sponge.
2. Repairing
* If there is any breakdown or damage, the appliance must be repaired by specialized people. Non-specialized people are not
permitted to dismantle or repair the appliance.
FRITURE CHART
We enclose a table with frying times by types of food.
| Temperature | Kind of product | Maximum weight recommended per liter | Frying time Minutes | ||
| Fresh | Ultra frozen | Fresh or defrosted | Ultra frozen | ||
| 160° | Homemade Potatoes | 300 g. | ---- | 4-5 | ---- |
| 160° | Fresh fish | 240 g | ---- | 4-5 | ---- |
| 170° | Chicken wings | 4-6 | 4-5 | 12-15 | 15-20 |
| 170° | Cheese croquettes | 5 | ---- | 4-5 | 6-7 |
| 170° | Vegetables (mushrooms, cauliflower) | 10-12 | ---- | 2-3 | ---- |
| 170° | Frozen potatoes (max 170°) | ---- | 250 | ---- | 5-6 |
| 180° | Spring rolls | 3 | 2 6-7 | 10-12 | |
| 180° | Chicken Nuggets | 10 | 12 | 3-4 | 4-5 |
| 180° | Small meatballs | 8-10 | ---- | 3-4 | 4-5 |
| 180° | Fish fingers | 8-10 | 8 | 3-4 | 4-5 |
| 180° | Mussels | 15-20 | 15 | 3-4 | 4-5 |
| 180° | Squid rings | 10-12 | 10 | 3-4 | 4-5 |
| 180° | Shrimp - Prawns | 10-12 | 10 | 3-4 | 4-5 |
| 190° | Silced Eggplant | 300 | -- | 3-4 | -- |
| 190° | Meat or chicken croquettes | 5 | 4 | 4-5 | 6-7 |
| 190° | Donuts | 4-5 | -- | 5-6 | -- |
| 190° | Cordón bleu | 2 | -- | 4-5 | -- |

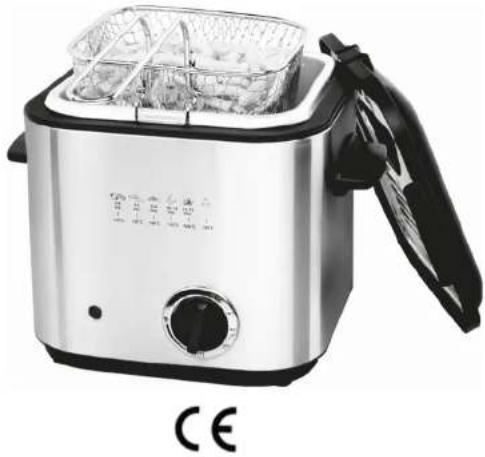

INSTRUCTIONS MANUAL DEEP FRYER
MODEL FR 1262
Model: FR 1262
The rated power : 220-240 \~
Frequency : 50 Hz
Power: 840 W
Capacity: 1,2 L
SUITABLE FOR FAMILY USE.
This product is for home use only.
PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING.
DO NOT HANDLE THIS DEEP FRYER INTERNALLY.
The texts, photos, colors, figures and data correspond to the current technical level from the moment they have been printed. We reserve the right to modifications motivated by the permanent development of the technique in our
Brand : COMELEC
Model : FR 1262
Category : Deep fryer
