WAFUS - Waffle Maker PROLINE - Free user manual and instructions

Product Type	Waffle Maker
Brand	PROLINE
Model	WAFUS
Power	800-1000 W
Voltage	220-240 V
Frequency	50/60 Hz
Dimensions (approx.)	25 x 20 x 10 cm
Weight	1.5 kg
Non-stick Coating	Yes
Indicator Light	Power and ready lights
Thermostat	Adjustable temperature control
Cord Storage	Yes, under base
Safety Features	Auto shut-off, cool-touch handles
Cleaning	Wipe with damp cloth; do not immerse
Accessories	Measuring cup, recipe booklet

Frequently Asked Questions - WAFUS PROLINE

How do I use the PROLINE WAFUS waffle maker for the first time?

Before first use, wipe the plates with a damp cloth. Plug in and let it heat up until the ready light turns on. Lightly grease the plates with cooking spray or oil. Pour batter and close the lid. Cook until golden brown.

What type of batter is recommended?

Any standard waffle batter works. For best results, use a batter that is not too thick. Avoid overfilling to prevent overflow.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth or paper towel. Do not immerse in water or use abrasive cleaners. The non-stick coating is delicate.

Why is the waffle sticking to the plates?

Ensure the plates are properly greased before each use. Also, the batter may be too thin or the temperature too low. Clean any residue after each use.

Can I use metal utensils on the non-stick plates?

No, metal utensils can scratch the non-stick coating. Use silicone, wood, or plastic utensils to remove waffles.

What does the indicator light mean?

The red light indicates power is on. The green light (or change in light) indicates the waffle maker has reached the set temperature and is ready for batter.

How do I adjust the browning level?

Turn the thermostat knob to the desired setting. Lower settings for lighter waffles, higher for darker. Allow the maker to reheat between uses.

What safety precautions should I take?

Always use on a stable, heat-resistant surface. Do not touch hot surfaces. Unplug when not in use. Keep away from water and children.

How do I store the waffle maker?

Let it cool completely. Wrap the cord around the base or use the cord storage feature. Store upright in a dry place.

What is the warranty coverage?

Typically, PROLINE offers a 1-year limited warranty covering manufacturing defects. Check the user manual or contact customer support for details.

USER MANUAL WAFUS PROLINE

Exterior view of a black and silver waffle grater with handle (no text or symbols visible)

OPERATING INSTRUCTIONS

ISTRUZIONI OPERATIVE

NÁVOD K OBSLUZE

MANUEL D'UTILISATION

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
The door or the outer surface may get hot when the appliance is operating.

IMPORTANT SAFETY INSTRUCTIONS

Do not touch hot surfaces. Use handles or knobs.
Always unplug the appliance from the mains socket after use and before cleaning. Allow it to cool to room temperature before moving, removing parts and before cleaning.
The use of accessories or attachments not recommended by the manufacturer may cause hazards.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
Do not move the appliance when it is hot.
Do not attempt to dislodge food when the appliance is in operation.

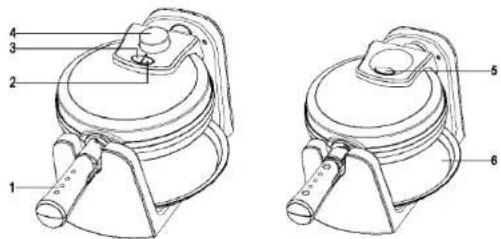

PARTS

1. Folding handle
2. Green ready indicator light
3. Red power indicator light
4. Thermostat
5. Green ready indicator light
6. Drip tray

BEFORE FIRST USE

Remove all packaging materials and wipe the outside of the appliance with a damp cloth.

Clean the cooking grids with a damp cloth.

Lightly coat the cooking grids with a little cooking oil.

OPERATION

1. Place the appliance on a stable flat surface and make sure the drip tray is in place.

2. Plug the appliance into the mains socket.

The red power indicator light will be illuminated.

1. Turn the thermostat to the desired temperature setting. The green ready indicator light will be illuminated.

2. When the green ready indicator light goes off, the appliance has reached the desired temperature and is ready for use.

3. Open the lid and pour batter (approx. ^3 / _4 cup) to fill the lower cooking grid.

If necessary, use a spatula (not supplied) to spread the batter into the corners of the grid.

1. Close the lid and rotate the appliance 180° clockwise.

Do not open the lid too soon; doing this may cause under-baked waffles to split, making them difficult to remove.

1. When the waffles have been baked, rotate the appliance 180° anticlockwise.

For a darker waffle, close the lid and continue baking until the desired colour is achieved.

1. To cook more waffles, please repeat the steps 2 to 6.

2. When you finish cooking, switch off and unplug the appliance from the mains socket.

Helpful hints

• Do not over mix batter otherwise waffles will be tough. Stir batter only until large lumps of dry ingredients disappear.
  • To retain crispness, let the baked waffle cool on a wire rack to prevent steam from accumulating.
• In case that waffles have cooled, reheat them by placing them into the hot waffle maker. Close the lid and heat for 1 to 2 minutes.
• Baked waffles may be frozen. Allow them to cool to room temperature, and then place them in plastic food storage bag. Use waxed paper to keep waffles separated. Reheat them in a toaster or toaster oven when ready to use.

RECIPES

Always preheat the appliance to desired temperature before pouring batter on the cooking plates.

Buttermilk waffles

2 cups of Flour
1 tbsp. Sugar
1 tbsp. Baking Powder
1^1/4 cups Buttermilk
^1/2 tsp. Baking Soda
3 Eggs
^1/2 tsp. Salt
6 tbsp. Butter, melted

1. Combine dry ingredients in a large bowl.
2. In a separate bowl, beat buttermilk and eggs until thoroughly mixed. Slowly add melted butter.
3. Add buttermilk mixture to the dry ingredients. Mix until large lumps are gone
4. Pour about 34 cup of waffle batter into the preheated waffle maker are cook until steam no longer escapes and the waffle is golden brown.

Deluxe waffles

2 cups of All-purpose flour
4 Egg Yolks
1 tbsp. Baking Powder
4 Egg Whites
1 tsp. Salt
1 1/4 cups of Milk
3 tbsp. White Sugar
^1/_2 cup of Vegetable Oil

1. In a large bowl sift together the flour, baking powder, salt and sugar.
2. In a separate bowl, mix together the egg yolks, milk and oil. Pour into the flour mixture and stir until large lumps are gone.
3. In a small bowl beat egg whites until stiff. Fold into batter.
4. Pour about 34 cup of waffle batter into the preheated waffle maker and cook until steam no longer escapes and the waffle is golden brown.

Chocolate chip waffles

1^3/4 cups of Flou
3 Egg Yolks
2 tsp. Baking Powder
3 Egg Whites
1 tbsp. Sugar
1^3/4 cups of Milk
^1/2 tsp. Salt
^1/2 cup of Vegetable Oil
2 cups of Chocolate Chips

1. In a medium sized bowl, combine all dry ingredients. This includes the chocolate chips. In a separate bowl, beat the egg whites until they are stiff.
2. In a small bowl, combine the egg yolks and milk. Then, stir in to the dry ingredient. Add the oil and mix. GENTLY fold in beaten egg whites, and mix until large lumps disappear.
3. Pour about 34 cup of waffle batter into the preheated waffle maker and cook until steam no longer escapes and the waffle is golden brown.

CLEANING AND MAINTENANCE

Unplug the appliance and allow it to cool completely before cleaning.

Clean the outside of the appliance and cooking grids with a damp cloth. Never use an abrasive cleaner. Clean the drip tray in warm soapy water. Rinse and dry it thoroughly.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of hot clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination.

SPECIFICATIONS

Ratings: 220V-240V\~50/60Hz 1000W

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Kesa Electricals © UK:EC1N 6TE 20/03/2012

FR

ATTENTION

Kesa Electricals © UK:EC1N GTE 20/03/2012

NL

WAARSCHUWINGEN

Kesa Electricals © UK:EC1N 6TE 20/03/2012

CZ

UPOZORNĚNÍ

Kesa Electricals © UK:EC1N 6TE 20/03/2012

SK

VAROVANIA

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Kesa Electricals © UK:EC1N 6TE 20/03/2012

IT

AVVERTENZE

Kesa Electricals © UK:EC1N 6TE 20/03/2012

ES

ADVERTENCIAS

Kesa Electricals © UK:EC1N 6TE 20/03/2012
