Product Type	Built-in oven
Brand	Siemens
Model	HE54064
Energy Source	Electric
Oven Capacity	71 liters
Dimensions (H x W x D)	595 x 594 x 548 mm
Weight	Approx. 40 kg
Voltage / Frequency	220-240 V / 50-60 Hz
Maximum Power	3.65 kW
Heating Methods	Hot air, top heat, bottom heat, grill, dual grill, bottom heat + fan
Temperature Range	50 °C to 275 °C
Control Type	Knobs and push buttons
Display	Digital clock and temperature indicator
Door Type	Cool front door with easy-clean glass
Safety Features	Child lock, automatic shut-off, residual heat indicator, overheat protection
Cleaning Type	Catalytic enamel on back wall (self-cleaning)
Energy Efficiency Class	A (on a scale of A+++ to D)
Noise Level	Max 48 dB (A)
Warranty	2 years
Included Accessories	Baking tray, wire rack, universal pan, grill rack

Frequently Asked Questions - HE54064 SIEMENS

How do I set the clock on my Siemens HE54064 oven?

Press the clock button until the display flashes. Use the +/- buttons to set the time and confirm by pressing the clock button again.

What does the 'hot air' function do?

The hot air function uses a fan to circulate hot air throughout the oven, ensuring even cooking and browning on multiple levels simultaneously. Perfect for baking and roasting.

How often should I clean the oven and which method is best?

Clean the oven regularly after each use to prevent buildup. Use catalytic cleaning for the back wall (it absorbs grease during high-temperature operation) and wipe down the interior with a damp cloth and mild detergent. Avoid harsh abrasives.

What should I do if the oven does not heat up?

Check the power supply (circuit breaker) and ensure the oven is properly plugged in. Verify that the child lock is not activated. If the problem persists, contact a qualified technician.

What are the required installation dimensions for the oven?

The oven requires a built-in cabinet opening of approximately 600 mm width, 600 mm height, and 550 mm depth. Ensure proper ventilation gaps as per the installation manual.

How do I use the grill function?

Select the grill or dual grill function using the function selector. Place food on the wire rack in the top shelf position. Monitor cooking closely, as grilling is fast. Use the universal pan below to catch drips.

Is it necessary to preheat the oven?

For most recipes, preheating is recommended for consistent results. Place food inside only after the oven reaches the desired temperature. The oven signals when preheated.

How do I deactivate the child lock?

Press and hold the child lock button for approximately 3 seconds until the symbol disappears. Refer to the manual for exact location on your model.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom of the oven or placing foil directly on the heating elements. Use foil on shelves to catch spills, but ensure it does not block air circulation.

What does the error code 'E011' mean?

Error code E011 indicates a sensor fault. Try resetting the oven by unplugging it for a few minutes. If the error persists, contact Siemens customer service for repair.

USER MANUAL HE54064 SIEMENS

Simple line drawing of an oven with a door and front panel (no text or symbols)

HE 540..

800 422 DE

Inhaltsverzeichnis

Umweltschutz 4

Eine Störung, was tun? 35

Illustration of a cake with decorative toppings and bread rolls, no text or symbols present

Illustration of a roasted chicken and fish (no text or symbols)

Illustration of a sandwich with three fried food items above it (no text or symbols)

Kühlgebläse

Heißluft

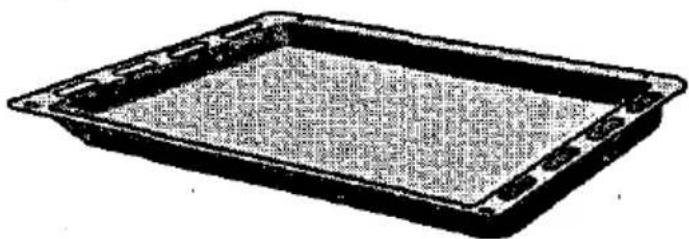

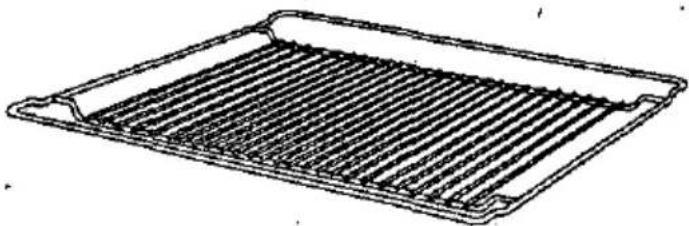

Line drawing of a rectangular tray with horizontal slats and a curved handle (no text or symbols)

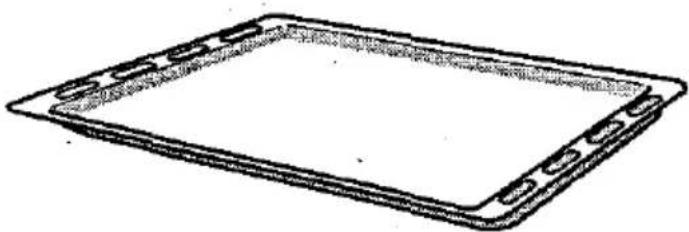

Line drawing of a rectangular tray with multiple slots and handles (no text or symbols)

Black-and-white illustration of a rectangular tray with handles and a textured interior (no text or symbols)

Einkochen von Obst

Diagram showing two mechanical or fluid dynamics setups with circular components and directional arrows, no text or symbols present.

So gehen Sie vor:

Eine Störung, was tun?

U524775
