Product Type	Stroller
Brand	Chipolino
Model	Exte
Unfolded Dimensions	90 x 60 x 110 cm
Folded Dimensions	30 x 60 x 80 cm
Weight	10 kg
Maximum Child Weight	15 kg
Suitable Age	6 months to 3 years
Harness Type	5-point harness
Recline Positions	3 positions
Canopy	Adjustable with UV protection
Brake	Foot brake
Wheels	Swivel front wheels with lock
Frame Material	Aluminum
Seat Material	Fabric
Cleaning Instructions	Hand wash seat pad, wipe frame with damp cloth
Safety Standards	EN 1888 certified
Accessories Included	Rain cover
Warranty	2 years

Frequently Asked Questions - Exte Chipolino

How do I assemble the Chipolino Exte stroller?

Unfold the stroller by pulling the handle upward until it locks into place. Attach the front and rear wheels until you hear a click. Then install the seat fabric if not pre-attached. Always refer to the instruction manual for detailed steps.

What is the maximum weight limit for the stroller?

The maximum child weight is 15 kg, approximately up to 3 years of age. Do not exceed this limit to ensure safety.

How do I fold the stroller?

First, lock the front wheels, then press the folding button on the handle. Lower the handle while pushing the frame forward until it collapses. Secure with the locking latch.

Can the seat recline?

Yes, the seat has 3 recline positions. Adjust by pulling the lever on the back of the seat and moving it to the desired angle.

Is the canopy adjustable?

Yes, the canopy is adjustable and offers UV protection. It can be extended forward to provide more shade.

How do I clean the stroller?

The seat pad should be hand washed with mild soap and air dried. The frame can be wiped with a damp cloth. Do not use abrasive cleaners.

Does the stroller have a safety harness?

Yes, it includes a 5-point harness with adjustable straps and a buckle. Ensure the harness is snug and the buckle clicks closed securely.

How do I engage the brake?

Press down on the foot brake located on the rear axle. Make sure the stroller does not move before releasing the brake by lifting the pedal.

Are the front wheels swiveling?

Yes, the front wheels can swivel for easier maneuverability. They can also be locked for straight-line movement by pushing down the lock levers.

What is the warranty period for the stroller?

The Chipolino Exte comes with a 2-year warranty covering manufacturing defects. Keep your receipt and contact customer support for claims.

USER MANUAL Exte Chipolino

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE

INSTRUCTION MANUAL FOR USE OF BABY STROLLER "EXTE"

EXTE

Line drawing of a baby stroller with adjustable arms and wheels (no text or symbols)

This stroller Chipolino is manufactured according to the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888 "Child care articles. Wheeled child conveyances. Safety requirements and test methods" and the regulations of national legislation.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECCOMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

CAUTION! WARNINGS!

• NEVER LEAVE YOUR CHILD UNATTENDED!
• THE SEAT OF THIS STROLLER IS NOT SUITABLE FOR CHILDREN YOUNGER THAN 6 MONTHS!
• ALWAYS USE THE SAFETY BELT!
• DO NOT LIFT THE STROLLER BY ITS FRONT BUMPER!
• MAKE SURE ALL PARKING DEVICES ARE ENGAGED BEFORE USE.
• IN ORDER TO AVOID INJURY, MAKE SURE CHILDREN ARE AT SAFE DISTANCE FROM THE STROLLER DURING ITS ADJUSTING, UNFOLDING OR FOLDING!
• DO NOT ALLOW YOUR CHILDREN TO PLAY WITH THE STROLLER!
- CHECK THE STABILITY OF EACH FIXING BEFORE EACH USE!
• THIS PRODUCT IS NOT SUITABLE FOR RUNNIG OR SKATING!
- KEEP AWAY FROM FIRE!
• To be used for a child with weight up to 15 kg.
• Adult assembly is required!
• Do not put additional mattress or pad in the seat!
• Always activate the parking device when you put the children in or out of the stroller!
• Make sure the safety belts are correctly fastened and adjusted before each use.
• The maximum load for the storage basket is 2 kg!
- Do not overload the stroller! Every load attached to the handle, bumper, and backrest or on the side of the stroller will affect its stability!
• To be used for one child only at a time.
- Only use spare parts or other components, which are recommended or supplied by the producer! In the contrary case the producer is not responsible for the product's safety.
- Do not make any changes or modifications to the stroller's construction! In case of problems contact the dealer or an authorized repair service for advice and/or repair.
• Do not use this stroller if you find missing or damaged parts!
• Do not allow children younger than 3 years near the stroller during its assembly!
- Do not attach any strings or long cords to the stroller in order to avoid risk of suffocation!
- Do not use the stroller on stairs or escalators and pay attention when overcoming a curb or a step.
- Keep the plastic packaging away from children in order to avoid risk of suffocation!

Simple line drawing of a child in a stroller inside a circle (no text or symbols)

Illustration of a woman and a stroller with a child, enclosed in a circle (no text or symbols)

Simple line drawing of a child in a stroller inside a circle (no text or symbols)

Illustration of a woman pushing a baby in a stroller inside a circle (no text or symbols)

Illustration of a woman pushing a baby stroller inside a circular frame (no text or symbols)

MAIN FEATURES

• This stroller is intended for one child aged 0-36 months;
• Suitable for one child weighing up to 15 kg;
• 5-point safety harness;
• Adjustable backrest;
- Adjustable canopy;
• Height adjustable handles;
- Adjustable leg rest.

ОСНОВНИ ЧАСТИ

Handles Folding locking mechanism Transport hook Storage basket Parking device Rear wheels Front wheels Canopy Front bumper Safety harness Leg rest Swivel / straight motion button

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you don't need any tools.

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

IMPORTANT! In most cases after the completion of an operation you will hear a clicking sound.

The assembly, disassembly and functions are numbered from 1 to 10. Use the operations descriptions given in this manual and their matching picture.

1 – Stroller unfolding

2 - Front wheels.

2-1 Assembly and removal of wheels

2-2 Swivel and straight movement motion of the wheels

Note: When you use the stroller on uneven surfaces, it is recommended to fix the wheels for straight motion.

3 - Rear wheels installation

Note: After you install the rear wheels, hide the parking device wire under the X-tube in the storage basket.

4 - Canopy

4-1 Installation and removal

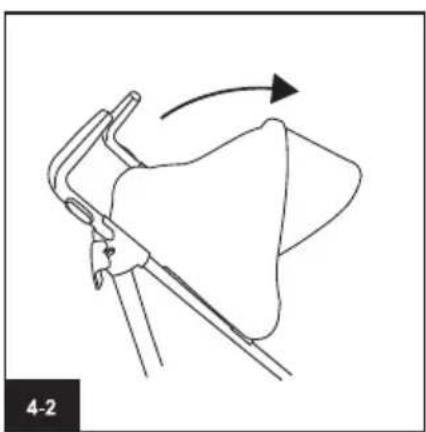

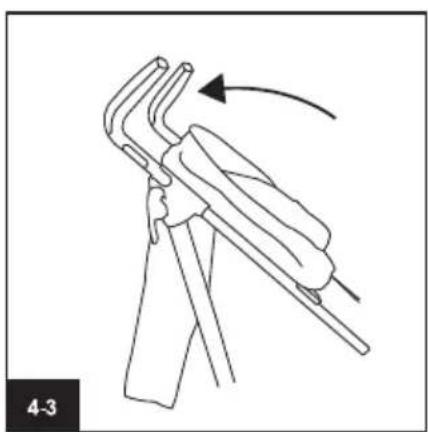

4-2 and 4-3 Adjusting the canopy

CAUTION! Always attach the canopy at the back of the seat in order to prevent the child from sliding off and injury.

5 - Front bumper

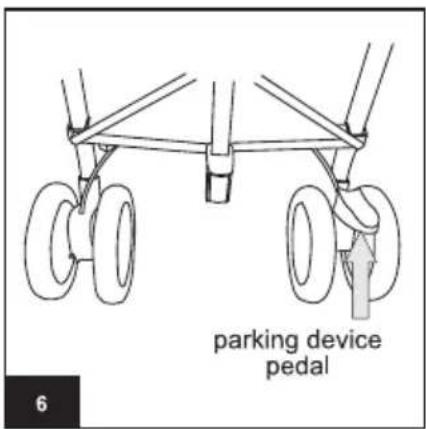

6 – Parking device

7 - Backrest adjustment

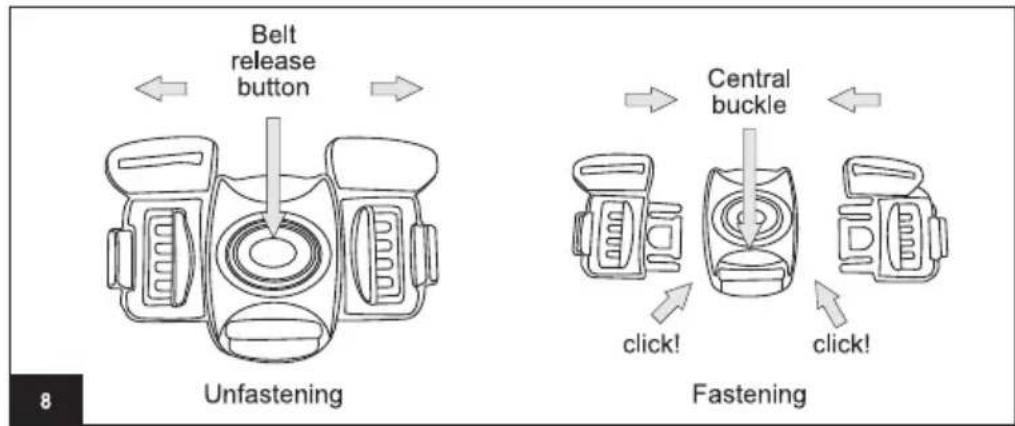

8 - Restraint system (safety belt)

CAUTION! Belt must be snug to child's body and must not be twisted.

IMPORTANT! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The seat belt straps must not be damaged, worn out or twisted!

CAUTION! Baby aged under 6 months must be put in the stroller only when seat's backrest is in most lying position! You must use the restraint system at all times!

9 – Handles height adjustment

10 - Folding the stroller

IMPORTANT! Before folding the stroller, activate the parking device, close the canopy, empty the storage basket, put the backrest in most upright position and the handles in lowest position.

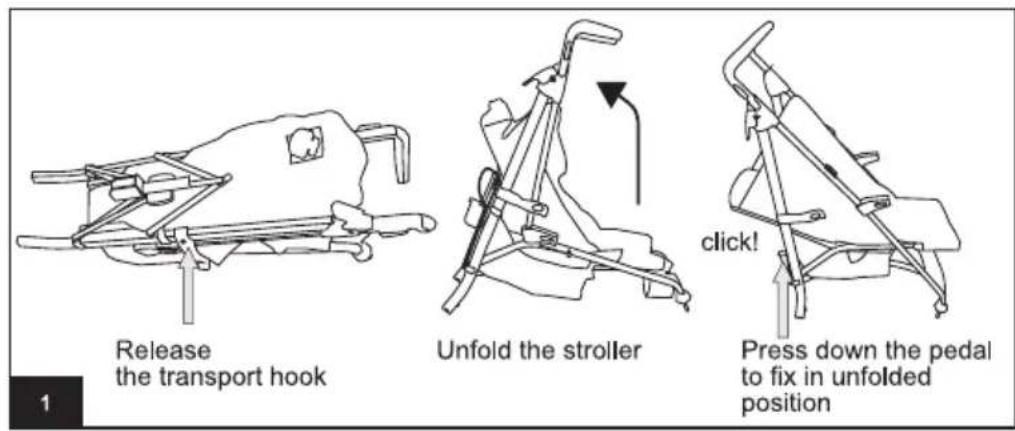

Release the transport hook Unfold the stroller click! Press down the pedal to fix in unfolded position

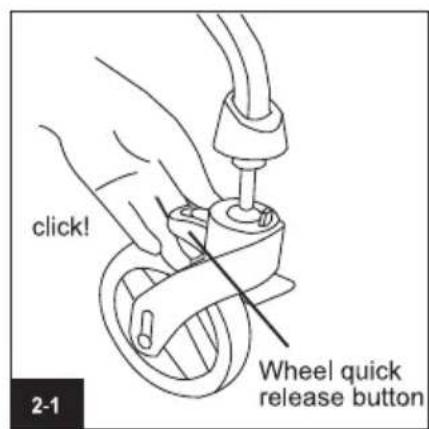

click! Wheel quick release button 2-1

swivel motion straight motion 2-2

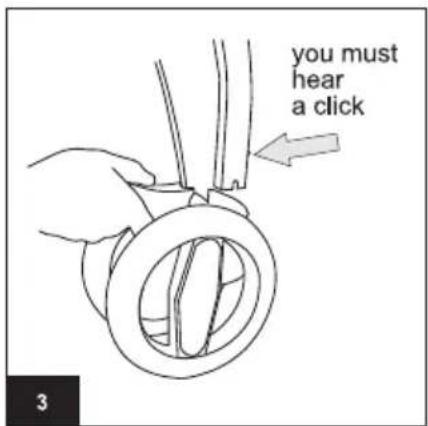

you must hear a click

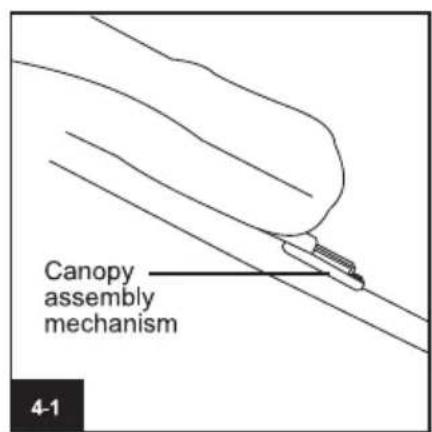

Canopy assembly mechanism 4-1

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a pliers or tool with an arrow indicating motion, no text or symbols present

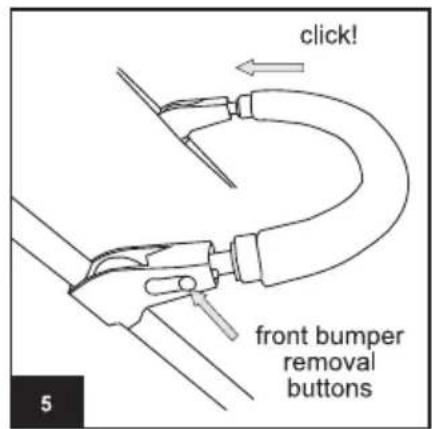

click! front bumper removal buttons 5

parking device pedal 6

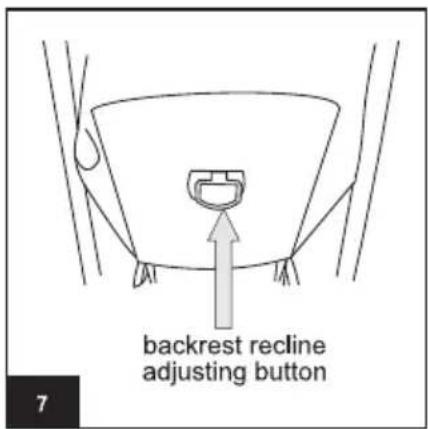

backrest recline adjusting button

Line drawing of a bird's seat with an arrow indicating rotation (no text or symbols)

A B C Step 1 Step 2 Step 3 Handle height adjusting button 10

CARE AND MAINTENANCE GUIDELINES

• The brakes and wheels wear out faster than other parts. Replace them when necessary.
• Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
• Clean and oil all dirty metal and plastic parts regularly.
• Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
• Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
• Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
• Always store your stroller indoors. The effect of the environment – sea air, road covered with salt, acid rains, etc., as well as storing in the open air lead to corrosion.
- Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester

Five geometric symbols including star, triangle, circle, cross, and donut with corresponding line styles

LKEX017xxxx
