TR-54 MK2 - Radio DENVER - Free user manual and instructions

Product Type	Portable Radio
Model	TR-54 MK2
Brand	Denver
Frequency Range	FM 87.5–108 MHz, AM 530–1710 kHz
Power Supply	AC 230V ~ 50Hz or 6V DC (4 x AA batteries, not included)
Dimensions	Approx. 200 x 120 x 80 mm
Weight	Approx. 500 g (without batteries)
Speaker	3 inches, 8 ohm
Output Power	1W RMS
Tuning	Analog dial with pointer
Antenna	Telescopic FM antenna
Battery Type	4 x AA (1.5V) for portable use
AC Power	Built-in AC adapter with cord
Functions	On/Off, Volume control, Tuning knob, Headphone jack (3.5mm)
Color	Black with silver accents
Material	Plastic housing
Accessories Included	User manual, warranty card
Safety	Do not expose to water or moisture. Keep away from heat sources.
Maintenance	Clean with a dry, soft cloth. Avoid solvents or abrasive cleaners.
Spare Parts	Standard AA batteries and compatible antennas widely available.
Repair	Refer to an authorized Denver service center for repairs.
General Information	Compact design suitable for both indoor and outdoor use.

Frequently Asked Questions - TR-54 MK2 DENVER

How do I tune in a station?

Turn the tuning knob slowly until you hear the desired station clearly. For FM, extend the telescopic antenna for better reception.

Can I use batteries and AC power at the same time?

No, the radio automatically switches to AC power when plugged in and disconnects the batteries. Do not mix battery types.

What type of batteries does the radio require?

It requires 4 x AA batteries (1.5V each, not included). For best performance, use alkaline batteries.

Why is there static or weak reception on FM?

First, fully extend the telescopic antenna. Adjust its direction and position. For AM, rotate the radio itself as the internal ferrite antenna is directional.

Is there a headphone jack?

Yes, a 3.5mm headphone jack is located on the side. Inserting headphones will mute the built-in speaker.

How do I clean the radio?

Unplug the radio and remove batteries. Wipe the exterior with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners.

Can I use the radio while charging?

This radio does not have a rechargeable battery. It runs on AC power when plugged in, or on disposable batteries when unplugged.

What is the maximum volume output?

The radio delivers up to 1W RMS of audio power through its built-in speaker. Volume can be adjusted with the knob.

Does the radio have a sleep timer or alarm?

No, the TR-54 MK2 is a basic analog radio. It does not include a sleep timer or alarm clock function.

Where can I get spare parts or repair service?

For spare parts like antennas or knobs, check with local electronics retailers. For repairs, contact Denver authorized service centers or your point of purchase.

USER MANUAL TR-54 MK2 DENVER

Operating Instructions

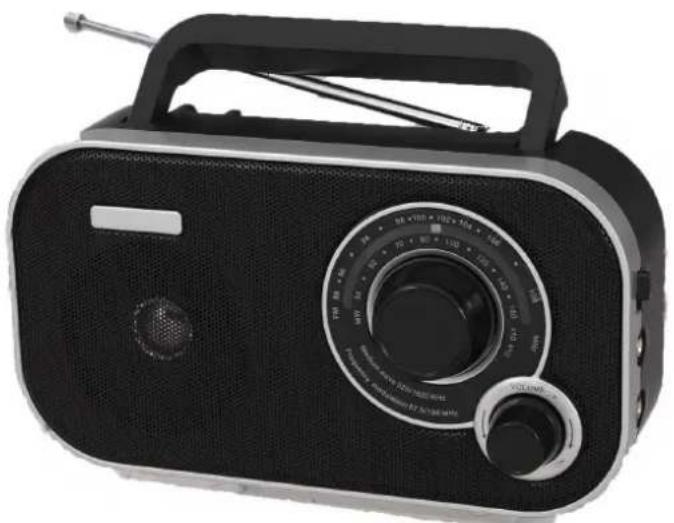

Black portable radio with analog dial and antenna (no visible text or symbols)

www.facebook.com/denverelectronics

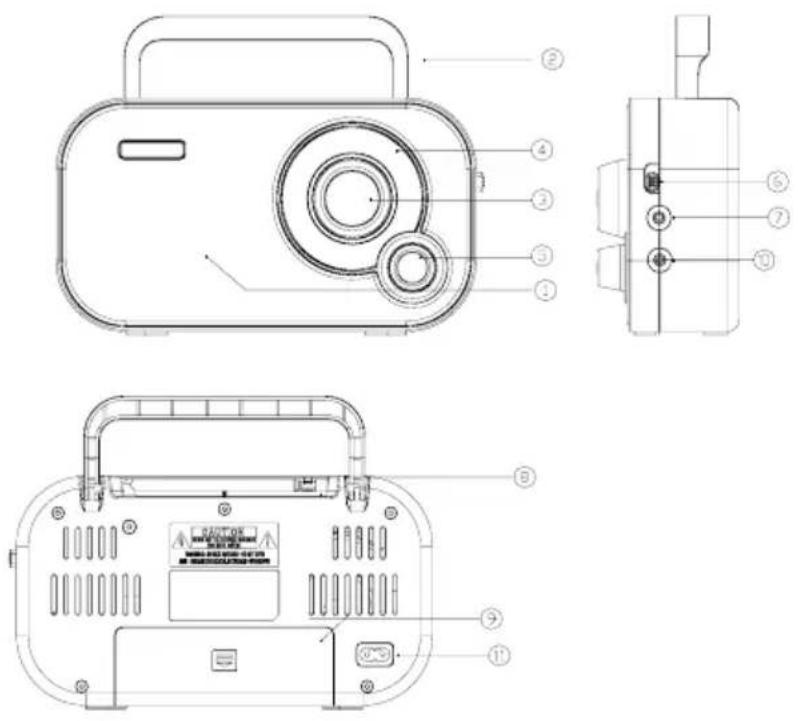

COMPONENTS

1. Speaker
2. Carrying handle
3. Frequency turning
4. Frequency display
5. VOLUME ON/OFF
6. AM /FM BAND SWITCH
7. Aux in jack
8. Telescopic antenna
9. Battery compartment
10. Headphone jack
11. AC Socket

INSERTING THE BATTERIES

1. Before inserting the batteries, the unit must be turned off and unplugged.
   The power cable must be disconnected from the connector jack AC 230V, otherwise battery operation is not possible.
2. Open the battery compartment (9) on the unit's bottom side.
3. Insert 4 batteries, type 1.5V AA.
   Heed the correct polarity of all batteries as indicated in the battery compartment.
4. Close the battery compartment. The unit is ready for use.

OPERATING THE RADIO

1. Set the frequency band with the frequency band switch AM FM (3).

When using (FM) frequency band, pull out the telescopic antenna (8) completely.

Reception can be improved by turning the radio and adjusting the antenna.

An internal ferrite antenna is installed for receiving MW (AM) stations.

To improve reception of MW (AM) stations, turn the radio appropriately.

1. To turn on the radio, turn the dial VOLUME OFF (5) in direction VOLUME.
2. Increase the volume by turning the dial VOLUME OFF in direction VOLUME.
3. Set the desired frequency, which can be seen in the frequency display (4), by turning the dial TUNING.
4. Carry the unit by the carrying handle (2).
5. To turn off the radio, turn the dial VOLUME OFF in direction OFF as far as it will go.

AUX in jack

An external playing device (e.g. MP3 player) can be connected to this device using the AUX connection and music can be played back via the speakers. Attention: Before connecting your playing device, always observe its instructions regarding the safety information and use.

Switch off the device and its external playing device.

HEADPHONE JACK

Headphones with a 3.5 mm jack plug can be connected to the headphone jack (10). The speaker (1) is muted automatically when connecting headphones. Set the headphone volume with the dial

VOLUME OFF.

CLEANING AND MAINTENANCE

Attention! Do not use alcohol, acetone, benzene, scouring cleaning agents, etc., to clean the synthetic parts of the device. Do not use hard brushes or metallic objects..

The blender must be turned off and unplugged before every cleaning.

Wipe off the unit regularly with a dry rag. Remove the batteries from the battery compartment for extended periods of disuse. Leaking batteries can damage the unit. Store the unit at a dry, cool place shielded from moisture and direct sunlight.

TECHNICAL DATA

Frequency band: (FM) 87.5 – 108 MHz

MW (AM) 540 – 1600 KHz

Operating voltage: 230V\~50Hz, battery operation (4x 1.5V AA)

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
