Product Type	Distribution Charging Cart
Brand	Black Box
Model	LCC36H-ATP-HASP
Device Capacity	36 devices (tablets or 15" Chromebooks)
Input Power	120 VAC, 15 A, 50-60 Hz, 1 Ph
Maximum Current Rating	12 amps
Dimensions (H x W x D)	44.1 x 20.2 x 21.3 in (without handle)
Weight	125 lb (56.8 kg)
Shipping Weight	150 lb (68.2 kg)
Material	18 ga (1.2 mm) steel, powder coated
Casters	2 fixed, 2 swiveling and locking, 5" polyurethane
Lock Type	Padlock (HASP)
Key Functions	Charging, storage, transport; power distribution box with on/off switch; front cable management; split hinged steel front door
Approvals	UL 60950, UL 1678, CE, RoHS2
Warranty	Cart: Lifetime; Electronics: 3 years
Maintenance	Clean with dry cloth; inspect cables and plug regularly
Safety Precautions	Do not exceed 12A; use only indoors; avoid children climbing; distribute weight evenly
Repairability	All electrical components must be repaired by a qualified electrician

Frequently Asked Questions - LCC36H-ATP-HASP Black Box

What is the maximum number of devices the LCC36H-ATP-HASP can charge?

The cart can store and charge up to 36 devices such as tablets or 15-inch Chromebooks.

What type of power input does the cart require?

It requires a 110–120-volt AC, 15-amp power supply with a NEMA5-15P plug. Do not use an extension cord.

How do I route the charging cables?

Open the cable manager at the back of the cart, place the device side of the charging cable into the slots, then route it to the front. Secure excess cable around the cable wrap. See the manual for detailed diagrams.

Can I use an extension cord with this cart?

No, extension cords are not permitted due to fire and electric shock hazards.

How do I move the cart safely?

Unplug the cart, wrap the cord around the handle, close and lock doors, then unlock the casters before moving. Lock the casters at the destination before plugging in.

What safety precautions should I take with children?

Death or serious injury can occur if children climb on the cart. Always supervise children and do not leave the cart unattended in areas accessible to children.

What is the maximum current the cart can handle?

The load current shall not exceed 12 amps under any operating conditions.

How do I clean the cart?

Use a dry cloth to wipe the cart. Do not use liquids in or around the cart to avoid electrical hazards.

What is the warranty on the cart and electronics?

The cart frame has a lifetime warranty, and the electronics (power distribution) are covered for 3 years.

Can I repair the cart myself?

All electrical repairs must be performed by a qualified electrician. Improper repair can create hazards and void the warranty.

USER MANUAL LCC36H-ATP-HASP Black Box

Front view of a white industrial cart with two wheels and a door (no text or symbols)

BLACK BOX

TABLE OF CONTENTS

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS......4

1.1 Standard Distribution Charging Carts General Specifications....4

1.2 Standard Distribution Charging Carts Specifications for Hinged Door 5

2. OVERVIEW....6

2.1 Introduction....6

2.2 What's Included 6

3. CONFIGURATION AND SETUP....7

3.1 Unpacking 7

3.2 Routing the Cables....7

3.3 Plugging In the Cart 10

3.4 Turning On the Cart....10

3.5 Moving the Cart....10

APPENDIX A. REGULATORY INFORMATION....11

A.1 FCC Statement....11

A.2 NOM Statement (Electrical Safety)....11

APPENDIX B. ADDITIONAL DIMENSIONS 13

TRADEMARKS USED IN THIS MANUAL....14

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.

• Only adults should move the cart.
• Do not leave the cart unattended in areas where children have access.
• Do not block the air vent openings.
• The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
• The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
• The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
• The Cart must only be used by adults or with adult supervision.
• Never pull the Cart by the power cord.

Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.

- Do not use an extension cord in conjunction with the Cart.

- Do not use liquids in or around the Cart environment.

- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.

For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.

The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.

The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.

All electrical outlets provided are for the sole purpose of charging electronic devices. Any use of these electrical outlets, other than for the intended purpose, is not advised and must be approved by a qualified electrician.

Do not exceed the maximum specified wattage of the cart. The load current shall not exceed 12 amps under any operating conditions.

1.1 STANDARD DISTRIBUTION CHARGING CARTS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

SPECIFICATION DESCRIPTION
General
Approvals UL	* 60950 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color	Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Power Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	(1) switch on power distribution box
Device Charging Type	Power Distribution Box
Cart Max. Current Rating	12 amps
Auxiliary Power	(3) NEMA 5-15R and (2) USB 2.0 Type A Outlets (external power option only)
Dimensions
Unit Height 44.1" (112.0 cm)
Unit Width	20.2" (51.3 cm) w/o handle, 23.7" (60.2 cm) w/ handle
Unit Depth	21.3" (54.1 cm)
Unit Weight	125 lb. (56.8 kg)
Shipping Height	50" (127 cm)
Shipping Width	35" (88.9 cm)
Shipping Depth	32" (81.3 cm)
Shipping Weight	150 lb. (68.2 kg)
Top Weight Capacity	150 lb. (68.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Top	2.00-mm thick steel top
Casters
Type	(2) Fixed, (2) Swiveling and Locking
Diameter	5" (12.7 cm)
Wheel	Polyurethane tread
Frame	Nickel Plated Steel
Warranty
Cart	Lifetime
Electronics	3 Years

1.2 STANDARD DISTRIBUTION CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

TABLE 1-2. STANDARD DISTRIBUTION CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

PART NUMBER TYPICAL DEVICE		DEVICE QUANTITY	EXTERNAL POWER	FRONT CABLE MANAGEMENT	LOCK TYPE	MAX. DEVICE SIZE (INCHES) MAX. WALLMOUNT POWER SUPPLY SIZE (INCHES)						MAX. POWER BRICK SIZE (INCHES)
						HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH
LCC30H-A-R2	Tablet or 15" Chromebook	30	No	No	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-A-HASP-R2	Tablet or 15" Chromebook	30	No	No	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-AP	Tablet or 15" Chromebook	30	Yes	No	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-AP-HASP	Tablet or 15" Chromebook	30	Yes	No	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC36H-A-R2	Tablet or 15" Chromebook	36	No	No	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-A-HASP	Tablet or 15" Chromebook	36	No	No	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-AP	Tablet or 15" Chromebook	36	Yes	No	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H AP-HASP	Tablet or 15" Chromebook	36	Yes	No	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC30H AC-R2	Tablet or 15" Chromebook	30	No	Yes	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H AC-HASP	Tablet or 15" Chromebook	30	No	Yes	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ACP	Tablet or 15" Chromebook	30	Yes	Yes	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ACP-HASP	Tablet or 15" Chromebook	30	Yes	Yes	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC36H-AC-R2	Tablet or 15" Chromebook	36	No	Yes	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-AC-HASP	Tablet or 15" Chromebook	36	No	Yes	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ACP	Tablet or 15" Chromebook	36	Yes	Yes	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ACP-HASP	Tablet or 15" Chromebook	36	Yes	Yes	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7

*Towards Shelf: 1.38*
Towards Rear Door: 3.86"

NOTES:

• Height: vertical dimensions, runs top to bottom of cart
• Width: horizontal dimensions, runs left side panel to right side panel of cart
• Depth: horizontal dimension, runs front door to rear door of cart

NOTES:

For maximum wallmount power supply dimensional diagrams and maximum power brick dimensional diagrams, see Appendix B.

2.1 INTRODUCTION

The Standard Distribution Charging Cart is designed to store, charge and transport tablets, e-readers, laptops, netbooks, Chromebooks and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with a power distribution box that provides a on/off power switch and one external power cord to power the whole cart. The power distribution box doesn't have any overload protection.

The Standard Distribution Charging Cart can be equipped in various configurations according to the following standard options.

• 30 or 36 stored devices
- Split hinged steel front door
- Keyed front and back lock or padlock front and back lock
- External power outlets
- Front cable management

All Standard Distribution Charging Carts feature a heavy-duty, fully welded steel frame, 2.0-thick steel top, and heavy-duty, 5" casters.

Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Cart
(2) sets of keys

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

3.1 UNPACKING

Remove and discard all packaging materials and lock the lockable casters.

Open and inspect the cart to verify all doors, locks, and casters are working properly.

Do not plug the cart into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

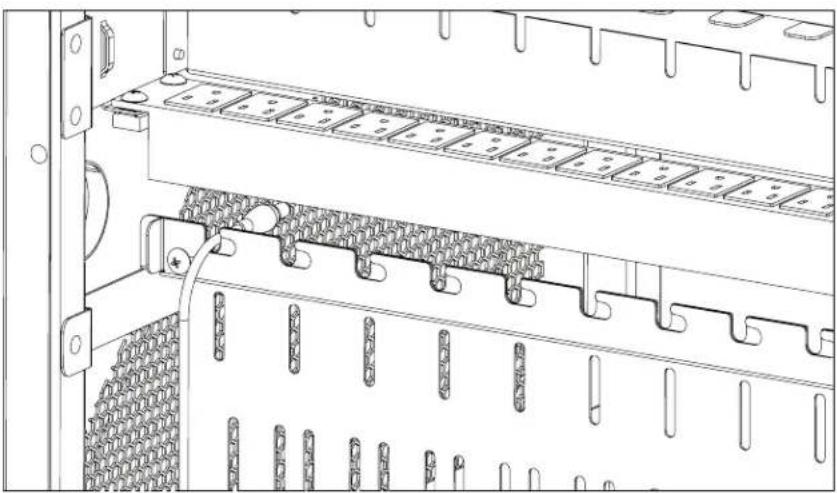

1. At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.

Technical line drawing of a server rack with mesh insulation and mounting brackets (no text or symbols)

FIGURE 3-1. CABLE ROUTING DIAGRAM #1

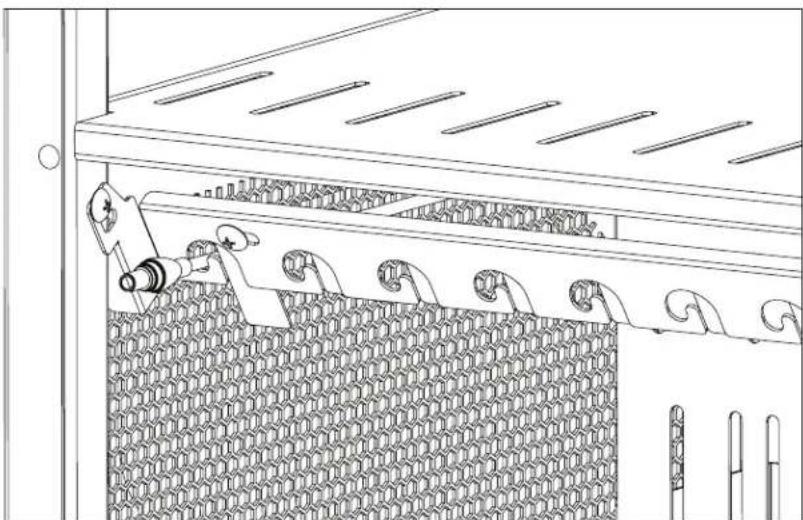

1. Slide back the top section of the cable manager and tighten the screws.
2. Route the device side of the charging cable to the front of the cart.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

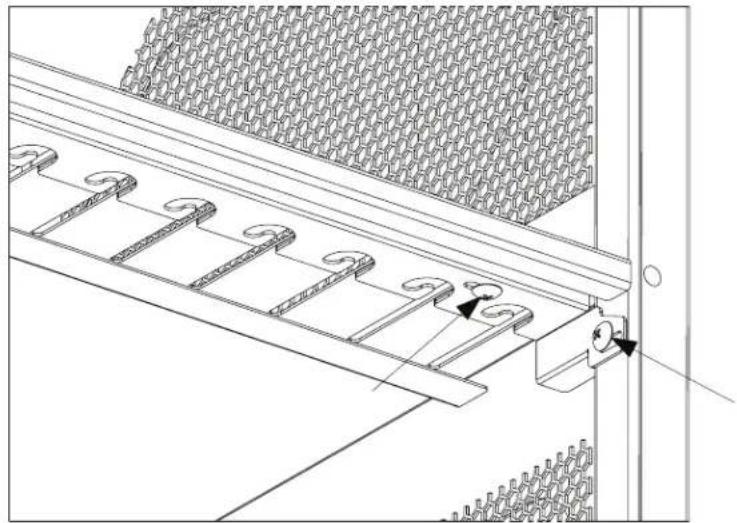

1. At the front of the cart, loosen the screws on the side and front of the cable manager.

Technical line drawing of a mechanical assembly with spring-loaded components and a door handle (no text or symbols)

FIGURE 3-2. CABLE ROUTING DIAGRAM #2

1. Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.

Technical line drawing of a mechanical assembly with hexagonal grid pattern and a tool (no text or symbols)

FIGURE 3-3. CABLE ROUTING DIAGRAM #3

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

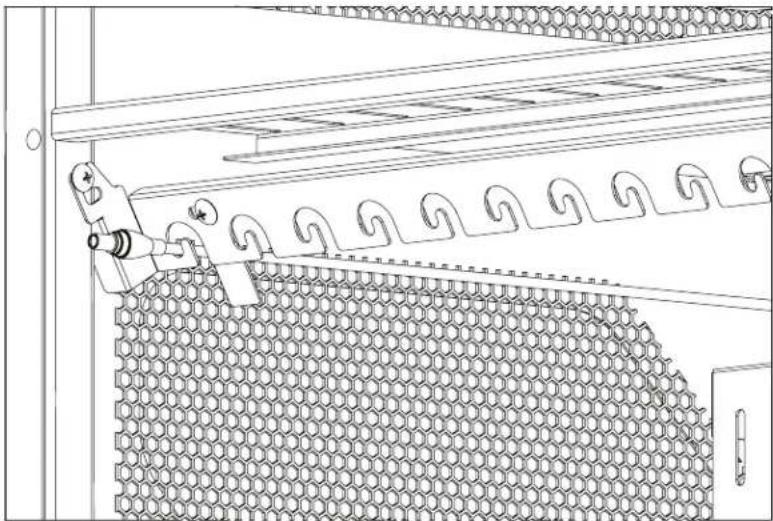

1. Slide back the top section and tighten the front screws.

Technical line drawing of a mechanical assembly with clamps and a meshed wall (no text or symbols)

FIGURE 3-4. CABLE ROUTING DIAGRAM #4

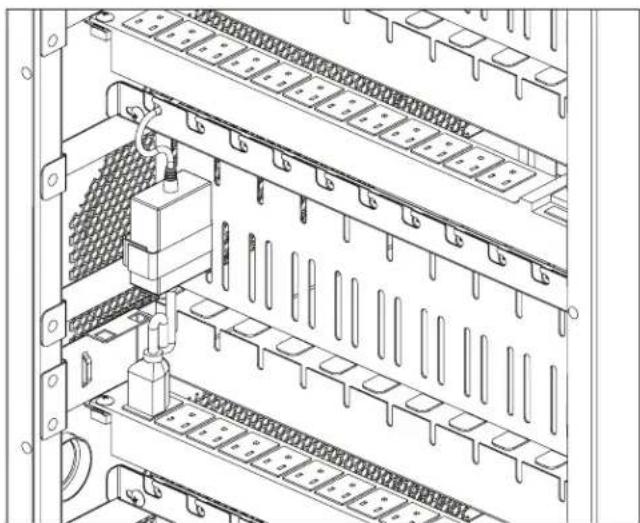

1. Push up and pull back on the cable manager to secure it.
2. Wrap any excess cable around the cable wrap on the back of the shelf.
3. Attach the power brick to the back of the shelf using the hook and loop strap.
4. Plug the charger power plug into the power strip located below the shelf.

Technical line drawing of an electrical enclosure with internal components and wiring (no text or symbols)

FIGURE 3-5. CABLE ROUTING DIAGRAM #5

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

3.3 PLUGGING IN THE CART

After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.

3.4 TURNING ON THE CART

Locate the internal power switches on the power strips of the Cart and push the switches to the ON position. They will illuminate if on. The external power indicator will glow green under "Cart Power" if the cart is on.

3.5 MOVING THE CART

• Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
• Close and lock the hinged or sliding doors.
  ◆ Unlock the locking and swiveling casters before moving the cart to a new location.
• When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

APPENDIX B: ADDITIONAL DIMENSIONS

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2 26 9

MAXIMUM WALLMOUNT POWER SUPPLY DIMENSIONS

MAXIMUM POWER BRICK DIMENSIONS FOR 10-SLOT PER SHELF CONFIGURATION

MAXIMUM POWER BRICK DIMENSIONS FOR 12-SLOT PER SHELF CONFIGURATION

TRADEMARKS USED IN THIS MANUAL

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters' Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.8 7 7.2 269
