Product Type	Standard Charging Cart for tablets, laptops, Chromebooks
Model Number	LCC30H-AC-R2
Device Capacity	30 devices
Unit Dimensions (H x W x D)	44.1 x 20.2 (w/o handle) / 23.7 (w/ handle) x 21.3 in (112.0 x 51.3 / 60.2 x 54.1 cm)
Unit Weight	125 lb (56.8 kg)
Shipping Weight	150 lb (68.2 kg)
Material	18 ga (1.2 mm) thick steel, fully welded frame, powder coat finish
Color	Gray
Input Power	120 VAC, 15 A, 50-60 Hz, 1 Phase
Power Cord	NEMA5-15P plug, 6 ft (1.8 m) minimum
Timer Type	Customizable round-robin timed power switch (5, 10, 15, 30, or 60 min intervals)
Timer Max Current Rating	12 A
Auxiliary Power Outlets	1 NEMA5-15R on timer unit; external power option adds 3 NEMA5-15R and 2 USB2.0 Type A
Casters	2 fixed, 2 swivel with lock; 5 in (12.7 cm) polyurethane tread
Top Weight Capacity	150 lb (68.2 kg)
Lock Type	Key lock (front and back)
Front Cable Management	Yes
Door Type	Split hinged steel front door
Ventilation	Minimum 75% high flow steel mesh, 2 places per shelf
Use Environment	Indoor office and mobile use only
Approvals	UL 60950, UL 60730, UL 1678 (Tip Test), CE, RoHS2
Warranty (Cart)	Lifetime
Warranty (Electronics)	3 Years
Cleaning Instructions	Wipe with dry cloth; do not use liquids or sprays. Keep vents clear of dust.
Repair and Spare Parts	Contact Black Box Technical Support at 1.877.877.2269 or blackbox.com for qualified repairs and replacement parts.

Frequently Asked Questions - LCC30H-AC-R2 Black Box

How many devices can the LCC30H-AC-R2 cart hold?

The LCC30H-AC-R2 is designed to hold up to 30 devices, such as tablets, 15-inch Chromebooks, or laptops.

What is the power requirement for this charging cart?

The cart requires a 120 VAC, 15 A, 50-60 Hz, 1-phase power supply. It must be plugged into a standard NEMA5-15R wall outlet. Do not use an extension cord.

How do I set the charging timer on the cart?

The cart uses a DIP switch configuration on the timer unit (CartTimer2) to set the charging interval. Available intervals: 5, 10, 15, 30, or 60 minutes. Refer to Table 3-1 in the manual for switch settings. The default is 15 minutes with outlets 1-3 active.

Can the cart be moved safely when loaded?

Only adults should move the cart. Unplug the cart, wrap the cord, close and lock doors, unlock the casters, then push. When in position, lock the casters again. Avoid uneven loading to prevent tipping.

What safety precautions should I follow?

Key safety points: Do not let children climb on the cart (tip-over hazard). Distribute devices evenly. Use only adults for moving. Keep air vents clear. Use only with 120V/15A circuit. Do not use liquids near the cart. Ensure ground prong is present. Never exceed 12A load.

What items are included with the cart?

Your package includes 1 cart and 2 sets of keys. If anything is missing or damaged, contact Black Box Technical Support.

How do I route power cables inside the cart?

At the back, loosen cable manager screws, slide top section, insert charging cable into a slot, then tighten. Route cable to front. At front, loosen front/side screws, push cable manager down, insert cable, then secure and tighten. Wrap excess cable around the cable wrap on the shelf.

What is the warranty coverage for this cart?

The cart frame has a lifetime warranty. The electronics (timer, power strips) are covered for 3 years. Misuse or unauthorized repairs void the warranty.

What are the dimensions and weight of the cart?

Unit dimensions: 44.1 in tall (112.0 cm), 20.2 in wide without handle (23.7 in with handle), 21.3 in deep (54.1 cm). Weight: 125 lb (56.8 kg). Shipping weight: 150 lb (68.2 kg).

What type of lock does the cart have?

The LCC30H-AC-R2 features a key lock on both front and back doors for security. Keys are provided with the unit.

USER MANUAL LCC30H-AC-R2 Black Box

STANDARD CHARGING CARTS

24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

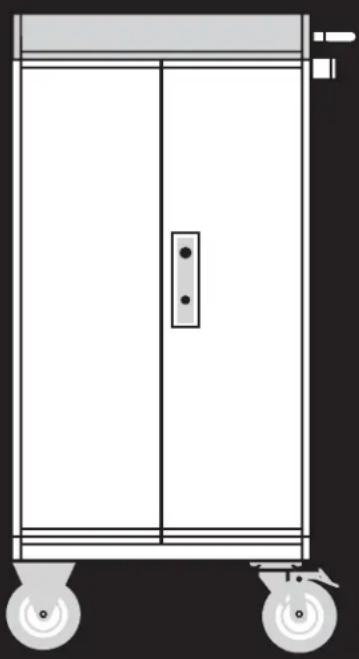

Illustration of a simple white cabinet with two wheels and a handle, no text or symbols present.

BLACK BOX

TABLE OF CONTENTS

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS......4

1.1 Standard Charging Carts General Specifications....4

1.2 Standard Charging Carts Specifications for Hinged Door 5

2. OVERVIEW....6

2.1 Introduction......6

2.2 What's Included 6

3. CONFIGURATION AND SETUP....7

3.1 Unpacking 7

3.2 Routing the Cables....7

3.3 Customizing the Timer 10

3.4 Plugging In the Cart 10

3.5 Turning On the Cart....10

3.6 Moving the Cart 11

APPENDIX A. REGULATORY INFORMATION....12

A.1 FCC Statement....12

A.2 NOM Statement (Electrical Safety)....12

APPENDIX B. ADDITIONAL DIMENSIONS....12

TRADEMARKS USED IN THIS MANUAL....14

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.

• Only adults should move the cart.
• Do not leave the cart unattended in areas where children have access.
• Do not block the air vent openings.
• The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
• The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
• The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
• The Cart must only be used by adults or with adult supervision.
• Never pull the Cart by the power cord.
  Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.
• Do not use an extension cord in conjunction with the Cart.
• Do not use liquids in or around the Cart environment.

- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.

For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.

The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.

The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.

All electrical outlets provided are for the sole purpose of charging electronic devices. Any use of these electrical outlets, other than for the intended purpose, is not advised and must be approved by a qualified electrician.

Do not exceed the maximum specified wattage of the cart timer. The load current shall not exceed 12 amps under any operating conditions.

1.1 STANDARD CHARGING CARTS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

General
Approvals UL	® 60950 Approved; UL 60730 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Power Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	(1) illuminated switch on cart timer unit
Device Charging Type	Customizable round-robin style timed power switch
Power Switch Time	5 mins, 10 mins, 15 mins, 30 mins or 60 mins (factory set, user customizable)
Timer Max. Current Rating	12 A
Auxiliary Power	(1) NEMA5-15R on cart timer unit (for units w/o external power);(3) NEMA5-15R and (2) USB2.0 Type A Outlets (external power option only)
Dimensions
Unit Height 44.1" (112.0 cm)
Unit Width	20.2" (51.3 cm) w/o handle, 23.7" (60.2 cm) w/ handle
Unit Depth	21.3" (54.1 cm)
Unit Weight	125 lb. (56.8 kg)
Shipping Height	50" (127 cm)
Shipping Width	35" (88.9 cm)
Shipping Depth	32" (81.3 cm)
Shipping Weight	150 lb. (68.2 kg)
Top Weight Capacity	150 lb. (68.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Top	2.00-mm thick steel top
Casters
Type	(2) Fixed, (2) Swiveling and Locking
Diameter	5" (12.7 cm)
Wheel	Polyurethane tread
Frame	Nickel Plated Steel
Warranty
Cart	Lifetime
Electronics	3 Years

1.2 STANDARD CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

TABLE 1-2. STANDARD CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

PART NUMBER	TYPICAL DEVICE	DEVICE QUANTITY	EXTERNAL POWER	FRONT CABLE MANAGEMENT	LOCK TYPE	MAX. DEVICE SIZE (INCHES) MAX. WALLMOUNT POWER SUPPLY SIZE (INCHES)						MAX. POWER BRICK SIZE (INCHES)
						HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH
LCC30H-AT-R2	Tablet or 15" Chromebook	30	No	No	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-AT-I/ASP-R2	Tablet or 15" Chromebook	30	No	No	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ATP	Tablet or 15" Chromebook	30	Yes	No	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ATP-HASP	Tablet or 15" Chromebook	30	Yes	No	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC36H-AT-R2	Tablet or 15" Chromebook	36	No	No	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-AT/HASP	Tablet or 15" Chromebook	36	No	No	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ATP	Tablet or 15" Chromebook	36	Yes	No	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ATP-HASP	Tablet or 15" Chromebook	36	Yes	No	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC30H-ACT-R2	Tablet or 15" Chromebook	30	No	Yes	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ACT-HASP	Tablet or 15" Chromebook	30	No	Yes	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ACTP	Tablet or 15" Chromebook	30	Yes	Yes	Key lock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC30H-ACTP-HASP	Tablet or 15" Chromebook	30	Yes	Yes	Padlock	10.5	1.59	14.5	2.4	1.1	*SEE BELOW	5.1	1.77	5.7
LCC36H-ACT-R2	Tablet or 15" Chromebook	36	No	Yes	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ACT-HASP	Tablet or 15" Chromebook	36	No	Yes	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ACTP	Tablet or 15" Chromebook	36	Yes	Yes	Key lock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7
LCC36H-ACTP-HASP	Tablet or 15" Chromebook	36	Yes	Yes	Padlock	10.5	1.3	14.5	2.4	1.1	*SEE BELOW	5.1	1.47	5.7

*Towards Shelf: 1.38"
Towards Rear Door: 3.86*

NOTES:

• Height: vertical dimensions, runs top to bottom of cart
• Width: horizontal dimensions, runs left side panel to right side panel of cart
• Depth: horizontal dimension, runs front door to rear door of cart

NOTES:

For maximum wallmount power supply dimensional diagrams and maximum power brick dimensional diagrams, see Appendix B.

2.1 INTRODUCTION

The Standard Charging Cart is designed to store, charge and transport tablets, e-readers, laptops, netbooks, Chromebooks and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with a charging unit that efficiently charges devices while ensuring the cart won't overload the electrical circuit.

The Standard Charging Cart can be equipped in various configurations according to the following standard options.

• 30 or 36 stored devices
• Split hinged steel front door
• Keyed front and back lock or padlock front and back lock
- External power outlets
- Front cable management

All Standard Charging Carts feature a heavy-duty, fully welded steel frame, 2.0-thick steel top, and heavy-duty, 5" casters.

Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Cart
(2) sets of keys

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

3.1 UNPACKING

Remove and discard all packaging materials and lock the lockable casters.

Open and inspect the cart to verify all doors, locks, and casters are working properly.

Do not plug the cart into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

1. At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.

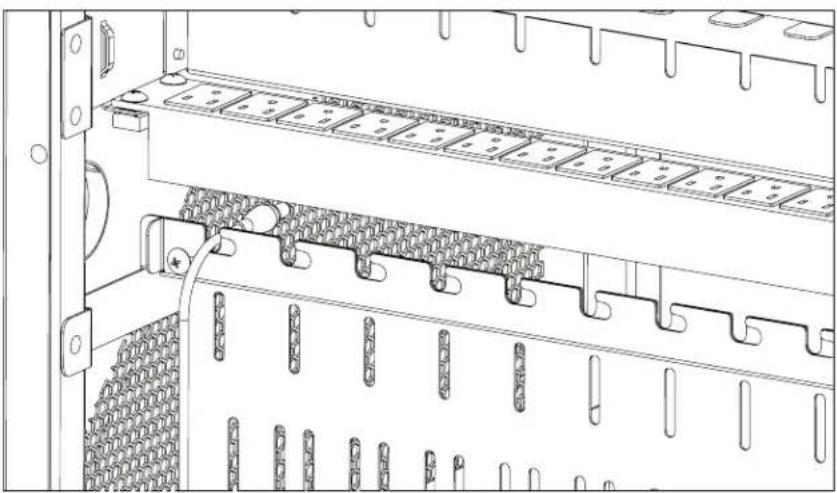

Technical line drawing of a server rack with mesh insulation and connector slots (no text or symbols)

FIGURE 3-1. CABLE ROUTING DIAGRAM #1

1. Slide back the top section of the cable manager and tighten the screws.
2. Route the device side of the charging cable to the front of the cart.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1. At the front of the cart, loosen the screws on the side and front of the cable manager.

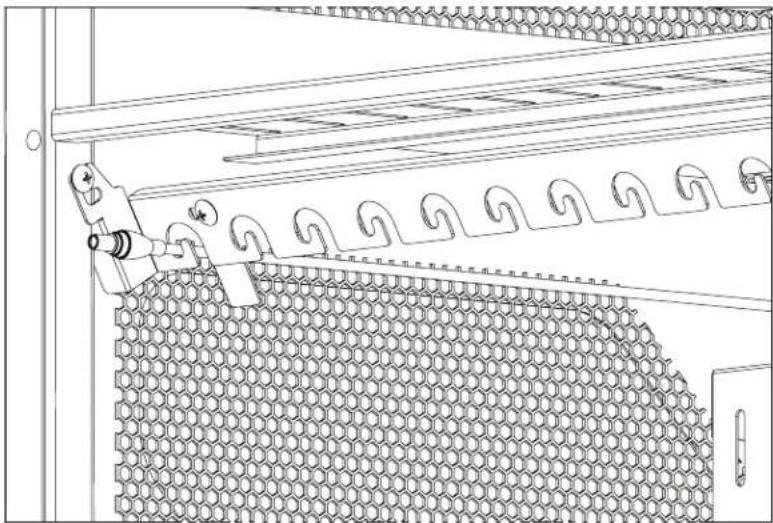

Technical line drawing of a mechanical assembly with spring-like components and a door handle (no text or symbols)

FIGURE 3-2. CABLE ROUTING DIAGRAM #2

1. Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.

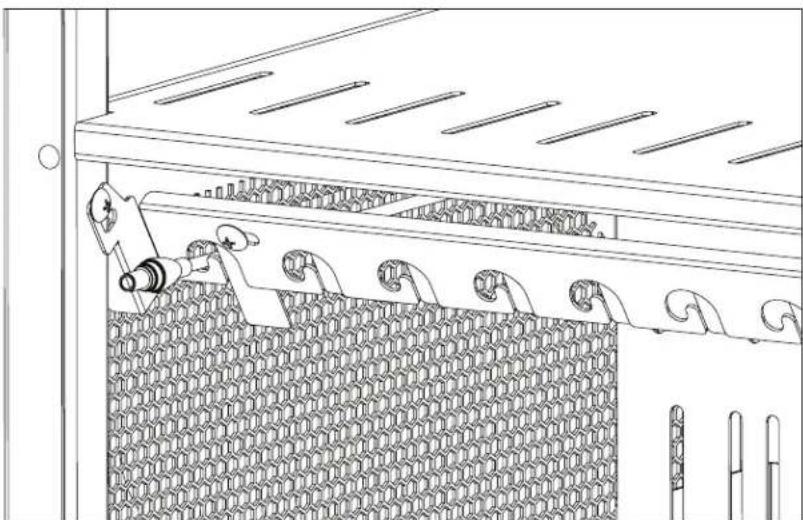

Technical line drawing of a mechanical assembly with hexagonal grid pattern and tool (no text or symbols)

FIGURE 3-3. CABLE ROUTING DIAGRAM #3

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1. Slide back the top section and tighten the front screws.

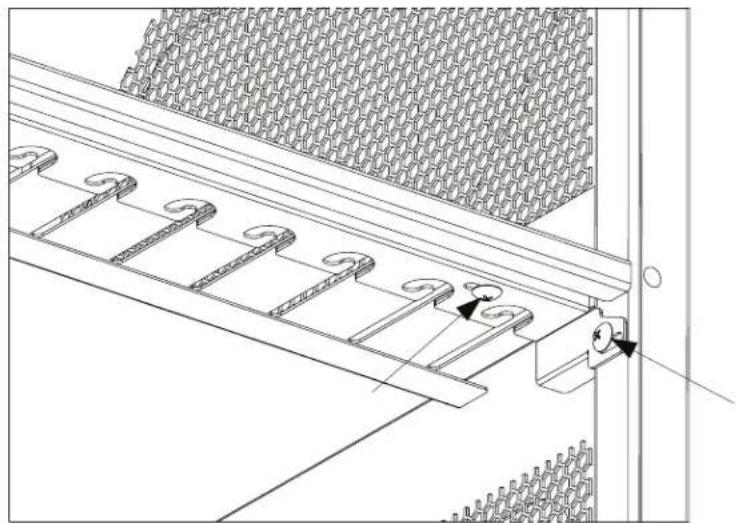

Technical line drawing of a mechanical assembly with clamps and a meshed wall (no text or symbols)

FIGURE 3-4. CABLE ROUTING DIAGRAM #4

1. Push up and pull back on the cable manager to secure it.
2. Wrap any excess cable around the cable wrap on the back of the shelf.
3. Attach the power brick to the back of the shelf using the hook and loop strap.
4. Plug the charger power plug into the power strip located below the shelf.

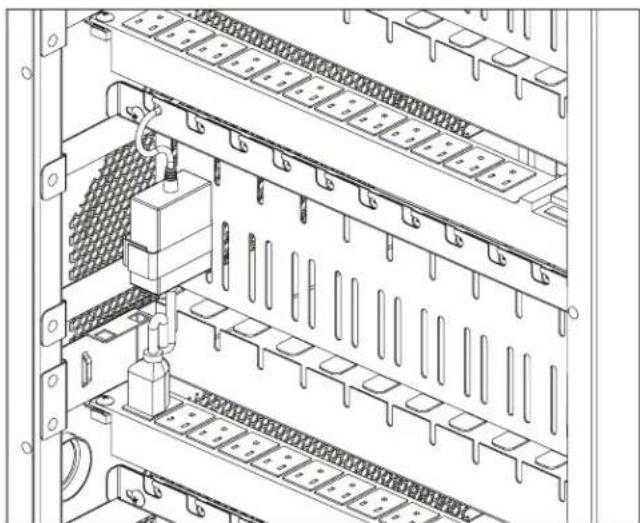

Technical line drawing of an electrical enclosure with internal components and wiring (no text or symbols)

FIGURE 3-5. CABLE ROUTING DIAGRAM #5

3.3 CUSTOMIZING THE TIMER

The cart timer unit is designed to supply power to multiple power distribution units (PDUs) inside the charging cart or locker while preventing overloading of the building circuit.

The cart timer unit has one illuminated on/off rocker switch. This turns on or off the power to the cart.

The cart timer unit has one C13 inlet where the cart power cord plugs into. The power cord plugs into a 120-VAC, 15-A, 50/60-Hz, 1-ph NEMA5-15R outlet only.

The cart timer unit has one "always on" NEMA5-15R outlet for constant power supply to any appliance requiring 120 VAC, 15 A, 50/60 Hz, 1 ph. The external power outlets on certain cart configurations will plug into the "always on" outlet.

The cart timer unit also has 4 "timed" NEMA5-15R outlets that supply power to the PDUs, which in-turn charge the devices stored within. The 4 timed outlets switch from on to off based on the configuration of the cart timer unit.

The cart timer unit has 8 DIP switches that control the configuration of the cart timer unit.

The features, functions and instructions described in this manual are important to understand and follow to successfully use this product.

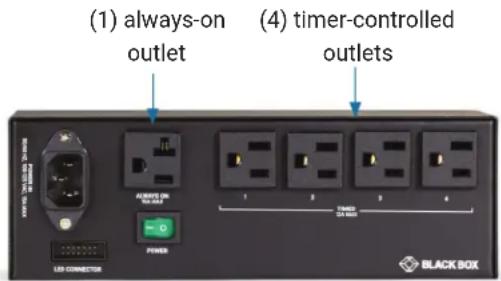

FIGURE 3-6. CARTTIMER2

The timer is configured from the factory to a certain setting of charging. The timer configuration can be changed to change the charging profile of the cart or locker. This could increase the evenness of the charged devices and the speed to charge. The configuration can be set by activating or deactivating different timed outlets, charging timed outlets together by grouping and increasing or decreasing charging interval. The table below shows the different DIP switch settings to achieve the desired configuration of the cart timer unit.

TABLE 3-1. DIP SWITCH SETTINGS

*Default settings: Active: 1-3 ON, No Group, Timing: 15 min.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

Additional Details

Purpose of Control Time Switch

Construction of Control Freestanding Control

Action Type Type 1 Action (Operating Control)

Pollution Degree Pollution Degree 2

Impulse Voltage 1500 V

3.4 PLUGGING IN THE CART

After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.

3.5 TURNING ON THE CART

Locate the internal power switches on the timer and power strips of the Cart and push the switches to the ON position. They will illuminate if on.

3.6 MOVING THE CART

• Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
• Close and lock the hinged or sliding doors.
  ◆ Unlock the locking and swiveling casters before moving the cart to a new location.
  When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

APPENDIX B: ADDITIONAL DIMENSIONS

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

MAXIMUM WALLMOUNT POWER SUPPLY DIMENSIONS

MAXIMUM POWER BRICK DIMENSIONS FOR 10-SLOT PER SHELF CONFIGURATION

MAXIMUM POWER BRICK DIMENSIONS FOR 12-SLOT PER SHELF CONFIGURATION

TRADEMARKS USED IN THIS MANUAL

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters' Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.8 7 7.2 269
