Product Type	Multimedia Speaker System 5.1 Channels
Model	Philips SPA5162B
Total Power Output (RMS)	60 W (8 W x 5 satellites + 20 W subwoofer)
Subwoofer Driver Size	5.25 inches
Subwoofer Impedance	8 Ohm
Subwoofer Frequency Range	20 Hz – 2 kHz
Subwoofer Dimensions (W x H x D)	170 x 324 x 331 mm
Subwoofer Net Weight	4.83 kg
Satellite Driver Size	3 inches each
Satellite Impedance	4 Ohm
Satellite Frequency Range	120 Hz – 20 kHz
Satellite Dimensions (W x H x D)	90 x 135 x 99 mm each
Satellite Net Weight (total)	2 kg
Power Consumption	90 W
Audio Input	RCA (2 x Stereo)
Audio Output	RCA (Subwoofer output)
Wireless Connectivity	Bluetooth
Radio Tuner	FM (87.5 – 108 MHz)
Media Playback	USB (up to 16 GB, MP3), SD card (up to 16 GB, MP3)
Surround Sound Processing	Pro Logic (2.1 to 5.1 upmix)
Remote Control	Included (battery operated)
Accessories Included	Remote, FM antenna, RCA cable, user manual
Cabinet Care	Use soft cloth slightly moistened; avoid alcohol, ammonia, abrasives
Safety Note	Do not open; no user-serviceable parts; keep away from liquids and heat
Warranty (India)	12 months from date of purchase (terms apply)

Frequently Asked Questions - SPA5162B PHILIPS

How do I pair my Bluetooth device with the Philips SPA5162B?

Press SOURCE on the front panel or remote until 'bt' appears on the display. On your phone/tablet, search for 'Philips SPA5162B' and select it. When paired, the 'bt' indicator stops flashing.

I have no sound. What should I check?

Ensure the system is powered on and the volume is turned up. Verify that the correct source (AUX, Bluetooth, etc.) is selected. Check that audio cables are fully inserted. If using Bluetooth, make sure the device is paired and playing.

How can I improve FM radio reception?

Extend the FM antenna wire fully. Move the subwoofer away from other electronic devices like TVs or DVD players. If reception is weak, try a different location or use manual tuning to adjust frequency.

My remote control is not working. What can I do?

Replace the batteries with new ones and ensure correct polarity. Point the remote directly at the IR sensor on the subwoofer front panel. Reduce distance between remote and system. If still not working, turn off the system, wait 30 seconds, and restart.

Why can't the speaker system read my USB/SD card?

The USB/SD card must be formatted in FAT32 (NTFS not supported). Maximum capacity is 16 GB. Ensure the card contains only MP3 files. Try reinserting the card firmly. If still not detected, the card may be defective.

How do I set up the 5.1 surround sound?

Place the front left and right speakers at equal distances from the TV at a 45-degree angle. Center speaker above the TV. Surround speakers at ear level to sides. Use PRO-LOGIC on remote to enable surround upmixing from 2.1 to 5.1.

Can I adjust individual speaker volumes?

Yes. Press SELECT on the remote to cycle through channels: F (front), S (surround), C (center), b (subwoofer). Then use VOL+ or VOL- to adjust the selected channel's volume.

What is the maximum power consumption of the speaker?

The system consumes up to 90 W of power. It is recommended to plug it directly into a wall outlet with the correct voltage as indicated on the subwoofer back panel.

How do I clean the speaker cabinets?

Use a soft, slightly damp cloth to wipe the cabinets. Do not use any solutions containing alcohol, ammonia, or abrasives. Avoid getting moisture into any openings.

What is covered under the warranty?

The Philips SPA5162B comes with a 12-month warranty from date of purchase against defects in materials or workmanship. Warranty is void if opened by unauthorized service, damage from misuse, or if proof of purchase is missing.

USER MANUAL SPA5162B PHILIPS

Black Philips audio amplifier with multiple speakers and a digital display (no visible text or symbols on main components)

User manual

Register your product and get support at www.philips.com/welcome

General information

Safety instructions

Please read carefully the safety mark on the back side

This mark is intended to alert the user from the non isolated dangerous voltage within the product that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This mark is intended to alert the user for important operating and servicing instruction.

Warnings

• Avoid sustained periods on high-volume use, and do not turn the volume to maximum level while using high output signal, such as Mobile Phone or DVD, etc., as this will cause distortion and may damage the loudspeaker cones.
• Please switch off the system from the wall socket, when not in use.
• Do not open the cover or back panel to avoid electrical shock or any other accidents. No user-serviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage marked on the back panel of the Subwoofer.
• The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

Accessories

• The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.

Care and safety information

Avoid high temperatures, moisture, water and dust

• Apparatus should not be exposed to dripping or splashing of liquid.
• Do not place any source of danger on the Subwoofer, and satellite (e.g. liquid filled objects lighted candles).
• Do not install near heat sources.

Do not block any ventilation opening

• Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10cm (4 inches) of free space all around the apparatus for adequate ventilation.
• At high volume the back cover of Subwoofer becomes hot. Do not touch it.

Care of the cabinet

- Use a soft cloth slightly moistened to clean the cabinet. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Item 2RCA to 2	RCA cable Remote control User	manual FM Antenna cable
Quantity 1111

Connections

Back panel


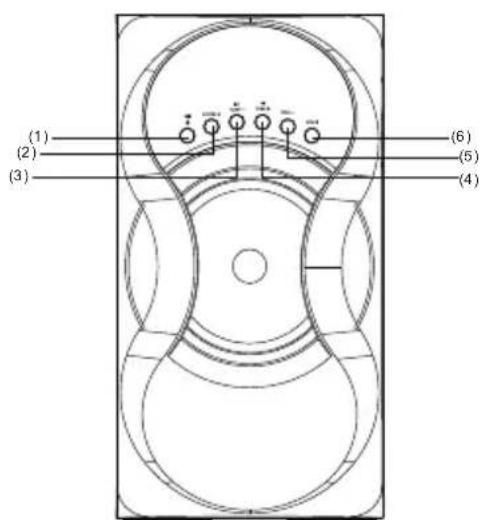

Front panel operation

1.

1. VOL-

2. SOURCE

3. VOL+

4. TUNE-

5. TUNE+

* AVAILABLE IF CONNECTED

1. ▶|| :

Press to turn on speaker, long press into stand-by mode.

Short press for play/pause function in USB*/SD*/BT mode.

1. SOURCE:

Change the input mode-AU for Audio in, bt for Bluetooth, dU for DVD, Ud for USB*, Sd for SD*, 87.5 for FM.

1. TUNE-:

Short press to select previous station which had been stored.

Long press to semi-automatic search for radio.

In USB*/SD*/BT mode, press "◀" to play previous song.

1. TUNE+:

Short press to select next station which had been stored.

Long press to semi-automatic search for radio.

In USB*/SD*/BT mode, press “▶” to play next song.

1. VOL-:

Volume down.

1. VOL+:

Volume up.

Remote controls

1. ST-BY	8.VOL+
2.MUTE	9.PLAY/PAUSE
3.0~9	10.PREVIOUS
4.SOURCE	11.NEXT
5.PRO-LOGIC	12.VOL-
6.SELECT	13.TUNING-
7.MEMORY	14.TUNING+

* AVAILABLE IF CONNECTED

1. ⏻ ---- Turn on/Stand-by the speaker.
2. MUTE ---- To activate or deactivate mute, display blinks when in MUTE mode.
3. 0-9 ---- Numeric keys, with the help of these keys you select song or track in USB*, and in FM, you can key in station frequency, i.e. for 92.7 key in 927.
4. SOURCE ---- AU for AUX, bt for Bluetooth, dU for DVD, Ud for USB*, Sd for SD*, 87.5 for FM.
5. PRO-LOGIC ---- Enable or disable the function of the PRO-LOGIC. In USB*/SD*/FM/BT, you can switch the output from 2.1 to 5.1 and in DVD mode, it selects between prologic off (real 5.1) and prologic on(for surround sound).
6. SELECT ---- To switch to different channels [F(front speakers) / S(surround speakers) / C(Centre speaker) / b(subwoofer)], press "VOL+/-" to increase or decrease volume of the channel.
7. MEMORY ---- In FM mode, short press to manually save channel, long press to auto search and save channels.
   For manual storage, user can press frequency (eg. 106.4) and press “▶”, station number will flash, press “◀◀” or “▶◀” to choose the serial, press “MEMORY” again to store the station.
8. VOL+ ---- Volume up.
9. ▶---- Short press to play or pause in USB*/SD*/BT mode. In FM mode, short press to reconnet Bluetooth pairing, long press to disconnect.
10. ---- To play previous song in USB*/SD*/BT mode, or to choose previous channel in FM mode.
11. ▶ ---- To play next song in USB*/SD*/BT mode, or to choose next channel in FM mode.
12. VOL- ---- Volume down.
13. TUNING- ---- Short press to search channel step by step (each step(-) 0.1 MHz), press "TUNING-" and hold to search previous channel, it will stop and play once previous channel been searched.
14. TUNING+ ---- Short press to search channel step by step (each step 0.1 MHz), press "TUNING+" and hold to search next channel, it will stop and play once next channel been searched.

Playing the speakers and subwoofer

System positioning :

The subwoofer is recommended to be put on the floor to get a better acoustic effect.

For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position.

Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees (horizontal) from the listening position.

Place the centre speaker above the TV so that the centre channel's sound is localised.

Place the surround speakers at normal listening, ear level facing each other or mounted on the wall.

Speaker

Helpful Hints:

- To avoid magnetic interference, do not position the speakers, too close to your TV.

Bluetooth Operating Instruction

1. Press SOURCE key from front panel or remote to go to Bluetooth;
2. When selected the Bluetooth mode, in display, "bt" will start blinking/flashing.;
3. For pairing with mobile or other Bluetooth devices, search the device named "Philips SPA5162B" and pair it. Once paired, "bt" stops blinking/flashing;
4. Press “▶” for continuous 3 seconds from remote in order to force disconnect the Bluetooth.

Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.

Troubleshooting

Warning -

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy the problem by following hints mentioned in below table, Consult your dealer or PHILIPS APSC for help.

Problem Solution
1. No power.	Check if the AC power cord is properly inserted into the AC mains socket.
2. No sound or distorted sound.	Adjust the volume / select the correct source to choose the equipment that you want to hear through the system.
3. The remote control does not function properly.	Reduce the distance between the remote control and the system. Replace the batteries with new ones / Point the remote control directly towards the IR sensor (located on front panel of the subwoofer) / Check that the batteries are loaded correctly / Switch off the system for 30 seconds and then restart.
4. Low hum or buzz sound.	Place the product as far away as possible from electrical devices that may be causing interference / Check power supply voltage and consult electrician.
5. The content of the USB / SD flash drive can not be read.	The USB / SD flash drive format is not compatible with the system. Drive is formatted with a different file system which is not supported by this unit (e.g. NTFS).
6. Slow operation of the USB / SD flash drive / can not detect USB / SD flash drive.	Large file size of high memory USB / SD flash drive takes longer time to read and play. / Take out USB / SD drive and insert it again properly.
7. FM not properly tuned. Match with local frequency.
8. FM reception not good.	While listening radio turn off TV / DVD or other radiation source.
9. BT not working. Reduce the distance or device is not paired.

In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.

Warranty

This Philips 5.1 multimedia speakers system is warranted against any defect due to defective materials or workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,

Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer from whom it has been purchased or at any of the Philips Authorised Service Centres.

The warranty is not valid in case :

1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
6. Any modifications or alteration of any nature are made in the apparatus.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in transit to the purchaser's residence.

All consumables and parts susceptible to normal wear and tear are not covered under warranty.

Week/S.No.: ____ Bill No. ____

Date of purchase ____

Dealer's name: ____

Dealers stamp: ____

Customer's name and address: ____

Model No.: ____

Dealer's signature: ____

Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road, Gurgaon-122018, Haryana, India

Product specifications*

Total system power 60W RMS
Satellite 8Wx5 RMS
Subwoofer power 20W RMS
Separation >40 dB
SNR >60 dB
Audio input socket RCA
Audio output socket RCA
Power consumption	90W
Subwoofer speaker 1 Way
Speaker size 5.25 inch
Impedance 8 Ohm
Frequency range 20Hz - 2KHz
Dimension (mm) W x H x D	170 x 324 x 331
Net Weight 4.83 Kg

Satellite speaker	1 Way, 5 Speakers
Speaker size	3 inch
Impedance 4 Ohm
Frequency range 120Hz - 20KHz
Dimension (mm) W x H x D 90 x 135 x 99
Net Weight(Satellite) 2 Kg
USB
Class support	UMS (USB mass storage class)
Capacity	Upto 16GB
Playability	MP3 track

*Specification subject to change without prior notice. Measured under specific conditions.
