SOM 1750 X - Refrigerator BLOMBERG - Free user manual and instructions

Product Type	Refrigerator
Brand	Blomberg
Model	SOM 1750 X
Energy Class	A+
Annual Energy Consumption	220 kWh/year
Noise Level	40 dB
Net Capacity - Refrigerator	180 L
Net Capacity - Freezer	40 L
Cooling System	Static
Defrost Type	Automatic (No-Frost)
Climate Class	N-ST
Control Type	Mechanical
Shelves Material	Glass
Door Reversible	Yes
Dimensions (H x W x D)	1800 x 600 x 600 mm
Weight	62 kg
Voltage / Frequency	220-240 V / 50 Hz
Lighting	LED
Safety Features	Child lock, high temperature alarm
Maintenance	Clean condenser coils every 6 months
Repairability	Spare parts available for 10 years

Frequently Asked Questions - SOM 1750 X BLOMBERG

How do I adjust the temperature in my Blomberg SOM 1750 X fridge?

Use the thermostat dial inside the fridge compartment. Turn it clockwise for colder and counterclockwise for warmer.

What is the recommended temperature setting for the fridge?

The ideal fridge temperature is between 3°C and 5°C. For the freezer, set to -18°C.

How often should I defrost the freezer?

This model features No-Frost technology, so manual defrosting is not required. Ice buildup is automatically prevented.

Why is my fridge making unusual noises?

Normal operating sounds include humming from the compressor, gurgling from refrigerant, and clicking when the thermostat cycles. If loud or continuous, check leveling.

How do I clean the condenser coils?

Unplug the fridge, locate the coils at the back or bottom, and use a vacuum cleaner or soft brush to remove dust. Do this every 6 months.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a spanner.

What should I do if the fridge is not cooling properly?

First, check that the temperature setting is correct. Ensure the door seals are clean and airtight, and that air vents are not blocked. Also clean the condenser coils.

How do I change the interior light bulb?

This model uses LED lighting, which is not user-replaceable. Contact a qualified technician if the light fails.

Is it normal for the sides of the fridge to feel warm?

Yes, the sides can feel warm during normal operation. This is due to the condenser dissipating heat. It is not a fault.

What is the warranty period for this refrigerator?

Blomberg typically offers a 2-year warranty for domestic use. Check your purchase documentation for exact terms and registration requirements.

USER MANUAL SOM 1750 X BLOMBERG

Safety first..../1
Electrical requirements ....../2
Transportation instructions..../2
Installation instructions..../2
Suggested arrangement of food in the larder fridge..../3
Temperature control and adjustment ....../4
Before operating 4
Getting to know your appliance..../5
Defrosting..../5
Replacing the interior light bulb..../6
Cleaning and care..../6
Repositioning the door..../7
Do's and don'ts..../7
Trouble - shooting..../8

NL

Inhoud

01-08

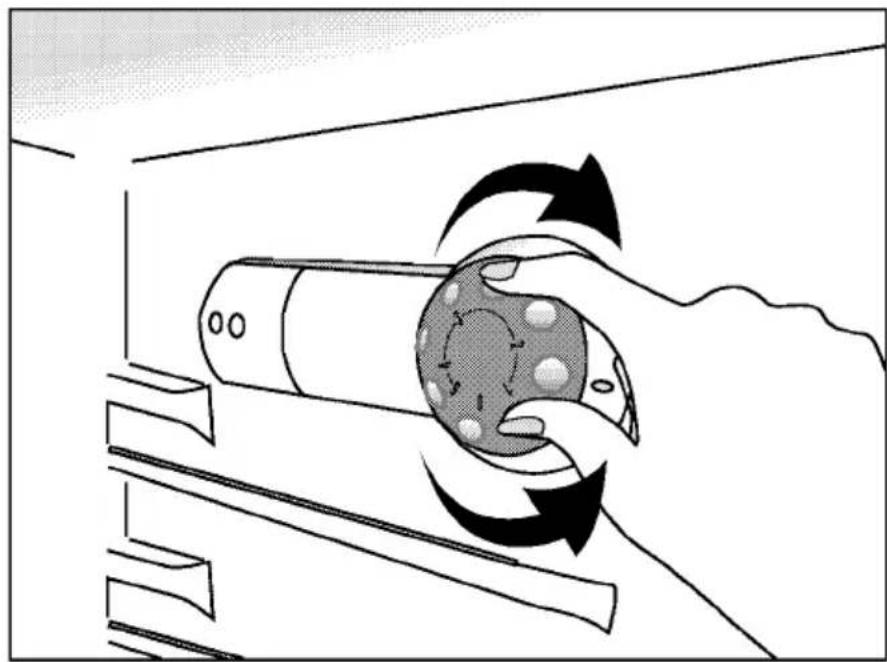

Fig. 1

Illustration of a hand holding a cylindrical device with rotating arrows indicating motion or process (no text or symbols)

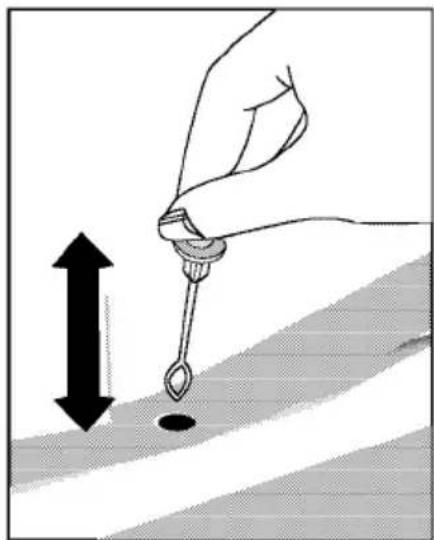

Fig. 2

Illustration of a hand using a tool to apply liquid droplets onto a surface, with no text or symbols present.

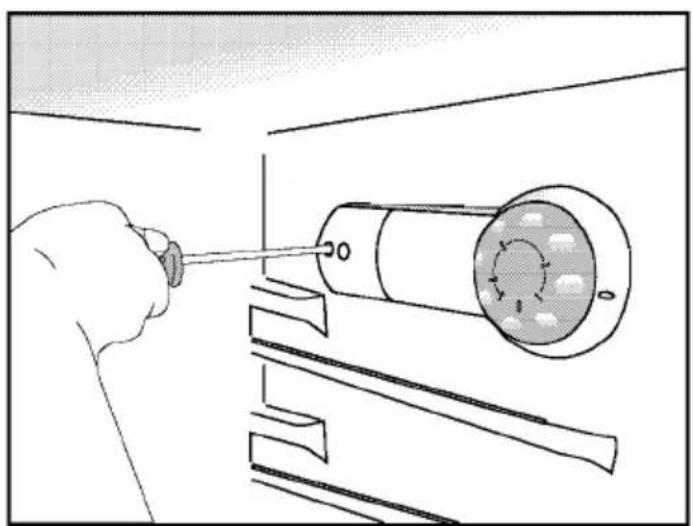

Fig. 3

Illustration of a hand using a tool to adjust or install a cylindrical component with a circular inset showing internal structure (no text or symbols)

Fig. 4
