Product Type	Serial Device Server
Model	NPort 5650-8-S-SC
Brand	Moxa
Serial Ports	8 x RS-232/422/485, software-selectable
Ethernet Interface	10/100BaseTX, RJ45, 1.5 kV magnetic isolation
Fiber Interface	100BaseFX, SC connector, single-mode, 1310 nm, 40 km distance
Power Input	100-240 VAC, 47-63 Hz or ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption	164 mA @ 100 VAC, 110 mA @ 240 VAC
Operating Temperature	0 to 55°C (32 to 131°F)
Operating Humidity	5 to 95% RH
Dimensions (with ears)	190 × 45 × 478 mm
Dimensions (without ears)	190 × 45 × 440 mm
Serial Line Protection	15 kV ESD for all signals
Power Line Protection	Level 3 Burst (EFT) per EN61000-4-4, Level 3 Surge per EN61000-4-5
Regulatory Approvals	FCC Class A, CE Class A, UL 60950-1, EN60950-1
Management Interface	LCM display with push buttons, Reset button
Software	NPort Administration Suite (on CD)
LED Indicators	Ready (power/status), Serial port activity (1-16) in orange (Rx) and green (Tx)
Optional Accessories	CBL-RJ45M9-150, CBL-RJ45F9-150, CBL-RJ45M25-150, CBL-RJ45F25-150

Frequently Asked Questions - NPort 5650-8-S-SC Moxa

What is the Moxa NPort 5650-8-S-SC?

The NPort 5650-8-S-SC is a serial device server that connects 8 RS-232/422/485 serial devices to an Ethernet network. It features a fiber optic interface for long-distance communication (up to 40 km).

How many serial ports does it have and what types?

It has 8 serial ports that support RS-232, RS-422, and RS-485 (2-wire and 4-wire) modes, selectable via software.

What Ethernet and fiber interfaces are available?

The device includes a 10/100BaseTX RJ45 Ethernet port with 1.5 kV magnetic isolation and a 100BaseFX single-mode SC fiber port with 1310 nm wavelength and 40 km range.

What are the power supply requirements?

It accepts 100-240 VAC (47-63 Hz) or ±48 VDC (20 to 72 VDC). Power consumption is 164 mA at 100 VAC and 110 mA at 240 VAC.

How to reset the device to factory defaults?

Press and hold the Reset button for 5 seconds using a pointed object. Release when the Ready LED stops blinking to restore factory settings.

What do the LED indicators mean?

The Ready LED shows red during boot, green when normal, blinking for IP conflict. Port LEDs 1-16 light orange when receiving data and green when transmitting.

How to install the software?

Insert the provided NPort Documentation & Software CD and click INSTALL UTILITY to install NPort Administration Suite. The full user manual is also on the CD.

What optional accessories are available?

Optional cables include CBL-RJ45M9-150 (RJ45 to DB9 male), CBL-RJ45F9-150 (RJ45 to DB9 female), and similar for DB25, all 150 cm long.

What is the operating temperature range?

The standard model operates from 0 to 55°C (32 to 131°F) with humidity from 5 to 95% RH.

How to connect serial devices?

Use the appropriate RJ45 to DB9/DB25 cable (sold separately). Refer to the manual for pin assignments for RS-232, RS-422, and RS-485 (2-wire/4-wire) connections.

USER MANUAL NPort 5650-8-S-SC Moxa

Third Edition, November 2010

1. Overview

Welcome to the Moxa NPort 5600 Series. The NPort 5610-8/16 have 8 or 16 RS-232 ports, the NPort 5630-8/16 have 8 or 16 RS-422/485 ports, and the NPort 5650-8/16 have 8 or 16 RS-232/422/485 ports.

2. Package Checklist

The NPort 5600 package should contain the following items:

• 1 8-port or 16-port serial device server

• NPort Documentation & Software CD

• NPort 5600 Quick Installation Guide

Optional Accessories:

• CBL-RJ45M9-150: 8-pin RJ45 to DB9 male cable, 150 cm
• CBL-RJ45F9-150: 8-pin RJ45 to DB9 female cable, 150 cm
CBL-RJ45M25-150: 8-pin RJ45 to DB25 male cable, 150 cm
CBL-RJ45F25-150: 8-pin RJ45 to DB25 female cable, 150 cm
Notify your sales representative if any of the above items is missing or damaged.

3. Hardware Introduction

The NPort 5600 Series has includes the following models: NPort 5610-8, NPort 5610-16, NPort 5610-8-48V, NPort 5610-16-48V, NPort 5630-8, NPort 5630-16, NPort 5650-8, NPort 5650-8-T, NPort 5650-16, NPort 5650-16-T, NPort 5650-8-M-SC, NPort 5650-16-M-SC, NPort 5650-8-S-SC, and NPort 5650-16-S-SC.

NOTE The wide temperature model does not support LCM display panels or push buttons. All of the LCM descriptions below apply only to standard temperature models.

The front and rear panels are shown below:

Front panel of the NPort 5600 Series

Rear panel of the NPort 5610/5630/5650 (AC Power)

P/N: 1802056000211

Rear panel of the NPort 5650 (Fiber Model)

Rear panel of the NPort 5610 (DC Power)

Front panel of the NPort 5650-T Series

Reset Button—press the Reset button continuously for 5 sec to load factory defaults: Use a pointed object to press the reset button. Release the button after the Ready LED stops blinking.

LED Indicators on the Front Panel—the front panels of the NPort 5600 have several LED indicators, as described in the following table.

Name	Color	Function
Ready	Off	Power is off, or power error condition exists.
	Red	Steady on: Power is on and the NPort is booting up.
		Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not respond properly.
	Green	Steady on: Power is on and the NPort is functioning normally.
		Blinking: The NPort has been located by NPort Administrator's Location function.
1-16	Orange	Serial port is receiving data.
	Green	Serial port is transmitting data.
	Off	No data is being transmitted or received through the serial port.

LCM Display Panel—If the NPort is working properly, the LCM panel will display a green color. The red Ready LED will also light up, indicating that the NPort is receiving power. After the red Ready LED turns green, you will see a display similar to:

N	P	5	6	1	0	-	1	6		3	8
1	9	2	.	1	6	8	.	1	2	7	.	2	5	4

This is where

• NP5610-16 is the NPort's name
• 38 is the NPort's serial number
• 192.168.127.254 is the NPort's IP address

LCM Panel Operation—There are four buttons on the NPort 5600's front panel. These buttons are used to operate the server's LCM panel. Going from left to right, the buttons are:

Button	Action
MENU	Activates the main menu, or returns to a lower level.
	Scrolls up through a list of items shown on the LCM panel's second line.

	Scrolls down through a list of items shown on the LCM panel's second line.
SEL Selects	the option listed on the LCM panel's second line.

Detailed LCM Panel Operating instructions can be found on the CD-ROM in the NPort 5600 Series User's Manual.

Link Indicator on the rear panel of the NPort 5650 fiber model—the rear panels of the NPort 5650 have a link indicator, as described in the following table.

LED Name	LED Color	LED Function
Link	Off	Fiber disconnected.
	Green	Fiber connected; data not transmitting.
	Blinking	Fiber connected; data is transmitting.

4. Hardware Installation

STEP 1: After removing the NPort 5600 from the box, the first thing you should do is attach the power adaptor.

STEP 2: Connecting the Power.

AC: Connect the NPort 5600's 100-240 VAC power cord to the AC connector. The "Ready" LED will show a solid red color until the system is ready, at which time it will change to a green color.

DC: Connect the NPort 5610-16/8-48V's power cord to the DC connector, and then follow the steps given below:

Loosen the screws on the V+ and V- terminals of the NPort 5610-8/16-48V's terminal block. Connect the power cord's 48 VDC or -48 VDC wire to the terminal block's V+ terminal, and the power cord's DC Power Ground wire to the terminal block's V- terminal, and then tighten the terminal block screws. (Note: The NPort 5610-8/16-48V can still operate even if the 48V/-48V and DC Power Ground are reversed.)

The "Ready" LED will show a solid red color until the system is ready, at which time it will change to a green color.

Grounding the NPort 5610-8/16-48V:

Grounding and wire routing help limit the effects of noise due to electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The Shielded Ground (sometimes called Protected Ground) contact is the second contact from the right of the 5-pin power terminal block connector located on the rear panel of the NPort 5610-8/16-48V. Connect the SG wire to the Earth ground.

STEP 3: Connect the NPort 5600 to a network. Use a standard straight-through Ethernet cable to connect to a hub or switch. When setting up or testing the NPort 5600, you might find it convenient to connect directly to your computer's Ethernet port. In this case, use a cross-over Ethernet cable.

STEP 4: Connect the NPort 5600's serial port to a serial device.

Placement Options: You can place the NPort 5600 on a desktop or other horizontal surface.

5. Software Installation Information

To install NPort Administration Suite, insert the NPort Document & Software CD into your computer's CD-ROM drive. Once the NPort Installation CD window opens, click on the INSTALL UTILITY button, and then follow the instructions on the screen.

To view detailed information about NPort Administration Suite, click on the DOCUMENTS button, and then select "NPort 5600 Series User's Manual" to open the PDF version of this user's guide.

6. Pin Assignments and Cable Wiring

Serial Port Pinouts for the NPort 5610
Serial Port Pinouts for theNPort 5630

Pin	RS-232	Pin	RS-422/RS-485-4W	RS-485-2W
1	DSR (in)	1	–	–
2	RTS(out)	2	–	–
3	GND	3	TxD+	–
4	TXD(out)	4	TxD-	–
5	RxD(in)	5	RxD-	Data-
6	DCD(in)	6	RxD+	Data+
7	CTS(in)	7	GND	GND
8	DTR(out)	8	–	–

Serial Port Pinouts for the NPort 5650

Pin	RS-232	RS-422/RS-485-4W	RS-485-2W
1	DTR	-	-
2	RTS	TxD+	-
3	GND	GND	GND
4	TxD	TxD-	-
5	RxD	RxD+	Data+
6	DCD	RxD-	Data-
7	CTS	-	-
8	DTR	-	-

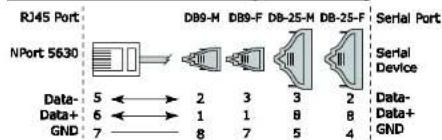

Serial Cables for the NPort 5630 (2-wire RS-485)


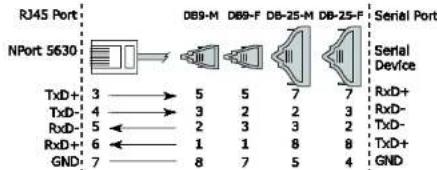

Serial Cables for the NPort 5630 (RS-422/4-wire RS-485)


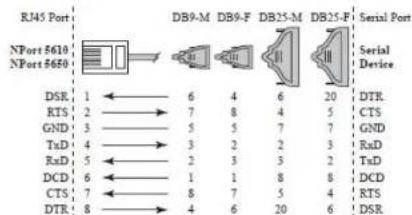

Serial Cables for the NPort 5610/5650 (RS-232)

    DB9-M["DB9-M"] --> RER["RR"]
    DB9-F["DB9-F"] --> RER
    DB25-M["DB25-M"] --> SIR["Symbol"]
    DB25-F["DB25-F"] --> SIR
    SIR --> DTR["DTR"]
    SIR --> CTS["CTS"]
    SIR --> GND["GND"]
    SIR --> RxD["RxD"]
    SIR --> TxD["TxD"]
    SIR --> DCD["DCD"]
    SIR --> RTS["RTS"]
    SIR --> DSR["DSR"]

    style RJ45 Port fill:#f9f,stroke:#333
    style NPort610 fill:#ccf,stroke:#333
    style DSR fill:#cfc,stroke:#333
    style RTS fill:#fcc,stroke:#333
    style GND fill:#cff,stroke:#333
    style TxD fill:#ffc,stroke:#333
    style RaD fill:#cfc,stroke:#333
    style DCD fill:#fcc,stroke:#333
    style CTS7 fill:#ffc,stroke:#333
    style DTR8 fill:#cfc,stroke:#333

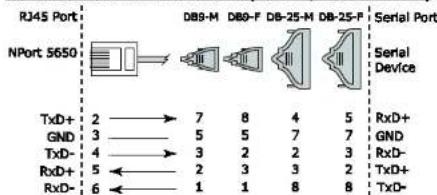

Serial Cables for the NPort 5650 (RS-422/4-wire RS-485)


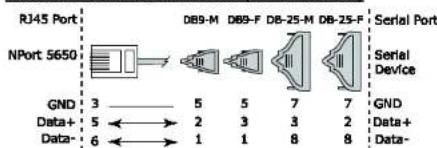

Serial Cables for the NPort 5650(2-wire RS-485)

1. Specifications

Ethernet Interface
Speed	10/100 Mbps, RJ45
Protection	Built-in 1.5 KV magnetic isolation
Optical Fiber Interface (100BaseFX)
	5650-8/16-M-SC	5650-8/16-S-SC
Wavelength	1300 nm	1310 nm
Transmitter power Max	-10 dBm	0 dBm
Transmitter power Min	-20 dBm	-5 dBm
Receiver Sensitivity Min	-6 dBm	-3 dBm
Receiver Sensitivity Min	-32 dBm	-34 dBm
Link Budget	12dB	29 dB
Typical Distance	5 km	40 km
Power Requirements
Power Input	100 to 240 VAC, 47 to 63 Hz, ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption
NPort 5610-8/16: 141 mA for 100V, 93 mA for 240V
NPort 5610-8/16-48V: 135 mA (at 48V max.)
NPort 5630-8/16: 152 mA for 100V, 98 mA for 240V
NPort 5650-8/16: 158 mA @ 100 VAC, 102 mA @ 240 VAC
NPort 5650-8/16-5-SC: 164 mA @ 100 VAC, 110 mA @ 240 VAC
NPort 5650-8/16-M-SC: 174 mA @ 100 VAC, 113 mA @ 240 VAC
Other
Operating Temp.	Standard Models: 0 to 55°C (32 to 131°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Operating Humidity	5 to 95% RH
Dimensions	190 × 45 × 478 mm (including ears)190 × 45 × 440 mm (without ears)
Serial Line Protection	15 KV ESD for all signals
Power Line Protection	Level 3 Burst (EFT), EN61000-4-4Level 3 Surge, EN61000-4-5
Regulatory Approvals	FCC Class A, CE Class A, UL 60950-1, EN60950-1
