| Product Type | Upright Freezer |
| Brand | Kelvinator |
| Model | KI265UFM |
| Total Capacity | 265 L |
| Energy Efficiency Class | F |
| Annual Energy Consumption | 200 kWh/year |
| Climate Class | SN-T |
| Noise Level | 40 dB |
| Dimensions (H x W x D) | 1650 x 595 x 600 mm |
| Net Weight | 70 kg |
| Refrigerant | R600a |
| Defrost Type | Manual |
| Temperature Control | Mechanical Dial |
| Fast Freeze Function | Yes |
| Door Reversibility | Yes |
| Interior Light | Yes |
| Number of Drawers | 6 |
| Adjustable Feet | Yes |
| Power Supply Voltage | 220-240 V, 50 Hz |
| Recommended Cleaning | Mild detergent and soft cloth |
| Spare Parts Availability | Contact Kelvinator service center |
Frequently Asked Questions - KI265UFM KELVINATOR
User questions about KI265UFM KELVINATOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual KI265UFM - KELVINATOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KI265UFM by KELVINATOR.
USER MANUAL KI265UFM KELVINATOR
A Global Tradition of Excellence
USER MANUAL
MODEL: KI265UFM
Service and Spares
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Kelvinator Service Centre by telephoning:
0800 222 825 (South African Customers) +27-0800 222 825(International Customers)
Help us to help you
Please determine your type of enquiry before writing or telephoning. When you contact us we need to know:
Your name
Telephone Number
Physical Address where appliance is located
Model and Serial Number of the appliance
Clear and concise details of the fault
Customer Care
For general enquiries or information regarding Kelvinator appliances contact:
Customer Care Department
Kelvinator
P.O. Box 8334
Greenstone
1616
South African Customers: 0800 222 825
International Customers: +27-0800 222 825
E-mail: service@electrolux.co.za
Website : www.kelvinator.co.za
Kelvinator Guarantee Conditions
FOR DOMESTIC USE ONLY
NOT FOR COMMERCIAL OR INDUSTRIAL USE
ANY ALTERATION OR MODIFICATION OF THE EQUIPMENT VOIDS THE GUARANTEE
FAILURE TO USE A CERTIFIED ELECTRICIAN OR KELVINATOR AUTHORISED SERVICE AGENT OR GENUINE PARTS FOR INSTALLATION OR SERVICE VOIDS THE GUARANTEE
- Kelvinator guarantees the equipment against defective material or faulty manufacture, provided it is used for domestic purposes only, for a period of 24 (twenty four) months, from the date of purchase by the original retail purchaser. This guarantee only applies to Kelvinator large appliances.
- (a) In the first 6 (six) months from date of purchase, for valid guarantee claims, collection, return and installation (Built-in and gas appliances) of the appliance will be free of charge within South Africa if installed by an authorized Kelvinator service agent.
(b) For the remainder of the guarantee period where the repaired appliance is used or installed more than 50 kilometres from the nearest Kelvinator service agent or elsewhere in South Africa, travel costs to the place of use or installation shall be for the account of the purchaser. - This guarantee is given on condition that only labour, parts and accessories supplied by authorised agents are at all times used in connection with the appliance, including the installation thereof, and that an authorised Kelvinator service agent installs and/or services the appliance.
- Kelvinator shall not be responsible for damage of any kind resulting from electricity fluctuations, faults in the building wiring, faulty installations, and improper use of controls or failure to use the appliance in accordance with the operating instructions and/or general misuse and/or abuse, or if not used for domestic purposes only, or for damage caused by a superior force (vis maior). Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment, shall render the guarantee null and void.
- After the first 6 (six) months from the date of purchase, this guarantee does not apply to light bulbs, loose glass, glass oven doors and enamelled surfaces, filters and other parts subject to wear and tear or discolouring, as well as damage caused by abrasive and highly concentrated cleaners and/or cleaning materials or cleaners prohibited by the user manual.
- Kelvinator shall not be responsible in terms of this guarantee for the replacement or repair of any part of the equipment which may have been damaged in transit if delivery is undertaken by any party other than Kelvinator or an authorised agent.
- All gas appliances are to be installed by a gas installer, registered with SAQCC GAS. Electrical appliances are to be installed by a qualified electrician who is an authorised service agent or assisted by an authorised service agent from who proof of installation will be required.
- Repairs carried out under guarantee have a guarantee period of 3 (three) months on the parts and labour supplied to repair the unit. Parts removed during guarantee repairs become the property of Kelvinator.
- After expiry of 6 (six) months from the date of purchase the guarantee shall be available only to the original retail purchaser of Kelvinator domestic appliances from an authorised Kelvinator Dealer or Distributor and only where the appliance has been retained for use in the Republic of South Africa.
- Failure to produce documentary proof of the date of original acquisition by the original purchaser to Kelvinator or an authorised service agent, will result in normal charges being levied for travel costs, the work carried out and the parts supplied, unless a production date can be proved to be within the 6 (six) months preceding the guarantee claim.
- After 6 (six) months from the date of purchase of the appliance the liability of Kelvinator under this guarantee is limited to the replacement and/or repair of the defective parts within the guarantee period and does not extend to the installation or removal of the appliance.
(Effective 01 March 2011)
Thank you for buying our refrigeration products.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference.
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instructions
Safety Instructions
Hints and Tips
Step by step instructions for an operation
Environmental Information
IMPORTANT SAFETY INSTRUCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer
Care Department.
Installation
- This appliance is heavy. Care should be taken when moving it.
- It is dangerous to alter the specifications or attempt to modify this product in any way.
- Ensure that the appliance does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by a special cord available from your local Service Centre
- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
- Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
- The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.
Child Safety
- Do not allow children to tamper with the controls or play with the product.
During Use
- This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.
- Frozen food should not be refrozen once it has thawed out.
- Do not place carbonated or fizzy drinks in the freezer.
- Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
- Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
Maintenance and Cleaning
- Switch off, and unplug the appliance before carrying out any cleaning or maintenance work.
- Do not use sharp instruments to scrape off frost or ice. (See defrosting instructions).
Servicing
- This product should be serviced by an authorised engineer, and only genuine spare parts should be used.
- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre.
At the End of the Appliance Life
- When disposing of your appliance, use an authorised disposal site.
- Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.
For the User
Important Safety Instructions 2
Description of the Appliance 4
Control unit 4
Using Your Appliance 5
Before Use 5
Thermostat Controls 5
Indicator Lights Function 5
To Start The Appliance 5
The Freezer Compartment 6
Freezing Fresh Food 6
Frozen Food Storage 6
Hints and Tips 6
Hints and Tips 7
Normal Operating Sounds 7
Food Storage 7
Energy Saving Advice 7
In the Event of a Power Failure 7
Maintenance and Cleaning 8
Internal Cleaning 8
External Cleaning 8
To Defrost the Freezer 8
When the Appliance is Not in Use 8
What Happens if Something 9
Goes Wrong
For the Installer
Installing the handles 10
Door Reversal 11
Installation Requirements 12
Ventilation Requirements 12
Levelling 12
1.DESCRIPTION OF THE APPLIANCE
This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs.
This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 10°C and 38°C
If these temperatures are exceeded i.e., colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18°C and food spoilage may occur.
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
Thermostat Control
The thermostat control situated in the control panel regulates the temperature of the freezer compartment.
Position "Min" - Cold
Position "Max" - Coldest
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.
Indicator lights Function
- ON / OFF: The green light illuminated as soon as your freezer is plugged in.
- Running: The yellow light illuminated when the compressor is running.
- Temperature alarm: This lights up when the temperat -ure exceeds a certain threshold that could adversely affect preservation of the frozen food (over -12^ ). It is quite normal for the light to stay lit for a while when the appliance is switched on, i.e. until the temperature reaches the best temperature for keeping the food.
To Start the Appliance
- Allow the appliance to stand for 2 hours after installation.
- Plug in the appliance and switch on at the mains supply.
- Turn the thermostat control to the required setting. A midway setting is usually suitable for normal operation (see thermostat control).
- Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside.
The temperature will be affected by:
• Room temperature
● How often the door is opened
• How much food is stored
• Position of the appliance
In determining the correct temperature control setting, all these factors have to be considered and some experimentation may be necessary.
Do not allow children to tamper with the controls or play with the product.
3. THE FREEZER COMPARTMENT
The * * symbol means that your freezer will store frozen food at -18 C (-0.4°C F) or colder allowing for long term frozen food storage and freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in the control panel.
Due to the different installations, methods of usage and weather conditions, adjustments to the temperature settings may be required.
These are best assessed against a temperature reading on a thermometer buried in the frozen food. The reading must be taken quickly as the thermometer temperature will rise rapidly after removal.
Freezing Fresh Food
The maximum quantity of food you can freeze in 24 hours is 12kg. Place the fresh food on the freezer baskets. Food may need rearranging to achieve this.
During the freezing process the temperature of fresh food should be reduced quickly so that ice crystals are kept as small as possible to prevent damaging the structure of food. If freezing takes place slowly large ice crystals form and these will affect the quality of food once it has defrosted.
Packets to be frozen should be placed in the basket in contact with the baskets surface as far as possible and spaced apart to allow cold air to Circulate between them. They should not touch existing packets.
Frozen food should not be refrozen once it has thawed out.
Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or 'frost/freezer burns'.
For safety reasons, the freezer baskets are fitted with stops but are readily removed by pulling them forward to the stop, then lifting the front and pulling all the way out. Re-fit by reversing this procedure.
Frozen Food Storage
The appliance has the following net storage volume: 235 litres.
This is a standard measurement and the actual capacity depends upon the density and sizes of the food. The above figures are based on an average density of 0.32kg per litre.
Pre packed commercially frozen food should be stored in accordance with the manufacturer's instructions for a 4 star frozen food compartment and should be put in the freezer as soon as possible after purchase. Your freezer provides for long term storage which generally means up to 3 months but the length of the time can vary and it is important to follow the recommended times shown on packets of commercially frozen food.
Do not place sealed containers or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode resulting to damage to the freezer.
Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.
Manufacturers storage times should be adhered to.
Hints and Tips
- Any opened packets of frozen food, should be rewrapped in airtight materials to prevent surface evaporation which causes drying or 'freezer burn'.
- Frozen food which is allowed to thaw accidentally should either be used immediately or thrown away. Alternatively if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.
- Aim to check dates on packets and rotate food regularly. Although storage longer than recommended is not harmful, flavours and textures begin to change.
Normal Operating Sounds
- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate/evaporator or to the fixed freezer baskets..
- When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.
- A thermostat controls the compressor, and you will hear a faint 'click' when the thermostat cuts in and out.
Food Storage
- To obtain the best results from your appliance, neither hot foods nor liquids which may evaporate, should be placed in the compartment.
- Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home place the frozen food in the freezer immediately.
- Keep the time between buying chilled food and placing it in your fridge as short as possible.
- Do not push food together too much, try to allow air to circulate around each item.
- Do not store food uncovered.
- Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
- Remove suspect food from your refrigerator and clean, refer to cleaning and maintenance.
Energy Saving Advice
- Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator.
- Locate the appliance in a cool well ventilated room and make sure that the air openings of the cabinet are not obstructed.
- Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.
● Always leave warm food to cool down to room temperature before placing in the freezer.
- Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.
● Thaw frozen food in the fridge. This will ensure safer defrosting of foods
- Try to avoid keeping the door open for long periods, or opening the door too frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often.
- Ensure there are no obstructions preventing the door from closing properly.
- It is advisable to periodically clean the refrigeration system at the back of the appliance with a duster or vacuum cleaner.
In the Event of a Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise do not refreeze the food without checking it's condition. The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Fruit and Vegetables: If soft should be cooked and used up.
Bread and Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up quickly.
Cooked Dishes: i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat: Can be re-frozen providing there are ice crystals remaining within them.
Small Joints: Should be cooked and then re-frozen as cooked dishes.
Chicken: Should be cooked and re-frozen as a fresh dish
Before any maintenance or cleaning work is carried out DISCONNECT the appliance from the ELECTRICITY supply.
Internal Cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.
External Cleaning
Wash the outer cabinet with warm soapy water.
Do NOT use abrasive products. There are sharp edges on the underside of the product so care should be taken when cleaning.
Once or twice a year dust the compressor at the back of the appliance, with a brush or Vacuum cleaner, as an accumulation of dust will Affect the performance of the appliance and Cause excessive electricity consumption
To Defrost the Freezer
- Wrap any food in layers of newspaper or blankets.
- Switch the appliance off at the wall socket and remove the plug.
- Open the freezer door.
- Place a suitable container to collect the defrost water.
- After defrosting, clean and dry the interior.
- Switch the appliance on and replace any frozen food.
- Defrosting can be speeded up by putting bowls of hot (not boiling) water in the freezer and loosening the frost with a suitable plastic scraper.
- If the temperature of frozen food is allowed to rise during defrosting, its storage life may be shortened.
When the Appliance is Not in Use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all of the food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
BEFORE contacting your local service centre, check the following points:
| Symptom | Solution |
| No power to the appliance | Check there is power at the socket. |
| Check there is not a power cut by checking the household lights. | |
| Check the fuse has not blown. | |
| The temperature in the freezer section is too high | Check the ambient temperature is within appliances operating limits of 10°C to 38°C. Relocate the appliance if necessary. |
| Check the thermostat is turned to the correct Setting relative to ambient conditions. | |
| The freezer door will not open | - Has door just been opened?If so leave for a few minutes to allow the air pressure to equalise. |
| The compressor runs continuously | Adjust the thermostat to give correct temperature control. See page 5. |
| Check that the door is closed. | |
| Large quantities of food have recently been placed in the cabinet / and or door is frequently opened. | |
| Check that air ventilation is not obstructed. | |
| Excessive frost and ice has built up | Ensure the door is not left open. |
| Check that nothing is preventing the door from closing. | |
| Is the door gasket intact and clean. | |
| Has advised periodic defrosting been carried out. | |
| Noise | Refer to normal operating sounds. |
If after the above checks there is still a fault call your local Service Centre.
In-guarantee customers should ensure that the above checks have been made as the technician will charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
This upright freezer has been built with external handles, which are in poly bag.
Please follow instruction below to install them:
- Remove two screws (12) by a crossdriver.
-
Take out the handles (13) and fix it with the two screws (12)
-
Cover the two screws (12) with two caps (14). The caps are in a poly bag together with the handles.
Figure 2: Exploded view of installing the handles
Figure 3: Front view with handles
8.DOOR REVERSAL
This refrigerator has been built with the door hinges on the left. If you wish to change the opening direction, follow the instructions below:
- Unscrew the two screws (8) that hold the bottom hinge (5) (leftside) to the frame. Take away the bottom hinge (5);
- Unscrew the four screws (1) that holding the top cover (10);
- Unscrew the three screws (4) that inserted in left upper hinge (11)
- Unscrew the screw nut of the left leper hinge bin (2). Refit the upper hinge bin (2) into the right upper hinge (3);
- Lift the door off the left upper hinge(11) and place it on a flat surface to prevent scratching it:
- Unscrew the right front leg( 9) and transfer it to the leftside;
- Set the door in place, making sure the door seat at the right upper hinge(3) bin;
- Remove two caps (14) and unscrew two screws (12), take out the handles (13). Then install it onto the right side.
- Before placing the bottom hinge (5), remove the bolt-pin (6) and reverse the direction of the bottom hinge (5). Then install the bottom hinge (5) onto the right side of the lower frame with two screws (8);
- Insert the bolt-pin(6) into the bottom hinge (5);
- While holding the door in the closed position, attach the bottom hinge (5) onto right side of the bottom frame with two screws (8), do not tighten the two screws (8) until the top of the door is parallel to the counter top;

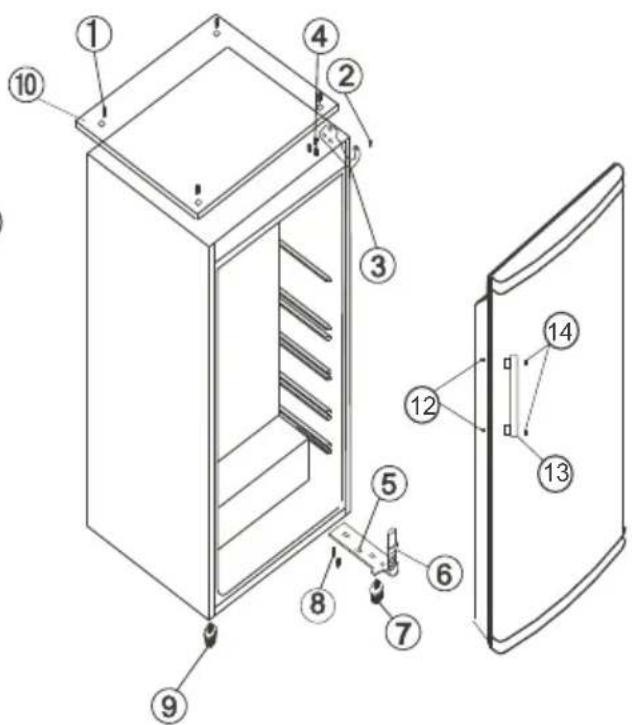

FIGURE 1 - REPRESENTS POSITION OF COMPONENTS PRIOR TO DOOR REVERSAL.
FIGURE 2 - REPRESENTS POSITION OF COMPONENTS AFTER DOOR REVERSAL.
Installation Requirements
To ensure correct operation this appliance must not be located where the temperatures will fall below 10°C or rise above 38°C
Avoid the following locations: unventilated kitchen, outhouse, conservatory, garage. For correct operation this appliance must be installed:
In a dry atmosphere.
Out of direct sunlight.
Away from extreme temperature (not next to a cooker or other sources of heat).
Your appliance will be heavy when loaded with food and must therefore be stood on a strong firm floor.
Ventilation Requirements
Gently push into place until the back of the freezer keeps a required distance from wall. When in position a 50 mm (2") clear space above the appliance should be maintained.
If space above the appliance is not available, clearance of 25mm (1") should be maintained on both sides.
Ensure that the appliance does not stand on the electrical supply cable.
Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation.
Levelling
The appliance should be level, to eliminate rocking:
Ensure the appliance is upright and both adjusters are in firm contact with the floor so that the cabinet is level.
Adjust the level by screwing out the appropriate level adjuster at the front, (use your fingers or a suitable spanner).
This appliance is heavy. Care should be taken when moving it.
* For the detailed specifications, please refer to the nameplate at the back of the freezer. The specifications are subject to change without prior notice.

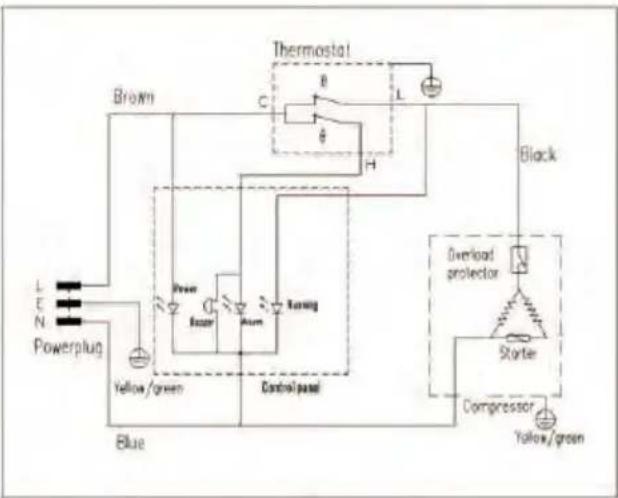

UPRIGHT FREEZER
PNC:925 010 251
KI265UFM
CB CE
CLIMATIC CATEGORY SN/ST
PROTECTIVE CLASSIFICATION
OF ELECTRIC SHOCK
RESISTANCE
RATED VOLTAGE 220-240V\~
RATED FREQUENCY 50Hz
RATED CURRENT 0.83A
REFRIGERANT R600a(95g)
NET WEIGHT 61kg
GROSS CAPACITY 265L
ENERGY CONSUMPTION 0.95kWh/24hrs
Product Dimension(mm) W596XD595XH1744
