Product Type	Video Projector
Brand	Toshiba
Model	TLP-780U
Display Technology	LCD
Native Resolution	XGA (1024 x 768)
Brightness	2000 ANSI Lumens
Contrast Ratio	400:1
Lamp Type	UHP
Lamp Life	2000 hours (standard)
Zoom Ratio	1.2x manual
Inputs	VGA, S-Video, Composite Video, Audio
Outputs	VGA monitor out, Audio
Dimensions (W x H x D)	295 x 85 x 243 mm
Weight	3.2 kg
Power Consumption	260 W (max)
Noise Level	35 dB
Keystone Correction	Vertical ±30°
Remote Control	Included (IR)
Built-in Speaker	1 x 2W
Cleaning and Maintenance	Replace lamp and clean air filter periodically
Safety Features	Auto power-off, overheating protection
Spare Parts and Repairability	Replacement lamps and filters available

Frequently Asked Questions - TLP-780U TOSHIBA

How do I clean the air filter on my Toshiba TLP-780U?

Turn off the projector and unplug it. Locate the air filter cover on the side, remove it, and gently vacuum or rinse the filter. Allow to dry completely before reinstalling.

How do I replace the lamp in the TLP-780U?

Purchase a compatible replacement lamp. Unplug the projector, let it cool, remove the lamp cover, unscrew the old lamp, and insert the new one. Reset the lamp timer in the menu.

What is the native resolution of the Toshiba TLP-780U?

The native resolution is XGA (1024 x 768). It can also accept lower resolutions like SVGA and VGA.

Can I connect a laptop to the Toshiba TLP-780U?

Yes, use a standard VGA cable to connect your laptop's VGA output to the projector's VGA input. You may need to press the 'Source' button to select VGA.

How do I adjust keystone correction on the TLP-780U?

Press the Keystone button on the remote or control panel, then use the arrows to correct vertical distortion. Adjust until the image is rectangular.

Why is my TLP-780U not turning on?

Ensure the power cord is securely plugged in. Check if the Lamp LED is red or orange, indicating a lamp issue. Wait for the projector to cool if it overheated. Try replacing the lamp if necessary.

Is there a remote control for the Toshiba TLP-780U?

Yes, the projector comes with an infrared remote control for power, input selection, menu navigation, and keystone adjustment.

How often should I clean the air filter?

Clean the filter every 100 hours of use or monthly, depending on dust conditions. A clogged filter can cause overheating.

What type of lamp does the TLP-780U use?

It uses a UHP lamp with a typical life of 2000 hours in standard mode. Replacement lamps can be ordered from Toshiba or third-party suppliers.

Can I use the TLP-780U for home theater?

Yes, it is suitable for home theater with its XGA resolution and multiple input options. However, it may require a darkened room for best image quality.

USER MANUAL TLP-780U TOSHIBA

Line drawing of a projector with ventilation slots and control panel (no text or symbols)

TLP780U

SAFETY PRECAUTIONS

CONTENTS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

FCC Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user's authority to operate the equipment.

CAUTION: Laser beam is emitted when the laser button of the remote control is pressed. Do not look from the front of the remote control. Do not face toward a person or to a mirror.

IMPORTANT PRECAUTIONS

CONTENTS

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your LCD projector. For maximum protection, repack the set as it was originally packed at the factory.

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will mar the finish.

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the unit from possible damage, do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature.

In the spaces provided below, record the Model and Serial No. located at the bottom of your LCD projector.

Model No. Serial No.

Retain this information for future reference.

IMPORTANT SAFETY INSTRUCTIONS

CONTENTS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner's Manual

After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

For products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.

4. Ventilation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

Continued

IMPORTANT SAFETY INSTRUCTIONS (continued)

CONTENTS

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

9. Overloading

Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

6. Water and Moisture

Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

10. Lightning

For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

IMPORTANT SAFETY INSTRUCTIONS (continued)

CONTENTS

11. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not place the product vertically

Do not use the product in the upright position to project the pictures at the ceiling, or any other vertical positions. It may fall down and dangerous.

Cartoon illustration of a computer monitor with arms and legs, showing a sad face (no text or symbols)

13. Stack Inhibited

Do not stack other equipment on this product or do not place this product on the other equipment.

Top and bottom plates of this product develops heat and may give some undesirable damage to other unit.

14. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

15. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

IMPORTANT SAFETY INSTRUCTIONS (continued)

CONTENTS

16. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.

17. If glass components, including lens and lamp, should break, contact your dealer for repair service.

This product incorporates glass components, including a lens and a lamp. If such parts should break, please handle with care to avoid injury and contact your dealer for repair service. The broken pieces of glass may cause to injury.

In the unlikely event of the lamp rupturing, thoroughly clean the area around the projector and discard any edible items placed in that area.

18. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.)

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

IMPORTANT SAFETY INSTRUCTIONS (continued)

CONTENTS

1. Do not get your hands between the camera arm and the main unit when setting the camera arm back in its original position.

To avoid injury, be careful not to get your hands caught when setting the camera arm back in its original position. Families with children should be particularly careful.

1. Do not leave documents on the unit for long periods of time while using the document imaging function.

Do not leave texts, papers or other documents for projection on the unit for long periods of time. The heat could erase the letters on a thermal paper.

1. Do not look into the arm light while it is lit.

The strong light may cause damage to your eyes or sight.

1. Do not carry by the camera arm.

Do not carry the projector by the camera arm.

Doing so can result in damage or injury.

1. Do not move the projector while the arm is still erect.

Always store the arm back in position when moving the projector. Otherwise injury or damage may result.

Cartoon illustration of a man sitting on a box with a surprised expression (no text or symbols)

Power supply cord selection

CONTENTS

If your line voltage is 220 to 240V, use one of the following types of cable.

Plug

configuration

Plug type

Line voltage

EURO

240V

10 - 15A

UK

240V

6A

200 - 240V

Australian

240V

10A

200 - 240V

North American

240V

15A

200 - 240V

Switzerland

240V

6A

200 - 240V

Contents

COVER

Before use

SAFETY PRECAUTIONS 2

IMPORTANT PRECAUTIONS 3

IMPORTANT SAFETY INSTRUCTIONS .... 4

Power supply cord selection 9

Contents 10

Names of each part on the main unit 11

Names of each part on the remote control 13

Loading batteries 15

Remote control operation 16

Installation and connections

Floor-mounted projector placement .... 17

Projector placement angle adjustment 20

Ceiling-mounted projector placement 21

Connecting a computer (COMPUTER IN 1 connector) ...... 22

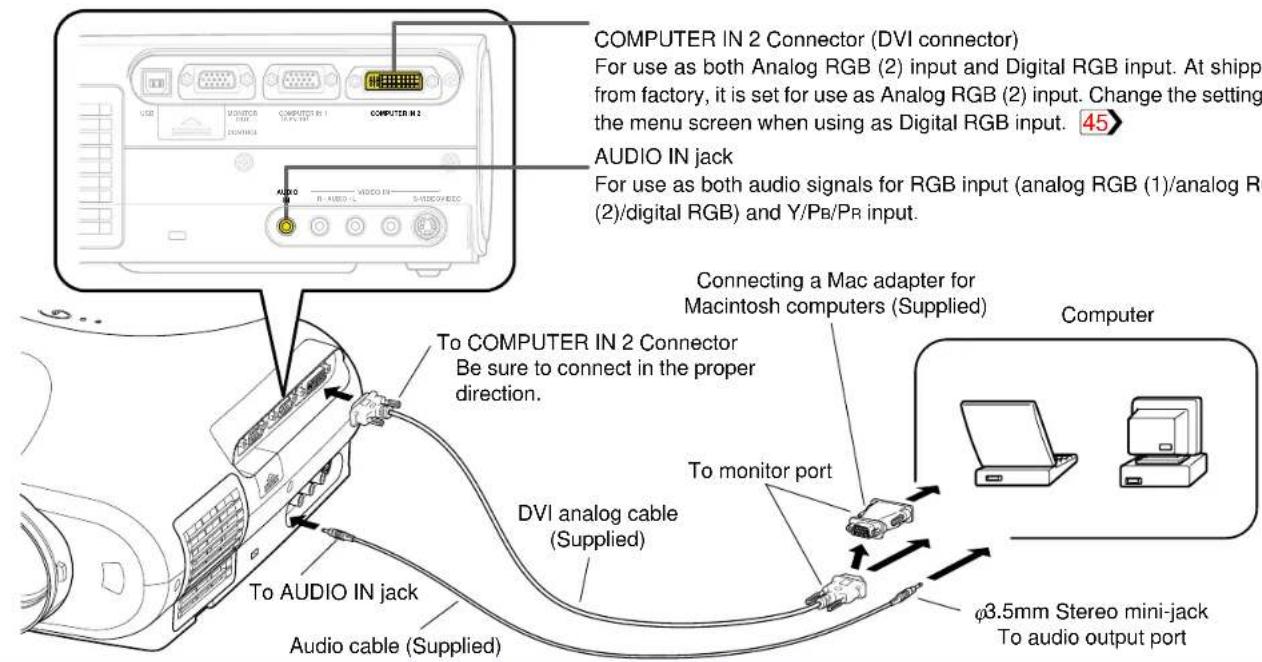

Connecting a computer (COMPUTER IN 2 connector) ...... 23

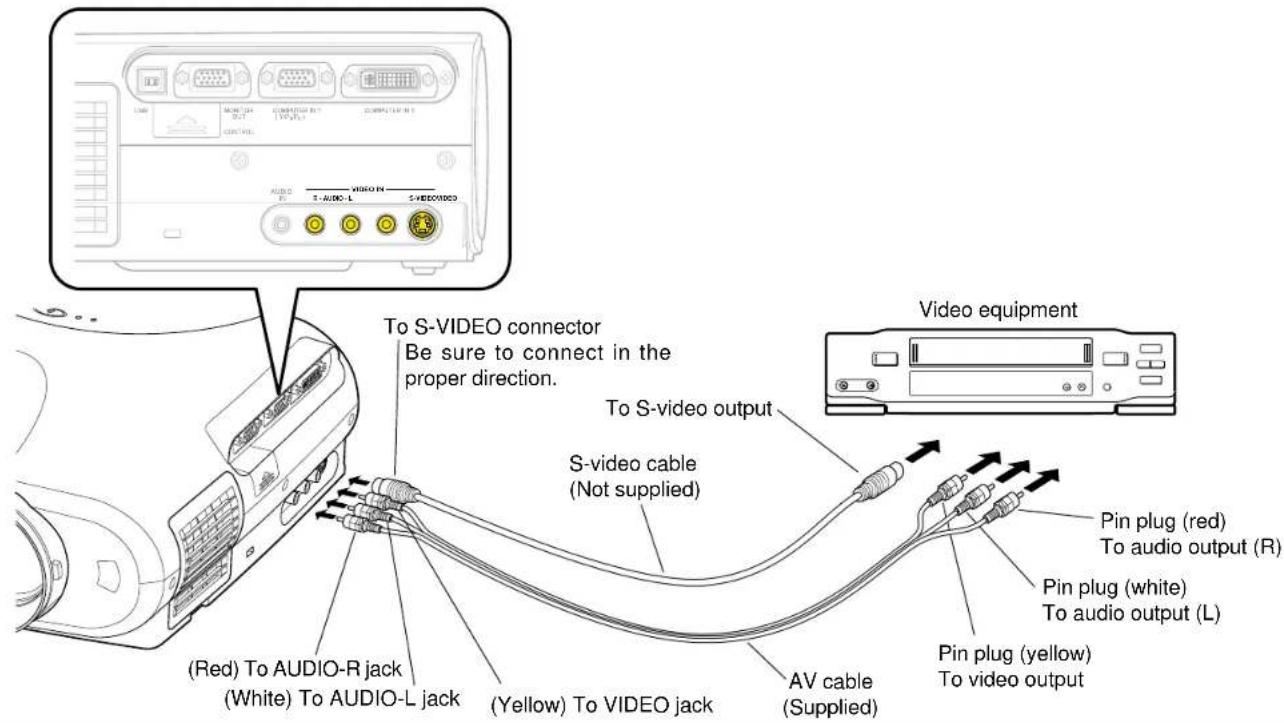

Connecting video equipment 24

Projector operation control by a computer 26

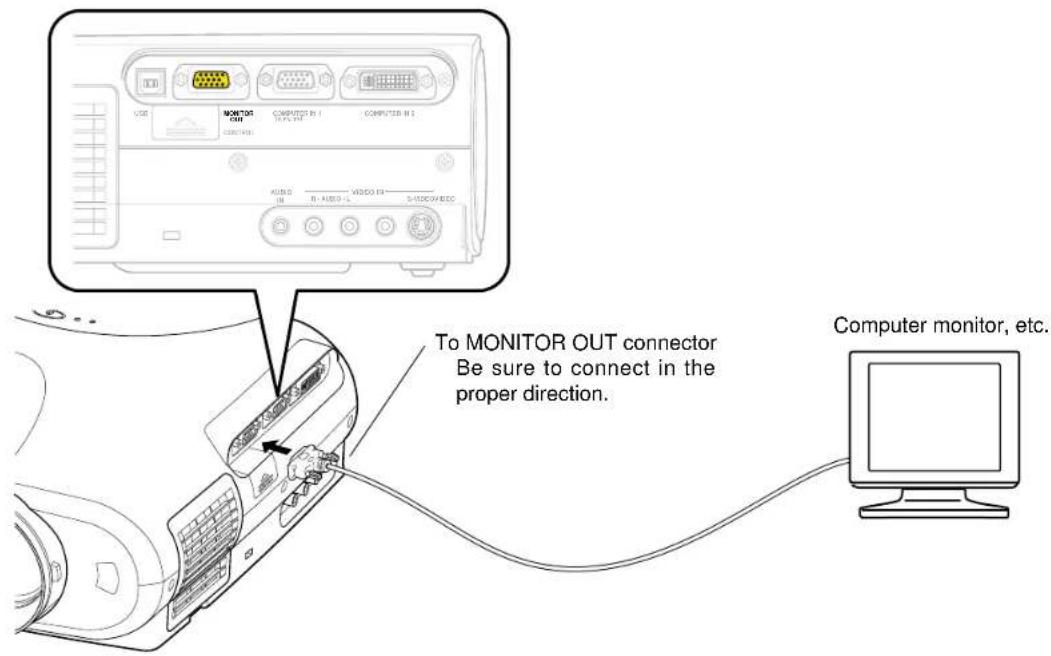

How to use the output connector 27

Operations

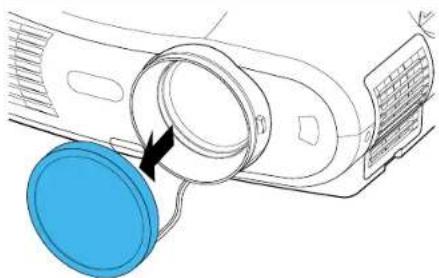

Projection on the screen 28

Turning the power off 33

Adjusting the picture automatically .... 34

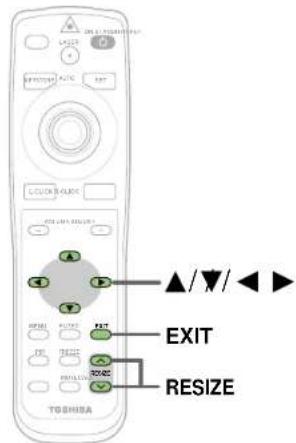

Correcting the keystone distortion 35

Cutting off the picture and sound temporarily 37

Freezing the picture 38

Enlarging the picture size 39

Displaying PIP Sub-pictures 40

Displaying Information 41

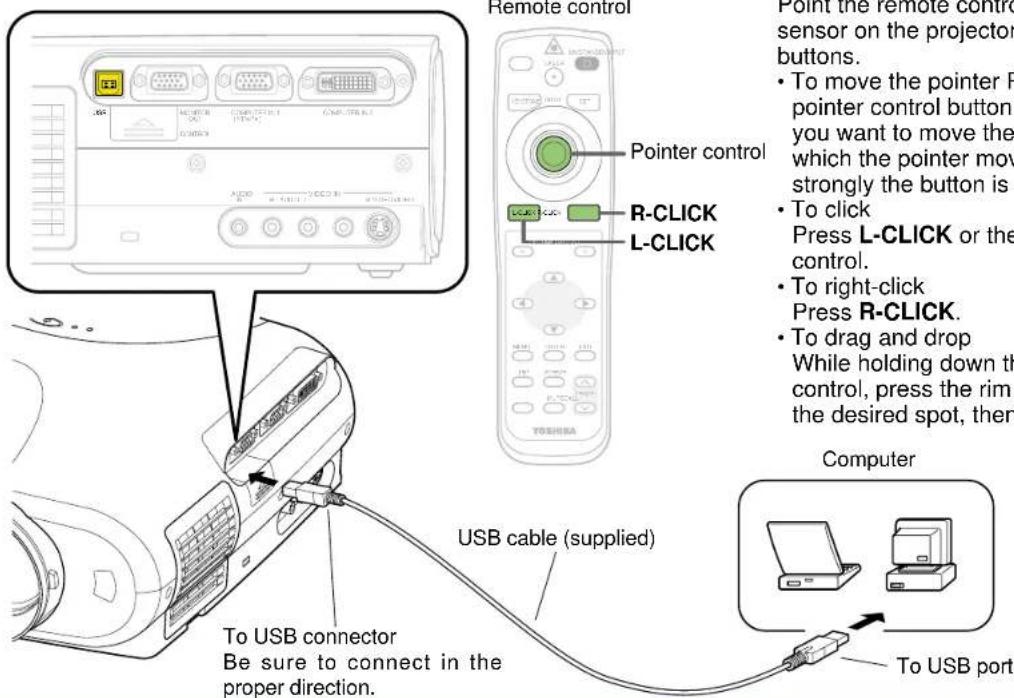

Operating a computer by the remote control 42

Adjustments & Settings

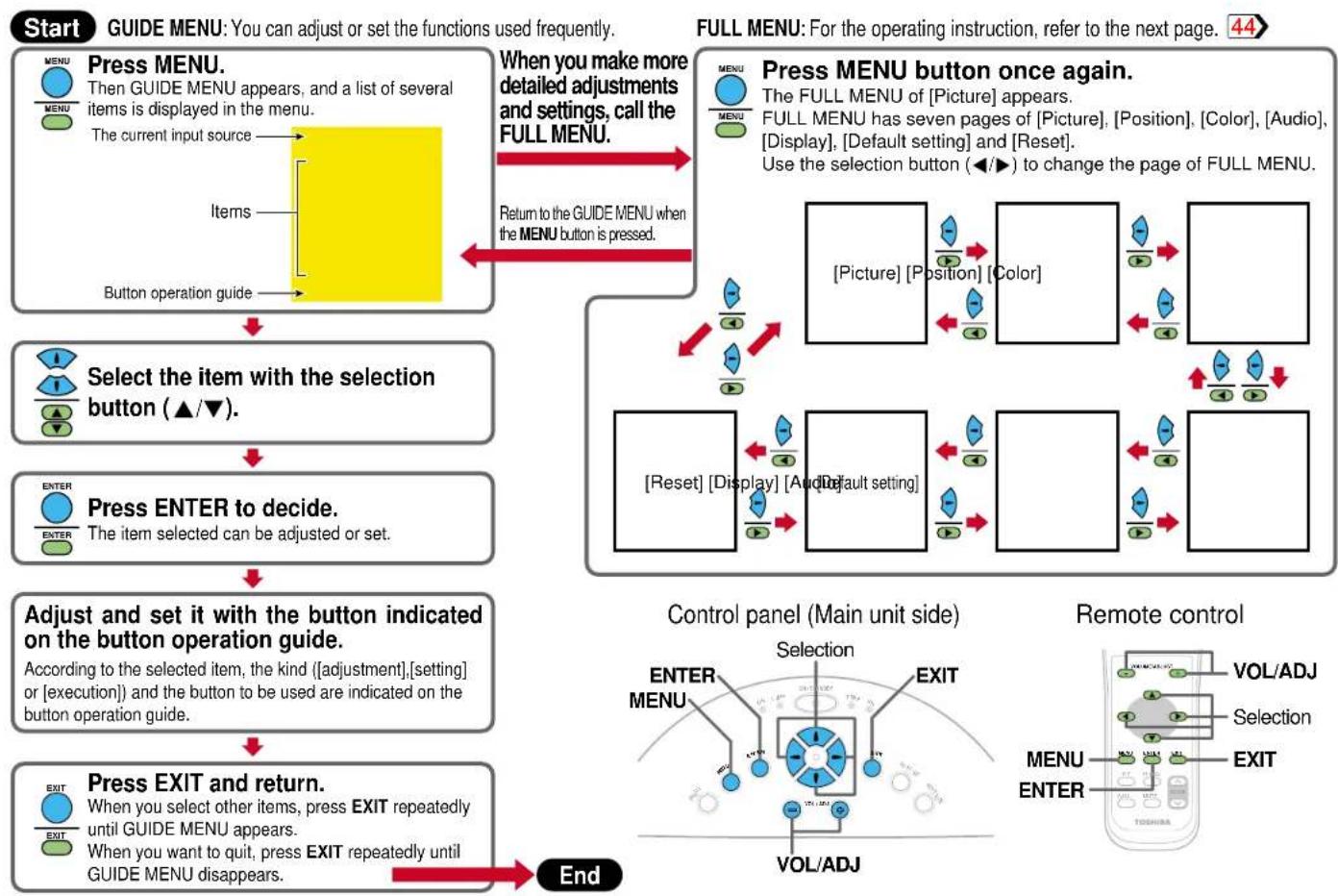

Operating the menu screen 43

GUIDE MENU adjustments and settings 45

FULL MENU adjustments and settings - Picture 46

FULL MENU adjustments - Position 47

FULL MENU adjustments - Color 48

FULL MENU adjustments and settings - Audio 49

FULL MENU adjustments and settings - Display 50

FULL MENU settings - Default setting 51

FULL MENU settings - Reset 52

PIP menu setting 53

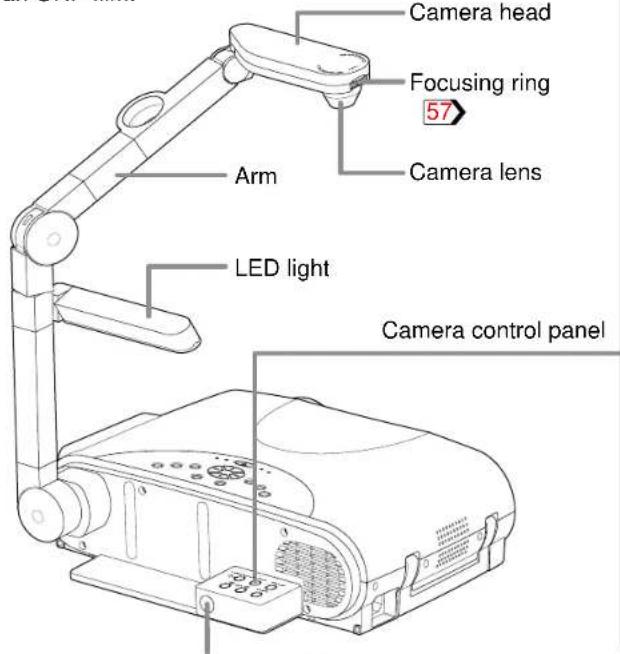

Document imaging camera

Part names (of the document imaging camera model) 54

Preparation of the document imaging camera 55

Picture projection with the document imaging camera .... 56

Overlaying projection 59

Lock the white balance 60

Correcting illuminated defects 61

Maintenance

Trouble indications 62

Air filter cleaning 63

Lens and main unit cleaning 65

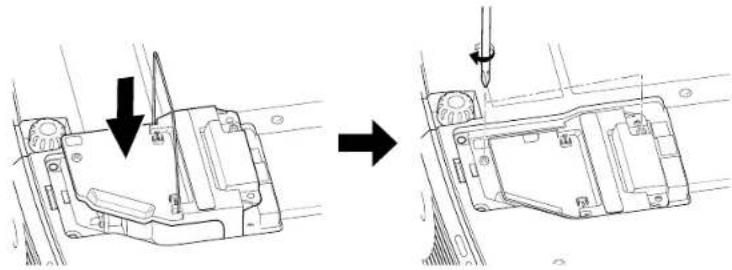

Lamp replacement 66

Others

Before calling service personal 68

Pin assignment of COMPUTER IN, MONITOR OUT connector.... 70

Applicable signal 71

Controlling the projector by using RS-232C 73

Specifications 79

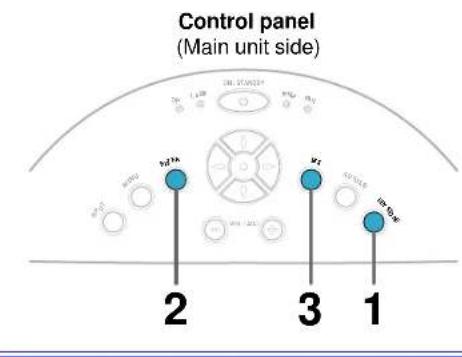

Names of each part on the main unit

CONTENTS

CAUTION

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

The explanation here is only for the model not with the document imaging camera. For the model with the document imaging camera, refer to 54.

• The air exhaust discharges high temperature air. Do not put something around the air exhaust, otherwise it may be deformed by the high temperature air.

Continued

Names of each part on the main unit (continued)

CONTENTS

Names of each part on the main unit (continued)

CONTENTS

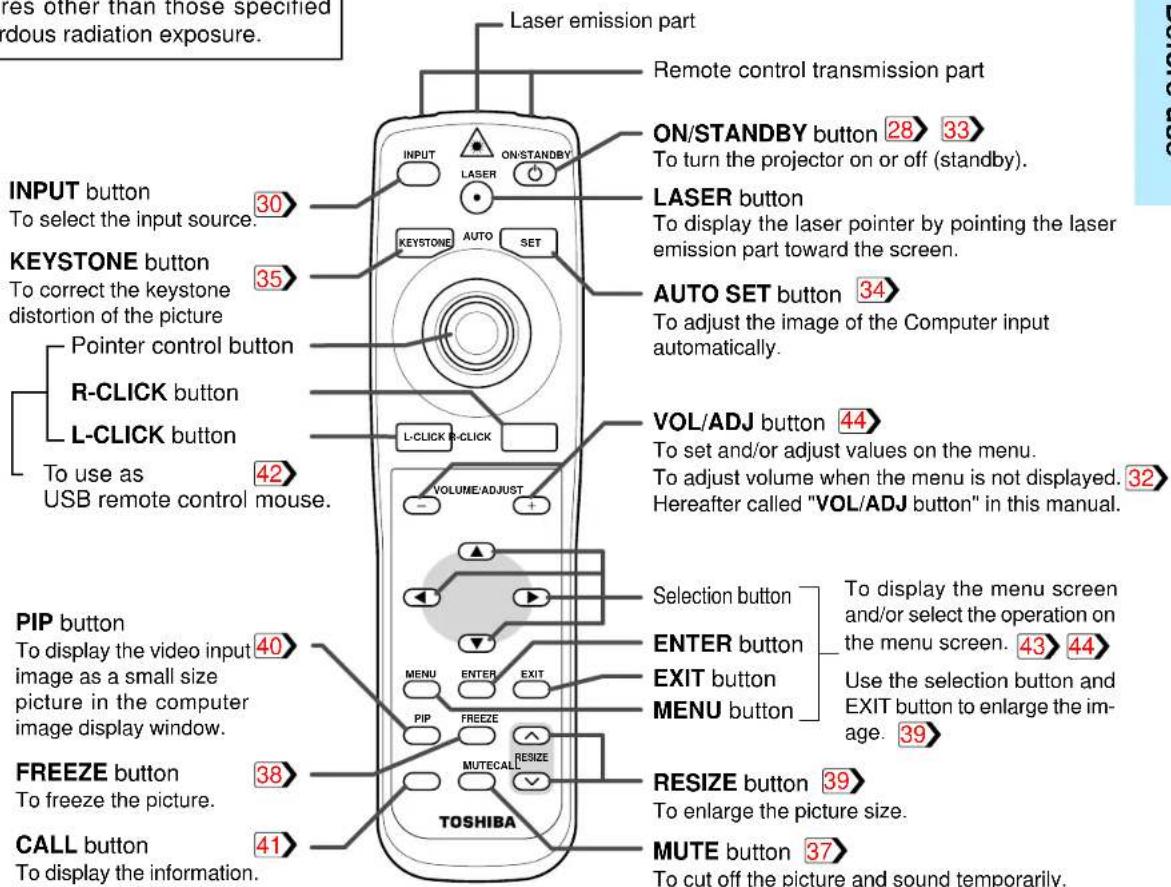

Names of each part on the remote control

CONTENTS

Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Location of the labels

Loading batteries

CONTENTS

Notes

Using batteries incorrectly can cause them to leak or burst. Strictly observe the following.

• Install the batteries with their + and - ends facing correctly.
- Do not charge, heat, disassemble, or short the batteries or throw them into a fire.
- Do not leave exhausted batteries in the remote control.
- Do not mix different types of batteries or new and old batteries.
- When you will not be using the remote control for a prolonged period, take the batteries out of the remote control.
- When the remote control stops working or only works from very close distance, replace all the batteries with new ones.
- When replacing the batteries, use a more longer life alkaline batteries.
- If a battery leaks, carefully wipe off any residue inside the battery case before loading new batteries.

1

(Bottom Side)

Line drawing of a mechanical component with a handle and base, no text or symbols present

Open the cover

2

Line drawing of a battery holder with an external resistor (no text or symbols)

Install the batteries

Make sure that the +/- polarities match the illustration in the compartment.

3

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Attach the cover

Remote control operation

CONTENTS

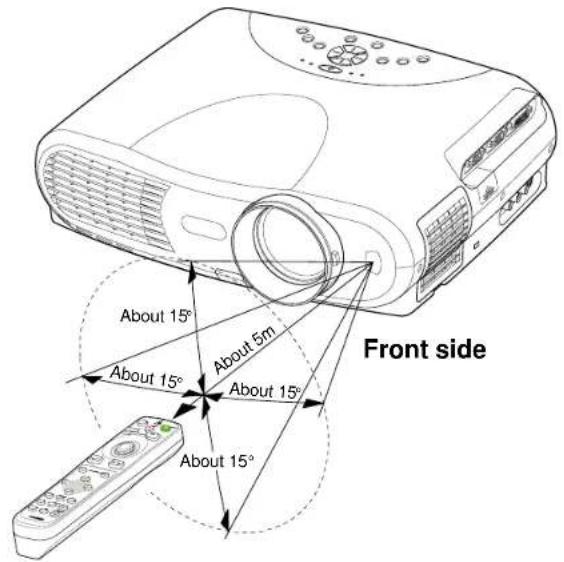

Point the remote control at the infrared remote sensor and press a button.

Notes

• The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor.
- Operate the remote control from a position where the remote sensor is visible.
- Do not drop the remote control or otherwise jolt it.
- Keep the remote control out of locations with excessively high temperature or humidity.
- Do not get water on the remote control or place wet objects on it.
- Do not disassemble the remote control.
• Under unusual circumstances the remote control may not operate well due to the location being used or the surroundings.

At such times, change the direction of the remote control to the projector and retry the operation.

Floor-mounted projector placement

CONTENTS

There are two ways to place the floor-mounted projector. Perform the "Projection mode" setting on the menu screen for the projection method. 51

For the ceiling-mounted projector placement, refer to the page 21.

Floor-mounted front projection

Viewing a picture projected on the front of the screen from a floor installation.

Floor-mounted rear projection

Viewing a picture projected through the back of the screen from a floor installation.

Floor-mounted projector placement (continued)

CONTENTS

1 Place the projector on a steady, level surface such as a table.

To obtain proper screen projected, place the projector so that the projecting light hits the screen squarely.

Top view

Point the lens straight at the center of the screen as above.

Side view

Place the projector horizontally so that the projecting light hits the screen squarely.

Determine the screen size projected on the screen.

The projection size depends on the distance between the lens and the screen. Adjust the projection size by changing the distances as shown below.

$$ a (\min.) = \frac {\text { Projection size } - 1 . 6 0 1 7}{2 7 . 0 4 1} $$

$$ a (\max.) = \frac {\text { Projection size } - 1 . 2 6 9 9}{2 1 . 4 6 3} $$

a: Distance between the lens and the screen (m)

The values are approximations.

Projection size (inches)	a(m)
	Minimum (At maximum zoom)	Maximum (At minimum zoom)
32	-	1.42
40	1.42	1.80
60	2.16	2.74
80	2.90	3.67
100	3.63	4.60
150	5.48	6.93
200	7.33	9.26
300	11.02	-

Floor-mounted projector placement (continued)

CONTENTS

3

Connect the power cord.

• Insert one end in the AC IN socket on the projector.
• Insert the other end in a wall outlet.

The three indicators, TEMP, LAMP, and ON, light in green for several seconds and then the ON indicator lights in orange and the projector turns to the standby mode.

Do not perform any operations while the three indicators are lit green.

4

Take off the lens cover.

Diagram of a car interior showing a blue circular component inserted into a ring, with an arrow pointing to it (no text or symbols present)

Notes

• When the projector is moved from a cold location to a warm location, or when the ambient temperature in the projection room has risen suddenly, moisture may condense on the lens or the internal optical section to blur the projected pictures. In such a case, leave the projector for an adequate time (1 to 2 hours, depending on the room's condition) before using it, so it adjusts to the ambient temperature.
• If the screen is exposed to direct sunlight or other strong light, the projected picture becomes too faint to see. Shut out the light with curtains or other means.
• If the screen and the projector are not installed properly, the projected picture may be distorted.

Projector placement angle adjustment

CONTENTS

The tilt of the projector can be adjusted using the foot adjuster.

1

Lift the front of the projector until a tilt angle desired is obtained and hold down the foot adjuster release button.

The foot adjuster will stretch.

Release the button to lock in position.

2

Turn the foot adjuster to make fine adjustment of the height.

Turn clockwise to lift up.

Turn counterclockwise to lower.

Notes

• To put the foot adjuster back, hold down the foot adjuster release button and lower the front slowly.
• Be sure to hold the projector when putting the foot adjuster back so as not to let the front fall on your fingers.
• Do not tilt the projector at an angle exceeding the range adjustable by the foot adjusters, since the duration life of the lamp may be shortened.

Ceiling-mounted projector placement

CONTENTS

CAUTION

When a ceiling mount is required, please consult with the dealer.

Ceiling-mounted front projection

Viewing a picture projected on the front of the screen from a ceiling installation.

Simple line drawing of a room with a wall-mounted device and a chair, no text or symbols present.

Ceiling-mounted rear projection

Viewing a picture projected through the back of the screen from a ceiling installation.

Translucent screen

Perform the "Projection mode" setting on the menu screen for the projection method.51

Note

- The relation between the projection size and the distance to the screen is the same as that of the floor-mounted projection mode. 18

Connecting a computer (COMPUTER IN 1 connector)

CONTENTS

You can project the picture from the computer.

Check that the power for the projector and computer is off before connecting the cables.

Notes

• The projector cannot be connected to a computer without an analog RGB connector. For details, refer to the computer manual.
• You may not be able to connect some computers to the projector. For details, consult the dealer.
• When connecting to a Macintosh computer, use the supplied Mac adapter (Multiple Scan 21 compatible). For some models the adapter is not required.
• Some computers may have output modes which are not compatible with this projector. Check the compatibility of the connectors, signal levels, timing, resolutions, etc.
  Continued

Connecting a computer (COMPUTER IN 2 connector)

CONTENTS

You can project the picture of analog RGB or digital RGB signal from a computer by using COMPUTER IN 2 connector. Check that the power for the projector and computer is off before connecting the cables.

Notes (Please also read "Notes" on page 22.)

• DVI digital cable should be purchased separately when you input a digital RGB signal.
• Although infrequent, noise might be generated on the screen depending on the type of computer and the connection cables. Should this occur, reduce the refresh rate of the computer signal, or lower the resolution. Use of connection cables that are 2 m or shorter is recommended.
• The input signal specifications of the DVI port of the projector conform to DVI 1.0 specifications; however, contents protection is not supported. Note that there is no guaranty of the operations not specified in this specifications.

Connecting video equipment

CONTENTS

You can project the picture from video equipment by using VIDEO IN connectors. Check that the power for the projector and video equipment is off before connecting the cables.

Note
• The S-VIDEO connector and VIDEO jack can be used independently, but the audio input jacks are used as both the S-VIDEO and VIDEO input.

Connecting video equipment (continued)

CONTENTS

You can project the picture from video equipment with component video output jack. Check that the power for the projector and video equipment is off before connecting the cables.

Projector operation control by a computer

CONTENTS

You can control the projector by a computer connected with the control cable supplied. 73> Check that the power for the projector and computer is off before connecting the cables.

Note

- Do not connect a cable other than the exclusive one supplied.

How to use the output connector

CONTENTS

You can output video signal to a computer monitor, etc.

Check that the power for the projector and the equipments is off before connecting the cables.

Notes

• The analog RGB signals or Y/PB/PR signals of the COMPUTER IN 1 or COMPUTER IN 2 connector selected by the input select operation are output from the MONITOR OUT connector. If neither of these input sources is selected, the signal of the COMPUTER IN 1 connector is output. (Digital RGB signals are not output.)
• Signals are output from the MONITOR OUT connector even when in the standby mode.
• A general computer monitor may not display a normal picture with Y/PB/PR signals.

Projection on the screen

CONTENTS

CAUTION - Do not look into the projection lens while operating the projector.

Remote control

Preparation

1 Install and connect the projector properly.
② Take off the lens cover.

1

ON/STANDBY

ON/STANDBY

Press ON/STANDBY.

The projector turns on and the ON, LAMP and FAN indicators light in green.

(The LAMP indicator blinks while the lamp is warming up.)

The lamp lights and the startup screen appears.

Illustration of a projector with a green question mark above it, no text or symbols present.

Notes

• The startup screen disappears when you push the EXIT button or waited for a while. You can also set the startup screen not to be displayed on the menu screen. 51
• When a projector is used for the first time, language selection menu is displayed after the startup screen disappears. Set it up with procedures 2 and 3 of the next page.

Projection on the screen (continued)

CONTENTS

Remote control

Control panel
(Main unit side)

When a projector is used for the first time, the language selection menu, which is to select a language for displaying menus or messages, is displayed. Select a desired language. (At shipping from factory, it is set to English.)

2

Select a desired language with the selection button (▲/▼), and press ENTER.

A menu confirming the selection result is displayed with the selected language.

3

Press ENTER to decide.

Press EXIT to return to step 2 when you want to re-select a language.

Notes

• The language selection menu will not be displayed on and after the second time you turn on the power. However, if "Reset all" 52 is executed, the language selection menu will be displayed when the power is turned on next time.
  • The language can also be selected on the menu screen. 50

4

Turn on the connected equipment and put it in playback mode.

Select "Cancel" or install "plug and play monitor" of Windows ^(R) when the dialog box of Add New Hardware Wizard screen appears on the computer when connecting a computer.

Projection on the screen (continued)

CONTENTS

Control panel (Main unit side)

Select the input source to project.

There are two kinds of methods as follows (5-a and 5-b.)

Select the input source by pressing INPUT repeatedly.

At shipping from factory, "Analog RGB(1)" connected to COMPUTER IN 1 connector or "Video" connected to VIDEO Jack can be selected. (You can select "Camera" when using the model with a document imaging camera.) The icon and the name of the selected input source appear on the screen.

Note

- The types of input sources selected when the INPUT button is pressed repeatedly can be set from the menu screen. 45

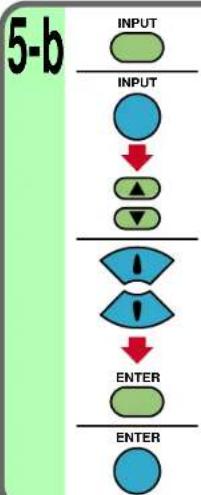


Press INPUT and hold for two seconds.

The input source selection menu appears.

Select the input source to project with the selection button (▲/▼).

Regardless of the contents of input source settings on the menu screen, all the input sources are displayed here to be selected.

Press ENTER

A picture of the selected input source is projected. When a sound signal source is also connected, sound is developed from the speaker.

Projection on the screen (continued)

CONTENTS

Notes

(Signal sent from the computer)

• If you project an image from a computer with an LCD screen while monitoring the image on the computer, the image may not be projected properly, depending on the computer model. In this case, turn off the computer display. For details on controlling the computer display, etc., refer to the computer's manual and description on the software for the computer used.
• The projector projects an image by XGA signal (1024 x 768) in full screen.
• The image quality of a computer signal except XGA may deteriorate. It is recommended to set the external monitor connected to the computer to XGA mode (1024 x 768).
• The projector can be also applied to DDC2B (Display Data Channel 2B). If your computer is applied to the DDC, start up your computer after turning on the projector.

4

Adjust the picture size by turning the zooming lever.

Turn to the right to enlarge the picture.

Turn to the left to reduce the picture.

5

Focus on the picture by turning the focusing ring.

A still picture is recommended for focusing.

Projection on the screen (continued)

CONTENTS

Remote control

Control panel (Main unit side)

6

Press VOL/ADJ (+/-) to adjust volume.

Press the (+) button to increase volume. Press the (-) button to decrease volume.

Notes

• When changing the projecting angle, adjust the foot adjuster. 20
• When the screen image is distorted in keystone, press the KEYSTONE button to adjust the distortion. 35
• Due to the lamp characteristic, flickers may occasionally occur in a picture. This is not malfunction of the unit.
  • The lamp may rarely burst with a big sound.
• The projector's liquid crystal panel is made using extremely advanced technology, but there may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. Please note that these are not malfunctions.
• When trying to press the button whose operation is not available, the icon 📋 appears.
• When supplying the signal not compatible to the projector, the icon OFF appears.
• When signals are not input from the input source, the icon appears.
• The projector may stop operating if the surrounding temperature is too high or if the air filter is clogged with dust. 62

Turning the power off

CONTENTS

1

Press ON/STANDBY after using the projector.

An instruction message for turning the power off appears on the screen and disappears after a while. When the message disappears, operation becomes invalid.

2

Press ON/STANDBY again.

Cooling starts. Once cooling is completed, the LAMP and FAN indicators turn off and the standby mode is set. (The ON indicator turns in orange.)

To protect the light source lamp, the LAMP indicator blinks as long as a minimum of cooling is necessary. The power cannot be turned back on during this time. Unplugging the power cord at this time will shorten the lamp's duration life.

The cooling fan continues to run for a while to expel the heat remaining inside. If you are in a hurry, however, you may unplug the power cord at this time.

The standby mode is set.

Notes

• The projector consumes about 20W of power in the standby mode. We recommend you to unplug the power cord when not using the projector for long periods of time.
• Be sure that the LAMP indicator has turned off before unplugging the power cord. Cutting the power by unplugging the power cord while the projector is operating or the light source lamp is being cooled will shorten the lamp's duration life. Should a fault or some other irregularity arise with this unit, unplug the power cord.
• When reinserting the power plug before the lamp has cooled, please wait until the lamp has cooled sufficiently before use. When the lamp is at a high temperature, it may not light and the duration life will be shortened.

Adjusting the picture automatically

CONTENTS

Remote control

Control panel
(Main unit side)

You can adjust the optimum horizontal position, vertical position, sampling phase and sampling frequency for projecting analog RGB signals at the touch of a button.

1

Input full screen video signals from the input source (computer) and project the image.

Adjustments may not be performed properly for images that are not displayed on the entire screen or extremely dark images.

2

AUTO SET

Press AUTO SET.

The horizontal position, vertical position, sampling phase and sampling frequency are adjusted automatically.

The icon

appears during signal processing.

Notes

• Automatic adjustment may not be performed properly for signals other than the computer's signals with which the projector is compatible.
• The horizontal position, vertical position, sampling phase and sampling frequency can also be adjusted from the menu screen. 47
  * Sampling frequency

Analog RGB signals input from the computer are converted into digital signals inside the projector. The sampling frequency is the number of times per second the analog signals are converted into digital signals. In order to capture (sample) each individual dot of the computer's signals, the sampling frequency must be adjusted to match the computer's dot clock frequency. If this adjustment is off, details of the image may be blurred, a striped pattern may appear when images with many vertical lines are displayed, or the image's width may change. For computer's signals with which the projector is compatible, the sampling frequency is adjusted automatically even without pressing the AUTO SET button.

* Sampling phase

The sampling phase is the timing at which the computer's analog RGB signals are sampled. If the sampling phase is off, the individual dots cannot be sampled at the proper timing, resulting in blurred or flickering images.

Correcting the keystone distortion

CONTENTS

A picture may be expanded on the upper side if projected upward from the projector lifted up by the foot adjuster. The projector can correct this keystone distortion.

Simple line drawing of a pole with a hanging object and a small box, no text or symbols present.

1

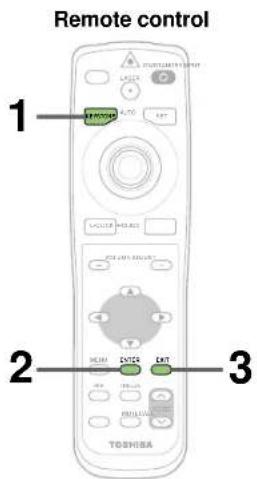

Press KEYSTONE

The keystone adjustment menu appears, with the "Auto. V-keystone" being selected. (This menu is the same as the sub-menu which is displayed when "Correct the keystone distortion of the screen" is selected from GUIDE MENU. 45)

2

Press ENTER

The vertical keystone distortion on the picture projected is automatically corrected.

The icon 📋 appears while the keystone correction is executing.

When the correction is finished, the menu for selecting "V-keystone" or "H-keystone" by manual adjustment appears, with the former being selected.

3

Confirm the keystone distortion

When no more adjustment is needed, press the EXIT button repeatedly until the menu disappears.

When the keystone distortion is not corrected properly, adjust it according to the next procedure.

Continued

Correcting the keystone distortion (continued)

CONTENTS

Remote control

Control panel
(Main unit side)

4

When screen is not installed vertically, "Auto. V-keystone" is not corrected properly.

After confirming that "V-keystone" is selected on the menu; Adjust the distortion of the both sides (right and left) of the picture with the selection button (◀/▶).

5

When the projector is not installed with the angle of 90 to the screen viewing from the top, the upper and lower sides of the projected picture are distorted.

The angle range of approximately +/-10 to 90 is adjustable.

Select "H-keystone" from the menu with the selection button ( ▲/▼), and adjust the distortion of the upper and lower sides of the picture with the selection button ( ◀/▶).

6

Press EXIT repeatedly until the menu disappears. The keystone adjustment finishes.

Notes

• Due to digital correction processing, some of the information may dropped or the picture quality may be degraded depending on the keystone correction setting or the contents of the signal source.
• The adjustable range of "V-keystone" or "H-keystone" is influenced by the quantity of correction of each other.
• When "Auto. V-keystone" does not operate properly even with the screen installed vertically, execute "H-reference reset" 52.

Cutting off the picture and sound temporarily

CONTENTS

Remote control

The image and sound of this projector can be turned off if you wish to temporarily project the image of another projector or a OHP, etc., on the screen.

Press MUTE.

The sound and picture are cut off temporarily. To cancel the mute mode, press MUTE again. The image and sound will be output.

The icon 📄 appears in the mute mode.

Note

- The mute mode is cancelled if another operation is performed during the mute mode.

Freezing the picture

CONTENTS

Remote control

You can freeze the image being projected.

Use this function to stop images from a video recorder to make presentations.

Press FREEZE.

The picture freezes.

To release the picture, press FREEZE again.

The icon 📄 appears in the freeze mode.

Notes

• The frozen image can be enlarged with the RESIZE button. The freeze mode is cancelled if any operation other than RESIZE is performed.
• The freeze mode cannot be set when there is no input (when no signals are being supplied from a signal source).
• The input source's image continues to play even when the projector is set to the freeze mode.

Enlarging the picture size

CONTENTS

Remote control

The icon

appears in the resize mode.

You can enlarge (resize) the picture size projected.

Notes

• Enlarged images can be frozen by pressing the FREEZE button. The images frozen also can be enlarged or reduced.
• The resize mode is cancelled if any operation other than setting the freeze mode is performed.
• This projector uses electrical digital resizing, so the picture quality degrades when images are enlarged.
• In rare cases, the picture may be disturbed while the magnification section is being moved.
• With some signals, the image cannot be enlarged.
• This function does not work in no input status (no signal is supplied from the signal source).

Displaying PIP Sub-pictures

CONTENTS

Video or S-video images can be displayed as small images on the computer's image. (Referred to as "sub-pictures" in this manual.)

Press PIP.

A sub-picture is displayed.

Press the PIP button again to turn off the sub-picture.

Notes

• The PIP function cannot be used when a source other than an RGB input source is selected.
• The PIP function cannot be used with no signals supplied from an RGB signal source.
  • The sub-picture turns off if any other operation is performed.
• The signal source, size, display position and audio input source to display sub-pictures can be changed from the menu screen. 53

Displaying Information

CONTENTS

Information on the input signal source, etc., can be displayed.

Press CALL.

The information described below is displayed. The information display turns off when the CALL button is pressed again.

Status display

Input - current input source

H-resolution - the horizontal resolution of the input signal (at RGB input)

V-resolution - the vertical resolution of the input signal (at RGB input)

H-frequency - the horizontal frequency of the input signal (at RGB input)

V-frequency - the vertical frequency of the input signal (at RGB input)

Sync - the polarity of the sync signal (at RGB input)

Video mode - the color mode of the video signal (at Video, S-Video input)

Signal format - the formatting of the Y/PB/PR signal (at Y/PB/PR input)

Lamp time - the elapsed using time of the lamp

Version - the version of the firmware

Shutter - the shutter speed of the document imaging camera (at document imaging camera input)

Notes

• The information displayed is not refreshed even if it changes. To refresh the information, turn off the information display, then turn it back on.
• The information display turns off if any other operation is performed.
• The "Lamp time" shows an approximate time for lamp replacement. (It should not be used as a lamp warranty time counter.) If the time indicated here nears 1000, contact your store of purchase about obtaining a replacement lamp (TLPL78, sold separately).
• The "Lamp time" can be reset when the lamp is replaced.
• The "Version" is the version of the control program used in the projector and is used for servicing, etc.

Operating a computer by the remote control

CONTENTS

You can control a computer by the remote control when the projector and computer are connected with the supplied USB cable. In this manual, this function is explained as "mouse remote control".

Point the remote control at the remote control sensor on the projector when operating with its buttons.

• To move the pointer Press the outer side of the pointer control button in the direction in which you want to move the pointer. (The speed at which the pointer moves depends on how strongly the button is pressed.)
• To click Press L-CLICK or the center of the pointer control.
- To right-click
Press R-CLICK.
• To drag and drop
While holding down the center of the pointer control, press the rim side to move the pointer to the desired spot, then release the center part.

Notes

• This function is available with Windows98 and Mac OS9 computers equipped with a USB port as standard.
• When connecting the computer's USB port for the first time, a message asking you to insert the Windows98 CD-ROM may appear on the computer's monitor screen, depending on whether or not the device driver is installed. If so, do as the message says.
• When using a USB cable other than the supplied one, be sure to use a shielded type.

Operating the menu screen

CONTENTS

Various adjustments and settings can be made on the menu screen. The basic operation on the menu screen is shown here.

    J["When you make more detailed adjustments and settings, call the FULL MENU. Return to the GUIDE MENU when the MENU button is pressed."] --> K["Full MENU: For the operating instruction, refer to the next page. 44"]
    K --> L["Press MENU button once again. The FULL MENU of [Picture"] appears. FULL_MENU_has_seven_pages_of["Picture"], [Position], [Color], [Audio], [Display], [Default setting] and["Reset"]. Use the selection button (◄/►) to change the page of FULL MENU.]
    L --> M["[Picture"] [Position] [Color]]
    M --> N["[Reset"] [Display] [Audio/Default setting]]
    N --> O["VOL/ADJ"]
    O --> P["Control panel (Main unit side). Selection, EXIT, ENTER, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT / ADJ"]
    P --> Q["Remote control. VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/ADJ, VOLT/Adj"]

Operating the menu screen (continued)

CONTENTS

    K["Control panel (Main unit side) with VOLE/MENU selection and EXIT"] --> L["Method -1: Adjust with VOL/ADJ (+/-) Press the selection button (▲/▼) when selecting other items continuously."]
    L --> M["Method -2: Press ENTER. Only the (small list of the) selected adjusting items is displayed. This is useful as you can see a main picture not hidden under FULL MENU."]
    M --> N["Adjust with VOL/ADJ (+/-) or selection buttons (◄/►)."]
    N --> O["End"]

    P["Remote control"] --> Q["VOL/ADJ Selection MENU ENTER"]
    Q --> R["End"]

Note
- An exclusive menu is displayed when making PIP function sub-picture settings. 53

GUIDE MENU adjustments and settings

CONTENTS

On GUIDE MENU, you can set or adjust the functions frequently used. To operate GUIDE MENU, refer to page 43.

Adjust the image brightness.	Contrast	ADJ.	Adjusting contrast of the picture			Yes	Yes	Yes	Yes	Yes	Yes
	Brightness	ADJ.	Adjusting brightness of the picture
Adjust the image flicker.	Phase	ADJ.	Adjusting flicker of the picture (sampling clock phase adjustment)			Yes	Yes	-	-	-	-
Adjust the image color.	Color	ADJ.	Adjusting color deepness of the picture			-	-	-	Yes	Yes	Yes
Adjust the gain of the document imaging camera.	Camera gain	ADJ.	Adjusting the document imaging camera's gain			-	-	-	-	-	Yes
Reduce the flicker.	Shutter	Select it from follows so that flickering of the document imaging camera's picture decreases				-	-	-	-	-	Yes
		SET: The shutter speed is set automatically
		SET: The shutter speed is fixed to 50 Hz
		SET: The shutter speed is fixed to 60 Hz
Select the image with its brightness priority or quality (color) priority.	Bright Priority is given to brighter pictureSET					Yes	Yes	Yes	-	-	-
	True color Priority is given to the true color of the pictureSET
Correct the keystone distortion of the screen.	Auto. V-keystone	EX: Vertical keystone distortion is adjusted automatically				ADJ.V-keystone(common for all of the inputs)
	To manual adjustment	EXEC.			Adjusting the Vertical keystone
			H-keystone	ADJ.	Adjusting the Horizontal keystone
Select the input source when changing the input.	COMPUTER IN 1	SET	☐: COMPUTER IN 1 connector is selectable by INPUT button			ETAnalog RGB(1)
			●: Use COMPUTER IN 1 connector as Analog RGB(1) inputS
	Y/PB/PR	SET	●: Use COMPUTER IN 1 connector as Y/PB/PR input
	COMPUTER IN 2	SET	☐: COMPUTER IN 2 connector is selectable by INPUT button
			●: Use COMPUTER IN 2 connector as Analog RGB(2) inputS
		SET: Digital RGB COMPUTER IN 2 connector as Digital RGB input
	VIDEO: Video input is selectable by INPUT buttonSET
	S-VIDEO	SET	☐: S-Video input is selectable by INPUT button
	CAMERA	SET	☐: Camera input is selectable by INPUT button

Notes

• The items related to the camera (the document imaging camera) are displayed only with a model having the camera.
• "Sampling phase" is to be adjusted and memorized for each RGB signal 71.
• "Keystone" and "Input source setting" can be adjusted (set) at all input sources, but the adjustments (settings) made at one input source are applied to all input sources.
• It is impossible to exit from the menu if no input source is selected.
• If the check in the check box for the currently selected source is removed, the setting becomes effective the next time the input is changed.
• The adjustments or settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments or settings are not memorized.

FULL MENU adjustments and settings - Picture

CONTENTS

You can adjust various items of the picture from FULL MENU [Picture]. To operate FULL MENU, refer to page 44.

Contrast	ADJ.	Adjusting contrast of the picture			Yes	Yes	Yes	Yes	Yes	Yes	Yes
Brightness	ADJ.	Adjusting brightness of the picture			Yes	Yes	Yes	Yes	Yes	Yes	Yes
Sharpness	ADJ.	Adjusting sharpness of the picture (This item is setting instead of adjustment at Y/PB/PR input.)			-	-	-	Yes	Yes	Yes	Yes
Camera gain Adjusting the document imaging camera's gainADJ.					-			-			Yes
Picture mode BrighPriority is given to brighter pictureSET					Yes	Yes	Yes	-	-	-	-
	True color Priority is given to the true color of the pictureSET
Video mode Auto		SET	The video mode (color system) is set automatically		-	-	-	-	Yes	Yes	-
	NTSC	SET	The video mode is fixed to NTSC system
	PAL	SET	The video mode is fixed to PAL system
	SECAM	SET	The video mode is fixed to SECAM system
	PAL-N	SET	The video mode is fixed to PAL-N system
	PAL-M	SET	The video mode is fixed to PAL-M system
	PAL-60	SET	The video mode is fixed to PAL-60 system
	NTSC-4.43	SET	The video mode is fixed to NTSC-4.43 system
Signal format	Auto		The Y/PB/PR signal format is set automaticallySET		-	-	-	Yes	-	-	-
	525i	SET	The Y/PB/PR signal format is fixed to 525i mode
	525p	SET	The Y/PB/PR signal format is fixed to 525p mode
	625i	SET	The Y/PB/PR signal format is fixed to 625i mode
	750p	SET	The Y/PB/PR signal format is fixed to 750p mode
	1125i	SET	The Y/PB/PR signal format is fixed to 1125i mode
Shutter	Auto	SET	The shutter speed is set automatically		-			-			Yes
	50Hz	SET	The shutter speed is fixed to 50 Hz
	60Hz	SET	The shutter speed is fixed to 60 Hz
Screen size	Full	SET	The picture is converted to XGA (1024 x 768 dot) resolution		Yes	Yes	Yes	Yes	Yes	Yes	Yes
	thru	SET	The picture is displayed with the input resolution
	Wide	SET	The picture is converted to the wide screen picture		-	-	-	Yes	Yes	Yes	-
Overlay gain Adjusting the level of the overwriting picture using the document imaging cameraADJ.					Yes	Yes	Yes	Yes	Yes	Yes	-
Reset	EXEC.	The adjustments and settings of FULL MENU [Picture] are returned to the factory default setting			Yes	Yes	Yes	Yes	Yes	Yes	Yes

Notes

• The items related to the camera are indicated only with a model having the camera.
• A part of function is restricted if the object other than [Auto] is selected in "Video mode" or "Signal format". 51
• The adjustments or settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments or settings are not memorized.

FULL MENU adjustments - Position

CONTENTS

You can adjust the picture position etc. of analog RGB input from FULL MENU [Position]. To operate FULL MENU, refer to page 44.

			The relationship between input source and item Yes: Adjustable -: Not displayed
			Analog RGB(1)	Analog RGB(2)	Digital RGB	Y/Pr/Pr	Video	S-Video	Camera
H-position	ADJ.	Adjusting the horizontal display position of the picture	Yes Yes -			-	-	-	-
V-position	ADJ.	Adjusting the vertical display position of the picture	Yes Yes -			-	-	-	-
Phase Adjusting flicker ofthe picture (sampling clock phase adjustment)ADJ.			Yes Yes -			-	-	-	-
Frequency		Adjusting the sampling frequency of the input signalADJ.	Yes Yes -			-	-	-	-
Reset The adjustme#ED of FULL MENU [Position] are returned to the factory default value			Yes Yes -			-	-	-	-

Notes

• This menu is not displayed except analog RGB input.
• The adjustment of each item in this menu is memorized for each RGB signal input 71.
• The adjustments made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments are not memorized.

FULL MENU adjustments - Color

CONTENTS

You can adjust the color condition of the picture from FULL MENU [Color]. To operate FULL MENU, refer to page 44.

Color	ADJ.	Adjusting color deepness of the picture	-	-	-	Yes	Yes	Yes	-
Tint	ADJ.	Adjusting tint of the picture (not adjustable at PAL, SECAM, PAL-N,PAL-M and PAL60)	-			-			-
R-level Adjusting red's color level of the pictureADJ.			Yes	Yes	Yes	Yes	Yes	Yes	Yes
G-level Adjusting green's color level of the pictureADJ.			Yes	Yes	Yes	Yes	Yes	Yes	Yes
B-level Adjusting blue's color level of the pictureADJ.			Yes	Yes	Yes	Yes	Yes	Yes	Yes
Reset The adjustment to Full MENU [Color] are returned to the factory default value			Yes	Yes	Yes	Yes	Yes	Yes	Yes

Notes

- The adjustments made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments are not memorized.

FULL MENU adjustments and settings - Audio

CONTENTS

You can set the sound developed from the speaker from FULL MENU [Audio]. To operate FULL MENU, refer to page 44.

Volume Adjusting the sound volume developed from speakerADJ.				Yes	Yes	Yes	Yes	Yes	Yes	-
Speaker output On The	Sound is developed from the speakersSET			Yes (common)				Yes (common)		-
	Off No sound is developed from the speakersSET
Channel select L+P		SET	The sound of the left and right channels is mixed and developed from the speaker	Yes (common)				Yes (common)		-
	L	SET	Only the sound of the left input channel is developed from the speaker
	R	SET	Only the sound of the right channel is developed from the speaker
Loudness On The loudness effect is added to the speaker soundSET				Yes (common)				Yes (common)		-
Reset	EXEC. The adjustments and settings of FULL MENU [Audio] are returned to the factory default setting			Yes (common)				Yes (common)		-

Notes

• When the camera input is selected, the sound is not developed.
  • Each item can be set at every input sources except the camera input, but the settings made at one input source are applied to all input sources as shown in the table. The sound volume can be adjusted for each input source except the camera input.
• The adjustments or settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments or settings are not memorized.

FULL MENU adjustments and settings - Display

CONTENTS

You can set the language, menu display, etc. from FULL MENU [Display].To operate FULL MENU, refer to page 44> .					The relationship between input source and item Yes: Adjustable -: Not displayed
					Analog RGB(1)	Analog RGB(2)	Digital RGB	Y/P6/PR	Video	S-Video Camera
V-keystone Adjusting the keystone distortion when having changed the vertical installation angleADJ.					Yes (common for all of the inputs)
H-keystone	ADJ.	Adjusting the keystone distortion when having changed the horizontal installation angle			Yes (common for all of the inputs)
Language		English	SET	The language is set to English for menu and message displayed	Yes (common for all of the inputs)
		Français	SET	The language is set to French for menu and message displayed
		Deutsch	SET	The language is set to German for menu and message displayed
		Italiano	SET	The language is set to Italian for menu and message displayed
		Español	SET	The language is set to Spanish for menu and message displayed
		Português	SET	The language is set to Portuguese for menu and message displayed
		日本語	SET	The language is set to Japanese for menu and message displayed
		中文(简体字)	SET	The language is set to Chinese (Simplified) for menu and message displayed
		中文(繁體字)	SET	The language is set to Chinese (Traditional) for menu and message displayed
		한국어	SET	The language is set to Korean for menu and message displayed
Icon On			SET	The icon is displayed	Yes (common for all of the inputs)
		Off	SET	The icon is not displayed
Menu position Upper left			SET	The menu is displayed to upper left on the screen	Yes (common for all of the inputs)
		Upper right	SET	The menu is displayed to upper right on the screen
		Bottom left	SET	The menu is displayed to bottom left on the screen
		Bottom right	SET	The menu is displayed to bottom right on the screen
Menu translucent		On	SET	The menu background becomes translucent	Yes (common for all of the inputs)
		Off	SET	The menu background in normal state
Reset	EXEC.	The adjustments and settings of FULL MENU [Display] are returned to the factory default setting			Yes (common for all of the inputs)

Notes

• Each item can be set at all input sources, but the settings made at one input source are applied to all input sources.
- The adjustments or settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the adjustments or settings are not memorized.

FULL MENU settings - Default setting

CONTENTS

You can set the Input source, projection mode, etc. from FULL MENU [Default setting] To operate FULL MENU, refer to page 44.

The relationship between input source and item Yes: Adjustable -: Not displayed
Analog RGB(1)	Analog RGB(2)	Digital RGB	Y/PB/PR	Video	S-Video	Camera

Input source setting			SETCOMPUTRUTER IN 1 connector is selectable by INPUT button
				: Use COMPUTER IN 1 connector as Analog RGB(1) inputSETAnalog RGB(1)
		B/Pr		: Use COMPUTER IN 1 connector as Y/Ps/Pr inputSETY/P
			SETCOMPUTRUTER IN 2 connector is selectable by INPUT button
				: Use COMPUTER IN 2 connector as Analog RGB(2) inputSETAnalog RGB(2)(common for all of the inputs)
				: Use COMPUTER IN 2 connector as Digital RGB inputSETDigital RGB
		VIDEO: Video input is selectable by INPUT buttonSET
		S-VIDEO: S-Video input is selectable by INPUT buttonSET
		CAMERA: Camera input is selectable by INPUT buttonSET
Projection mode Standard			SET	The projector placement is set to the floor-mounted front projection mode	Yes (common for all of the inputs)
		Rear	SET	The projector placement is set to the floor-mounted rear projection mode
		Ceiling	SET	The projector placement is set to the ceiling-mounted front projection mode
		Rear ceiling	SET	The projector placement is set to the ceiling-mounted rear projection mode
No signal background		Logo	SET	The TOSHIBA logo is displayed when no signal is input	Yes (common for all of the inputs)
		Blue background	SET	A blue color is displayed at full screen when no signal is input
		None	SET	Nothing is displayed when no signal is input
No signal power off		Off	SET	The projector continues work even if the no signal status continues	Yes (common for all of the inputs)
		5 min.	SET	The power turns off automatically if the no signal status continues for approx. 5 min.
Power on		Manual	SET	The power turns on by pressing the ON/STANDBY button	Yes (common for all of the inputs)
		Auto	SET	When the power cord is plugged, the power turns on
Startup screen		On	SET	The opening picture is displayed when the power is turned on	Yes (common for all of the inputs)
		Off	SET	The opening picture is not displayed when the power is turned on
Reset The settings doEOLL MENU [Default setting] are returned to the factory default setting					Yes (common for all of the inputs)

Notes

• It is impossible to exit from the menu if no input source is selected.
• If the check in the check box for the currently selected source is removed, the setting becomes effective the next time the input is changed.
• In the following conditions, the function to detect no signal ("No signal background", "No signal power off") does not act:

1) When "Video mode" 46 is set to other than [Auto] with selection of Video input or S-Video input.

2) When "Signal format" 46 is set to other than [Auto] with selection of Y/PB/PR input.

• Note that the projector automatically turns on at the restoration from power failure, if "Power on" is set to [Auto] with the power cord being plugged, even if it is not intended to.
• Even if "Power on" is set to [Auto], the setting of [5 min.] of "No signal power off" is effective.
  • Each item can be set at all input sources, but the settings made at one input source are applied to commonness for all input sources.
• The settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the settings are not memorized.

FULL MENU settings - Reset

CONTENTS

• You can return the adjusting and setting value of all menus to the factory default setting. ("H-reference value" below also returns to the value at the factory default setting.)
• The projector stores the standard conditions of horizontal installation, but depending on the usage environment (if the projector is subject to vibrations or shock, etc.), the standard may change.

If the keystone distortion is not corrected properly when "Auto. V-keystone" 35 is executed with the screen installed vertically, put the projector's foot adjustor back 20 and set the projector on a flat surface, then execute "H-reference reset"

Reset all The adjustExets and settings of all menus are returned to the factory default setting

H-reference reset The horizontal reference value for "Auto. V-keystone" is calibrated automatically

Notes

• If the projector's foot adjuster is used or the projector is included, "H-reference reset" will not be executed properly.
• The settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the settings are not memorized.

PIP menu setting

CONTENTS

When a PIP sub-picture is displayed, the PIP menu screen appears.

You can make the PIP sub-picture settings and the sound settings when a PIP subpicture is displayed.

To cancel the menu, press EXIT.

Source	Selecting the signal source for PIP sub-picture
		●: Video input is selected as signal sourceSETVideo
		●: S-Video input is selected as signal sourceSETS-Video
Size	Setting of the PIP sub-picture size
		●: The PIP sub-picture size is set to smallSETSmall
		●: The PIP sub-picture size is set to middleSETMiddle
		●: The PIP sub-picture size is set to largeSETLarge
	Setting of the PIP sub-picture display positionPosition
	SETU	●: The sub-picture is displayed to upper left on the screen
	SETU	●: The sub-picture is displayed to upper right on the screen
	SETB	●: The sub-picture is displayed to bottom left on the screen
	SETB	●: The sub-picture is displayed to bottom right on the screen
	Selecting the audio input sourceAudio
		●: The main picture's sound is developed from the speakerSETMain
		●: The sub picture's sound is developed from the speakerSETSub
Reset	EXEC.	The settings of PIP MENU are returned to the factory default setting

Notes

• The size of the PIP sub-picture changes according to the signal type (resolution) of the main picture.
• When the PIP sub-picture is turned off, the audio input source returns to the previous source (main picture).
• The settings made are memorized automatically when the power is turned off by pressing the ON/STANDBY button. If the power cord is unplugged or if a power failure occurs while the projector is on, the settings are not memorized.

Part names (of the document imaging camera model)

CONTENTS

CAUTION

When using the camera, be careful not to pinch your hand or fingers into the arm.

On the document imaging camera model, you can project pictures using the document imaging camera. The document imaging camera can directly project any materials (documents, illustrations, etc.) without using an OHP film.

Infrared remote sensor 16

Preparation of the document imaging camera

CONTENTS

Before preparations(stowed away)	1) Raise up the arm.	2) Stretch the arm. 3) Turn the arm.	arm.
4) Open the camera head. 5) Turn the camera head. 6) Pull up the light. 7) Turn the light.

Notes

• Never give shocks or impacts to the camera or arm as this may cause malfunction.
• While raising up or turning the arm, the arm moves describing an arc, be careful not to hit your face or your body.
• The figures above are procedures of putting materials on the projector. When the stability of materials is required, place the materials at the back of the projector and set the arm and camera head for them.

Picture projection with the document imaging camera

CONTENTS

CAUTION

Do not look into the arm light while it is lit.

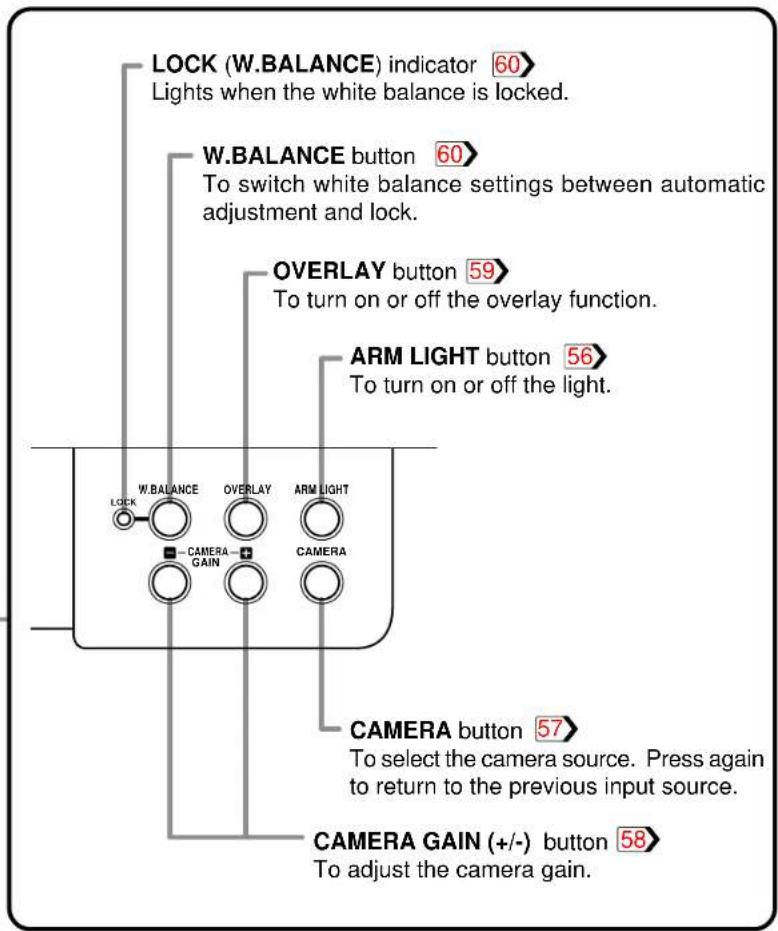

Camera control panel

Preparation

1 Project a picture on the screen as explained in the step "Projection on the screen". 28

1

ARM LIGHT

Press ARM LIGHT.

The light turns on.

2

Set a document to be projected.

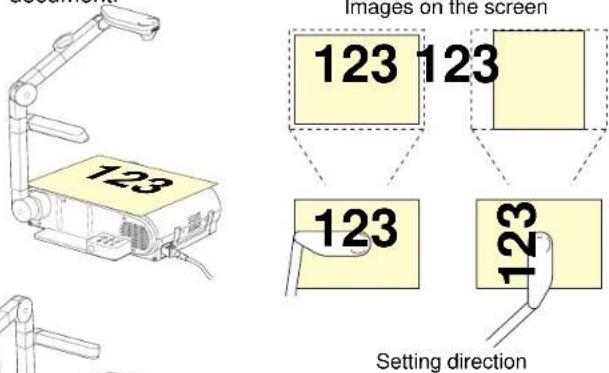

Place the document (illustrations, etc.) onto or around the projector, and turn the camera head to the direction of the document. Images on the corner

Illustration of a mechanical device with a paper label showing the number 123 (no text or symbols on the device itself)

You can also place the materials at the back of the projector and move the arm and the camera head for them.

Notes

• Use the arm light according to the brightness of the room when necessary.
• When setting the materials on the projector, be careful not press the operation buttons.

Continued

Picture projection with the document imaging camera (continued)

CONTENTS

Picture projection with the document imaging camera (continued)

CONTENTS

Camera control panel

6

Press CAMERA GAIN (+/-) to improve view of a camera subject which is too dark or vivid.

Notes

• You can adjust the "Sharpness" of the camera image on the menu screen. 46
• If the image flickers due to a fluorescent light in the room, either turn off the fluorescent light or set the "Shutter" from the menu screen. 46
  Note that the image may still flicker due to the lighting, the document status, the image adjustment, etc., even if the "Shutter" setting is changed.

7

When finished, turn off the light and close it, and put back the arm.

Follow the steps of "Preparation of the document imaging camera" in reverse.

Notes

• Though this projector uses a 1.45 million pixel camera unit, the images projected on the screen are 1024 × 768 dot images. If the "Screen size" in the menu screen 46 is set to "Full" the camera's full image is compressed to 1024 × 768 dots. If "Thru" is selected, the 1024 × 768 dots at the center of the image are projected.
  • The light turns off automatically when the arm is leaned.
• When the arm is not raised up, the camera source cannot be projected.
• In the camera input selected, audio signals are not output.

Overlaying projection

CONTENTS

You can draw figures or letters with a pen on the picture of RGB input or video input, by using the overlaying function.

Remote control

Control panel
(Main unit side)

Preparation

1 Project a picture on the screen as explained in the step "Picture projection with the document imaging camera". 56
② Prepare white paper and a red or blue pen.

1

Line drawing of a mechanical device with lever and base plate (no text or symbols)

Set the white paper on a flat place and set the camera so that paper is projected to the full screen.

The white paper should be projected fully on the screen.

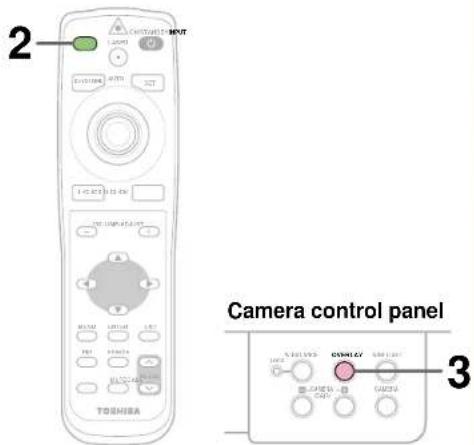

2
INPUT

INPUT

Select the input source using the overlay function by pressing INPUT.

Select the input source other than the camera input.

3
OVERLAY

Press OVERLAY

4

Screen

Draw any line on the paper with a red or blue pen.

A drawn line is projected on the screen, overlapped with the picture of the input source.

Paper

The position of a pen point can be confirmed on the screen before drawing anything.

Notes

• Handwriting in colors except blue and red cannot be displayed properly.
• Handwriting in fine lines may not be displayed properly.
• The depth overwritten can be adjusted from the menu screen.

Lock the white balance

CONTENTS

This projector's camera is always being adjusted automatically for projected color balance; however, the balance can shift away from optimal due to the color scheme of the document. Should this occur, the white balance can be set to a fixed condition by using the following procedure.

1

Project a white paper and enlarge it to fill the screen.

Line drawing of a mechanical device with articulated arm and base plate (no text or symbols)

2

W.BALANCE

Press W.BALANCE to turn the LOCK indicator on.

The white balance is locked.

To release the white balance, press W.BALANCE again to turn the LOCK indicator off.

Notes

• If you raise up the arm while the camera input is selected, the color of the picture may vary for an instant due to the automatic white balance adjustment. This is not a malfunction.
• If you put back the arm and raise it up while the white balance is locked (the LOCK indicator is lit), the projector releases the white balance.
• Should this be the case, or if you would like to adjust to a desired tint, adjust "R-level", "G-level" or "B-level" on the FULL MENU [Color] screen.

Correcting illuminated defects

CONTENTS

For the CCD image sensor used in the camera unit, in rare cases some of the pixels may be disturbed due to the influence of cosmic rays, etc. This disturbance may cause white spots to appear on the picture.

If white spots appear on the document camera image, use the procedure described below to correct it.

1

With the document camera operating, fully cover the camera lens with a piece of black paper or cloth.

2

ARM LIGHT

Press ARM LIGHT on the camera control panel and EXIT on the projector's control panel simultaneously.

You can not use the remote control buttons.

Note

- Do not press ARM LIGHT and EXIT buttons simultaneously if the camera lens is not covered. Doing so will not only erase the white spot correction data already set but also result in parts that are displayed normally being corrected. Also be careful if the camera input mode is not selected.

Trouble indications

CONTENTS

If there is some problem inside the projector, the indicators light up or blink.

Control panel (Main unit side)

	The power does not come on.→ Malfunction of the unit.• Unplug the power cord and call the dealer.
	The lamp turns off or does not light up.→ The projector will return to the standby mode in about 2 minutes.If the projector does not operate normally when the power is switched on again, the lamp is at the end of its duration life or the unit has a fault.Lamp's duration life is over, replace the lamp with a new one.66Unplug the power cord and call the dealer.
	The power turns off or does not come on.→ The inside is too hot, or the projector has been working in an area of high temperature.Place the projector correctly so the intake and exhaust fan's holes are not covered.Turn the projector off, and leave it for a while, and turn it on again.Clean the air filter.63* The iconappears before the power turned off.* The projector returns to the standby mode after the fault display has been shown for about 2 minutes.
	The power turns off or does not come on.→ Trouble with the cooling fan.Unplug the power cord and call the dealer.The iconappears before the power turned off.* The projector returns to the standby mode after the fault display has been shown for about 2 minutes.
	The power turns off or does not come on.→ The lamp cover is not properly attached.Unplug the power cord and reattach the lamp cover.67* The iconappears before the power turned off.* The projector returns to the standby mode after the fault display has been shown for about 2 minutes.

Notes

• If abnormality occurs while operating, unplug the power cord.
• When reinserting the power cord before the lamp has cooled, please wait until the lamp has cooled sufficiently before use. When the lamp is at a high temperature, it may not light and the duration life will be shortened.
• When reinserting the power cord before the lamp has cooled, please wait until the lamp has cooled sufficiently before use. When the lamp is at a high temperature, it may not light and the duration life will be shortened.

Air filter cleaning

CONTENTS

CAUTION

If you use the projector mounted on the ceiling, ask the dealer to carry out the maintenance such as cleaning.

The filter inside the air filter cover is the part to shut out dusts or dregs.

Do not use the projector with the filter taken off.

We recommend you to clean the air filter frequently. (The cleaning period is once per about 50 hours).

1 Unplug the power cord.

2

Line drawing of a computer monitor with an open screen and scroll, showing no text or symbols

Take off the air filter cover.

The filter is on the right side of the projector. Pull the bottom side of the cover upward to remove the filter cover.

3

Detach the air filter.

Detach the air filter from the air filter cover.

The air filter cover, air filter and filter frame can be disassembled.

4

Clean the air filter.

Use a vacuum cleaner to carefully remove any dust and dirt from the air filter cover, air filter and filter frame.

Be careful that the air filter is not sucked into the vacuum cleaner.

Air filter cleaning (continued)

CONTENTS

Notes

• When the air filter is dusty, the ventilation is impaired. This causes the temperature inside the projector to rise, and may damage the unit.
• Attach the air filter cover firmly after the cleaning. If it is not set correctly, the dusts will enter and they will be projected and overlapped on the picture.
• If you wash the air filter with water, be sure to let it dry fully before reinstalling it. Using it damp will result in malfunction.
• If the air filter is damaged, contact your store of purchase and replace it with a new one. Using a damaged air filter will cause dust or dirt to get inside the projector and onto the images.

5

Assemble the air filter.

Place the air filter in the air filter cover, then insert the four tabs on the filter frame into the holes in the air filter cover.

6

Mount the air filter cover.

Insert the top of the air filter cover into the projector first, then press on the bottom side to install it.

Lens and main unit cleaning

CONTENTS

CAUTION

If you use the projector mounted on the ceiling, ask the dealer to carry out the maintenance such as cleaning.

Cleaning the lens

• Use a blower or a lens cleaner to clean the lens.
• Never rub or tap the lens with a hard object as the lens surface is fragile.

Cartoon illustration of a blood pressure monitor with a hand inserting a plug into it (no text or symbols)

Cleaning the main unit

• Pull out the power cord before cleaning.
• Use a soft cloth to wipe off stains from the surface.
  • To remove difficult stains, use a soft cloth slightly moistened with a weak solution of synthetic detergent and water, and finish with a soft, dry cloth.

Replacing the intake, exhaust fans and air filter

To maintain the efficiency of the projector, replace the intake and exhaust fans about every two to three years. Ask the dealer for the replacement.

Lamp replacement

CONTENTS

The lamp will eventually begin to project dark or dull pictures and finally will not light up.

(Lamp's life length depends on the use condition.)

In such a case, replace the lamp with new one.

CAUTION

• If you use the projector mounted on the ceiling, ask the dealer to carry out the maintenance such as cleaning or replacement of the lamp.
• When replacing, always use lamp "TLPL78" (sold separately). For detail, refer to the lamp instruction.
• If you have been using the projector, the lamp will be very hot, and may cause burn injuries. Wait for the lamp to cool (for longer than 1 hour) before replacing it.
• If the lamp should break, please handle with care to avoid injury due to broken pieces and contact your dealer for repair service.

1 Unplug the power cord.
2 Wait until the lamp gets cold enough.
Take off the bottom panel Loosen two screens Lamp cover
4
Lamp cover
4
Pull out the lamp.

Take off the lamp cover on the bottom panel.

Loosen two screws, and pull off the lamp cover.

Loosen the two fixing screws, and lift up the handle to pull out the lamp.

Lamp replacement (continued)

CONTENTS

Notes

• When the CALL button is pressed, the "Lamp time" (the approximate amount of time the lamp has been used) is displayed. 41
• The lamp should be replaced if the total working time exceeds about 1,000 hours.
  When the "Lamp time" is displayed 1000 hours, the icon 📋 and a message appear. They will disappear when you do some operation.
• Attach the lamp cover firmly after replacing the lamp. If it is not set correctly, the power will not turn on.
• Use a new lamp when replacing it.
  • The lamp is made of glass and is very fragile. Do not touch the lamp with your bare hands and do not jolt or damage it. Do not use an exhausted lamp.
• Dispose the exhausted lamp as toxic wastes.

5 Load a new lamp.

Slide until it hits the bottom and tighten the two fixed screws.

Technical line drawing showing a mechanical component before and after assembly, with no visible text or symbols.

6

Attach the lamp cover.

Slide the cover in place and tighten two screws.

7 Reset the lamp timer.

Refer to the lamp instructions for resetting.

Before calling service personal

CONTENTS

Check the following points before asking for support service. Refer also to "Trouble indications". 62

Symptom	Cause	Correction	Page
The power does not come on.	· The power cord is disconnected.	Firmly plug in the power cord.	19
	· The lamp cover is not attached correctly.	Attach the cover correctly.	67
The power turns off while using the projector.	· The ambient temperature of the projection room is too high.	Lower the ambient temperature of the projection room, and turn the power on.	62
No image appears.	· The lens cover is on.	Take off the lens cover.	19
	· The wrong input is selected.	Select the input source correctly.	30
	· The muting mode is on.	Press MUTE to restore the picture.	37
	· The Brightness adjustment is at its darkest.	Make the "Brightness" adjustment.	45
	· The source is not correctly connected to the projector.	Connect the source correctly to the projector.	22 25
No sound is heard.	· The wrong input is selected.	Select the input source correctly.	30
	· The muting mode is on.	Press MUTE to restore the sound.	37
	· The sound volume is at the minimum.	Adjust the sound volume.	32
	· The source is not correctly connected to the projector.	Connect the source correctly to the projector.	22 - 25
Desired input source cannot be selected by the INPUT button.	· Input is not set so that it can be selected with the INPUT button. By default, only the Analog RGB(1) and Video input modes can be selected.	Set from the menu screen so that the source can be selected with the INPUT button.	45 30
Analog RGB(1) input or Y/Pa/Pr input colors are not right.	· The COMPUTER IN 1 connector's input setting is wrong.	At the menu screen, set for the proper input signal type.	45
Analog RGB(2) input image does not appear.	· The COMPUTER IN 2 connector's input setting is wrong.	At the menu screen, set for the proper input signal type.	45
	· The signal cable type is wrong.	Use a proper signal cable.	23
Digital RGB input image does not appear.	· The COMPUTER IN 2 connector's input setting is wrong.	At the menu screen, set for the proper input signal type.	45
	· The signal cable type is wrong.	Use a proper signal cable.	23
The image is blurred. Focusing is uneven.	· The lens is dirty.	Clean the lens with a blower or lens cleaner, etc.	65
	· The picture is out of focus.	Focus the picture.	31
	· The projection distance is not appropriate.	Adjust the distance properly.	18
	· The projecting light is not hitting the screen squarely.	Adjust the projecting direction so that the light hits the screen squarely.	18
	· The "Brightness", "Contrast", "Sharpness" or "Phase" adjustments are not correct.	Make the "Picture" adjustments.	45
The picture is dim.	· The "Brightness" or "Contrast" adjustments are not correct.	Make the "Picture" adjustments.	45
	· The lamp life is ending.	Replace the lamp.	66

Before calling service personal (continued)

CONTENTS

Symptom	Cause	Correction	Page
The color is faint.The tint is not good.	• The "Color", "Tint", "R-Level", "G-Level" or "B-Level" adjustments are not correct.	Make the "Picture" adjustments.	48
	• The lamp life is ending.	Replace the lamp.	66
The remote control does not work.	• The remote control is not facing the remote sensor.	Face the remote control transmitter toward the remote sensor on the projector.	16
	• The remote control is too far.	Operate within about 5 meters.	16
	• There is an obstruction between the remote control and the remote sensor.	Remove the obstacle.	-
	• The batteries are exhausted.	Replace the batteries.	15
Mouse function cannot be used from the remote control unit.	• The USB cable is not properly connected.	Connect the USB cable properly.	39
	• The computer or OS is not compatible.	The remote control mouse function is not available.	-
	• The batteries are exhausted.	Replace the batteries.	15
Document camera image is blurry.	• The lens is dirty.	Clean the lens with a blower or lens cleaner, etc.	65
	• The picture is out of focus.	Focus the picture by turning the focus ring.	57
	• The light is not on.	Turn on the light.	56
Document camera image flickers.	• Image is being affected by fluorescent light in the room.	Set the shutter speed on the menu screen.	45
Document camera image movement is awkward.	• The image's number of frames is low. This is not a malfunction.
Horizontal stripes appear when document projected with the document camera is moved.	• The image's number of frames is low. This is not a malfunction.

Pin assignment of COMPUTER IN, MONITOR OUT connector

CONTENTS

COMPUTER IN 1 MONITOR OUT

Input signal

Analog R, G, B signal: 0.7V(p-p) 75Ω

Horizontal sync signal:

TTL level (positive/negative polarity)

Vertical sync signal:

TTL level (positive/negative polarity)

Y signal: 1.0V(p-p) 75Ω

P_B , P_R signal: 0.7V(p-p) 75Ω

Mini D-sub 15pinconnector
COMPUTER IN 2

Analog input signal

Analog R, G, B signal: 0.7V(p-p) 75Ω

Horizontal sync signal:

TTL level (positive/negative polarity)

Vertical sync signal:

TTL level (positive/negative polarity)

DVI ANALOG & DIGITALconnector

Pin No.	Description
	RGB input Y/PB/PR input
1	Video signal (Red) Color	difference signal (PR)
2	Video signal (Green) Luminance signal (Y)
3	Video signal (Blue) Color	difference signal (Pe)
4	GND *
5	GND *
6	GND (Red) GND (PR)
7	GND (Green) GND (Y)
8	GND (Blue) GND (PB)
9	N.C *
10	GND *
11	GND *
12	DDC data *
13	Horizontal sync signal *
14	Vertical sync signal *
15	DDC clock *

*: Do not connect anything.

Pin No.	Description	Pin No.	Description
1	T.M.D.S. data 2 -	16	Hot plug detection
2	T.M.D.S. data 2 +	17	T.M.D.S. data 0 -
3	T.M.D.S. data 2/4 shield	18	T.M.D.S. data 0 +
4	T.M.D.S. data 4 -	19	T.M.D.S. data 0/5 shield
5	T.M.D.S. data 4 +	20	T.M.D.S. data 5 -
6	DDC clock	21	T.M.D.S. data 5 +
7	DDC data	22	T.M.D.S. clock shield
8	Analog vertical sync signal	23	T.M.D.S. clock +
9	T.M.D.S. data 1 -	24	T.M.D.S. clock -
10	T.M.D.S. data 1 +	C1	Analog Video signal (Red)
11	T.M.D.S. data 1/3 shield	C2	Analog Video signal (Green)
12	T.M.D.S. data 3 -	C3	Analog Video signal (Blue)
13	T.M.D.S. data 3 +	C4	Analog horizontal sync signal
14	+5V power	C5	Analog GND (R,G & B)
15	GND (+5V, H Sync & V Sync)

Applicable signal

CONTENTS

Applicable computer signal

The unit is applicable to the following signals. However, some computers may have different timings than those in the chart. Make the necessary adjustments if the picture has flickers or is blurred.

Timing chart

Mode Resolution		A B C (pixels)	D E (pixels)	fh fv (pixels)	clock G (pixels)	H I J K (pixels)		(kHz)	(Hz) (MHz)		(Lines)	(Lines)	(Lines)	(Lines)	(Lines)
TEXT70	640 x 350	50	640	14	96	800	31.469	70.086	25.175	59	350	38	2	449
TEXT70	640 x 400	50	640	14	96	800	31.469	70.086	25.175	34	400	13	2	449
TEXT85	640 x 350	96	640	32	64	832	37.861	85.080	31.500	60	350	32	3	445
TEXT85	640 x 400	96	640	32	64	832	37.861	85.080	31.500	41	400	1	3	445
NEC PC98 24k	640 x 400	85	640	59	64	848	24.820	55.900	21.047	25	400	11	8	444
VGA60	640 x 480	48	640	16	96	800	31.469	59.940	25.175	33	480	10	2	525
VGA72	640 x 480	128	640	24	40	832	37.861	72.809	31.500	28	480	9	3	520
VGA75	640 x 480	120	640	16	64	840	37.500	75.000	31.500	16	480	1	3	500
VGA85	640 x 480	80	640	56	56	832	43.269	85.008	36.000	25	480	1	3	509
MAC13"	640 x 480	96	640	64	64	864	35.000	66.667	30.240	39	480	3	3	525
SVGA56	800 x 600	128	800	24	72	1024	35.156	56.250	36.000	22	600	1	2	625
SVGA60	800 x 600	88	800	40	128	1056	37.879	60.317	40.000	23	600	1	4	628
SVGA72	800 x 600	64	800	56	120	1040	48.077	72.188	50.000	23	600	37	6	666
SVGA75	800 x 600	160	800	16	80	1056	46.875	75.000	49.500	21	600	1	3	625
SVGA85	800 x 600	152	800	32	64	1048	53.674	85.061	56.250	27	600	1	3	631
MAC16"	832 x 624	216	832	40	64	1152	49.725	74.550	57.283	39	632	1	3	667
XGA43i	1024 x 768	56	1024	8	176	1264	35.522	43.479	44.900	20	768	0	4	817
XGA60	1024 x 768	160	1024	24	136	1344	48.363	60.004	65.000	29	768	3	6	806
XGA70	1024 x 768	144	1024	24	136	1328	56.476	70.069	75.000	29	768	3	6	806
XGA75	1024 x 768	176	1024	16	96	1312	60.023	75.029	78.750	28	768	1	3	800
XGA85	1024 x 768	208	1024	48	96	1376	68.677	84.997	94.500	36	768	1	3	808
MAC19"	1024 x 768	180	1024	20	96	1320	60.197	74.872	73.200	30	768	3	3	804

Applicable signal (continued)

CONTENTS

Timing chart (Continued)

Mode Resolution		A B C (pixels)	D E (pixels)	fh fv (pixels)	clock G (pixels)	H I J K (pixels)		(kHz)	(Hz)	(MHz)		(Lines)	(Lines)	(Lines)	(Lines)	(Lines)
*SXGA1152x864 75Hz	1152 x 864	256	1152	64	128	1600	67.500	75.000	108.000	32	864	1	3	900
*SXGA1280x960 60Hz	1280 x 960	312	1280	96	112	1800	60.000	60.000	108.000	36	960	1	3	1000
*SXGA1280x960 85Hz	1280 x 960	224	1280	64	160	1728	85.938	85.002	148.500	47	960	1	3	1011
*SXGA1280x1024 60Hz	1280 x 1024	248	1280	48	112	1688	63.981	60.020	108.000	38	1024	1	3	1066
*SXGA1280x1024 75Hz	1280 x 1024	248	1280	16	144	1688	79.976	75.025	135.000	38	1024	1	3	1066
*SXGA1280x1024 85Hz	1280 x 1024	224	1280	64	160	1728	91.146	85.024	157.500	44	1024	1	3	1072
*UXGA60	1600 x 1200	304	1600	64	192	2160	75.000	60.000	162.000	46	1200	1	3	1250
*UXGA65	1600 x 1200	304	1600	64	192	2160	81.250	65.000	175.500	46	1200	1	3	1250
*UXGA70	1600 x 1200	304	1600	64	192	2160	87.500	70.000	189.000	46	1200	1	3	1250
*UXGA75	1600 x 1200	304	1600	64	192	2160	93.750	75.000	202.500	46	1200	1	3	1250

Notes

• Signal sources marked "***" are displayed in compressed format, so some of their data may be missing or their picture quality may be degraded.
• With analog RGB inputs, if the signal source's dot clock frequency exceeds 165 MHz, not all of the pixel signals can be sampled.
• For digital RGB inputs, the projector is not compatible with signal sources whose dot clock frequency exceeds 162 MHz.

The compatible Video and S-Video signal

Mode	fh(kHz)	fv(Hz)	fsc(MHz)
NTSC	15.73	60	3.58
PAL	15.63	50	4.43
SECAM	15.63	50	4.25 or 4.41
PAL-M	15.73	60	3.58
PAL-N	15.63	50	3.58
PAL-60	15.73	60	4.43
NTSC4.43	15.73	60	4.43

The compatible components video signal (Y/PB/PR)

Mode	fh(kHz)	fv(Hz)
525i	15.73	59.94
525p	31.47	59.94
625i	15.63	50.00
750p	45.00	60.00
1125i	33.75	60.00

Controlling the projector by using RS-232C

CONTENTS

You can also control the projector by entering the command from a computer via RS-232C.

Signal assignment of RS-232C

CONTROL RS-232C

Pin No.	Signal	Description
1	RXD	Receiving data
2	CTS	Consent to send
3	DSR	Data set ready
4	GND	Signal ground
5	RTS	Request to send
6	N.C	No connection
7	TXD	Sending data
8	N.C	No connection

Interface format

1. Communication method	RS-232C9600 bps, No parity, Data length: 8 bit,Stop bit: 1 bit
2. Communication format	STX (02h)	Command (3 bite)	ETX (03h)
	One command only can be used in one communication.
3. Data format	Command shall be composed of alphanumeric characters of ASCII description.Use only capital letters.
4. Return value	AcknowledgeNot Acknowledge	ACK (06h)NAK (15h)

Command list

Classification	Items/Status		Selection AdjustmentCommand Command		Analog RGB(1)Analog RGB(2)	Digital RGB	VideoS-Video	Y/PB/PR	Camera
Power On P	ON - Yes Yes Yes Yes Yes
	Off (with confirmation message) POF -		Yes Yes Yes Yes Yes
	Shut Down (without confirmation message)		PSD - Yes Yes Yes Yes Yes
Normal (RS-232C Condition Display Off) DOF - Yes			Yes Yes Yes Yes
Picture Con	trast VCN Yes Yes Yes Yes Yes Yes
	Brightness		VBR	Yes	Yes Yes	Yes Yes Yes
	Sharpness		VSH	Yes	-	-	Yes	Yes	Yes
	Camera gain	Increase	CGU	-	-	-	-	-	Yes
		Decrease	CGD	-	-	-	-	-	Yes
	Picture mode	Bright	MVB	-	Yes	Yes	-	-	-
		True color	MVP	-	Yes	Yes	-	-	-

Notes

• When commands are transmitted serially, wait the reply of the projector (acknowledge or not acknowledge) before sending a next command.
• Adjustment commands include "ARG" (increase adjustment value) and "ALF" (decrease adjustment value). For usable items (marked "Yes"), send after the selection command.
• The "Yes" marks in the input source columns indicate that that command can be used.

Continued

Controlling the projector by using RS-232C (continued)

CONTENTS

Classification	Items/Status		Selection Adjustment Command	Analog RGB(1) Analog RGB(2)	Digital RGB	Video S-Video	Y/P_B/P_R	Camera
Picture Video (Continued)	mode Auto. KV0 --- Yes ---
			NTSC KV1 --- Yes ---
			PAL KV2 --- Yes ---
			SECAM KV3 --- Yes ---
			PAL-N KV4 --- Yes ---
			PAL-M	KV5 --- Yes ---
			PAL60	KV6 --- Yes ---
			NTSC4.43	KV7 --- Yes ---
	Signal format	Auto.	SG0	-	-	-	-	Yes
		525i	SG1	---- Yes	-
		525p SG2	----	Yes	-
		625i	SG3	---- Yes	-
		750p SG4	----	Yes	-
		1125i	SG5	---- Yes	-
	Shutter	Auto.	CSA	-	-	-	-	Yes
		50Hz	CS0	-	-	-	-	Yes
		60Hz	CS1	-	-	-	-	Yes
	Screen size	Full	MSF	-	Yes	Yes	Yes	Yes
		Thru	MST	-	Yes	Yes	Yes	Yes
		Wide	MSW	-	-	-	Yes	Yes
	Overlay gain		COG	Yes	Yes	Yes	Yes	Yes
	Picture reset		DRV	-	Yes	Yes	Yes	Yes
Position	H-position		PHP	Yes	Yes	-	-	-
	V-position		PVP	Yes	Yes	-	-	-
	Phase		PPH	Yes	Yes	-	-	-
	Frequency		PCK	Yes	Yes	-	-	-
	Position reset		DRP	-	Yes	-	-	-

Controlling the projector by using RS-232C (continued)

CONTENTS

Classification	Items/Status		Selection Adjustment Command	Command	Analog RGB(1) Analog RGB(2)	Digital RGB	Video S-Video	Y/PB/PR	Camera
Color Color	VCL Yes - - Yes Yes -
	Tint VTN Yes - - Yes Yes -						*
	R-level VLR Yes Yes Yes Yes Yes Yes Yes
	G-level VLG Yes Yes Yes Yes Yes Yes Yes
	B-level		VLB	Yes Yes	Yes Yes Yes	Yes
	Color reset		DRC	- Yes	Yes Yes Yes Yes
Audio	Volume	Increase	VLU	-	Yes	Yes	Yes	Yes	-
		Decrease VLD	- Yes Yes Yes Yes -
	Speaker output	On	AS1	-	Yes	Yes	Yes	Yes	-
		Off	AS0	- Yes	Yes Yes Yes -
	Channel select (RCA)	L+R	APA	-	-	-	Yes	-	-
		L	APL	-	-	-	Yes	-	-
		R	APR	-	-	-	Yes	-	-
	Loudness (RCA)	Off	LR0	-	-	-	Yes	-	-
		On	LR1	-	-	-	Yes	-	-
	Channel select (Mini)	L+R	AMA	-	Yes	Yes	-	Yes	-
		L	AML	- Yes	Yes - Yes -
		R	AMR	- Yes	Yes - Yes -
	Loudness (Mini)	Off	LM0	-	Yes	Yes	-	Yes	-
		On	LM1	- Yes	Yes - Yes -	Yes -
	Audio reset		DRA	- Yes	Yes Yes Yes -
Display	V-keystone		PKV	Yes	Yes	Yes	Yes	Yes	Yes
	H-keystone		PKH	Yes Yes	Yes Yes Yes	Yes
	Keystone reset		DRK	- Yes	Yes Yes Yes Yes
	Language	English	LEN	-	Yes	Yes	Yes	Yes	Yes
		French	LFR	- Yes	Yes Yes Yes Yes
		German	LGR	- Yes	Yes Yes Yes Yes
		Italian	LIT	- Yes	Yes Yes Yes Yes
		Spanish	LSP	- Yes	Yes Yes Yes Yes
		Portuguese	LPO	- Yes	Yes Yes Yes Yes
		Japanese	LJP - Yes	Yes Yes Yes Yes
		Chinese(Simplified)	LPK	- Yes	Yes Yes Yes Yes
		Chinese(Traditional)	LKT	- Yes	Yes Yes Yes Yes
		Korean LKK	- Yes	Yes Yes Yes Yes

* Not possible for PAL/SECAM.

Continued

Controlling the projector by using RS-232C (continued)

CONTENTS

Classification	Items/Status			Selection Adjustment Command	Command	Analog RGB(1) Analog RGB(2)	Digital RGB	Video S-Video	Y/P_B/P_R	Camera
Display Icon (Continued)	On MO0 - Yes Yes Yes		Yes Yes
			Off MO1 - Yes	Yes Yes Yes	Yes
	Menu position Upper left MP1 - Yes Yes		Yes Yes Yes
			Bottom left MP2 - Yes Yes Yes Yes Yes
			Upper right MP3 - Yes Yes Yes Yes Yes
			Bottom right MP4 - Yes Yes Yes Yes Yes
	Menu translucent		On	MB1 - Yes Yes Yes Yes Yes
			Off	MB0 - Yes Yes Yes Yes Yes
	Display reset (except keystone)			DRD	-	Yes	Yes	Yes	Yes	Yes
Default setting	Inputations	COMPUTER IN 1	On	I10	-	Yes	Yes	Yes	Yes	Yes
			Off	I11	- Yes Yes Yes Yes Yes
			Analog RGB(1)	ISO	- Yes Yes Yes Yes Yes
			Y/P_B/P_R	IS1	- Yes Yes Yes Yes Yes
		COMPUTER IN 2	On	I20	-	Yes	Yes	Yes	Yes	Yes
			Off	I21	- Yes Yes Yes Yes Yes
			Analog RGB(2)	IV0	- Yes Yes Yes Yes Yes
			Digital RGB IV1	- Yes Yes Yes Yes Yes
		VIDEO	On	I30	- Yes Yes Yes Yes Yes
			Off	I31	- Yes Yes Yes Yes Yes
		S-VIDEO	On	I40	- Yes Yes Yes Yes Yes
			Off	I41	- Yes Yes Yes Yes Yes
		CAMERA	On	I60	- Yes Yes Yes Yes Yes
			Off	I61	- Yes Yes Yes Yes Yes
	Projection mode		Standard	PJ0	-	Yes	Yes	Yes	Yes	Yes
			Rear	PJ1	- Yes Yes Yes Yes Yes
			Ceiling	PJ2	- Yes Yes Yes Yes Yes
			Rear ceiling	PJ3	- Yes Yes Yes Yes Yes
	No signal background		Logo	BG0	-	Yes	Yes	Yes	Yes	Yes
			Blue background	BG1	- Yes Yes Yes Yes Yes
			Non	BG2	- Yes Yes Yes Yes Yes
	No signal power off		Off	PN0	-	Yes	Yes	Yes	Yes	Yes
			5 min.	PN1	- Yes Yes Yes Yes Yes
	Power on		Manual	AP0	-	Yes	Yes	Yes	Yes	Yes
			Auto.	AP1	- Yes Yes Yes Yes Yes

Controlling the projector by using RS-232C (continued)

CONTENTS

Classification	Items/Status		Selection Adjustment Command Command	Analog RGB(1) Analog RGB(2)	Digital RGB	Video S-Video	Y/P_B/P_R	Camera
Default setting (Continued)	Startup screen On MS0 - Yes Yes Yes Yes Yes
	Default setting reset DRI - Yes Yes Yes Yes Yes
Reset Reset all DRS - Yes Yes Yes Yes Yes
			H-reference reset	PKR - Yes Yes Yes Yes Yes
Status display (CALL)			DON	- Yes Yes Yes Yes Yes
Input selection	Toggle		IN0	- Yes Yes Yes Yes Yes
	COMPUTER-1		IN1	-	Yes	Yes	Yes	Yes
	COMPUTER-2		IN2	- Yes Yes Yes Yes Yes
	VIDEO		IN3	- Yes Yes Yes Yes Yes
	S-VIDEO		IN4	- Yes Yes Yes Yes Yes
	CAMERA		IN6	- Yes Yes Yes Yes Yes
RESIZE	Increase the enlargement ratio		RUP - Yes Yes Yes Yes Yes
	Decrease the enlargement ratio (Minimum: reset status)		RDW	- Yes Yes Yes Yes Yes
	Move the enlargement section	Up	PO1	- Yes Yes Yes Yes Yes
		Down	PO2	- Yes Yes Yes Yes Yes
		Left	PO3	- Yes Yes Yes Yes Yes
		Right	PO4	- Yes Yes Yes Yes Yes
	Enlargement reset		RS0	- Yes Yes Yes Yes Yes
FREEZE	On		FON - Yes Yes Yes Yes Yes
	Off		FOF	- Yes Yes Yes Yes Yes
MUTE	On		MON	- Yes Yes Yes Yes Yes
	Off		MOF	- Yes Yes Yes Yes Yes
PIP	On		PIN	-	Yes	Yes	-	-
	Off		PIF	-	Yes	Yes	-	-
	PIP input source	Video	PI0	-	Yes	Yes	-	-
		S-Video	PI1	-	Yes	Yes	-	-
	PIP size	Small	PS0	-	Yes	Yes	-	-
		Middle	PS1	-	Yes	Yes	-	-
		Large	PS2	-	Yes	Yes	-	-
	PIP position	Upper left	PP0	-	Yes	Yes	-	-
		Upper right	PP1	-	Yes	Yes	-	-
		Bottom left	PP2	-	Yes	Yes	-	-
		Bottom right	PP3	-	Yes	Yes	-	-

Controlling the projector by using RS-232C (continued)

CONTENTS

Classification	Items/Status		Selection Adjustment Command	Command	Analog RGB(1) Analog RGB(2)	Digital RGB	Video S-Video	Y/PB/PR	Camera
PIP PIP audio (Continued)	io source Main PA0 - Yes
			Sub PA1 - Yes	Yes ---
	PIP reset DRW - Yes Yes ---
AUTO SET			PAT	- Yes	---
Auto. V-keystone			PKA	-	Yes	Yes	Yes	Yes	Yes
Overlay		On	CON	-	Yes	Yes	Yes	Yes	-
		Off	COF	-	Yes	Yes	Yes	Yes	-
Camera	Shortcut		CDR	-	Yes	Yes	Yes	Yes	Yes
	Auto. W/B	On	CW1	-	Yes	Yes	Yes	Yes	Yes
		Off	CW0	-	Yes	Yes	Yes	Yes	Yes
	Lighting	On	CL1	-	Yes	Yes	Yes	Yes	Yes
		Off	CL0	-	Yes	Yes	Yes	Yes	Yes

Specifications

CONTENTS

Main unit

Power consumption TLP780: 300 W (Standby: 20W)

TLP781: 310 W (Standby: 20W)

Mass TLP780: 4.2 kg

TLP781: 5.0 kg

Dimensions TLP780: 338 x 95.5 x 265 (mm) (W/H/D)

(Except the protrusion parts) TLP781: 338 x 95.5 x 328 (mm) (W/H/D)

Cabinet Material PC+ABS resin and ABS resin

Ambient environment Temperature : 0 deg. to 35 deg.

Humidity : 30% to 70% RH

Lamp High pressure mercury lamp

Projection screen size 32 to 300 inches

Projection distance 1.42 to 11.1 m

Speaker 1W (monaural)

Connectors

• COMPUTER IN 1 Mini D-sub 15-pin

Analog RGB(1)/Y/PB/PR (combination)

• COMPUTER IN 2 DVI ANALOG & DIGITAL connector

Analog RGB(2)/Digital RGB (combination)

• MONITOR OUT Mini D-sub 15-pin

Analog RGB/Y/PB/PR (combination)

• S-VIDEO IN

Mini DIN 4-pin

• VIDEO IN

1V(p-p), 75Ω, RCA pin jack

• AUDIO(L/R) IN

1.3V(rms), more than 22kΩ, RCA pin jack x 2

• AUDIO IN

1.3V(rms), more than 22kΩ, φ3.5mm stereo mini jack

• CONTROL

Mini DIN 8-pin (RS-232C)

• USB

Type B

Liquid crystal display

Projection system 3-panels transmission

Panel size 0.9 inches

Driving system TFT active matrix

Picture elements 786,432 pixels (1024 x 768 dots) (H./V.) x 3

Projection lens

Lens Zooming lens

F=1.7 to 2.1 f=33.6 to 42mm

Focusing Manual operation

Zooming Manual operation

Document imaging camera (with camera model)

Lens F = 3.1, f = 6.4mm

Focusing Manual operation

Zoom None (adjusted by distance to subject)

Iris Auto./Manual

Image element 1/2 inch CCD

Effective pixels for pickup section

1,447,680 pixels (1392 x 1040 dots) (H./V.)

Lighting LED light

Specifications (Continued)

CONTENTS

Accessories

Owner's manual (Getting started) 1

Owner's manual (CD-ROM) 1

Remote control 1

R6 (AA) size battery 2

Power cord 1

RGB cable 1 (3m)

DVI analog cable 1 (2m)

Adapter for Macintosh computers .... 1

AV cable 1 (3m)

Audio cable (for Computer) 1 (3m)

Control cable 1 (1.8m)

USB cable 1 (2m)

Carrying case 1

Sold separately

Replacement lamp TLPL78

- The design and specifications are subject to change without notice.

Trademarks

NEC, PC-98 series are trademarks of NEC Corporation.

VGA, SVGA, XGA, SXGA, UXGA are trademarks or registered trademarks of International Business Machines Corporation.

Macintosh is a registered trademark of Apple Computer, Inc.

Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

Display Data Channel is a trademark of Video Electronics Standard Association.
