SVCA04CV - Heating SVAN - Free user manual and instructions

Product Type	Fan Heater
Brand	SVAN
Model	SVCA04CV
Dimensions (HxWxD)	25 cm × 18 cm × 12 cm
Weight	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W
Heating Elements	PTC ceramic
Thermostat	Adjustable, 15°C to 35°C
Fan Speeds	2 (low, high)
Oscillation	Yes, 70°
Safety Features	Overheat protection, tip-over switch
Noise Level	< 45 dB
Housing Material	ABS plastic
Cleaning	Wipe with a damp cloth; do not immerse
Spare Parts	Filter, fuse (available from SVAN)
Warranty	2 years
Energy Efficiency Class	Class A

Frequently Asked Questions - SVCA04CV SVAN

How do I adjust the thermostat on my SVAN SVCA04CV heater?

Turn the thermostat dial clockwise to increase the target temperature, counterclockwise to decrease. The heater will cycle on and off to maintain the set temperature. Recommended setting is between 20°C and 22°C for comfort.

What does the tip-over switch do?

The tip-over switch automatically turns off the heater if it is accidentally knocked over. This prevents fire hazards. Once the heater is upright, it will reset and can be turned on again.

Can I use the heater in a bathroom?

The SVCA04CV is designed for indoor use in dry areas. It is not splash-proof, so do not use it in bathrooms or near water to avoid electric shock.

How to clean the heater?

Always unplug the heater and let it cool. Wipe the exterior with a damp cloth. Do not use abrasive cleaners or immerse in water. Clean the air inlet filter every 2 weeks for optimal performance.

Why does my heater turn off after a few minutes?

This may be due to overheat protection. Check if the air intake or outlet is blocked. The heater will restart automatically once it cools down. Also ensure the thermostat is set above room temperature.

Is the SVCA04CV energy efficient?

Yes, it is rated energy class A. The PTC ceramic heating element ensures fast and efficient heating. Using the thermostat to maintain a comfortable temperature reduces power consumption.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. However, the built-in safety features (overheat protection and tip-over switch) provide added safety. Always follow the user manual instructions.

How do I replace the fuse?

The fuse is located in the plug. Unscrew the plug cover, remove the old fuse, and replace it with a new one of the same rating (e.g., 13A). Use only BS1362 standard fuses.

What is the oscillation function?

The oscillation function allows the heater to rotate left and right (up to 70°) to distribute warm air more evenly across the room. Press the oscillation button on the control panel to activate.

Where can I download the user manual?

The user manual for SVCA04CV is available for free on notice-facile.com. You can download it in PDF format from the product page. Alternatively, contact SVAN support.

USER MANUAL SVCA04CV SVAN

White portable electric heater with grid-patterned ventilation grille and control knobs (no text or symbols visible)

Model: SVCA04CV

CE RoHS

INSTRUCTION MUANUAL

SVAN TRADING S.L.

Please read these instructions for use and have a good look at the illustration before using the appliance.

This appliance is not intended for use by persons(including children)with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The heater must not be located immediately below a socket-outlet.

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool!

GENERAL SAFETY

● DO NOT COVER, RESTRICT AIR INLET OR USE TO DRY CLOTHES
● THE SURFACE OF THIS FAN HEATER IS HOT. CLOSELY SUPERVISE ANY CHILDREN AND PETS WHEN IN USE.
● DO NOT USE FAN HEATER NEAR FLAMMABLE OR HEAT SENSITIVE ITEMS.
● USE IN UPRIGHT POSITION ONLY AND DO NOT LEAVE UNATTENDED.

ELECTRICAL SAFETY

● FOR INDOOR USE ONLY.
● SWITCH OFF AND UNPLUG WHEN NOT IN USE.
● DO NOT PULL THE HEATER ALONG BY THE CORD OR USE IF DAMAGED.
● DO NOT USE HEATER IN HUMID OR WET ENVIRONMENTS.
- IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY AN ELECTRICAN OR SIMILARLY QUALIFIED PERSON, TO AVOID HAZARD.

TO USE

1. Turn the heater to the "OFF" position before plugging in.
2. The operating temperature is selected by a combination of the power switch and thermostat. The hottest setting will be when the heater is at the "High" setting and thermostat is turned to "Maximum".

3. To determine the correct working temperature for your conditions, turn the heater to "High" and the thermostat to "Maximum". The power light will be activated and the heater will start. When a comfortable temperature has been reached turn the thermostat slowly anticlockwise until the heater turns off. The temperature will now be kept constant.

4. If you want to lower the operating temperature select the "Low" heater setting and repeat the above process.

5. For air circulation only (no heat) select "Fan only".

6. The heater is fitted with an automatic cut out in the event that it overheats. If this activates, turn the heater to the off position and un plug. Allow the heater to cool and remove anything restricting the airflow before using the heater again. If the automatic cut out operates repeatedly contact a qualified electrician for advice.

NOTES

● The power lamp will be on if the temperature is below the setting of the thermostat.
● For maximum benefit, close windows and doors.
- Do not cover the ventilation holes as this will cause overheating and will activate the cut out.

CLEANING AND MAINTENANCE

To maximize the efficiency of the heater clean regularly.

1. Switch power switches to "OFF" position, unplug and allow the heater to cool.
2. Wipe surfaces with a soft damp cloth. Do not use detergent or abrasives as this will scratch the surface.
3. Ensure the intake grill is free from dust, as this will reduce the airflow. Light accumulated dust can be removed with soft cloth or vacuum cleaner.
4. Allow surface to fully dry before using the heater again.

MAXIMISE THE LIFE OF YOUR HEATER

● Avoid knocking or scratching the heater.
● Do not use in dusty environments.
● When not in use store in clean, cool and dry area.

Operation instructions

1. Turn the thermostat switch to the minimal value, at the same time turn the heat select switch to the "O" position (see picture).
2. Plug in the appliance, and turn the thermostat switch to the maximum position. Then turn the heat select switch to choose air or warm air and the temperature of warm air as below. While working the indicator light will be on.

2.1 Turn the heat select switch to “” position, the heater blows cool air.
2.2 Turn the heat select switch to "I" position, the heater blows warm air, working at 1000W.
2.3 Turn the heat select switch to "II" position, the heater blows warm air, working at 2000W.
2.4 Turn the heat select switch to "O" position, the heater stops working, the indicator light will be off.
3. Adjust the thermostat switch to suitable position for desired temperature setting.

3.1 Check if the thermostat switch is on the maximum position.
3.2 When you feel the room temperature comfortable, turn the thermostat switch anti-clockwise slowly to the minimal position until the appliance stops working.

Then the thermostat switch will keep the room temperature at the desired temperature automatically.

You can also turn the thermostat switch anti-clockwise to the minimum position or turn the thermostat switch clockwise to maximum position to make the temperature lower or higher.

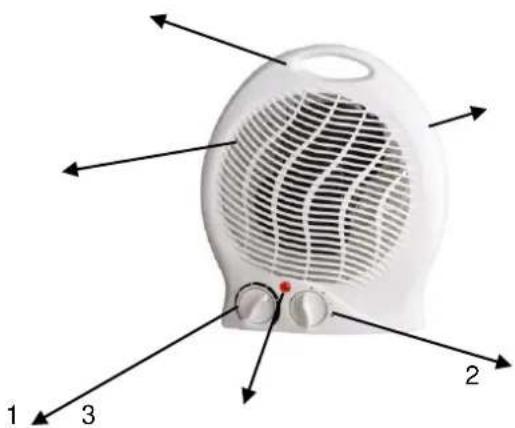

1-Thermostat Switch 4
2-Heat select switch
3-Power indicator light 6
4- Handle
5-Air outlet grill 5
6- Air inlet grill

Enviroment friendly disposal

You can help protect the environment!

Please remember to respect

the local regulations:

hand-in the non-working

electrical equipments to

an appropriate waste disposal.
