Product Type	Notebook Computer
Brand	Samsung
Model	NP-X20C
Processor	Intel Pentium M (up to 2.0 GHz)
Memory	256 MB / 512 MB DDR SDRAM (upgradeable)
Storage	40 GB / 60 GB 2.5-inch SATA HDD
Display	14.1-inch XGA TFT LCD (1024x768)
Graphics	Intel 855GME Integrated Graphics (up to 64 MB shared)
Optical Drive	DVD-ROM / CD-RW/DVD-ROM Combo / DVD Multi (varies)
Wireless	Intel PRO/Wireless 2200BG (802.11b/g) or 2915ABG
Network	10/100 Ethernet LAN, Modem (V.90/V.92)
Ports	USB 2.0 (3), VGA, S-Video, IEEE 1394, S/PDIF, PCMCIA (Type II), Memory Stick/SD slot, Headphone, Mic
Battery	Lithium-Ion (6-cell, ~4800 mAh), up to 4 hours
Dimensions (W x D x H)	332 x 274 x 29.5 mm (13.1 x 10.8 x 1.16 in)
Weight	~2.6 kg (5.73 lbs) with battery
Operating System	Microsoft Windows XP Home / Professional
Power Adapter	19V DC, 60W AC adapter

Frequently Asked Questions - NP-X20C SAMSUNG

How do I adjust the LCD brightness on the Samsung NP-X20C?

Press Fn + ▲/▼ (brightness up/down) to adjust. You can also set the brightness mode in BIOS: press F2 at startup, go to Boot menu, and change Brightness Control Mode to User Control to retain settings.

How can I enable or disable the touchpad?

Press Fn + F9 (touchpad on/off) to toggle. Alternatively, use the dedicated Touchpad On/Off button if available. Note: models with fingerprint sensor do not have a dedicated button.

What should I do if my wireless LAN is not working?

First, ensure the wireless LAN is turned on via the WLAN button or Fn + F5. Check that the Wireless Zero Configuration service is running: go to Control Panel > Administrative Tools > Services and set Wireless Zero Configuration to Automatic and Started. Also verify that 'Use Windows to configure my wireless network settings' is checked.

How do I use the AVStation now feature without booting Windows?

Press the AVStation Now button (or AVStation Now DVD button) while the computer is off or in Sleep mode. Use the keyboard arrows to navigate and [Enter] to select. Options include MUSIC, PHOTO, and MOVIE.

Can I upgrade the RAM on the NP-X20C?

Yes, the system has one SO-DIMM slot supporting DDR SDRAM. The maximum supported memory is 1 GB (single module). Ensure you use compatible RAM (PC2700 or PC2100).

How do I connect the computer to a TV?

Use the S-Video or S/PDIF port (depending on TV). Press Fn + F4 to toggle display modes. For HDTV, use the component (YPbPr) output if supported. Adjust display settings in Display Properties > Settings > Advanced > ATI Display (or Intel Graphics) to configure TV resolution.

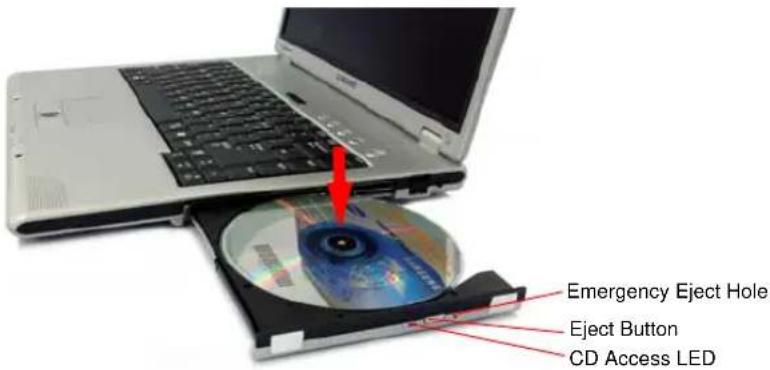

What is the emergency eject method for the CD/DVD drive?

If the drive is stuck or the computer is off, insert a straightened paperclip into the small emergency eject hole next to the eject button and push gently until the tray opens.

How do I create a Windows XP system recovery?

Use the Samsung Recovery Solution (if installed) by pressing F4 at startup. Follow on-screen instructions to restore to factory defaults. Alternatively, use the Windows XP system restore: Start > All Programs > Accessories > System Tools > System Restore.

Why is my game running slowly or in a small window?

For ATI chipset models, right-click desktop > Properties > Settings > Advanced > ATI Display tab, then set scaling to Extend the image to the screen size. For Intel chipset, right-click desktop > Graphics Options > Fit to Monitor. Also set power scheme to Always On in Power Options.

How do I dispose of the battery properly?

Do not throw rechargeable batteries in household trash. Follow local regulations. Contact Samsung Helpline for disposal information. The battery is marked with the crossed-out wheeled bin symbol indicating separate collection.

USER MANUAL NP-X20C SAMSUNG

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer.

The information within this manual is subject to change without notice.

The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

Microsoft Windows is a registered trademark of the Microsoft Corporation.

Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies.

Macrovision Statement

If your computer has a DVD drive and an analog TV Out port, the following paragraph applies:

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Copyright 2003 All rights are reserved

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

• Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.
• Do not use this product near water or a heat source such as a radiator.
• Set up the system on a stable work surface.
• The product should be operated only with the type of power source indicated on the rating label.
• Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit.
• If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.
• Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.
• Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.
• If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.

Care During Use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system.
• Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer's instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task
• When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.
• Unplug the system from the wall outlet and refer servicing to qualified personnel if:

– The power cord or plug is damaged.
– Liquid has been spilled into the system.
- The system does not operate properly when the operating instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.

The Instruction On Safety Operation of NotePC

1. At installation and operation of devices it is necessary to carry out requirements of the user's guide.
2. Devices can be used only with the equipment specified in the technical specifications of the devices.
3. At operation of devices it is necessary to carry out the basic requirements
4. At occurrence of malfunctions in the device (a smell of burnt isolation, a smoke, etc.), it is necessary to disconnect the equipment from the power supply and to not to inserted back before reparation.
5. Service and reparation of devices should be carried out by experts of the manufacturer.

Technical director of the service center

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

- The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m).

- All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.

- The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country's power system.

- The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 connector, for mating with appliance inlet on the computer.

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your notebook is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11B (also known as wireless Ethernet or Wifi) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

Antenna use:

In order to comply with FCC RF exposure limits, low gain integrated antennas should be located at a minimum distance of 20 cm (8 inches) or more from the body of all persons.

High-gain, wall-mount, or mast-mount antennas are designed to be professionally installed and should be located at a minimum distance of 30 cm (12 inches) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements.

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded

blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Antenna Warning

To comply with the FCC and ANSI C95.1 RF exposure limits, it is recommended for Intel® PRO/Wireless Network Connections installed in a desktop or portable computer, that the antenna for this device be installed so as to provide a separation distance of at least 20 cm (8 inches) from all persons and that the antenna must not be co-located or operating in conjunction with any other antenna or radio transmitter. It is

recommended that the user limit exposure time if the antenna is positioned closer than 20cm (8 inches).

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference." This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

"While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device can not be colocated with another transmitter and transmitting antenna."

FCC Part 68

This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks: RJ11C

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and

an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE mark C€

European Directives

This Information Technology Equipment has been tested and found to comply with the following European directives:

• EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/EEC as per
• EN 55022 Class B
• EN 61000-3-2
• EN 61000-3-3
• EN 55024

- Low Voltage Directive (Safety) 73/23/EEC as per EN 60950(A1/A2/A3/A4/A11)

• Radio and Telecom Terminal Equipment Directive 199/5/EC as per

• CTR21 (if fitted with a modem device)
• ETS 300 328 (if fitted with a 2.4 GHz band embedded wireless device)
• ETS 301 489-1 (if fitted with a 2.4 GHz band embedded wireless device)
• ETS 301 489-17 (if fitted with a 2.4 GHz band embedded wireless device)

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your notebook system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading “European Economic Area Restrictions” below.

Translated Statements of Compliance

This product follows the provisions of the European Directive 1999/5/EC.

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the Intel PRO/Wireless 2200BG Network Connection product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 – Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation. It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to

public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC—“CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Using Your Documentation

Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user's manual can help you get the most from your computer.

Manual Documentation Conventions

Information Icons

Three icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to:

Warning:

Indicates the possibility of personal injury.

Caution:

Warns you of possible damage to equipment or data.

Note:

Informs you of special circumstances.

Technical Information:

Informs you of special requirements or limitations for use of item(s).

Keyboard Conventions

Keys that you need to press to perform certain functions are displayed in the manual in brackets. For example:

indicates the control key (Ctrl on the keyboard).

If you need to press two keys at the same time, the key names are shown joined by a plus sign. For example:

means that you should press the Fn key and hold it and then press the F8 key.

CD-ROM Device Naming Convention

In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E.

Touchpad Conventions

You may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully.

The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the "Start Button" shown on the right =>.

Table 1. Touchpad Click Conventions

Action Process

Click Depress the touchpad left button and release

Double-click Quickly click the left touchpad button two times

Windows Conventions:

Almost all "Windows" programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about.

Software User Documentation

Your computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information.

The figures and illustrations in this manual may not be identical to those on your system.

General Icon Note:

Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box.

Introducing Your Computer

This User Manual is common to the X20, X25 and X50 models.

The figures and descriptions in this User Manual have been selected for the X25 model. The photographs may be somewhat different in shape and colour from your computer depending on the model.

Front View

About Fingerprint Sensor

Fingerprint sensor is optional. (It is not supported for X20 model.) For products with fingerprint sensor, a Touchpad On/Off button is not provided. For procedures to use fingerprint sensor, refer to fingerprint sensor Manual.

The operating lights of X50 are on the left-hand side of the microphone jack.

Right View

The S/PDIF jack of X50 model is at the rear of the system.

Left View

Back View

The S/PDIF jack of X50 model is to the right of the Power-In port.

Bottom View

Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre.

To turn on the computer

1. Insert the battery and connect the AC adapter according to the Installation Guide.
2. Slide the LCD latch to the right and open the LCD panel.
3. Press the power button.

Close-up of a laptop keyboard with a red arrow pointing to the left side (no visible text or symbols)

To turn off the computer

1. Click the start button (start) on the taskbar.

2. Click Turn Off Computer.

1. Click Turn Off.

If the computer is not turned off properly due to a system error, press + Alt> + Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged.

If ++ keys do not operate either, press the power button for more than 4 seconds to turn off the computer. Your unsaved work may be lost/damaged. When you turn on the computer next time, it will perform a disk checking process.

Using the Keyboard

Your computer has an 88-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard.

The keyboard is supplied according to the corresponding country. Refer to the keyboard figure for the corresponding country.

Although the layout of the keys on your computer's keyboard is different from that on a desktop computer's keyboard, the keyboard feels like a full-sized keyboard when you use it.

The keys on the keyboard can be grouped into the following categories:

• Full-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions.
• Function keys, when pressed together with the key, enable special functions.
• Cursor and Screen control keys move the cursor. They may perform other functions, depending on your software.

To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and the surface around the keys.

Do not allow liquid to drip into the keyboard or you may damage the keyboard.

Using the Numeric Keypad

Your keyboard includes a numeric keypad, which is a group of keys that you can set to type numbers and mathematical symbols, such as the plus sign. A number or symbol on the corner of each keypad key shows its numeric function.

1 Num Lock LED

Press to turn on the embedded numeric keypad. The numeric functions of the keypad are enabled and the Num Lock LED turns on. (See "Reading the Status Indicators" on page 18 for the location of the Num Lock LED.)

While the numeric functions are enabled, you can temporarily return a key to its normal function by pressing the key and the key. For example to type the letter m, press , this operation displays the letter m.

To turn the numeric keypad off, press again. The Num Lock LED turns off.

Using Special Function Keys

The function key activates special functions when it is pressed in combination with another keys.

<Fn> Key Combinations	Key Name Key Function
	Rest Puts the computer into suspended mode. To escape suspended mode, press the power button. (p109).
	Gauge Shows the current power source and the remaining battery charge.
	LCD/CRT Switches the display between the LCD and external display device when an external display device is connected. (p107)
	Mute Turns the audio output on and off.
	S/PDIF Turns the S/PDIF function on and off.
			Turns S/PDIF on	Turns S/PDIF off
	3D sound	Extends the spatial sound of the stereo speakers so that the listener can experience even greater stereophonic sound.
			Turns 3D sound on	Turns 3D sound off
		Note. The 3D sound function is only supported through the internal speaker of the computer and the headphones. This function is not supported through the S/PDIF port. Note. When using the 3D function, even if the balance is turned completely to the left or right, some audio may still be heard through the other speaker. Caution. Some distortion may be experienced when the 3D function is used, depending on the audio source.
	Touchpad Turns the touchpad function on and off.
			Turns Touchpad on	Turns Touchpad off
	Low-Noise Mode	You can select Low-Noise Mode when you need a tranquil work environment.
	Number Lock	Enables the numeric keypad. (p10)
	Scroll Lock	Scrolls the screen up and down while the cursor position does not change in some applications.
< ← / ▶▼>	Volume Down Decreases the audio volume.
< → / ▶▲>	Volume Up Increases the audio volume.
< ↑ / ★▲>	Brightness Up Makes the LCD screen brighter.
< ↓ / ★▼>	Brightness Down Makes the LCD screen dimmer.

When you press a function key combination, the system sound may be temporarily muted.

In Windows, you always see a small graphical image on the screen that indicates the location where you can take the next action. This image is called a pointer, and is usually displayed in arrow shape ( ) or 'I' shape ( ).

The touchpad on your computer allows you to move the pointer on the LCD screen, just like a mouse that is used with a desktop computer. The touchpad buttons allow you to take actions with the pointer, such as selecting an item or executing a command.

Touchpad On/Off

You can disable the touchpad so that you can use only the keyboard and mouse. To disable the touchpad function, press the Touchpad On/Off button or press the + keys.

A touchpad On/Off button is not provided for systems with fingerprint sensor.

You can perform various actions with your touchpad as described below.

Action Function Process
Move	Move the pointer	Place your finger on the touchpad	and slide your finger to a destination.
Click	Select an object, open a menu, or execute a button		Place the pointer over an object, then press left touchpad button once. Or, place the pointer over an object, then tap the touchpad once with your finger.
Double-Click		Launch a program or open a file	Place the pointer over an object, then quickly press left touchpad button twice. Or, place the pointer over an object, then quickly tap the touchpad twice with your finger.
Right-Click	Display a short cut menu	Place the pointer over an object, then press right touchpad button once.
Drag		Move an object, or select an area or multiple objects	Drag and drop a part to the required place.

Action Function Process

Scroll Display upper/lower/left/right part

of the content within a window

(Applicable to certain programs only)

Place your finger on the right edge or bottom edge of the touchpad and move vertically or horizontally.

Please use the touchpad only with your finger. Using sharp devices may damage the touchpad.

Operating the touchpad or touchpad button while starting your system may increase the time required for starting Windows.

AVStation now/AVStation now DVD button are provided for some models.

Num Name Function
1	AVStation Now / Internet Button	Pressing this button launches AVStation Now when the computer is turned off or is in Power Saving Mode (S4). ("Using AVStation now" (p57)).
2	AVStation Now DVD / E-mail Button	Pressing this button launches AVStation Now to play a DVD or VCD in the optical disk drive (if available) when the computer is turned off, or is in Power Saving Mode (S4). ("Using AVStation now" (p57).). This launches Magic Internet Zaigen when the computer is turned on.
3	User 1 Button Launches a user defined program.
4	WLAN/Bluetooth or User 2 Button	Turns on and off the wireless LAN/Bluetooth function for the models with wireless LAN/Bluetooth function.Launches a user defined program for the models without wireless LAN/Bluetooth function.

About the Wireless LAN Button

Turning the wireless LAN on or off takes about 5 seconds. Pressing this button will not work for approx. 5 seconds after the last time the button was pushed.

Changing the Hot Key Setting

You can change the program that will be launched when you press a hot key. As default, Windows Calculator is configured to launch when you press the User 1 button. You can set the program by completing the following procedure.

1. Double-click the Magic Keyboard icon ( ) on the taskbar.

2. Select USER 1 and then click Browse.

1. Select the desired program in [Open] dialog box, and click Open. (Example: Paint)
2. Click OK to save the changes.

Shows the operating status of the computer.

	Num Lock Turns on when the numeric keypad is activated.
	Caps Lock Turns on when all alphabet characters you type will be in upper case.
	Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor position does not change in some applications.
	Hard disk drive Blinks when the hard disk drive is in operation.
	Battery Turned blue - when the battery is fully charged, or when the battery is not installed.Turns amber - when the battery is being charged.Blinks - when the battery is not properly installed.
	Power Turned On - when the computer is turned on.Blinks - when the computer is in Standby mode.

There are 8 levels of LCD brightness (1: Dimmest \~ 8: Brightest).

Press +< ⚙▼> or +< ⚙▲> keys from the keyboard to adjust LCD brightness. When changed, the current LCD brightness is displayed on the top left corner of the LCD screen for a few seconds.

Whenever you turn the system on or change the power source the brightness level changes according to the settings.

• when operating on AC power: Brightness Level 8
• when operating on battery power: Brightness Level 1

Maintaining your LCD brightness settings after turning the system off and on

1. Turn the system on. When the Samsung Logo appears, press the key to enter Setup.
2. In the Boot menu, change the Brightness Control Mode option to User Control.
3. Save the settings and exit Setup.

To save the battery charge

When your computer is operating on battery power, adjusting the LCD brightness level to dimmer diminishes the battery power consumption.

Bad pixels in the LCD

The limits of the LCD manufacturing technology allow a maximum of 10 abnormal or bad pixels, which do not affect system performance. This system may have the same level of abnormal or bad pixels as any other company's products.

Maintenance Instructions

When cleaning the LCD panel, use only computer specific cleaners on a soft cloth, and lightly wipe in one direction.

To adjust using keyboard

Press +< ▶▼> or +< ▶▲> from the keyboard.

To adjust using volume adjustment program

Click the Volume icon(💡) on the taskbar, and move the Volume slider to a desired level.

For advanced volume control options, double-click the Volume icon(○), and adjust the volume level in the volume control program.

When you turn the system on, a booting noise may occur.

Introducing Windows

Understanding the Desktop

The desktop is the working area on the computer. It consists of the large workspace and a taskbar at the bottom.

Start Button	start	Opens the Start menu.
Taskbar		Displays programs that are currently running. Frequently used icons can be placed here.
Recycle Bin		Deleted files or folders are sent here.
Language Bar	EN English (United Kingdom)	Switches text input language.

Understanding the Start Menu

The Start menu includes everything that is required to start Windows. From the Start menu it is possible to run a program, open a file, assign system users with Control Panel, receive support by clicking Help and Support, and search desired items from the computer or Internet by clicking Search.

My Computer		Displays the contents of the hard disk, the CD-ROM drive, the network drive(s), and floppy disks. It can also be used to search and open files and folders.
Control Panel		Enables users to configure settings on the computer.
Help and Support		Provides on-line help, information on Windows and troubleshooting.
Search		Enables users to search for information in files or the Internet.
Run		Run programs or documents.

A window is the basic component in working with the computer. The My Computer window, which is a window for the computer's hard drive, will be used as an example here to show the basic composition of a window.

Click Start > My Computer.

Double-click the hard drive (local disk) to view internal folders and files stored in it. If the contents do not appear, click Show the contents of this folder.

What is a drive?

A storage device in which files and folders are saved in, and read from.

What is a folder?

A folder is used to group and manage files systematically, and may include files in sub-folders. It is similar to a bookshelf.

What is a file?

A file is a document or various kinds of material that is generated as a result of program operation. It is also called data.

To view the entire structure of the drive

Click the Folder icon in the taskbar to view the entire structure. Click again to return to the Quick Task Window.

Help and Support Center

Help and Support Center provides references and troubleshooting information regarding computer use.

Click Start > Help and Support.

Windows XP Tour

You can tour elementary functions provided by Windows XP.

Click Start > Tour Windows XP.

Or click Start > All Programs > Accessories > Tour Windows XP.

Click on the topics to find out about important functions of Windows XP.

Using the Computer

Using the CD Drive

You have one of following drives installed in your computer.

DVD-ROM drive Reads a CD/DVD.
CD-RW/DVD-ROM Combo drive Reads a CD/DVD and writes a CD.
DVD Dual Drive Reads CD/DVD, and writes data to CD/DVD. Supports DVD-R, and DVD-RW only for the DVD recording format.
DVD Super Multi Drive Reads CD/DVDs and writes data to CD/DVDs. Supported DVD types include DVD ± R, DVD ± RW and DVD-RAM.

A CD-ROM drive is optional. For more detailed product specifications, refer to the product catalog.

To insert a CD

1. Press the eject button on right side of the CD drive.
2. When the tray slides out, place a CD onto the tray with the label facing up, and push the CD down until it clicks.

1. Push the tray in gently until it clicks.

To eject a CD

1. Stop any process that accesses the CD drive and ensure the CD access LED is turned off.
2. Press the eject button on right side of the CD drive.
3. When the tray slides out, remove the CD from the tray.
4. Push the tray in gently until it clicks.

If you remove the CD when the CD access LED is on, the disk and the data in it may be damaged.

Emergency Eject Hole

To eject a CD when the CD drive is not working or the computer is turned off, unfold a paperclip, and insert the unfolded end of the clip into the emergency eject hole (located next to the eject button) and press until the CD tray opens.

To clean a CD or DVD title

Clean the disc with a soft clean cloth by wiping from the center outwards.

To play a DVD

You have to install the DVD software provided on a separate CD to view a DVD title.

To use the Windows Media Player

The Windows Media Player allows you to play audio and video files from the computer or the Internet.

To launch the Windows Media Player, click Start > All Programs > Accessories > Entertainment > Windows Media Player.

Windows Media Player tour

For more information about using the Windows Media Player, run the Windows Media Player and click Help > Help Item.

To play a video CD

If a video CD does not run automatically, follow these steps.

1. Insert a video CD into the CD drive.
2. When the CD drive window appears, double-click the MPEGAV folder.
3. Double-click the .dat file.
4. When the [Caution] dialog appears, click Open With.
5. Select "Select the program from a list" and click OK.
6. Select the Windows Media Player, and click OK. The video starts playing.

Above procedure applies only to the video CDs that has a .dat file as the execution file. Playing procedure may be different according to video CDs.

To write data on a CD (Option)

If your computer has CD-RW functionality, you can copy data to a blank CD or create an audio CD.

An additional CD writing program is supplied in an additional CD.

You cannot write to a CD that already has data in it.

1. Insert a blank CD into the CD drive.
2. On the [CD Drive] dialog, select Open Writable CD Folder and click OK. The CD drive window appears.
3. Click Start > My Computer.
4. In My Computer window, select files and folders to copy, then drag and drop them onto the CD drive window.

1. Click Write these files to CD in the CD drive window.

2. When the CD Writing Wizard appears, enter the CD label, and click Next. The data begins copying.

3. When copying is completed, a 'completed' message appears and the CD drive window opens automatically.

For more information on writing CDs

Click Start > Help and Support. Type "CD copy" in the search field, and click the Search icon ( ).

For more information on creating an audio CD

Run the Windows Media Player program, click the Help > Help Item. Click Using Windows Media Player > Using CDs > Creating your own CDs > To create your own CD.

Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surrounding sound and vivid screen.

What is a home theater system?

Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D surrounding sound (Dolby 5.1 or DTS). With a home theater system, you can enjoy a vivid screen and sound in your home as if you are in a movie theater.

The following devices are required to enjoy a home theater system.

5.1 channel speaker system (amplifier, speakers, connection cables) Purchased separately

DVD drive and DVD playing program on the computer Optional

DVD title that supports 5.1 channel Purchased separately

To use home theater system, complete the following procedures:

• Step 1. Connect 5.1 channel speaker system to your computer.
• Step 2. Configure digital sound output on the computer.
• Step 3. Enable S/PDIF output on the DVD program.

Step 1. Connect 5.1 channel speaker system to your computer

1. Connect the S/PDIF jack of the system and a 5.1 channel amplifier.

2. Connect speakers to the amplifier. (Refer to speaker's manual.

3. To view through a TV, connect the TV and change the current display device to TV in the Display Properties. (See 'P. 6-8 Connecting to a TV'.)

Step 2. Configure digital sound output on the computer

1. Click Start > Control Panel > Sounds, Speech and Audio Devices > Sounds and Audio Devices.

2. In the Device volume field on the Volume tab, click Advanced.

3. In the [Master Volume] dialog, click Option > Advanced Controls. Then Advanced button is displayed on the bottom of the dialog.

4. Click Advanced, select "AC3 SPDIF", then click Close.

Step 3. Enable S/PDIF output on the DVD program

To use 5.1 channel speakers, you need to install the Power DVD program from the DVD Installation CD provided with your computer, then change the settings as per the following.

1. Run Power DVD program and click the Settings icon ( )

1. On the Audio tab, set the Audio Output setting to "Use SPDIF" and click OK.

Now, you can enjoy home theater using DVD titles.

To control volume for your 5.1 channel speaker, use the control on the digital amp. (Please refer to the speaker manual.)

You can use a Memory Stick (or Memory Stick Pro) and a SD (Secure Digital) card using the memory card slot. You can use the Memory Stick and the SD card as removable disks and can use them to transfer data between your computer and any digital equipment such as a digital camera..

Memory Stick

Memory Stick

SD (Secure Digital) Memory Card

Restrictions when Using Memory Sticks / SD Cards

You can use Memory Stick, SD Memory Card and Memory Stick Pro for storing data only. Copyright protection function is not supported.

To insert and use a memory card

You should insert the memory card upside down.

Inserting wrong side up may cause damage in the memory card and the computer.

1. Insert the memory card into the memory card slot.

Laptop keyboard with a red arrow pointing to a 84.4 microcontroller (no visible text or symbols on the device body)

1. Click Start > My Computer. The inserted memory card is displayed.

MemoryStick (E:)

Secure Digital storage device (F:)

Memory Stick SD Card

1. You can write data to the memory card. If the memory card is not formatted yet, format the memory card before use.

Since the memory card may be easily mislaid when moving your computer, keep the memory card separately.

To remove a memory card

1. Press the end of the memory card softly to pop it outward.

2. Remove the memory card.

To format a memory card

You can use a memory card after the format operation. The procedures to format a memory card are described below.

Since format operation deletes all data in the memory card, please make sure that there is no important data in the memory card before formatting.

To protect the data in the memory card

Set the write protection tab of the Memory Stick or SD memory card to the Lock position.

1. Click Start > My computer.
2. Press the right touchpad button on the memory card drive, and select Format from the pop-up menu.
3. Click Start to start the format operation.

To use a memory card in both the computer and other digital device such as digital camera, it is recommended to format the memory card in the digital device. If you format the memory card in the computer, you may have to format the memory card in other digital device again to use the memory card in the digital device.

To use a Memory Stick Duo

Insert a Memory Stick Duo into the Memory Stick Duo adapter and insert the adapter into the Memory Stick slot of the computer.

Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16/32 bit, type I or II PCMCIA card types.

The PCMCIA card slot does not support a ZV card or a PCMCIA III card.

To insert a PCMCIA card

Before using the PCMCIA slot, remove the slot protector.

Push the eject button of the PCMCIA card slot once to pop it out. Push the button again to eject the slot protector.

1. Insert a PCMCIA card into the PCMCIA card slot on the side of the computer.

Ensure that the PCMCIA card is inserted the correct way, as incorrect insertion will damage the PCMCIA card slot.

1. Windows automatically installs the necessary driver for the card. If there is no available driver found by Windows, you have to install the driver using a disk supplied with the card.

To remove a PCMCIA card

1. Double-click Safely Removes Hardware icon ( ) on the taskbar.

2. On the [Safely Remove Hardware] dialog box, select the appropriate PCMCIA card and click Stop.

3. When [Stop a Hardware Device] dialog box appears, click OK.

4. Click Close to close the [Safely Remove Hardware] dialog box.

5. Push eject button of the PCMCIA card slot once, and the button pops out.

6. Push the button again to eject the PCMCIA card.

Use EasyBox program to make use of Windows' complicated function easily and conveniently.

Learn about EasyBox

Double-click the EasyBox() icon on the desktop.

(Or select Start > All Programs > Samsung > EasyBox > EasyBox.)

• System: System management features are available, including disk defragmenter, removing unnecessary files/folders, computer scheduling and system recovery.
• BIOS: In windows-based mode, you can recover the BIOS defaults and change the boot sequence.
• Desktop: Desktop management features include changing the font size, executing a magnifier function, the start menu settings and managing the quick launch icons on the taskbar.
• Security: Here you can configure the security settings supported by Windows XP SP2. And you can change the configuration of the firewall settings, Windows automatic updates and blocking pop-ups when connected to the Internet.

- Plus Tip: This is a collection of additional Windows functions that are useful for system management. (Offering shortcut descriptions of Windows, configuring network sharing and opening local folder sharing, etc.)

Using EasyBox

Security management function will be used as an example here to show the function of Easybox

Configuring Firewall

The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet.

1. Click Start > All Programs > Samsung > EasyBox > EasyBox.
2. Click Security from the top menu bar.
3. Select Windows Firewall Settings from the Security menu on the left.
4. Select a firewall level.
5. Click Apply.

Click the User Setting button for advanced features, including exceptions and permissions.

Use Samsung Smart Screen program to arrange desktop icons as desired and manage them effectively.

1. Click Start > All Programs > Samsung > Samsung Smart Screen.

When you launch Samsung Smart Screen for the first time, a dialog box asking whether to register the program as a start program or not appears. If you select OK, the program is automatically launched when you start your computer.

1. Samsung Smart Screen appears. When you run the program for the first time, water drop image is displayed.

1. To move an icon, click a water drop to open it, then drag an icon to another water drop.

To return to Windows desktop

Right-click on Samsung Smart Screen and click Windows desktop. Windows desktop is displayed.

To return to Samsung Smart Screen, double-click ( ) icon on the taskbar.

To change background or skin

Right-click on Samsung Smart Screen and select desired item.

Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect).

Double-click the Samsung Theme ( ) icon on the desktop.

(Or select Start > All Programs > Samsung > Samsung Theme > Samsung Theme.)

• Samsung Theme: Switches to Samsung Theme (desktop, logon screen and sound effects on booting).
• Windows XP Theme: Switches to the Windows XP default Theme.
• Back: Restores the theme to its previous status.

Samsung Update Plus is software that examines and updates Samsung software and drivers installed on your Samsung computer to the latest version. To use Samsung Update Plus, your computer has to be connected to the Internet.

To Update Samsung Software and Drivers

1. Select Start > All Programs > Samsung > Samsung Update Plus > Samsung Update Plus.

If this is the first time you are running the program, a window will appear asking you if you agree to the agreement in the window. Click Agree to use this software.

1. Click Search for and Install Updates and click the Search for New Updates button.

1. If there are available software or driver updates for your computer, the available updates will be listed. Select the required updates from the list and click Install Update to start the update.

(The update list on the screen may differ depending on the computer model.)

Updates that must be installed separately.

If you select Install as an update item that must be installed separately, a message appears informing you of this. Follow the instruction message to correctly install it.

Automatic update items display

By default, your computer is configured to automatically search for updates. If there is a new update available, this is notified in the notification area. Click the balloon help icon in the notification area. Here you will be able to find the latest available updates.

To change the automatic update settings, click the Configuration button in Figure 2 and change the settings.

Samsung Update Plus does not provide updates for additionally installed software and device drivers.

AVStation premium is provided for some models.

AVStation premium is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music.

Select Start > All Programs > Samsung > AVStation premium > AVStation premium.

(Alternatively, double-click the AVStation premium (icon on the Desktop or in the Notification Area.)

Using AVStation Premium

AVStation Premium Modes

Standard mode Screen

Play Mode Screen

• Standard Mode: You can use all AVStation premium functions.
• Play Mode: This provides an easier-to-use user interface than that of Standard mode. In this mode, the Edit/Create function and the MOVIE EDITOR menu are not supported (p 54)

- This Manual mainly describes the procedures for using the Standard mode of AVStation premium.

- The captured program screen shots in this manual may differ slightly from the actual software depending on the version of the program.

- For more detailed use procedures, refer to the on-line Help.

AVStation Premium Screen Layout and Menus

AVStation Premium Standard mode consists of the following 4 menus.

• MUSIC : Using this menu, you can play music files or audio CDs, copy audio CDs to the computer as well as burn audio CDs.
• PHOTO : Using this menu, you can view or edit pictures (image), view pictures through a Slide Show, create an album and burn an album onto a CD.
• MOVIE : Using this menu, you can play a video (movie) file or a DVD/VCD title.

(You can only play a DVD title after installing Power DVD or a DVD player program.)

• MOVIE EDITOR : Using this menu, you can edit a movie file.

• To handle multimedia files conveniently, register the multimedia files to the library. ("Registering a File" (p53))
• To access a file not registered to the library, select File > Open File and select the file.

Selecting the AVStation Premium Menus

To select a menu, select the required menu from the Menu Selection Bar.

MUSIC

This section describes the procedures to play music files or audio CDs, to copy audio CDs to the computer as well as burn audio CDs.

Select MUSIC from the Menu Selection Bar.

Playing a Music File

1. Double-click Music in the left category pane and double-click on All musics.

2. Double-click the music file that appears at the bottom screen to play it.

- To play multiple music files, select the music files and click on Add. The music files will be played in the added order.

Playing an Audio CD

1. Insert an audio CD into the CD-ROM drive.

2. When the Audio CD window appears, select using Samsung AVStation premium and click OK. Then the audio CD is played.

- To play an audio CD in the CD-ROM drive, double-click CD from the Category and double-click on Audio CD when Audio CD appears in the bottom screen.

Audio CD window

Copying an audio CD to the Computer

1. Insert an audio CD into the CD-ROM drive.
2. When the Audio CD window appears, select using Samsung AVStation premium and click OK.
3. Select a track to be copied to the library and then select Tools > Copy from CD.
4. To select multiple tracks, select the tracks while pressing the Shift or Ctrl key on the keyboard.

1. The selected tracks are copied from the audio CD. When the copy operation is completed, the Copy Completed message will appear.

The copied tracks are saved in the My Documents > AVStation Premium > Music > Music From CD folder.

Burning an Audio CD

1. Insert a blank CD into the CD-ROM drive. When the CD Drive window appears, click Cancel.

2. Select Tools > Burn CD.

1. Select Burn Audio CD and click Next.

2. Double-click Music in the left title and double-click All musics.

3. Select music files from the list and click the Add files from my PC to the CD burning list (▶) button to move the selected files to the right Burn Audio CD window. When you have added all music files, click Next.

4. Select a CD Writer and click on Start. When the Burn CD window appears, click OK to create the audio CD.

Creating a Playlist

A Playlist is a list of selected music files that has been created by a user so that the selected files can be played later.

1. Select the music files to be included in the Playlist from the music category and click on Add.

2. When you have added all the music files you want, click on Save As Playlist.

3. Register a new playlist name, and click OK.

4. When the completion message appears, click OK. The created Playlist is saved in C:\Program Files\Samsung\AVStation Premium\My Playlist folder.

Playing a Playlist

1. Click on Load Playlist at the bottom of the Library window

2. Select a Playlist and click OK to start the playback.


This section describes the procedures to view pictures (images), to view pictures through a Slide Show, to edit a picture, to create an album, and to burn an album onto a CD.

Click on PHOTO in the Menu Selection Bar.

Viewing and Editing a Picture

1. Double-click on Image in the left category pane and double-click on All Images.
2. The image files are displayed in the right Image window. To zoom-in on an image, double-click the image file.

Viewing the Image List

Select View Image List from the menu at the bottom of the zoomed image screen.

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Screen from the menu at the bottom of the zoomed-in on image screen.

Editing an Image

1. Select an image to edit and select the Edit Image tab.
2. Edit the image using the Shape/Edit/Effect tool and click on Save or Save Copy.

Creating an Album

1. Select the Create Album tab.

2. Select an album cover style and click Apply to apply the selected style to the album cover.

3. Enter the title and contents of the album, insert an image and then click ▶(Move to next page).

- To insert an image, drag and drop a file from the Category into the Image box.

1. Select an image file from the All images category on the left and drag and drop the file to the album on the right of the screen. Enter text to be added.

2. When creating an album is complete, click on Save to create the album.

The created album is saved in the My Documents > AVStation Premium > Photo > Photo Album folder and will be displayed in the Album category.

- To view an album, double-click on Image in the left category pane and double-click on Album. Click on Slide Show in the Image window to view the images within the album through the Slide Show.

Burning an Album onto a CD

1. Double-click on the album to be burnt to CD in the left Album category.

2. Insert a blank CD into the CD-RW drive. When the CD Drive window appears, click on Cancel.

3. Select Send > Burn CD from the menu at the bottom of the Album window.

4. Enter the CD title in the Burn a CD window and then click OK to burn a CD with the album.

MOVIE

This section describes the procedures to play a movie file or a DVD/VCD title.

Click on MOVIE in the Menu Selection Bar

Playing a Movie

1. Double-click on Movie in the left category pane and double-click All movies.
2. Double-click a movie file to play it.

You can adjust the screen size in the View menu.

Playing a DVD Title

You can only play a DVD title after installing a DVD player program, Power DVD.

1. Insert a DVD title into the DVD drive.
2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title.

If the DVD does not automatically play or the DVD title is in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.

Playing a VCD Title

1. Insert a VCD title into the CD drive.
2. Double-click the Title of the VCD in the DVD / VCD category.

Movie Editor (Editing a Movie)

This section describes the procedures for editing a movie.

Click on MOVIE EDITOR in the Menu Selection Bar.

Editing a Movie

The procedures for merging two movie files and for inserting transition effects between movies are described below.

1. Click on MOVIE EDITOR. A new project will open.
2. Double-click Movie in the left category pane and double-click All movies.
3. Drag and drop a movie file to the Storyboard. When a Storyboard appears in the right pane, drag and drop another movie file to the Storyboard.

- To Enter the Title : Click on Text Box in the Title tab, create a Text Box on the screen, enter the title and then click Apply. The title is inserted at the beginning of the Storyboard.

- Screen Effect : Select an effect from the Effect tab and drag and drop the selected effect onto the movie in the Storyboard to apply the effect. - Transition : Select a Transition effect from the Transition tab and drag and drop the selected effect onto the movie in the Storyboard to apply the transition effect.

- Background Music : Click on Music and select a music file to apply the background music to the movie file.

1. When finishing editing a movie, click on Create Movie and click OK to create the edited movie as a movie file.

The edited movie is saved in the My Documents > AVStation Premium > Movie > Edited Movie folder and will be displayed in the My Movie category.

Registering a File

By registering multimedia files to the library, you can easily access and manage them since they will be appear in the corresponding category of either the Music, Image, Movie categories on the left-hand side of the screen.

The procedures to register an entire folder to the library will be used as an example below.

1. Click on Register File at the bottom of the screen.
2. Click on Add by folder, and select the folder to be registered and then click OK.
3. When the registration is completed, click OK.
   The registered multimedia folder will be displayed in the music, image, or video categories of the library.

To play a file not registered to a category, select File > Open File and select the file.

Using Play Mode

This section describes how to use the Play Mode of AVStation Premium.

To use Play Mode, select Mode > Play Mode in the Standard Mode Menu Bar.

Play Mode Screen Layout

The initial screen of AVStation premium Play Mode has the following layout.

MUSIC

The procedures to play a music file or an audio CD will be described below. Double-click MUSIC in the initial screen of Play Mode.

Playing a Music File

1. Double-click a category from the left category window
2. Double-click a music file in the right library window. The music will be played.

Playing an Audio CD

1. Insert an audio CD into the CD-ROM drive. Audio CD will be displayed in the library window.

To play an audio CD in the CD-ROM drive, double-click on CD in the category.

1. Double-click Audio CD in the library window. The tracks of the CD will be displayed.

2. Double-click a track to play it.

To Listen to All Tracks

Select Play All Tracks from the Media Play Control button.

PHOTO (Viewing a Picture)

The procedures for viewing pictures (images) and for viewing pictures through the Slide Show will be described.

1. Double-click on PHOTO in the initial screen of Play Mode.
2. Click on All Images in the left category pane, and double-click on an image file in the library window to zoom-in on the image.

Category Window

⊕ MUSIC

You can listen to the music files in My Playlist or All musics while working.

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Screen from the menu at the bottom of the zoomed image screen.

MOVIE (Playing a Movie)

The procedures to play a movie file or a DVD/VCD title will be described below.

1. Double-click MOVIE in the initial screen of Play Mode.
2. Click All movies in the left category pane and double-click a movie file in the right pane. The movie file will be played.

Playing a DVD Title

1. Insert a DVD title into the DVD drive.
2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title.

If the DVD is not automatically played or the DVD title was in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.

Playing a VCD Title

1. Insert a VCD title into the CD drive.
2. Double-click the Title of the VCD in the DVD / VCD category.

AVStation now is provided for some models.

AVStation now is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music without turning the computer on.

Using AVStation now

How to launch AVStation now and the AVStation features will be described below.

The use procedures of AVStation now are similar to those of Play Mode of AVStation premium.

AVStation now only supports the player and view functions. To register files to the library, use the registration function of AVStation premium.

Launching AVStation now

You can only use AVStation now when your computer is turned off or it is in maximum power saving mode (see P. 5-2)

You can launch AVStation now by completing either one of the following 2 procedures.

• Click the AVStation now button.
• Click the AVStation now DVD button.

(If DVD/VCD is in the DVD drive, play the movie directly.)

Exiting AVStation now

1. Press the key to move to the initial screen of AVStation now.
2. Press the key in the initial screen.

Or Select using the direction keys on the keyboard and press .

1. Select in the Exit window and press .

Booting and using the computer when using AVStation now

Select from the Exit window. Your computer will start.

AVStation now Menus

AVStation now consists of the following 3 menus.

• MUSIC: Using this menu, you can play a music file or an audio CD.
• PHOTO : Using this menu, you can view a picture (image) and view a picture through the Slide Show.
• MOVIE : Using this menu, you can play a video (movie) file or a DVD/VCD title.

Using AVStation now

The procedures for using AVStation now will be described below.

To Move, Select and Run Menus

You can use AVStation now by using only the keyboard.

• Moving a Menu or an Item
  Move a menu or an item by using the Direction keys on the keyboard.
• Selecting or Running a menu or an Item
  Move to a menu or item and press key on the keyboard.
• Returning to the Previous Screen
  Press the or keys on the keyboard.

MUSIC

The procedures for playing a music file or an audio CD will be described below.

1. Select the MUSIC menu and select a category. For example, you can select All Music by using the direction keys.
2. Move to a music file you wish to play in the Library pane using the right direction key and then press the key.

Media Play Control Button

You can only use the Media Play Control button when a music file is being played.

Playing Multiple Tracks

1. Play a music file.
2. Move the focus to the left Category pane, and select the Play All button.

Playing an Audio CD

1. Insert an audio CD into the CD-ROM drive, and select CD from the Category pane.
2. In the right Library pane, move to a track to be played, and then press the key.


The procedures for viewing pictures (images) and for viewing pictures through the Slide Show will be described below.

1. Select the PHOTO menu and move to the All Photo category.
2. Move to an image file in the Library pane using the right direction key and then press the key.
   The selected image will be zoomed in on.

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Screen from the menu at the bottom of the zoomed-in on image screen, and then press the key.

MOVIE

The procedures for playing a video (movie) file or a DVD/VCD title will be described below.

1. Select the MOVIE menu and select a category. For example, you can select All Movies by using the direction keys.

2. Move to a movie file in the Library pane using the right direction key and then press the key.

The selected movie file will be played.

Playing a DVD/VCD title

Insert a DVD/VCD title into the DVD-ROM drive and select DVD/VCD from the Category pane.

After a short while, the DVD/VCD title will be played.

Using the DVD/VCD Play Control Button

To use the Play Control button while playing a DVD/VCD title, press the on the keyboard.

The Play Control display disappears when a VCD is being played, but it does not disappear when a DVD is being played. To hide the Play Control display, press the again.

Tips

• Using the Library (File)

AVStation Now can use the library of AVStation Premium.

To use the library in AVStation Now, register the library in AVStation Premium. (See "Registering a File" on page 53)

- HDD Category

You can play unregistered files on the hard disk drive in the HDD category of each menu.

Notice

- Do not remove the Recovery Solution Program.

Removing the Recovery Solution Program also removes AVStation Now. Once the program is removed, you cannot reinstall it, therefore take care not to remove the program.

- You cannot use an additionally created Playlist.

You cannot use an additionally created Playlist other than the Playlist provided with AVStation premium in AVStation now.

• A move file or a movie title not supported by AVStation Now

To play a movie file or a movie title not supported by AVStation Now, please use AVStation Premium after booting your computer.

The Smart Parking program helps you to protect the HDD from impact when using your computer while you are on the move or outdoors.

This function is a factory option and supports specific types of hard drives only. For more information about supported models, refer to the detailed model specifications of your product provider.

Although Smart Parking helps protect the HDD against external impacts, it cannot always completely protect your HDD from impact. Please always backup important data.

When turning your computer on, the Smart Parking program is automatically launched. To manually launch the program again when the program has been terminated, Double-click the Smart Parking icon () on the Desktop.

1. Right-click the Smart Parking icon ( ) on the taskbar and select Run.
2. Select a mode to use and click the OK button. Smart Parking will launch.

This figure shows the current operating status.

• Normal Mode: Parks the HDD in a short time when a slight impact is detected when using the computer in a normal operating environment.
• Public Transportation Mode: Parks the HDD in a short time when an impact is detected that is heavier than for Normal Mode, for when the computer is being used while moving by public transportation.
• Stop: Disables Smart Parking.

The figure changes according to the Smart Parking operation as follows:

When Smart Parking is monitoring the HDD

When Smart Parking is parking the HDD

When Smart Parking is terminated

Connecting to the Internet

Connecting with a Modem

Before Start:

• Prepare a telephone line that is not digital.
- Contact an internet service provider (ISP) for instructions on how to connect to and disconnect from the Internet.

1. Connect a telephone line to the computer's modem port.

Laptop keyboard with a red arrow pointing to the left side of the front panel (no visible text or symbols)

1. Connect to the Internet according to the instructions provided by your ISP.

If the Internet connection is not disconnected properly, additional telephone charges may be imposed.

1. Connect a LAN cable to the computer's LAN port.

Laptop keyboard with USB port and a red cable connector (no visible text or symbols)

1. Click Start > Control Panel.
2. Click Network and Internet Connections in the [Control Panel] window.
3. Click Network Connections in the [Network and Internet Connections] window.
4. Right-click the Local Area Connection icon and click Properties.

1. On the General tab, select "Internet Protocol(TCP/IP)" and click Properties.

7. To use DHCP:

On the General tab, select "Obtain an IP address automatically" and "Obtain DNS server address automatically". Click OK.

To use a static IP:

On the General tab, select "Use the following IP address" and fill in the IP address, Subnet mask, Default gateway, Preferred DNS server, and Alternative DNS server fields. Click OK.

To use both DHCP and static IP simultaneously:

On the Alternate Configuration tab, click User configured and fill in the fields. Click OK.

Using Samsung Network Manager

Use Samsung Network Manager to configure network setting.

Using the program, you can do the following.

• You can save network settings (including IP address) according to network places such as office and home. When you change places, simply select a network place and the network settings will be automatically changed accordingly.
• You can easily find out your current IP.

To configure network setting

1. Connect LAN cable to the computer's LAN port.
2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager.
3. When you are using DHCP, available IP's are displayed in the status dialog box. Click Change.

1. Click Add, click Choose Icon and select an icon. Enter a place name in New Name field and click Ok.

1. New place icon is displayed and full dialog box appears. Check your IP and click Close. Network setting is saved.

To configure network setting of some place other than current place, click the place icon and configure each network device. If you are using DHCP, select 'DHCP' check box and click Save.

If you are using a static IP, clear 'DHCP' check box, enter appropriate network setting and click Save.

Ask ISP or network administrator for IP address.

To change network places

You can change network places as below.

1. Connect LAN cable to the computer's LAN port, and double-click Samsung Network Manager icon on the desktop.

If you used static IP in previous place, previous static IP is displayed in the status dialog box.

1. Click Change, select a place icon then click Change.

Example) changing to Office

1. On "Do you want to change the location setting?" dialog box, click Ok.

2. When the network place is changed, corresponding place icon is displayed in color and full dialog box appears. In the right area of full dialog box, network setting is displayed.

3. Click Close to close the dialog box.

To share an Internet connection

Using Internet Connect Share, you can use the Internet by connecting to a computer connected to the Internet, even if your computer does not have a direct Internet connection.

You can setup the server, which is a computer directly connected to the Internet and which provides the Internet Connection Share service, and the client, which is a computer that will use the Internet Connection Share service.

To configure the server

1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop.

2. Click Click here to setup Internet Connection Share.

3. The computers are represented by an icon. Click the server computer.

1. In the server, select a device that is directly connected to the Internet.

If you select Use Firewall, you can use the Windows Firewall. If you are using an external modem, select the network card connected to the external modem.

1. The network types connecting to the server and client will be displayed. Select a network type and then click OK.

2. Your configuration is displayed such as the Internet Connection, Use Firewall, Home Network Connection, etc. Confirm your configuration and click OK to begin the Internet Connection Share setup.

3. Configure the connection between the server and the client. If it is a wireless connection, the wireless network connection properties window and the wireless network setup procedure instruction window appear. Setup your wireless network according to the messages of the wireless network setup procedure instruction window.

4. The current location is represented as a server. The server configuration is complete.

To configure the client

1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop.

2. Click Click here to setup Internet Connection Share.

3. The computers are represented by icons. Click the client computer.

4. Select a network to connect to the server and click OK.

If it is a wireless connection, the wireless network connection properties and the wireless network setup procedure instruction windows will appear. Setup your wireless network according to the messages of the wireless network setup procedure instruction window.

1. The current location is represented as the client. The client configuration is complete.

A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices.

Using the wireless network connections between the systems, you can use normal network functions such as sharing of files, folders and printers. When a computer-to-computer network has been constructed, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. For details, see “To share an Internet connection” on page 70.

The description in this section concerns an Intel(R) PRO/Wireless 2200BG Network Connection (hereafter referred to as Intel 802.11BG card), an Intel(R) PRO/Wireless 2915ABG Network Connection (hereafter referred to as Intel 802.11ABG card), an Airgo Networks True MIMO (tm) Wireless Adapter (hereafter referred to as MIMO card) and Atheros Wireless Network Adapter (hereafter referred to as an Atheros 802.11BG card) devices.

A wireless LAN card is optional. The model of the wireless LAN card is determined by the relevant product.

To view the installed wireless LAN card, click Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager.

The wireless LAN connection settings will be described on the basis of the Windows XP Service Pack 2 installed computer.

It is recommended using the default settings provided by Windows XP for the wireless LAN settings for Windows XP installed computers.

To setup using the software supplied by the wireless LAN card manufacturer, refer to "Wireless Network Setup Using the Wireless LAN Setup Program(For Intel 802.11BG or Intel 802.11ABG cards)" (p82).

A MIMO card does not provide an additional wireless LAN program.

To use the wireless network, you have to turn on the wireless LAN function by using the Wireless LAN On/Off Button. (p 16)

Wireless network connections can be classified into two categories.

1) Access Point (AP)

You can connect to an AP to use the network. This is possible only in an environment equipped with an AP. For details, see “Connecting to an Access Point (AP)” on page 74.

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

2) Computer-to-computer (ad hoc)

This is also called a peer-to-peer network.

In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. For details, see “Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 76.

Connecting to an Access Point (AP)

This section describes how to connect to an AP. You can use the network when you are connected to an AP.

For more detailed information such as the network key (encryption key), ask your network administrator.

1. Right-click on the Wireless Network Connection (图标) icon on the taskbar, and select View Available Wireless Networks.

1. Select an AP (E.g. Test) to connect to and click Connect.

If there is a configured network key for the AP to connect to, the Enter Network Key window appears.

Enter the Network Key in the window and then click the Connect button.

When a network key is not defined for a selected AP, click on Link to display the warning message box. Then click Connect again in the box.

Now when Connected in AP is displayed, and you can access the network.

Checking the connection status

Move the mouse pointer over the Wireless Network Connection () icon on the taskbar, and the connection status is displayed.

Connecting to computer-to-computer networks (peer-to-peer or ad hoc)

In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. (Refer to See "To share an Internet connection" on page 70.)

You can connect by completing the following steps:

• Step 1. Set up a computer-to-computer network on a computer.
• Step 2. Connect to the configured computer from other computers.

Step 1. Setting up a computer-to-computer network

1. Right-click on the Wireless Network Connection (R) icon on the taskbar, and select View Available Wireless Networks.

1. Click Change the order of Preferred Networks.

1. On the Wireless Network tab, click Advanced.

2. Clear 'Automatically connect to non-default network' check box, if it is selected. Select 'Computer-to-computer (ad hoc) networks only', and click Close.

3. In the Wireless Networks tab, click Add.

4. Enter the network name (e.g. samsung), and unselect 'The key is provided for me automatically'. Enter the encryption key in the Network key field, and click OK.

To prevent a network connection from an unauthorized user, it would be better to configure a network key (encryption key). A network key consists of 5 \~ 13 alphanumeric characters (e.g. magic), or of 10 \~ 26 hexadecimal numbers (a hexadecimal number is represented by numbers '0' to '9' or letters 'a' to 'f').

1. Check that the configured network name (e.g. samsung) is in the 'Preferred networks' item, and click OK.

Now your wireless network setup has been completed.

Step 2. Connecting to the configured computer

1. Right-click on the Wireless Network Connection (图标) icon on the taskbar, and select View Available Wireless Networks.

2. Select the wireless network name (e.g. samsung) specified in "Connecting to computer-to-computer networks (peer-to-peer or ad hoc)" on page 76, and click Connect.

1. Enter a cryptographic key in the network key box and click Connect.

If the network key is not configured in "Connecting to computer-to-computer networks (peer-to-peer or ad hoc)" on page 76, just click Connect, without any keystrokes.

When connected to the wireless network, the system displays Connected in the selected network of the Network Connection window.

Checking the connection status

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed.

Wireless Network Setup Using the Wireless LAN Setup Program(For Intel 802.11BG or Intel 802.11ABG cards)

You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately.

This description is for the Intel 802.11BG and Intel 802.11ABG cards. For the Atheros 802.11BG card, see page p86.

To use wireless network connection, complete the following procedures.

• Step1. Install the wireless LAN configuration program (PROSet).
• Step2. Configure wireless network settings through the wireless LAN configuration program.

Step 1. Installing the wireless LAN configuration program (PROSet)

You can install the wireless LAN client administrator program following the instruction displayed automatically when you insert the system software CD. Insert the system software CD into the CD-ROM drive, and install the wireless LAN configuration program.

Step 2. Using the wireless LAN configuration program (PROSet)

Double-click the wireless LAN program (💡) icon on the taskbar.

(Or, click Start > All Programs > Intel PROSet Wireless > Intel PROSet Wireless.)

In some languages, some buttons on the window may not be displayed. If this is the case, resize the window to use the program.

Configure wireless network settings in PROSet following the procedures below.

To connect to an Access Point:

To connect to an access point or existing computer-to-computer (Ad Hoc) network, refer to the following procedures. (To create a new computer-to-computer network, refer to the following "To create computer-to-computer (Ad Hoc) network" section.)

1. In Available Networks, click on Refresh.
2. Select the name of desired access point or computer-to-computer network to connect from the searched available networks list, and click Configure.

If your desired network does not appear, click Refresh.

An access point is represented by the ( ) icon, and a computer-to-computer network is represented by the ( ) icon. An ( ) icon is displayed in front of an access point or a computer-to-computer network with configured security settings.

1. Enter Profile Name and click Next.
2. In the Search Security Settings window, the wireless network security search message will appear. Click Next.
3. Enter the network authentication, data encryption (WEP), encryption level, key index, and wireless security password configured for the target access point or computer-to-computer network in the Security Settings window, and click Next.

The network authentication, data encryption (WEP), key index, and password of a access point are configured in the access point management program. For information on the security information, check the security settings of the access point or ask your wireless network administrator.

To connect to an existing computer-to-computer (Ad Hoc) network, enter the password configured when creating the computer-to-computer network for the first time. You do not need to enter network authentication or key index.

Security Settings

- Network authentication: The network authentication option includes Open System and Shared Key. When you select Open System, no authentication is

applied (however, encryption is supported). When you select Shared Key, a WEP key is used for authentication. The default setting is Open System.

- Data encryption (WEP): The IEEE 802.11 WEP (Wired Equivalent Privacy) standard defines two levels of encryption, a 64-bit key (this is sometimes represented by 40bits) and a 128-bit key.

- Key index: Select the current encryption key index used by the access point out of 1 to 4.

- To use encryption key: Click Use pass phrase to activate, and enter 5 (for 64-bit) or 13 (for 128-bit) alphanumeric characters (represented by 0-9, a-z, or A-Z).

6. The Done window appears, click OK.

When a wireless connection to an access point is established, the connection icon ( ) appears in front of the name of the connected profile.

To create a computer-to-computer (Ad Hoc) network:

To create a new computer-to-computer (Ad Hoc) network or to connect to a hidden access point (Stealth/Closed Mode), refer to the following procedures.

A hidden access point is an access point that exists, but is configured not to be detected by the scan operation to prevent access attempts from unauthorized users.

1. In Profiles, click on Add.

2. Enter Profile Name and Network name (SSID), select Operating Mode, then click Next.

What is a network name (SSID)?

Network name (SSID) is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.

Operating Mode:

- Network (Infrastructure) - Connect to an Access Point : Select to connect to an access point.

- Device to device (Ad hoc) - Connect directly to other computers : Select to create a computer-to-computer (Ad Hoc) network.

1. Configure password setting to be used for computer-to-computer network connection in the Security Settings window.

To connect to an access point, enter the network authentication, data encryption (WEP), encryption level, key index, and wireless security password configured in the access point.

It is recommended to configure data encryption for security purposes when creating a computer-to-computer network connection profile. For more information on security settings refer to the security settings in Connecting to AP or Help.

When you are creating a computer-to-computer network connection profile, the network authentication setting is disabled.

1. When a profile creation is completed, the new created profile appears in the profiles list. Select corresponding profile, and click Connect to connect to the created profile.

When a wireless connection to the created profile is established, the connection icon ( ) appears in front of the name of the connected profile.

Wireless Network Setup Using the Wireless LAN Setup Program (for Atheros 802.11BG Card)

You can use a wireless network by using a wireless LAN configuration program (Atheros Client Utility) provided separately.

This description is for the Atheros 802.11BG card.

For Intel 802.11BG, Intel 802.11ABG cards, see page p82.

To use wireless network connection, complete the following procedures.

• Step 1. Install the Atheros Client Utility program.
• Step 2. Construct a wireless network.

To construct a small office wireless network (peer-to-peer) with two computers, you have to setup the two computers identically according to the following procedures.

Step 1. Installing the Atheros Client Utility Program

Install the Atheros Client Utility program included on the System Software CD-ROM onto the computers to be connected to the network.

Step 2. Using the Atheros Client Utility

Right-click the wireless LAN program (icon of the Taskbar and select Open Atheros Client Utility.

(or select Start > All Programs > IEEE 802.11 WIRELESS LAN > Atheros Client Utility)

• To Connect to an Access Point

To connect to an access point or existing computer-to-computer (Ad Hoc) network, refer to the following procedures. (To create a new computer-to-computer network, refer to the following "To create computer-to-computer (Ad Hoc) network" section.)

1. In the Profile Management tab, click on Scan to search for available wireless networks.
2. Double-click or select the name of an access point (or a new computer-to-computer network) in the Network Name (SSID) field and click on Enable.

If the network does not appear, click on Refresh.

An access point is represented by the ( ) icon, and a small office wireless network is represented by the ( ) icon.

1. Enter a profile name to be used in the Network Connections.

2. Select one of the Security Settings set for the access point (or computer-to-computer network) to connect to in the Security window. Click on the Settings to set detailed security options for the selected Security Setting.

The network authentication, encryption type and password of the access point are set through the access point management program. For security information, view the access point security settings or ask your wireless network administrator.

WEP Key Setting:

Data Encryption: IEEE 802.11 WEP (Wired Equivalent Privacy) standard provides 2 security levels: 64-bit key (sometimes 40-bit) and 128-bit key encryption.

Key types include hexadecimal numbers and ASCII characters.

For ASCII: Click Use Encryption to enable the encryption feature.

Enter 5 (for 64-bit) or 13 alphanumeric (0-9, a-z \~ A-Z) characters (for 128-bit).

For hexadecimal: Enter 10 (for 64-bit) or 26 hexadecimal (0-9, A-F) characters (for 128-bit) in the WEP key field.

A computer-to-computer network only supports WEP keys.

In addition, you can set a 152-bit key (32 characters for hexadecimal and 16 characters for ASCII) for the connection to an Atheros Access Point.

1. Click the OK button and then click the OK button in the Profile Management window.

2. When a new profile is created, the profile appears in the list of the Profile Management tab and the connection to the corresponding profile starts.

- To create a computer-to-computer (Ad Hoc) network:

To create a new computer-to-computer (Ad Hoc) or to connect to a hidden access point (Stealth/Closed Mode), refer to the following procedures.

A hidden access point is an access point that exists, but is configured not to be detected by the scan operation to prevent access attempts from unauthorized users.

1. In the Profile Management window, click on Create.
2. Enter a profile name in the Profile Name field.
3. Enter a network name to be connected with SSID1.

What is a Network Name?

Network name is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.

1. In the Security window, select either that the WEP Key to be used for the computer-to-computer is to be created or Do Not Use. To connect to an access point, select one of the Security Settings set for the access point.

2. Set the network type in the Advanced window.

Network Mode:

Ad Hoc – Select to connect to a computer-to-computer (Ad Hoc) Infrastructure – Select to connect to an access point

1. When a new profile is created, the profile appears in the list of the Profile Management tab and the connection to the corresponding profile is started.

While the computer is connected to the network, you can use network services to share files, folders, and printers.

Network services are provided for the computers that are connected to the network through wired or wireless network connections. For details, see "Connecting Through a Wired LAN" on page 66 and see "Connecting Through a Wireless LAN (Option)" on page 73.

Sharing files or folders

This section describes how to share files and folders between computers connected to the network.

To share files, complete the following procedures:

• Step 1. Configuring the sharing of files and folders on a computer.
• Step 2. Accessing shared files and folders from another computer.

When a file or folder is shared, anyone connected to the network can open and delete the shared file or folder.

Configure a file sharing network only when the network is secure, and do not share important data.

Step 1. Configuring Sharing

1. Right-click the target file or folder to share in My Computer, and select Sharing and Security.

1. Click 'IF you understand the security risks but want to share files without running the wizard, click here'.

It has the same security effect as that of the 'Network Setup Wizard'. This screen does not appear if Internet Sharing Network Wizard has been installed in the computer-to-computer wireless network environment.

1. Select 'Just enable file sharing', and click OK.

2. In the 'Network sharing and security' field, select 'Share this folder on the network', enter the share name, and click OK.

Be cautious when selecting 'Allow network users to change my files' since other network users can change the files in the shared folder.

The file and folder sharing configuration has been completed.

Step 2. Using Shared Files or Folders

This section describes how to access shared files or folders if your computer is a member of the same workgroup.

1. Double-Click My Network Places of desktop under Other Places.

2. Click 'View workgroup computers', and click the desired computer to access the shared file.

If your computer is a member of another workgroup:

1. Click Other Places > Microsoft Windows Network.

2. Click the desired workgroup.

3. Click the desired computer to display the shared files or folders.

Sharing Printers

This section describes how to share a printer between computers connected to a network.

To share a printer, complete the following procedures:

- Step 1. Configure printer sharing in the computer connected to the printer.

- Step 2. Add and use the shared printer in other computers on the network.

Step 1. Configuring Printer Sharing

1. From the computer connected to the printer, click Start > Printers and Faxes.
2. Right-click the printer you want to share, and click Sharing.

1. Select 'Share this printer', enter a share name for the shared printer, and click OK.
2. In the Printers and Faxes window, you will find the printer icon has been changed to another icon on a hand.

Samsung MJC-1310 Series

Step 2. Adding and Using a Shared Printer.

1. From a different computer that wants to use the shared printer, click Start > Printers and Faxes.
2. Click Add a printer.
3. In the Add Printer Wizard, click Next.

4. Select 'A network printer, or a printer attached to another computer', and click Next.

5. Select 'Browse for a printer', and click Next.

6. Select the workgroup or computer, select the desired printer, and click Next.

If you cannot find the desired printer, try again after a while.

1. Read the warning about a shared printer, and click Yes to install the shared printer.

2. Select Yes for 'Do you want to use this printer as a default printer?', and click Next.

3. Click Finish.

4. When the printer sharing configuration has been completed, the shared printer appears in the Printers and Faxes window.

Now you can print using the shared printer even if your computer is not directly connected to a printer.

You can transfer files between Bluetooth devices, use the Internet, and construct a Personal Area Network. In addition, you can use a wireless keyboard, wireless mouse, and a wireless printer that have the Bluetooth function.

You can only use the Bluetooth communication function between devices (computers, mobile phones, PDAs, printers, etc.) which support Bluetooth.

The Bluetooth function is provided through the Bluetooth software included in Microsoft Windows XP SP2.

Bluetooth Device Help

For more detailed procedures on using the Bluetooth function, click Start > Help and Support > Network and the Web > Networking > Wireless networking > Bluetooth devices, and view the descriptions.

The following functions are provided by the Bluetooth software.

- Transferring files

You can transfer files between Bluetooth devices such as computers, mobile phones, PDAs (Personal Digital Assistant), etc.

For more detailed procedures on transferring files, refer to “Send and Receive files to/from a Bluetooth device” of the Bluetooth On-line help.

• Using the Internet via a mobile phone

You can connect to the Internet through your mobile phone after connecting it to a computer which is connected to the Internet.

For more detailed procedures on using the Internet, refer to “Install a Bluetooth mobile phone” and “Create a Bluetooth connection to the Internet using a Bluetooth mobile phone” of the Bluetooth On-line help.

• Using a wireless keyboard and mouse

You can use a wireless keyboard and mouse which have the Bluetooth function.

For more detailed procedures on using a wireless keyboard and mouse, refer to "Install a Bluetooth keyboard" and "Install a Bluetooth mouse" of the Bluetooth On-line help.

• Using a wireless printer

You can use a wireless printer if the printer supports Bluetooth HCRP (Hardcopy Cable Replacement Profile).

For more detailed procedures on using a wireless printer, refer to “Install a Bluetooth printer” of the Bluetooth On-line help.

• Using a Personal Area Network

You can exchange files between computers by connecting to the shared folder of another computer via a Personal Area Network.

For more detailed procedures on using the Personal Area Network, refer to “Join a personal area network”, “Provide a name for your computer on a personal area network” and “Bluetooth personal area networking overview” of the Bluetooth On-line help.

- Sharing data with a Palm Hand-held PC or a Pocket PC

You can transfer data to and from a Palm Hand-held PC or Pocket PC.

For more detailed procedures on sharing data, refer to “Installing a Palm handheld computer using Bluetooth technology” and “Installing a Pocket PC using Bluetooth technology” of the Bluetooth On-line help.

Precautions

- Please do not send files larger than 60MB when transferring files through a File Transfer Function or Personal Area Network. Sending a file larger than 60MB may fail due to an unstable Bluetooth connection.

- When using the Personal Area Network function, other computers may not appear in My Network Places. If you cannot see other computers after 5 minutes, click “Start > Search > Computers or people” and enter the name of a computer and search for it.

For procedures to view the name of your computer, refer to “Provide a name for your computer on a personal area network” of the Bluetooth On-line help.

Customizing Your Computer

Using System Setup

The System Setup (BIOS) program enables you to configure your computer hardware and set security and power-savings options. The settings you choose are stored in battery-maintained CMOS memory that saves the information even when the computer's power is turned off. When your computer is turned back on, it is configured with the values found in this memory.

Run System Setup if you get a message prompting you to run the program. You may also want to run System Setup, particularly the first time you use your computer, to set the time and date, use security or power-management features, or alter the settings of other features.

BIOS Caution:

If you are not familiar with BIOS setup and what the parameters mean, seek help from a person who is knowledgeable. Incorrect settings may cause your system to malfunction or "Crash".

Your computer's version of System Setup may not include all the fields listed here or may include additional fields. Field names and order of appearance can vary according to the version of the BIOS (basic input/output system) on your computer.

Starting System Setup

To start System Setup, turn on your computer and then press and hold until the System Setup screen appears.

Table 2. System Setup Menus

Menu Function

Main Changes the basic system.

Advanced Configures advanced features on your computer.

Security Enables security features, including passwords.

Boot Specifies the order of boot devices and configures boot features.

Exit Specifies how to exit System Setup.

To open the menu you need to use, use the left or right arrow keys to select the menu name.

Table 3. System Setup Navigation Keys

Navigation Key Function
	Displays the General Help window.
	Exits the current menu.
< ↑ > o↓ r < > Moves the cursor up and down between fields.
< ← > or < → >	Selects different menus. Pressing thekey at the Main menu brings you to the Exit menu.
	Scrolls backwards through the options for the highlighted field.
	Scrolls forward through the options for the highlighted field.
	Sets the parameters for the current menu to their default values.
	Save changes and exit system setup.
	Executes commands or opens a submenu.

You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to configure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.

1. Select the Boot menu in System Setup.
2. Press on Boot Device Priority item.
3. Use < > key to move to the Hard Drive item, and press <F6> until it is at the very top.
4. Press to save the changed configuration, and exit System Setup. Now you can boot the system with the hard disk drive as the first booting device.

Setting the Supervisor Password

By configuring a supervisor password, you can restrict system access to authorized users only.

Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center.

1. Select the Security menu in the System Setup. To enter System Setup, see “Starting System Setup” on page 97.
2. On the Set Supervisor Password item, press .
3. Enter a password, press , re-enter the password for confirmation, and press again.
4. When a message confirming the password configuration appears in the [Setup Notice] window, press .

Setting the User Password

You can configure user passwords so that other users can use the system.

Before configuring a user password, a supervisor password must have been configured.

Users can start the system with their user password, but cannot enter into the System Setup.

Deactivating the supervisor password also deactivates the user password.

On the Set User Password item, press , and complete step 3-4 of "Setting the Supervisor Password".

Activating the Booting Password

Before activating the booting password, the supervisor password must have been configured.

Set the Password on boot option to [Enabled].

From now on, system booting will not proceed without the password.

Deactivating the Password

1. On the password to delete, press . (e.g. supervisor password)
2. Enter the current configured password, and press .
3. Leave the 'Enter New Password' and 'Confirm New Password' field empty, and press to deactivate the password.

Configuring Resolution and Color Depth

Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen. High color quality displays more number of colours on your screen.

1. Select Start > Control Panel > Appearance and Themes > Change the screen resolution.
2. Make changes on the Settings tab of the [Display Properties] dialog box.

The Graphics Chipset

• For X25 / X50 models, an ATI Graphics Chipset is installed.

• For X20 model, either an ATI or Intel Graphics Chipset is installed. You can view the installed graphics chipset in the Display Properties window.
  . ATI Graphics Chipset : ATI MOBILITY RADEON X300/X600/X700 Chipset or ATI MOBILITY RADEON Graphic Chipset
  . Intel Graphics Chipset : Mobile Intel(R) 915GM Express Chipset or Mobile Intel(R) 910GML Chipset

• When you have completed configuration, click Apply.

For XGA models, configuring the screen resolution to 1024x768, and the colour quality to Highest (32 bit) is recommended.

For SXGA+ models, configuring the screen resolution to 1400x1050, and the colour quality to Highest (32 bit) is recommended.

For UXGA models, configuring the screen resolution to 1600x1200, and the colour quality to Highest (32 bit) is recommended.

For 15.4" WXGA models, configuring the screen resolution to 1280x800, and the colour quality to Highest (32 bit) is recommended.

For 15.4" WSXGA+ models, configuring the screen resolution to 1680x1050, and the colour quality to Highest (32 bit) is recommended.

Using External Display Devices(ATI Chipset model, (p 101))

Using external display devices such as monitors, projectors, TVs, etc allows you to view screen images alternatively or simultaneously on each device. Additionally, you can extend the screen onto two display devices to use a larger workspace. Using external display devices is especially useful when you are giving a presentation or watching a movie through your TV.

Switching Display Devices Using the Shortcut Key

You can watch the screen through either the LCD or an external display device, or you can even watch the screen through both the LCD and an external display device simultaneously.

1. Connect the external display device (e.g. a monitor or a projector) to the corresponding port of the system. To connect a TV, connect the TV to the TV output port of the system.

Connecting to a TV

To connect to a TV, connect the TV-Out port of the system and the S-Video port of the TV with the S-Video cable. (The cable is not included and needs to be purchased additionally.)

Connect to a DTV

To connect to a DTV, connect the TV-Out port of the system and the Component port of the TV output using the Dongle cable and the Component cable (the Dongle cable is not included and needs to be purchased additionally).

Connect the Dongle cable to the TV-Out port of the system and the Component cable.

Dongle cable - The Dongle cable is not included and needs to be purchased additionally.

For X25 / X50 models, the configuration needs to be changed as follows after connecting the cable.

1. Click Start > Control Panel > Appearance and Themes > Display
2. Click the Settings tab > Advanced
3. Click the Display tab.
4. Select YPbPr On/Off.

1. Click Apply.
2. Click YPbPr.

3. Select the appropriate TV type in the YPbPr Properties window and Click Apply.

4. Press the + keys. Provided that an external display device is connected, the display option changes in LCD > CRT > LCD+CRT order whenever the + keys are pressed.

Provided that multiple external display devices are connected, the display order is LCD > CRT > TV > LCD+CRT > LCD+TV > LCD whenever the +<F4 / keys are pressed.

In the DOS environment, the screen is output to LCD and CRT in this sequence. The TV function is not supported. In full screen DOS mode of Windows, you cannot use the hot keys.

Using Dual View to View Extended Screen

You can expand the screen into two display devices and work conveniently in separate workspaces.

In Dual View mode, you can select the screen resolution and colour quality for each display device, as if there were two separate graphics cards.

1. Connect the external display device (e.g. a monitor or a projector) to the corresponding port of the system. To connect a TV, connect the TV to the TV output port of the system. ("Connecting to a TV" (p103))
2. Press touchpad right button on the desktop, click Properties, and then click the Settings tab.
3. Click the monitor '2' icon, select the 'Extend my Windows desktop onto this monitor' check box, and then click Apply.

1. When the configuration is complete, click Identify on the left side of Troubleshoot. The primary display device(the LCD) is indicated as '1', and the

secondary display device is indicated as '2'. Now you can view the screen through two monitors.

2: Secondary1: Primary

When you use Dual View, configuring the LCD as the 'Primary' monitor is recommended.

If the screen of the secondary display device is displayed at 640x480 pixels, with 256 colours, change the settings to the desired screen resolution and colour quality in the [Display Properties] dialog box.

Deactivating Dual View Mode

Click the monitor '2' icon, clear the 'Extend my Windows desktop onto this monitor' check box, and then click Apply.

To move a window between display devices in Dual View mode

Click the title bar of the window in the primary display device (1, the LCD), and drag it to the secondary display device (2). The window is moved to the secondary display device.

Using External Display Devices(Intel Chipset mode, (p 101))

Using external display devices such as monitor or projector, you can view the screen images alternatively or simultaneously. You can extend the screen into two display devices to use larger workspace.

Using external display devices would be especially useful when you are giving presentations or watching a video file.

The 910GML Chipset model does not support HDTV output.

1. Connect the external display device (e.g. a monitor or a projector) to the corresponding port of the system. To connect a TV, connect the TV to the TV output port of the system. ("Connecting to a TV" (p103))
2. Right-click on the desktop, and select Graphics Options > Graphics Properties.
3. On the Devices tab, select your desired display device, and click OK. (The displayed device list is determined by the currently connected devices.)

Monitor Displays	on an external device such as monitor or a projector.
TV You can only view the screen on the TV.
Notebook Displays	on the notebook LCD only.
Intel(R) Dual Display Clone	Displays the same screen on the notebook LCD, and an external device such as monitor or projector.
Extended Desktop	Extends the screen into the notebook LCD and an external device such as monitor or projector to use a 2 times larger workspace.

To switch display devices using shortcut key

You can switch display devices easily by pressing +<F4/ shortcut key.

Provided that multiple external display devices are connected, the display order is LCD > CRT > TV > LCD+CRT > LCD+TV > LCD whenever the +<F4 / ▶ keys are pressed.

You cannot use the +<F4/ shortcut key in the full screen mode DOS prompt.

To change display devices easily

Right-click on the desktop, and select Graphics Options > Output To to change the current display device easily.

To change the screen resolution and color quality

If the screen does not appear clearly, please try to change the screen resolution and colour quality. In the figure of step 3, select a device, and configure the color, screen area, and refresh rate.

When using an LCD and a wide monitor, the LCD and monitor screen sizes may differ. To make them the same size, select 'Apply the same settings to the 2 monitors'.

Using Power Management Options

Your computer includes Power Management options that can help the battery charge last longer and extend the life of the battery. Power-management options will slow down or shut off system components when the components are not being used.

Power management may slow down system performance. Your computer runs fastest with the power cord attached, whereby power management is disabled.

In the next sections, basic and advanced methods of power management will be discussed.

Basic Power Management Schemes

This section discusses the basic schemes of power management when the computer is operating on battery power or using AC power.

Standby vs. Hibernation

Hibernation is a state where the contents of memory are stored in a special file on the hard disk, and Standby simply keeps a small holding current through the memory to keep the data. You are more likely to sustain loss of data in Standby mode so it is recommended to save all open files before entering Standby.

Changing Devices:

Do not change PC Cards while in standby or hibernate modes.

To enter the power management window complete the following:

1. Click Start > Control Panel > Performance and Maintenance.

2. Click icon to display the Power Options Properties window.

3. Click the Power Schemes tab to display the basic power management options.

By default, the power scheme is configured to SAMSUNG mode. SAMSUNG mode extends the battery life and optimizes the Intel Speedstep function. Since the CPU power consumption is automatically optimized to conserve power when the computer is operating on battery power, an application may be executed slower than when it is operating on AC power. To use SAMSUNG mode after reinstalling Windows, install the PowerCFG program using the system software CD.

1. Select the time that you wish each of the following actions to occur in Battery and AC power mode.

2. Turn off monitor

3. Turn off hard disks
4. System standby
5. System hibernates

Turning off the monitor and HDDs will save a substantial amount of battery power, therefore when in battery only mode select the shortest time practical.

You can schedule your system for shutdown, hibernation or standby modes by clicking System > Computer Scheduling of the EasyBox program (p38).

Hibernate Mode (Power Management or Manual Method)

When hibernation is used, your computer turns off and when you power up again, everything is restored exactly as you left it—including programs and documents you may not have saved or closed. Everything in memory gets saved to the HDD, and the monitor and hard disk get turned off.

If You Reinstall Windows:

You should re-establish hibernate in power options by opening Power Options Properties window and click on the Hibernate tab then click "Enable Hibernation".

Frequent Interruptions:

If you experience frequent interruptions, you might also consider putting your computer into automatic hibernation after a specified number of minutes using the power management options.

Standby Mode (Power Management or Manual Method)

Standby is used mainly for conserving battery power in your notebook computer. It also gives you the benefit of getting right back to your work without waiting for the computer to restart. Standby turns off your monitor and hard disks, placing your entire system in a low-power state. When you return to your computer, restores your desktop exactly as you left it. It is recommended that you do not enter standby mode with less than 20% battery power.

5. Click OK to set your power management options and close the window.

Rest Key:

The manual key combination will not activate Standby or Hibernate modes while you are playing a multimedia program or have an active USB device connected.

Advanced Power Management Schemes

This section discusses the advanced power management schemes. There are two buttons that you can use to manually conserve power.

To enter the power management window complete the following:

1. Click Start > Control Panel > Performance and Maintenance.

2. Click icon to display the Power Options Properties window.

3. Click the Advanced tab to display the advanced power management options.

1. Select the mode (Do nothing/Ask me what to do/Standby/Hibernate/Shut down) assigned to the Power button and/or Rest <Esc/ key. Also select the action (Do nothing/Standby/Hibernate) associated with closing the computer lid.

The "Rest" key is assigned to the key combination. See "Basic Power Management Schemes" on page 109 for a better understanding of Standby and Hibernate modes.

1. Click OK to set your power management options and close the window. You can return to normal operation after you have used one of the “Power Management” buttons by quickly pushing and releasing the Power button.

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

Please read the instructions on the battery before use.

Please refer to the system operation environment (p155) of this manual and operate and store the battery at room temperature.

Ejecting and Attaching Battery

1. Shutdown the system and close LCD.
2. Put the computer upside down on a flat surface.
3. Pull the two battery latches outward.( ), then remove the battery.

Laptop back panel with red arrows indicating internal components, next to a battery pack (no text or symbols visible)

1. To install the battery again, slide the battery into the system as below. The battery latches move inward, and fix the battery automatically.

Metallic laptop casing with visible internal components and a red arrow pointing to one side (no text or symbols)

Monitoring the Battery Charge

You can view the battery charge status by completing the following procedures.

To use the shortcut key to view

Press the + key combination on the keyboard and then the current power source and the current remaining battery charge are displayed at the top left of the screen.

To view on the battery

Click the PUSH button on the battery. The remaining battery charge (%) will be displayed.

To view through the Control Panel

Select Start > Control Panel > Performance and Maintenance > Power Option > Power Measure tab. Then you can view the current power source and the current remaining battery charge.

Using the battery

Battery is an expendable supply, so when you use it for a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of the initial time, we recommend that you purchase a new battery to use.

Battery Warning

You will hear an alarm when the remaining battery charge is under 10%. Connect the power cable or turn off the computer and install a fully charged battery.

When the remaining battery charge is under 3%, the computer automatically saves current work and turns off. This may be different according to the settings in Control Panel > Performance and Maintenance > Power Options > Alarms tab.

Using the Battery Manager

Using the Battery Manager program, you can change the configuration of the LCD brightness, the sleep timer and system devices, and can extend the battery usage time to maximum.

Click on Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager.

• Maximum Battery Saving Mode : This mode extends the battery usage time to maximum. This may degrade the performance of the system.
• Normal Mode: This mode extends the battery usage time to normal.

- Maximum Performance Mode : This mode provides maximum system performance at the cost of the battery. Therefore, the battery usage time may be reduced in this mode.

- Custom Mode : In this mode, a user can configure a detailed configuration to save the battery usage time. A user can adjust the LCD brightness, select the time before the system sleeps, select the screen color quality and select the graphics mode. A user can also turn the wireless LAN function on and off.

The Screen Color Quality, Graphics Mode and Wireless LAN in the Detailed Configuration represent the current configuration. Selecting the Set button applies the configuration even without pressing the 'OK' or 'Apply' button.

Controlling the LCD Brightness

If you restart the system after changing the LCD Brightness in Custom Mode, the LCD brightness is changed to its default value. To keep the brightness value configured in Custom Mode, configure the [Brightness Control Mode] item to 'User Control' in the [Boot] menu of the System Setup. (See P. 6-2.)

If it is configured to [Auto], the LCD brightness is changed to level 8 when the power is supplied by the AC adapter, or to level 1 when the power is supplied by the battery according to the default brightness values.

Power Saving Effect

This shows the battery usage time after changing the system configuration in 10 levels for Maximum Battery Saving Mode and in 5 levels for Maximum Performance Mode.

When Running a Game or Multimedia Application

A game or multimedia application may not work smoothly in Maximum Battery Saving Mode. It is recommended selecting at least Normal Mode in this case.

Battery Calibration

Calibrating your battery once a month is one of the recommended methods of increasing your computer's battery life. To calibrate the battery complete the following steps:

Calibration Notes:

You should start the battery calibration process with a fully charged battery, battery status LED is green. The power meter may not show 100%.

Before you commence the battery calibration process you should fully charge, then fully discharge and finally fully recharge the battery again.

1. Disconnect the AC power adapter after turning off the system.
2. Restart your computer and press to enter BIOS setup.
3. Using the arrow keys, highlight Smart Battery Calibration in the Boot menu.
4. Press to start calibration process. The calibration usually takes 3 to 5 hours depending on the current battery charge.
5. When the calibration process is complete, recharge the battery fully.

This computer has one or more 128 MB or 256 MB memory module(s). Two memory module sockets are provided so that you can replace memory or install an additional memory module.

Removing the memory module

Before removing/replacing the memory module, turn the system off completely. Do not replace the memory module when the system is in Standby/Hibernate mode.

1. Using a screwdriver, open the memory module compartment cover on the bottom of the computer.

1. Push the memory module tabs outward to pop the memory module upwards. Carefully pull the module out at an angle of about 30^irc .

Close-up of a computer motherboard showing internal components and a green memory card (no text or symbols visible)

Adding a memory module

1. Align the new memory module connectors accordingly and slide it into the slot at a 30^irc angle.

Ensure the notch on the memory module corresponds with the notch on the socket.

Close-up of a computer monitor showing internal RAM slots and a green drive (no visible text or symbols)

1. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, gently push the memory down while pressing the memory module tabs outward.

Close-up of a computer motherboard showing a green RAM module and a red arrow pointing to it, with no visible text or symbols.

1. Close and fix the memory module compartment cover using a screwdriver.

Using the Security Lock Port

The security lock is a device used to physically 'fix' the system when using it in a public place. The locking device needs to be purchased separately. The shape and methods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.

1. Connect a security lock cable to a fixed object.
2. While holding the security lock port lever to the left, connect the cable to the security lock port.

Exterior view of a silver laptop with attached cable and connector (no text or symbols visible)

Any damage to the machine caused by using a locking / security device is not covered under warranty.

The following information helps you avoid potential problems as you use your computer:

Do not try to disassemble your computer. Opening the system chassis voids your warranty. Only an authorised manufacturer service center can replace or add any parts inside the chassis.

- Follow all the instructions and cautions in your computer user documentation.

- The LCD has a polarized surface and can be damaged easily. To prevent damage, avoid touching the screen.

- Use only approved AC adapters, auto adapters, memory modules and other options.

- Because a notebook computer is small and has restricted air flow around components, it is more likely to overheat than a desktop computer. A fan inside your computer runs when needed to help eliminate heat. Make sure the fan vent on the left side of your computer is not blocked when you use the computer. Occasionally check the vents and remove any accumulated dust on the outside.

- Avoid using or storing the computer in extremely hot or cold areas, such as a car on a hot day. Keep the computer away from heaters and out of direct sunlight. Exposure to excessive heat may damage computer components. If you have left your computer in a hot place, let it cool down slowly to room temperature (with the LCD panel open) before using it.

- Do not remove the memory-module compartment door, or try to install a memory module when the computer is on.

- Set up your computer work area to avoid physical strain. Sit with your back straight and supported by your chair. Adjust your chair or work table so that your arms and wrists can remain in a relaxed position, parallel with the floor. Avoid bending or twisting your wrists as you work. Your hands should “float” slightly above the keyboard. Refer to a book on office ergonomics for more information on setting up your work area.

- Take frequent breaks from working at the computer to rest your eyes and stretch your muscles.

- Remember to save your data files frequently and to make backup copies of your files.

Air Travel

If you are travelling by air, follow these tips:

• Take the computer with you as carry-on luggage. Do not check the computer with your baggage.
• Allow the computer and disks to go through the X-ray security devices. Do not hand-carry disks through the walk-through metal detectors, which can cause loss of data.
• Be prepared to turn off the computer during take off and landing.

Handling Spills

Do not spill anything on your computer. The best way to avoid spills is to avoid eating and drinking around your computer. If you do spill something on your computer, turn off your computer, unplug it immediately, and do the following:

• If you spill liquid on the keyboard, drain as much of the liquid from the keyboard as possible. Be careful not to let the liquid drip onto the LCD panel. Allow the system to dry for several days before trying to use it.
• If you spill liquid on an external keyboard or keypad, unplug it and drain as much of the liquid as possible. Allow the keyboard to sit at room temperature for a full day before trying to use it.

Sweet liquids leave a sticky residue that may jam the keyboard despite your efforts to dry it.

- If you spill liquid on the LCD panel, clean it immediately with a soft cloth and denatured alcohol or a proprietary LCD screen cleaner. Do not use water, window cleaner, acetone, aromatic solvent, or dry, rough towels to clean it.

Some liquids damage the polarized LCD screen. If your screen is damaged, contact your authorized manufacturer's service center for a replacement.

Storing the Computer for Long Periods

If you will not be using the computer for a long period of time (a month or more), you should discharge the battery completely then remove the battery from the computer. This extends the life of the battery.

Troubleshooting

Complete the following in the order presented until your system is functioning properly. If all of the steps below fail then contact your local reseller for assistance.

▶ Questions and Answers

Please see “Questions and Answers” on page 125 for assistance in correcting any computer operational problems.

▶ Check the Connections

Verify all of the power and peripheral cables are securely plugged into their sockets and that your system and power supply is on.

▶ Norton AntiVirus

Run Norton AntiVirus to ensure a virus is not affecting your computer.

To run Norton AntiVirus proceed as follows:

Click Start > All Programs > Norton AntiVirus > Norton AntiVirus 2005.

▶ Windows Help and Support

Run Windows Help and Support to find problem that may be affecting your computer.

To run Windows Help and Support proceed as follows:

Click Start > Help and Support.

▶ Frequently Asked Questions

To view FAQ's on your computer, please visit www.samsungpc.com.

▶ Reinstalling Software

If for some reason your system crashes you may corrupt your HDD, Windows operating system and/or some of your device drivers. If this is the case, use System Recovery CD to reinstall OS and System Software CD to reinstall the corrupt device drivers.

System Recovery Precaution:

Before you start restoring your windows operating system insure you backup all data on your hard drive.

Samsung is NOT responsible for any data loss.

This section provides information on possible problems, solutions and other references for system use.

Windows Related

Q1 The system does not shutdown properly.

A When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off. When the system is turned on after such manual shutdown, Scandisk will run to check errors in the system.

Q2 The system freezes during program operation

A1 There is an error with the program currently being used. Press the , , and keys simultaneously and click and Task in the [Windows Task Manager] window.

A2 There is an error with the Windows OS. Reboot the system by using the Power button.

Display Related

Q1 The LCD screen is too dark or too bright

A Adjust the LCD screen brightness. Use the +<♂▼>, +<♂▲> keys.

Q2 The screen saver disturbs screen viewing during Media Player or video file operation.

A Unselect Tools > Options > Player > Allow screen saver during playback in the Media Player.

Q3 In DOS mode, changing the full screen DOS mode by pressing + key displays a broken image for a short period.

A The DOS mode which supports 2 Byte characters such as Korean and Japanese runs in graphic not in text mode. In this case, a broken image may be displayed while changing the video mode settings.

Q4 In the following cases, the screen blinks or displays noise for a short time: (Click on the Graphics related tab, change the Resolution, change the Display Device, remove the AC Adapter, restart the system and change the PowerPlay level.)

A This may happen while the video driver is examining the connected device. While detecting, any connected display devices may blink or some noise may occur.

Q5 When I connect a projector, and change the setting to display screen image on both the LCD and the projector by pressing +<F4 / keys, screen is not displayed properly.

A Press + keys once again.

Q6 The desktop momentarily appears as a broken image when zooming in or out of the Media Player screen when Media Player is running.

A Since zooming in or out of the Media Player screen changes the screen resolution, the desktop may momentarily appear as a 'broken image' during this operation.

Q7 A DVD or an MPEG file is only played on the LCD (ATI chipset model)

A When both the LCD and the CRT are being used simultaneously, video plays on one of them by default.

1. Right-click over the Desktop and select Properties.
2. In the [Display Properties] window, click the Settings tab > Advanced > ATI Overlay tab.
3. Select the Theater Mode option, and then configure the Overlay Display Mode to 'Theater Mode' or 'All The Same' and then click on Apply. Then you can view the video on both the LCD and CRT screens.

Q8 Pressing the +keys while booting displays a red line on the screen. (For ATI chipset models)

A Pressing the + keys in the Setup screen or while booting the system may display a red line on the screen. This is a problem that occurs while drawing an icon on the screen and does not affect the operation of the system.

Q9 When I change the power source to the battery by removing the AC adapter or change the display device to CRT from LCD, I sometimes see a POWERPLAY warning message (ATI chipset models)

A The PowerPlay function is a new technology that extends the battery usage time. PowerPlay works only when the system is operating on battery power and using an LCD. When the PowerPlay function is disabled due to a changed operating environment, the PowerPlay function warning message may be displayed.

Q10 I cannot see the Taskbar on the Desktop when I use a projector (ATI chipset models)

A This happens when the projector does not support the screen resolutions of 1400 x 1050 pixels or 1680 x 1050 pixels which are supported by the 15.4" WSXGA+ LCD monitor. In this case, change the system screen resolution to 1024 x 768 pixels (recommended).

Modem Related

Q1 I cannot hear the modem sound.

A1 Check that the telephone line is properly connected to the modem.

A2 Check that the modem driver is installed properly.

1. Click Start > Control Panel > Performance and Maintenance > System.
2. Select Hardware tab > Device Manager > Modems in the System Properties window, and check if there is a yellow exclamation mark on the installed modem icon. If there is, delete the modem device driver and reinstall the driver, because the yellow exclamation mark represents a not properly installed driver.
3. If there is no yellow exclamation mark, double-click the installed modem, and click Diagnostics tab > Query Modem in the Modem Properties window to diagnose the modem.
   No message in either of Command and Response in the Diagnostics tab means that the modem is not operating properly.
   Diagnose the modem again after restarting the system or reinstalling the driver. (You have to exit all programs using modem in the advance of diagnostics of the modem).

A3 Although I can make a connection with the modem, I cannot hear the dial tone and modem connection sound. In this case check the following list:

1. Click Start > All Programs > Accessories > Entertainment > Volume Control.
2. Clear the Mute check box in the Telephone Line item.

(Depending on the sound driver, it may be displayed as another name such as Modem, Phone, Mono. If there is no corresponding item, click Options > Properties > Volume Control, select 'Playback', and select the 'Telephone Line' under the 'Display the following volume controls'. Click OK.)

Q2 I cannot make a call using an extension line.

A In general, the dial tone of a PBX or a digital phone switching system is not a continuous one, unlike that of a trunk line.

Therefore, the modem may not make a call because the modem mistakes the dial tone from a PBX or a digital phone switching system as a busy tone.

In this case, complete the following procedures.

- Using an AT command

As an initialization command, use the command, ATX3.

Otherwise, enter the ATX3 command manually before making a call.

It can correct this problem by skipping the dial tone check step.

- Configuring the Modem through the Control Panel

1. Click Start > Control Panel > Network and Internet Connections.
2. Under See Also, click Phone and Modem Options.
3. In the Modems tab, select the installed modem, and click Properties.
4. In the Modem tab of the Modem Properties window, clear the 'Wait for dial tone before dialing' check box.
5. When the configuration is completed, click OK.

Q3 How do I use my modem when dialing from overseas?

A1 Check that the modem is correctly configured according to the current country. Because the values for communication may differ according to the country, you may not be able to connect via the modem due to an incorrect modem configuration.

1. Click Start > Control Panel > Network and Internet Connections.
2. Under See Also, click Phone and Modem Options.
3. In the Dialing Rules tab, click Edit.
4. In the General tab in the Edit Location window, select the current country from the Country/region radio box, specify the Area code, and click OK.

A2 Because the shape of the telephone plug may differ according to the country, you have to purchase and use the appropriate telephone plug for that particular country.

Q4 How do I receive a fax while the system is in power saving mode (Rest mode) (For Windows XP and 2000)?

A To receive a fax when the system is in power saving mode, and the operating system is Windows XP or 2000, configure the system as follows:
1. The automatic fax reception function of the fax program needs to be activated. (For more information, refer to the corresponding fax program manual.)
2. Click Start > Control Panel > Network and Internet Connections.
3. Under See Also, click Phone and Modem Options.

1. In the Modems tab, select the installed modem, and click Properties.
2. In the Power Management tab of the Modem Properties window, select the "With this device, exit the computer from stand-by mode" item and then click OK.

The above setting enables the modem to turn on the system and receive a fax when in power saving mode.

Wired LAN Related

Q1 function

A is a function that activates the system in rest mode when a signal (such as ping or magic packet commands) arrives from network (wired LAN).

To use function:

1. Select My Network Places > View network connections from the Desktop.
2. Click the right button on the touchpad over Local Area Connection, and select Properties.
3. Click Configure, and select Power Management tab. Select 'Allow this device to bring the computer out of standby', then click OK. Restart the system.

- If the system in rest mode is activated when there is no received signal, use the system after disabling function.

- Connecting wired LAN while using wireless LAN may not execute function. Configure wireless LAN to 'Disable' to use function.

1. Click on My Network Place> View network connections on the Desktop.
2. Right-click over Wireless Network Connection and select Disable.

Q2 When I connected 100Mbps wired LAN and the computer exits standby/hibernate mode, a message informing 10Mbps wired LAN connection appears.

A When the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates in 100Mbps.

Wireless LAN Related

Refer to "Connecting Through a Wireless LAN (Option)" (p73) for the basic uses of a wireless LAN.

Q1 The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer.

This is due to an incorrect configuration, or a configuration error. Check the following check lists:

A1 If you are using a computer-to-computer (Ad Hoc) network connection, check that the name of the configured network (SSID) is correct. The network name (SSID) is case sensitive.

A2 If you are using a network key (encryption key), you have to use the same network keys for an AP (Access Point) or a computer-to-computer network (Ad Hoc). The network key of the AP is configured in the AP management program. Ask your network administrator or AP manager for more detailed information.

A3 Check that the device driver is properly installed. If the driver is not properly installed, you will find a yellow exclamation mark on the network icon by clicking Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager > Network adapters > Wireless LAN adapter. If there is a yellow exclamation mark, please reinstall the device driver with the system software CD.

A4 Referring to A2 of Q3, Check that the network bridge configuration is correct.

Q2 The signal strength is excellent, but I cannot connect to the network.

Even if the signal strength is excellent, the network connection may not operate properly if the TCP/IP properties are not properly configured, or the network key (encryption key) is incorrect.

A1 Check that the TCP/IP properties are configured properly. When you connect to an AP, click the Wireless Network Connection icon on the taskbar and select the Support tab. If the IP is not allocated properly, the IP address will be displayed as follows (e.g. 169.254.xxx.xxx).

If the network does not provide DHCP, you have to specify the correct IP address by asking your network administrator.

Even if the network provides DHCP, the server may not allocate an IP address to the client properly, and the client station cannot connect to the network.

A2 Referring to A2 of Q1, check that the network key is correct.

A3 Referring to Q4, check that AP is operating properly.

Q3 I cannot share an Internet connection.

A1 It may require some time to synchronize the computers to share an Internet connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer.

A2 Check if the connection between the network adapters is configured to bridge. If there is a configured bridge connection between the network adapters through the network configuration wizard, remove the network bridge, and reconfigure the Internet connection sharing.

A bridge connection is created when you ran Network Setup Wizard from the [Network Connections] window, and selected both the internal connection adapter and another adapter in the wizard.

Q4 I cannot connect to the AP.

Check the Computer Settings

A1 Verify whether the wireless LAN function of the computer is on by doing the following. If the wireless LAN function is off, turn it on.

- For Windows XP, verify that the wireless network connection has been set to "Enable" in Start > Control Panel > Network Connections.

- If there is a Wireless LAN On/Off button, check if the wireless LAN button is pressed.

A2 Verify whether the same network key (encryption key) has been entered in both the AP and the computer.

The network key is an encryption key for encrypting data transmitted between the AP and the computer. It is recommended setting the network key manually.

Check the AP Settings

For the AP settings, refer to the User's Guide provided by the AP manufacturer.

A3 Verify whether the environment is suitable for using a wireless LAN.

The use of a wireless LAN may be restricted according to the environment and distance. Obstacles such as walls or doors affect the use of a wireless LAN.

Install the AP in a high and open space 50cm from the wall and far removed from any other radio signal sources.

A4 Verify whether the AP is operating properly.

- When the AP is not operating normally, turn off the AP and after a short while turn it on again.

- Verify whether the AP's firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.)

A5 Verify whether the AP has been properly connected to the network.

Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer.

A6 Check the network key settings (encryption key).

When automatic code conversion (a passphrase function) has been selected and data communication is not functioning even with a normal wireless connection, it is recommended entering the network key (encryption key) manually.

A7 Check the AP settings as follows. (The following is recommended for a standard environment and thus may differ according to the specific wireless network environment.)

- When several APs are present simultaneously, check the channel setting for each AP. When different APs are using nearby channels, interference may occur between electronic waves. Set the APs' channels further apart from each other. (Ex: Ch1, Ch5, Ch9, Ch13)

- When an AP's SSID (Service Set ID) option is set to "Hide", you cannot search for that AP on the computer. We recommend canceling the "Hide" option for an AP. The SSID is a name for distinguishing one wireless LAN from another wireless LAN.

- It is recommended using Long Preamble. Preamble is a signal for data transmission synchronization. Short Preamble may be supported by some types of APs but may cause compatibility problems.

- It is recommended using a static IP.

- Since static channel selection is more reliable than auto channel selection, it is recommended setting a static channel.

Q5 In the Windows XP 'Available wireless networks' window, the Wireless Network Connection is displayed as 'Not Available'.

A1 When there is a Wireless LAN button, ensure that the Wireless LAN button is turned on.

A2 Check if there is additional program for a wireless LAN connection installed. Windows XP supports wireless LAN connections through the Wireless Zero Configuration (WZC) service. Therefore, an additional program for wireless LAN connection is not required, unless the network requires a specific program. However, installation of some wireless LAN related programs may sometimes

disable the [View Available Wireless Networks] window supported by WZC service. Exit the wireless LAN related program then check whether the window is enabled.

A3 Initialize the device driver.

Click Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager > Network adapters, and select the wireless LAN adapter. Right-click the network adaptor and select 'Disable'. Then right-click over the network adaptor and select 'Enable' after a short wait to check that the device is operating properly.

A4 Right-click the My computer icon, and select Manage. When the Computer Management window appears, double-click Services and Applications on the left, and then click Services from the sub menu tree. Select the Standard tab in the right pane, double-click Wireless Zero Configuration and check that Startup Type is configured to Automatic, and the Service status is Started.

A5 In the case of Windows XP, click Advanced in the [Wireless Network

Connection] dialog box (see "Connecting to an Access Point (AP)" (p74)) and make sure that 'Use Windows to configure my wireless network settings' is selected.

This may happen when a third-party wireless network setup program (e.g. PROSet) other than Windows XP default program is installed. For setting up a wireless network using the Windows XP program, this option should be selected.

Q6 When connecting to a computer-to-computer (Ad Hoc) network, I cannot connect to another computer connected to the same computer-to-computer network.

A1 Make sure that the security settings and network name of the computer-to-computer (Ad Hoc) network is correct.

A2 Check the TCP/IP properties of the computers to be connected through the computer-to-computer (Ad Hoc) network. All of the computers to be connected through a computer-to-computer (Ad Hoc) network should be configured so that their IP addresses are within the same subnet range.

- If the TCP/IP Settings are configured to DHCP, the address is automatically configured to an address within the subnet IP range. This will take about 2\~3 minutes.

- If the IP address is configured to static IP in TCP/IP properties, select Use the following IP address in the TCP/IP properties of the wireless adapter, configure IP address:10.0.0.1\~10.0.0.254, and Subnet mask: 255.255.0.0, and then try again.

- A fixed IP is recommended for a small-size network.

Q7 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot search the access point.

A It may happen occasionally when you are using a computer-to-computer (Ad Hoc) network connection. Even if you cannot find some access points, the computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to view the latest search result.

Q8 Running Help file while running Profile Wizard in the wireless LAN program (PROSet) makes the PROSet window white.

A It will be displayed properly when you finish the profile wizard. It does not affect the program operation.

Q9 The network does not operate properly when both the wireless and the wired network connections are simultaneously configured with the same IP address.

A You cannot use the wireless and the wired network connections using the same IP address simultaneously. To use either the wireless or the wired network in turn with the same IP address, you have to Disable whichever network device will not be using in the network connection of the Control Panel.

Q10 The wireless LAN does not work properly when there is a device operating on an adjacent frequency in the vicinity of the product.

A1 Channel interference may occur when a wireless video transceiver or a microwave oven is being used. If you experience channel interference from other equipment, it is recommended changing the channel to connect to the AP. For more information about AP settings, refer to the User Manual supplied by the AP manufacturer.

A2 IEEE802.11g equipment operates in hybrid mode when there is active IEEE802.11b equipment. This may result in data rate degradation.

Q11 An established wireless LAN connection is disconnected after 2\~3 minutes, and the connection is not recovered.

A1 This may be caused by channel interference. Change the channel of the AP, and reconnect.

A2 This may be caused by selecting the 'Use IEEE 802.1x network authentication' option when IEEE 802.1x authentication is not available.

Check the properties of the AP in the wireless network settings. If the 'Use IEEE 802.1x authentication in this network' option is selected, deselect the option on the Authentication tab.

For more detailed information about authentication server, ask your network administrator.

A3 If the AP is configured to 'Use network authentication (Shared Key)'

If the AP is configured to authentication shared mode, all computers to be connected should be configured as follows:

- If you are using Windows XP, select network authentication(shared mode) in the wireless network settings.

Click Start > Control Panel > Network and Internet Connections > Network Connections. Right-click the Wireless Network Connection icon, and click View Available Wireless Networks > Advanced. In the Wireless Networks tab, select an AP in the Available Networks field and click Configure and select 'Network Authentication (Shared Mode).

For more network authentication procedures, ask your AP (Access Point) administrator.

Q12 After PROSet is installed, The “AEGIS Protocol (IEEE 802.1x) v2.2.1.0” appears in the [Local Area Connection Properties] window.

A The AEGIS Protocol is a security authentication protocol that is automatically installed when PROSet is installed and does not affect the operation of other programs.

Q13 Although I have turned the wireless LAN off using the Off Button on the PROSet, the wireless LAN operating light is still on.

A This is normal. The Off Button for the Wireless LAN on the PROSet only turns off the S/W and not the H/W for the Wireless LAN.

Q14 After installing the PROSet, I cannot manage the wireless network under Windows.(for an 11a/g and 11g card)

A Click on "Use Microsoft Client" in the Tools menu of the PROSet program to manage a wireless network in Windows.

To manage a wireless network in the PROSet program, click on "Use Inter PROSet/Wireless" in the Tools menu of the PROSet program.

Games and Programs Related

Q1 3D game is not executed, or some functions are not working.

A Change the graphic setting of the game to '2D' or 'Software Renderer', then execute the program again.

Q2 I launched a game right after installing it, and the game is not executed.

A This problem may occur when the game is not compatible with Windows XP. Launch the game again, and it will be executed properly.

Q3 A game runs only in small screen format.

(ATI chipset models)

A This may happen when the display settings are configured to reduced mode ('Use Centered Output'). To view the game in full screen mode, complete the following procedures.

1. Right-click on the desktop using the touchpad, and then select Properties.

2. In the [Display Properties] window, click the Settings tab > Advanced > ATI Display tab.

3. Select the Panel item, and select 'Extend the image to the screen size' in the Display Properties.

(Intel chipset models)

A1 Before launching a game, right-click over the Desktop, and select Graphics Option >Fit to Monitor > Available.

A2 Before launching a game, configure to the Full Screen mode as follows.

1. Right-click in the video screen,

2. Click Graphics Options > Graphics Properties > Devices tab.

3. Click the corresponding device and then select 'Full Screen'.

4. Click OK.

Q4 While playing a 3D game, I tried to change display devices using + <F4/▶ keys, then the system does not operate.

A When you use + keys while playing a 3D game, a system error may occur.

Do not use + <F4 / □ keys while playing a 3D game.

Q5 Key combination does not work.

A While displaying video of VCD or MPEG, or the display setting is Dual View, you cannot toggle display devices. Also the installation of NetWare Client 32 program disables the function of <Fn+F4/

Q6 While playing a game, pressing the +keys does not work or the screen is not properly displayed.

A Some games and 3D application programs may change the display device control. Therefore, pressing the +<F4/▶ keys may terminate the running program or may display an abnormal screen.

Press the +<F4 / keys before launching a program and do not press them while running the program.

Q7 Running speed of a game is too slow or fast.

A Change the setting of Power Schemes to 'Always On'. (Click Start > Control Panel > Performance and Maintenance > Power Options > Power Schemes tab, then configure the Power schemes field to 'Always On'.)

Q8 Pressing +<F2/→ keys while running a game may cause abnormal operation of the system.

A Do not press + keys while a game is running, because it may cause a system error.

Q9 Some part of a game image is not displayed or is displayed in black.

A This may happen when running a game designed for DirectX 8.1, such as NHL 2003, MVP Baseball 2003, etc.

Q10 When playing a game, the image display temporarily freezes a number of times.

(ATI chipset models)

A This may happen when the PowerPlay setting is configured to ‘Optimal Battery usage time’ or ‘Balance’.

1. Right-click over the Desktop and then select Properties.

2. In the [Display Properties] window, select the Settings tab > Advanced > ATI POWERPLAY tab.

3. Click the PowerPlay Settings button, and set the Plug-In, High Battery and Low Battery sliders to 'Optimal Performance' and then click Apply.

(Intel chipset models)

A This may happen when using the DFGT function.

1. Right-click over the Desktop and select Graphics Option > Graphics Properties > Device tab.
2. Click Notebook and click 'Power Schemes Settings'.
3. Unselect 'Intel® Dual-Frequency Graphics Technology'.
4. Click OK.

Q11 The screen is severely interrupted in some games.(ATI chipset models)

A In 3D games, the texture data needed in 3D screen presentation are stored in the system memory. When the system memory is not enough, the data is stored in the hard disk and transferred to system memory when the data is needed. In some games, the screen may be interrupted during this process.

Lower the game resolution or texture image quality.(Linage 2, Terminator 3, Delta Force : Black Hawk Down, Medal of Honor, Battlefield 1942, etc.)

Q12 When I run 'The Sims Fun Party' game in Dual Display Clone mode, a mouse cursor afterimage appears (Intel chipset models)

A Change the display device to LCD only, by pressing the + keys and launch the game again.

Q13 When I play multiple avi and mpg files with Mplayer2, a different screen plays (Intel chipset models)

A This may happen when you play more than 3 video files simultaneously. Please play only up to 2 video files at a time.

Security Center

Q1 To change the popup window display settings when connected to the Internet.

In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security.

A1 To display most of the popup windows when connected to the Internet:

1. Click on Internet Options in Start > Control Panel > Security Center > Manage security settings for.

2. In the Privacy tab of Internet Properties, clear Block pop-ups.

A2 To display popup windows only from the current site when connected to the Internet:

Place the cursor on the notification area at the bottom of the Internet address bar and right-click to display a menu, from which you can select Temporarily Allow Pop-ups or Always Allow Pop-ups from This Site.

A3 To display popup windows from a particular site:

1. Click on Internet Options in Start > Control Panel > Security Center > Manage security settings for.

2. In the Privacy tab of Internet Properties, click on Settings from Block pop-ups.

3. Enter a URL to want to allow pop-ups into Address of Web site to allow and click on Add.

4. You will find that the entered address is added to the allowed sites list. The next time you connect to the Web site, you will see pop-ups appearing.

When you need to re-block a permitted site, select the Web site address that you want to block from the Allowed Sites and click on Remove.

Q2 When you connect to a Web site, you see the message, “To help protect your security, Internet Explorer stopped this site from installing an ActiveX control on your computer” or “This site might require the following ActiveX control” below the address bar.

A Windows XP SP2 blocks unsigned ActiveX controls from being installed when connected to certain Web sites for security reasons. On some Web sites that have no ActiveX controls installed, applications are not started or do not display properly.

In this case, to install ActiveX controls, right-click the notification area to display a menu from which you can select Install ActiveX control.

Q3 When you see a Windows Security Alert icon () appear on the right part of the task bar.

With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet. In this case, check the following to install the necessary components.

A1 Set up the Windows Firewall.

When you set up the Windows Firewall, you will be protected from unauthorized access through the Internet or the network.

1. Click on Windows Firewall in Start > Control Panel > Security Center > Manage security settings for.

2. From the General tab of Windows Firewall, select ON (recommended).

3. If you want to allow a certain program or service to gain access to your computer using the Firewall, select and check the program or service that you want to allow access from, in the Exceptions tab of the Windows Firewall. If you want to add a program to Programs and Services, click on Add Program and select it.

A2 Set up Windows Automatic Updates.

This automatically downloads and installs critical updates via the Internet to keep your computer up to date.

1. Click on Automatic Updates in Start > Control Panel > Security Center > Manage security settings for.

2. From general tab of Automatic Updates window, select Automatic (recommended).

A3 Keep your computer current with the latest virus updates. (ex: Norton Antivirus) Even when you have installed Norton AntiVirus on your computer, Windows cannot recognize the program until you configure the settings, displaying a Security Alert icon.

When you first use or install Norton AntiVirus for the first time, follow the Registration Wizard steps to configure the registration settings.

To protect your computer from virus attacks with the latest updates, click on Options to display the Norton AntiVirus Options window. From the left menu of the window, check Run Automatic Protection to select Automatic Protection and check Run LiveUpdate to select LiveUpdate.

A4 Two virus scanning programs on one computer may cause system conflicts. Remove one of the programs from the system.

A5 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.

A list of anti-virus programs that Windows can detect:

-Symantec Norton Anti-Virus

-NetworkAssociates (McAfee)

-TrendMicro

-ComputerAssociates

-Panda

-Kaspersky

-Ahnlabs (AhnLab)

The list is subject to change. Visit the Web site (www.microsoft.com) regularly to check the latest list

HDTV Related

The 910GML Chipset model does not support HDTV output.

Q1 On a component TV, the Full Screen DOS Mode screen does not display.

A A component TV does not support the Full Screen DOS Mode screen due to an output power problem of the TV. Please use DOS mode in a window when using a component TV.

Q2 The colors are too blurred.

A Depending on the model of the TV or the color settings, a specific color may dominate. Adjust the color settings of the TV.

Q3 When I watch a DVD and the resolution is higher than 540, the screen is not displayed or an error message appears.

A The DVD international standard does not support resolutions higher than 480P. Configure the resolution of the component output mode to lower than 480P.

Q4 How can I configure a component TV device?

(ATI chipset models)

A 1. Right-click over the Desktop and then select Properties.

1. In the [Display Properties] window, select the Settings tab > Advanced > ATI Display tab.
2. Select the YPbPr item and click the Apply button.
3. Click the YPbPr button and select the appropriate TV type and then click the Apply button.

(Intel chipset models)

A Open the Graphics Properties window according to the following procedures.

1. Right-click over the Desktop and then select Graphics Option >Graphics Properties.
2. Select TV from the Device tab.
3. Select a resolution or type and click the Apply button.

Q5 The screen does not display on the component TV.

(ATI chipset models)

A This happens when the TV does not support the component TV mode configured in the video driver.

1. Click Display Properties > Settings > Advanced > Display tab > YPbPr button.
2. Select the relevant modes (480i, 480p, 540p, 720p, 1080i, 16:9) and click the Apply button. (At this time, the mode changes to the highest of the selected modes depending on the supported modes of the TV.)
3. Double-click the On/Off button of the YPbPr to change to the configured mode.
4. Click the Apply button.

(Intel chipset models)

A This happens when the TV does not support the component TV mode configured in the video driver.

1. Launch the Intel Graphics Properties.
2. Select TV from the Device tab, select a mode (720p, 1080i) and click the Apply button

Q6 When I am watching the screen on a TV using YPbPr, the edges of the screen are trimmed.

(ATI chipset models)

A Due to the hardware limit of the current ATI video chipset, a HDTV Underscanning function is not supported so that edges of the screen are trimmed. The amount of edges trimmed is determined by the YPbPr mode and the TV type. (Intel chipset models)

A Check that ‘Full Screen’ is selected in the Intel graphics properties. This happens because the current Intel chipset does not support the HDTV Underscanning function. The amount of edges trimmed is determined by the YPbPr mode and the TV type.

เท็บ Hibernate

การหยุดทำงานบ่อย ๆ:

Laptop back panel with red arrows indicating internal components, next to a battery pack (no text or symbols visible)

3D rendering of a silver laptop case with visible internal components and a red arrow pointing to a specific area (no text or symbols)

การใช้แบตเตอรี่

Close-up of a computer motherboard showing a green internal RAM module and drive slots, with red arrows indicating component movement (no text or symbols visible)

Close-up of a computer motherboard showing a green RAM module and drive slots, with a red arrow pointing to a component (no text or symbols visible)

Close-up of a computer motherboard showing a green internal RAM chip with a red arrow pointing to it, no visible text or symbols.

Laptop with attached cable and connector, no visible text or symbols

Q2 Storage Cheese Waste Production and Production of Media Player

Press any key to boot from CD.....

Intel(R) PRO/Wireless 2200BG Network Connection

Intel(R) PRO/Wireless 2915ABG Network Connection

Atheros Wireless Network Adapter Device

LBA .... Logical block addressing

LCD .... .Liquid-crystal display

m ..... [1]

PCI....Peripheral component interconnect

PCMCIA. . . . . . Personal Computer Memory Card International Association

POST....Power-on self-test

PNP....Plug and play

PS/2 . . . . . . . . Personal System/2

RAM. . . . . . . . . . Random-access memory

ROM....Read-only memory

SVGA .... Super video graphics array

TFT....Thin-film transistor

USB .... Universal serial bus

VCC.....Voltage collector current

VDC.....Voltage direct current

whr. . . . . . . . . . . Watt hour

อะแคปเตอร์ AC

DMA (direct memory access)

RAM (random access memory)

ROM (read-only memory)

TFT (thin film transistor) LCD
