Range Hood Installation Guide and User Manual

Isometric line drawing of a rectangular mechanical component with a circular top and flange (no text or symbols)

Applicable model: HRH3001U HRH3002U HRH3003U HRH3004U HRH3005U

HRH3601U HRH3602U HRH3603U HRH3604U HRH3605U

HRH4801U HRH4802U HRH4805U

SA® C US

Safety Notice

Approved for residential type untis for residential use only read these instructions and be safe.

Please read these instructions completely before starting.

The installation of the appliance must respect all codes.

Important: Save these instructions so that you can provide the electrical inspector in your area.

Safety Warning: Turn off the circuit in the electrical panel and lock front panel to connect the cord

Power requirement: 110V-120V/60HZ

CAUTION: USE THIS PRODUCT FOR GENERAL FAN ONLY. DO NOT USE THIS PRODUCT TO EX

HAZARDOUS OR EXPLOSIVE MATERIALS.

WARNING TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PEOPLE, OBSER

FOLLOWING:

1. Use this unit only for the purposes intended by the manufacturer. If you have any questions about this product, contact the manufacturer.

2. Before the machine's maintenance or cleaning, turn off the electrical panel and lock the panel blocking feature to prevent from accidentally activating the power. If it is not possible to lock the access panel, attach a highly visible label to the electrical panel.

3. A qualified person should perform the installation and wiring of the electricity in accordance with a standards, including fire resistance rating.

4. When you use hood together with stove, please do not close the window and door of the kitchen. Because during the fuel stove working, which will consume lots of air, so do open the door and window to make the k any suffocation.

5. It is important to provide sufficient air for proper combustion of heating equipment and proper evacuation of gases through the chimney pipe to prevent back flow of air. Follow the instructions and safety standards of the manufacturers of heating equipment, such as those published by the National Fire Protection Association (NFPA), the America Refrigeration and Air Conditioning Engineers (ASJRAE) and the code authorities in your area.

6. When cutting or drilling into wall or ceiling, be sure not to damage electrical wiring or other access to public service.

7. Always evacuate outside the conduit system.

To reduce the risk of fire and to properly exhaust air, be sure that the pipe is leading outside, do not exhaust air into the

space between the walls, ceilings, attics, crawl spaces or garages.

Waring: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT, Install this hood in accordance with all the requirements mentioned.

WARNING: TO REDUCE THE RISK OF FIRE, GREASE THE RANGE.

1. Never leave the stove unattended when it is at a high temperature. Boil overs cause smoke and ignite. Heat the oil slowly at a low or medium temperature.
2. Always operate the hood when you use the stove to high heat or when you Flame.
3. Clean ventilating fans frequently. Do not let fat accumulate on the filters or propellers.
4. Use proper pan size. Always use a pot size appropriate to the stove element.
5. Do not touch on-working or off-soon bulb, to avoid any thorny.

Warning

TO AVOID INJURING SOMEONE IN A GREASE FIRE, FOLLOW THE FOLLOWING:

1. SMOTHER FLAMES with a lid to the dimensions of the cooking hobs, a cookie sheet or other metal tray, then turn off the gas or power supply of the stove. BE CAREFUL NOT TO BURN YOURSELF. If the flames do not AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK IP A FLAMMING PAN. You could be hurt.

3. DO NOT USE WATER, including Dish towels or wet towels-a violent steam explosion of dew may

4. Use an extinguisher only if:

. You are sure to have a Class ABC extinguisher that you know how to use.

. The fire is small and confined to the area where it was formed.

.Firefighters was called.

.You can fight against the fire with an exit behind you.

Operative Mode

Always leave safety grills and filers in place. Without the presence of lowers could catch hair, fingers or clothing. The manufacturer is not liable if detailed in this manual for installation info, maintenance and proper use of the product are not observed. The manufacturer declines all responsibility for any injury caused by negligence. This product is manufactured for internal use. Do not use this appliance outdoors.

Electrical requirements and installation requirements

Power Requirements

IMPORTANT

Observe all governing codes and ordinances. The customer is responsible for: Contacting an electrician-installer. Check that the electrical installation is adequate and in conformance with the National Electrical Code, ANSI / NFPA 70 (latest edition *) or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 (the latest edition **) of the CSA, and all codes and ordinances in your area. If codes permit and use a wire to separate the ground, it is path of the wire by an electrician. Do not put the device to land on a gas line. Consult a qualified person if you are not sure that the hood is properly grounded electrically. Do not install a fuse in the neutral circuit or circuit ground.

Location of the electrical installation

- The cable must enter the rear wall at least 20 to 1/4 "above the height of the installation base, and between 7-5/8" and 4-7/8 "from the left side of the middle line.

IMPORTANT

Keep these instructions in order to return them to the electrical inspector. The hood must be plugged directly into a 110 volt wall outlet.

Technical line drawing of a mechanical assembly with a cylindrical component and wiring, no visible text or symbols

Before installing the hood

1. To ensure the most efficient ventilation possible, install the pipe in a straight line or with the least elbows possible.

CAUTION: The output of the vent pipe should give to the outside.

1. Two people are required for installation.

2. Supplied hardware can secure the hood to most walls and ceilings, consult a qualified installer to ensure that the hardware provided is suitable for your type of wall or cabinet.

3. In the case of areas prone to COLD WEATHER, install a check against extra-circulation to minimize the cold air return and a nonmetallic thermal break to minimize conduction of outside temperature in the duct. The valve must be placed on the side of the cold air from the heat insulator. The insulation must be placed as close as possible to where the pipe enters the heated part of the house.

4. Air booster: The building code in your area may require the use of a make-up air system if you use a ventilation system which leads the movement of air exceeding a certain number of CFM. The number of ft3/min varies another. Consult your HVAC professional for specific requirements in your area.

Remove the packaging.

CAUTION: Carefully remove the cardboard, gloves to protect against sharp edges.

Examples and positioning possibilities ducts

Follow the letter of the guidelines presented in this manual.

The manufacturer declines any liability with respect to any loss, damage or fire caused by non-observance of the instructions contained in this manual.

Ventilation methods

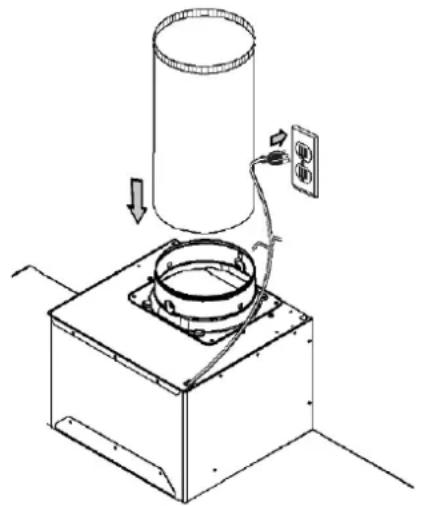

The hood is equipped with a vertical transition to remove fumes outside.

Recommended diameter conduit model and wall chimney hood and hood island: vertical round pipe 7" tolerance + or - 1. Models Chimney hood Wall: HRH3003U, HRH3004U

Diagram of a cylindrical device with a base and pipe, showing fluid flow direction (no text or symbols)

Technical line drawing of a ceiling structure with support frame and mounting bracket (no text or symbols)

Technical line drawing of a structural support frame with diagonal bracing and vertical supports (no text or symbols)

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

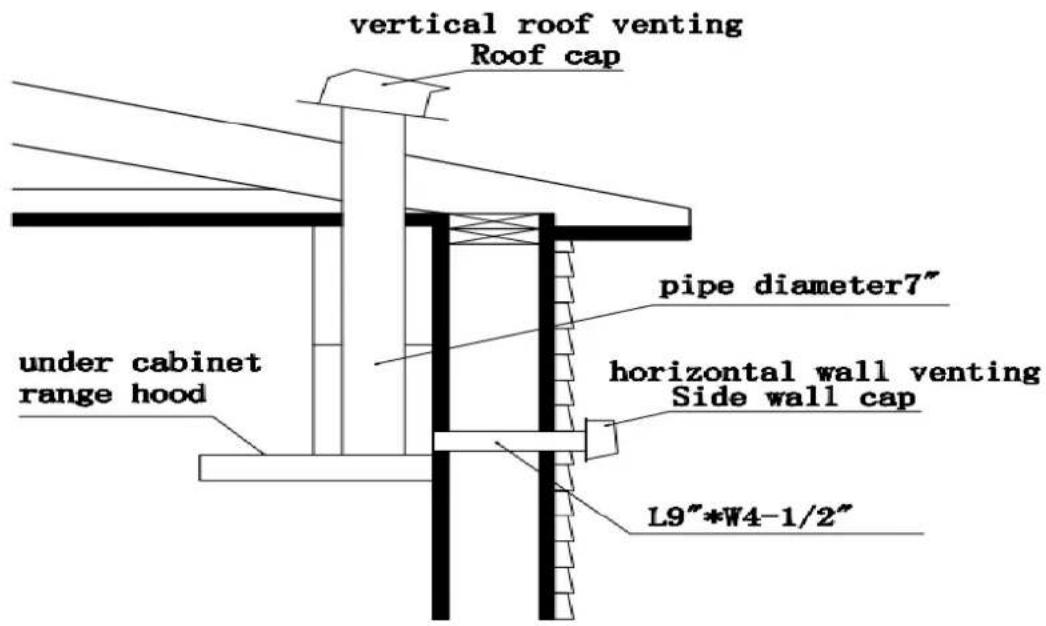

vertical roof venting Roof cap under cabinet range hood pipe diameter7" horizontal wall venting Side wall cap L9"*W4-1/2"

Do not cut a joist or stud unless it is absolutely necessary to do so. If you need to cut a joist or stud, you must build a support Framework, hardware supplied can secure the hood to most walls and ceilings. However, you should technician to check the strength of materials depending on the type of wall or ceiling. Before cutting, make sure there is enough clearance in the ceiling or wall for the outlet pass. You can determine for yourself how high you install the hood above the stove. Over the hood near the stove, it is more effective to capture cooking odour, grease and

Clearance Training

Min27" Max30" 36" Ceiling Height

Caution: When install the hood, the height should not be too high or too low. Before the installation, please inspect the maximum height of your ceiling and bonnet. Too high, will affect the efficiency of the hood; too low, stove temperature will damage some parts of the hood. So the installation height requirement is: the distance between the bottom of the hood to the surface of the cooktop is Max 30"/ Min 27"(as figure showing)

Installation

If possible, unplug the stove and move it in order to have better access to the rear wall. Otherwise, place a thick blanket on the counter and the cooking surface to protect it from damage and dirt. Select a flat surface for a

Then put the debris of the cover and hardware on to the protective cap.

Determine and mark the center line on the wall where you installed the canopy hood.

Determine a comfortable height for the user and mark it on the wall behind the stove top.

Place the template on the center line and the bottom of the hood with adhesive tape.

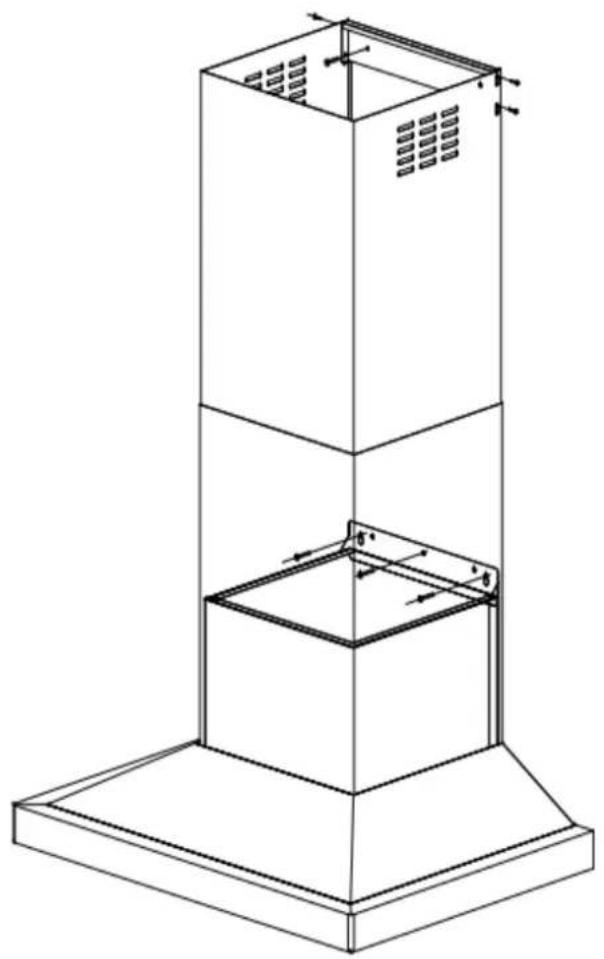

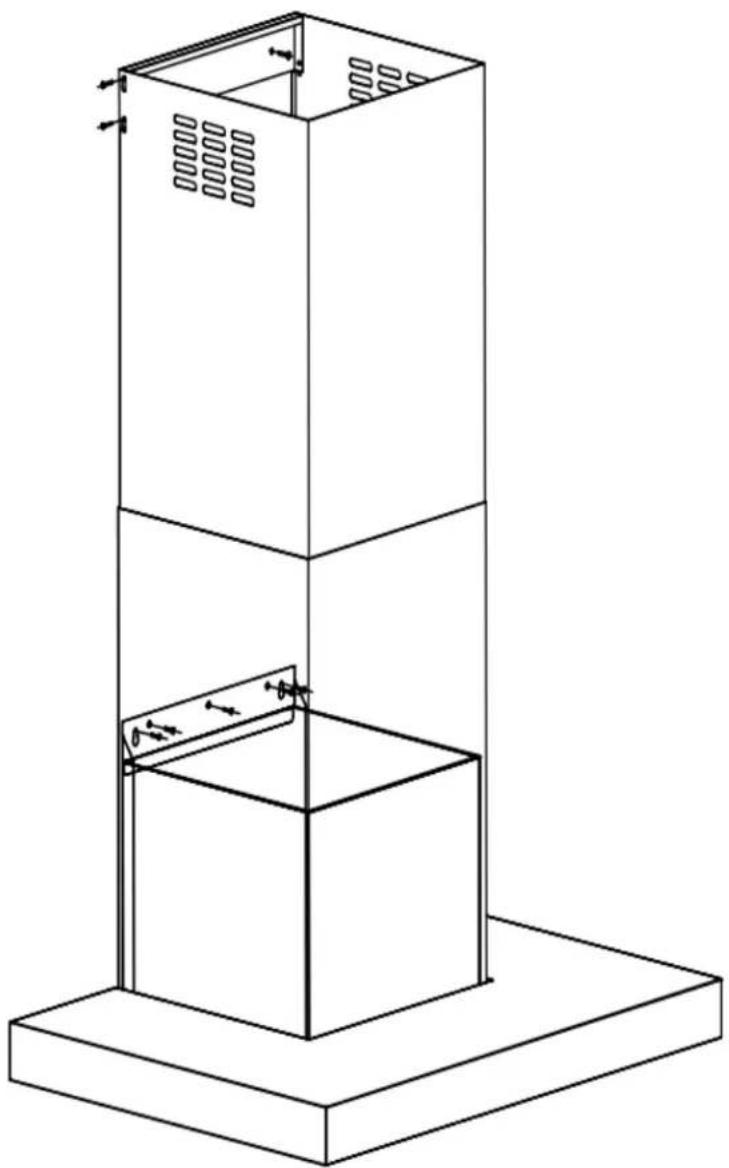

Place the squares of the flue

The flue must be installed against the back wall and the ceiling.

This bracket will keep the chimney up to the top.

Attach the brackets to the wall:

• Align the center lines drawn on the bracket with the center lines on the wall.
• Identify the two screw holes on the wall.
• Drill pilot holes 5/16 "in the locations shown.
• Place the fastening clips to the wall.
• Tighten wood screws, by hand, in the attachments to allow hooks to expand. Remove the screws.
• Drill guide hole, 5/16inch.
• Make clamp fix to the wall, screw down the bolts on the wall.
• Attach the bracket to the wall using the screws and / or fasteners.

Ceiling pipe

If the duct vents just above the ceiling:

• Use a level to draw a line, the center line of the template to the ceiling.
• Measure at least 4 "from the back wall to the center of the circle with a hole 7 - 12 " in the ceiling.

Lead in the wall If the duct vents at the rear:

Note: For a minimum extension of the chimney, we recommend using an adapter circular / rectangular fireplace.

• Use a level to draw a straight line from the center line on the template.
• Measure at least 26 - 1/4 "(the measure may vary elbow used) above the pencil line indicating the height of the bottom of the system, the circle of a conduit hole 7 - 12 " in diameter (the hole may be enlarged for the passage of the elbow).

Necessary Tools

9-3/4" (248)

13.2" 13.26" Max 17.9" 19.68" 3.34" 29.5° / 35.5° 21.81" 2.12°

Technical line drawing of a multi-tiered industrial chimney or duct structure (no text or symbols)

HRH3003U

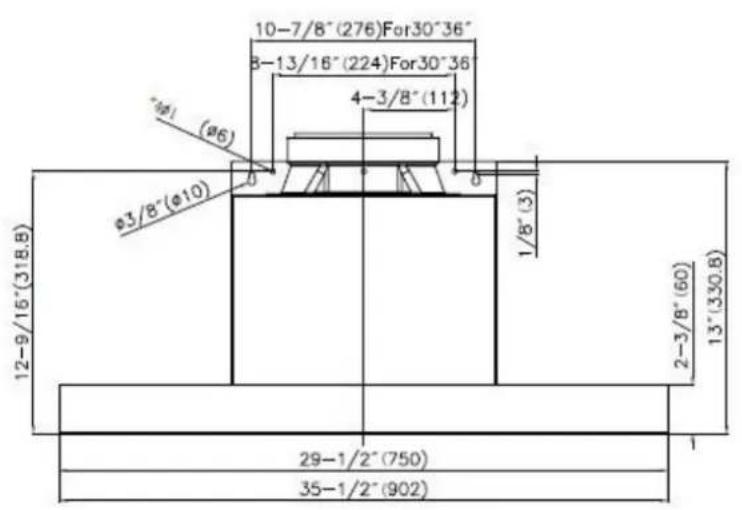

Installation dimension figure of HRH3004U as below:

vertical roof venting Roof cap under cabinet range hood pipe diameter7" horizontal wall venting Side wall cap L9"*W4-1/2"

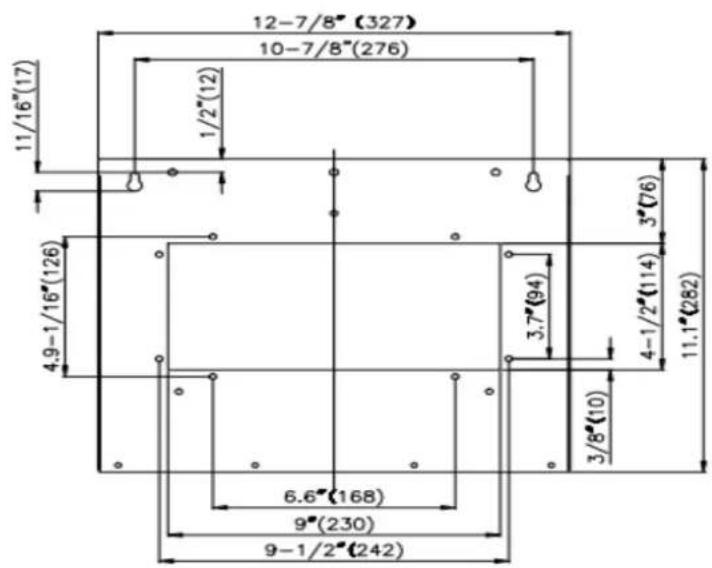

12-7/8" (327) 10-7/8" (276) 11/16" (17) 1/2" (12) 4.9-1/16" (126) 3.7" (94) 3/8" (10) 4-1/2" (114) 3" (76) 11.1" (282) 6.6" (168) 9" (230) 9-1/2" (242)

10-7/8" (276) For30°36" 8-13/16" (224) For30°36" 4-3/8" (112) φ1 (φ6) φ3/8" (φ10) 1/8" (3) 12-9/16" (318.8) 2-3/8" (60) 13" (330.8) 29-1/2" (750) 35-1/2" (902)

Ø6-5/8" (Ø188) Ø7-5/16" (Ø186) 3-13/16" (97) 21-5/8" (550) 10-1/4" (260)

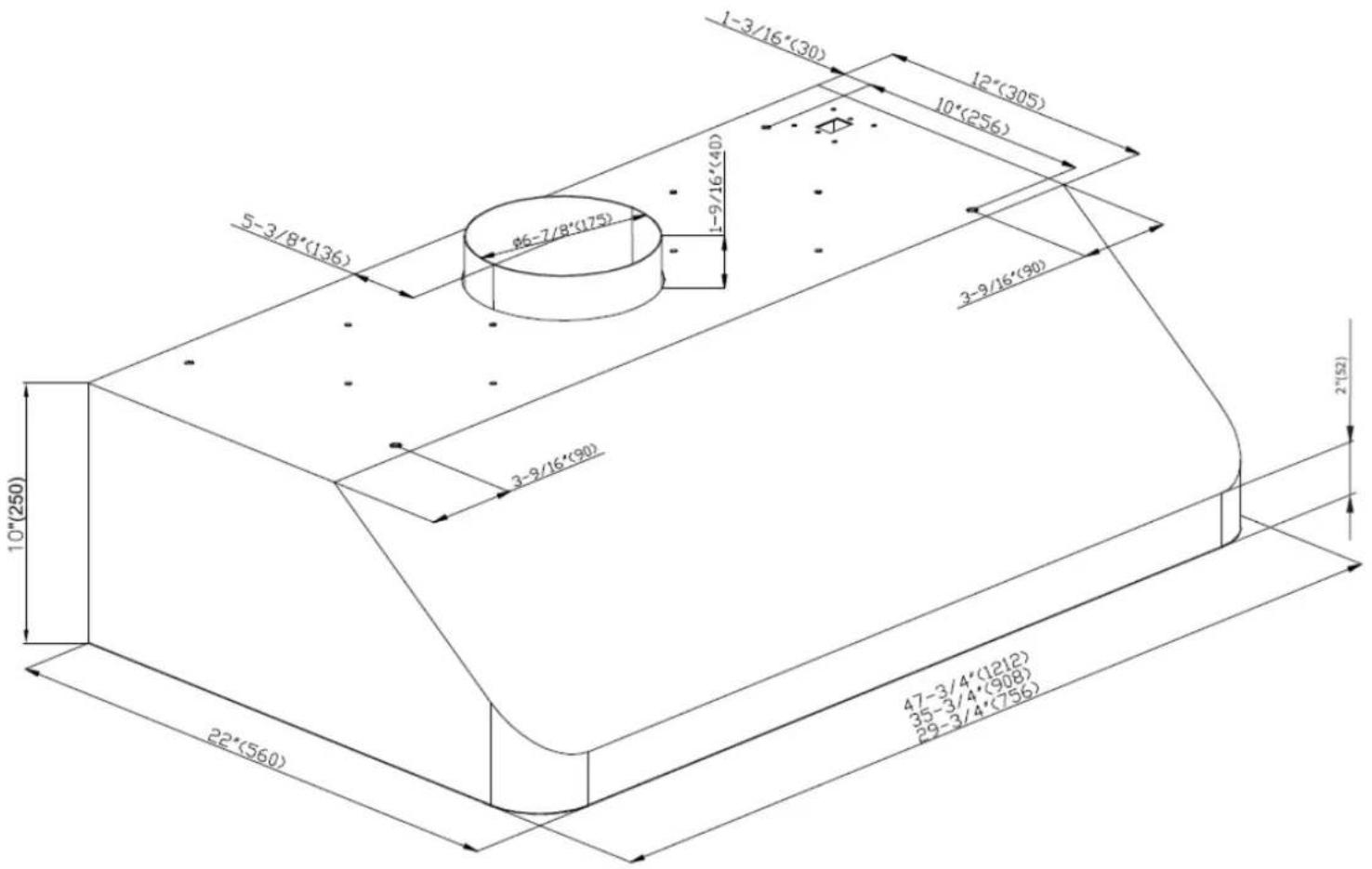

Max 17.9" 19.68" 2.36" 21.65" 29.5" / 35.5" 12.94" 000 000 000 000 13.12"

Isometric line drawing of a tall industrial chimney with ventilation grilles and base platform (no text or symbols)

HRH3004U

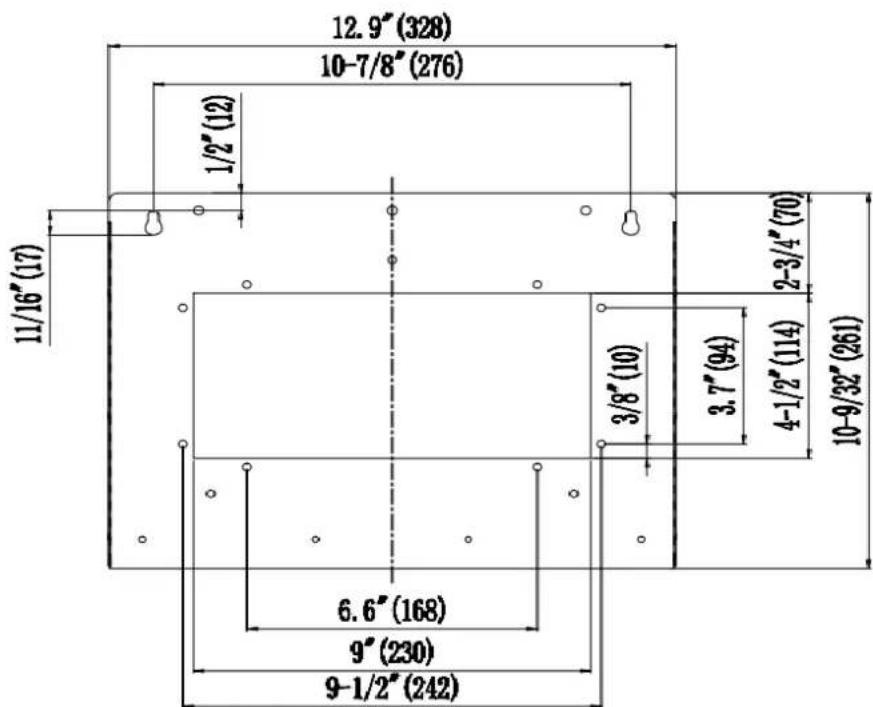

Installation dimension figure of HRH3001U and HRH3002U as below:

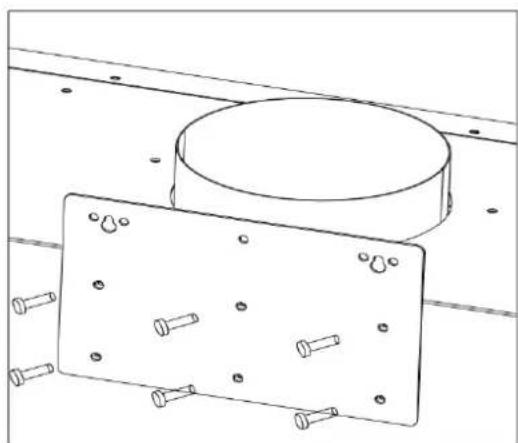

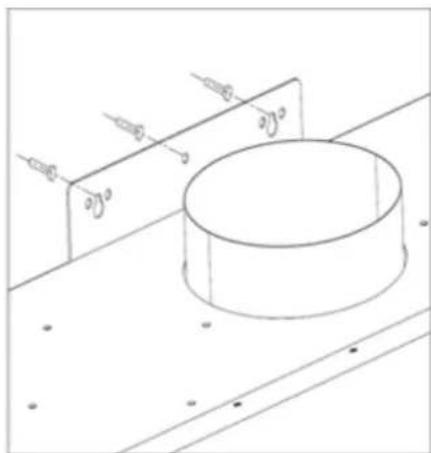

Fix 6pcs screws( see figure 4) to the installation dead plate

Fix the installation dead plate to the wall by screws( see figure 5)

Use double-faced aluminum foil sealed-joint( see figure 6)

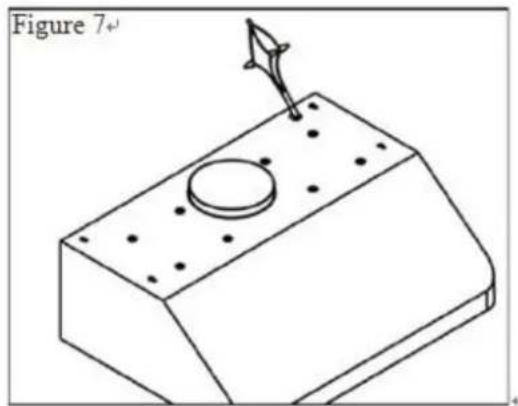

Power line color (black to black, white to white, green to green) (see figure 7)

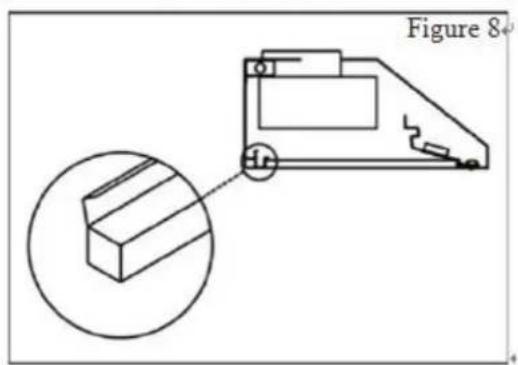

Oil box of the hood (see figure 8)

Installation of clapboard filter screen (see figure 9)

Technical line drawing of a mechanical mounting bracket with bolt holes and a cylindrical component (no text or symbols)

Figure4 Figure5

Technical line drawing of a cylindrical component mounted on a platform, with no visible text or symbols.

3D technical illustration of a mechanical component with threaded shaft and base plate (no text or symbols)

Figure 9+ ① ② ③ ④ ⑤

3D diagram of a mechanical component with a central circular feature and an arrow pointer (no text or symbols)

Figure 8 H1

Description orders for model HRH3001U HRH3003U HRH3004U

A0 A1 A2 F 1 A3 A4 A5 A6

Automatic activation control function of the sensor:

There are 5pcs sensor buttons, 1pc remote control signal lamp (remote controller included), 2pcs stainless steel grease boxes,

2pcs stainless steel baffle filters and 2pcs led bulbs(12V/1.5W).

A0 button: Remote control signal lamp

A1 button: Power( on/off)

A2 button: LED bulb

A3 button: Display screen

A4 button: Time Delay. A5 button: Low speed

A6 button: High speed

A4 button equip with Max 15 minutes after power off, A1 button( on/off) control to directly started o

Open The Fan

Keep your hood working during the cooking, and keep vantilating.

Press A1 button, then A3 display screen open.

Button A5 and A6 activates, high speed (F4), average speed(F3), low speed(F2), quiet speed(F1).

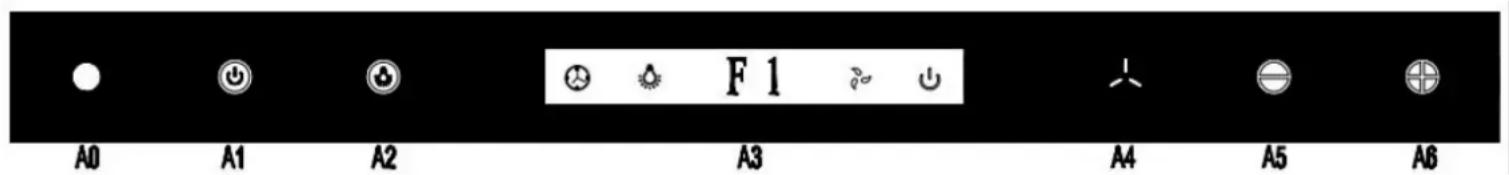

Control Panel Layout and Button Disposition

A0 A1 A2 F 1 A3 A4 A5 A6

Close The Fan

Off time-delay function just could close the fan, not affected the lamplight setting.

15 minutes time-delay

When fan working, press A4 button, digital screen will blink several seconds, default setting is 1 minute, after that, will shut off automatically.

During fan working, if you need to adjust time-delay function, press A4 button one time, will blink for a few seconds, press A6

button to increase delay-time, set the figure timers as the time you want, max delay-time is 15 min If time-setting changes from A6 button to A5 button, during the process, speed changes, but does not

Off immediately

Press A1 button two times, fan turn off immediately.

Bulb control

Press A2 button once, turn on the lights, and again to turn off.

Press A2 button or A4 button, then will not able to turn on LED light.

Warning: In case of any scald, do not touch LED light, unless hood is closed or cooled.

A0 button: same as above.

Remote sensor: A0 is the remote control. Remote sensor to receive infrared (IR) remote control signal.

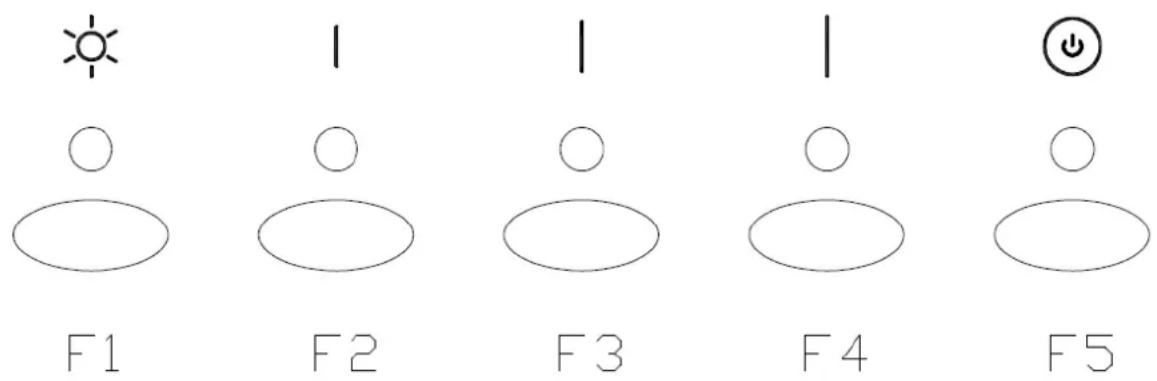

HRH3002U operating instruction as following:

F1 F2 F3 F4 F5

Function Button: LED light button F1 low speed F2 medium speed F3 high speed F4 time-delay/on-off F5

Light Button: Power on, press F1 button once, turn on the lights, and again to turn off.

Fan button: When need to open the hood, turn on the power, press F2 button (low speed) F3 button (medium speed)

F4 button(high speed)

Time-delay Button: Power on, press any button of F2/F3/F4, fan starts and F5 light automatically but does not blink.

Press F5 again, time-delay function starts, when F5 indicator light starts to blink, time-delay function t default setting time is 5 minutes. Press F5 button again, time-delay and fan both close, LED light still on, which is independent switch.

MAINTENANCE

WARNING

Before servicing or cleaning unit, switch power off at service panel and lock in access to prevent it accidentally. If the power panel can not be locked, put a prominent warning device, such as a brigl

Grease filters

The grease filters should be cleaned once a month or as needed. To remove grease filter, pull the metal latch down. This will disengage the filter hood. Tilt the filter down, then remove. To clean the filters, use a solution of warm water and detergent. Let them dry, then reinstall. The metal filters are dishwasher-safe. Clean filters made entirely of metal in the dishwasher using a non-phosphate detergent. Using a detergent containing phosphates and local water conditions may cause discoloration of the filters, without affecting their performance. This discoloration is not covered under warranty.

Isometric view of a rectangular grid structure with parallel lines and small protrusions (no text or symbols)

Hood Cleaning

Cleaning stainless steel: how to keep his "lustrous appearance" and help prevent corrosion.

What to do:

- Wash surfaces regularly with a cloth or a clean cloth soaked in warm water and mild soap or dish detergent.

- Always clean in the direction of squall lines (direction of the grain).

- Always rinse well with clear water (2 or 3 times) after cleaning and dry completely.

- A household cleaner designed for stainless steel can also be used.

Don'ts:

- Use steel wool or stainless steel or any other scrapers to remove stubborn dirt.

- Use any harsh orabrasive cleansers.

- Allow dirt to accumulate.

- Allow the plaster dust or any other construction residues reach the hood. Cover the hood while working to ensure no dust hood.

To avoid when choosing a detergent

- Any cleaners that contain bleach, because they attack stainless steel.

- Any product containing chloride, fluoride, iodide, bromide, they quickly deteriorate surfaces.

- Any combustible products used for cleaning such as acetone, alcohol, ether, benzene, etc. These products are highly explosive and should never be used near a stove.

To replace the bulbs:

1. Shut off the power

2. Take off the grease filters, press both sides of the elastic clamps on the bulb, make which loose.

3.Gently push outward, take out the bulbs.

P.S: If necessary, wear gloves when taking out the bulbs.

Three-step illustration showing a hand holding an ear with motion arrows indicating rotation (no text or symbols)

WARRANTY

THE HOOD VENETO TWO YEAR LIMITED WARRANTY

This product has been manufactured by Thorkitchen Corporation. 1335 Fortune Bay Ct, Hoffman Estates IL 60192.

Thorkitchen Corporation disclaims all express warranties except for the following:

This warranty applies to products purchased and located in the United States. Products purchased or area are excluded.

The warranty does not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, and improper operation, repair or service of the product by anyone other than an authorized Thorkitchen Corporation, service agency or representative.

Warranties and Duration

Full warranty for Parts and Labor: 2 year

Implied warranties terminate upon expiration of the limited warranty. Some states do not allow limitations on how long implied warranty lasts, so the above limitation may not apply to your implied warranty.

Thorkitchen Corporation will pay for:

All repair labor and cost of replacement parts found to be defective due to material and workmanship provided by a Thorkitchen Corporation Authorized Service Agency during normal working hours.

For a Service Agency nearest you, please call 1-877-2888-099.

Thorkitchen Corporation will not pay for:

This limited warranty does not cover:

1. Service to instruct you on how to use your range hood to correct house wiring, replace or repair house fuses. Service to correct the installation of your range hood.
2. Repairs when your range hood is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
3. Cosmetic damage, including chips, dents, scratches or other damage to the finish of your range hood, unless such damage results from defects in materials or workmanship and is reported to Thorkitchen Corporation within 30 days from the date of purchase.
4. Costs associated with the removal from your home of your range hood for repairs. This range has repaired in the home and only in-home service is covered by this warranty.
5. Damage resulting from misuse, alteration, accident, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical, or use of consumables or cleaning products not approved by Thorkitchen C
6. Service to repair or replace consumable parts. Consumable parts are not included in the warranty
7. The removal and reinstallation of your range hood if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
8. This warranty is void if the factory applied serial number has been altered or removed from your
9. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
10. Expenses for travel and transportation for product service if your range hood is located in a remote area where service by an authorized servicer is not available.

The warranty applies to appliances purchased and used for personal, family or household purposes on

appliances used for commercial applications.Should the appliance be sold by the original purchaser durir period, the warranty shall extend to the new owner until the expiration date of the original purchaser's warranty period.

Warranty and Product Registration

Thorkitchen Corporation is not responsible for incidental or consequential damages. Under no circumstances, Thorkitchen's liability exceeds the cost that you paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you. This specific legal rights, and you may also have other rights that vary from state to state. Whenever you call our customer service at 877-288-8099 (THORKITCHEN RANGE HOOD) for technical information and parts sales in the United service for your appliance, please have your complete model number and serial number ready. The n can be found on the product data plate. Please enter the information requested in the spaces provid

Model No. ____ Serial No. ____

Date of Purchase____ Purchaser____

Dealer ____ Suburb ____

Town ____ Country ____

Note: You must provide proof of purchased or installation date for in-warranty service.
