USER MANUAL NS-MVMU5-C INSIGNIA

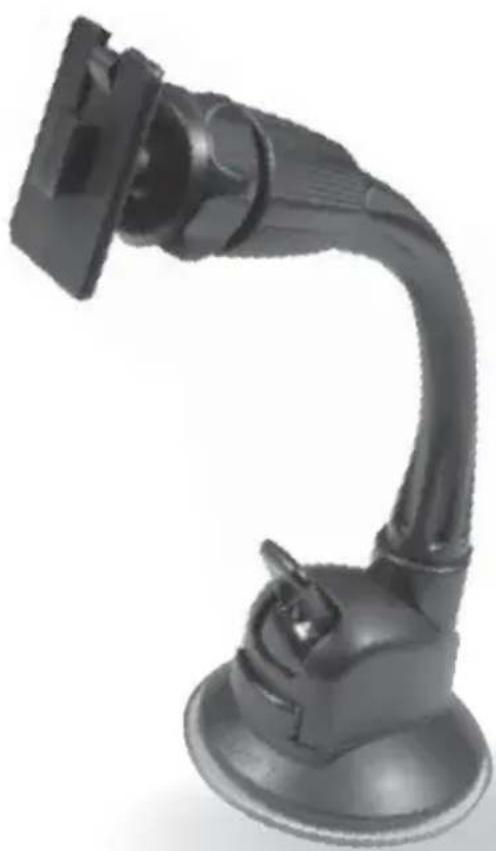

Universal Vehicle Mount

NS-MVMU5/ NS-MVMU5-C

Black car headsupport device with curved arm and top mount (no visible text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

Choking Hazard

WARNING! This product may contain small parts which may be a choking hazard to children under 3. Keep small parts away from children.

Road Hazard

WARNING! Risk of severe injury or death. This product requires in-car installation. Do not attempt to install or set up this equipment while your vehicle is moving.

WARNING! Risk of severe injury or death. Do not install this equipment in a way that it will obstruct the view of the driver. Some jurisdictions have restrictions regarding the installation of after-market accessories. Consult and obey the local laws and regulations.

Notices

• The vent mount attaches to the horizontal vent louvers found in most vehicles.
  Note: Does not work with circular/round type vents found in some vehicles. Removing the vent mount can be difficult. It is designed to be attached to your car's vents only once, and will not transfer easily from car to car.
• Check the state and local laws and ordinances where you drive. Some state laws prohibit drivers from using mounts on their windshields while operating motor vehicles. Other state laws allow the mount to be located only in specific locations on the windshield. It is the user's responsibility to mount the device in compliance with all applicable laws and ordinances.
• Do not install this or any product over an air bag cover or within the air bag deployment zone. Insignia assumes no responsibility of liability for injury or death as a result of car crashes and/or air bag deployment.
• Insignia is not responsible for any damages caused to your car, your device, or yourself due to the installation or use of the mounts.
• Insignia does not assume any responsibility for any fines, penalties, or damages that may be incurred as a result of any state or local law or ordinance relating to the use of your device.
• This product is designed for mobile phones only. It may not accommodate the weight of a GPS or other device. Maximum weight of your device should not exceed 1.77 lbs. (0.8 kg).

PACKAGE CONTENTS

• Car Air Vent Mount
• Car Window Mount
• Holder
• User Guide

FEATURES

Your Insignia car mount securely holds a smartphone to your car air vent or car window. Make sure that your smartphone is securely fastened to the mount before you begin your trip.

Caution: This mount is not intended for extreme off-road use. Excessive bumping and jarring may result in damage to your device.

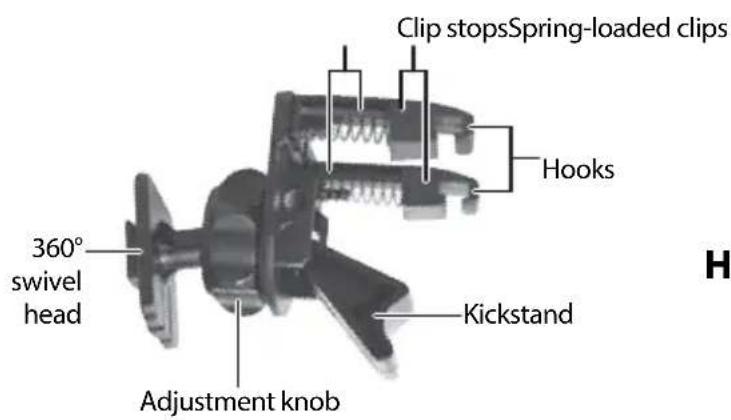

Car Air Vent Mount

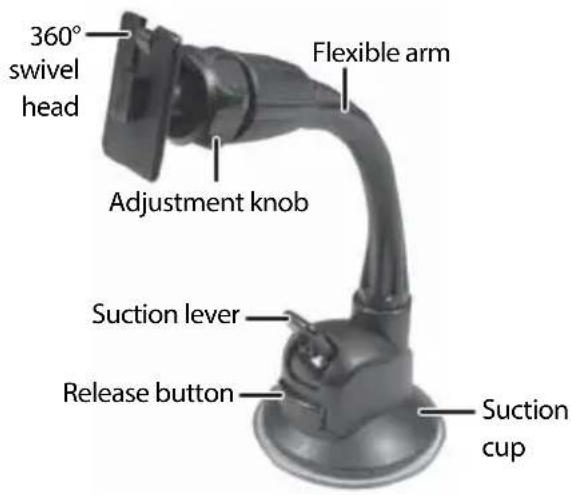

Car Window Mount

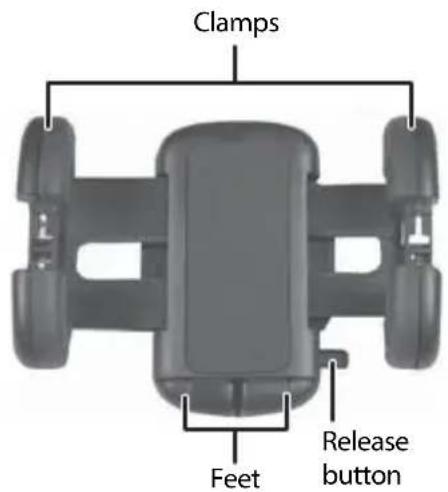

Holder Front

Holder Back

PLACING A SMARTPHONE IN THE HOLDER

1 Repeatedly press the release button on the side of the holder. The clamps open.
2 Unfold the feet on the bottom of the holder.
3 Adjust the clamps to fit the width of your smartphone.
4 Place your smartphone in the holder and close the clamps by squeezing them together tightly until your phone is secure.

ATTACHING TO AIR VENT LOUVERS

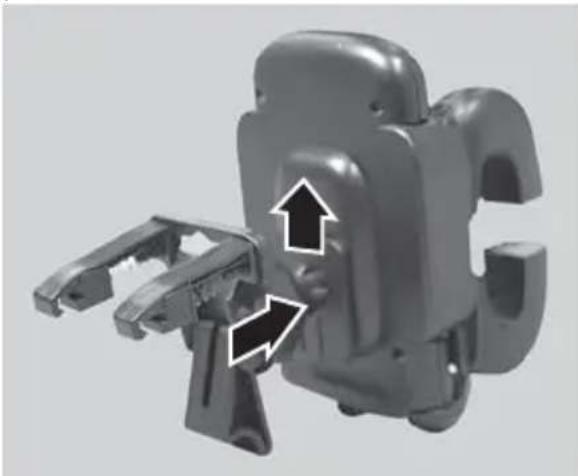

1 Insert the swivel head into the slot on the back of the holder and slide it into place until it is secure.

3D mechanical component with directional arrows indicating assembly or movement (no text or symbols)

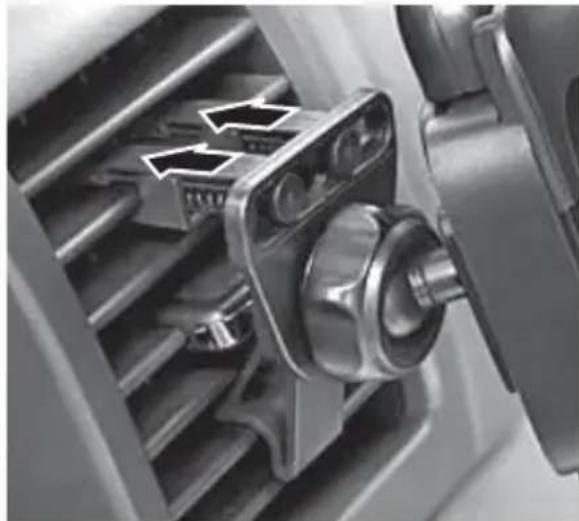

2 Align the clip stops with the edge of an air vent louver, slowly push the mount back until it clicks into place, then release the mount. Make sure both hooks are attached to the louver.

Close-up of a mechanical assembly with internal components and heat sinks (no visible text or symbols)

3 Position the kickstand so it rests against other louvers or the dash for support. 4 Loosen the swivel head knob, adjust the viewing angle, then fully tighten the knob.

Close-up of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols visible)

Caution: Do not adjust your Insignia car mount while driving.

ATTACHING TO A CAR WINDOW

1 Clean the window with a clean cloth.

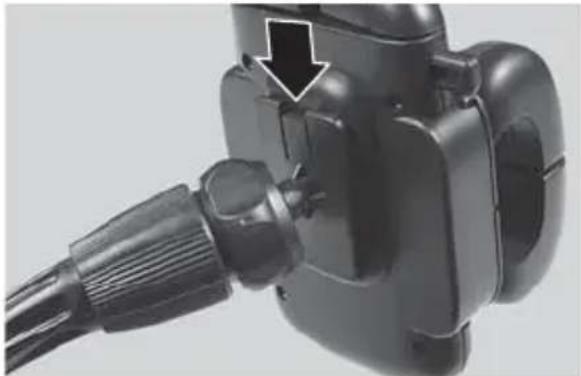

2 Insert the swivel head into the slot on the back of holder and slide it into place until it is secure.

Close-up of a black automotive plug connector with a white arrow pointing to a component (no text or symbols visible)

3 Remove the clear film from the suction cup.
4 Push the release button on the car window mount, press the suction cup to the desired location on the clean window, then press the lever down.

The mount adheres to the window.

Close-up of a black car suspension device with attached cable and connector (no visible text or symbols)

5 Loosen the adjustment knob, adjust the viewing angle, then fully tighten the knob.

Caution: Always loosen the adjustment knob before changing the viewing angle.

6 Bend the fl exible arm to further adjust the viewing angle.

7 To remove the mount, press the release button, then pull the suction cup tab.

Caution: Do not adjust your Insignia car mount while driving.

REMOVING YOUR SMARTPHONE FROM THE HOLDER

1 Hold your smartphone and repeatedly press the release button on the bottom of the holder. The clamps open.
2 Remove your smartphone.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.
