Product Type	4K/UHD HDMI Multi-Channel Digital to Two-Channel Balanced Analog Audio Converter
Brand	Atlona
Model	AT-UHD-M2C-BAL
Dimensions (H x W x D)	30 x 125 x 110 mm (1.18 x 4.92 x 4.33 in)
Weight	0.28 kg (0.61 lbs)
Power Supply Input	AC 100-240V ~ 50/60Hz
Power Supply Output	DC 5V / 2.6A
Power Consumption	7W
Audio Output	Balanced analog +4 dBu via 5-pin captive screw connector
Audio Input	HDMI (multichannel up to Dolby TrueHD and DTS-HD Master Audio)
Video Pass-Through	Up to 4K/UHD @ 30Hz
Control Options	RS-232, TCP/IP, WebGUI
Audio Adjustments	Volume (-80 to 6 dB), Bass (-15 to 15 dB @ 500Hz), Treble (-15 to 15 dB @ 2kHz)
HDCP Management	Switchable compliant/non-compliant
EDID Management	Selectable preferred timing; multichannel audio EDID
LED Indicators	Power, PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, DTS-HD Master Audio
Signal Bandwidth	10.2 Gbps
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	20 to 90% non-condensing
Certifications	CE, FCC (product); CE, FCC, cULus, RCM (power supply)
Warranty	10 years (for products purchased on or after June 1, 2013)
Cleaning	Unplug product, use damp cloth; do not use cleaning fluids or aerosols
Safety	Do not expose to rain/moisture; use only included power supply; avoid extreme temperatures
Package Contents	1x AT-UHD-M2C-BAL, 1x 5-pin female captive screw connector, 1x 3.5mm to DB9 adapter, 1x Locking 5V DC adapter, 1x User Manual

Frequently Asked Questions - AT-UHD-M2C-BAL Atlona

What audio formats does the AT-UHD-M2C-BAL support?

The device supports all digital audio formats including PCM, LPCM, Dolby (Digital, Digital Plus, TrueHD), and DTS (Digital Surround, DTS-HD Master Audio). It down-mixes multichannel audio to two or one channel balanced analog output.

How can I control the volume, bass, and treble?

You can adjust volume, bass, and treble via the WebGUI, TCP/IP commands, or RS-232 commands. The physical switch on the rear panel must be set to 'Adjust' mode to enable remote control; in 'Default' mode settings are fixed.

Can I use the device without RS-232 or network control?

Yes. The rear panel Audio Adjust Mode switch can be set to 'Default', which applies factory settings (0 dB gain, flat EQ) and disables remote control. The device will still convert audio and pass through video.

How do I set the audio output to mono or stereo?

In the WebGUI under Settings > Audio Output Mode, select 'Stereo' for two-channel or 'Mono' for one-channel output. Alternatively, use the RS-232 command SetMono1 on/off.

What is the difference between Balanced and Unbalanced output?

Balanced output uses two signal wires and a ground for reduced interference over long cable runs, providing +4 dBu. Unbalanced output uses two wires, default -10 dBu, and requires a jumper between ground and negative. The output level can be adjusted in the WebGUI.

How do I find or set the device IP address?

By default, DHCP is enabled. Use RS-232 command IPCFG to display the IP. To set a static IP, turn off DHCP in the WebGUI Network Setup page or use the IPStatic command. Ensure no IP conflicts on your network.

Why are the LED indicators not lighting up for certain audio formats?

The front panel LEDs indicate the incoming digital audio format detected from the HDMI source. If an LED does not light, the source may not be transmitting that format, or the device is not receiving the signal. The M2C-BAL does not decode formats on pass-through; it only down-mixes for output.

Can I pass through 4K video with this device?

Yes, the device supports 4K/UHD @ 30Hz video pass-through, along with lower resolutions including 1080p and 720p. It also supports various VESA resolutions up to 2560x2048.

What is the purpose of the Audio Adjust Mode switch?

The rear panel switch toggles between Adjust (allows volume and EQ control via RS-232/TCP/IP) and Default (locks settings to 0 dB gain and flat EQ, ignoring remote commands). Use Default for fixed installations where no adjustments are needed.

How do I reset the device to factory defaults?

Use the RS-232 command Mreset to reset the device to manufacturer defaults. Alternatively, if the admin password is lost, a factory reset is required by contacting support. The device must be returned to factory settings for password recovery.

USER MANUAL AT-UHD-M2C-BAL Atlona

4K/UHD HDMI Multi-Channel Digital to Two-Channel Balanced Analog Audio Converter

AT-UHD-M2C-BAL

User Manual

Please check http://www.atlona.com/UHD-M2C-BAL.html for the most recent firmware update or manual.

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Panel Descriptions
   a. Front Panel 4
   b. Rear Panel 4
5. Audio
6. WebGUI 6-10
   7.RS-232 11-13
7. Specifications
8. Safety Information 15
9. Warranty
10. Atlona Product Registration 17-18
11. Trademark Acknowledgement 18

Introduction

The Atlona 4K HDMI Multi-channel to Two Channel Balanced Audio Converter accepts up to Dolby TrueHD and DTS-HD Master Audio then down converts it to two channel or one channel +4dBu balanced audio. With built in RS-232, TCP/IP, and GUI control for audio mode switching, volume, bass, and treble adjustment, the M2C-BAL provides an easy interface to control systems.

Package Contents

• 1 x AT-UHD-M2C-BAL
• 1 x 5 pin female captive screw connector
• 1 x 3.5mm to DB9 adapter
  • 1 x Locking 5V DC adapter
• 1 x User Manual

Features

• Converts multi-channel audio into two/one channel audio
• Switch allows volume settings to be externally controlled (adjust) or force volume to factory settings (default= 0 gain and flat EQ)
  • RS-232, TCP/IP, and webGUI control options
  • +4 dBu balanced analog audio output
• Compatible with all digital audio formats including lossless and lossy
• Audio EDID - Replaces the 2Channel audio portion of a display's EDID with EDID that accepts all PCM, LPCM, Dolby® and DTS® audio formats (including Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, DTS Digital Surround™ and DTS-HD Master Audio™)
  • LED audio status lights for all audio formats to determine incoming audio signals
• Up to 4K/UHD @ 30Hz pass through
  • Control volume, bass, and treble using webGUI, TCP/IP, or RS-232
• HDCP management

Panel Description

Front Panel

1. HDMI Input port: Connect HDMI source here
2. Mini USB port: Firmware update port, connect a Mini USB to USB A cable to a computer
3. Red LED: Illuminates when receiving power
4. Green LED: will illuminate when a PCM audio signal is detected
5. Green LED: illuminates when a Dolby® Digital signal is identified
6. Green LED: Dolby® Digital Plus signal indicator
7. Green LED: illuminates when receiving a Dolby® TrueHD signal
8. Green LED: light will illuminate when a DTS Digital Surround™ is present
9. Green LED: signal light will turn on when DTS-HD Master Audio™ signal is received

NOTE: LED signifies incoming digital audio signal type only. The M2C-BAL does not decode Dolby or DTS signals on pass through. The M2C-BAL will decode Dolby and DTS, down mix it to one/two channel, and send that signal to either the HDMI output or the analog output.

Back Panel

1. DC 5V: Connect included locking 5V DC power supply here.
2. L/R audio port: Connect to an amplifier, mixer, DSP, or other audio input
3. Control Switch: Switch between adjust and default modes
   Adjust - Allows the M2C-BAL volume to be controlled through RS-232 or TCP/IP Default - Factory neutral settings, volume cannot be controlled by RS-232 or TCP/IP
   *Gain will be set to 0 and EQ will be flat
4. RS-232 port: Connect control system to RS-232 port
   3.5mm pin out - Tip: 2 (TX), Ring: 3(RX), Sleeve: 5 (Ground)
5. LAN port: Connect network switch or router to this port for TCP/IP or WebGUI control
6. HDMI out port: Connect to an HDMI display, extender, or switcher

Analog Audio

A captive screw analog audio connector is provided to ensure a more reliable and secure connection. The captive screw connector supports balanced and unbalanced audio output.

Balanced audio connections use two signal wires and a ground to ensure the least amount of interference to an audio signal over longer cable runs. Unbalanced audio connections use two wires for shorter audio runs.

Note: Pin outs may vary, please refer to the audio device's manual to ensure a correct connection. Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices.

Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Note: Set the unbalanced output level in the webGUI to reduce or prevent distortion

TCP/IP

For convenience, the M2C-BAL comes with DHCP on. This enables the switcher to be connected to a network or network device the preset IP matches. If your network does not allow dynamic IP addresses, this feature may be turned off and set using RS-232 commands.

TCP/IP WebGUI

Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the M2C-BAL.

To begin, plug a LAN cable into the LAN port of the M2C-BAL and your network, then type the IP address of the M2C-BAL into a web browser of a PC connected to the same network (as seen below).

To find the switcher IP: use RS-232 command "IPCFG"

Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with network communication to the switcher. Once set up is done and the switcher GUI is no longer used, the firewall and anti-virus can be re-enabled.

A login screen will appear (this is the same log in for admin and general users). For the first log in (and future admin changes) the username is "root" and password is "Atlona".

Note: Only the admin password can be changed (see page 12). The username will always remain "root".

ATLONA Construction Technologies

(1) 2017年1月1日

AT-UHD-M2C-BAL

Home

Network Setup

Settings

Conno

EDD

System Info.

Model:	AT-UHD-M2C-BAL
Firmware Version:	0.1.15
Boot Version:	1.03

Video Info.

Signal Type:	HDMI
Video Format:	1080p@60
Aspect:	16x9
Color Space:	YUV
Color Depth:	24

Audio Info.

Audio Format:
Sampling Rate:	48KHz
Channels:	2-ch

The home screen tab will display the general system information.

ATLONA

Connecting Technology

AT-UHD-M2C-BAL Setup

Home

Network Setup

Settings

Config

EDID

DHCP	ON	OFF
IP Address	192.168.000.013
Subnet	255.255.255.000
Gateway	192.168.000.001
Telnet Port	23
Login Mode	ON	OFF
MAC Address	B8-98-B0-00-00-2B

The network set up page will allow the IP information to be changed. When a change is made the screen will grey and the ability to save or cancel will display at the bottom.

Note: When DHCP is on, the IP address cannot be configured. Turn DHCP off to enable IP configuration.

Note: For a stable connection when using a control system, it is best to set up a static IP. As you select an IP address, make certain no other devices on your network are using that IP address.

Login Mode has been added to provide a secure telnet login. Once Login Mode has been turned on a username and password will be required on all IP connections to the switcher.

Note: Login mode should be in off position when the M2C-BAL is used with control systems that do not support passwords. If your control system supports password protection, you can turn login mode on. The GUI always requires a password.

Note: The username and password used in IP Login Mode will be the same login information as the WebGUI.

ATLONA

Connecting Technology

AT-UHD-M2C-BAL

Settings

Home

Network Setup

Settings

Config

EDID

Audio Settings

HDMI Output Audio	Pass-Through	Insert
Audio Adjust Mode	Default	Adjust
Volume Mute Control	Mute	UnMute
Audio Output Mode	Stereo	Mono
Default Mode Audio out	Balance	UnBalance
Volume	0 dB
Bass	0 dB
Treble	0 dB

1. HDMI Output Audio - Sets what audio is outputted on the HDMI port

Pass through - Passes multi-channel audio to the HDMI port (input audio)

Insert - Embeds the down mixed audio onto the HDMI output signal

1. Audio Adjust Mode

Default - Factory neutral settings, cannot be controlled by RS-232 or TCP/IP

*Output gain will be 0 and EQ flat

Adjust - Allows the M2C-BAL output volume and EQ to be controlled through RS-232 or TCP/IP

1. Volume Mute Control - Mutes or unmutes the output audio

2. Audio Output Mode - Switch between 2 channel and 1 channel audio output

Stereo - 2 Channel audio

Mono - 1 Channel audio

1. Default Mode Audio Out - Adjust audio output between balanced and unbalanced values

Balanced - +4 dBu balanced audio out

Unbalanced - Default is -10 dBu

1. Volume - Set output volume level

Range from -80 to 6

1. Bass - Set bass boost or cut

Range from -15 to 15

1. Treble - Set treble boost or cut

Range from -15 to 15

ATLONA Connecting Technology

AT-UHD-M2C-BAL Config

The config page will allow the admin password to be changed, users to be added, and the RS-232 port to be configured.

Note: User information will display for the admin only. Up to 3 users other than admin can be added. Note: Only the admin password can be changed. The username will always remain "root". If the admin password is lost the system must be returned to factory settings and setup repeated.

ATLONA Connecting Technology

AT-UHD-M2C-BAL EDID

Home

Network Setup

Settings

Config

EDID

Prefer Timing(HDMI): Input HDCP:

ATLONA Connecting Technology

AT-UHD-M2C-BAL EDID

Home

Network Setup

Settings

Config

EDID

Prefer Timing(HDMI): Input HDCP:

ATLONA Connecting Technology

AT-UHD-M2C-BAL EDID

Home

Network Setup

Settings

Config

EDID

Prefer Timing(HDMI): Input HDCP:

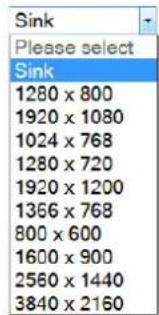

The EDID page enables the input preferred timing to be selected and HDCP compliance reporting to be set.

* Sink - selects the preferred video resolution from the display to the source * The preferred timings all include multichannel audio

Note: M2C-BAL protects HDCP encoded content and will not pass HDCP content to a non-HDCP compliant device.

Note: Some devices flag all content as protected when connected to an HDCP compliant display. This prevents what should be non-protected content from reaching devices (i.e. teleconference system) through the M2C-BAL.

Note: When HDCP reports as non-compliant, only user created content is transmitted. Protected content from all sources (ex. BluRay, AppleTV, etc) is blocked.

This function is controllable through RS-232 and TCP/IP.

RS-232

Connection

RS-232 is connected through a 3.5mm to 9-pin female D connector (DB9). The 3.5mm connector pin out is pin 2 (tip/TX), pin 3 (ring/RX), and pin 5 (sleeve/ground).

Set Up

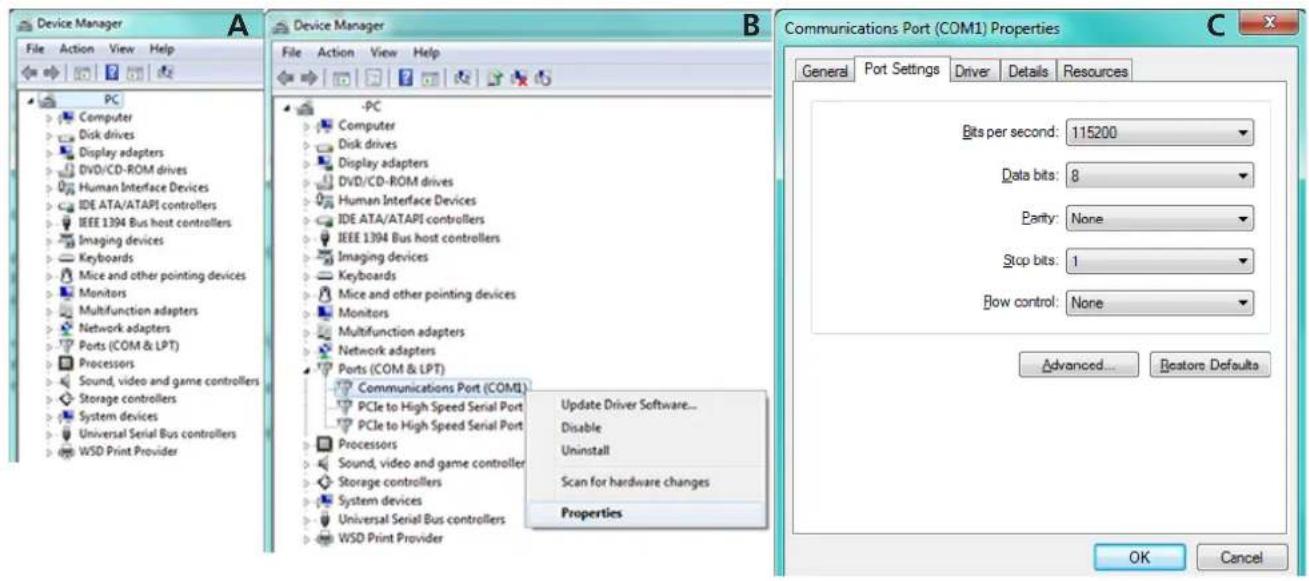

To set up the RS-232 hyperterminal (if not using 3rd party software) use the following steps:

1. Connect the M2C-BAL to a PC using a 9 pin to USB converter
2. Go to the Device Manager folder (see picture A).
3. Find the M2C-BAL COM port and right click with a mouse and select properties (see picture B) NOTE: If unsure which COM port is the M2C-BAL, unplug the cable and plug it back in. It will disappear and reappear on the COM port list.
4. Under the properties menu select the port settings tab and update the menu to the M2C-BAL default settings of: Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C)

Set up is done and any hyperterminal program may be used to control the M2C-BAL.

Commands

The command codes are case sensitive, do not change capitalization, spacing, or lettering.

Command Feedback	Description
VersionXex. Version OSD	VersionXex. Version x.x.xx	Displays the software versions: ex. VersionMCU firmware [MCU]OSD menu [OSD]DSP [DSP]FPGA [FPGA]
Type AT-UHD-M2C-BAL Displays the model information
Mreset Mreset Reset device to manufacture default
HDCPSet1 XEx. HDCPSet1 on	HDCPSet1 Xex. HDCPSet1 on	Set HDCP reporting mode of the HDMI inputX= on/off/sta
PrefTimg1 X PrefTimg1 X Set preferred timing X= 0-10
PrefTimg sta PrefTimg1 X Displays the currently selected preferred timing
SetMono1 XEx. SetMono1 on	SetMono1 XEx. SetMono1 on	Switch between stereo and mono analog audio outputX= on (mono), off (stereo), sta
VOUT1 + VOUT1 XX Increases volume output by 1
VOUT1 - VOUT1 XX Decreases volume output by 1
VOUT1 XXEx. VOUT1 -60	VOUT1 XXEx. VOUT1 -60	Set volume output to a specific valueXX= -80 to 6
VOUT1 sta VOUT1 XX Displays current volume output
VOUTMute1 X VOUTMute1 X Mute or unmute the output volumeX= on (mute), off (unmute), sta
BASS1 + BASS1 XX Increase bass level by 1
BASS1 - BASS1 XX Decrease bass level by 1
BASS1 XXEx. BASS1 -10	BASS1 XXBASS1 -10	Set bass level to a specific valueXX= -15 to 15
TREBLE1 +	TREBLE1 XX	Increase treble level by 1
TREBLE1 -	TREBLE1 XX	Decrease treble level by 1
TREBLE1 XXEx. TREBLE1 -8	TREBLE1 XXEx. TREBLE1 -8	Set treble level to a specific valueXX= -15 to 15
AnalogOut XEx. AnalogOut bal	AnalogOut XEx. AnalogOut bal	Set the analog audio to balanced or unbalanced outputX= bal (balanced), unbal (unbalanced), sta
SetHDMIPass XEx. SetHDMIPass on	SetHDMIPass XEx. SetHDMIPass on	Set the HDMI port to output multichannel or 2Ch audioX= on (multichannel), off (2Ch PCM), sta
UnBalLevel XXEx. UnBalLevel -20	UnBalLevel XXEx. UnBalLevel -20	Set the default unbalanced output audio levelXX= -80 to 6

Each command or feedback is terminated with a carriage return.

Note: If the command fails or is incorrect the feedback will be "Command FAILED"

[X] preferred timing -

0	Sink (pass through)	1	1280x800	2	1920x1080
3	1024x768	4	1280x720	5	1920x1200
6	1366x768	7	800x600	8	1600x900
9	2560x1440	10	3840x2160

IP Commands

Command Feedback Description
IPCFG IP Addr : x.x.x.x	Netmask : x.x.x.xGateway : x.x.x.xIP Port : x	Displays IP address configuration
IPQuit IPQuit Logs out of TCP/IP Connection
IPAddUser X YEx. IPAddUser Atlona 1234	TCP/IP user was added Adds a user for TCP/IP controlX= user and Y= Password
IPAddUser sta username passwordusername passwordusername password		Displays a list of users and passwords
IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X= username
IPDHCP X IPDHCP X Turns HDCP on or off X= on, off, sta
IPStatic X Y ZEx. IPStatic 192.168.1.1255.255.255.0192.168.1.200	IPStatic X Y ZEx. IPStatic 192.168.1.1255.255.255.0192.168.1.200	Sets static IP addressIPStatic Address(X) Netmask(Y) Gateway(Z)
IPPort X IPPort X Set the TCP/IP Port
IPLogin XEx. IPLogin off	IPLogin XEx. IPLogin off	Enables IP LoginX= on, off, sta
Broadcast XEx. Broadcast on	Broadcast XEx. Broadcast on	Sets broadcast mode on or offX= on, off, sta
IPTimeout XXEx. IPTimeout 300	IPTimeout XXEx. IPTimeout300	Determines amount of seconds of inactivity before TCP/IP disconnects

Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback will be "Command FAILED"

Connection Diagram

Specifications
Video Resolutions

Video	4096x2160@24/25/30Hz, 1080p@23.98/24/25/29.97/30Hz, 720p@50/59.94/60Hz, 576p, 480i	3840x2160@24/25/30Hz, 1080i@50/59.94/60Hz, 576i, 480p,
VESA	2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1366x768, 131280x1024, 1280x800, 800x600, 640x480	1600x1200, 1440x900, 1400x1050, 1366x768, 131280x1024, 1280x800, 800x600, 640x480
Colorspace	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2
Color depth	8-bit, 10-bit, 12-bit
Audio
Formats - HDMI IN/OUT PCM 2 Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1,Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Format - Captive screw Balanced +4 dBu, 2 Ch
Sample Rate	32kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Total Harmonic Distortion	0.0008% (dB, sample frequency: 48kHz)
Signal/Noise	Ratio	142dB
Frequency Range	20Hz to 20kHz +/-	.1dB
Crosstalk	<-103dB
Bass	15dB to -15dB @ 500Hz
Treble	15dB to -15dB @ 2kHz
Distance (per port)
HDMI	@ 1080p	10 meters			30	feet
HDMI	@ 4K	5 meters			15	feet
Signal
Bandwidth	10.2 Gbps
CEC	Pass through
HDCP	Switchable - Complaint / Non-compliant
Temperature
Operating	0°C to 50°C			32°F	to	12
Storage	-20°C to 60°C			-4°F	to	140°F
Humidity	20 to 90% non-condensing
Power
Consumption	7W
Supply	Input: AC 100-240V ~ 50/60Hz
	Output: DC 5V / 2.6A
Dimension
H x W x D	30 x 125 x 110 (mm)		1.18 x 4.92 x 4.33 (inch)
Weight
Device	0.28 kg			0.61	Ibs
Certification
Power Supply	CE, FCC, cULus, RCM
Product	CE, FCC

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

OR

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013
• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

• Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Atlona Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration

Trademark Acknowledgement

Dolby®

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

DTS®

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
