USER MANUAL RK-3TR Kramer

Kramer Electronics, Ltd.

Abstract black geometric shape on white background (no text or symbols)

KRAMER

USER MANUAL

Rack Adapter Models:

RK-1T2PT

RK-2T1PT

RK-3T

RK-6T

RK-9T

RK-3TR

RK-4PT

RK-T2B

RK-T2SB

Contents

1 Introduction 1
2 Getting Started 1
3 Overview 2
4 Your Kramer Pico TOOLS / TOOLS Rack Adapters 3
4.1 Your Kramer RK-1T2PT Rack Adapter 4
4.2 Your Kramer RK-2T1PT Rack Adapter 5
4.3 Your Kramer RK-3T Rack Adapter 6
4.4 Your Kramer RK-6T Rack Adapter 7
4.5 Your Kramer RK-9T Rack Adapter 8
4.6 Your Kramer RK-3TR Rack Adapter 9
4.7 Your Kramer RK-4PT Rack Adapter 10
4.8 Your Kramer RK-T2B Rack Adapter 11
4.9 Your Kramer RK-T2SB Rack Adapter 12
5 Installing Your Rack Adapter 13
5.1 Installing a Kramer TOOL or a Kramer Pico TOOL 13
5.2 Installing a Kramer Extrusion Type TOOL 14

Figures

Figure 1: RK-1T2PT Rack Adapter 4
Figure 2: RK-2T1PT Rack Adapter 5
Figure 3: RK-3T Rack Adapter 6
Figure 4: RK-6T Rack Adapter 7
Figure 5: RK-9T Rack Adapter 8
Figure 6: RK-3TR Rack Adapter 9
Figure 7: RK-4PT Rack Adapter 10
Figure 8: RK-T2B Rack Adapter 11
Figure 9: RK-T2SB Rack Adapter 12
Figure 10: The Connecting Bracket 14

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and affordable solutions to the infinite range of problems that confront the video, audio and presentation professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 500-plus different models now appear in 8 Groups ^1 , which are clearly defined by function. Congratulations on purchasing your Kramer rack adapter, which is ideal for mounting Kramer Pico TOOLS /TOOLS in a standard 19" rack.

The package includes the following items:

• 19" rack adapter: RK-1T2PT, RK-2T1PT, RK-3T, RK-6T, RK-9T, RK-3TR, RK-4PT, RK-T2B, or RK-T2SB
  • Additional mechanical parts (blank panels, screws, nuts and so on)
• This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables ^3

3 Overview

We recommend that you:

• Have a Philips screwdriver and an Allen screwdriver available
• Disconnect the mains voltage and all cables connected to each machine that is being mounted in the rack adapter before proceeding with the installation
• Connect only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Avoid interference from neighboring electrical appliances and positioning your rack adapter on the rack away from moisture, excessive sunlight and dust
• Observe the following CAUTION and WARNINGS with regard to the Kramer Pico TOOLS /TOOLS:

Caution – No operator-serviceable parts inside unit.

Warning - Use only the Kramer Electronics input power wall adapter that is provided with this unit ^1 .

Warning – Disconnect power and unplug unit from wall before installing or removing device or servicing unit.

4 Your Kramer Pico TOOLS / TOOLS Rack Adapters

This section describes the following rack adapters:

• RK-1T2PT, see section 4.1
• RK-2T1PT, see section 4.2
• RK-3T, see section 4.3
• RK-6T, see section 4.4
• RK-9T, see section 4.5
• RK-3TR, see section 4.6
• RK-4PT, see section 4.7
• RK-T2B, see section 4.8
• RK-T2SB, see section 4.9

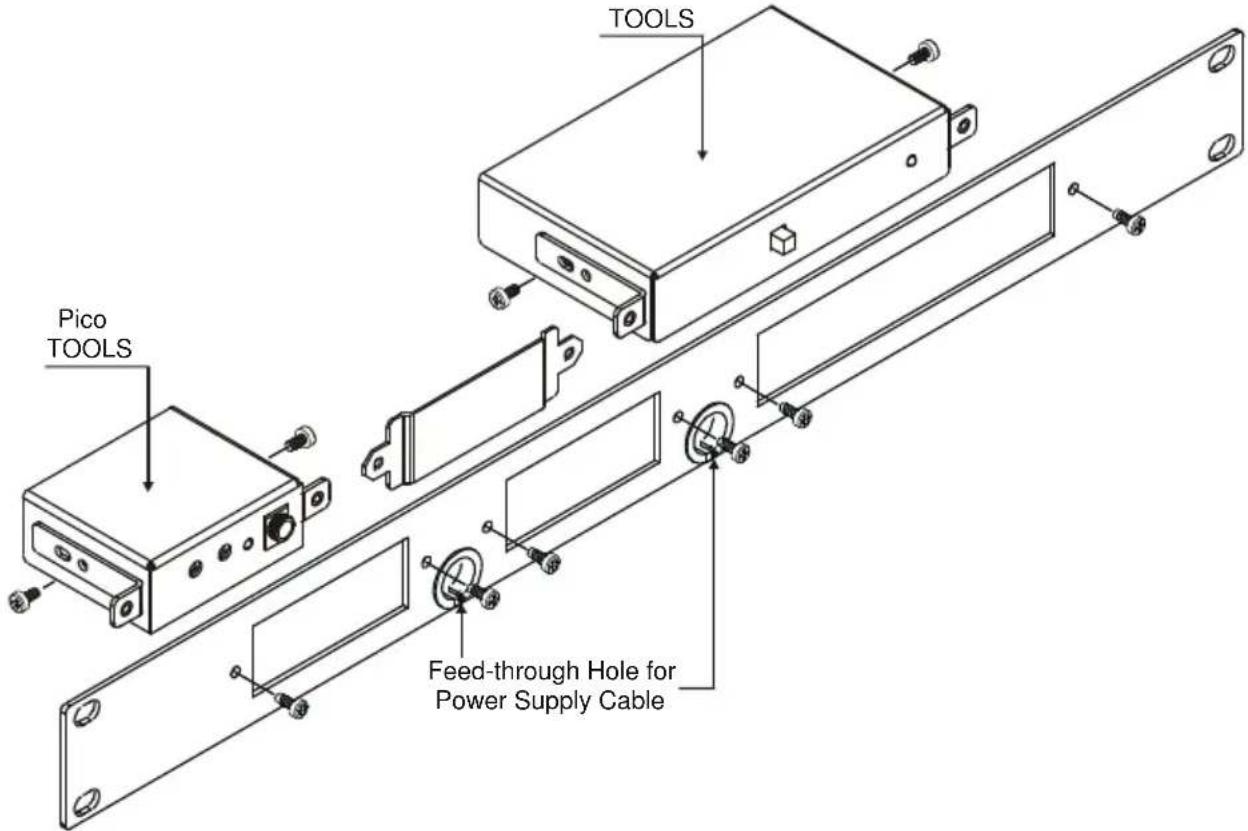

4.1 Your Kramer RK-1T2PT Rack Adapter

The RK-1T2PT rack adapter is suitable for mounting a Kramer TOOL and two Kramer Pico TOOLS into a 19" 1U rack space (see Figure 1):

TOOLS Pico TOOLS Feed-through Hole for Power Supply Cable

Figure 1: RK-1T2PT Rack Adapter

You can order additional blank panels to cover a Pico TOOLS opening ^1 and/or a TOOLS opening ^2 on the rack adapter

4.2 Your Kramer RK-2T1PT Rack Adapter

The RK-2T1PT rack adapter is suitable for mounting a Kramer Pico TOOL and two Kramer TOOLS (extruded or regular) into a 19" 1U rack space (see Figure 2):

TOOLS Extrusion TOOLS Pico TOOLS Feed-through Hole for Power Supply Cable

Figure 2: RK-2T1PT Rack Adapter

You can order additional blank panels to cover a Pico TOOLS opening ^1 and/or a TOOLS opening ^2 on the rack adapter

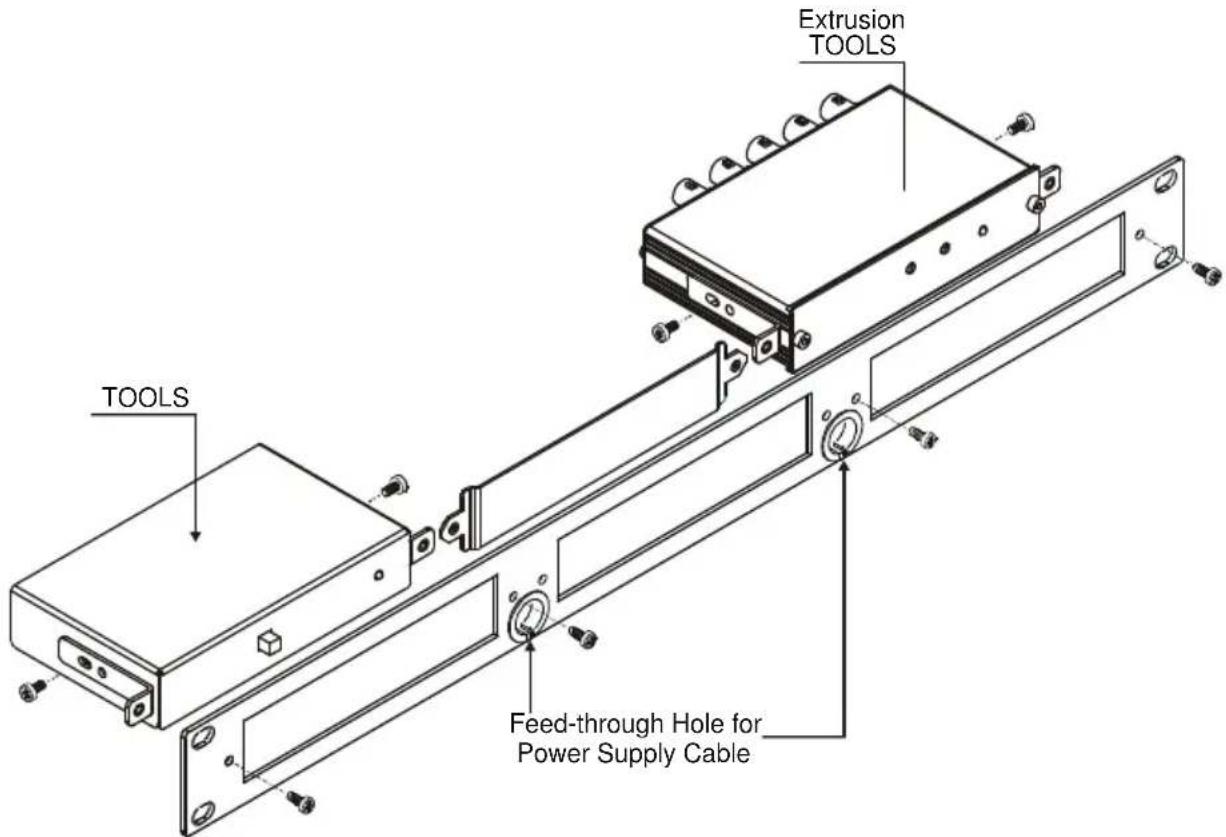

4.3 Your Kramer RK-3T Rack Adapter

The RK-3T rack adapter is suitable for mounting three Kramer TOOLS (extruded or regular) into a 19" 1U rack space (see Figure 3):

Extrusion TOOLS TOOLS Feed-through Hole for Power Supply Cable

Figure 3: RK-3T Rack Adapter

You can order an additional blank panel to cover a TOOLS opening ^1 on the rack adapter

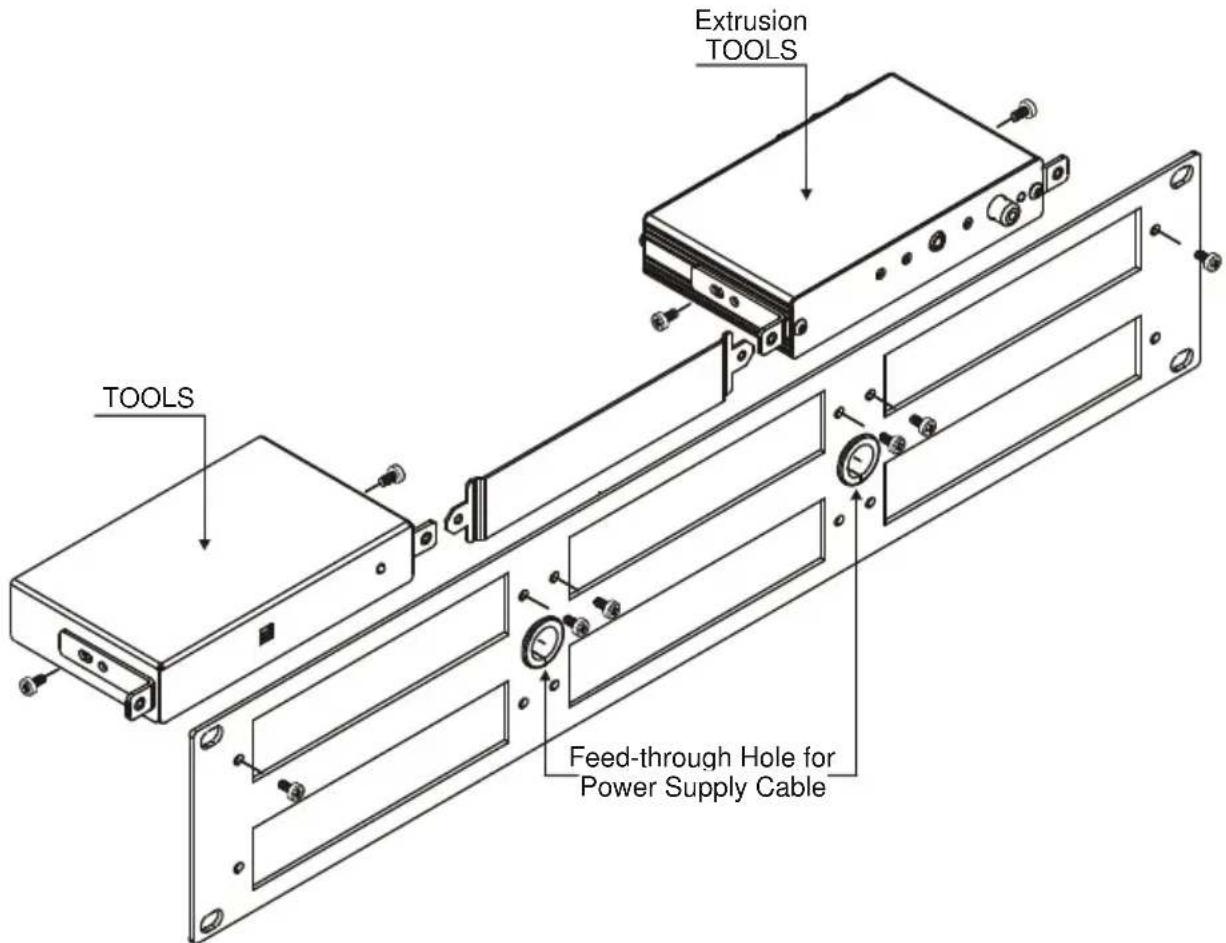

4.4 Your Kramer RK-6T Rack Adapter

The RK-6T rack adapter is suitable for mounting six Kramer TOOLS (extruded or regular) into a 19" 2U rack space (see Figure 4):

Extrusion TOOLS TOOLS Feed-through Hole for Power Supply Cable

Figure 4: RK-6T Rack Adapter

You can order an additional blank panel to cover a TOOLS opening ^1 on the rack adapter

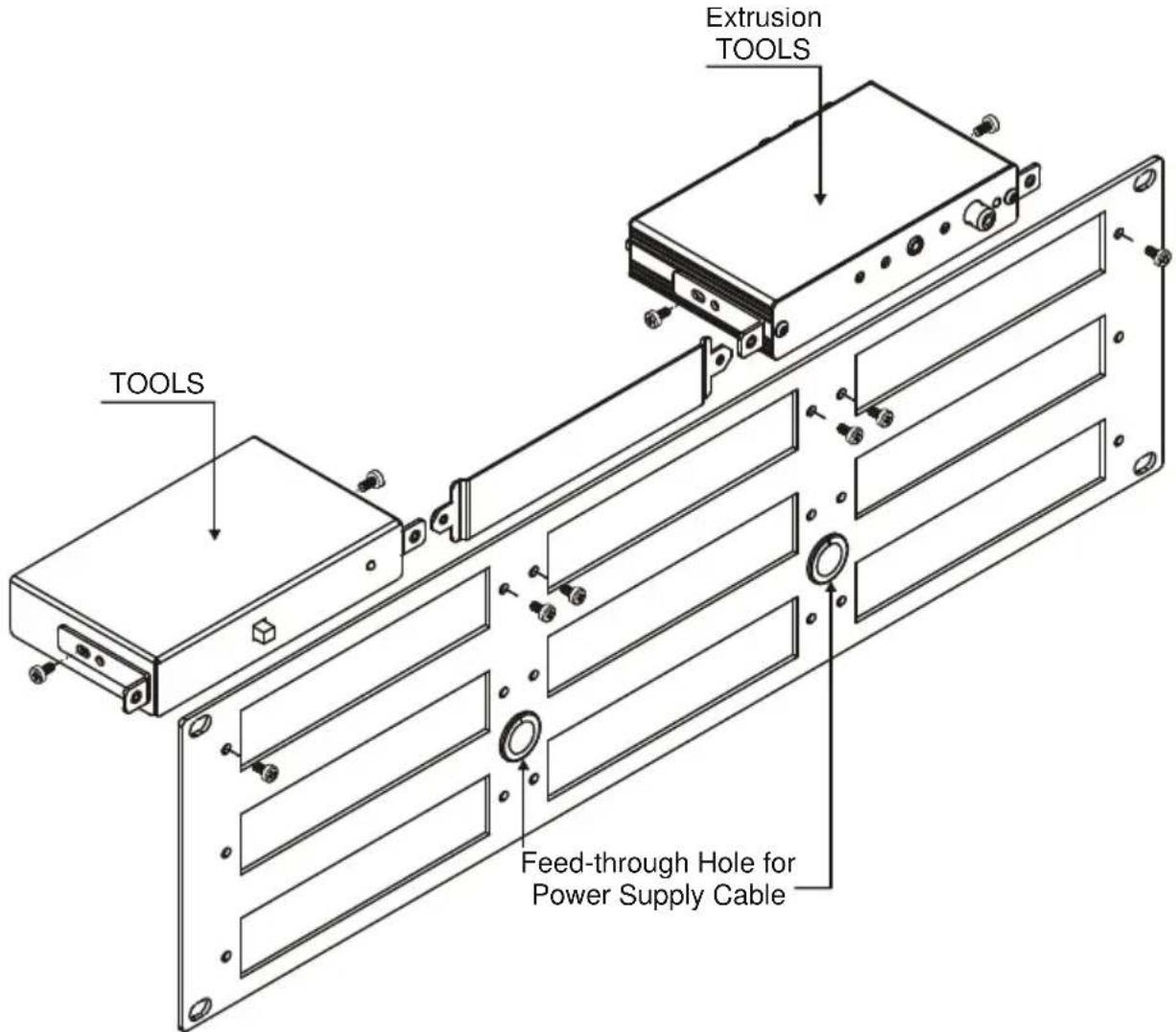

4.5 Your Kramer RK-9T Rack Adapter

The RK-9T rack adapter is suitable for mounting nine Kramer TOOLS (extruded or regular) into a 19" 3U rack space (see Figure 5):

Extrusion TOOLS TOOLS Feed-through Hole for Power Supply Cable

Figure 5: RK-9T Rack Adapter

You can order an additional blank panel to cover a TOOLS opening ^1 on the rack adapter

4.6 Your Kramer RK-3TR Rack Adapter

The RK-3TR rack adapter is suitable for mounting three Kramer TOOLS—TR-1, TR-1A, TR-2A, TR-3, TR-1YC, and/or TR-2YC—into a 19" 1U rack space (see Figure 6):

TR-1 TR-1A TR-2A TR-3 TR-1YC TR-2YC

Figure 6: RK-3TR Rack Adapter

You can order an additional blank panel to cover a TR-TOOLS opening ^1 on the rack adapter

4.7 Your Kramer RK-4PT Rack Adapter

The RK-4PT rack adapter is suitable for mounting four Kramer Pico TOOLS into a 19" 1U rack space (see Figure 7):

Pico TOOLS Pico TOOLS Feed-through Hole for Power Supply Cable

Figure 7: RK-4PT Rack Adapter

You can order an additional blank panel to cover a Pico TOOLS opening ^1

4.8 Your Kramer RK-T2B Rack Adapter

The RK-T2B rack adapter is suitable for mounting two large-size Kramer TOOLS into a 19" 1U rack space (see Figure 8):

Large-size TOOLS

Figure 8: RK-T2B Rack Adapter

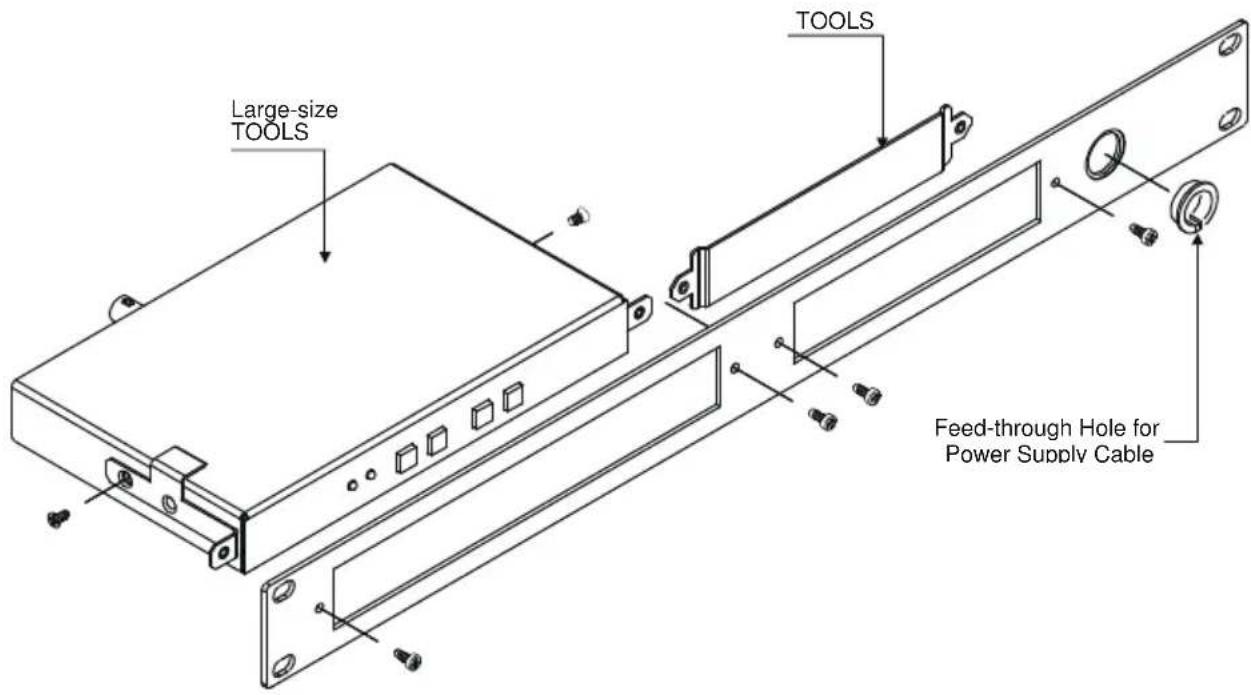

4.9 Your Kramer RK-T2SB Rack Adapter

The RK-T2SB rack adapter is suitable for mounting one regular size Kramer TOOL and one large size Kramer TOOLS into a 19" 1U rack space (see Figure 9):

Large-size TOOLS TOOLS Feed-through Hole for Power Supply Cable

Figure 9: RK-T2SB Rack Adapter

You can order an additional blank panel to cover a regular size TOOLS opening ^1

5 Installing Your Rack Adapter

This section describes how to install Kramer TOOLS and Pico TOOLS.

5.1 Installing a Kramer TOOL or a Kramer Pico TOOL

When connecting a Kramer TOOL or a Pico TOOL:

1. Remove the side panel screws (one on each side) from the TOOL.

Isometric line drawing of a rectangular electronic device with three ports and mounting holes (no text or symbols)

1. Insert the screws provided with the rack adapter kit (one on each side) through the correct holes on the brackets (see Figure 10).

Isometric line drawing of a rectangular electronic device with mounting holes and a central connector (no text or symbols)

1. If required, remove the blank panels from the rack adapter openings.

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

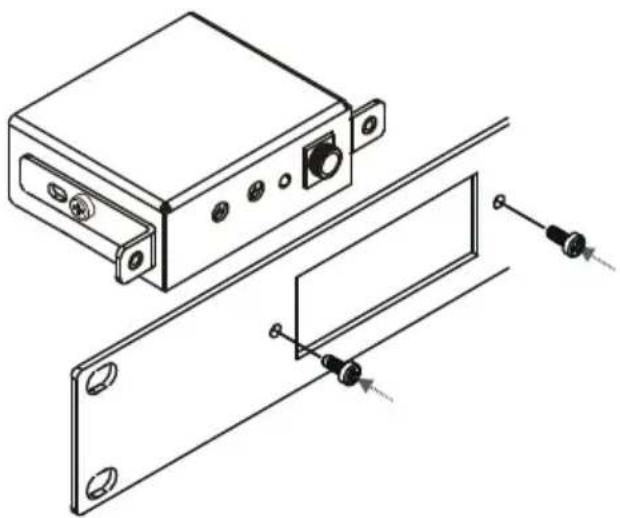

1. Use the same screws to attach the bracket ears onto the rack adapter panel from its rear side.

If a blank panel is not attached to the rack adapter opening, use two M3x8 Philips screws (provided with the kit) to connect the bracket ears to the rack adapter.

Technical line drawing of a device housing with mounting holes and two separate panels (no text or symbols)

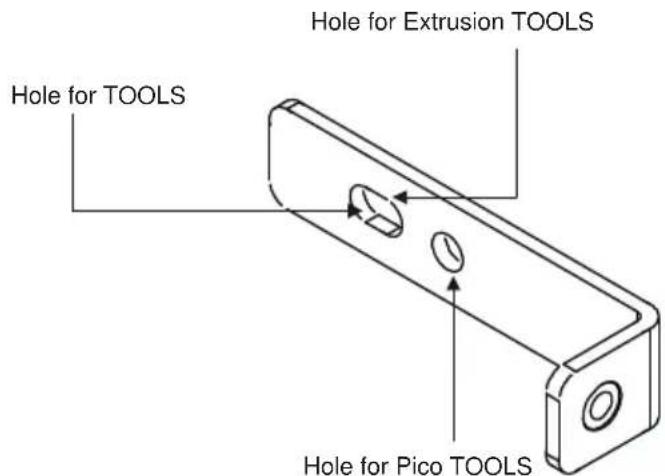

Hole for EXTRUSION TOOLS Hole for TOOLS Hole for Pico TOOLS

Figure 10: The Connecting Bracket

5.2 Installing a Kramer Extrusion Type TOOL

When installing an extrusion type Kramer TOOL, check if the front panel is protruding. If not, follow the instructions in section 5.1 to connect it to the rack adapter.

If the front panel is protruding, do the following:

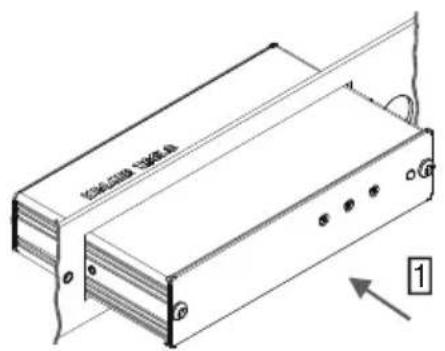

1. Insert the TOOL through the appropriate front opening of the rack adapter.

Technical line drawing of a rectangular electronic device with mounting holes and a label pointing to component 1 (no readable text or symbols)

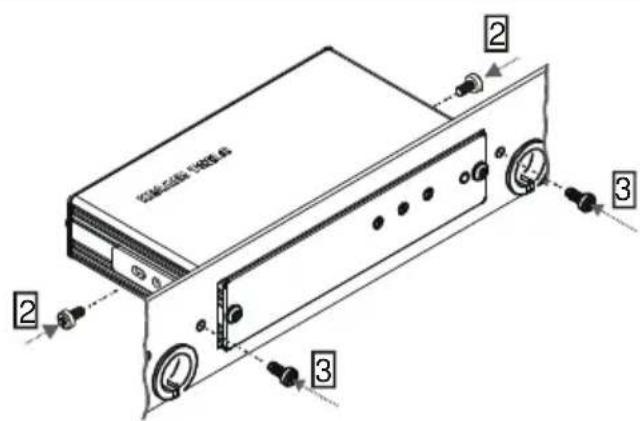

1. Connect the brackets to the TOOL using two ^1 of the screws provided with the rack adapter kit ^2 .

2. Connect the brackets to the rack adapter.

功能三盒 10000 ② ③ ② ③
